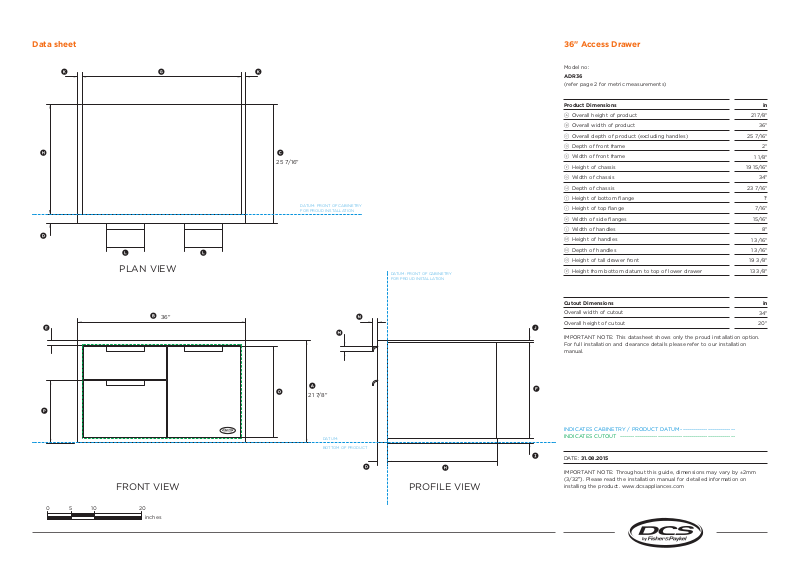

Data sheet
in
21 7/8"
36"
25 7/16"
2"
1 1/8"
19 15/16"
34"
23 7/16"
1"
7/16"
15/16"
8"
1 3/16"
1 3/16"
19 3/8"
13 3/8"
in
34"
20"
6" Access Drawer
G
h
kk
C
25 7/16"
DATUM: FRONT OF CABINETRY
FOR PROUD INSTALLATION
d
l l
PLAN VIEW
B
36"
E
n
m
DATUM: FRONT OF CABINETRY
FOR PROUD INSTALLATION
j
Model no:
ADR36
(refer page 2 for metric measurements)
Product Dimensions
a Overall height of product
B Overall width of product
c Overall depth of product (excluding handles)
d Depth of front frame
e Width of front frame
f Height of chassis
g Width of chassis
H Depth of chassis
I Height of bottom flange
j Height of top flange
k Width of side flanges
l Width of handles
m Height of handles
n Depth of handles
o Height of tall drawer front
P Height from bottom datum to top of lower drawer
Cutout Dimensions
Overall width of cutout
Overall height of cutout
IMPORTANT NOTE: This datasheet shows only the proud installation option.
For full installation and clearance details please refer to our installation
manual.
p
0 5 10 20
FRONT VIEW
inches
o
A
21 7/8"
DATUM:
BOTTOM OF PRODUCT
d
h
PROFILE VIEW
F
INDICATES CABINETRY / PRODUCT DATUM --------------------------
INDICATES CUTOUT -------------------------------------------------------
i
DATE: 1.08.2015
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
''). Please read the installation manual for detailed information on
(3/32
installing the product. www.dcsappliances.com
Data sheet
mm
556
914
646
51
28
507
864
595
25
11
23
204
30
30
492
340
mm
864
508
6" Access Drawer
G
h
kk
C
646
DATUM: FRONT OF CABINETRY
FOR PROUD INSTALLATION
d
l l
PLAN VIEW
B
914
E
n
m
DATUM: FRONT OF CABINETRY
FOR PROUD INSTALLATION
j
Model no:
ADR36
(refer page 1 for imperial measurements)
Product Dimensions
a Overall height of product
B Overall width of product
c Overall depth of product (excluding handles)
d Depth of front frame
e Width of front frame
f Height of chassis
g Width of chassis
H Depth of chassis
I Height of bottom flange
j Height of top flange
k Width of side flanges
l Width of handles
m Height of handles
n Depth of handles
o Height of tall drawer front
P Height from bottom datum to top of lower drawer
Cutout Dimensions
Overall width of cutout
Overall height of cutout
IMPORTANT NOTE: This datasheet shows only the proud installation option.
For full installation and clearance details please refer to our installation
manual.
p
0 100 200 400
FRONT VIEW
millimetres
o
A
556
DATUM:
BOTTOM OF PRODUCT
d
h
PROFILE VIEW
F
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CUTOUT -------------------------------------------------------
i
DATE: 1.08.2015
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
''). Please read the installation manual for detailed information on
(3/32
installing the product. www.dcsappliances.com
