Page 1
FASTER BOILING TIME:
There are some occasions in cooking when you simply need more power: when preparing
fried tempura, sautéed noodles or blanched vegetables, for example. Turn on the gas of the DCS sealed Dual Flow
Burner
TM
and you’ll get a CENTER burner delivering 17,500 Btu’s, the most in the category. Simply stated, nothing boils
water faster. This means more impressive dinner in a shorter time.
CONSISTENTLY LOWER SIMMER TEMPERATURE:
Turn other residential burners down to simmer and the flame
looks much the same as before, only smaller. Not so at DCS. The primary flame on our sealed Dual Flow Burners
TM
shuts off automatically when you turn it to simmer, leaving a smaller “retention flame” burning. This allows you to
maintain a constant simmer temperature as low as 140 degrees, for an efficient and safe simmer. This means no more
scalding delicate sauces.
MORE EXCEPTIONAL FEATURES: Ergonomic designer control knobs with illuminated bezels. Sealed cooktops have been
designed for easy cleanup. Platform style surface grates allow you to move heavy pots and pans from one burner to
another without lifting. This means easier and safer cooking.
At DCS we couple power with precision to attain your most essential cooking ingredient: PERFECT HEAT
TM
.

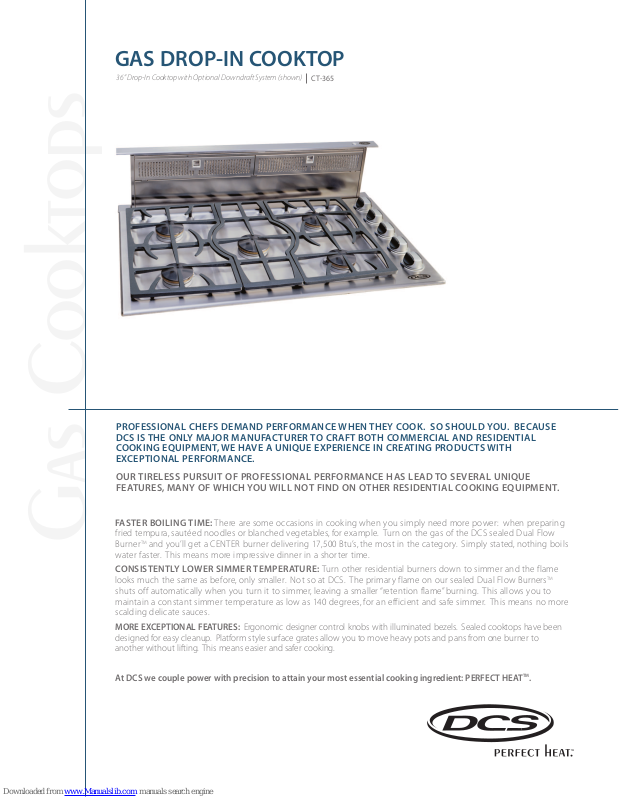

GAS DROP-IN COOKTOP
Gas Cooktops
36” Drop-In Cooktop with Optional Downdraft System (shown)
CT-365
PROFESSIONAL CHEFS DEMAND PERFORMANCE WHEN THEY COOK. SO SHOULD YOU. BECAUSE
DCS IS THE ONLY MAJOR MANUFACTURER TO CRAFT BOTH COMMERCIAL AND RESIDENTIAL
COOKING EQUIPMENT, WE HAVE A UNIQUE EXPERIENCE IN CREATING PRODUCTS WITH
EXCEPTIONAL PERFORMANCE.
OUR TIRELESS PURSUIT OF PROFESSIONAL PERFORMANCE HAS LEAD TO SEVERAL UNIQUE
FEATURES, MANY OF WHICH YOU WILL NOT FIND ON OTHER RESIDENTIAL COOKING EQUIPMENT.
TM
Page 2
Warran ty
All Gas Cooktops are covered by a one (1) year comprehensive parts and labor
warranty. In addition, a five (5) year limited parts warranty covers specific parts that
vary by model. Please see the product Use and Care Manual for the specified
parts covered under this warranty. A lifetime warranty covers all stainless steel
components against manufacture related defects. This excludes discoloration or
surface corrosion resulting from improper use and care. Please refer to product Use
and Care Manual for proper care and maintenance.
Because of continuing product improvement these specifications are subject to
change without notice.
For more information on our complete line of residential kitchen
appliances or to find out more about our outdoor product line,
please call 1.800.433.8466 or visit www.dcsappliances.com
©2003 DCS 5800 Skylab Road, Huntington Beach,CA 92647
min. 36" wide hood
CAUTION:
36" min. to
combustible
material ,
from cooking
surface
G
F
H
I
J
# OF SEALED,DUAL FLOW BURNERS
TM
CENTER BURNERS Btu/hr*
OUTER BURNERS Btu/hr*
SEALED COOKING SURFACE
POWER
SHIPPING WEIGHT, LBS.
MODEL NUMBER
CT-365
Cooktop Configuration:
Product Dimensions:
Cabinet Preparation:
Power Requirements:
120V 60Hz
3 wire 15 amp circuit
Gas Requirements:
1/2 NPT,Min. 5/8”dia. flex line
Pressure: 6” to 14” W.C. (Nat.)
Pressure: 11” to 14” W.C. (LP)
Recommended Accessories:
VENTILATION:
Wall Mount Vent Hood (VH-36)
Island Vent Hood (IVH-36)
Euro Vent Hood (EH-36)
Downdraft System (DD-36-SS)
Ordering Data:
Please specify color when ordering
Please specify gas type (natural or propane) when ordering
Available Colors:
COOKTOP COLORS:
Stainless Steel
Black
White
*Btu ratings shown for Natural gas only. Propane Btu ratings may vary.
5
17,500
11,000
•
Gas
65
P/N 17597 REV.A 01/03
side viewfront view
D
E
C
B
A
CT-365
G
CAUTION:
36" min. to
combustible
material ,
from cooking
surface
F
H
I
J
K
L
M
min. 36"
N
P
electrical
and
gas supply
Drop-in cooktop cut-out dimensions
Drop-in cooktop cut-out dimensions with
DCS downdraft (DD-36-SS)
∆ As defined in the “National Fuel Gas Code”
(ANSI Z223.1, lastest edition).
The horizontal surfaces of the range top
(cooktop) trim must not be below countertop
level.
A) 34-1/2”
B) 36”
C) 4”
D) 19-1/2”
E) 21”
F) 18” min.
G) 13” max.
H) 5” min. to
combustibles
∆
I) 19-3/4” depth
J) 34-3/4”
F) 18” min.
G) 13” max.
H) 5” min. to
combustibles
∆
I) 19-3/4” depth
J) 34-3/4” width
K) 33-1/2” width
L) 1/2” min.
M) 2-1/2”
N) 18”
P) 5”
TM
