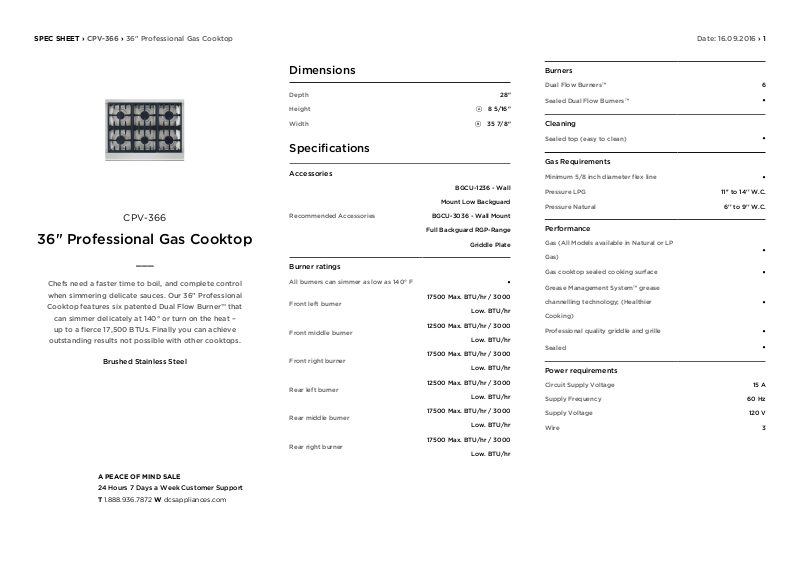

SPEC SHEET › CPV-366 › 36" Professional Gas Cooktop Date: 16.09.2016 › 1
CPV-366
36" Professional Gas Cooktop
___
Chefs need a faster time to boil, and complete control
when simmering delicate sauces. Our 36" Professional
Cooktop features six patented Dual Flow Burner™ that
can simmer delicately at 140° or turn on the heat –
up to a fierce 17,500 BTUs. Finally you can achieve
outstanding results not possible with other cooktops.
Brushed Stainless Steel
Dimensions
Depth 28"
Height
Width
A8 5/16"
B35 7/8"
Specifications
Accessories
BGCU-1236 - Wall
Mount Low Backguard
Recommended Accessories
Burner ratings
All burners can simmer as low as 140° F
Front left burner
Front middle burner
Front right burner
Rear left burner
Rear middle burner
Rear right burner
BGCU-3036 - Wall Mount
Full Backguard RGP-Range
Griddle Plate
17500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
Burners
Dual Flow Burners™ 6
Sealed Dual Flow Burners™
•
Cleaning
Sealed top (easy to clean)
•
Gas Requirements
Minimum 5/8 inch diameter flex line
Pressure LPG 11'' to 14'' W.C.
Pressure Natural 6'' to 9'' W.C.
•
Performance
Gas (All Models available in Natural or LP
Gas)
Gas cooktop sealed cooking surface
•
Grease Management System™ grease
channelling technology; (Healthier
Cooking)
Professional quality griddle and grille
Sealed
•
•
•
•
•
Power requirements
Circuit Supply Voltage 15 A
Supply Frequency 60 Hz
Supply Voltage 120 V
Wire 3
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W dcsappliances.com
SPEC SHEET › CPV-366 › 36" Professional Gas Cooktop Date: 16.09.2016 › 2
Ventilation
Minimum 600 - 1200 CFM
VS36 - 36" Pro Wall Mount
Recommended
SKU 71090
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © 2016 DCS by Fisher & Paykel Appliances Limited
Other product downloads available at dcsappliances.com
Vent Hood IVS40 - 40" Pro
Island Vent Hood ES36 -
36" E-Pro Vent Hood
