MODEL CMOTTK30 CONVECTION MICROWAVE TRIM KIT
INSTALLATION INSTRUCTIONS

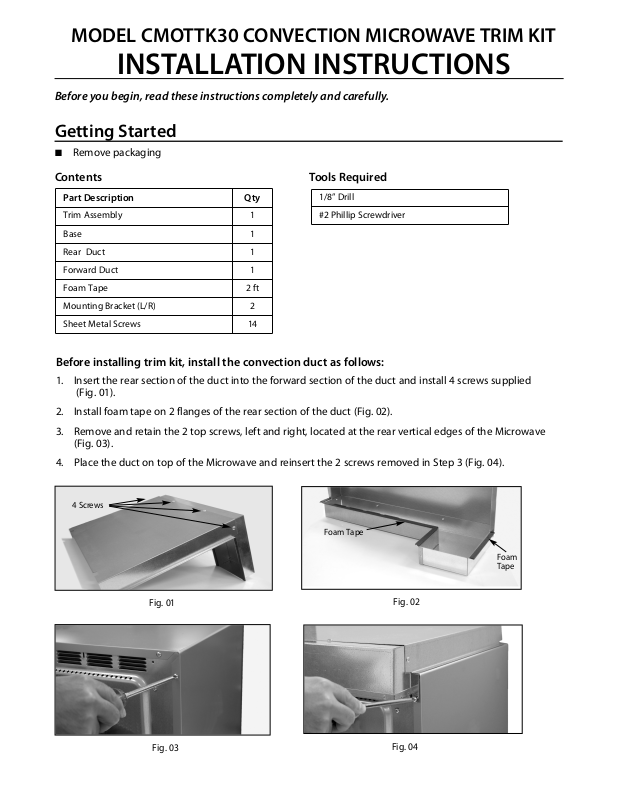

Before installing trim kit, install the convection duct as follows:
1. Insert the rear section of the duct into the forward section of the duct and install 4 screws supplied
(Fig. 01).
2. Install foam tape on 2 flanges of the rear section of the duct (Fig. 02).
3. Remove and retain the 2 top screws, left and right, located at the rear vertical edges of the Microwave
(Fig. 03).
4. Place the duct on top of the Microwave and reinsert the 2 screws removed in Step 3 (Fig. 04).
Before you begin, read these instructions completely and carefully.
Getting Started
■ Remove packaging
Contents Tools Required
Part Description Qty
Trim Assembly 1
Base 1
Rear Duct 1
Forward Duct 1
Foam Tape 2 ft
Mounting Bracket (L/R) 2
Sheet Metal Screws 14
1/8” Drill
#2 Phillip Screwdriver
Fig. 01
Fig. 02
Fig. 03
Fig. 04
4 Screws
Foam Tape
Foam
Tape
Page 2
Installing Trim Kit
1. Cut opening in the cabinet face per the following dimensions:
Height: 19-3/16” + 1/16”, –0
Width: 25-3/4” + 1/16”, –0
Note: Refer to diagram on the following page. The minimum
cabinet depth is 20”. When installing the Microwave
and Trim Kit in combination with a Wall Oven or
Warming Drawer, please follow the recommendations
in the Microwave Installation/ Use & Care Manual.
2. Add adequate platform base support in the bottom of the
cabinet for trim kit base to rest on.
3. Mark a centerline on the front edge of the cabinet bottom
(Fig. 05).
4. Place trim kit base and align centerline mark to the triangular
notch on the front edge of the base (Fig. 06).
5. Drill 1/8” pilot holes in the cabinet using the base as a template
and install a screw through the base into the cabinet to prevent
the base from shifting (Fig. 07).
6. Insert Microwave into opening on top of the base. The
Microwave feet should sit in the recesses on the base for correct
alignment. The Microwave should be plugged in at this point.
7. Place the right and left mounting bracket supports by resting
the bottom edges of the supports on the bottom of the cutout
(Fig. 08). The long flange on the side supports should clear the
side of the cutout by approximately 1/16” (see Fig. 09). Install
top screws into the cabinet face by first drilling 1/8” pilot holes
(see inserts 3 and 4).
8. Install trim kit face by inserting top pins of trim into
corresponding sockets on the top corners of clip support plates
(see insert 1).
9. Finish the assembly by inserting the bottom pins into the
corresponding sockets on front edge of the base (see insert 3).
Check for proper door opening clearances.
1/16"
Fig. 09
Fig. 05
Fig. 06
Fig. 07
Fig. 08
Bracket
Support
on the
bottom
of cutout
Page 3
Stainless Steel Care
This Trim Kit is made of stainless steel. Use the mildest cleaning procedure first. Start with hot soapy water,
rinse and dry. If the trim kit has food soil remaining, try a general kitchen cleaner, such as Fantastik®, Simple
Green® or Formula 409®. Apply cleaner with a damp sponge, rinse thoroughly and dry. Always scrub lightly
in the direction of the grain. Do not use a steel wool pad, it will scratch the surface. To touch up noticeable
scratches in the stainless steel, sand very lightly with dry 100 grit emery paper, rubbing in the direction of the
grain. After cleaning use a stainless steel polish, such as Stainless Steel Magic®.

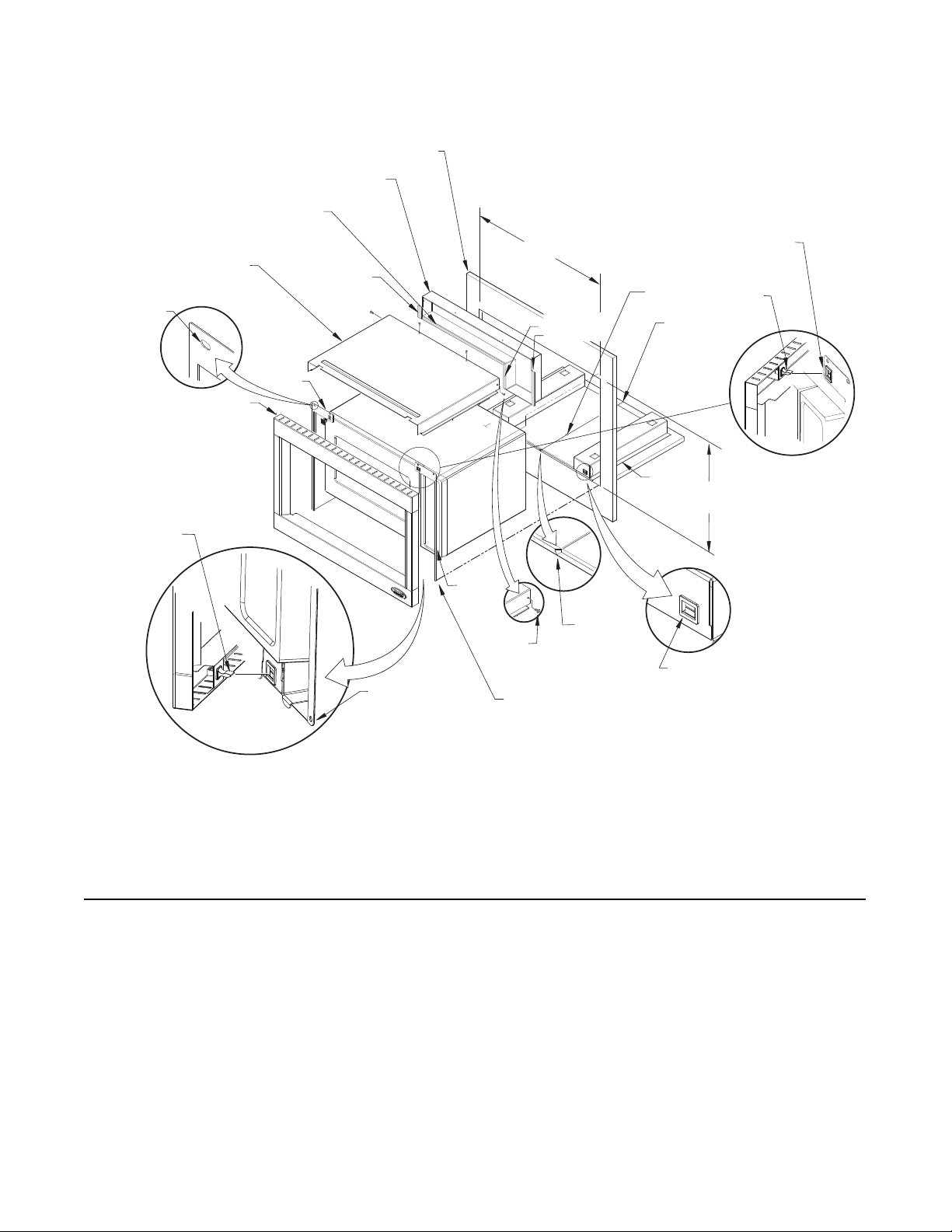

SCREW HOLE
INSERT 1
INSERT 2
INSERT 3
INSERT 4
FORWARD
CONVECTION
DUCT
TRIM KIT
ASSEMBLY
FOAM TAPE ON
THIS FLANGE
FOAM TAPE ON
THIS FLANGE
MOUNTING
BRACKET
SUPPORT
REAR
CONVECTION
DUCT
CABINET
25 3/4" +1/16"-0
FOAM TAPE ON
THIS FLANGE
HORIZONTAL CLIP
ORIENTATION
ON MOUNTING
"
1/8" HOLE FOR
MOUNTING
SCREW
CENTER
LINE
BRACKET
TOP PIN
OF TRIM
BOTTOM PIN OF TRIM
SCREW HOLE
FLANGE
TOP SCREW
LOCATE MOUNTING BRACKET
IN BOTTOM CORNERS
OF CUTOUT
TRIANGULAR
CENTERING
NOTCH
BASE
CABINET CUT-OUT:
19 13/16
" +1/16" -0"
HORIZONTAL
CLIP ORIENTATION
ON BASE
Page 4
5800 Skylab Road, Huntington Beach, CA 92647
Tel: 714.372.7000 • Fax: 714.372.7001
Customer Service: 888.281.5698
www.dcsappliances.com
P/N 241185 Rev. A 10/07
