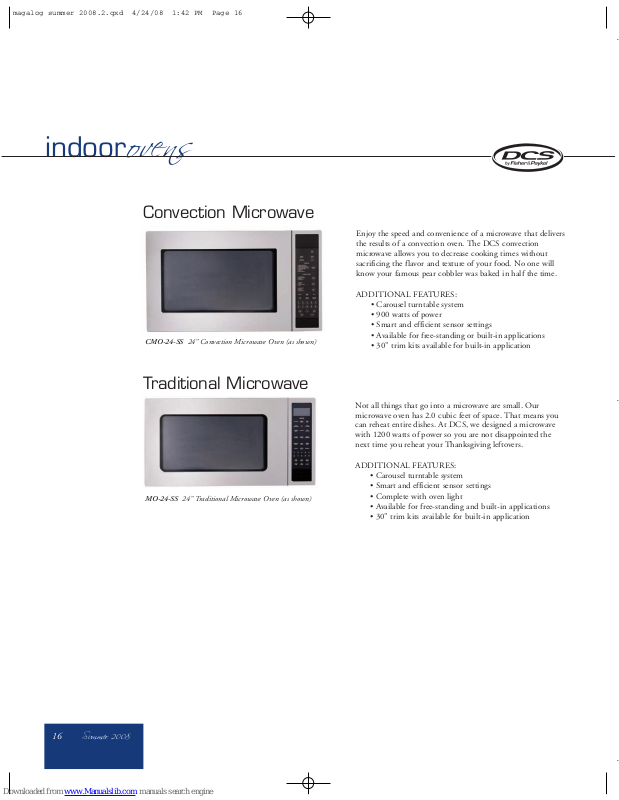

Enjoy the speed and convenience of a microwave that delivers
t
he results of a convection oven. The DCS convection
microwave allows you to decrease cooking times without
sacrificing the flavor and texture of your food. No one will
know your famous pear cobbler was baked in half the time.
ADDITIONAL FEATURES:
• Carousel turntable system
• 900 watts of power
• Smart and efficient sensor settings
• Available for free-standing or built-in applications
• 30” trim kits available for built-in application
Not all things that go into a microwave are small. Our
microwave oven has 2.0 cubic feet of space. That means you
can reheat entire dishes. At DCS, we designed a microwave
with 1200 watts of power so you are not disappointed the
next time you reheat your Thanksgiving leftovers.
ADDITIONAL FEATURES:
• Carousel turntable system
• Smart and efficient sensor settings
• Complete with oven light
• Available for free-standing and built-in applications
• 30” trim kits available for built-in application
CMO-24-SS 24" Convection Microwave Oven (as shown)
MO-24-SS 24" Traditional Microwave Oven (as shown)
Convection Microwave
Traditional Microwave
indoorovens
magalog summer 2008.2.qxd 4/24/08 1:42 PM Page 16
Page 2
Summer 2008 17

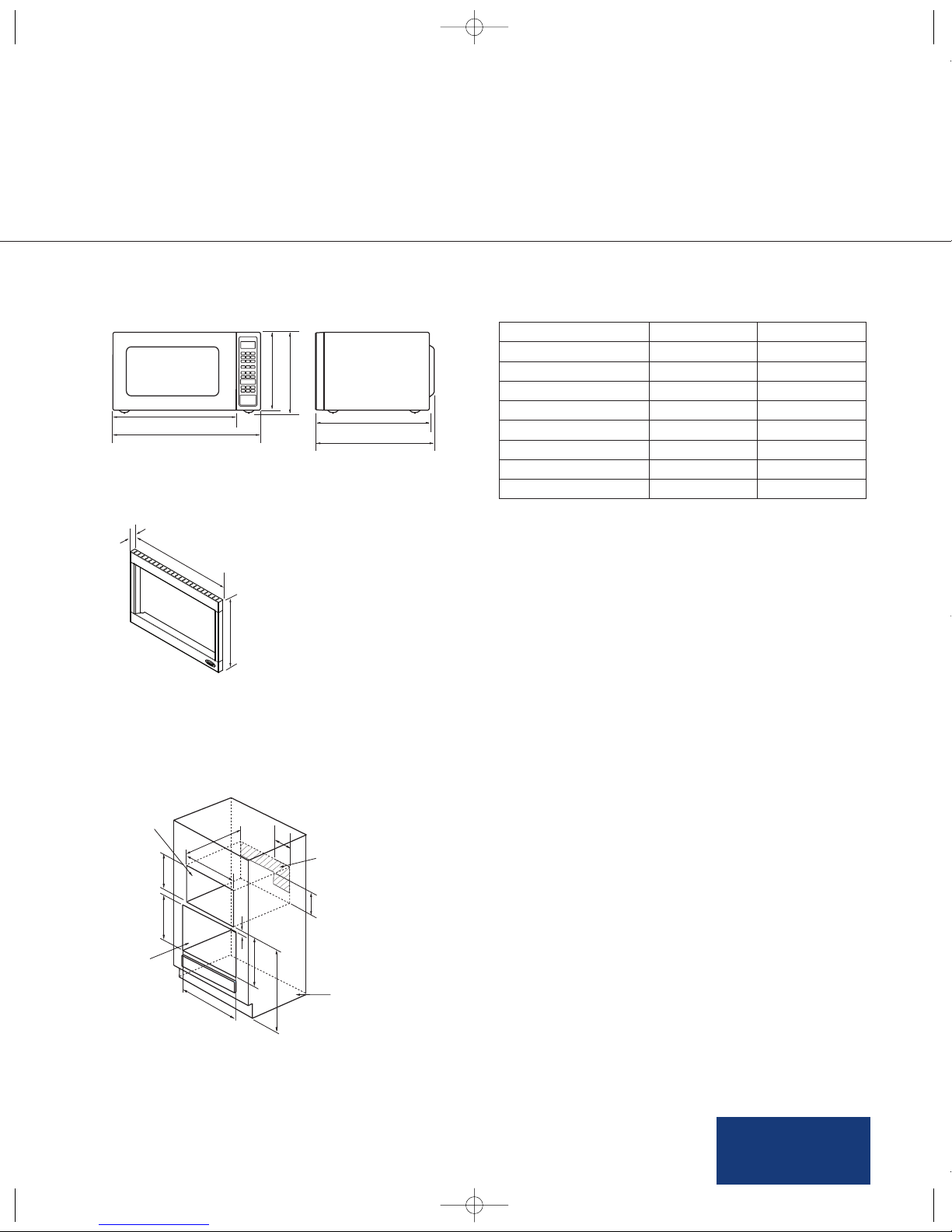

front view side view
E
F
C
A
B
D
I
H
G
F
wall oven
cutout
should not be
located in the
shaded area*
microwave
cutout
see note**
CMO electrical
outlet
clearance
A
D
H
J
C
G
B
For built-in installation of a microwave, a built-in trim kit is required (MOTTK30 or CMOTTK30).
* If the dimension of DEPTH (D) is morethan21”, the outlet location may be located in any area on the rearwall.
** The oor of the opening should be constructed of plywoodstrongenough to support the weight of the oven.
K
E
2
3-15/16" (MO)
2
4-3/4" (CMO)
13-3/8" (MO)
1
4-3/4" (CMO)
2
0" (MO)
2
0-3/8" (CMO)
12-5/8" (MO)
14-1/4" (CMO)
19-1/4" (MO)
18-5/8" (CMO)
18-1/8" (MO)
17-5/8" (CMO)
18-7/8" (MOTTK30)
20-1/2" (CMOTTK30)
1-1/2" (CMOTTK/MOTTK30)
29-11/16" (CMOTTK/MOTTK30)
A)
B)
C)
D)
E)
F)
G)
H)
I)
17" (+1/16, –0) (MO)
19-3/16 (+1/16, –0) (CMO)
28-13/16" (min.) (MO)
28-5/16" (min.) (CMO)
24-3/4" (+1/16, –0) (MO)
25-3/4" (+1/16, –0) (CMO)
20" min.
4" (MO)
15-3/8" (CMO)
6" (MO)
6-7/8" (CMO)
26-13/16" (+ 1/16, –0)
40-1/4" (suggested)
28-1/2"
2” (MO)
1-1/2” (CMO)
A)
B)
C)
D)
E)
F)
G)
H)
J)
K)
Microwave Ovens 24” Traditional 24” Convection
MODEL NUMBER MO-24-SS CMO-24-SS
MICROWAVE POWER 1200 WATTS 900 WATTS
CONVECTION ELEMENT
1450 WATTS
OVEN SPACE 2.0 CUBIC FEET 1.5 CUBIC FEET
BUILT-IN
✔ ✔
FREE STANDING
✔ ✔
SEALED EASY
-CLEAN INTERIOR SURFACE
✔ ✔
PROFESSIONAL TRIM KIT A
VAILABLE
✔ ✔
Power Requirements:
> 120V 60Hz
>
3 wire
> 15 amp circuit
Recommended Accessories
TRIM KITS:
> 30” Traditional Microwave built-in trim kit (MOTTK30)
> 30” Convection Microwave built-in trim kit (CMOTTK30)
Microwave Oven Dimensions:
Microwave Oven Built-in Dimensions:
Trim Kit
