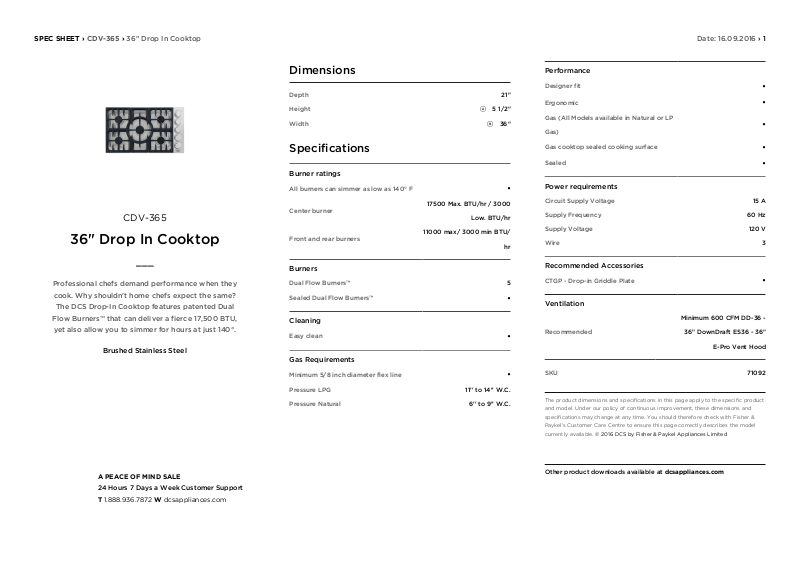

DCS CDV-365 Specification Sheet
SPEC SHEET › CDV-365 › 36" Drop In Cooktop Date: 16.09.2016 › 1
CDV-365
36" Drop In Cooktop
___
Professional chefs demand performance when they
cook. Why shouldn't home chefs expect the same?
The DCS Drop-In Cooktop features patented Dual
Flow Burners™ that can deliver a fierce 17,500 BTU,
yet also allow you to simmer for hours at just 140°.
Brushed Stainless Steel
Dimensions
Depth 21"
Height
Width
A5 1/2"
B36"
Specifications
Burner ratings
All burners can simmer as low as 140° F
Center burner
Front and rear burners
Burners
Dual Flow Burners™ 5
Sealed Dual Flow Burners™
Cleaning
Easy clean
Gas Requirements
Minimum 5/8 inch diameter flex line
Pressure LPG 11'' to 14'' W.C.
Pressure Natural 6'' to 9'' W.C.
17500 Max. BTU/hr / 3000
Low. BTU/hr
11000 max/ 3000 min BTU/
Performance
Designer fit
Ergonomic
Gas (All Models available in Natural or LP
Gas)
Gas cooktop sealed cooking surface
Sealed
•
hr
Power requirements
Circuit Supply Voltage 15 A
Supply Frequency 60 Hz
Supply Voltage 120 V
Wire 3
•
•
•
•
•
Recommended Accessories
CTGP - Drop-in Griddle Plate
•
•
•
Ventilation
Minimum 600 CFM DD-36 -
Recommended
SKU 71092
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © 2016 DCS by Fisher & Paykel Appliances Limited
36" DownDraft ES36 - 36"
E-Pro Vent Hood
•
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W dcsappliances.com
Other product downloads available at dcsappliances.com
