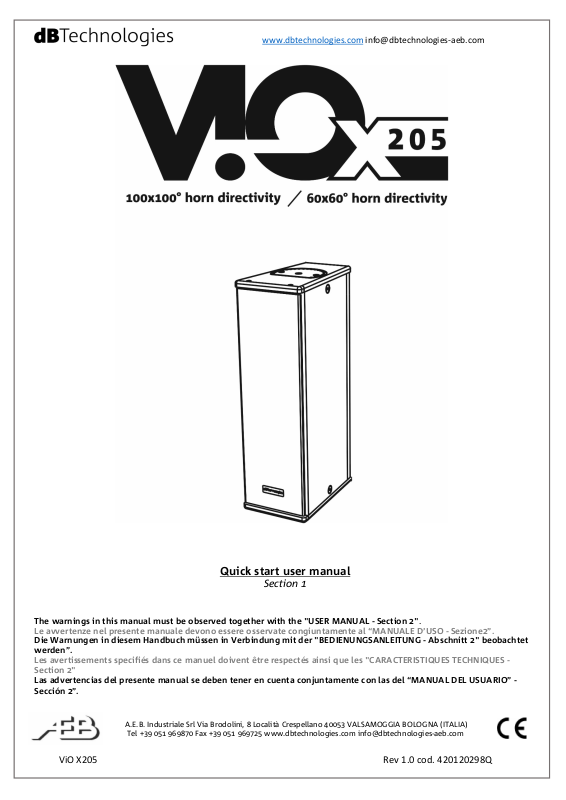

Quick start user manual
The warnings in this manual must be observed together with the "USER MANUAL - Section 2".
Le avvertenze nel presente manuale devono essere osservate congiuntamente al “MANUALE D’USO - Sezione2”.
Die Warnungen in diesem Handbuch müssen in Verbindung mit der "BEDIENUNGSANLEITUNG - Abschnitt 2" beobachtet
werden”.
Les avertissements specifiés dans ce manuel doivent être respectés ainsi que les "CARACTERISTIQUES TECHNIQUES Section 2"
Las advertencias del presente manual se deben tener en cuenta conjuntamente con las del “MANUAL DEL USUARIO” Sección 2”.
A.E.B. Industriale Srl Via Brodolini, 8 Località Crespellano 40053 VALSAMOGGIA BOLOGNA (ITALIA)
Tel +39 051 969870 Fax +39 051 969725 www.dbtechnologies.com info@dbtechnologies-aeb.com
Section 1
ViOX205Rev1.0cod.420120298Q
www.dbtechnologies.cominfo@dbtechnologies‐aeb.com
Thank you for choosing a dBTechnologies Product!
The VIO X205 is a versatile active speaker. It is equipped with one 1” (1.4” voice coil), and two 5” woofer (1” voice
coil). The acoustical design allows the vertical or horizontal usage (for example in under-balcony applications). The
coverage pattern is 60° x 60° (VIO X205-60) or 100° x 100° (VIO X205-100), depending on the model. A local DSP
presets control rotary and RDNet connections for remote control increase versatility in different scenarios.
Check the site www.dbtechnologies.com for the complete user manual!
1) Unpacking
The box contains:
N°1 VIO X205
N°1 Mains cable
This quick start and warranty documentation
2) Easy installation
Vio X205 is equipped with:
The acoustical design allows to face different
environments. The dispersion pattern is shown in the
below pictures.
As described, the related pattern data are: 60° x 60°
(VIO X205-60) or 100° x 100° (VIO X205-100),
depending on the model.
A –Mechanical predisposition for brackets
B – Rear amp control panel
Those mechanical particulars were thought for an easy
use and for different configuration needs.
The main configurations are two: wall-mounted, and
on tripod stand. The main accessories are shown here
below:
IT IS MANDATORY TO READ THE COMPLETE
USER MANUAL!
ViOX205Rev1.0cod.420120298Q
