Datasheet
VIO L210
2-Way Active Line Array Module
900W RMS CLASS-D DIGIPRO G3
Applications
- Large live sound applications
- Permanent installation in theatres, houses of
worship, convention centres
- Portable PA, retail, clubs, ballrooms, houses of
worship, corporate AV, live theatres
Features
- 2-Way active line array module
- Network ready with an integrated RDNet port
- Integrated rigging hardware
- Exclusively designed HF waveguide
- Aluminium phase plugs for constant
dispersion
- Advanced DSP featuring FIR Filters
- Up to 6 modules in a single 16A 230V circuit
- Lightweight neodymium magnets
- On-Board double rotary EQ control system
- Smooth conguration and set up operations
Description
As a result of many years’ experience
developing solutions for powered line array
systems, VIO L210 reaches the next level
among dBTechnologies’ speaker range aimed
at larger sound reinforcement applications. The
internal acoustic design and sound processing
developed by dBTechnologies’ R&D department
merge to deliver outstanding performances in
terms of sound pressure, coverage coherence,
intelligibility and sound denition.
Made of solid multiplex plywood coated with
a black polyurea nish, the housing is fronted
with a black grille which complete a sober,
unobtrusive look which can easily adapt to any
scenic design. The speaker’s cabinet is easy to
tote thanks to its 4 handles, 1 per side and 2 on
the back, and its amplier module is protected
with an integrated black raincover.
Acoustic enclosure is completed by two massive
aluminum phase plugs located in front of
both 10” woofers. Their external surface is the
prosecution of the constant directivity highfrequency waveguide.
Each phase plug features 26 diamond-shaped
holes essential to reduce the interference
between the two LF emission points and to
improve frequency and transient response.
The two premium 10” neodymium transducers,
positioned in a V form and sealed in a
bass reex enclosure, have been customdesigned to improve efciency. In facts, their
voice coils, made of copper plus aluminum
coating, are designed to last even in the most
demanding conditions, providing an accurate
transient response and an extended low-end
reproduction. Furthermore, these transducers
have been specically designed for the VIO
in order to make the most of the system. One
single 3” voice coil compression driver (1.4” exit
throat) accurately delivers high frequencies. A
brand new waveguide contributes to create a
cylindrical wavefront, allowing a very precise
high-frequency directivity control, much to the
advantage of the system’s throw-distance. The
crossover frequency between the 2 ways lows
down to 950 Hz and each module guarantees a
uniform 100° horizontal coverage.
VIO L210 features a double rotary user interface
to process the system manually. The rst rotary
is dedicated to low frequency adjustments in
order to control coupling effects depending on
the array dimensions. The second rotary helps
to compensate for the high frequencies loss due
to throw distance.
Both rotaries features several accurate
presets, while the prediction software
dBTechnologies Composer provides for more
precise congurations. Any preset can be easily
changed remotely via dBTechnologies Network.
Page 1 of 4
rev.1.0 - 2016
VIO L210
Technical Specications
Techinical Data
Speaker Type 2-Way active line array module
Acoustical data
Usable Bandwidth [-6dB] 67 - 20.000 Hz
Frequency Response [+/- 3dB] 78 - 18.100 Hz
Max SPL One Unit: 135 dB
HF HF: 1x 1.4”
Voice Coil HF 3”
Typ e HF Neodymium
LF 2x 10”
Voice Coil LF 2.5”
Type LF Neodymium
Horizontal Directivity 100°
Vertical Directivity Depends on array size and conguration | one unit:10°
Amplier
Amp Technology Digipro® G3
Amp Class Class-D
RMS Power 900 W
Peak Power 1800 W
Cooling Convection
Power Supply 900 W SMPS with Auto-range PSU
Processor
Controller DSP 56 bit
AD/DA converter 24bit/48 kHz
Limiter Dual active multiband peak, RMS, Thermal
Processing (lters) FIR Linear Phase
Crossover Frequency LF-HF 950 Hz
Slope LF-HF 24 dB/Octave
Rear Panel
Signal Input 1x XLR female, balanced
Signal Output 1x XLR male, balanced
Network RDNet remote control RJ45 connector IN/OUT
Power Socket
Controls
Mechanics
Housing Multiplex plywood - Polyurea painting
Housing Design Trapezoidal - 10°
Handles 1 x Side, 2 Rear
Rain Cover Included
Rigging Points Integrated rigging hardware
Dimensions ( Width x Height x Depth ) 720 x 320 x 520 mm (28.35 x 12.6 x 20.47 in)
Weight 28.6 kg (63 lbs)
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
1x Speakers coupling (7 presets)
1x HF compensation (8 presets)
1x Input attenuation rotary switch
Page 2 of 4
rev.1.0 - 2016
VIO L210
Technical Specications

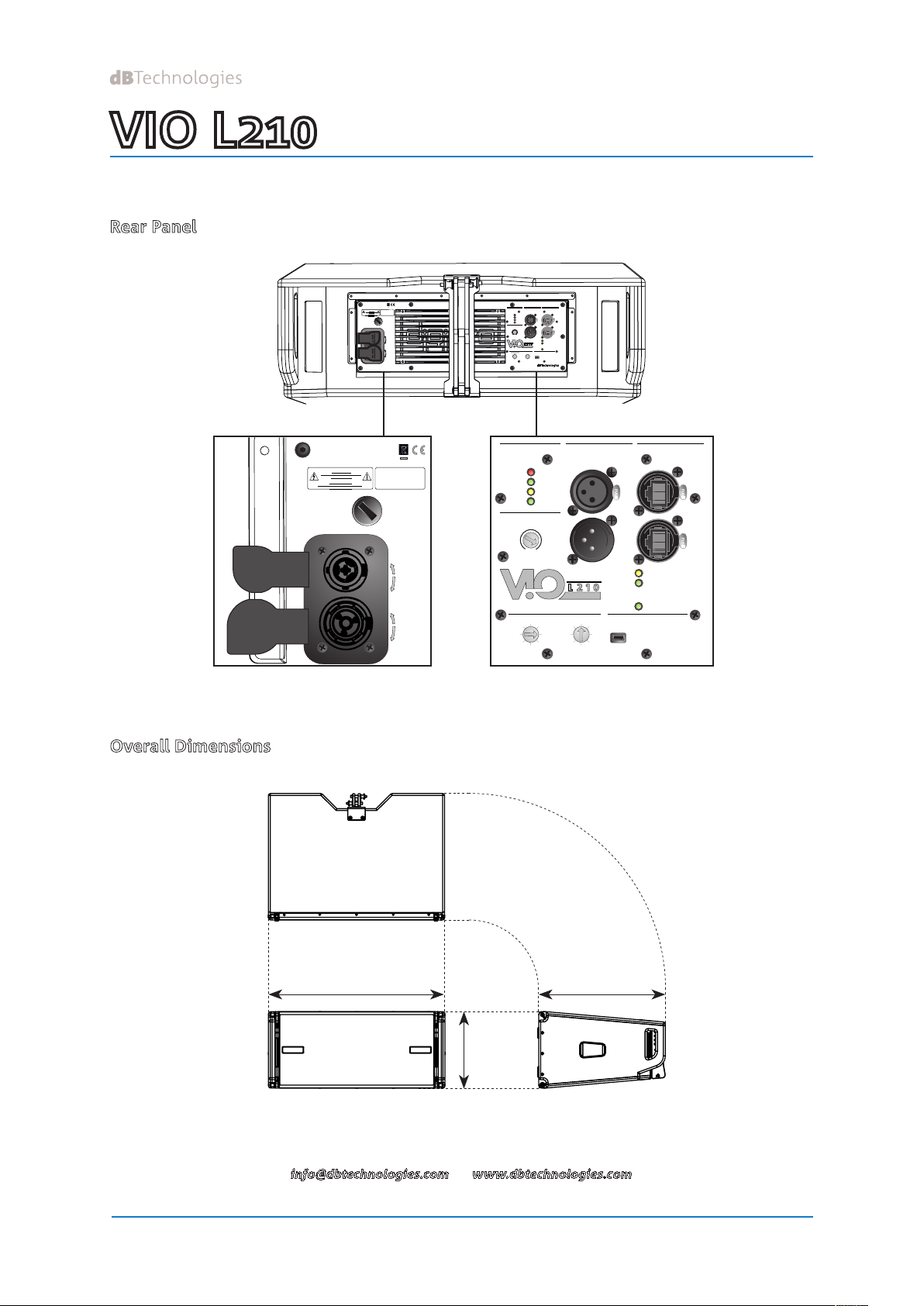

Rear Panel
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Made in China
“CAUTION”
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
“ATTENTION”
RISQUE DE CHOCH ELECTRIQUE
NE
PAS OUVRIR
MAINS FUSE
220-240V~
(T5A L 250V~)
100-120V~
(T10A L 250V~)
(REPLACE FUSE WITH SAME RATINGS)
(REMPLACER LE FUSIBLE AVEC LE MÊME TYPE)
AUTO-RANGE
MAINS INPUT
O
FF
220-240V~
50-60Hz
1.6A
O
N
100-120V~
50-60Hz
2.8A
MAINS LINK
O
FF
220-240V~
(14,4Amax)
3312Wmax
O
N
100-120V~
(17,2Amax)
1892Wmax
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
“CAUTION”
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
“ATTENTION”
RISQUE DE CHOCH ELECTRIQUE
NE
PAS OUVRIR
Made in China
MAINS FUSE
220-240V~
(T5A L 250V~)
100-120V~
(T10A L 250V~)
(REPLACE FUSE WITH SAME RATINGS)
(REMPLACER LE FUSIBLE AVEC LE MÊME TYPE)
AUTO-RANGE
MAINS INPUT
220-240V~
OFF
50-60Hz
1.6A
ON
100-120V~
50-60Hz
2.8A
MAINS LINK
220-240V~
OFF
(14,4Amax)
3312Wmax
ON
100-120V~
(17,2Amax)
1892Wmax
Status Balanced Audio
RDNet
Input
Data
In
Limiter
Signal
PUSH
PUSH
Mute/Prot
Ready
Audio Attenuation
-9dB
-12dB
-6dB
Output
Data
PUSH
Link
Out
-3dB
-24dB
0dB
∞
Link
Active
Remote Preset
Active
Service / User
1
USB Data Service
2
8
A
DSP
G
PRESET
3
7
B
F
4
C
6
E
5
D
SPEAKERS
HIGH FREQ
COUPLING
COMPENSATION
DESIGNED & DEVELOPED
IN ITALY
Status Balanced Audio
Limiter
Signal
Mute/Prot
Ready
Audio Attenuation
-9dB
-12dB
-6dB
-3dB
-24dB
0dB
∞
DSP
PRESET
Service / User
G
F
E
SPEAKERS
COUPLING
D
1
2
8
A
B
C
7
6
5
HIGH FREQ
COMPENSATION
3
4
RDNet
Input
PUSH
Output
Link
USB Data Service
Link
Active
Remote Preset
Active
Data
In
PUSH
Data
PUSH
Out
Overall Dimensions
Top
Front
dBTechnologies products are conti nually i mprove d. All sp eci cat ions are t heref ore subj ect to change w ithout notice.
720 mm (28.35 in) 520 mm (20.47 in)
320 mm
(12.6 in)
info@dbtechnologies.com www.dbtechnologies.com
Side
Page 3 of 4
rev.1.0 - 2016
VIO L210
Accessories
TransporT & InsTallaTIon
DRK-210 Flybar for VIO L210. Suitable for y and stack use.
DT-V IOL210 Touring cart for 4 VIO L210 modules and a DRK-210 ybar.
bags & Covers
TC-VIOL210 Transport cover for 4x VIO L210 on DT-VIOL210. Waterproof.
Cables
DAC-70 XLR-XLR audio cable (70 cm).
DC K-27T Cable-Set for VIO L210 / S318 containing 2x DAC-70 and 2x DPTC-70L.
DP TC-70L PowerCON TRUE1-PowerCON TRUE1 power link cable (70cm).
DPTC-1000M Mains PowerCON TRUE1 cable (10m). Different plugs available for several countr ies.
RDC-45F RJ45 to XLR 3 poles female conversion cable, 6 cm length. The cable converts from RDNet RJ45
RDC-45M RJ45 to XLR 3 poles male conversion cable, 6 cm lenght. The cable converts from RDNet RJ45 to
RJ45-RJ45-150 RJ45- RJ45 link cable (150cm) for RDNet speakers. EtherCON connectors.
RJ45-RJ45-75 RJ45- RJ45 link cable (75cm) for RDNet speakers. EtherCON connectors.
to X L R F.
XLRM.
Page 4 of 4
info@dbtechnologies.com www.dbtechnologies.com
dBTechnologies products are conti nually i mprove d. All sp eci cat ions are t heref ore subj ect to change w ithout notice.
rev.1.0 - 2016
