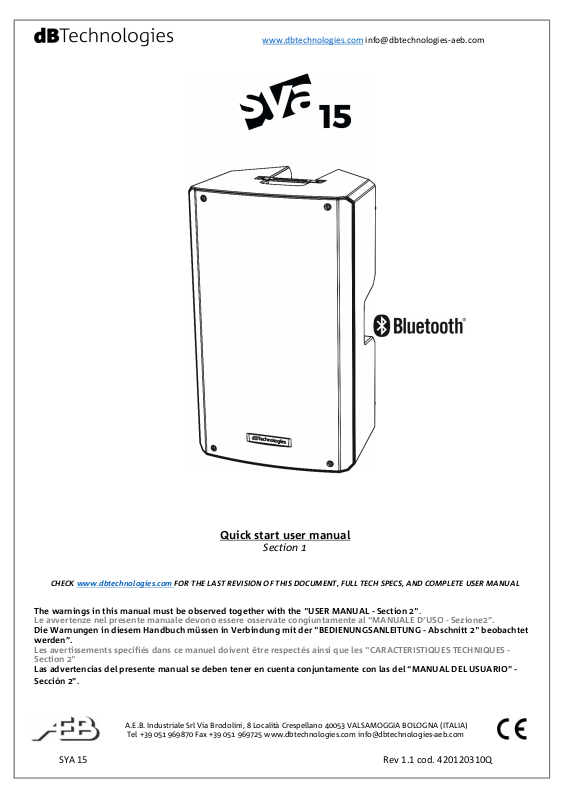

Dbtechnologies SYA 15 User Manual
www.dbtechnologies.com info@dbtechnologies-aeb.com
Quick start user manual
CHECK www.dbtechnologies.com FOR THE LAST REVISION OF THIS DOCUMENT, FULL TECH SPECS, AND COMPLETE USER MANUAL
The warnings in this manual must be observed together with the "USER MANUAL - Section 2".
Le avvertenze nel presente manuale devono essere osservate congiuntamente al “MANUALE D’USO - Sezione2”.
Die Warnungen in diesem Handbuch müssen in Verbindung mit der "BEDIENUNGSANLEITUNG - Abschnitt 2" beobachtet
werden”.
Les avertissements specifiés dans ce manuel doivent être respectés ainsi que les "CARACTERISTIQUES TECHNIQUES Section 2"
Las advertencias del presente manual se deben tener en cuenta conjuntamente con las del “MANUAL DEL USUARIO” Sección 2”.
Section 1
A.E.B. Industriale Srl Via Brodolini, 8 Località Crespellano 40053 VALSAMOGGIA BOLOGNA (ITALIA)
Tel +39 051 969870 Fax +39 051 969725 www.dbtechnologies.com info@dbtechnologies-aeb.com
SYA 15 Rev 1.1 cod. 420120310Q
www.dbtechnologies.com info@dbtechnologies-aeb.com
Thank you for choosing a dBTechnologies Product!
The SYA 15 is a versatile active speaker. It is equipped with one 1” compression driver (1.35” voice coil), and one 15”
woofer (2.5” voice coil). The multiple input pattern allows an easy and versatile use. For example the user can
connect a dynamic microphone (CH1), an independent source from a mixer (CH2), a Bluetooth MP3 reader (CH3),
controlling each volume level. The user can enhance lower and upper frequencies with the convenient DSP preset
function. A balanced link output allows the audio connection to a second loudspeaker, choosing among “Mix” or
“Line” output type.
Check the site www.dbtechnologies.com for the complete user manual!
1) Unpacking
The box contains:
N°1 SYA 15
N°1 Rain cover
N°1 Mains cable (VDE)
This quick start and warranty documentation
2) Easy installation
SYA 15 is equipped with:
A –Upper integrated handle
B – Lateral integrated handles
C – Pole mount hole, with two tilt angles
selection (0°/ 7.5°)
NEVER USE THE HANDLES TO SUSPEND
THE SPEAKER!
Those mechanical particulars were thought for an easy
use and for different configuration needs. SYA 15 is
perfect for gigging bands as well as small venues
installations. The 36 mm pole-mount predisposition is
designed for the use on standard pole stand (like a
tripod).
The acoustical design allows to face different
environments. The dispersion pattern is shown in the
upper picture.
As described, the related pattern data are:
a) vertical coverage: 60°
b) horizontal coverage: 90°
The rear side inclination, symmetrical, as shown in the
upper picture, is 45°. SYA15 can be used as a stage
monitor in small contexts, in this case please consider
the characteristic dispersion pattern presented above.
IT IS MANDATORY TO READ AND
FULLY UNDERSTAND THE COMPLETE
USER MANUAL FOR THE ADMITTED
CONFIGURATIONS OF THE PRODUCT, SAFETY
INFORMATION, AND THE PROPER USE OF
ACCESSORIES (IF ANY).
