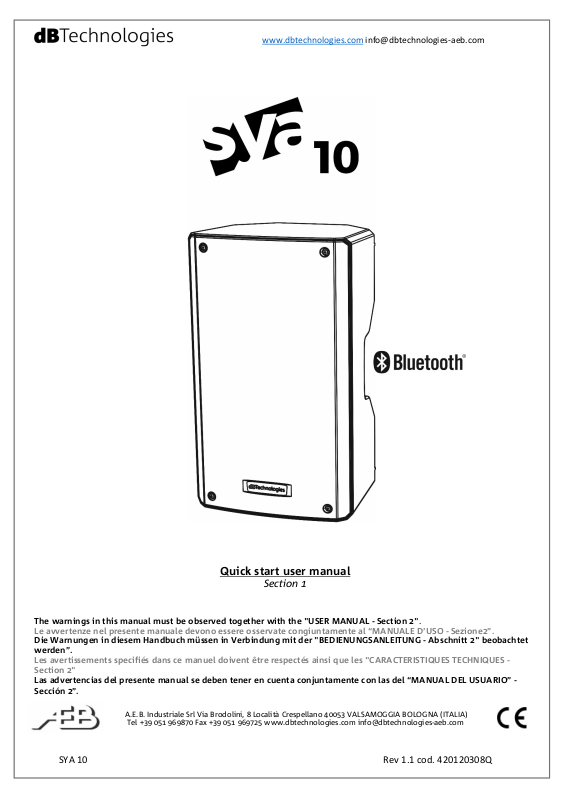

Quick start user manual

The warnings in this manual must be observed together with the "USER MANUAL - Section 2".

Le avvertenze nel presente manuale devono essere osservate congiuntamente al “MANUALE D’USO - Sezione2”.

Die Warnungen in diesem Handbuch müssen in Verbindung mit der "BEDIENUNGSANLEITUNG - Abschnitt 2" beobachtet
werden”.

Les avertissements specifiés dans ce manuel doivent être respectés ainsi que les "CARACTERISTIQUES TECHNIQUES ­Section 2"

Las advertencias del presente manual se deben tener en cuenta conjuntamente con las del “MANUAL DEL USUARIO” ­Sección 2”.



A.E.B. Industriale Srl Via Brodolini, 8 Località Crespellano 40053 VALSAMOGGIA BOLOGNA (ITALIA)
Tel [phone] Fax [phone] www.dbtechnologies.com [e-mail]

Section 1

 SYA10Rev1.1cod.420120308Q

www.dbtechnologies.cominfo@dbtechnologies‐aeb.com

Thank you for choosing a dBTechnologies Product!
The SYA 10 is a versatile active speaker. It is equipped with one 1” compression driver (1” voice coil), and one 10”
woofer (2” voice coil). The multiple input pattern allows an easy and versatile use. For example the user can connect

a dynamic microphone (CH1), an independent source from a mixer (CH2), a Bluetooth MP3 reader (CH3), controlling
each volume level. The user can enhance lower and upper frequencies with the convenient DSP preset function. A
balanced link output allows the audio connection to a second loudspeaker, choosing among “Mix” or “Line” output
type.

Check the site www.dbtechnologies.com for the complete user manual!

1) Unpacking

The box contains:
N°1 SYA 10
N°1 Rain cover
N°1 Mains cable (VDE)
This quick start and warranty documentation

2) Easy installation

SYA 10 is equipped with:

A – Lateral integrated handles
B – Pole mount hole, with two tilt angles
selection (0°/ 7.5°)

NEVER USE THE HANDLES TO SUSPEND
THE SPEAKER!

Those mechanical particulars were thought for an easy
use and for different configuration needs. SYA 10 is
perfect for gigging bands as well as small venues
installations. The 36 mm pole-mount predisposition is

designed for the use on standard pole stand (like a
tripod).

The acoustical design allows to face different
environments. The dispersion pattern is shown in the
upper picture.
As described, the related pattern data are:

a) vertical coverage: 60°
b) horizontal coverage: 90°

The rear side inclination, symmetrical, as shown in the
upper picture, is 40°. SYA10 can be used as a stage
monitor in small contexts, in this case please consider
the characteristic dispersion pattern presented above.

IT IS MANDATORY TO READ AND
FULLY UNDERSTAND THE COMPLETE

USER MANUAL FOR THE ADMITTED
CONFIGURATIONS OF THE PRODUCT, SAFETY
INFORMATION, AND THE PROPER USE OF
ACCESSORIES (IF ANY).


