Thank you for choosing a dBTechnologies Product!

The new B-HYPE 8 is a versatile active speaker. It is equipped with one 1” compression driver (1” voice coil), and one
8” woofer (1.5” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and
bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance
in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use,
suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with
the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

Check the site www.dbtechnologies.com for the complete user manual!

1) Unpacking

The box contains:
N°1 B-HYPE 8
N°1 Mains cable (VDE)
This quick start and warranty documentation

2) Easy installation

B-HYPE 8 is equipped with:

The acoustical design allows to face different
environments. The dispersion pattern is asymmetrical
on the vertical axis, and the horizontal coverage varies
within position: It is wider in the lower side and narrow
in the upper one.
As shown in the upper picture, the related dispersion
pattern data are:

a) vertical coverage: 85° asymmetrical (+25°/-60°)
b) horizontal coverage: 85° in the upper part, 120° in
the lower one

A – Upper integrated handle
B – Lateral integrated handles
C – Pole mount hole

NEVER USE THE HANDLES TO SUSPEND
THE SPEAKER!

Those mechanical particulars were thought for an easy
use and for different configuration needs. B-HYPE 8 is
perfect for gigging bands as well as small venues
installations. The 36 mm pole-mount predisposition is
designed for the use on standard pole stand (like a
tripod).

The rear side inclination, symmetrical, as shown in the
upper picture, is 45°. The related wedge positioning is
shown in the picture. B-HYPE can be used as a stage
monitor in small contexts, in this case please consider
the characteristic dispersion pattern presented above.

IT IS MANDATORY TO READ AND
FULLY UNDERSTAND THE COMPLETE

USER MANUAL FOR THE ADMITTED
CONFIGURATIONS OF THE PRODUCT, SAFETY
INFORMATION, AND THE PROPER USE OF
ACCESSORIES (IF ANY).

B-HYPE 8 Rev 1.3 cod. 420120254Q

www.dbtechnologies.com [e-mail]

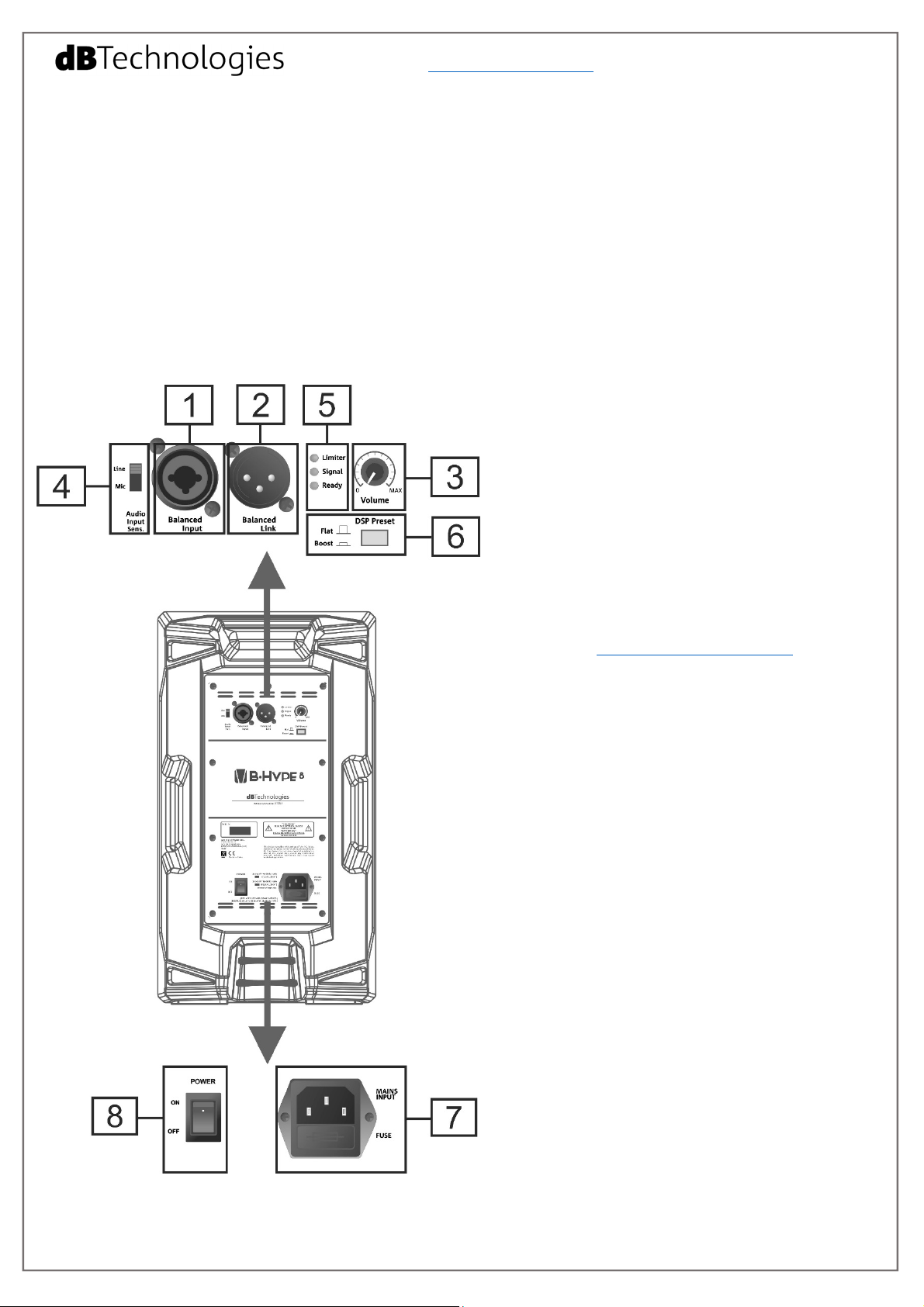

3) Connections, controls, first turn on

All the connections and controls are in the amplifier
panel side:

1–Combo Balanced Input (for XLR or TRS
connectors)

2–Balanced Link output

3–Volume Control
4–Audio Input Sensitivity (Line/Mic)
5–LEDs (Limiter, Signal, Ready)
6–DSP Preset switch

7–VDE Mains Input (with related fuse)
8–POWER switch (ON, OFF)

a) Connect the audio input (1). The combo connector
allows a TRS or XLR connection. In case of a dynamic
microphone, plug it and select “Mic” in the Audio input
sensitivity switch (4). In the other cases check that the
switch is set on “Line”. Put the level of Volume (3) to
the maximum value “MAX”.

b) If you need to link B-HYPE 8 to another one, please
use a cable with XLR connectors (not supplied).
Connect the output Link (2) of the first, to the balanced
Input (1) of the second one. In the second loudspeaker,
please check that Audio Input Sensitivity (4) is set on
“Line” position and that Volume (3) is set to “MAX”
value.

c) Set properly the DSP preset switch (6), choosing
between “Flat” and “Boost” configuration. Please note
that “Flat” position does not affect the frequencies
equalization, while “Boost” acts enhancing lower and
upper frequencies.

d) Plug properly the mains VDE input cable (supplied)
in the related input (7). Check that the audio source is
set on the minimum level. Then switch the POWER
switch (8) to “ON” position. Increase gradually the
volume of the audio source to the desired level. The
Ready LED (5) is steadily on, the Limiter LED shortly
flashes, the Signal one starts blinking at the presence
of audio signal.

Check the site www.dbtechnologies.com for further
information, for added accessories and for the
complete user manual!

B-HYPE 8 Rev 1.3 cod. 420120254Q

www.dbtechnologies.com [e-mail]

Scan with your QR Reader

oad the complete user manual from the site:

Technical Data

Speaker Type: 2-way active speaker
Usable Bandwidth [-10 dB]: 65 – 20000 Hz
Frequency Response [-6 dB]: 70 – 19600 Hz

Max SPL (1 m): 120 dB
HF compression driver: 1 " Exit
HF voice coil: 1”
LF: 8”
LF Voice Coil: 1.5”
Crossover frequency: 2300 Hz (24 dB/oct.)
Horizontal dispersion: asymmetrical 85° up / 120° down
Vertical dispersion: 85° (+25°/ -60°)

Amplifier

Amp Technology: Custom made
Amp Class: Class-D – Passive cooling (convection)
RMS Power: 130 W

Operating voltage (

220-240V~ (50-60Hz) or

factory set):

Processor and user interface

Controller: 28/56 bit - 48 kHz
Limiter: Peak, Thermal, RMS
Controls: Volume, Audio Input Sensitivity, DSP preset

Input / Output

Mains connection: VDE
Signal Input: (Balanced) 1x Combo IN (MIC/LINE)
Signal Out: (Balanced) 1x XLR OUT (LINK)

Mechanics

Housing: Polypropylene
Grille: Full metal grille
Handles: 3 (2 on sides 1 on top)
Pole Mount: Yes, 36 mm
Width: 243 mm (9.57 in)
Height: 443 mm (17.44 in)
Depth: 231 mm (9.09 in)
Weight: 6.6 kg (14.55 lbs.)

110-120V~ (50-60 Hz)

App to download the

complete User Manual

EMI CLASSIFICATION

According to the standards EN 55103 this equipment is designed and suitable to operate in E3 (or lower E2, E1) Electromagnetic environments.

FCC CLASS B STATEMENT ACCORDING TO TITLE 47, PART 15, SUBPART B, §15.105

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.

WARNING: Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or properties.
For safety reasons do not place one loudspeaker on top of another without proper fastening systems. Before hanging the loudspeaker check
all the components for damages, deformations, missing or damaged parts that may compromise safety during installation. If you use the
loudspeakers outdoor avoid spots exposed to bad weather conditions.
Contact dB Technologies for accessories to be used with speakers. dBTechnologies will not accept any responsibility for damages caused by
inappropriate accessories or additional devices.

Features, specification and appearance of products are subject to change without notice.
dBTechnologies reserves the right to make changes or improvements in design or manufacturing without assuming any obligation to change
or improve products previously manufactured.
