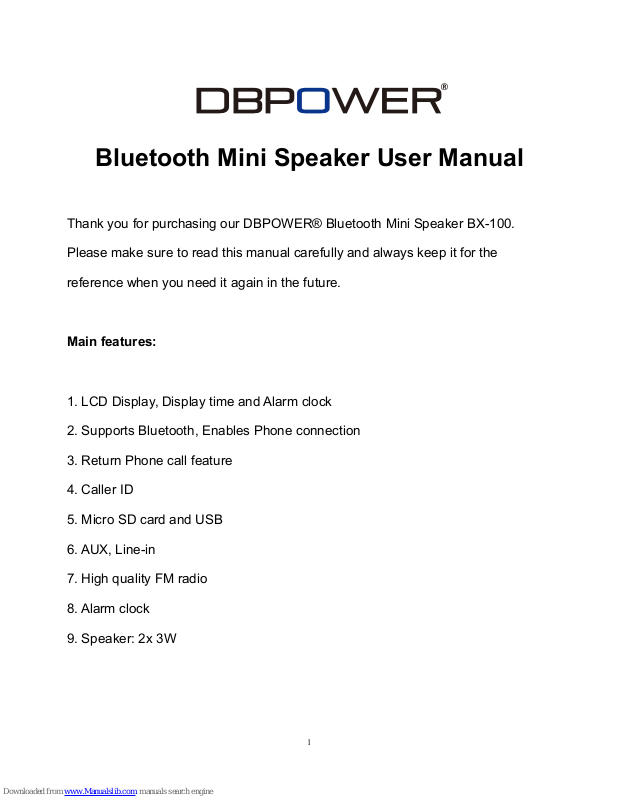

DBPOWER BX-100 User Manual

1

Bluetooth Mini Speaker User Manual

Thank you for purchasing our DBPOWER® Bluetooth Mini Speaker BX-100.

Please make sure to read this manual carefully and always keep it for the

reference when you need it again in the future.

Main features:

1. LCD Display, Display time and Alarm clock

2. Supports Bluetooth, Enables Phone connection

3. Return Phone call feature

4. Caller ID

5. Micro SD card and USB

6. AUX, Line-in

7. High quality FM radio

8. Alarm clock

9. Speaker: 2x 3W

2

Button illustration schematic diagram:

Operating Preparation

Before you turn on the speaker, make sure that the battery is fully charged or

installed correctly.

Supports 5V/DC external power supply (minimum supply current >1A)

Charging Input

While on OFF mode, connect the USB charging cable to the DC-5 micro port
connector and plug the USB cable to the USB charger.
