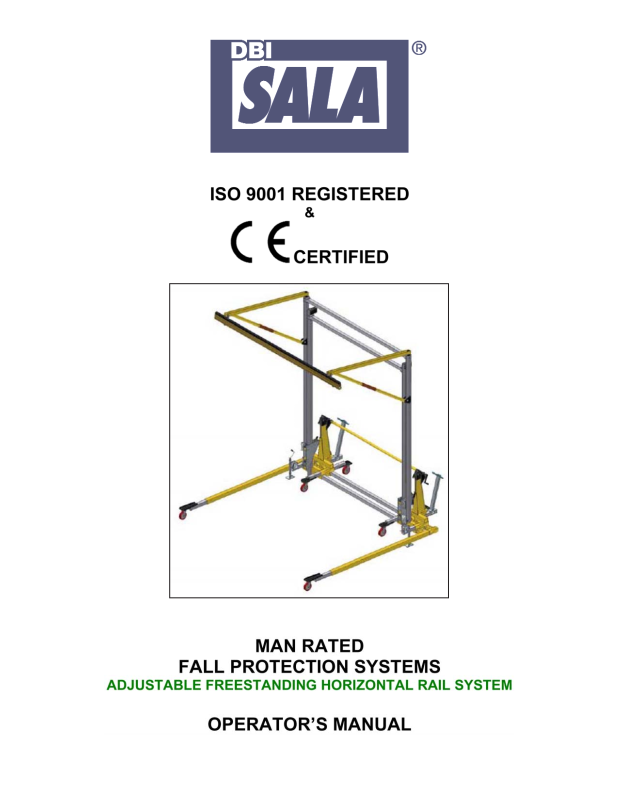

DBI SALA FSHRS, 8520216, 8520215 Operator's Manual

SERIAL NUMBER LOCATION

Always give your dealer or distributor the serial number of your UCL Advanced FSHRS when
ordering parts or requesting service or other information.

The serial number plate is located where indicated. Please mark the number in the space provided
for easy reference.

SERIAL NUMBER LABEL

Model____________________________

Serial Number_____________________

www.capitalsafety.com

COMPONENT MODEL:

MFG DATE:

MADE IN CANADA Pt#: 12817 Rev.03

LOT No.

SYSTEM MODEL:

SERIAL No.

1 INTRODUCTION

Congratulations on your choice of a Unique Concepts Man Rated Adjustable Freestanding Horizontal
Rail Fall-Arrest System (FSHRS) to compliment your fall arrest applications. This equipment has been
designed and manufactured to meet the needs of a discriminating operator for the efficient access and
egress from working heights while incorporating fall protection.

Safe, efficient and trouble free operation and maintenance for your component or system requires that
you or anyone else who will be operating, maintaining or inspecting the equipment, read, understand
and follow all the Safety, Installation, Operation, Maintenance and Inspection instructions contained in
this manual, and in any related manuals referenced in this manual and/or supplied with the system.

This manual covers the FSHRS manufactured by Unique Concepts.

Keep this manual handy for frequent reference and to pass to new operators. Establish a regular
training program for experienced and new operators per these instructions. Establish a regular
maintenance and inspection program to keep the equipment in top condition.

Modular components are labeled with the capacities and rating to which they were designed, tested,
and manufactured. The rating of any system is considered to be the rating of the lowest rated
component contained is the system.

Do not use the equipment if rating stickers are damaged or illegible. New stickers are available from
the manufacturer. When ordering replacement stickers be sure to include:

1) The part number from the bottom right hand corner of the sticker, when available.

2) The serial number of the unit.

3) The part (item) number of the component (consult the appropriate section of this
manual).

4) Any other numbers stamped on the components.

2 SAFETY

SAFETY ALERT SYMBOL

This Safety Alert symbol means

ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!

The Safety Alert symbol identifies important
safety messages on your equipment and in the
manual. When you see this symbol, be alert to
the possibility of personal injury of death.
Follow the instructions in the safety message.

Why is SAFETY important to you?

3 Big Reasons

SIGNAL WORDS:

Note the use of the signal words DANGER,

WARNING,

messages. The appropriate signal word for
each message has been selected using he
following guide-lines:

and CAUTION with the safety

Accidents Disable and Kill
Accidents Cost You Money
Accidents Can Be Avoided

DANGER -

situation that, if not avoided, will

Indicates an imminently hazardous

result in death or serious injury.
This signal word is to be limited to
the most extreme situations, or for
hidden or unseen hazards.

WARNING - Indicates a potentially hazardous

situation that if not avoided, could

result in death or serious injury,
and includes obvious and hidden
hazards. It may also be used to
alert against unsafe practices.

CAUTION - Indicates a potentially hazardous

situation that, if not avoided, may
result in minor or moderate injury.
It may also be used to alert
against unsafe practices.

SAFETY

YOU are responsible of the SAFE operation,

maintenance and inspection of your Unique
Concepts Man Rated FSHRS. YOU must
ensure that you and anyone else who is going
to operate, maintain, inspect or work around the
equipment be familiar with the operating and
maintenance procedures and related SAFETY
information contained in this manual. This
manual will take you step-by-step through your
working day and alerts you to all good safety
and operating practices while using the
equipment.

Remember, YOU are the key to safety. Good
safety practices not only protect you, but also
the people around you. Make these practices a
working part of your safety program. Be certain
that EVERYONE operating this equipment is
familiar with the procedures recommended and
follows safety precautions. Remember, most
accidents can be prevented. Do not risk injury
or death by ignoring good safety practices.

• Owners must give operating instructions to
operators or employees before allowing
them to use the equipment, and at least
annually thereafter.

• The most important safety device on this
equipment is a SAFE operator. It is the
operator’s responsibility to read and
understand ALL Safety and Operating
instructions in the manual and to follow
these. All accidents can be avoided.

• A person who has not read, been trained in
using and understood all operating and
safety instructions is not qualified to operate
this equipment. An untrained operator
exposes himself and others to possible
serious injury or death.

• Do not modify the equipment in any way.
Unauthorized modification may impair the
function and/or safety and could affect the
life of the equipment.

• Think SAFETY! Work SAFELY!

2.1 GENERAL SAFETY

1. Read, understand and follow the
User Manual and all safety signs
before using, maintaining or
inspecting the equipment.

2. Refer to and follow applicable ANSI, OSHA, CE
or other Standards and local regulations.
Comply with requirements of local regulations
for your applications.

3. Establish an equipment–use training program for
experienced employees. Only trained,
competent persons shall use the equipment. An
untrained operator is not qualified to operate the
system.

4. Have a first-aid kit available for
use should the need arise and
know how to use it.

5. Provide a fire extinguisher for
use in case of an accident.
Store in a highly visible place.

6. Install and properly secure all guards
and shields before operating.

7. Wear appropriate protective gear. This
list includes but is not limited to:

- A hard hat

- Safety glasses

- Protective shoes

with slip resistant
soles

- Heavy gloves

- Protective clothing

- Face protection

8. Review and follow the Pre-Operation

Inspection before using a component in the

system or the system itself.

9. Establish a regular Maintenance and Inspection
program with your equipment and maintain
detailed records.

10. Review safety related items and operating
instructions with all personal on a regular basis.

11. Be aware of your environmental surroundings;
be sure not to use the equipment during an
electrical storm. (this equipment is conductive)

12. When using our winch, the noise level does not
exceed 70 dba.

2.2 OPERATING SAFETY

1. Read, understand and follow the Operator’s
Manual and signs on the equipment before
using, maintaining or inspecting the
equipment.

2. Train all operators before allowing them to
use the equipment. An untrained operator
exposes themselves, bystanders and
workers to possible serious injury or death.

3. Visually inspect the equipment and all
auxiliary components and equipment before
using. Correct any problems before using
the equipment.

4. Securely anchor the winch/SRL before
using, where applicable.

5. Use only certified anchor and connector
components in your system.

6. Use only an approved full body harness for
the workers.

7. Always work in teams.

8. If applicable, do not use the winch when the
brake wear indicators display in the red or 5
years. Return winch to manufacturer for
service.

9. Do not exceed 310lbs. (141 kg) during
operation.

10. Establish a regular training program for new
and experienced workers.

11. Establish a detailed inspection program for
your equipment and document the findings.
Return the equipment to the manufacturer
for rework if any problems are found.

12. Plan your work program before starting.
Have the required people, equipment and
procedures available to do the job.

13. Establish a rescue plan before using the
equipment. Failure to achieve rapid rescue
may result in death due to suspension
trauma.

13. Do not use the equipment around physical
or environmental hazards. This list includes
but is not limited to:

a. Corrosion that may affect the structural

integrity of the life line or other components

b. Chemicals which can degrade components

and not be visible.

c. Toxic gases: Rescuers or workers can be

killed in toxic environments.
d. Heat or elevated temperatures.
e. Moving machinery: Workers or auxiliary

equipment can be contacted by or pulled

into moving components.
f. Sharp edge s: Workers or the equipment

can be injured or damaged by sharp edges

or components.
g. Electrical hazards: Stay away from power

lines or components carrying electrical

power.
h. Overload: Do not exceed 310 lbs. (141 kg)

during operation.

i. Follow confined space regulations in

Standards.

j.

Noise: wear appropriate noise protection

where necessary.

k.

Environmental hazards: do not operate

equipment during electrical storms.

2.3 MAINTAINANCE/
INSPECTION SAFETY

1. Read, understand and follow the User

Manual and signs on the equipment before
using, maintaining or inspecting the
equipment.

2. ANSI, OSHA & CE requires a regular

inspection program for all Confined Space
Entry/Retrieval Equipment and to maintain
documented results of these inspections.
Follow the inspection procedure contained
in this manual and use the inspection form
to document the results.

3. Keep instructional and safety signs clean

and legible at all times. Clean or replace as
required.

4. Lubricate equipment as per instructions in

the applicable operator’s manual.

5. Remove the equipment from service if a

problem is found during the inspection.
Return to an authorized repair depot or the
factory for service.

3 OPERATING, NEW

OPERATOR OR OWNERS

The UCL ADVANCED FSHRS is designed to
attach to a person working at a height to
provide protection against injuries resulting from
a fall. Various accessories address a variety of
fall-arrest requirements and rescue needs.
Every new operator must read, understand and
follow the instructions in all applicable manuals.
No one should be allowed to use the equipment
without training. The training should be
reviewed with experienced operators on a
regular basis. At regular intervals perform a
detailed inspection of the equipment and
document the results. Remove from service if
deficiencies are found. Alterations or misuse of
this equipment or failure to follow instructions,
may result in serious injury of death.

It is the responsibility of the owner’s
organization or operator to read this manual
and to train all other operators before they
start working with the equipment. Follow all
safety instructions exactly. Safety is
everyone’s business. By following
recommended procedures, a safe working
environment is provided for the operator,
bystanders and the area around the work
site. Untrained operators are not qualified
to operate the equipment.

Many features incorporated into this equipment
are the result of suggestions made by
customers like you. Read this manual carefully
to learn how to operate the equipment safely
and how to set it to perform as intended. By
following the operating instructions in
conjunction with a good maintenance program,
your equipment will provide many years of
trouble-free service.

OPERATING SAFETY

1. Read, understand and follow the User
Manual and signs on the equipment before
using, maintaining or inspecting the
equipment.

2. Train all operators before allowing them to
use the equipment. An untrained operator
exposes themselves, bystanders and
workers to possible serious injury or death.

3. Visually inspect the equipment and all
auxiliary components and equipment before
using. Correct any problems before using
the equipment.

4. Securely anchor the winch before using.

5. Use only certified anchor and connector
components in your system.

6. All anchor points, or mounting/setup
locations for permanent or portable systems
must be approved to local standards by a
qualified engineer.

7. Use only an approved body harness for the
workers.

8. Always work in teams.

9. If applicable, do not use the equipment
when the winch brake wear indicators
display in the red or 5 years in service
(which ever comes first). Return equipment
to manufacturer for service.

10. Do not exceed 310lbs. (141 kg) on the line
during operation

11. Use only retractable lifelines or shock
absorber with a maximum arrest force
(MAF) equal to or lower than the lowest
rated component of your system.

12. Establish a regular training program for
new and experienced workers.

13. Establish a detailed inspection program for
your equipment and document the findings.
Return the equipment to the manufacturer
for rework if any problems are found.

14. Plan your work program before starting.
Have the required people, equipment and
procedures available to do the job.

15.

Do not use the equipment around physical

or environmental hazards. This list includes
but is not limited to:

a. Corrosion that may affect the structural

integrity of the life line or other
components .

b. Chemicals which can degrade

components and not be visible.

c. Toxic gases: Rescuers or workers can

be killed in toxic environments.
d. Heat or elevated temperatures.
e. Moving machinery: Workers or

auxiliary equipment can be contacted

by or pulled into moving components.
f. Sharp edges: Workers or the rescue

equipment can be injured by or

damaged by sharp edges or

components.
g. Electrical hazards: Stay away from

power lines or components carrying

electrical power.
h. Overload: Do not exceed 310 lbs. (141

kg) during operation.
i. Follow regulations in Standards in your

jurisdiction.
j. Noise: wear appropriate noise

protection where necessary.
k. Environmental hazards: do not

operate equipment during electrical

storms.
