Due to continuous improvement of the product the Specifications are subject to change without notice.
PRO2004, PRO3004, PRO1.5K, PRO3.0K
TM
DB DRIVE warrants any products purchased in the U.S.A.
from an authorized DB DRIVE dealer. All products are warranted to be
free from defects in material and workmanship under normal use and
service for a period of (1) year when the unit installed by an authorized
DB DRIVE dealer. Non-authorized dealer installed products carry a (1)
year parts and labor limited warranty. This warranty applies to the original purchase only.
DB DRIVE will either repair or replace (as its option) any unit
that has been found to be defective and under warranty provided the
defect occurs within:
One (1) year if purchased through an authorized DB DRIVE dealer.
This limited warranty does not extend to units that have been
subjected to misuse, abuse, neglect, or accident. Products that in DB
DRIVE’s judgment shows evidence of having been altered, modified,
or serviced without DB DRIVE’s authorization, will be ineligible under
this warranty.
To obtain warranty service please contact your retailer or see
our website www.dbdrive.net for more details.
All warranty claims must be handled directly through the
authorized DB Research dealer they were originally purchased from
Low Impedance Stability
PRO2004 - 2 Ohm Stereo (4 Channel)
PRO3004 - 2 Ohm Stereo (4 Channel)
PRO1.5K - 1 Ohm Full Range Mono
PRO3.0K - 1 Ohm Full Range Mono
Bass Boost
For added low frequency performance the amplifiers are equipped with a variable 0dB-18dB
bass boost @ 45Hz
The DB Drive PRO Series amplifiers feature a state of the art variable 12dB per octave
crossover. The DB Pro Series Amplifiers include a Highpass, Lowpass, and Bandpass
filter.
PROAUDIO
2600 WATTS
PRO2600
2 CHANNEL STEREO AMPLIFIER
PROAUDIO
2000 WATTS
PRO2004
4 CHANNEL STEREO AMPLIFIER

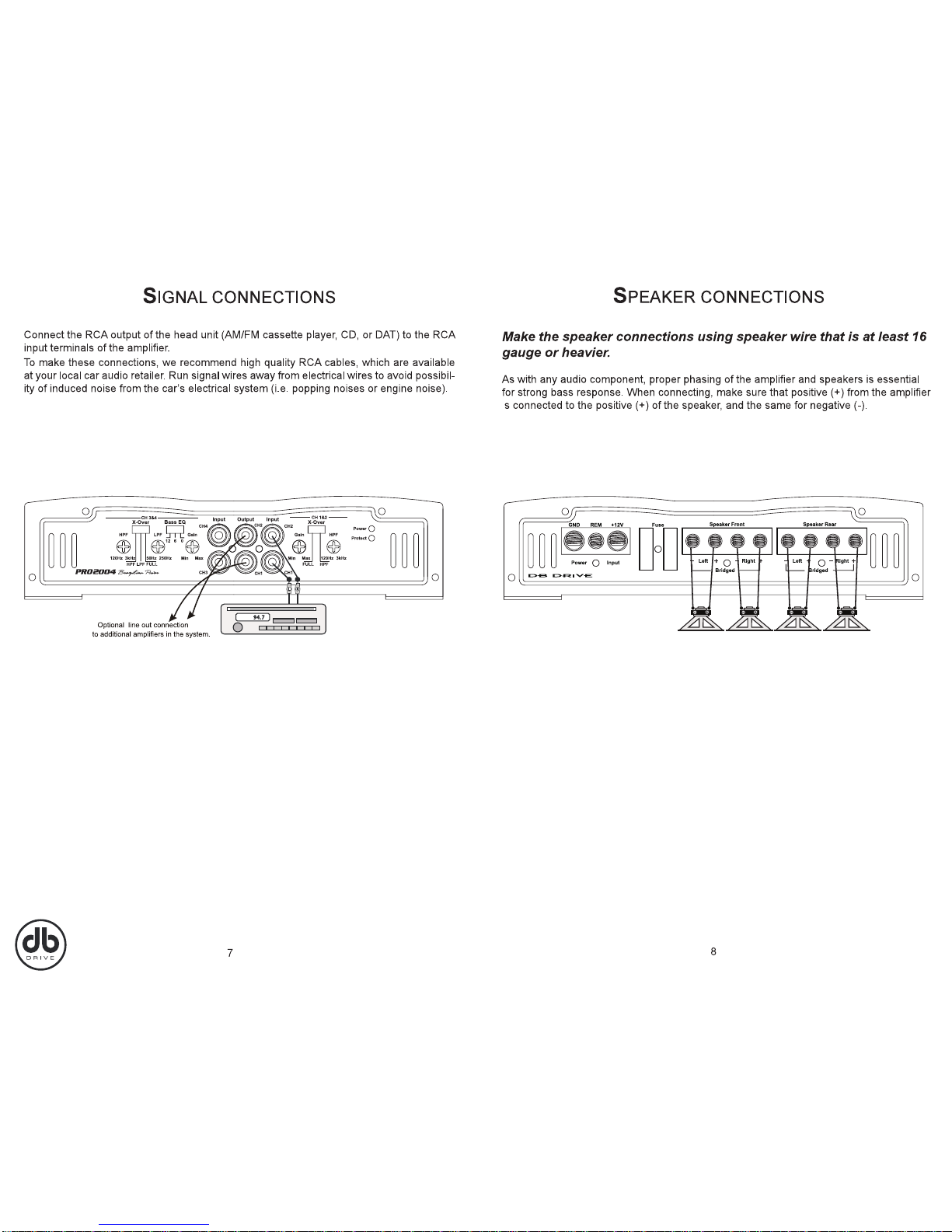

4 CHANNEL SIGNAL CONNECTION 4 CHANNEL STEREO SPEAKER CONNECTION PRO2004, PRO3004 PRO2004, PRO3004
(2 Ohm minimum)(2 Ohm minimum)
( PRO1.5K, PRO3.0K )
The PRO1.5K and PRO3.0K amplifiers are Mono Full Range amplifiers.
This feature allows the flexibility of using either model amplfier to drive a subwoofer
configuration or a single type pro audio component speaker configuration.
Please note: The amplfier speaker terminal connections have dual + and - outputs,
these outputs are summed left and right mono audio. The use of either connection will
result in mono audio.
The minimum load recommended across the total terminal is 1 ohm. Loads under the
recommended 1 ohm load will result in overheating and will cause internal damage to
the amplfier.
Please note: the bass remote function is only active when the amplfier is set up to run
a subwoofer configuration
Overall 1 Ohm Mono Load
(Using 4 - 4 Ohm woofers )
Input Voltage @ 14.4 Volts
@ 4 Ohm Stereo
@ 2 Ohm Stereo
@ 4 Ohm Bridged
THD at Rated Power:
Bandwidth:
Signal to Noise Ratio:
Input Sensitivity:
Minimum Load Impedance:
X-Over Slope:
Variable Bass Boost:
PRO2004
4 x 50W
4 x 100W
2 x 200W
0.05%
20Hz- 28KHz
>95 dB
285Mv - 6V
2Ω Stereo
12 dB
45Hz
PRO3004
4 x 90W
4 x 180W
2 x 300W
0.05%
20Hz- 28KHz
>95 dB
285Mv - 6V
2Ω Stereo
12 dB
45Hz
Input Voltage @ 14.4 Volts
@ 1 Ohm MONO
@ 2 Ohm MONO
THD at Rated Power:
Bandwidth:
Signal to Noise Ratio:
Input Sensitivity:
Minimum Load Impedance:
X-Over Slope:
Variable Bass Boost:
Dimensions
PRO2004
PRO3004
PRO1.5K
PRO3.0K
10.23in/260mm
13.5in/343mm
16.75in/425mm
20.75in/527mm
19.68in/400mm
19.68in/400mm
19.68in/400mm
19.68in/400mm
19.68in/400mm
19.68in/400mm
19.68in/400mm
19.68in/400mm
Length Height Width
PRO1.5K
1 x 850W
1 x 500W
0.05%
20Hz- 28KHz
>90 dB
285Mv - 6V
1Ω
12 dB
45Hz
PRO3.0K
1 x 1200W
1 x 800W
0.05%
20Hz- 28KHz
>90 dB
285Mv - 6V
1Ω
12 dB
45Hz
Due to continuous improvement of the product the Specifications are subject to change without notice.
