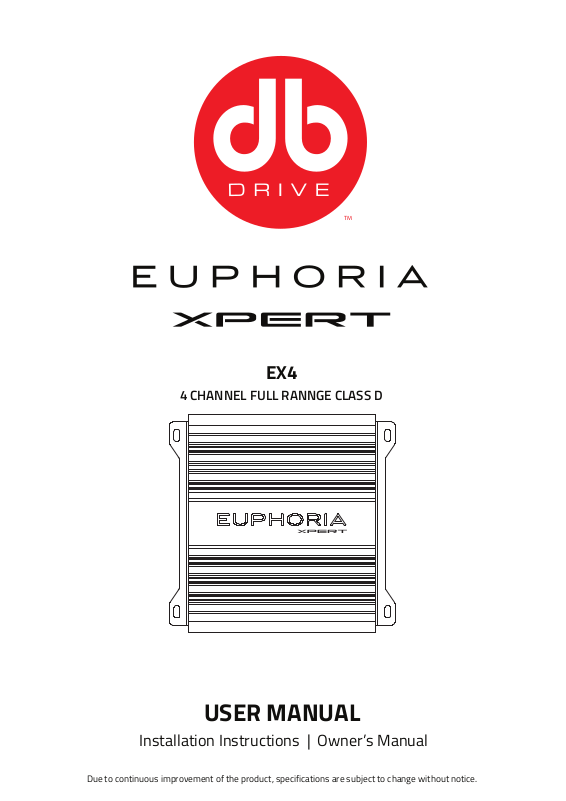

Page 1
EX4
4 CHANNEL FULL RANNGE CLASS D
USER MANUAL
Installation Instructions | Owner’s Manual
Due to continuous improvement of the product, specifications are subject to change without notice.
Page 2
1. AMPLIFIERS’ SPECIFICATION
1-1. AMPLIFIER
Load
4ohm
2ohm
Voltage & THD
14.4 volts & 1%
14.4 volts & 1%
4ohm
Working Voltage
EX4
4 x 200 Watts
4 x 400 Watts
2 x 350 Watts
10 ~ 16Volts
(Bridged)
EX4
Frequency Response
Signal to Noise Ratio
Damping Factor
Low Level Input
High Pass Filter Variable
Low Pass Filter Variable
Minimum working impedance
20Hz ~ 30KHz
dB
< 95
100dB<
6V ~ 0.2V
20Hz ~ 5KHz
50Hz ~ 5KHz
2 ohm in Stereo
2. AMPLIFIER’S CONTROL & CONNECTION.
EX4
TM
TM
01
Page 3
INPUT
Connect RCA output cables from the headunit to
EUPHORIA XPERT amplifiers’ RCA Input
GAIN (6V ~ 0.2V)
Matching the output voltage of the headunit‘s RCA
line-outs to EUPHORIA XPERT amplifiers’ input section.
HIGH PASS FILTER
Controls the High Pass Crossover point for the speaker
outputs.
LOW PASS FILTER
Controls the Low Pass Crossover point for the speaker
outputs.
+12V (POWER CONNECTION)
This must be connected to the fuse positive terminal
(+12V) of the battery.
Recommended wire is 4 gauge or thicker.
Check the battery voltage.
GND (GROUND CONNECTION)
It is connected to the negative or ground cables of
the vehicle.
Recommended wire is 4 gauge or thicker.
REM (REMOTE)
It is connected to switched +12V with a trigger cable
coming from the head unit.
SPEAKER OUTPUTS
It connects amplifier’s terminal to subwoofer
speakers or full range speakers.
Minimum speaker wire is 12 gauge
POWER & PROTECTION INDICATOR
Power LED - Green-lit shows normal operation.
Protect LED - RED-lit shows general malfunction,
faulty connection or thermal protection.
3. INSTALLATION
In case you install the amplifier by yourself, please read owner’s manual very carefully before your installation
Please take all steps into consideration or, you can have DB Drive or DB Research’s authorized dealer to check
installation and set your car audio systems.
3-1. MOUNTING PREPARATION
Disconnect the negative ( - ) battery cable before mounting your amplifier or making any connections. Check
the battery and alternator ground ( - ) connections. Make sure they are properly connected and free of
corrosion before selecting a mounting location. Please take some concerns into consideration with cooling
efficiency and safety.
3-2. MOUNTING PREPARATION
The EX4 amplifier uses a specially designed heat radiation heatsink to avoid excessive heat from circuitry.
But for better heat dissipation, it is good to find the mounting location where you can install
vertically with the heatsink fins and better air flow around heatsink.
For the safety, You have to find a dry and well ventilated location and make sure any cables and drilling car
equipment are not interfere with mounting location. Be sure the mounting location and drilling of pilot cables
will not present a harzard to any cables, control cables, fuel lines, fuel tanks, hydraulic lines or other vehicle
systems or components.
3-3. +12V, GND, REM CONNECTION.
12V ( POWER CONNECTION )
Before mounting amplifier, disconnect the negative ( - ) wire from battery to protect any accidential damage to
m. EK4 amplifier requires at least the use of 4 gauge wiring for all power connections.
Connect the power cables to power terminal labeled as +12V. EX4 Amplifier is not internally fused and
require external fusing.
In order to install external fuses, connect one end of fuse holder to the power cable and the other end of
fuse holder to positive battery within 18in of the same cable gauge. This fuse location will protect the system
and the vehicle against the possibility of a short circuit in the power cable.
Be sure to use fuses and fuse holders adequate for the current draw application.
TM
TM
02
Page 4
GND ( GROUND CONNECTION )
Locate a secure grounding connection as close as possible. Make sure the location is clean and provides a direct
electrical connection to the frame of the vehicle.
Connect one end of a short piece of the same gauge cable as the power cable to the grounding point.
Run the one end of the cable to the grounding point. Run the other end of the cable to the mounting location.
Connect the ground cable to the screw terminal labeled as GND.
REM ( REMOTE CONNECTION )
Run a remote turn on cable from the headunit’s remote swithed +12V output.

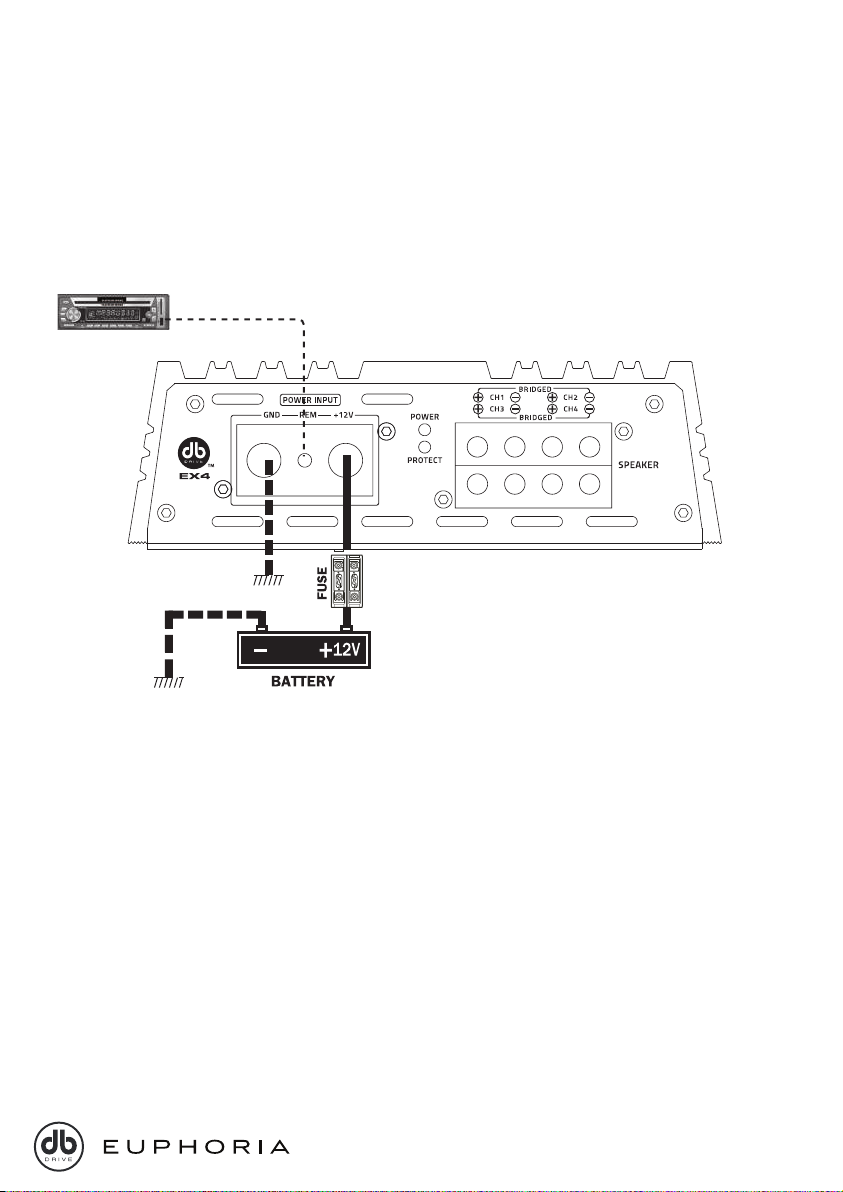

AMPLIFIER +12V, GROUND, REMOTE CONNECTION DIAGRAM
Remote turn on
Ground
Ground
3-4. SPEAKER CONNECTION
DB Drive recommends to use minimum 12 gauge speaker connecting cables. Run 12 gauge speaker
connecting cables from your speakers to amplifier’s mounting location.
Keep speaker cables away from the power cables and amplifier’s input cables. Use grommets anywhere
the cables have to pass through the holes in the metal frame or sheet metal. Connect to the speakers
according to the type of terminals on each speaker. Strip 3/8” of insulation from the end of each cable and
twist the cables strands together tightly. Make sure there are no stray strands that might touch other cables
or terminals and cause a short circuit.
Crimp spade lugs over the cable ends or tin the ends with solder to provide a secure termination.
Connect the cable ends to amplifier as speaker system diagram.
TM
TM
03
Page 5

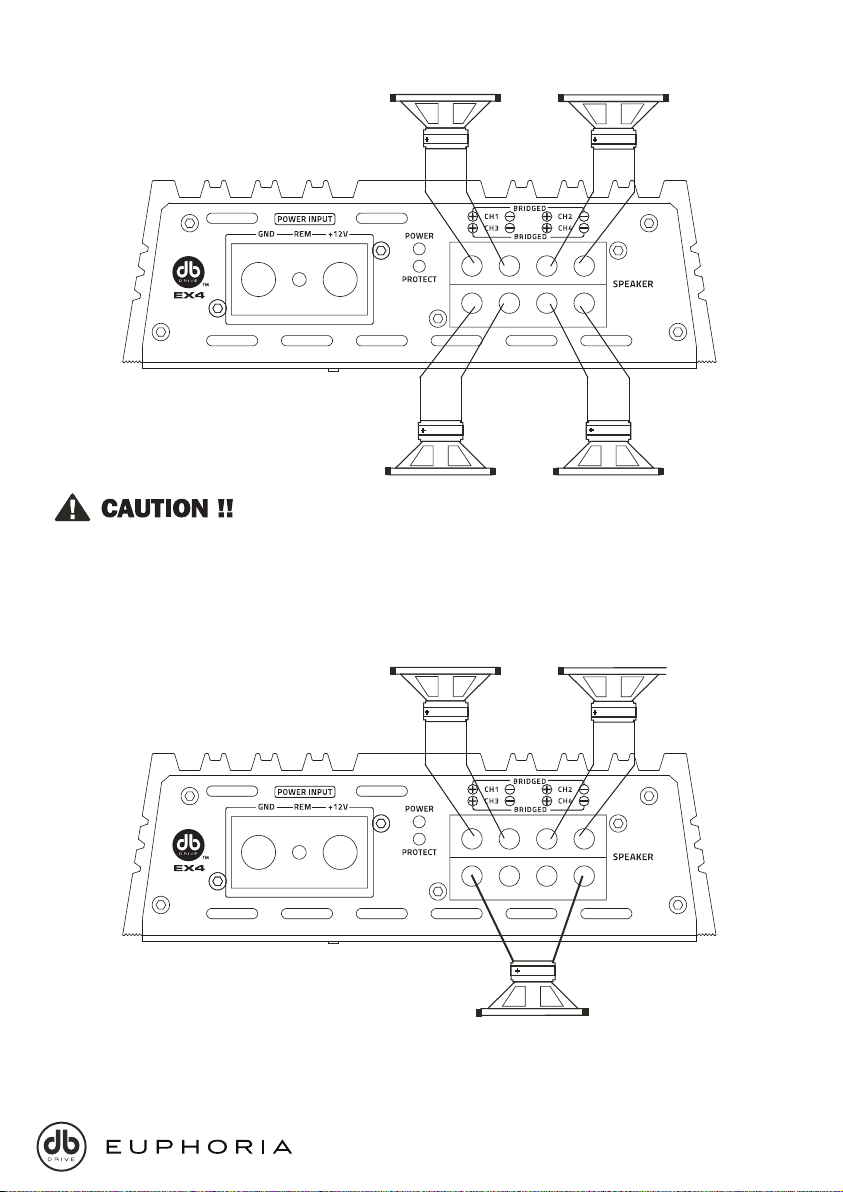

EX4 AMPLIFIER SPEAKER CONNECTION DIAGRAM 1
8 ~ 2 ohms
8 ~ 2 ohms
8 ~ 2 ohms
EX4 working voltage is 10 ~ 16volts
EX4 minimum working impedance is
2ohm in stereo or 4ohm bridged.
EX4 AMPLIFIER SPEAKER CONNECTION DIAGRAM 2
8 ~ 2 ohms
8 ~ 2 ohms
8 ~ 2 ohms
8 ~ 4 ohms
TM
TM
04
Page 6
4. TROUBLE SHOOTING
NO SOUND ( NO OUTPUT )
1) Please check all connections, cables’ routing, short and voltage at amplifier and headunit.
2) Please check built-in or external fuses, If it is blown, please repalce with new one.
3) Please check whether speakers work well, you can test speakers by connecting to another amplifiers.
PROTECTION
1) Please check overload, overheat ( thermal ) , short, voltage and DC offset.
2) Minimum working impedance for EX4 is 2ohm stereo or 4ohm bridged.
EX4 working voltage is 10 ~ 16 volts.
3) If the amplifier is shut down due to overheat, Reset by turning off the remote input and allowing time to cool down.l
Please make sure there are no airflow obstructions around amplifier to prevent thermal protection.
WHINING NOISE
1) Engine noise is caused by poor grounding of amplifier, headunit, other components, battery or
alternator, so please check all grounding connections.
TM
TM
05
Page 7
LIMITED WARRANTY
Euphoria warrants any products purchased in the U.S.A.
from an authorized Euphoria dealer. All products are warranted to
be free from defects in material and workmanship under normal
use and service for a period of two (2) years when the unit is
installed by an authorized Euphoria dealer. Non-authorized
dealer installed products carry a one (1) year parts and labor limited warranty. This warranty applies to the original purchase only.
Euphoria will either repair or replace (as its option) any
unit that had been found to be defective and under warranty
provided the defect occurs within:
Two (2) years, if purchased through an authorized Euphoria
dealer with original proof of purchase.
This limited warranty periods do not extend to units having been
subjected to misuse, abuse, neglect, or accident. Products that in
Euphoria’s judgment shows evidence of having been altered,
modified, or serviced without Euphoria’s authorization, will be
ineligible under this warranty.
To obtain warranty services please contact your retailer or visit
our website at www.euphoriacaraudio.com for more details.
