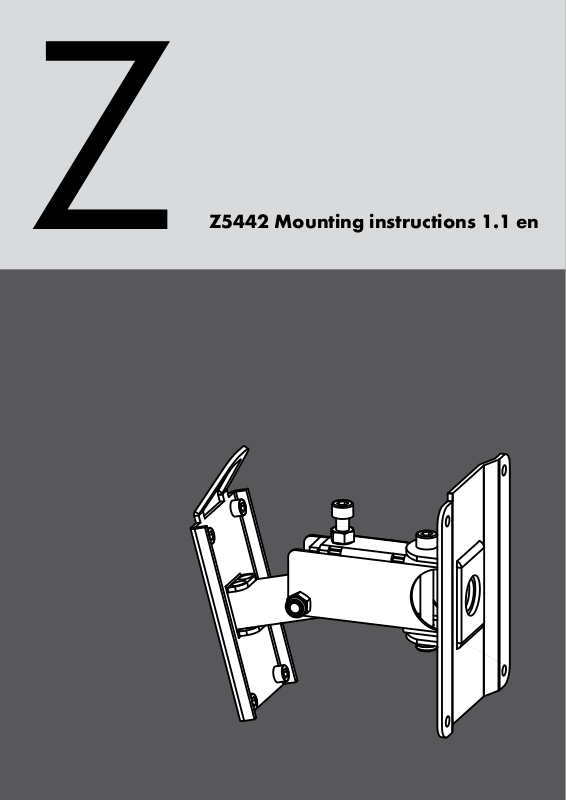

Z5442 Mounting instructions 1.1 en
Page 2
General information
Z5442 Mounting instructions
Version: 1.1 en, 02/2014, D2621.EN .01
Copyright © 2014 by d&b audiotechnik GmbH; all rights
reserved.
Keep these mountings instructions with the product or
in a safe place so that they are available for future
reference.
When reselling this product, hand over these mounting instructions
to the new customer.
d&b audiotechnik GmbH
Eugen-Adolff-Strasse 134, D-71522 Backnang, Germany
T +49-7191-9669-0, F +49-7191-95 00 00
docadmin@dbaudio.com, www.dbaudio.com
Page 3
Contents
1. Z5442 Wall mount column.......................................... 4
1.1. Scope of supply........................................................... 4
1.2. Safety precautions....................................................... 4
1.3. Intended use................................................................ 5
2. Assembly............................................................................ 6
3. Built-in dimensions.......................................................... 9
4. Declarations.................................................................... 10
4.1. Manufacturer's declaration...................................... 10
4.2. Disposal..................................................................... 10
d&b Z5442 Mounting instructions 1.1 en 3
Page 4
1. Z5442 Wall mount column
1.1. Scope of supply
Please verify the shipment for completeness and proper condition
of the items.
Qty. d&b Code Description
1 Z5442 Wall mount column [1] consisting
of:
– Wall plate [1a]
– Hinged bracket [1b]
– Cabinet connecting plate [1c]
Note: Due to the size and easy
handling of the wall plate [1a], it
also serves as the fixing template.
Including:
4 Allen hex screw M6 x 12 [2]
4 T-slot nut 8 mm / M6 [3]
1 D2621.EN .01 Z5442 Mounting instructions
1.2. Safety precautions
General safety
Installation and setup should only be carried out by qualified and
authorized personnel observing the valid national Rules for the
Prevention of Accidents (RPA).
It is the responsibility of the person installing the assembly to ensure
that the suspension/fixing points are suitable for the intended use.
Always carry out a visual and functional inspection of the items
before use. In case there is any doubt as to the proper functioning
and safety of the items, these must be withdrawn from use
immediately.
Load safety information
NOTICE!
Only use mounting parts (fixing anchors and screws) that are
suitable for the intended application.
Observe the occurring extraction forces acting on the fixing
anchors and screws. The rated extraction force is 350 N.
The maximum permitted working load of the Z5442 Wall mount
column is 16 kg (35 lb), which corresponds to the weight of a
complete 24C/24C-E assembly.
d&b Z5442 Mounting instructions 1.1 en4
Page 5
Mounting recommendations
Basically, it does not matter in what position you attach the wall
mount to the cabinet.
However, when you attach the wall mount to a complete
24C/24C-E assembly, we recommend you to attach it to the 24C
cabinet instead of the extender.
It is advisable to attach the wall mount to the upper part of the
24C cabinet close to the connector panel, as shown in the graphic
opposite.
To achieve the maximum downtilt of 15°, the wall mount must be
attached to the center of the 24C cabinet, as shown in the graphic
opposite.
1.3. Intended use
The d&b Z5442 Wall mount column must only be used in
conjunction with applicable d&b column loudspeakers.
It is intended for direct wall mounting.
The eyelet [S] of the cabinet connecting plate is intended for
attaching a secondary safety device, if required.
Depending on the application and on-site conditions, the wall
mount allows a vertical downtilt of the column of 15°, while the
column can be aimed horizontally within a range of ±90°.
d&b Z5442 Mounting instructions 1.1 en 5
Page 6
2. Assembly
Tools required
– Open-ended spanner/wrench size #13 mm
– Torque wrench with Allen key insert size #5 mm
– Torque wrench with Allen key insert size #6 mm
T-slot nut principle
The T-slot nut is a specially shaped nut which allows easy fitting.
It is simply inserted into the T-slot profile and turned through 90°
for final positioning.
Dismounting the wall plate [1a]
1. Slacken and remove the self-securing nut [N].
2. Remove the U washers [U] and the Allen hex screw [A].
3. Take off the wall plate.
Preparing the cabinet connecting plate [1c]
1. Insert all Allen hex screws [2] into the connecting plate [1c].
2. Fit the T-slot nuts [3] to the screws and turn the nuts 3-4 times.
d&b Z5442 Mounting instructions 1.1 en6
Page 7
Attaching the connecting plate to the cabinet
1. At rear of the cabinet, insert the T-slot nuts into the T-slot profile
of the cabinet.
2. Turn the first screw through 90° to fix the T-slot nut in place.
3. Tighten the screw to a torque of 8 N×m.
4. To fix the remaining nuts, proceed in the same manner.
Attaching the cabinet to the wall plate [1a]
Provided you have mounted the wall plate in the desired position
on the wall, proceed as follows:
1. Attach the cabinet to the wall plate, as shown in the graphic
opposite.
2. Insert the Allen hex screw [A] and attach the U washers [U]
and the self-securing nut [N].
3. Slightly tighten the nut.
4. Set your desired horizontal aiming.
5. Finally tighten the nut to fix the cabinet in its horizontal
position.
d&b Z5442 Mounting instructions 1.1 en 7
Page 8
Vertical alignment
The wall mount is equipped with a stop screw [B] to allow a
precise vertical alignment of the cabinet.
1. Slacken the stop screw [B].
2. While a second person secures the cabinet, slightly slacken
the fixing bolt [F].
3. Set the desired vertical downtilt.
4. Adjust the stop screw [B] until the desired angle is finally set.
5. Tighten the counter nut [C] to fix the adjustment.
6. Retighten the fixing bolt [F].
d&b Z5442 Mounting instructions 1.1 en8
Page 9
3. Built-in dimensions
Built-in dimensions in upright position in mm [inch]
From left: Total height of single 16C and 24C columns, total height of 24C with 24C-E extender, maximum depth and distance to the wall.
Built-in dimensions at 15° downtilt in mm [inch]
From left: Total height and depth of single 16C and 24C columns and 24C with 24C-E extender.
d&b Z5442 Mounting instructions 1.1 en 9
Page 10
4. Declarations
4.1. Manufacturer's declaration
This declaration covers:
– d&b Z5442 , Wall mount column.
National standards and technical specifications
applied:
DIN 18 800, DIN 1055, BGV C1.
Backnang, 2014-02-04
Frank Bothe,
Head of R&D
d&b audiotechnik GmbH
4.2. Disposal
When out of use the rigging components must be disposed of in
accordance with the national environmental regulations.
Ensure that damaged rigging components are disposed of in a
way that they cannot be used again.
d&b Z5442 Mounting instructions 1.1 en10
