Mounting instructions 1.1 en
General information
Z5399 Mounting instructions
Version: 1.1 en, 07/2014, D2819.EN .01
Copyright © 2014 by d&b audiotechnik GmbH; all rights
reserved.
Keep these mountings instructions with the product or
in a safe place so that they are available for future
reference.
When reselling this product, hand over these mounting instructions
to the new customer.
d&b audiotechnik GmbH
Eugen-Adolff-Strasse 134, D-71522 Backnang, Germany
T +49-7191-9669-0, F +49-7191-95 00 00
docadmin@dbaudio.com, www.dbaudio.com
Contents
1. Z5399 YP Mounting bracket...................................... 4
1.1. Scope of supply and weight....................................... 4
1.2. Safety precautions....................................................... 4
1.3. Intended use................................................................ 4
1.4. Assembly...................................................................... 5
1.5. Adjustments.................................................................. 5
1.6. Buil-in dimensions........................................................ 6
2. Declarations...................................................................... 7
2.1. Manufacturer's declaration......................................... 7
2.2. Disposal....................................................................... 7
d&b Z5399 Mounting instructions 1.1 en 3

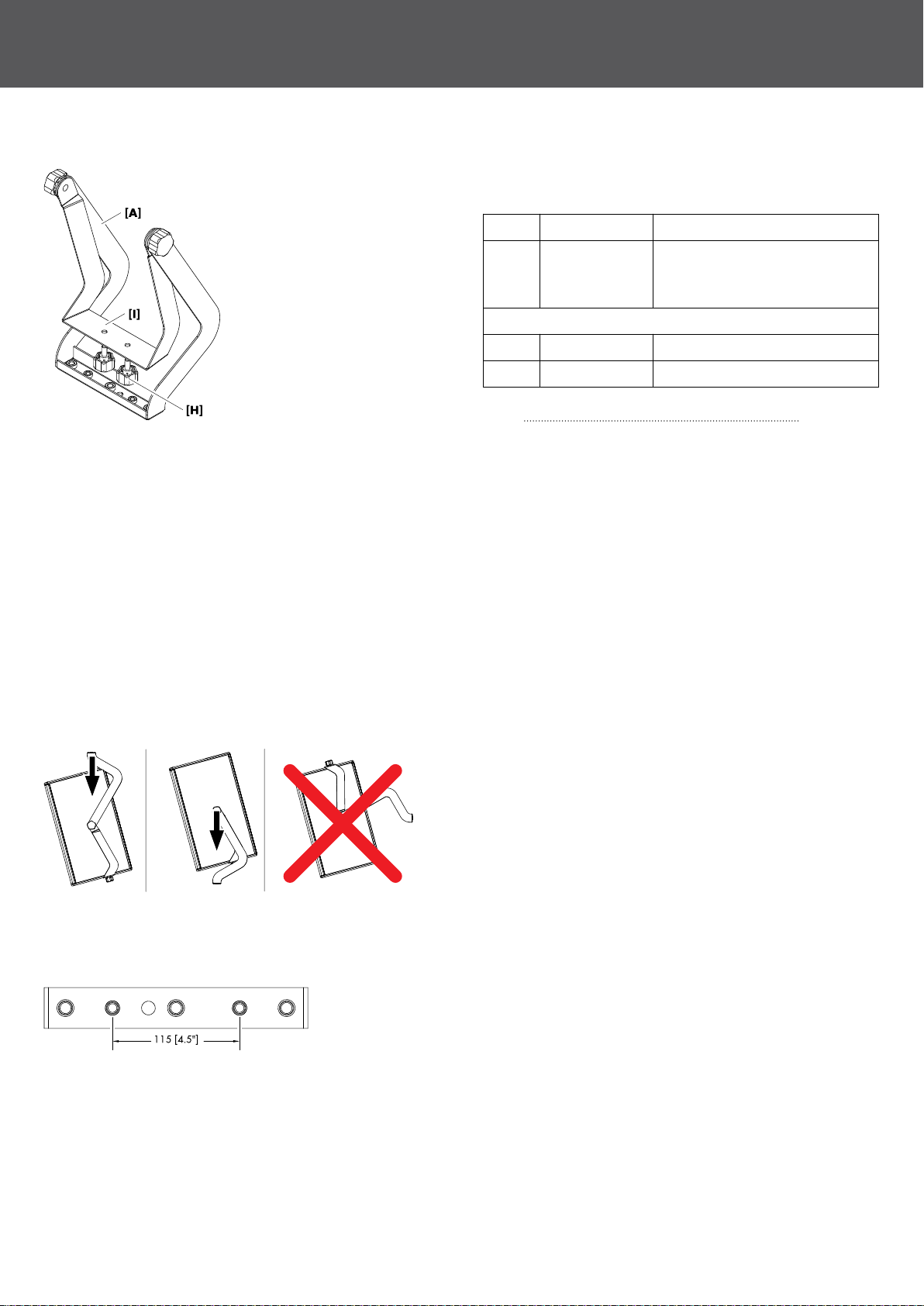

1. Z5399 YP Mounting bracket
1.1. Scope of supply and weight
Please verify the shipment for completeness and proper condition
of the items.
Qty. d&b Code Description
1 Z5399 YP Mounting bracket consisting of:
– Outer bracket [A]
– Inner bracket [I]
Including:
2 Hand bolts [H]
1 D2819.EN .01 Z5399 Mounting instructions
Weight 2.4 kg (5.3 lb)
1.2. Safety precautions
General safety
Installation and setup should only be carried out by qualified and
authorized personnel observing the valid national Rules for the
Prevention of Accidents (RPA).
It is the responsibility of the person installing the assembly to ensure
that the suspension/fixing points are suitable for the intended use.
Always carry out a visual and functional inspection of the items
before use. In case there is any doubt as to the proper functioning
and safety of the items, these must be withdrawn from use
immediately.
Load safety information
The Z5399 YP Mounting bracket is designed to support one YiP
loudspeaker (Yi7P or Yi10P).
No additional loads must be added.
The bracket must only be used in an upright position or suspended
vertically as shown in the graphic opposite.
1.3. Intended use
The d&b Z5399 YP Mounting bracket must only be used in
conjunction with d&b YP or YiP cabinets.
The tie bar of the outer bracket is supplied with two M8 threaded
inserts at the standard d&b spacing (115 mm [4.5"]) for attaching
the following accessories:
d&b Z5399 Mounting instructions 1.1 en4

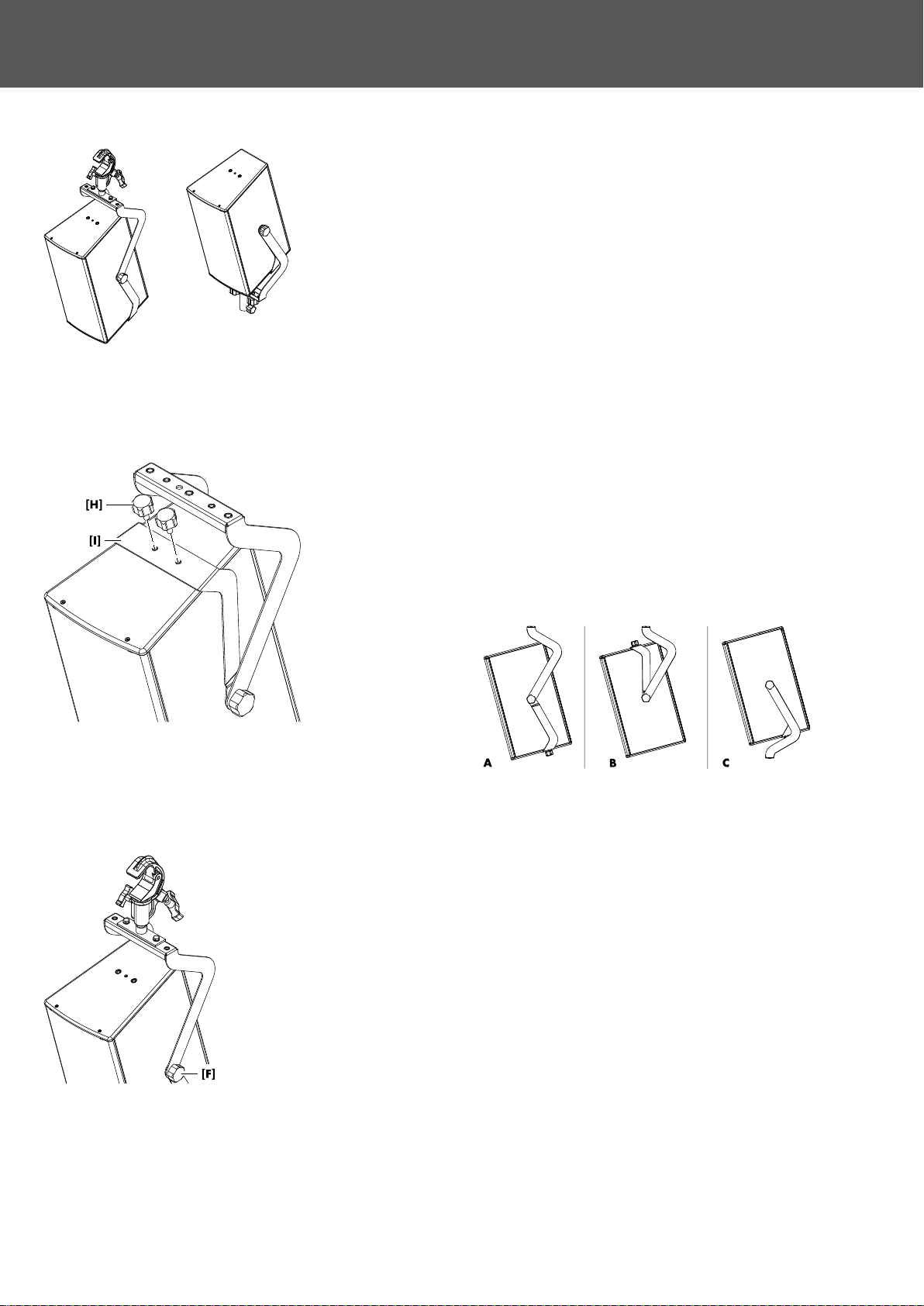

– Using the Z5010 TV spigot with fixing plate in conjunction
with the Z5012 Pipe clamp, YiP cabinets can be vertically
flown from overhead bars or trusses with a tube diameter
between 40 mm and 70 mm (1.5" and 2.75").
– Using the Z5024 Loudspeaker stand adapter, YiP cabinets
can be mounted onto a loudspeaker stand with a tube
diameter of 35 mm/1.4".
The two M10 threaded inserts at the edges of the tie bar are
intended for use with two M10 safety eye bolts (Q9032) to
suspend the cabinet using steel wire ropes. They also serve to
"park" the two hand bolts [H] during storage or transport when the
bracket is not mounted to a cabinet so that the hand bolts cannot
get lost.
1.4. Assembly
The fixing plate of the inner bracket [I] is bolted into the M10
threaded inserts at the top or bottom of the loudspeaker cabinet
using the two hand bolts [H].
Mounting options
The bracket can be attached in three ways (Type A, B, C).
However, for flown applications we recommend to attach the
bracket according to type A. This allows the efficient attachment of
a secondary safety device.
1.5. Adjustments
The vertical aiming and the horizontal aiming can be set
continuously.
Vertical aiming
1. Slightly slacken the fixing screws [F].
2. Set the loudspeaker to the required vertical angle.
3. Retighten the fixing Screws [F].
Horizontal aiming
The horizontal aiming is set at the loudspeaker stand adapter or
the TV spigot assembly.
d&b Z5399 Mounting instructions 1.1 en 5
1.6. Buil-in dimensions
Z5399 YP Mounting bracket dimensions in mm [inch]
Z5399 YP Mounting bracket, mounting options and built-in dimensions in mm [inch]
Built-in dimensions Z5010/Z5012 Assembly
d&b Z5399 Mounting instructions 1.1 en6
2. Declarations
2.1. Manufacturer's declaration
This declaration covers:
– d&b Z5399, YP Mounting bracket.
National standards and technical specifications
applied:
DIN 18 800, DIN 1055, BGV C1.
Backnang, 2014-06-24
Frank Bothe,
Head of R&D
d&b audiotechnik GmbH
2.2. Disposal
When out of use the rigging components must be disposed of in
accordance with the national environmental regulations.
Ensure that damaged rigging components are disposed of in a
way that they cannot be used again.
d&b Z5399 Mounting instructions 1.1 en 7
