Boomerbeast
Deluxe and Ultimate
User Manual
About Daymak
Daymak is one of Canada’s largest Alternative Vehicle providers. We design, engineer, manufacture, import and repair everything from recreational dirt scooters, go-karts and electric golf cars to alternative transportation solutions such as e-scooters and gas scooters.
Our electric scooters represent an energy-ecient and eco-friendly alternative for people
who need to get around the city. They greatly increase the practicality of scooter transportation in urban centres. Costing only a few cents to charge, an e-scooter can make city life
more convenient and much less expensive.
While there are many new Green technologies that are still in their infancy, electric scooters have been developing over the last 40 years or more. E-scooter technology has been
dramatically rened since the introduction of the rst custom-conversion scooters. Today,
electric scooters are a supremely reliable and aordable means of transportation.
Daymak is constantly developing new eco-friendly alternative transportation strategies,
led by its own Research and Development department in Toronto, Canada. We are always
improving our products. Our innovative in-house engineering and quality testing provide
customers with many new kinds of reliable, eco-friendly vehicles, designed to help change
the lives of our customers and the world.
Daymak warranties, services, and stocks parts for everything it sells. We support our products.
Please feel free to visit our website. You’ll nd the latest in cool transportation solutions,
support for the products you’ve purchased and contact information.
Safety
When operating the Boomerbeast please make sure you adhere to the following:
Always check your mirrors and blind spots when operating through trails.
Turn on headlights when in need of additional visibility.
Make sure that your battery power is sucient before you go out to ride
Do not ride with more than 1 passenger
Do not over charge the battery by leaving the charger in the charging port. Once the
battery is fully charged remove the charger immediately.
Do not try to operate the unit while charging.
Do not let anyone uner the age of 16 years old operate this vehicle.
Do not operate this unit up extreme inclines to avoid tipping.
Do not make sharp / abrupt turns at high speeds to avoid tipping.
Do not operate under the inuence of any use of drugs or alcohol
Do not operate on public roads
Do not operate at excessive speeds.
Do not completely submerge the unit in water
Scooter Part Diagrams
Diagram 1: The Boomerbeast Electric Scooter
1. Controller
2. Throttle
3. Tablet Charging Port
4. Tablet / Mount
5. Ignition
6. Mirrors
7. Seat
4
8. Rack
9. Tires
10. Ball Hitch
11. Motor (rear)
12. Battery
13. Charging Port
14. Motor (front) [Ultimate Only]
15. Shocks
16. Turn Signals
17. Headlights
18. Brakes
Boomer Beast Operation
Mounting your tablet
The Boomerbeast comes wiht a tablet mount that allows you to attach a tablet that gives you speed,
distance travelled and allows you to congure the performance infront of you.
The Mounting brackets come with 4 pieces.
Piece A Piece B Piece C Piece D
Instructions
To start take Piece A and put it around the handlebar as seen here:
Take Piece B and put it through the screws and hold it in place
where you want the table to rest.
5
Take the two pieces from Piece C and screw each
one on the screws tightly to lock the tablet holder
in place.
Take the Piece D, and align the four holes to match
the four pegs from Piece B. Once they are in, push
either up or down (depending on where you
mounted it) until it clicks into place. Adjust the
tablet width to the size you need and ip down
the lever on the back to lock that into place.
Slide in the tablet and you are
ready to go!
On the right side of the handle bar you will nd a tablet
charging port with a rubber covered. Use this to charge
your tablet.
*Please Note* The Boomerbeast must be in the ON position and the charger port must be set to 1. To disable
power to the charging port set this to 0
6
Boomer Beast Operation (cont’d)
Turning on your unit

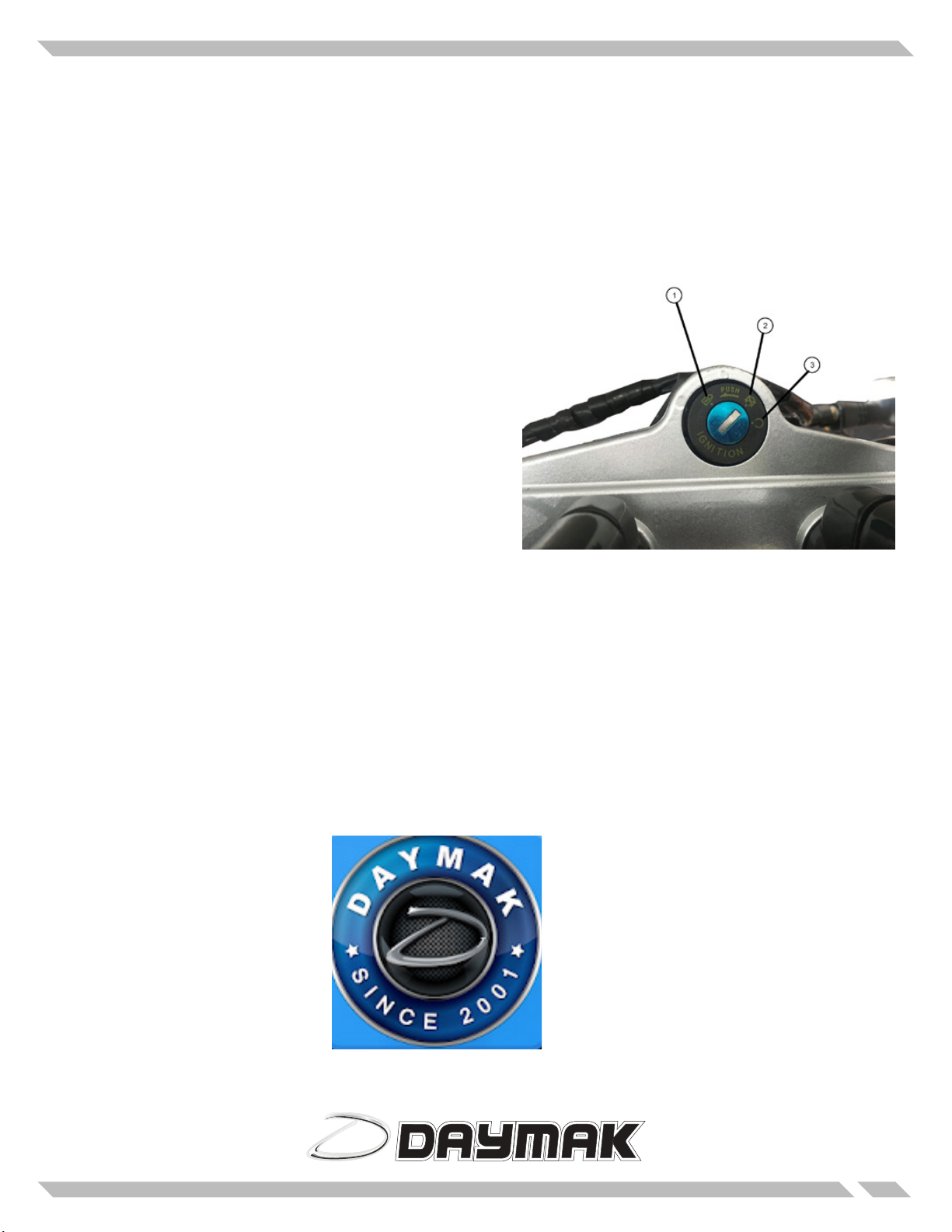

Ignition - The Boomerbeast comes with an ignition that you must put your key into to turn on.
1) Wheel Lock - To put it into position 1 put the key into
the ignition slot and turn left as far as you can go. Once
you cannot turn any more, turn the handlebars of the
Beast to the left, then push the key further into the ignition
and turn to the left again. Once in this position your tire
will be locked perpendicular to the bike making it harder
to steal. Reverse this process to release the wheel lock
2) OFF - Put the key into this position to turn o the unit.
3) ON - Put the key into this position to turn on the unit.
*Please note* The unit does not need to have the Tablet
on for it to be running, so do not leave the Boomerbeast
on unattended for risk of injury.
Connecting your Tablet to your Unit
Connecting via Bluetooth
Turn on your tablet with the signle button on the right hand side and hold it for 3 seconds. Once it has turned
on click on the Daymak Drive Bluetooth App.
7
The Boomerbeast can be connected to via bluetooth to increase torque range and more.

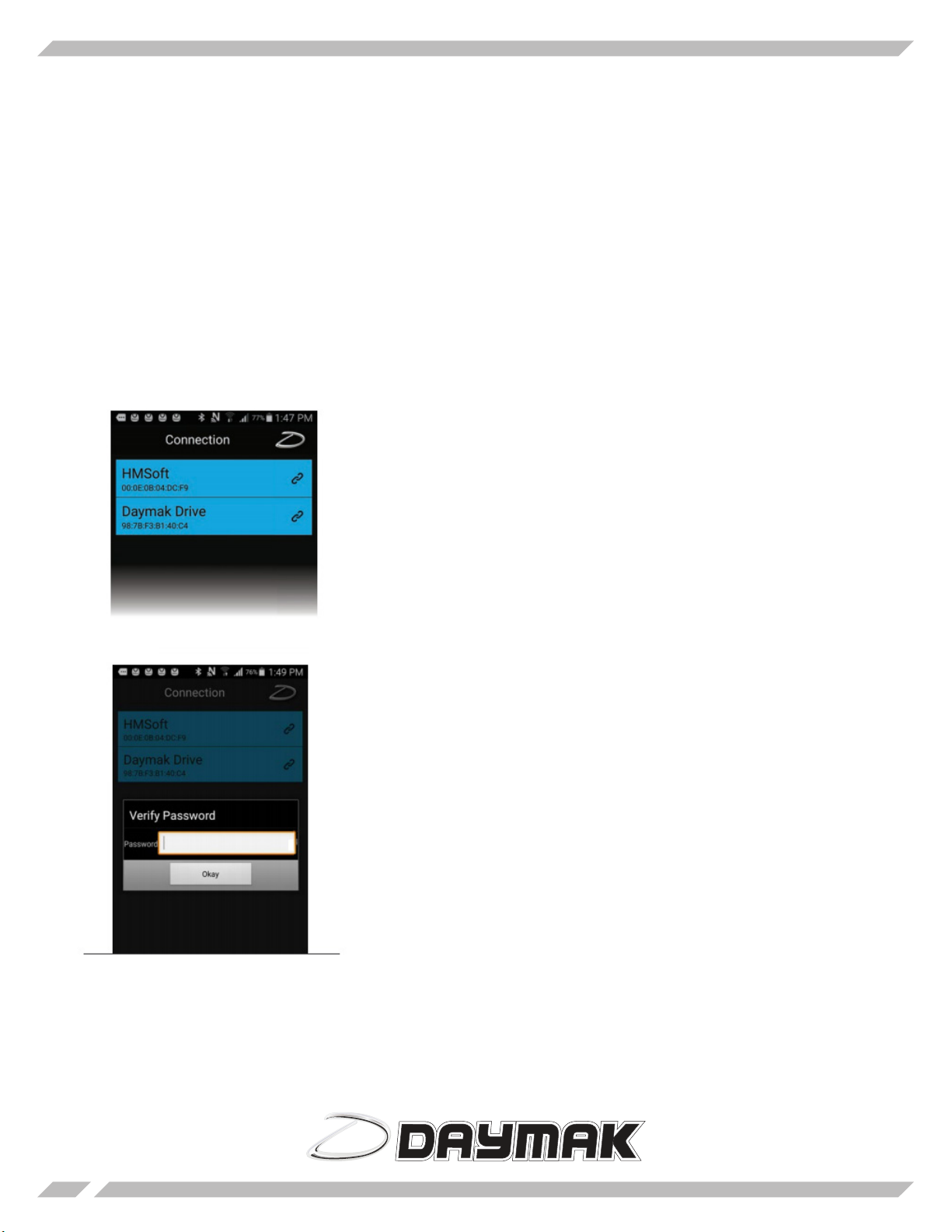

Once the App is open, it will show you a list of the nearby bluetooth devices as well as the Front
and rear motor. Connect to the motor. For the rst time you connect, it will require you to input a
password: 12345678.
*Please note* To connect to the unit the Boomerbeast must be set to the ON position (see
Turning on your unit)
Once you have done that, a speedometer will show up and you are ready to go!
For more information on the Daymak Drive App, please refer to the quick guide seen here:
http://daymak.com/manuals/Daymak%20Drive%20Manual.pdf
Please note the Boomerbeast Beast Ultimate has two con-
trollers, so any changes to eect one motor, will not eect the
other.
8
Boomer Beast Operation (cont’d)
Driving your unit
Once you have your Boomerbeast set up and connected. It’s time to ride!
Right Handlebar
1) Throttle - Turn this toward you to engage the motor
and to propell the unit forward. Do this very slowly at
rst until you get the feel of how quickly it goes.
2) Lights - Set this into one of 3 positions
Rightmost position - All lights are o
Middle position - Rear running lights are on
Leftmost position - All lights are on
3) Reverse Switch - Hold this button down while turning the throttle to go in reverse
Left Handlebar
1) Motor Power - Choose from Rear Wheel Drive or All
Wheeled Drive. Set it to 1 For just rear wheels, and set it
to 2 for all wheels. (Ultimate only)
2) Turn Signals - Slide this switch to the right when
signaling to turn right. And left when signaling to turn
left. Press the white button in the middle once the turn
is complete.
3) Horn - Press this button to activate the horn.
9

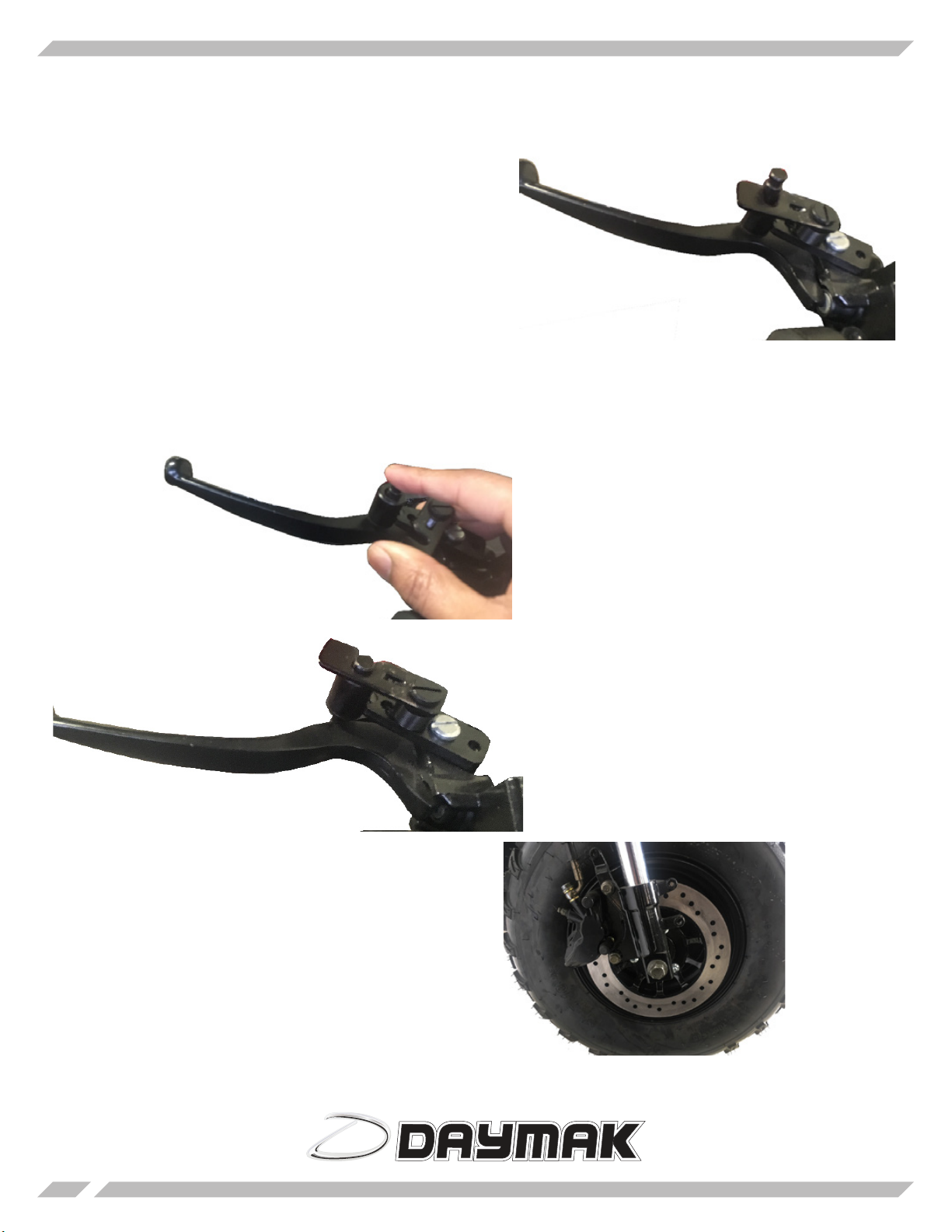

Brakes
On both sides of the handlebar there are brake levers
as seen on the right. To engage the brakes, pull the
brake lever towards you.
The right brake lever activates the front brakes
The left brake lever activates the rear brakes
Brake lock
To engage the brake lock, rst pull the
brake lever towards you as you would normally engage the brakes.
Then push the knob seen here behind the
brake lever . To release it pull the small
latch that surrounds the button back and
pull the brake lever again to its normal position
10
Boomerbeast Brake Disc

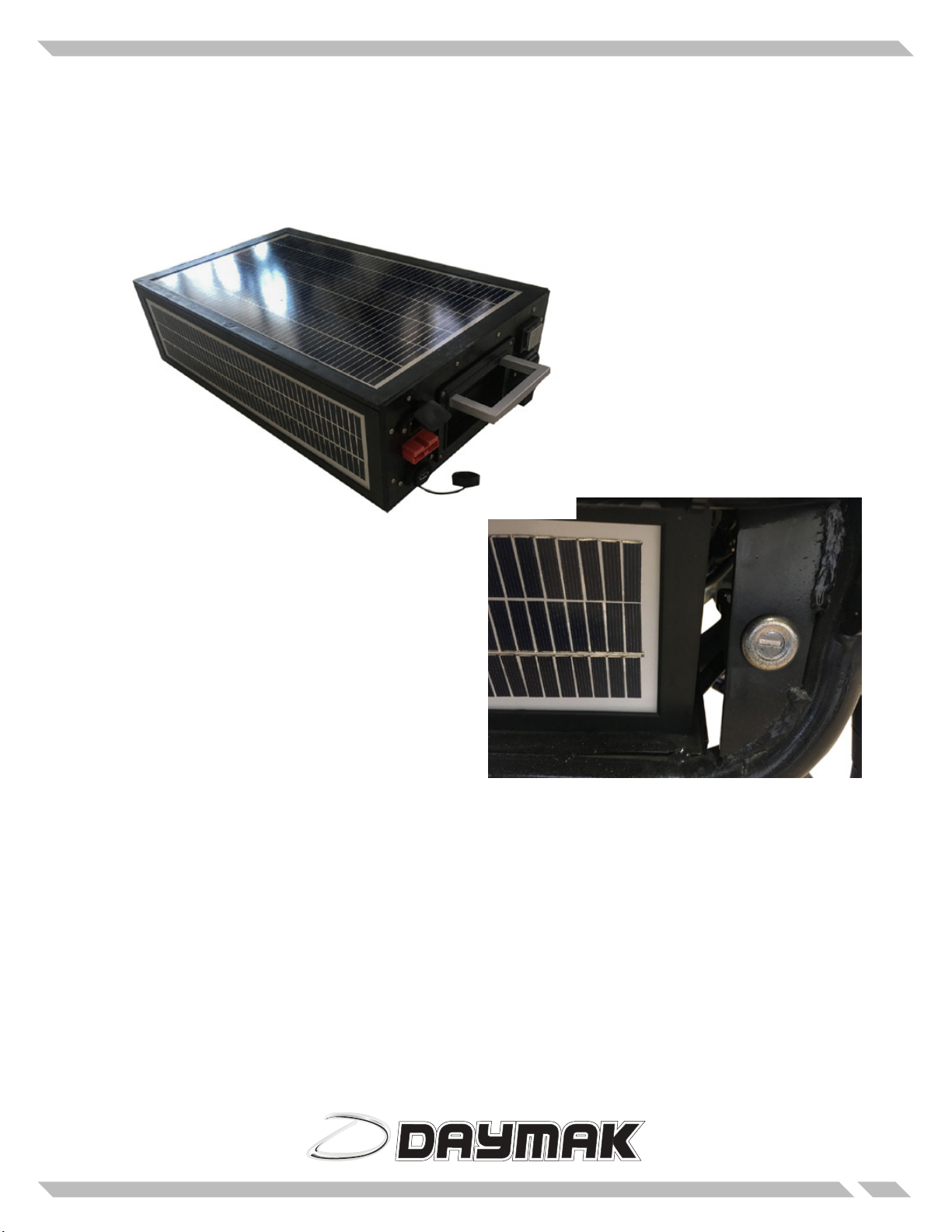

The Battery
The Boomerbeast Deluxe / Ultimate come with a solar powered lithium ion battery
case. This allows the unit to trickle charge the bike while it is out in the sun for additional range and battery longevity.
To take it out of the battery, on the right hand
side there is a lock in which you can put your
key into. Turn the key and release the frame
top of the frame that keeps it in place.
Unplug all connecting wires to the battery
and then lift it up by the handles on each side.
11
The Battery (cont’d)
The Boomerbeast battey can function completly on its own whether you want to use
it as a power bank or charge it in or outside of your home.
1) External Charging Port - This is the charging port if you want to charge the
battery outside of this unit. Plug the charger directly into this spot. Please see below
for charging instructions. *Please note* 6) Power setting must be set to 1 for this to
work
2) Power connection port - Connect this to the unit to give power to your Boomerbeast
3) USB power port - Connect USB devices here to power them *Please note* 6)
Power setting must be set to 2 for this to work
4) 110V Outlet - Connect regular 110V devices here to power them *Please note* 6)
Power setting must be set to 2 for this to work
5) Handle - Raise this handle to easily lift the battery pack. There is one on each side
for easier manuvering.
6) Power Setting - Set this to 0 for no power input or output. Set it to 1 to allow
it to be charged (power input). Set this to 2 to give power to other devices (power
output). *Please note* These settings are irrelevant when the Power connection port
is connected
12
The Battery
Charging Your Unit
If you are charging the Boomerbeast directly in the frame there is a chargeport to the left near
the front of the unit that is covered by a plastic ap.
To begin charging, take the charger and
plug it into a 110V wall outlet. Once it
has been plugged in, the light will turn
green to show that the charger is on.
Take the other end and plug it into the
Boomerbeast as seen on the right and
the charger will turn red.
When charging the unit directly to the
battery, use the following procedures
as illustrated however make sure the
Power Setting on the battery is set to 1
(see previous section)
Once it is completely done charging the charger will
turn green again. Once it has turned green unplug the
unit as soon as possible.
If the unit has been charging for over 12 hours and the
light still hasn’t turned green unplug it and plug it back
in to see if it stays green. If it does its done charging.
Do not overcharge the battery, leaving the charger
in the unit can severe damage to the battery, the unit
and surroundings.
13
The Controller
Daymak Drive Bluetooth Controller
The Daymak Drive controller is what makes the unit do what it does when a function is press or
a switch is switched.
This controller is located underneath
the seat covered by a black panel. This
should not be tampered with by consumers. If you have any issues with your
controller please see a licensed Daymak
dealer for support.
*Please note* On the Ultimate version,
there are two controllers.
14

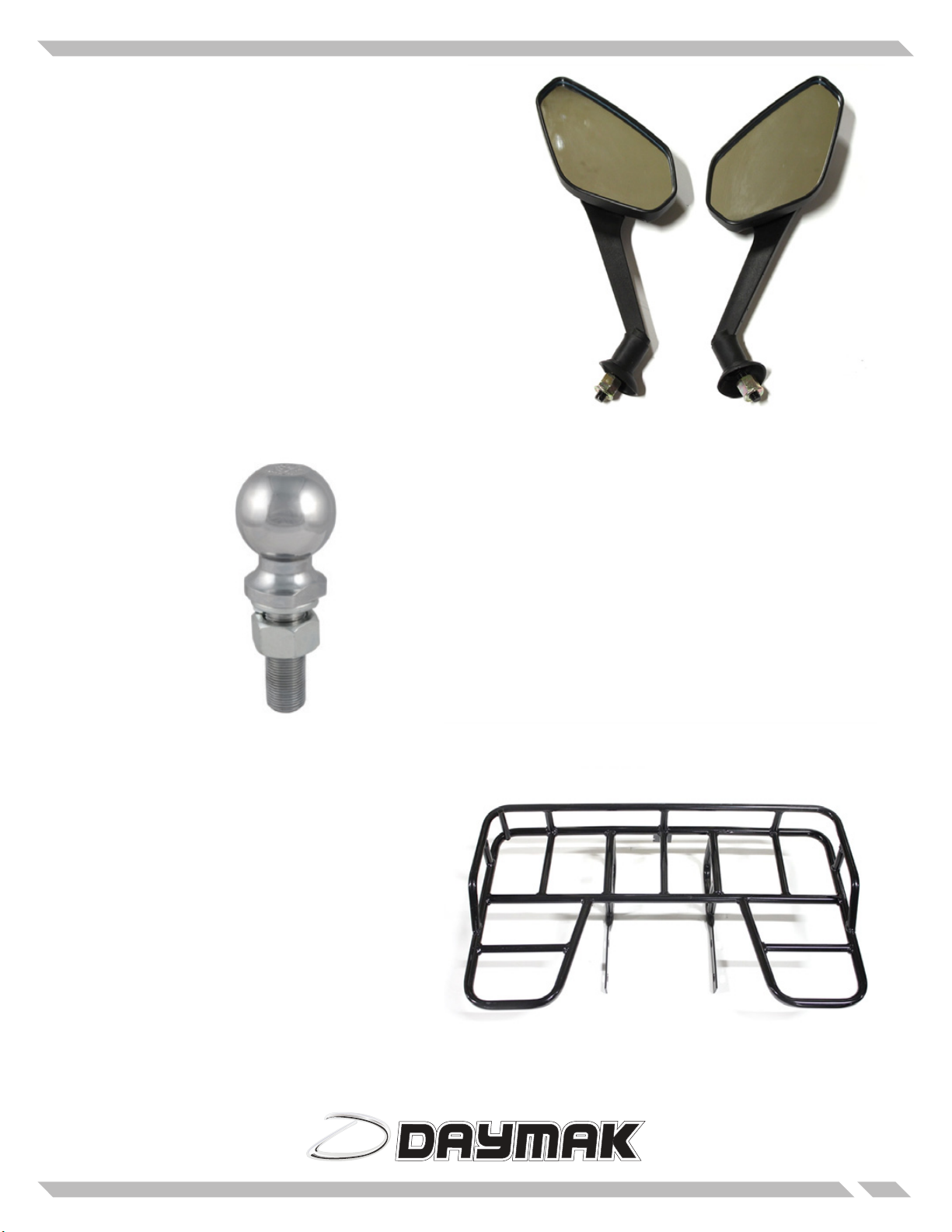

Mirrors
The Boomerbeast comes with a set of mirrors
that screw on each handlebar. Screw each mirror
into the appropriate side (left mirror on left side
etc). Until it is loosely in the position you want.
Then take a wrench and tighten the bolt at the
bottom of the mirrors to make it stick in that
position.
Ball joint Hitch
The Boomerbeast comes with a ball joint hitch
so that you can tow a wagon or whatever you
need to behind your unit.
Rear Rack
The Boomerbeast comes with a rack for additional storage room.
15
The Seat
King Seat
The Boomerbeast comes with an adjustable King seat with arm rests.
1) Arm Rests - Raise these up or down
as you see t. Set it however makes you
the most comfortable.
2) Back Rest Angle - Pull this lever up
and push the back rest of your chair to
set it to the angle that is most comfortable for you.
3) Seat Position - Pull this lever up and
slide the seat either forward or backward to pull the seat closer or further
from the handlebars.
16
Maintenance
Always ensure that your tire pressure is to the recommended value of your unit. You can nd the PSI
value on the side of each tire.
Check your brakes before you ride, make sure they are rm and the unit does not move while they are
being pulled.
Check that all lights are working, headlights brake lights and signal lights.
When storing it outside, use a cover to prevent weather damage to the unit. If possible bring the whole
unit inside. Otherwise if possible bring the battery inside.
Bring in your unit to your local Daymak dealer for a yearly check up if possible.
Do not over charge the battery, once the battery is fully charged unplug it as soon as possible.
Tips and Tricks
Whenever you get o your vehicle, always put your brake lock on. This will prevent it from rolling away
down hill, and will also stop someone from accidentaly engaging the motor while o the vehicle.
If possible leave the lights on, if your lights are on, whether the tablet is connected or not, if the ignition
is turned on you will know because the ligths are also on.
You don’t need to use the tablet provide, but you can connect with your own smart phone! Download
the app from the apple App store, or the Google Play store, and connect directly to your phone.
When engaging the throttle always start slowly to get a feel of how quickly the unit may move.
When braking, use your rear brakes rst, and then your front brakes for safest stopping.
An additional lock is advised when leaving it outside for extended periods of time, secure a safe lock to
the frame to prevent theft.
17
Thank you for choosing Daymak
18
Loading...
