Please pass on to the owner
of this equipment…
CONTROLLERS
Installation & Operating
Instructions
1
CONTROLLERS
Index:
Your Davey ClevaLink Controller……………………….. PG. 2
Packing Lists…………………………………………….... PG. 3
Product Overview…………………………………………. PG. 4
Features……………………………………………………. PG. 5
Technical Data…………………………………………….. PG. 6
Dimensions……………………………………………….... PG. 6
Installing the MCU….......................……………………... PG. 6
Programming the MCU................................................... PG. 7
Setting the Clock............................................................. PG. 7
Setting up the Remote.................................................... PG. 8
Master Control Unit Menu Structure................................ PG. 9
Adding an LCU to the MCU............................................ PG. 10
Setting Up a Group......................................................... PG. 10
Removing an LCU from the MCU................................... PG. 11
Setting the Timers.......................................................... PG. 11
Renaming an Outlet........................................................ PG. 12
Editing “Favourites”......................................................... PG. 12
Resetting the Factory Settings....................................... PG. 13
LCU Installation.............................................................. PG. 14
Operating the LCU......................................................... PG. 14
2
Model
Description
Contains
CLMCUR
CleverLink Master
Control Unit (MCU)
with Remote Control
Master Controller
8 Channel Remote
Installation & Operating Instructions
Wall mounting kit
3 x Remote labels
CLLCUR
CleverLink Link
Control Unit (LCU)
with Remote Control
Link Controller
8 Channel Remote
Installation & Operating Instructions
Wall mounting kit
3 x Remote labels
CLLCU
CleverLink Link
Control Unit (LCU)
Link Controller
Installation & Operating Instructions
Wall mounting kit
CLR
CleverLink Remote
Control
8 Channel Radio Frequency Remote
Installation & Operating Instructions
3 x Remote labels
Your Davey ClevaLink Controller:
Congratulations on the purchase of your Davey ClevaLink Controller. You have
made an excellent choice for the convenient and automated control of your
swimming pool, spa and other appliances around the home, farm or workplace.
The Davey ClevaLink Controller system includes a Master Control Unit (MCU) and
a Link Control Unit (LCU) and a Clevalink Remote Control (CLR) which can be
operated together or individually to suit your personal needs. If your needs change,
you can simply add another LCU device.
Packing Lists:
3
Product Overview:
1234567891011
Master Control Centre (MCU)
1. Default display Day of the week 7. Down Arrow
2. Outlet Name/ Number 8. Forward Advance
3. Favourites 1 to 4 9. Select /Confirm
4. Exit 10. Status of Outlet
5. Back 11. Current Time
6. Up Arrow
The MCU is a sophisticated controller, which includes 16 inbuilt timers, 8 appliance
group functions, and macro functions for the ultimate in easy, convenient control.
The MCU provides automated wireless control over multiple ClevaLink units so you
can easily control many different appliances. It is easy to set up and operate, just
set and forget. It includes a clear LCD display, simple touchpad controls and 2 x 10
Amp outlets in a robust, weatherproof, wall-mountable unit.
It also comes with an 8 channel remote control to control individual appliances or
grouped appliances at the press of one button.
4
CleverLink Remote Control (CLR):
MCU
Clear backlit LCD display
Simple touchpad controls
16 Timers
Group up to 8 Independent outlets
Up to 8 Macros with 4 programmable functions
8 Channel Remote transceiver
Favourite Functions menu
4 x Favourite Hot Keys for simple control from
touchpad
Long memory backup from super-capacitor
Dual outlet switch over ride
LCU
2 x 10A outlets can be controlled by remote and / or
Master Control Unit (MCU)
Available with 8 channel remote transmitter
Dual outlet switch over ride
Remote Control
8 Hot buttons to control wirelessly connected
appliances, groups or macro functions
Function ON/OFF LED’s
Signal strength LED
Simple to use
Weather and water resistant (Not water proof)
132
DAVEY
1. 8 x Function LED 2. 8 x Pushbuttons
3. Red / Green signal LED
ClevaLink Features:
5
Technical Data:
Model
MCU / LCU
Power (V)
220-240
Power Outlets
2
Outlet rating (A)
10A Total
Power Lead length (m)
1.9
Electrical Approval
NSW23093
IP
53
(mm)
Height
Width
Depth
Mounting
Holes (Horiz)
Mounting
Holes
(Vert)
Mounting
Holes Diam
MCU
208
119
88
99
188
5
LCU
124
99
104
Dimensions:
Installing the Master Control Unit (MCU):
1. When installing your MCU it is easier to program the network prior to mounting.
Simply plug in to any power outlet to activate the unit and begin programming.
Refer to the section titled “Programming the MCU”.
2. Mount the MCU in a location that is greater than 3.5 meters from the pool zone
and less than 1.5 meters from a power supply socket. Make sure the unit is
within range of other units before mounting.
3. Plug the appliances to be controlled, into the outlets in the base of the MCU.
WARNING: The total current of the MCU must not exceed 10 Amp. The unit
4. Plug the mains input lead into the power outlet 240V supply.
5. Switch on the power outlet and the 2 override switches on the MCU unit
(mechanical rocker switch above the outlets).
must be installed in the upright position.
6
Programming the MCU:
Press
Selected
Display
Main Menu
Settings
Menu
Set Clock
Clock
Change
clock
Adjust the
time
Store
Changes
X 6
Equipment
Set Timers
Set Up remote
Settings
Set Clock
Factory Reset
Sunday
01:47:00
MMoonnddaayy
09:12:00
Monday
0099::1122::0000
Monday
09:12:00
When installing a network of ClevaLink Master Controller and Link Control Units, it
is easier to program the network prior to installation.
Hot Keys
At any time pressing Hotkeys 1 to 4 on the MCU touchpad will activate Favourites 1
to 4. All other buttons are used to navigate the menus. Below is a list of the SMART
LINKING CONTROL Master Controller menus.
Setting the Clock:
7
Press
Selected
Display
Main Menu
Setup Remote
Menu
Select Outlet,
Group or Macro to
be controlled
Transmit I.D.
Press and hold
selected remote
button
Signal LED will
flash Green
When I.D. has been
sent Function LED
will flash Red Then
Green.
Store Changes
Record the function
of the remote button
on the label
supplied
Transmitting
Outlet 1
OR
Equipment
Set Timers
Edit Favourites
Set Up Remote
Outlet 1
Outlet 2
Transmitting
Outlet 1
Setting up the Remote (MCU):
WARNING: Do not drop or submerge the remote control in water. It is only resistant
to wet hands.
Set up the remote to control an appliance or group
NOTE: Once you have set up your remote control, you can record the function of
each remote button on the labels supplied with the unit.
8
Main Menu
Equipment
Equipment
Access Units
Select Unit Type
Add Equipment 2 x 10A Outlets
2 x 10A Outlets
Rename Outlet 15A Outlets Unit 1
Remove Equipment :
Unit 16
15A Outlets
Set Timers
Timers Set Timers
Unit 1
Timer 1 Timer x: on/off :
: Act: Function Unit 16
Timer 16 Turn: on/off
Select Unit Type 2
Time: hr:min 2 Channel Units
2 x 10A Outlets
Day: Unit 1
:
Setup Macros
Macros Set Macros
Unit 16
Macro 1 Act: Function
: Turn: on/off 15A Units
15A Outlets
Macro 8 Wait: hr:min Unit 1
Act: Function :
Turn: on/off Unit 16
Wait: hr:min
Act: Function Group
Groups
Turn: on/off Group 1
Wait: hr:min :
Act: Function Group 8
Turn: on/off
Macro
Macros
Setup Groups
Groups Setup Groups
Macro 1
Group 1 Function 1
Select Unit Type
:
: : Macro 8
Group 8 Function 8
Edit Favourites
Favourites Select Unit Type 2
Favourite 1
:
Favourite 16
Setup Remote
Select Function
Output 1
Output 2
Group 1
:
Group 8
Macro 1
:
Macro 8
Settings
Settings Set Clock
Set Clock Day
Factory Reset
Factory Reset
hr:min
Firmware Version
Press to enter main menu from
default display
Press to navigate through menu
structure
Press to save a setting
Returns to last screen
Master Control Unit (MCU) Menu Structure:
9
Select
Press / Use
Main Menu
Press Menu ( ) Button
Setup Groups
Press Arrow Up/Down to find “Setup Groups”. Select with
Enter button. A list of 8 Groups will appear.
Select Group
Press Arrow Up/Down to find new group. Select with
Enter button. Note: For new groups 8 x “Free Space”
spots will appear.
Free Space
Press Enter ( ) .
Type of outlet (2x10A or
15A).
Press Arrow Up/Down button to select outlet type. Select
with Enter button.
Select Outlet / named
appliance
Press Arrow Up/Down button to select an outlet /
appliance for the group. Press Enter.
Arrow Up/Down button to select another outlet / appliance
for the group. Press Enter( ) . Repeat for up to 8
appliances.
Exit to Default display
screen
Press Exit button x 3 / Wait 30 secs for screen to return to
default display
Select
Press / Use
Main Menu
Press Menu ( ) Button
Equipment Menu
Press Menu ( ) Button
Add Equipment
Press Arrow Up/Down to find “Add
Equipment”. Select with Enter button
Search for local LCU
Press Menu button to activate “Searching”.
Press and hold a button on the top of the LCU
to transmit its ID.
When the LCU (outlet) is found the display will
read “Unit Added”. Press the OK or Press
Menu/Enter ( ) Button
Exit to Default display screen
Press Exit button x 2 / Wait 30 secs for screen
to return to default display. To rename the new
unit, see “Renaming an Outlet”
((((( Searching ))))))
Setting Up a Group:
Use this Function to wirelessly connect and activate multiple outputs with one
action.
Adding an LCU to the Master Control Unit:
To wirelessly connect one or multiple LCU devices to the MCU
First read Installing an LCU on Page 14
10
Select
Press / Use
Main Menu
Menu ( ) Button
Set Timers
Arrow Up/Down to locate. Select with Enter ( ) button.
The timer which you want
to use
Arrow Up/Down to locate. Select with Enter ( ) button.
“ACT”
Arrow down to locate. Select with Enter ( ) button
Type of outlet. 10A or
15A
Arrow Up/Down to locate. Select with Enter ( ) button.
The appliance to be
controlled
Arrow Up/Down to locate. Select with Enter ( ) button.
Display will return to timer set up display.
“On Time”
Arrow down to locate “On Time”. Select with Enter ( )
button. Enter ( ) again to select Hours or Minutes. Use
UP/DOWN cycle through numbers. Press OK when
complete.
“Day”
To change press Enter( ). Use UP/DOWN arrows to
select “Weekends”, “Every Day” or a day of the week.
Press OK
“Off Time”
Arrow down to locate “Off Time”. Select with Enter ( )
button. Enter ( ) again to select Hours or Minutes. Use
UP/DOWN cycle through numbers. Press OK when
complete.
“Day”
As above
Exit to Default display
screen
Exit button x 4 / Wait 30 secs for screen to return to
default display
Select
Press / Use
Main Menu
Press Menu ( ) Button
Equipment Menu
Press Menu ( ) Button
Remove Outlet
Press Arrow Up/Down to find “Remove outlet”. Select
with Enter button
The outlet type
Press Arrow Up/Down button to select outlet type
(2x10A or 15A). Select with Enter button.
The appliance
Press Arrow Up/Down button to select the appliance
(or New Unit) to be removed. Select with Enter button.
Exit to Default display screen
Press Exit button x 4 / Wait 30 secs for screen to
return to default display
Setting the Timers:
Removing an LCU from the MCU:
11
Select
Press / Use
Main Menu
Press Menu ( ) Button
Equipment Menu
Press Menu ( ) Button
Rename Outlet
Press Arrow Up/Down to find “Rename outlet”. Select
with Enter button
Type of outlet to be renamed
(2x10A or 15A).
Press Arrow Up/Down button to select outlet to be
renamed. Select with Enter button. A list of appliances
/ outlets will appear.
Appliance to be renamed
Press Arrow Up/Down to find name to change. Select
with Enter button. The name will flash.
New Name
Press Arrow Up/Down to find new name from list. OK
to select. If name not available press Enter to write a
new name. Use Arrow Up/Down buttons to select
letters or numbers to complete name. Press Enter to
move through characters. Press OK to complete.
Exit to Default display screen
Press Exit button x 5 / Wait 30 secs for screen to
return to default display
Select
Press / Use
Main Menu
Press Menu ( ) Button
Edit Favourites
Press Arrow Up/Down to “Edit
Favourites” with down button. Select with
Enter button
Desired Favourites position
Press Arrow Up/Down button to select
position of favourite. Select with Enter
button.
Type of outlet. 10A or 15A?
Press Arrow Up/Down button to select
outlet. Select with Enter button.
Desired appliance from Access
Equipment Menu
Press Arrow Up/Down through the
appliance list & select with Enter ( )
button.
If you cannot find desired appliance in the
list, create own using Enter button,
followed by Up/Down arrows to select
alpha/numeric forms.
Exit to Default display screen
Press Exit button x 3 / Wait 30 secs for
screen to return to default display
Renaming an Outlet:
Editing “Favourites”:
Once LCU’s (Outlets) have been added to the Master Control Centre, the outlets,
Groups & Macros can be added to the Favourites list and the order rearranged.
The 4 “Favourites” buttons on the MCU touchpad activate the first 4 in the
favourites list.
If you create a group or a macro you can edit the favourites to include them on the
Hot Keys.
12
Select
Press / Use
Main Menu
Press Menu ( ) Button
Settings
Press Arrow Up/Down to “Settings”.
Select with Menu button
Factory Reset
Press Arrow Up/Down to “Settings”.
Select with Menu button
123
4
Resetting the Factory Settings:
The Settings menu provides access to the Factory Reset sub-menu. When Factory
Reset is selected by pressing the ENTER or OK buttons a confirmation screen is
displayed. If the OK button is then pressed the unit will delete all programmed data
and return to the original state.
_________________________________________________________

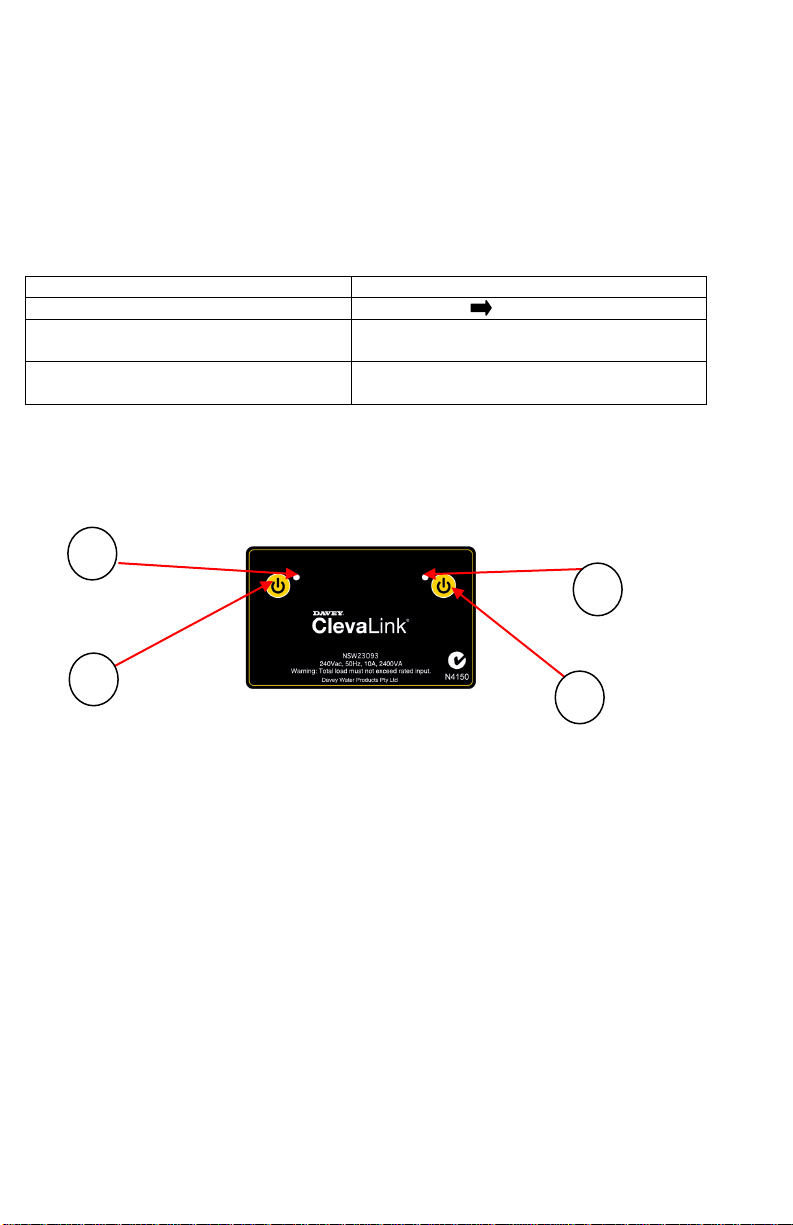

Link Control Unit (LCU)
1. Outlet 1 indicator LED 2. Outlet 1 override / program LED
3. Outlet 2 indicator LED 4. Outlet 2 override / program LED
_________________________________________________________
The LCU is a 2 x 10 Amp weatherproof and wall mountable outlet that can be
remote controlled and wirelessly linked to the MCU and other LCU’s to control your
pool and yard appliances.
13
Installing an LCU:
Press
Selected
Display
Press and Hold outlet power
button, Red LED Will start to
flash, keep holding and go to
next step.
Press and hold selected
remote button,
Signal LED will flash Green
when I.D. has been sent,
Function LED will flash when
I.D. has been received.
Release buttons.
Record the function of the
remote button on the label
supplied
1. When installing your LCU it is easier to program the network prior to mounting.
Simply plug in to any power outlet to activate the unit and begin programming.
Refer to the section titled “Operating the LCU”.
2. Mount the LCU in a location that is greater than 3.5 meters from the pool zone
and less than 1.5 meters from a power supply socket.
3. Plug the appliances to be controlled, into the outlets in the base of the LCU.
WARNING: The total current of the LCU must not exceed 10 Amp
4. Plugs the mains input lead into the power outlet 240V supply.
5. Switch on the power outlet and the 2 override switches on the LCU unit
(mechanical rocker switch above the outlets).
Operating the LCU:
14
DAVEY WATER PRODUCTS GUARANTEE FOR
This Davey product is guaranteed to be free of material or manufacturing defects for one year……….
TERMS AND CONDITIONS
1. This guarantee applies to all states and territories of Australia and New Zealand only and is subject to
the provisions of the Trade Practices Act (Aust.), the Goods and Consumer Protection Legislation of
the various Australian states and the Consumers Guarantee Act 1993 (NZ) as applicable.
2. The guarantee period commences on the date of original purchase of the equipment. Evidence of this
date of original purchase must be provided when claiming repairs under guarantee. It is
recommended you retain all receipts in a safe place.
3. This guarantee covers parts and workshop labour only. Goods should be forwarded, with proof of
date of original purchase, to an Authorised Davey Service Centre freight paid. Any travel and
removal/reinstalling charges for goods repaired infield will be to the owners account. Guarantee may
be denied on goods not readily accessible for service personnel or mounted on exterior walls above
single storey level.
4. The guarantee for commercial applications such as hotels, motels, caravan parks, health clubs, public
pools etc. is for 12 months (1 year) only, subject to equipment sizing in accordance with Davey’s
recommendations.
5. This guarantee is subject to due compliance by the original purchaser with all directions and
conditions set out in the Installation and Operating Instructions. Failure to comply with these
instructions, damage or breakdown caused by fair wear and tear, negligence, misuse, incorrect
installation, chemical or additives in the water, inadequate protection against freezing, rain or other
adverse weather conditions, corrosive or abrasive water, lightning or high voltage spikes or through
unauthorised persons attempting repairs are not covered under guarantee. The product must only be
connected to the voltage shown on the nameplate.
AUSTRALIA & NEW ZEALAND
6. Without limiting the original purchaser’s entitlements under the Trade Practices Act (Aust.), the Goods
& Consumer Protection Legislation of the various Australian states, or the Consumers Guarantee Act
1993 (NZ), Davey shall not be liable for any loss of profits or any consequential, indirect or special
loss, damage or injury of any kind whatsoever arising directly or indirectly from the product or any
defect.
7. Where the Trade Practices Act (Aust.), the Goods and Consumer Protection Legislation of the various
Australian states and the Consumers Guarantee Act 1993 (NZ) does not apply. Davey shall not be
liable for any loss of profits or any consequential, indirect or special loss, damage or injury of any kind
whatsoever suffered by the purchaser arising directly or indirectly from the product or any defect and
the purchaser shall indemnify Davey against any claim by any other person whatsoever in respect of
any such loss, damage or injury.
8. Nothing in this guarantee is intended to have the effect of contracting out of the provisions of the
Trade Practices Act (Aust.), the Goods and Consumer Protection Legislation of the various Australian
states and Consumers Guarantee Act 1993 (NZ) except to the extent permitted by the various Acts
and this guarantee is to be modified to the extent necessary to give effect to that intention.
9. Davey may be collecting personal information from you in order to provide you with a service. Davey
Water Products Pty Ltd promises only to use this information in accordance with the Provisions of the
15
Privacy Act 1988 (Cth) and the Privacy Policy of Davey Water Products Pty Ltd which is available at
davey.com.au.
® Davey and ClevaLink are registered trademarks of Davey Water Products Pty Ltd.
© Davey Water Products Pty Ltd 2011.
2011 Rev_01
16
Loading...
