DIESEL PRO 245

TECHNICAL MANUAL FOR DTNA

®

2018 ©DAVCO Technology, LLC. Last Updated: 10/30/18 F1353 REV B

DIESEL PRO® 245

Technology, LLC

APPLICATIONS, MODELS, AND OPTIONS

TECHNICAL MANUAL FOR DTNA

Applications

2017 engine models:

• Detroit DD5 and DD8

Meets/Exceeds 2017 engine manu­facturer’s stringent water separation
requirements

HOW IT WORKS

Models and Options

• Base Model - Unheated

• Electric Pre-Heaters

• 12VDC, 24VDC Pre-heater

• Water-In-Fuel (WIF) Sensor

• Fuel from the tank enters the DieselPro body (suction side of the fuel system).

• Large contaminants and “free” water are separated from the fuel and remain in the body.

• Fuel rises into the clear cover.

• Contaminants and emulsified water are captured by the filter media.

• Fuel level continues to rise to maintain a fuel path through the clean filter media with low restriction.

• Clean, water-free fuel exits the DieselPro and flows to the engine fuel injection system.

Fuel System Diagram

FUEL TANK

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

1

F1353 REV B

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

“SEEING IS BELIEVING”®

See when NOT to change the fuel filter.

See the condition of the fuel. Seeing what collects on the filter media or what’s happening inside the clear cover can help

diagnose many fuel and mechanical conditions.

“Filter on Top” configuration. Water and debris removed from the fuel falls to the lower chamber and stays away from the
filter media resulting in longer filter life.

Built in protection when priming the fuel filter. Unfiltered fuel is kept on the “dirty” side of the filter media during priming
ensuring only clean fuel reaches the engine.

®

Patented media. The “Best in Class” StrataPore
performance of cellulose media.

media removes 98% of free and emulsified water. This far exceeds the

When new, the fuel level in the filter will be very low with
minimal restriction. As the filter is used, contaminants

collect on the filter from the bottom up. Fuel rises on the
filter indicating remaining filter life.

Fuel level at filter wrap level. Even though the fuel level
is now more than half of the filter element, the fuel is still
flowing through clean media at minimal restriction levels.
The filter still has significant life remaining.

Fuel level increases in clear cover. As contaminants
collect on the filter, the fuel rises to a non-contaminated
section of the filter, providing optimal filtration while main­taining lowest restriction.

The filter element is now completely covered by fuel.
At this point, all of the media’s surface area is utilized.
Restriction is increasing and the filter element should be
changed at the next scheduled maintenance interval.

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

2

F1353 REV B

DIESEL PRO® 245

2.00

Technology, LLC

DIMENSIONS AND SPECIFICATIONS

TECHNICAL MANUAL FOR DTNA

All dimensions are in inches (millimeters)

LEFT SIDE RIGHT SIDEFRONT

SPECIFICATIONS

Height Overall 13.37 in (339.5 mm)

Depth Overall 5.84 in (148.3 mm)

Width, max. 6.2 in (158.0 mm)

Mount Bracket Centers 5.25 in (133.4 mm)

Weight, dry 6-7 lbs

Fuel In Connection M22

Fuel Out Connection M22

Filter Service Clearance Min 3.5" (88.9 mm)

Max Fuel Flow 60 gph

Electric Pre-heater 12VDC/24VDC, 155W

FILTRATION PERFORMANCE AT 55 GPH

Micron 8

Coarse water removal (%) >98%

Emulsified water removal (%) (new filter) >93%

% Emulsified water removal (end of life filter) >50%

Dirt holding capacity (grams) 70

Restriction vs. flow

1.80

1.60

1.40

1.20

1.00

0.80

0.60

0.40

0.20

Differential Pressure (in-Hg)

0.00
0 20 40 60 80 100 120

Flow (gph)

BOTTOM

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B

3

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

E IMPORTANT SAFETY PRECAUTIONS

General Safety Precautions

• FOR USE WITH DIESEL FUEL ONLY

• To avoid serious injury or death, follow the safety information in this document.

• Keep this manual. If you need to replace the manual, call customer service at 800-328-2611
or visit www.davco.com for a replacement.

• Refer to appropriate regulations for environmental and workplace safety rules.

WARNING: To prevent personal injury

• Scalding hazard: When diesel fuel is circulated through an operating engine, it can become very hot. Do not allow
fuel to come in contact with eyes or unprotected skin. Allow the engine and fuel to cool to ambient temperature
before replacing the fuel filter or performing service operations which could result in spillage of fuel from the fuel
system.

• Fire Prevention: Heated fuel can form combustible vapor mixtures in the area around the fuel source. To eliminate
the potential for fire, keep open flames, sparks or other potential ignition sources away from the work area. Do not
smoke during filter replacement or service operations.

• Inhalation Precaution: Always perform engine or vehicle fuel system maintenance in a well ventilated area that is
kept free of bystanders.

• The ignition key must be in the off position, unless otherwise directed. To avoid unintentional engine startup, use a
lockout key and/or signage to alert personnel that work is being performed.

• Do not energize the pre-heater outside of the Diesel Pro. It can become very hot.

Government Regulations

• Engine fluids (oil, fuel, and coolant) may be a hazard to human health and the environment. Handle all fluids and other
contaminated materials (such as filters and rags) in accordance with applicable regulations. Recycle or dispose of
engine fluids, filters, and other contaminated materials according to applicable regulations.

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

4

F1353 REV B

DIESEL PRO® 245

Technology, LLC

INSTALLATION INSTRUCTIONS

Installation Location

The DieselPro must be installed between the fuel tank and
the fuel transfer pump.

Mounting the DieselPro

Mount the DieselPro keeping the following points in mind:

• Do not install the DieselPro directly on the engine.

• Mount vertically with the cover and element pointing up.

• Make sure there is enough top and side clearance for the
cover to be conveniently removed for filter replacement
(3.5” minimum).

• The DieselPro MUST be installed so that the Filter
Element is above the “FULL” level of the fuel tank. If
mounted below full tank level, a shut off valve will be
required at the inlet to allow filter changes without
overflow of fuel.

1. With the engine shut down and at ambient temperature,
close the fuel shutoff valve (if equipped) and place a suit­able container under the fuel filters.

2. Remove the primary fuel filter element assembly, sedi­menter, and/or water separator. Drain the used element
and dispose of it in an environmentally responsible man­ner, according to state and/or federal (EPA) recommenda­tions. The fuel can be returned to the tank.

3. Mount the DieselPro in the desired location using 3/8”
Grade 8 hardware.

Fuel Line Routing

To minimize fuel system restriction, observe the following
guidelines when plumbing the fuel system:

• Keep the fuel line routing as smooth as possible with no
low-hanging loops which can trap water.

• Use 90° elbows only when necessary.

• If the fuel hoses are cut to length on the job, be sure that
the inner liner of the fuel hose is not cut by the fitting,
which can cause check valve performance issues. Make
sure hoses are clean and free of debris before installing.

• To avoid damaging the aluminum DieselPro body, do not
over-tighten fuel lines or fuel line fittings.

1. Route the fuel supply line from the pick up on the fuel
tank to the DieselPro inlet (labeled “Fuel In”).

2. Route the fuel outlet line from the DieselPro outlet (la­beled “Fuel Out”) to the inlet of the fuel pump.

TECHNICAL MANUAL FOR DTNA

The inlet and outlet fittings can be moved from side to
side depending on the applications needs. (Example :
FUEL IN right and FUEL OUT right, ) Be sure to use only
ONE INLET and ONE OUTLET port per installation.

FUEL INFUEL IN

FUEL OUTFUEL OUT

Priming the Fuel System

1. Check to make sure the drain valve at the base of the
DieselPro is closed.

2. Remove the vent cap from the top of the clear cover. Fill
the DieselPro full with clean fuel. Re-install the vent cap.
Tighten the vent cap by hand until it clicks.

3. Start the engine. When the lubrication system reaches its
normal operating pressure, increase engine RPM to high
idle for one to two minutes. After the air is purged loosen
the vent cap until the fuel level lowers to just above the
collar. Tighten the vent cap by hand until it clicks.

The clear filter cover will not fill completely during engine
operation. It will gradually fill over time and the fuel level will
rise as the filter becomes contaminated.

Water-in-Fuel Sensor (WIF) Installation

1. Open the vent cap. Open the drain valve by turning one to
one and a half revolutions. Drain the DieselPro complete­ly. Close the drain valve.

2. Install WIF into WIF port. Torque to 20-24 in-lbs.

3. Prime the DieselPro and check for leaks.

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

5

F1353 REV B

DIESEL PRO® 245

Technology, LLC

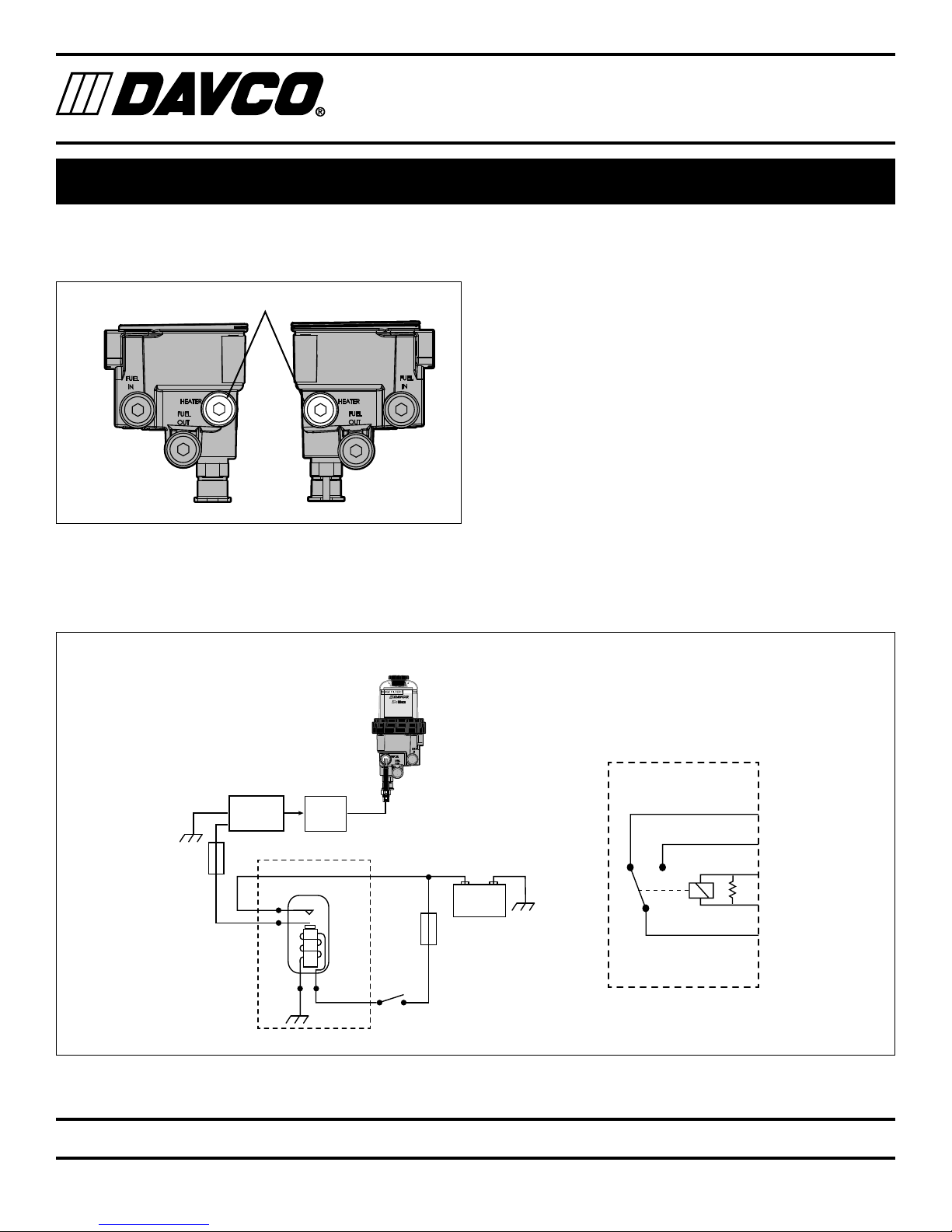

12VDC AND 24VDC PREHEATER INSTALLATION

1. Open the vent cap. Open the drain valve by turning one to
one and a half revolutions. Drain the DieselPro complete­ly. Close the drain valve.

HEATER PORT

2. Remove the plug from the pre-heater port.

3. Apply liquid thread sealant to the pre-heater threads and
install into the bottom plate. Tighten to 15-30 ft-lbs.

4. Connect the chassis harness to the DieselPro harness.

TECHNICAL MANUAL FOR DTNA

5. Connect the power lead to the fused accessory side
of the ignition switch. The fuse rating depends on the
pre-heater installed.

Approved fuse ratings

• 12VDC System:

- 20 amp fuse for a 155W PTC Pre-heater

- 25 amp fuse for a 195W PTC Pre-heater

• 24VDC System:

- 15 amp fuse for a 195W PTC Pre-heater

If the keyed circuit will not handle the required amperage for
the pre-heater, use a relay. Prime the DieselPro (see page 5)
and check for leaks.

Harness

Connector

Pre-heater Fuse

OPTIONAL

RELAY

87

85

Heater

30/51

Pre-heater Wiring with Relay

12/24 VDC

+ -

Ignition
Circuit
Fuse

86

87A

87

86

85

30/51

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B

6

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

VISUAL DIAGNOSTICS  AIR VS. VAPOR BUBBLES

There are two kinds of bubbles that may be visible at the fuel pump inlet of a diesel fuel system. The bubbles can be
characterized as either air bubbles or vapor bubbles.

Air Bubbles

Air bubbles are caused by any air leak on the vacuum (suc­tion) side of the fuel system from the fuel tank pick-up to and
including the lift pump (see Figure 1).

If there is an air leak in the fuel system, air bubbles will be
present in the clear cover of the DieselPro. Follow test
procedures outlined in “Diagnostic Procedures for Air Leaks”
for air leak diagnostics. If there are no bubbles present in
the DieselPro cover and the engine continues to run rough,
lopes or has a loss of power, there may be an air leak between
the DieselPro outlet port and lift pump inlet. This type of air
bubble can be seen if a sight tube is installed at the lift pump
inlet. Air bubbles may also be visible in the fuel return (spill)
hose out of the fuel gallery. These leaks are easily eliminated
by checking and torquing the fuel fittings in the area of the
leak.

TEST 1: A quick procedure to determine if the air leak
is between the fuel tank and the DieselPro is to remove
the DieselPro inlet hose and route a new hose from the
DieselPro inlet into a container of fuel or the fuel tank fill cap
opening. Start the engine and check for bubbles.

If there are no air leak symptoms, but bubbles are present in a
sight tube at the fuel lift pump inlet, they are most likely vapor
bubbles.

Vapor Bubbles

All diesel fuel has some level of entrained air caused by the
natural splashing that occurs in the fuel tank during normal
vehicle or equipment operation. Vapor bubbles develop in
the DieselPro because the pressure inside the DieselPro is
lower than the atmospheric pressure in the fuel tank. Vapor
bubbles can vary from champagne size up to ¼" in diameter.
They may increase in size or volume as engine RPM increas­es. The lower pressure draws the entrained air/vapor out of
the fuel and these bubbles will be visible as the fuel exits the
DieselPro (See Figure 2). As the fuel enters the lift pump, it
is pressurized and the bubbles are compressed back into the
fuel. There will be no bubbles on the fuel return side of the
system. These vapor bubbles will not affect the performance
of the engine.

TEST 2: An easy way to determine the difference between
vapor and air bubbles is by temporarily removing the filter ele­ment from the DieselPro. Fill the cover with clean diesel fuel,
replace the vent cap and re-run the outlet fitting sight glass
test. If there are no bubbles visible in the sight glass, then the
bubbles that were previously visible were vapor bubbles. If
bubbles are still present then they are air. If air bubbles still
exist, re-run the test in TEST 1 to eliminate the chassis plumb­ing as a variable.

There is no troubleshooting or repair procedure required
for vapor bubbles. Vapor bubbles do not cause perfor­mance issues and will not be present after the lift pump.

ENGINE

LIFT PUMP

DIESEL PRO

AIR BUBBLES VAPOR BUBBLES

Figure 1 Figure 2

FUEL RETURN

FUEL RETURN

ENGINE

LIFT PUMP

DIESEL PRO

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B

7

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

VISUAL DIAGNOSTICS WITH CLEAR COVER

Fuel level is not at the top of the fuel filter.

ÎNormal - Do not change the filter.

Fuel level is at the top of the filter and appears to be full of wax.

ÎChange the filter - Run the engine for a minimum of 25 minutes at idle. Do not run at full RPM.

Bubbles are seen flowing in with the fuel.

ÎCheck all fittings and lines from the fuel tank to the FuelProcessor. Check lower and upper collar

o-rings.

Fuel drains back to the fuel tank when changing the fuel filter or draining separator.

ÎRemove the check valve assembly. Clean or replace and retest. Check air leaks in the fuel system.

Fuel level is at the top of the filter. Low power.

ÎChange the filter at the first available opportunity.

There is a power complaint and the fuel level is below the collar.

ÎCheck for a missing grommet at the lower end of the filter or missing/broken spring at top of filter.

Water is noticed in the cover.

ÎDrain the water.

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

8

F1353 REV B

DIESEL PRO® 245

Technology, LLC

DIAGNOSTIC PROCEDURES  AIR LEAKS

Every DieselPro is factory tested for leaks and is identified
with a traceable number prior to shipment. Most field issues
associated with leaks are related to loose fittings. These leaks
are easily eliminated by checking and torquing the fuel fittings
in the area of the leak. Some fittings may also require the
application of liquid or paste type thread sealant.

All suction side fuel filters experience bubbles. It is normal to
see champagne size bubbles in the DieselPro cover, at the
DieselPro outlet or at the lift pump.

IN ORDER TO RETURN A DIESEL PRO FOR
EVALUATION, THE FOLLOWING PROCEDURES
TESTS MUST BE COMPLETED BEFORE REQUESTING
A DAVCO RGA RETURN GOODS AUTHORIZATION
NUMBER.

I. Air bubbles will be visible in the clear cover of the

DieselPro if the leak originates between the fuel tank and
the DieselPro. The following is a quick test to isolate the
air leak source.

A. Remove the DieselPro inlet hose.

1. Install a jumper hose from the DieselPro to the
fuel tank (through the fill cap) or to a container of
fuel.

2. Start the engine. If this eliminates the air bub­bles, the air source is at the fuel tank fittings or
hose connections.

3. Tighten all fittings and connectors. Retest.

a. If air bubbles persist, the air source is on the

Diesel Pro side of the system:

i. Tighten all fittings on the DieselPro.

ii. Loosen the collar until it spins freely.

Apply downward pressure on the top of
the cover and rotate the collar until con­tact. Use a DAVCO wrench (if necessary)
to tighten the collar three additional ribs.

b. If the drain valve is suspected, install a plug

in place of the drain valve (for test purposes
only).

TECHNICAL MANUAL FOR DTNA

4. If air bubbles persist, test as follows:

a. Remove the DieselPro from the chassis.

b. Plug the fuel outlet port. Do not remove filter,

cover/collar, vent cap, drain valve and/or
check valve. If the DieselPro is equipped with
a pre-heater, do not remove the pre-heater.

c. Apply 15 PSI of air pressure at the fuel inlet.

Immerse the Diesel Pro in a tank of water and
look for air bubbles.

d. Correct the source of the air leak and retest.

II. Bubbles Not Visible: If there are symptoms of sucking air

(indicated by engine loping/rough running performance/
power loss, etc.) and there are no bubbles in the clear
cover, the air leak is either at the DieselPro outlet fitting,
vent cap o-ring, the lift pump inlet connection, or the fuel
hose/connections to the lift pump. Inspect and tighten
fittings as needed.

III. Excessive Restriction: If the fuel level is at the top of the

filter, replace the fuel filter. The DieselPro will not cause
excess system restriction if the fuel level is below the top
of the filter. The only exception is if the grommet is not
installed in the bottom of the filter element.

A. Loss of Prime: When air is introduced into the fuel sys-

tem, (i.e. draining water from the DieselPro or when
replacing the fuel filter) a check valve is needed to
keep the fuel system primed from the DieselPro back
to the fuel tank. A check valve is standard with every
DieselPro.

B. To test for proper check valve operation, put a drain

pan under the Diesel Pro, remove the fuel inlet hose
and open the vent cap. Fuel should not flow out of the
DieselPro although slight seepage of fuel is normal. If
fuel flows out of the unit, follow the check valve test­ing procedures. To test for proper check valve opera­tion, place a drain pan under the Diesel Pro, remove
the fuel inlet hose and open the vent cap. Fuel should
not flow out of the Diesel Pro, although slight seepage
of fuel is normal. If fuel flows out of the Diesel Pro fuel
inlet, “Check Valve Service” on page 10.

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

9

F1353 REV B

DIESEL PRO® 245

Technology, LLC

DIAGNOSTIC PROCEDURES  CHECK VALVE AND HEATER TESTING

Check Valve Service

To test for proper check valve operation, remove the fuel inlet
hose and open the vent cap. Fuel should not flow out of the
DieselPro, although a slight seepage of fuel is normal. If fuel
drains back to the fuel tank, remove the check valve assembly
at the fuel inlet fitting. Refer to the table on the Service Parts
page for ordering information.

1. Use a back-up wrench to hold the check valve body and
remove the fuel hose from the inlet of the DieselPro.

2. Remove and disassemble the check valve assembly.

3. Clean and inspect the check valve body. Replace the
check valve body if any cuts, grooves or nicks are evident
or if the ball seat is not smooth.

4. Inspect the check valve spring and spring retainer. If the
spring or spring retainer is broken or if the check ball
has groves, nicks or is out of round, replace with a check
valve service kit. Otherwise, clean and reassemble the
check valve assembly.

5. The spring retainer snaps into a groove in the check-valve
body.

6. Replace the check valve assembly into the body and
torque to 25-40 ft-lbs.

7. Connect the fuel inlet hose, using liquid or paste type
thread sealant.

8. Prime the fuel system, start the engine and check for any
fuel leaks.

TECHNICAL MANUAL FOR DTNA

PTC Pre-heater Testing Procedures

E Do not energize pre-heater/heater outside of the

Diesel Pro. Caution! Very hot.
Equipment Needed: A precision low resistance ohm
meter capable of measuring with accuracy to two decimal
places.

1. Disconnect the harness from the pre-heater. Connect the

ohm meter leads to the pins of the pre-heater. Use the

following to determine whether the resistance value is in

the acceptable range.

PTC Pre-heater Watts Resistance Range (ohms)

12VDC (PTC) 195 W 0.4 to 0.6 @ 77°F (25°C)

24VDC (PTC) 195 W 2.0-3.0 @ 77°F (25°C)

12VDC (PTC) 155W 0.95 to 1.2 @ 77°F (25°C)

10

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B

DIESEL PRO® 245

Technology, LLC

FILTER CHANGE PROCEDURE

2. Turn off the engine. Remove the vent cap and dispose of
the o-ring. Clean the threads of the vent cap and on the
top of the cover. Set the vent cap aside.

3. Open the drain valve by turning one to one and a half rev­olutions and drain the fuel completely from the unit, then
close the drain valve.

1-1.5x

First Generation Drain Second Generation Drain

4. Using the Collar Wrench, loosen the collar.

5. Remove the clear cover and collar from the DieselPro.
Discard the cover o-ring and install a new o-ring (sup­plied with the filter) on the cover. Clean the threads on
the collar and the body of the DieselPro.

6. Install the new o-ring on vent cap (supplied with the
filter).

7. Remove the filter element from the DieselPro by pulling
upward.

8. Install the new filter element. Position the filter element
so the key is lined up with the keyway on the separator
plate of the housing. Use the arrow on the top of the
endplate to align the filter. Ensure the filter element is
fully seated by firmly pushing on the endplate. The filter
should not rotate freely.

Arrow

Endplate

1-1.5x

TECHNICAL MANUAL FOR DTNA

9. After checking to make sure the new o-ring seal is seated
correctly on the base of the cover, install the cover and
collar. Apply downward pressure on the top of the cover
and rotate the collar until contact.

10. Use a DAVCO wrench if necessary to tighten 3 additional
ribs.

3

12

11. Prime the unit by filling the clear cover with clean diesel
fuel until it reaches the top of the filter.

12. Install the vent cap. Tighten the vent cap by hand until it
clicks.

Keyway

Key

Separator plate of the housing

13. Start the engine and run for one minute. Slowly open
the vent cap and allow the fuel to drop to about one inch
above the collar.

14. Tighten the vent cap by hand until it clicks.

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

11

F1353 REV B

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

PREVENTATIVE MAINTENANCE

Preventative Maintenance

Environmental Concerns and Seasonal Maintenance

• Steam clean the DieselPro with fresh water regularly to keep corrosive salt or dirt from building up on the housing, cover
and collar.

• Extreme winter or salt corrosion environments may require lubrication of the collar with anti-seize lubricant every 180 days.

Weekly water drains

1. Turn off the engine and remove the vent cap.

2. Place a suitable container under the DieselPro and open the drain valve.

3. Collected water will flow into the container. When fuel begins to flow out the drain, close the drain valve. Drain the least
amount of fuel as possible.

4. Install the vent cap and tighten it by hand until it clicks.

5. Start the engine and raise the RPM for one minute to purge the air from the system.

During each filter change

• Change the o-rings on the cover and vent cap (included with the service filter kit).

Annual inspection

• Inspect all electrical connections for corrosion.

• Inspect all fuel fittings for leaks.

• Inspect the DieselPro for damage or signs of leaks.

12

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

SERVICE PART NUMBERS

SERVICE PARTS AND KITS

A DVC 240002DAV Collar

B DVC 240023DAV Vent Cap Service Kit (vent cap and o-ring)

C DVC 243013SDAV Cover, Collar, Spring, Vent Cap and Vent Cap O-ring

(Collar o-ring not included)

D DVC 243017DAV Cover with Red Stripe, Collar, Spring, Vent Cap and

Vent Cap O-ring (Collar o-ring not included)

D

E DVC 232009DAV O-ring Service Kit

F DVC 380056DAV Spring

G DVC 245013DAV Check Valve Service Kit

(Includes Ball, Spring, and Retainer)

A

B

C

E

F

G

H DVC 245010DAV Check Valve Assembly

(Includes Body (½") and Check Valve Service Kit)

H

I DVC 245011DAV Adapter ⅞"-14 to M22

J DVC 102821SDAV Plug ⅞"-14

K DVC 485022DAV Quick Connect Drain Valve - Includes: valve body,

retaining ring (L), both seals (M), drain valve and
protective cap (N)

L DVC 485025DAV Retaining Ring

M DVC 485021DAV Drain Valve Seal Service Kit

N DVC 102712DAV Drain Valve Dust Cap

O DVC 390456DAV WIF Port Plug ½"-20

P DVC 232007DAV Collar Wrench

5"

P

Housing is not a
service part.

G

H

J

FILTERS ARE AVAILABLE THROUGH OEM

DDC A0000904851

Fleetguard FS20081

I

K

DISTRIBUTORS

O

L

M

N

FOR UPDATED INFORMATION, VISIT WWW.DAVCO.COM

13

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

SERVICE PART NUMBERS

PREHEATER PARTS AND WATERINFUEL WIF SENSOR PARTS

DVC103595DAV 12VDC 155W PTC Pre-heater, Metri-Pack Connector,

⅞"-14 UNF Threads, Harness Length 7.50" (Freightliner
Only)

DVC 102697DAV Two Pin WIF, Metri-Pack Connector, ½"-20 UNF Threads,

Harness Length 17.5”

DVC 102770 Two Pin WIF, Metri-Pack Connector, ½"-20 UNF Threads,

Harness Length 6.50" (Freightliner)

DVC 103433DAV WIF Metri-Pack, Digital WIF, Harness Length 15.75”

14

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

WARRANTY POLICY

Please review DAVCO’s Product Warranty terms and conditions carefully before installing and/or using a
DAVCO product.

DieselPro® 243, DieselPro® 245, Fuel Pro® 382, Fuel Pro® 482, Fuel Pro® 483, Fuel Pro® 485, Fuel Pro®
487, Fuel Pro® 488, Industrial Pro®, Pro-Chek®, Sea Pro®

DAVCO Technology, LLC warrants these products to be free of defects in material and workmanship for five years, 500,000 miles
or 10,000 hours (whichever comes first) and electrical parts for two-years, 200,000 miles or 4,000 hours (whichever comes first)
from the purchase date*.

Shop Pro®

DAVCO Technology, LLC warrants the Shop Pro (except for the motor) to be free of defects in material and workmanship for two
years from the date of purchase. The Shop Pro motor is warranted for one year from date of purchase.

REN Products, EyeMax®, and Fuel Pro® 384

DAVCO Technology, LLC warrants these products to be free of defects in material and workmanship for two-years or 200,000
miles (whichever comes first) from the purchase date.
By installing and/or using the product, you agree to be bound by the following:

This Warranty does not apply to:

• Failure or inadequate performance due to improper installation, misuse, misapplication, faulty installation, alteration/
modification, poor maintenance, neglect, accident, or conditions resulting from actions outside DAVCO’s control, including
but not limited to the use of contaminated, corrosive, and unapproved fluids.

• Downtime, loss of use, loss of profits or income, loss of capital, cost of substitute equipment, living expenses, claims by
purchaser’s customers or other third parties, or other incidental, special or consequential damages.

• Attachments, accessory items, and parts not manufactured or distributed by DAVCO.

• Any aftermarket or OEM component not approved specifically to work with a DAVCO manufactured product

• Product that has been installed with aftermarket parts or altered or modified in any way.

• Normal wear and tear, abuse, vandalism, acts of God, improper storage or handling, disasters such as flood, fire, or war,
failure to operate, maintain or repair in accordance with instructions, or failure to repair the vehicle into which the product is
installed in accordance with the vehicle manufacturer’s instructions or common maintenance practices.

This warranty is the sole warranty made by DAVCO. DAVCO makes no other warranties, expressed or implied, of merchantability
or fitness for a particular purpose.
In the unlikely event of a defective product, DAVCO will either rework the defective product or replace it at DAVCO’s discretion.
If you feel you have a warrantable issue, contact DAVCO at 800-328-2611 for a Return Goods Authorization (RGA) number **. An
RGA number is required prior to the return of any product.

* Purchase Date: The date of the first retail purchase of a new vehicle or piece of equipment from the OEM dealer or factory. For
“Over the Counter” purchase: The date of sale to the first retail customer.

**Products submitted for Warranty consideration will be inspected by DAVCO personnel. Re-work or replacement will be based
on DAVCO’s Warranty procedure and/or the results of their evaluation. DAVCO’s Warranty Program does not in any way consti­tute a product guarantee.

15

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B

DIESEL PRO® 245

Technology, LLC

TECHNICAL MANUAL FOR DTNA

PARTS RETURN POLICY

Parts Return General Policy

A Return Goods Authorization (RGA) must be obtained from DAVCO prior to returning any products. Returns may be accepted
under the following circumstances:

Order Shipping Error: A credit against the original invoice, including freight charges for both ways will be issued for returns in
which DAVCO inadvertently shipped incorrect quantity or product.

Overstock: Returns for ordering more product(s) than required, or incorrect part(s), will be accepted within 60 days from the date
of purchase. Proof of purchase will be required, i.e.: original invoice/delivery receipt. These types of return(s) are subject to a
minimum restock fee of 40% or $40.00, whichever is higher. Additional restock fees may apply. Product(s) will be inspected for
“like new” condition and additional costs will be the responsibility of the customer. No obsolete parts may be returned.

Freight charges for return(s) will be the responsibility of the customer.

16

www.davco.com800-328-2611Saline, MI 48176P. O. Box 487DAVCO Technology, LLC

F1353 REV B
