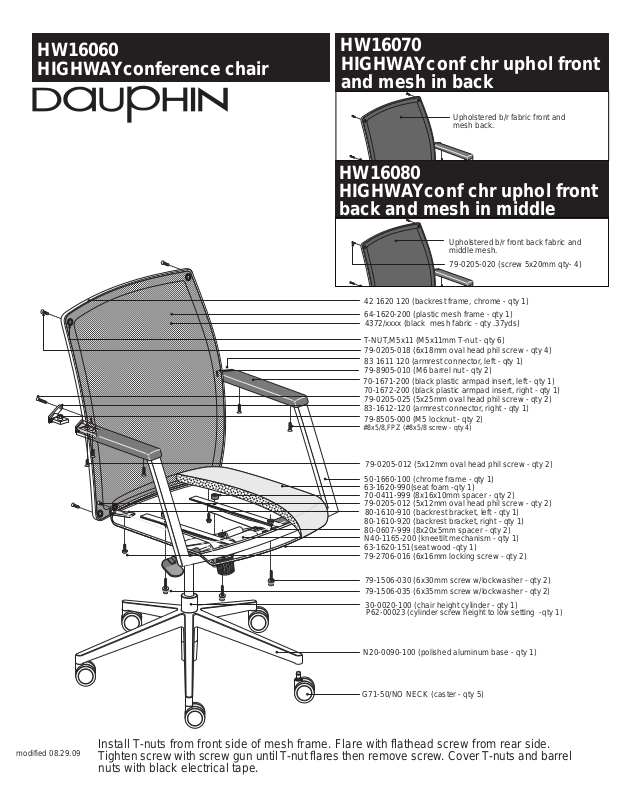

HW16060
HIGHWAYconference chair
HW16070
HIGHWAYconf chr uphol front
and mesh in back
Upholstered b/r
mesh
back
fabric
.
front and
HW16080
HIGHWAYconf chr uphol front
back and mesh in middle
Upholstered b/r front back
middle
mesh
.

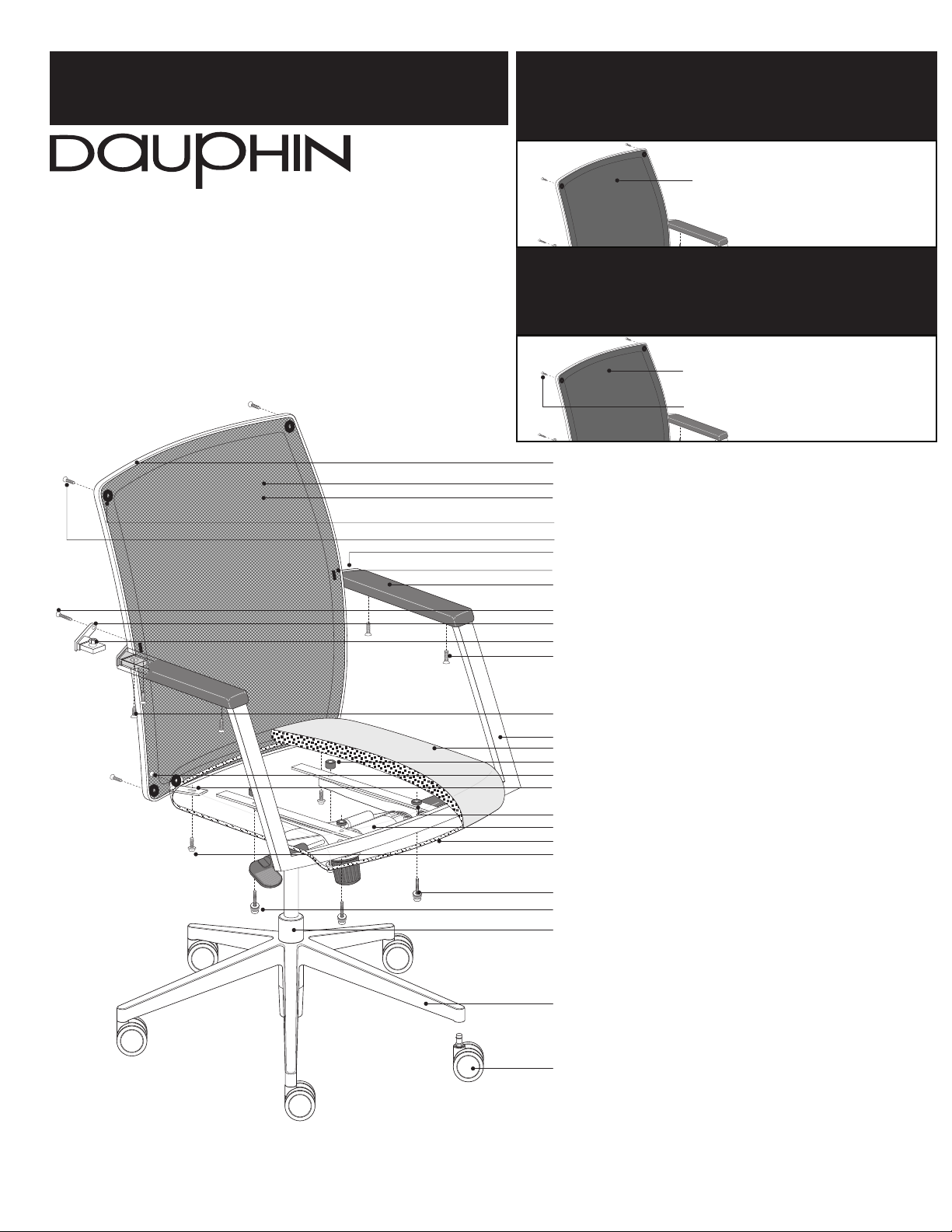

79-0205-020 (screw 5x20mm qty- 4)
42 1620 120 (backrest frame, chrome - qty 1)
64-1620-200 (plastic mesh frame - qty 1)
4372/xxxx (black mesh fabric - qty .37yds)
T-NUT,M5x11 (M5x11mm T-nut - qty 6)
79-0205-018 (6x18mm oval head phil screw - qty 4)
83 1611 120 (armrest connector, left - qty 1)
79-8905-010 (M6 barrel nut - qty 2)
70-1671-200 (black plastic armpad insert, left - qty 1)
70-1672-200 (black plastic armpad insert, right - qty 1)
79-0205-025 (5x25mm oval head phil screw - qty 2)
83-1612-120 (armrest connector, right - qty 1)
79-8505-000 (M5 locknut - qty 2)
#8x5/8,FPZ (#8x5/8 screw
- qty 4)
fabric
and
modified 08.29.09
79-0205-012 (5x12mm oval head phil screw - qty 2)
50-1660-100 (chrome frame - qty 1)
63-1620-990(seat foam -qty 1)
70-0411-999 (8x16x10mm spacer - qty 2)
79-0205-012 (5x12mm oval head phil screw - qty 2)
80-1610-910 (backrest bracket, left - qty 1)
80-1610-920 (backrest bracket, right - qty 1)
80-0607-999 (8x20x5mm spacer - qty 2)
N40-1165-200 (kneetilt mechanism - qty 1)
63-1620-151(seat wood -qty 1)
79-2706-016 (6x16mm locking screw - qty 2)
79-1506-030 (6x30mm screw w/lockwasher - qty 2)
79-1506-035 (6x35mm screw w/lockwasher - qty 2)
30-0020-100 (chair height cylinder - qty 1)
P62-00023 (cylinder screw height to low setting -qty 1)
N20-0090-100 (polished aluminum base - qty 1)
G71-50/NO NECK (caster - qty 5)
Install T-nuts from front side of mesh frame. Flare with flathead screw from rear side.
Tighten screw with screw gun until T-nut flares then remove screw . Cover T-nuts and barrel
nuts with black electrical tape.
