RT7000
Rugged HF Transceiver
Radios: Tactical HF
The RT7000 is a rugged, 1.6 to 30 MHz, HF/SSB transceiver designed to
provide long distance voice and data communications. The RF output
power is rated at 125 W, PEP and 100 W, average, and there is complete
protection against antenna mismatch. Modes include USB, LSB, CW, and
AME; and up to 1000 preset memory channels are available.
A wide variety of mobile and base station system configurations are
offered with RF power levels up to 5000 W that include desktop and rackmounted systems with remote control and broadband or narrowband
antenna systems. Models are available in either + 12 V DC or + 28 V DC
for use in any type of vehicle and are fully protected against input power
disturbances. The radios are waterproof and ruggedly built to meet the
environmental specifications in MIL-STD-810D, E, and F for operation in
harsh environments. The radios now include as standard a DSP-based
voice enhancement module to enhance the received voice quality.
Automatic BITE capability, with fault detection down to the module level,
is standard in all RT7000s. BITE status messages are shown on the display
to allow even unskilled operators to easily repair the radio at the field level.
A number of internal options are available for the RT7000 transceivers.
For automatic selection of best channel and station-to-station linking,
the RT7000 offers MIL-STD-188-141B automatic link establishment (ALE).
Voice encryption, impulse noise blanking, and special data and CW filters
are other embedded features that can easily be added to the standard
transceiver.
A complete line of accessories are available for the RT7000 including RF
booster amplifiers, antenna tuners, high-speed modems, rugged notebook
computers, and HF E-mail and network management application software
to provide comprehensive HF communications solutions. A variety of
remote control options are offered including extended front panel control,
long–range remote control and high-speed remote control.
● Rugged 125 W HF transceiver
● Mobile and fixed station
● Continuous duty operation – voice and data
● MIL-STD-188-141B ALE
● Voice encryption
● Remote and extended control capability
● Core of high-power systems
● B.I.T.E. capability
● Separate receivers and transmitters available
● MIL-STD-810 tested RT7000 Rugged HF
Transceiver

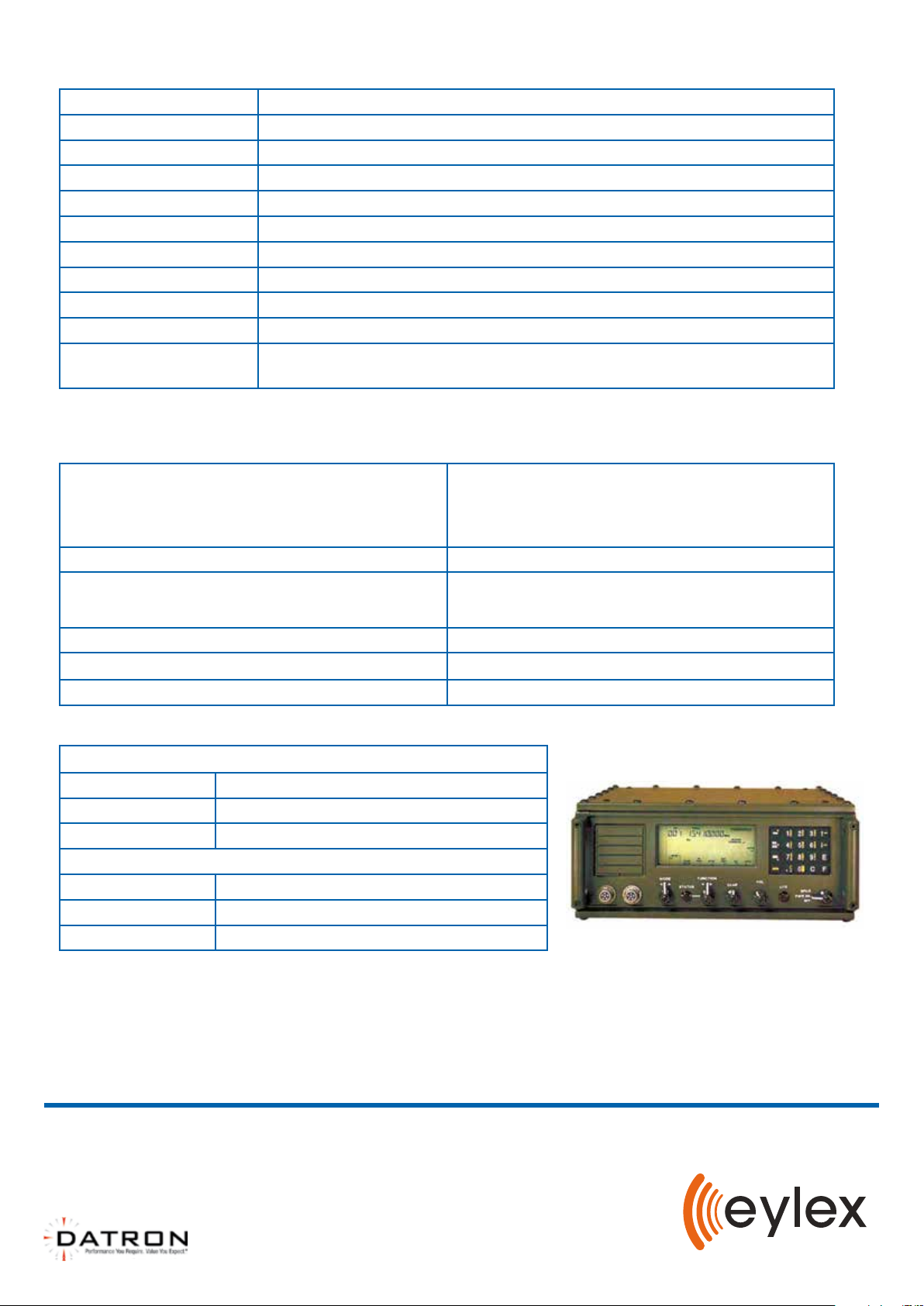

General Specifications
Frequency Range 1.6 to 30 MHz (TX); 100 kHz to 30 MHz (RX); 10 Hz channel spacing
Preset Channels 256, standard; 1000, optional
Scanning Multiple scan groups, operator-selectable scan rates
Channel Programming From front panel or dedicated remote control console
Frequency Stability 0.5 ppm
Modes USB, LSB, CW, AME; simplex or half-duplex
Input Power Requirements 11 - 16 V DC (+ 12 V DC models); 20 - 32 V DC (+ 28 V DC models)
Input Power Protection Reverse polarity, transient and under/over-voltage
Antenna Port 50 Ω, type N connector
Antennas 50 Ω broadband or narrowband with antenna tuner (RAT7000B, RAT1000C)
Interface Control: two CO M ports - RS232; optional EIA RS422/423/485 CO M2 port available
Audio: 600 Ω, balanced and isolated
Mechanical and Environmental Specifications
Size
● Height
● Width
● Depth
Weight 15.86 kg
Cooling Rear panel heatsink; RT7000FAN-1 Fan Kit (optional) -
Immersion to 1 m
Temperature - 30°C to + 60°C, operating
15.24 cm
35.56 cm
45.72 cm
recommended for continuous duty or any data mode
operation
Shock, Vibration, Humidity, Fungus, Sand and Dust Per MIL-STD-810D, MIL-STD-810E, and MIL-STD-810F
Transmitter
● RF Power Output 125W, PEP; 100W, average; programmable - 3 levels
● Duty Cycle Continuous service, all modes
● Harmonics - 60 dB (2 to 30 MHz)
Receiver
● Sensitivity - 113 dBm @ 10 dB SINAD (2 - 30 MHz)
● Attenuator + 20 dB, operator selectable
● Audio 5 W into 4 Ω; 0 dBm into 600 Ω
All specifications are subject to change without notice
The information contained herein is for reference only and does not constitute a warranty of performance
September 2018
