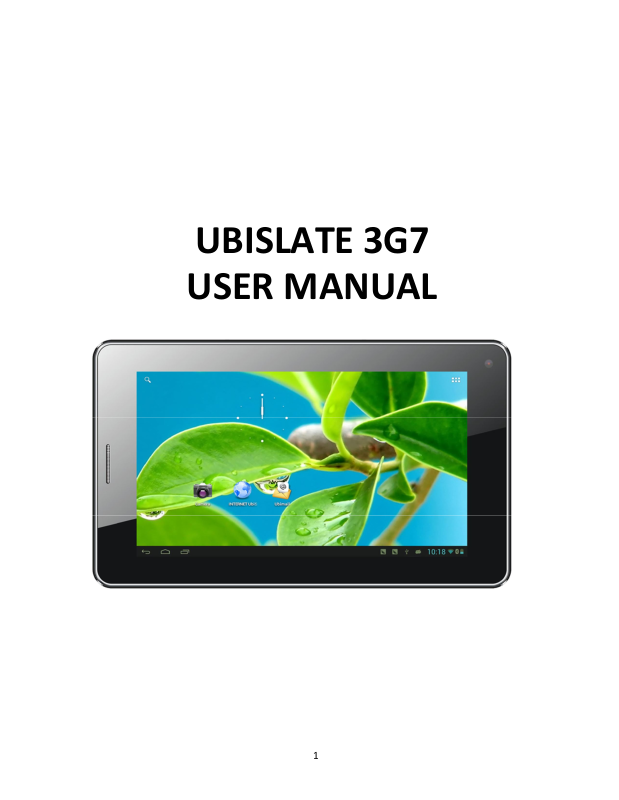

UBISLATE
3G7
USER MANUAL
1
Contents
Getting ready to use the device
●What’s inside the box?
●Product Appearance
Technical Specifications
Quick Start Guide
●Charging the Battery
●Power on
●Power save mode and Lock Screen
●Power off
●Orientation Sensor Setting
●Using the Touch Screen
●Using MicroSD Cards
●Using Device as a Phone
●
Call Settings
●Inserting a SIM card
The Status Bar & Icons
●Shortcut Menu
●WIFI Settings
The UbiSurfer Browser
●UbiSurfer Dual Browser Comparison Chart
APK Installation
●Uninstalling APK applications
Camera
File Manager
Multimedia Players
●Music
●Super HD Player
Set Language
Set Date and Time
About smartphone
Troubleshooting
Important Safety Information
Safely disposing of the Device
2
Getting ready to use the device
What’s inside the box?
A: Mobile Internet Device B: AC Adaptor C: Quick Start Guide D: Warranty Card
The use of non-approved hardware accessory items or unapproved software may cause damage to the product or malfunctions
not covered by the manufacturer’s warranty.
Product Appearance
3
Technical Specifications
LCD Display 7” TFT Capacitive Multi-touch LCD – 800*480 pixels
OS Android 4.0.4
Processor Cortex A8; 1.2 Ghz
Memory 512MB RAM
Storage 4GB on board, expandable to 32GB via MicroSD
PC Interface MicroUSB
Power 3.7V Li-Polymer rechargeable battery Audio
External speakers, 3.5mm headset jack
Video GPU w/ HD video supported
Camera Front VGA \ Rear 2 MP
Sensor G-Sensor (Orientation Sensor)
Connectivity WiFi 802.11 b/g/n, 3G voice data connections. (GSM
850/900/1800/1900)
Software Over 30 languages supported, full office suite, 2 mobile browsers, social
networking, games, educational content, etc…
Quick Start Guide
Charging the Battery
Your device has a built-in battery. Before using the device for the first time, you must charge
the battery for at least 3-4 hours. Use only Datawind approved chargers. Unauthorized
chargers may cause damage to your device and/or may lead to overcharging and/or explosion.
When your battery is low, the battery level indicator will
be very thin. If the battery level reaches a critical level, the device will automatically
turn off. Recharge the battery to continue use. Recharge the battery by first inserting the
cable into the charging head and then plugging the head into a standard AC power outlet. After
the charging is complete, unplug the charging head. Note that it is best to charge the device at
room temperature. It is not necessary to wait until the battery is completely drained before
recharging, you may charge at any time. Also, the battery will maintain its lifespan longer if it
is not left uncharged for periods of more than 2 weeks at a time.
Power on
Press and hold “ ” button for 3 seconds to power on the device. It can take up to a
minute and half to boot the system. After system boot is completed, it will enter
Android desktop. Slide the lock icon “ ” to the right
to unlock the screen to start to use the
device.
P
ow er Save mode and Lock S c reen
You can turn off the screen and mute the volume to save power by quickly pressing the
power “ ” button. The screen will turn to Lock Screen mode. Repeat the process to
reactivate the device.
Note: The device will remain operational as will any applications when the device is in power
saving mode, only the screen is turned off.
4
Power off
Press and hold “ ” button for 3 seconds. A menu will appear confirming that you would
like to power off.
Choose your desired option by tapping the corresponding item on the screen or Tap
Cancel to exit to previous operation.
Note: When the device’s battery is low, it will send continuous alerts and will shut down
automatically when the battery is empty. If the device fails to power on, please plug it into
an outlet to first check if the battery is empty. Please recharge the battery for at least one
minute before attempting to restart the device.
Orientation Sensor Setting
The device contains a sensor that will automatically change the orientation of most
screens as you rotate the smartphone. The sensor works best when the smartphone is rotated
perpendicular to the ground. ie: when the smartphone is held upright and not flat on its back.
The Orientation sensor can be activated or deactivated in the Setting menu:
Setting >Display >Auto-rotate screen. Check the box if you want to activate the sensor
or uncheck the box to deactivate it. (see picture below)
5
Using the Touch screen
Your device comes with a responsive touch screen which works as follows:
Tap: To activate an on-screen item (e.g., application icons, buttons, menu items, and the letter/symbols
of the on-screen keyboard), simply tap them with your fingertip or compatible stylus.
Double Tap: Quickly tap the screen twice on a webpage or other application screen to zoom (the
application must support the double-tap/zoom function). Within the browser, double-tapping a webpage
section will cause the browser to zoom and fit that section to the width of the screen.
Drag and drop: Drag an on-screen item to change its position (e.g., an application icon on the
home screen). To drag an item, touch and hold it for a moment, then without lifting your
fingertip/stylus, move your fingertip/stylus on the screen until the item reaches its target destination.
Swipe: Swipe up/down on the screen to scroll through a list. On some screens, you may be able to
swipe left/right to change the view. To swipe, touch the screen and then quickly move your
fingertip/stylus across the screen without lifting your fingertip/stylus. Do not pause on the screen with
your fingertip/stylus at the initial point of contact or you may accidentally drag an item instead.
Tap and hold: Some on-screen items have an alternate action if you touch and hold it (e.g., opening an
alternate menu, or to activate the drag function). To touch and hold an item, touch the item and do not
lift your fingertip/stylus until the action occurs. Tapping and holding an icon will allow you to move it once
it appears large.
Note: It is very important that you do not touch the screen with a body part or any foreign object
while switching on the device as this may interfere with the proper functioning of the device. To avoid
damage to the touch screen, do not use sharp tools. Do not allow the touch screen to come into
contact with other electrical devices, or water. For optimal use, remove the screen protection film
before using your device.
Using MicroSD Cards
MicroSD Cards are storage spaces used to transport files from one device to another. This smartphone
supports many different types of cards up to 32GB in size, however not every MicroSD card will work in
the smartphone.
To insert the MicroSD card, simply push it into the smartphone(it can only fit in one way, with the gold
contacts facing down towards the side with the touch screen). To remove the MicroSD card, you must first
go into System Settings (by tapping “” shortcut, then tap “Storage” and scroll down on the right hand side
until you see Unmount SD card. Accept the unmount and then push down on the top of the MicroSD card
and it will pop back up to be removed.
To access files on the MicroSD card, use the “File Manager” application described below.
Us
ing
Device as a
Phon
e:
This device can also be used to make and receive phone calls similar to your standard mobile phone and
it works on quad band GSM 850/900/1800/1900Mhz frequency spectrums. You can speak either through
speakerphone or headset connections. You must insert your valid GSM SIM card into the SIM card slot
6
while the device is powered off in order for it to function correctly
Figure 1 below shows the basic screen when you tap the Phone icon on your phone. Dial as you. normally
would on any phone for outgoing calls.
figure 1 figure 2
Call Settings:
Figure 2 shows what the screen will look like during a call. Note the different icons in settings and
what they are used for
Display Dialpad
Speakerphone
Mute / Unmute
Pause Call
Address Book
Answering the phone:
Figure 3 shows what the screen will look like during an incoming
phone call. To answer the phone, place your finger in the middle of
the circle and drag the screen to the right to the green phone symbol.
Dragging the screen to the left (red phone) will disconnect the incoming
call. To silence the ring tone tap the volume icon
Inserting a SIM Card:
SIM cards would be supplied by your local phone operator and it is the use of these SIM cards
that allows you access to the network for surfing the web and to use the UbiSlate3G7 as a Phone. There is
a SIM card slot on the side of the device. Insert the SIM Card so that card matches the diagram on the tablet.
Ensure that your device is OFF when insert or removing SIM cards.
7
The Status Bar & Icons
←Status Bar
The status bar is located on the bottom of the desktop.
Home Page - Tap to return to the desktop
Back - Tap to return to the last screen
Recent Apps - Tap here for a list of recently opened applications
Volume - - Tap here to decrease the volume of audio output
Volume + - Tap here to increase the volume of audio output
Shortcut - Tap here to enter the shortcuts menu (wallpaper / apps / settings)
Applications - Tap here to go to the application menu
MicroSD - This icon appears when a MicroSD card is inserted into the smartphone
USB - This icon appears when a USB device is connected to the smartphone
Android - This icon appears when the smartphone is connected to a PC
WiFi - This icon appears when the smartphone is connected to a WiFi network
Time - The current time is listed at the bottom right of the main screen
Battery - This icon displays the level of battery power remaining
Search - This icon will launch a search engine
Internet
Signal
- This icon will launch the UbiSurfer Internet Browser
- This icon will display signal strength (when SIM card is inserted)
8
Shortcut menu
Tap on the status bar, and the main screen menu bar will pop up.
● Tap “Wallpaper” to select a new wallpaper for the home screen.
● Tap “Manage apps” to go the list of installed applications where you can modify, add or
remove them
●Tap “System settings” to go to settings interface
WIFI Settings
From the desktop, Tap the main screen icon “ ” and tap on “System Settings” followed
by “Wireless & networks” to enter the wireless settings page.
Tap or slide the box at end of the Wi-Fi bar to the right to turn on Wi-Fi or do the
reverse to turn it off. Go to Wi-Fi settings to select the appropriate Wi-Fi network from the
list of W i-Fi networks and follow the instructions to enter the password assigned by the
Wi-Fi network provider. Enter the assigned IP address information if the chosen
network requires such information in order to obtain their W i-Fi network (please
contact the Wi-Fi network provider if a password or IP address is required for WiFi access).
9
The UbiSurfer Browser
The UbiSurfer Browser is the main browser on this smartphone. Using this browser will speed up
your surfing experience and can be used anywhere there is a WiFi connection. To view the
differences between the UbiSurfer browser and the Android browser, view the chart below.
UbiSurfer Dual Browser Comparison Chart
Features
Email
Web Surfin g
Instant Mess enger
Social Ne tworki ng
Onli ne Banki ng
News/Weather/S ports
Graphics
A achm ents
Audio
Video
Web Accel era on
PDF
MS-Office
UbiSurfer Browser
√
(Onli ne)
√
√
√
√
√
√
√
√
(Onli ne)
√
(Onli ne)
Androi d Brows er
√
√
√
√
√
√
√
√
√
√
√
(Local )
(Local )
(Local )
To connect to the Internet via the UbiSurfer browser, click on the Internet UbiSurfer icon on
the Home Screen or via the menu system.
To enter URL’s, simply click on the address bar and type it in and click on enter. For example,
if you wanted to visit a site like the Google UK web page, simply type www.google.co.uk and
click GO. The Google UK homepage will appear on the screen. Note that www and .com
are defaults so if you want to visit the web page www.facebook.com, you just have to type in
facebook and then click GO.
On occasion, you may find multiple windows open. The number of open windows is written
in a box at the top of the screen. If the number is greater than 1, you can close
10
ALL extra windows by clicking Menu / Stop.
To add the website which you are currently on to your bookmarks, click on the favorites
button at the top right side of the screen next to the address bar. Then click on Add and give
it a name. From this menu system, you can also organize your favorites, access My Account
from which you can add extra surfing time and roaming time (may not be applicable in all
countries), but also My Settings from which you can adjust things like image resolution.
Other Functionality can be found in the menu system.
This includes:
●Exit: To close the program
●Back: To revert back to the last web page you were on
●Forward: To go to the next website
●Refresh: To refresh the page that you are currently on
●Stop: To stop loading the web page and to close all Pop-ups
●Home: To revert back to the UbiSurfer Browser Home Page
●More: To toggle between windows, show browser history, and access system settings Note:
If you are inactive for several minutes, the browser will give you a 60 second warning before
disconnecting your session. Minimizing the application DOES NOT close it. To exit, you must
click Exit.
APK Installation
This device supports third party Application Program .APK files. There are hundreds of
thousands of applications (programs) that can be downloaded from the internet. Some are
free and some cost money. Download the APK file from the internet and copy it into the
device directly or store it inside a MicroSD card and insert it into the device. Use the File
Manager application in the SD card folder (or wherever you have saved it) and tap on the file.
Follow the instructions to install any compatible application to the device.
Uninstalling APK Applications
From the application menu, tap on “Settings” and select “Applications” from the list. Tap
on “Manage applications” and you can see a list of installed applications (including
factory default applications).
Tap on the application that you want to uninstall and follow the instruction to
uninstall the applications.
11
Camera
This device has a built-in 0.3MegaPIXEL front camera for photo or video.
In the application menu, tap the camera icon to enter the camera interface.
S e l e c t either photo or video mode by tapping the preferred icon
In photo mode, tap on to take a photo.
In video mode, tap on to start a recording and
Tap on to stop
recording.
You may exit the Camera interface by pressing the back button to return to the
application menu.
File Manager
From the application menu, tap “File Manager” to enter the list of files saved on the
smartphone including the file you just recorded and saved using Voice Recorder or
pictures or videos from Camera.
Note: You can also open, rename, move, install, delete and e-mail all files stored on the
MicroSD card or USB device or by category in File Manager.
12
Multimedia Players
There are some preinstalled multimedia applications on the device as follows:
MUSIC –
Go to application menu, tap on “MUSIC” to enter the music playback interface. Only music
files that are stored inside the device will be shown in the file list. You can classify the
music file list by: RECENT, ALBUMS, ARTISTS, SONGS, PLAYLISTS or GENRES by selecting the
appropriate option.
Tap the song for 1 second, the option menu will pop up. You can select
Play, Add to playlist, Shop for Artist, Delete or Search.
13
Tap “Play” to enter the playback interface and start music playback or you may also tap the
song name directly. On the playback interface, you can tap on the function bar to adjust the
playback time, backward, forward, play, pause, shuffle, or repeat.
Super-HD Player –
Super-HD
Play
Go to application menu, tap on “Super-HD Player” to enter the Super-HD Player interface and
it will show how many image and/or video files are available inside the device.
Tap on video, it will show the list of the video files in a small icon. Tap the file that you want to
view to start playback. You can adjust the volume, play/pause, backward, forward, go back or
go to submenu for more setting options by tapping the appropriate icon on the function bar.
14
Function bar
Tap on camera, it will show the list of the recorded videos and image files in a small icon.
Tap the file that you want to view to start. For photo viewing, the function bar
provides options such as enlarge photo, reduce photo, slideshow, share, delete, crop, rotate
left, rotate right, etc for your selection.
15
Set Language
From the application menu, tap on “Settings” and select “Language & input” from the list. Tap
on “Language” and you can see a list of compatible languages. Tap on the language that
you want and it will be set instantly. In the same area, you can also set the language of the
keyboard that you would like to use when you need to input language on screen.
Set Date and Time
From application menu, tap on “Settings” and select “Date & time” from the list. Tick on
“Automatic” and the date and time will be set automatically by using network- provided
values or untick “Automatic” to set the date and time manually. You can also adjust the
time zone, set it to 24-hour time format and/or adjust the date format by tapping the
appropriate options provided.
About Smartphone
From the application menu, tap on “Settings” and select “About smartphone” to check the
device status such as the firmware version, battery consumption status, model no., and
Android OS version.
Troubleshooting
●This Ubislate3G7 is a capacitive touch screen smartphone. It requires a simple connection
between your finger and the screen in order for the touch to be registered. At times instead of
using your finger, a stylus made for capacitive touch screen devices may
be used. Do not use a pointy object or one that could scratch the surface of the
smartphone.
●Should you find that the software on the Ubislate3G7 does not respond to any commands,
refuses to turn off or on, or any hardware component is not functi oning properly, you may
have to do hardware reset. This is accomplished by pressing and holding the ON/OFF button
for at least 5 seconds. This will not delete saved information, only reset the device.
●If the powering on process does not complete, reset the unit and try again.
●At very low baery charge, the WiFi module may stop working before the smartphone. To
continue using the WiFi module, the smartphone should be plugged in to a charger. If the WiFi
has stopped responding, you may need to power cycle the unit and keep it on the charger for
an hour.
●If there is no sound coming from the speakers, check to see that the volume level is
not set to 0, or check whether or not the audio file that you are listening to is not
damaged by using it on another device or trying other files on this one.
●If you are having trouble copying files, check to see if your PC connection is set up properly,
if the USB cable is properly attached, or whether there is enough available memory capacity
on the drive in question.
●If your smartphone ever requires a hard RESET, please press and hold the ON/OFF button
for at least 5 seconds. This will not delete saved information, only reset the device.
For troubles that are not be resolved by reading this manual, please do not hesitate to
contact our customer service team.
16
Important Safety Information
●Please remember to follow regulations governing the use of your
UbiSlate3G7. Always turn off your device whenever its use is forbidden or when it may
cause interference or danger (i.e.) hospitals/ aircraft/ petrol stations, etc.
●All safety laws and regulations pertaining to the use of cell phones and two-way radios will
apply to your use of the UbiSlate3G7. We advise you to follow these Laws and
Regulations when using the device.
●If at all possible, use a wireless hands-free system (headphone, headset) with a low power
Bluetooth emitter.
●Telecommunications standards prevent the sale of mobile phones that exceed a maximum
exposure level known as SAR of 1.6W/kg. To find the maximum SAR value during testing of
this model, dial *#*#727#*#*.
●Keep your calls short or send e text message (SMS) instead. This advice applies
especially to children, adolescents and pregnant women.
●Use the phone feature when the signal quality is good.
●Keep the device away from strong magnetic fields to avoid damaging the product
●Do not let the device fall or rub or make hard contact with any solid objects at any time. It may
cause surface scratches, displacement of the battery, loss of data or damage to the hardware
inside.
●Never leave this product exposed to a humid environment or rain as the water can cause
permanent damage to the hardware inside.
●Never clean the device with any chemicals or detergents which could cause permanent
damages to the device surface.
●It is recommended not to use the headset continuously at high volume. Volume levels should
be adjusted to an appropriate level to avoid permanent hearing damage.
●Do not cut off the power abruptly during software updates or during download or it may result
in data loss and/or system errors.
●Over-voltage, power cable strain, bending or squeezing by heavy objects is not
recommended to avoid overheating or risk of fire.
●To eliminate the risk of electric shock, do not connect the cable power plug with wet hands.
●Some movies, music and pictures are under copyright protection, unauthorized usage is
deemed as infringements to copyright laws.
●The performance of the wireless reception of the device could be influenced by the
wireless equipments and networks.
●Do not use the device at gas stations, nearby fuel and/or chemicals.
●Do not dispose of battery or device in a fire or in any heating device. (microwave ovens, stove,
radiator) Battery may explode when overheated.
17
●Never crush or puncture the battery or expose it to high external pressure
●Please comply with any related restrictions and rules. Do not use the device where
blasting operations are in progress.
●Only qualified maintenance personnel is allowed to install or repair the device.
●Please use the original accessories and battery. Do not use incompatible accessories
on the device.
●For the sake of data safety, please back up any important information on the device or
keep a handwritten record.
●When connecting with other devices, please read the user manual for detailed safety
instructions, please do not connect it with any incompatible products.
●The Ubislate3G7 and its accessories may contain small parts. For safety purpose please
keep them out of the reach of small children.
●Some parts of the device may be magnetic in nature. Metallic materials may be attracted to the
device. As a precaution, persons with a hearing aid or implant should not hold the device close
to the implant or the ear with the hearing aid. (<15cm)
●Avoid placing credit cards or other magnetic storage media near the device because
information stored on them may be erased.
●This device contains glass components that upon breaking may splinter, crack or shatter and
pose a safety risk until such a point that all glass shards are disposed of.
Safely Disposing of the Device
The Ubislate3G7 should not be placed in household waste bins. Please check local
regulations for information on the disposal of electronic products in your area.
18
Loading...
