Chapter 1 Introduction

Datavideo TPC-700/TPC-700P is the best assistant for all 3200
switchers, and VGB-2000 presentation system. The SE-3200 and VGB­2000 Apps that are installed on the TPC-700/TPC-700P contain presets
of common operation functions. Just tap on the screen to easily select
different presets. Each button can be customized to your liking. Multi­camera Virtual Studio switching, AUX output, Crosspoint, Flex Source,
and PIP assignment can be done by the TPC-700/TPC-700P. Easy to
transport to your live production show on the go. Quick connection.
Simple installation.

1.1 Features

 The Touch Panel supports 800 x 480 resolution.

 Supports Wall mount installation and complies to standard VESA

dimensions：10cm x 10cm, 7.5cm x .7.5cm

 7” Capacitive Touch Panel

 Supports PoE Power Supply(For TPC-700P Only)

9

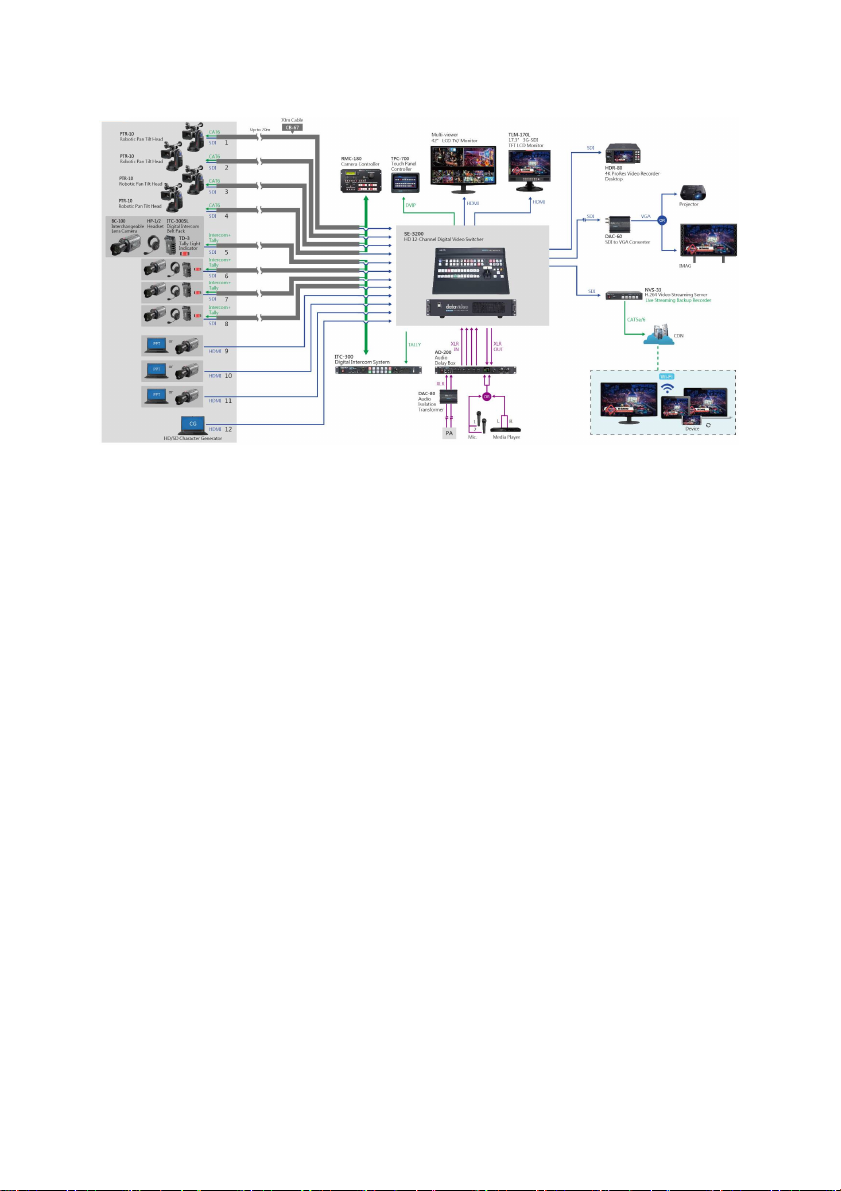

Chapter 2 System Diagram

10

Chapter 3 Connections

This chapter will show you the connections of the TPC-700/TPC-700P
Touch Panel Controller. For the details of the TPC-700/TPC-700P,
please refer to following chapters.

3.1 Front View

Interface Description

Touch Panel

This is the touch panel of the TPC-700/TPC-700P touch
panel controller.

11

3.2 Rear View

Interface Description

Rear Panel

This is the rear panel of the TPC-700/TPC-700P Touch
Panel Controller. It provides standard VESA 10cm x
10cm & 7.5cm x .7.5cm mounting holes.

12

3.3 Left View

Interface Description

RJ-45 Ethernet Interface（for RS-232 Control only）

This RJ-45 interface is for RS-232 Control only. If users
use the TPC-700/TPC-700P to control the SE-3200, it is
no need for this interface to connect due to that the
TPC-700/TPC-700P adopts the DVIP protocol to
control the SE-3200.

USB Interface

Users can use this USB interface for updating the
software and for installing the remote control
software of other models.

13

3.4 Right View

Interface Description

12VDC IN interface

Please connect a 12V DC power cable to this interface
for powering the TPC-700/TPC-700P.

RJ-45 Ethernet Interface（For DVIP Control & PoE

Only）

Please connect one end of an RJ-45 Ethernet cable to
this interface and then please connect the other end
of this cable to the device that must be controlled by
the DVIP protocol. This interface can be used for
supporting the PoE (802.3af) Power Supply.
Note: The PoE function can be used only for the TPC­700P.

ON/OFF Power Switch

Users can turn on or turn off the power of the TPC­700/TPC-700P by this switch.

14

Chapter 4 How to turn on and turn off the
power of the TPC-700/TPC-700P

 How to Turn On the Power

Please use the ON/OFF power switch which is located on the right side
of the TPC-700/TPC-700P to turn on the power of the TPC-700/TPC­700P.

 How to Turn Off the Power

 Use the ON/OFF switch: Please use the ON/OFF power switch

which is located on the right side of the TPC-700/TPC-700P to
turn off the power of the TPC-700/TPC-700P

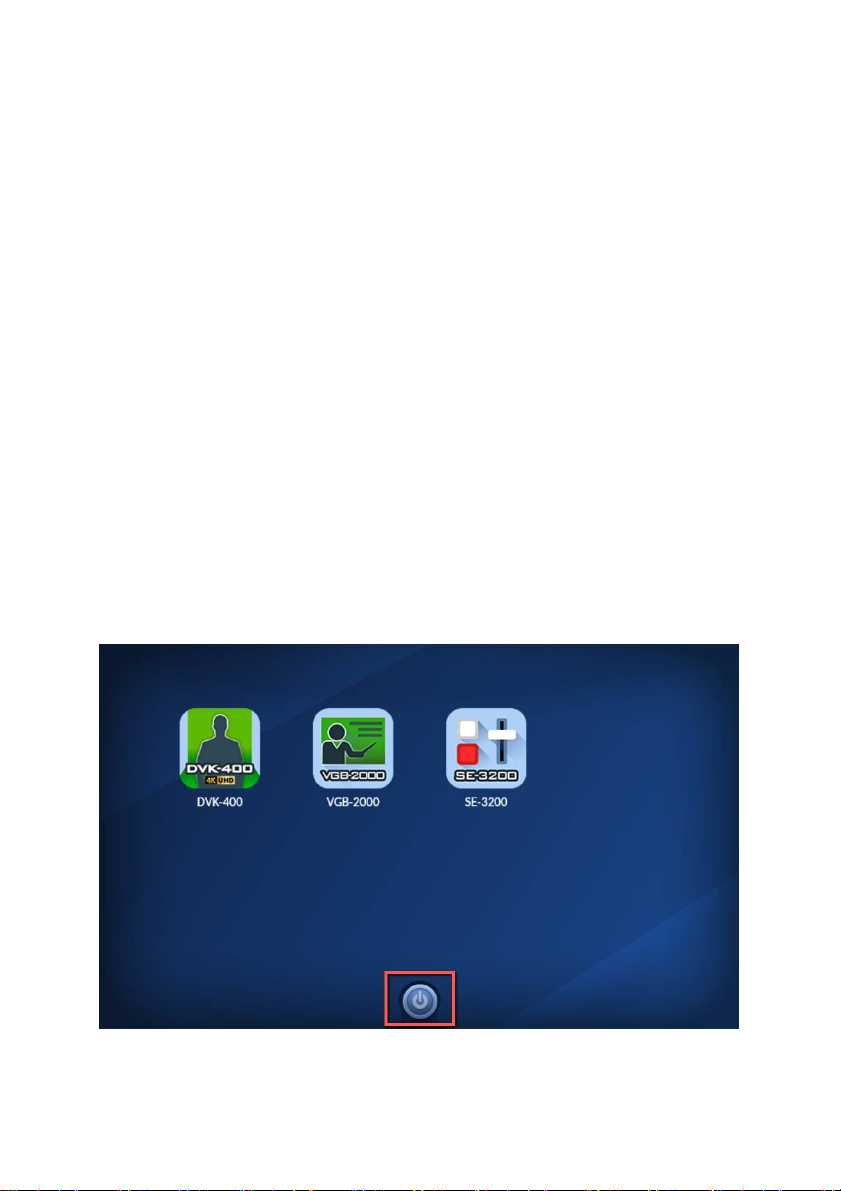

 Use the APP: There is a Power-Off button which is located at the

bottom side of the TPC-700 APP. Press this button can turn off
the power of the TPC-700/TPC-700P.

15

Chapter 5 Basic Setup

Before using the TPC-700/TPC-700P to control other devices, please
make sure that the basic setup of the TPC-700/TPC-700P is done. This
chapter will make the SE-3200 HD 12-Channel Digital Video Switcher as
an example for explaining how to set the basic setup between the TPC­700/TPC-700P and the SE-3200. Please set the basic setup of the TPC­700/TPC-700P according to following steps.

5.1 Connect by Static IP Address

1. Please use an RJ-45 Ethernet cable to connect from the Ethernet
interface on the rear panel of the SE-3200 to the DVIP RJ-45 Ethernet
interface on the right side of the TPC-700/TPC-700P.

5.2 Connect by DHCP

1. Please use an RJ-45 Ethernet cable to connect from the Ethernet
interface on the rear panel of the SE-3200 main unit to the RJ-45
Ethernet interface on your router.

2. Please use an RJ-45 Ethernet cable to connect from the DVIP RJ-45
Ethernet interface on the right side of the TPC-700/TPC-700P to the RJ­45 Ethernet interface of the same router.

16

Chapter 6 Network Settings

For the network settings of the TPC-700/TPC-700P, please see following
chapters.

6.1 Connect by Static IP Address

 If the TPC-700/TPC-700P and the SE-3200 are brand new devices.

The default value of the brand new SE-3200 switcher is the static IP mode and

the static IP address is 192.168.100.101. For the brand new TPC-700/TPC­700P Touch Panel Controller, its default network mode is the static IP address
mode and the IP address is 192.168.100.102. If users want to connect the
TPC-700/TPC-700P to the SE-3200 by the static IP mode, please connect the
TPC-700/TPC-700P and the SE-3200 with an RJ-45 Ethernet cable.

 If the IP address of the TPC-700/TPC-700P or the SE-3200 is not the

default value

If the IP address of the SE-3200 is not the default value, please refer to
“Network and Software Setup for Switcher” in the SE-3200 user manual to
know the IP address, subnet mask and default gateway of the SE-3200. And
then please set the IP address of the TPC-700/TPC-700P to be within the same
IP range for further operation.

17

Please follow following steps for operation.

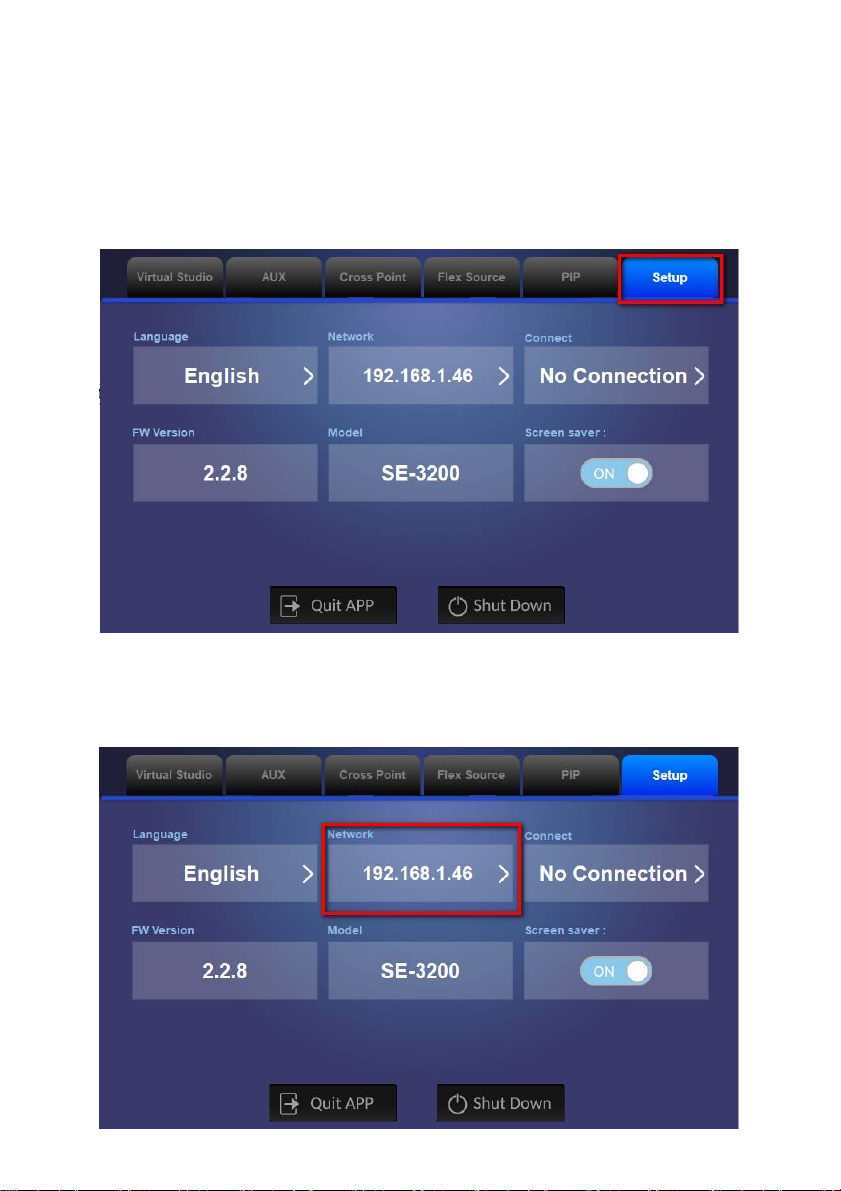

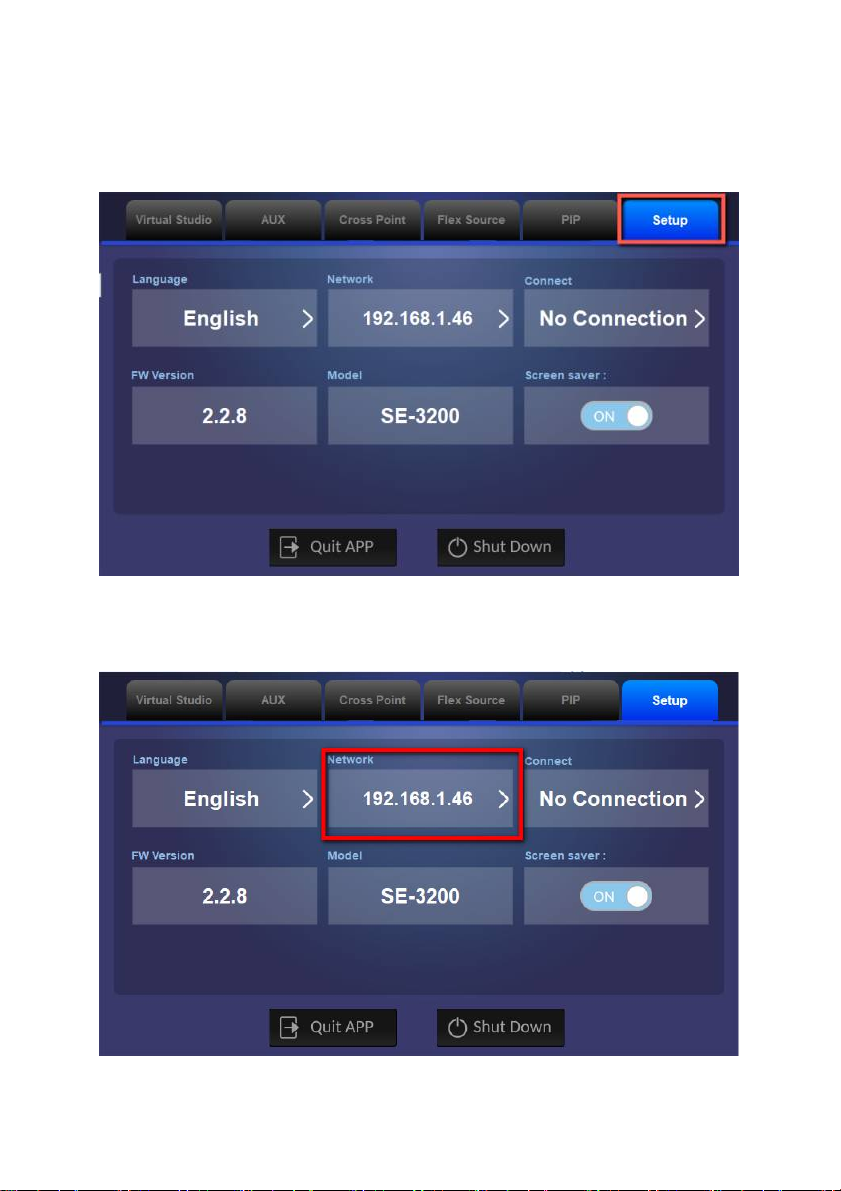

1. After opening the TPC-700/TPC-700P interface, please select the “Setup”
option.

2. Please press the “Network” button.

18

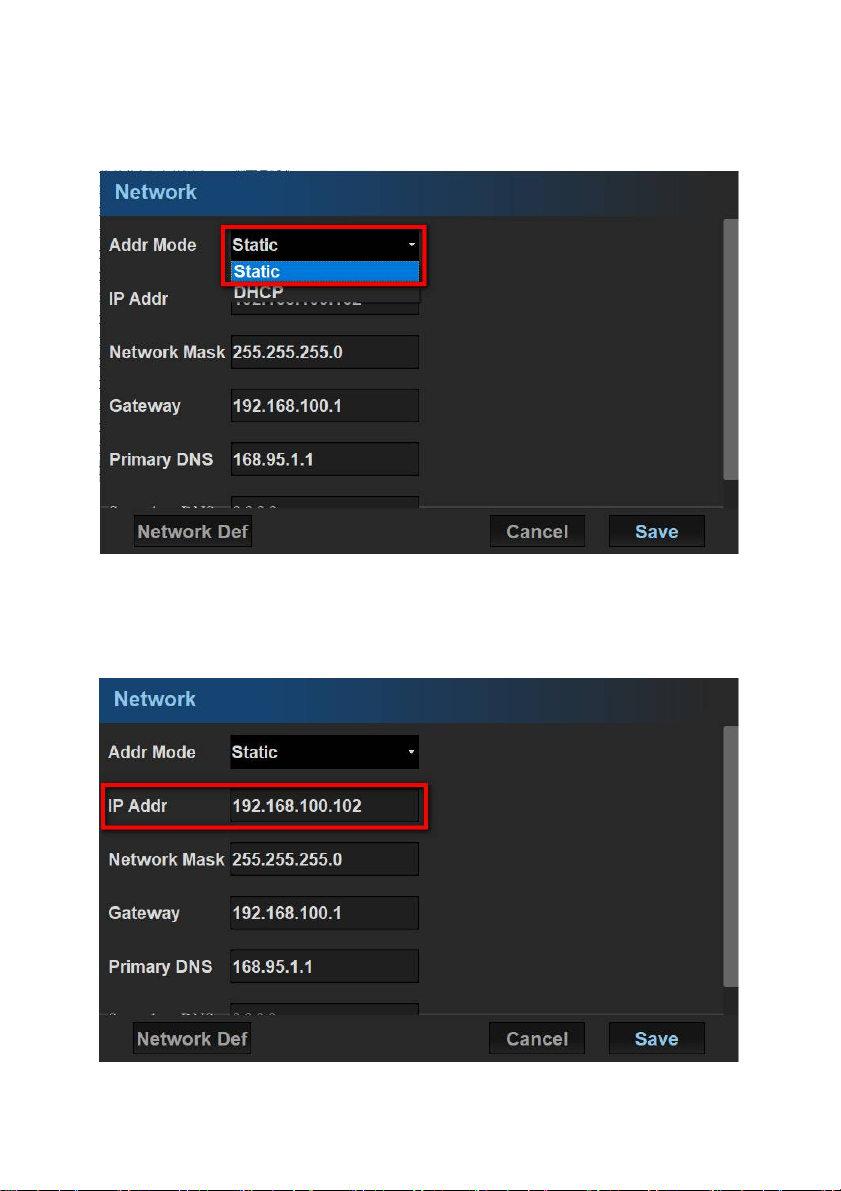

3. Please select the “Static” from the “Addr Mode” drop-down menu.

4. Please press the “IP Addr” to enter the IP address which is within the same

IP range as the SE-3200. After that, please press the “OK” button.

19

5. Please press the “Network Mask” and the “Gateway” respectively and then

please set those two items to be the same value as the SE-3200.

20

6. Please press the “Save” button.

7. Please press the “Connect” button.

21

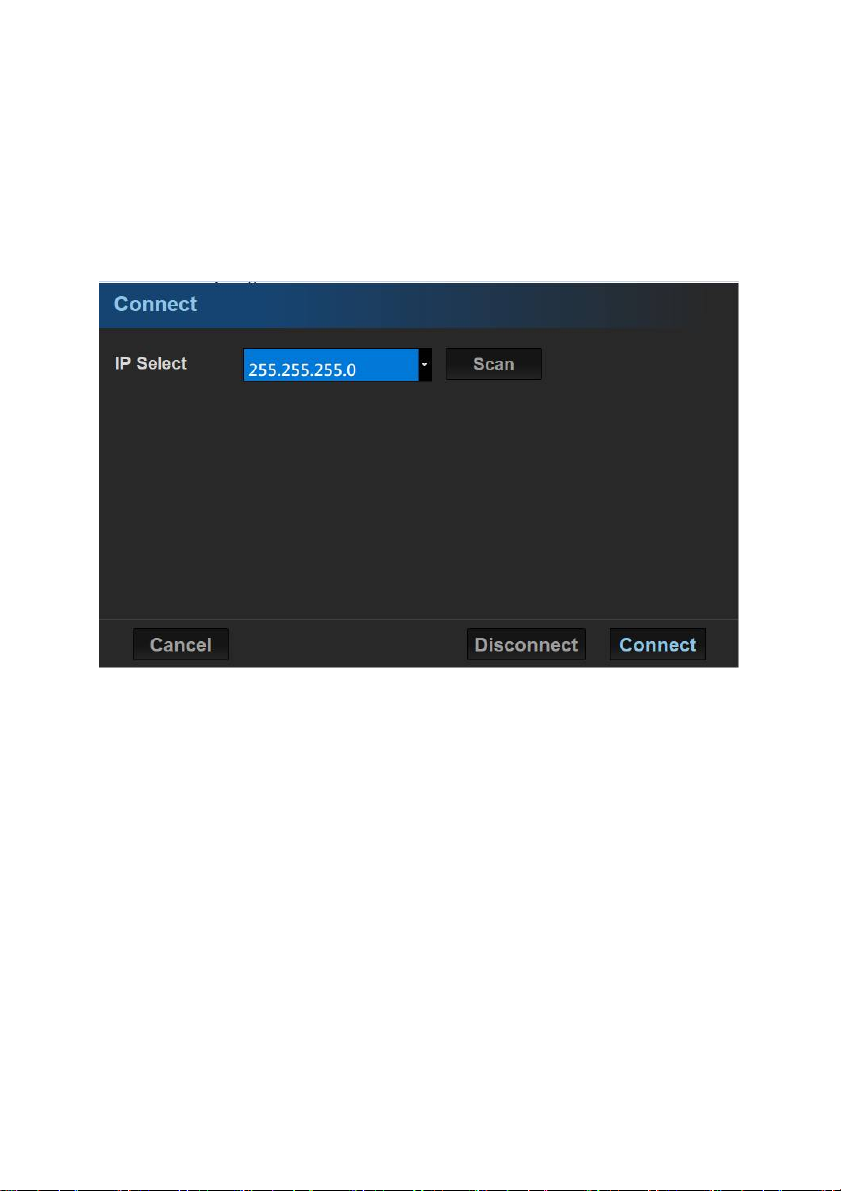

8. Please press the “Scan” button and then it will scan the IP address of the
connected device.

9. Please press the “Connect” button for completing the connection.

22

6.2 Connect by DHCP

Please follow following steps for connecting the TPC-700/TPC-700P and the SE­3200 by the DHCP Mode.

1. Please open the TPC-700/TPC-700P interface and then please press the

“Setup” option.

2. Please press the “Network” button.

23

3. Please press the “DHCP” from the drop-down menu and then please press

the “Save” button.

4. Please press the “Connect” button.

24

5. Please press the “Scan” button and then it will scan the IP address of the
connected device.

6. Please press the “Connect” button for completing the connection.

25

6.3 How to Restore the Network Settings Default Values

Please follow following steps for restoring the TPC-700/TPC-700P network
related settings to default values.

1. Please open the TPC-700/TPC-700P App and then please press the “Setup”
option.

2. Please press the “Network” button.

26

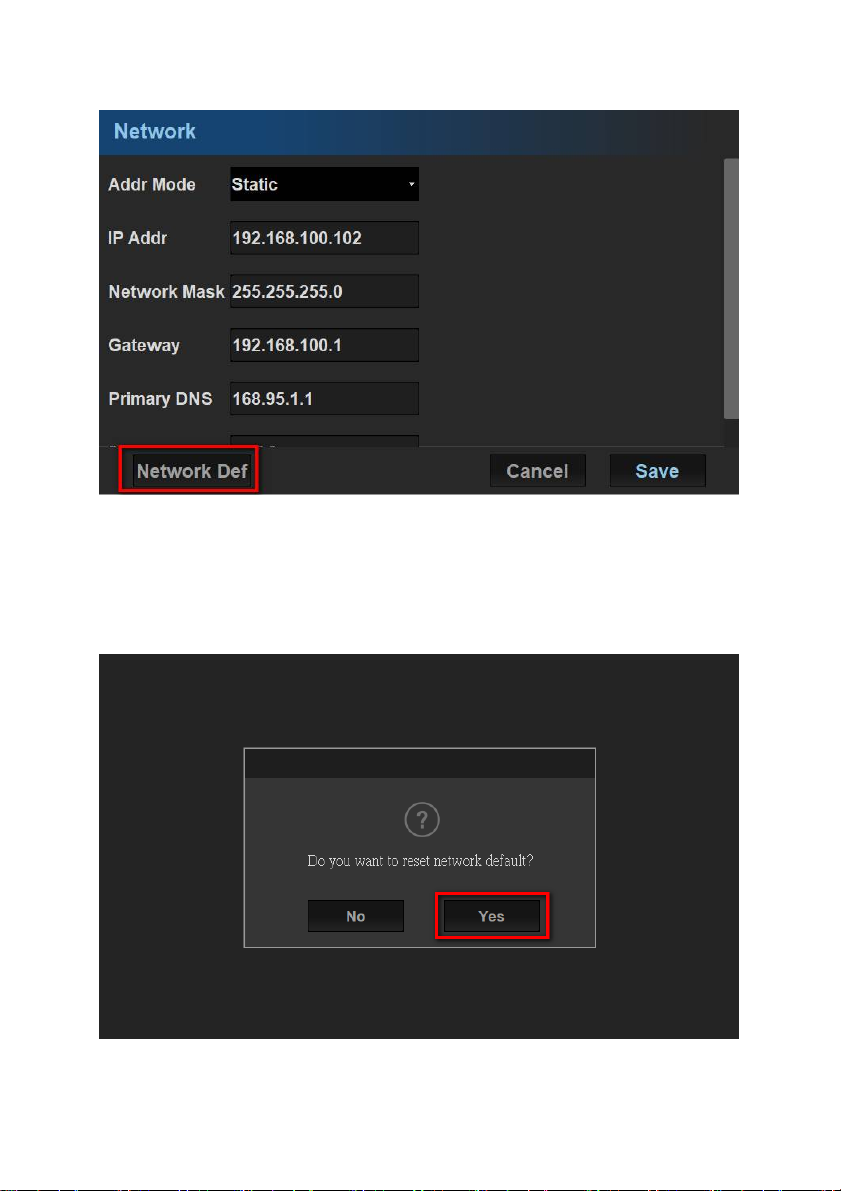

3. Please press the “Network Def” button.

4. The following dialogue box will appear. Please press the “Yes” button and
then the network related settings will be restored to factory default values
successfully.

27

Chapter 7 The 8 Pre-saved Virtual Scenes for the SE­3200 & TPC-700/TPC-700P combination

Datavideo SE-3200 HD 12-Channel Digital Video Switcher allows users
to set up to 4-camera EFP Chromakey effect. So, the SE-3200 & TPC­700/TPC-700P combination allows users to recall the pre-saved 4­camera EFP Chromakey effect virtual scenes easily and rapidly. The
default setting for the TPC-700/TPC-700P is that the TPC-700/TPC-700P
will recall the No. 101~No. 108 virtual scenes that are pre-saved in the
SE-3200. So, please follow following steps for setting the related “User
Memory” contents. Please see the example which is shown as
following diagram.

28

7.1 The Input Interface Settings for the SE-3200 & TPC-

Connections for

700/TPC-700P Combination

Before recalling the No. 101 to No. 108 user memories’ virtual scenes,
users need to know the corresponding relationship between each
interface of the SE-3200 rear panel and the elements for each pre­saved virtual scene.

Reminders for Setting up the Cameras

the SE-3200 rear
panel

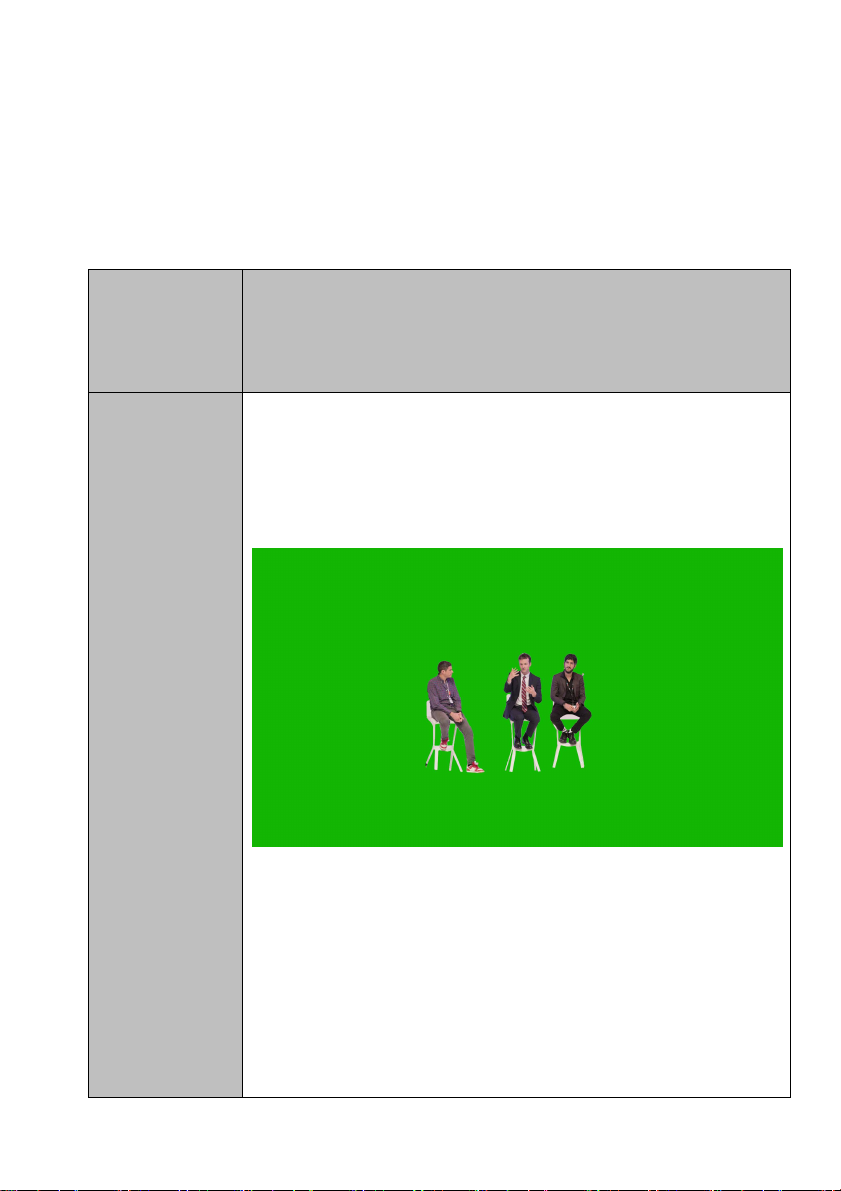

SDI IN 1

（CH1）

 Please set the Camera 1 in the middle to shoot the full

body shot for the talent and guests who are sitting in front

of the green mat. (Wide Angle).

29

SDI IN 2

（CH2）

 Please set the Camera 2 in the middle to shoot the close-

up for the talent and guests who are sitting in front of the
green mat.

SDI IN 3

（CH3）

 The Camera 3 must be set on the right side to shoot the

close-up for the talent who is sitting in front of the green
mat.

30

SDI IN 4

（CH4）

 The Camera 4 must be set on the left side to shoot the

close-up for the guests who are sitting in front of the
green mat.

CH5

CH6

CH7

CH8

The built-in virtual scene from the SE-3200(Wide Angle virtual
scene)

The built-in virtual scene from the SE-3200(The close-up picture
is located in the middle)

The built-in virtual scene from the SE-3200(The picture is
located at the left side)

The built-in virtual scene from the SE-3200(The picture is
located at the right side)

31

CH9

Please connect a PC to the HDMI IN9 interface of the SE­3200(CH9)(for playing slides or videos)

7.2 The 8 Pre-saved virtual scenes for the SE-3200 and TPC-

700/TPC-700P Combination

User
No.

101

102

Combination of
Screen Elements

Wide Angle with

Background

（CH1 Chromakey+CH5

Virtual Scene）

Close-up with

Background（CH2

Chromakey+CH6

Virtual Scene）

Final Composite Screen

Full-Body Chromakey with Virtual Scene

Half-Body Chromakey with Virtual Scene

32

103

104

105

Talent A Close-up
with Background

（CH3

Chromakey+CH7

Virtual Scene）

Talent B Close-up
with Background

（CH4 Chromakey

+CH8 Virtual Scene）

Talent A+PC Source

（CH3

Chromakey+CH9

Background）

Half-Body Talent A Chromakey with Virtual
Scene

Talent B Chromakey with Virtual Scene

Talent A Half-Body + Content

33

106

Talent B+ PC Source

（CH4

Chromakey+CH9

Background）

Talent B Half-Body +Content

107

108

Talent A Close-up
with Background+ PC

Source)（CH3

Chromakey +CH7
Background+CH9

PIP）

Talent B Close-up
with Background +PC

Source（CH4

Chromakey+CH8
Background+CH9

PIP）

Talent A Half-Body Chromakey with Virtual
Scene+ Content

Talent B Half-Body Chromakey with Virtual
Scene+ Content

34

Chapter 8. How to Set the Chromakey, Save a Still to

Memory, P-In-P and Still Functions

It is necessary to use the Chromakey and Still related functions of the
SE-3200 for controlling the SE-3200 and for recalling the pre-saved
virtual scenes directly by the TPC-700/TPC-700P. For the setting details
and the operating steps, please refer to the 4.2 Keyer, 4.3 Chroma, 4.4
P-In-P and the Still related paragraphs of the 4.9 Files from the SE­3200 user manual.

35

Chapter 9 Introduction of the SE-3200 App Interface
for the TPC-700/TPC-700P

The built-in SE-3200 control App for the Datavideo TPC-700/TPC-700P
includes “Virtual Studio”, “AUX”, “Cross Point”, “Flex Source”, “PIP”
and “Setup” options for users to control the SE-3200 remotely by the
TPC-700/TPC-700P and an RJ-45 Ethernet cable. The main interface of
the built-in SE-3200 control App for the TPC-700/TPC-700P is shown as
following diagram.

36

9.1 Virtual Scenes

The Virtual Studio option allows users to recall the pre-saved No. 101
to No. 108 User Mems settings in the SE-3200 by the TPC-700/TPC­700P. There are 8 virtual scenes can be used by users including “Wide
Angle with background”, “Close-up with background”, “Talent A close­up with background”, “Talent B close-up with background”, “Talent A +
PC Source”, “Talent B + PC Source”, “Talent A close-up with
background + PC Source”, “Talent B close-up with background + PC
Source”. The final effects of those 8 different virtual scenes will be
listed as following diagrams for users’ reference.

1. Wide Angle with background

37

2. Close-up with background

3. Talent A close-up with background

38

4. Talent B close-up with background

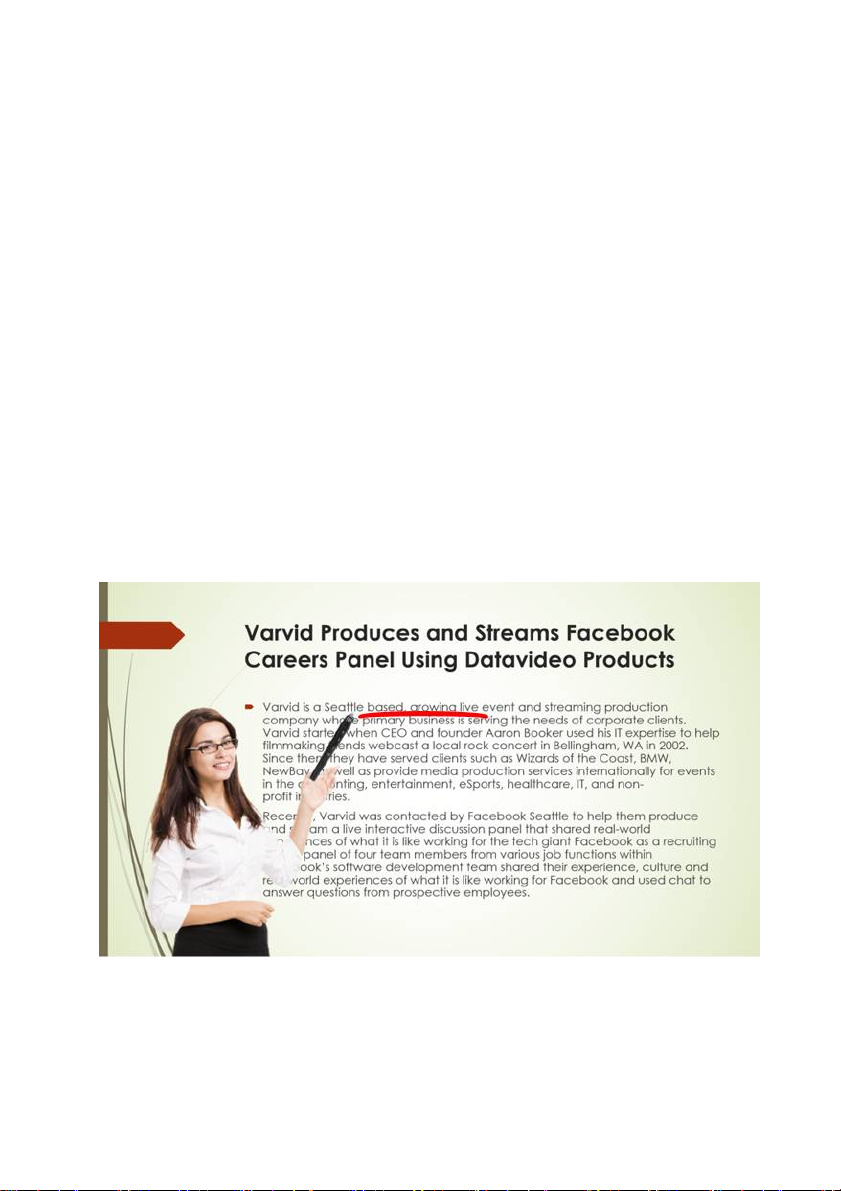

5. Talent A + PC Source

39

6. Talent B + PC Source

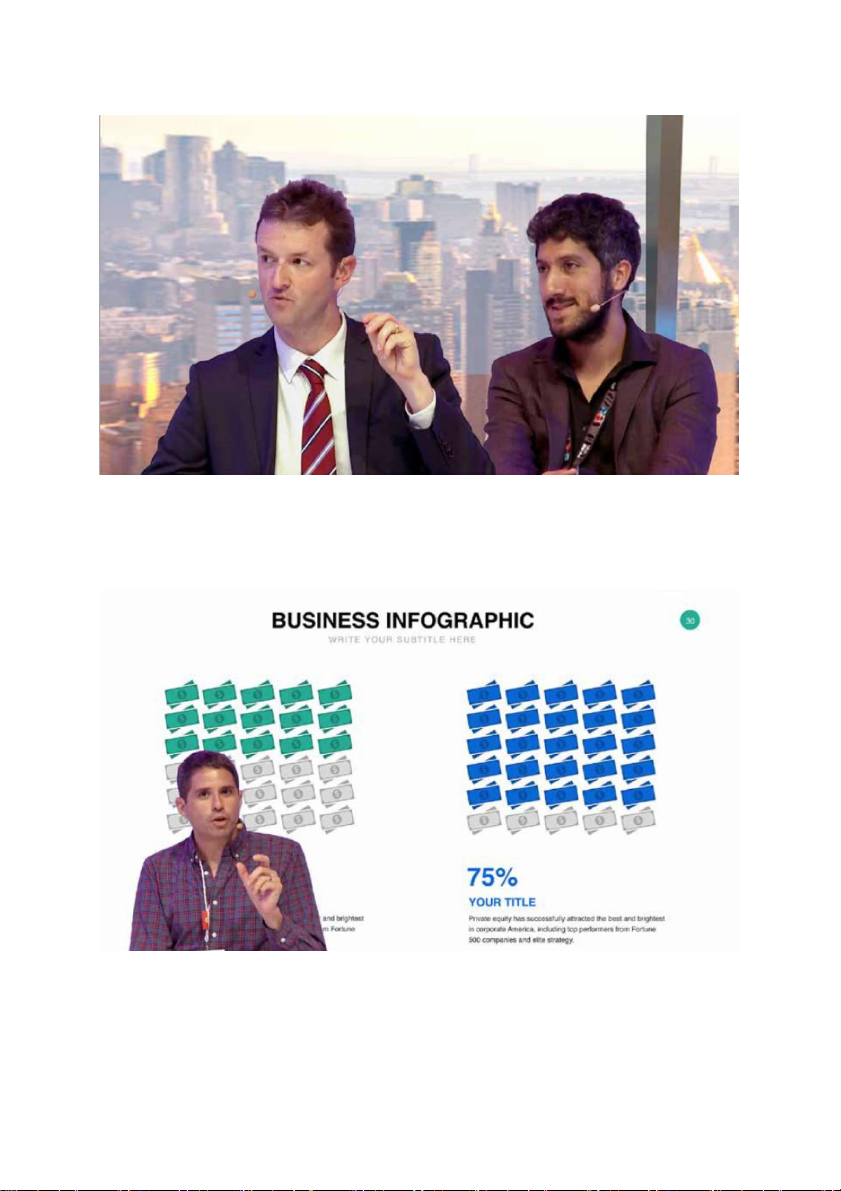

7. Talent A close-up with background + PC Source.

40

8. Talent B close-up with background + PC Source.

9.1.1 How to Recall the Pre-saved Virtual Scenes by the TPC-700/TPC-

700P

Please recall the pre-saved virtual scenes by following steps.

1. Please make sure that all of the 8 virtual scenes are saved into the No. 101
to No.108 User Mems in advance. Moreover, please make sure that the SE­3200 main unit, the control panel, the TPC-700/TPC-700P and the router are
connected correctly.

2. Please tap your desired virtual scene mode directly from the TPC-700/TPC­700P for recalling the corresponding virtual scene.

41

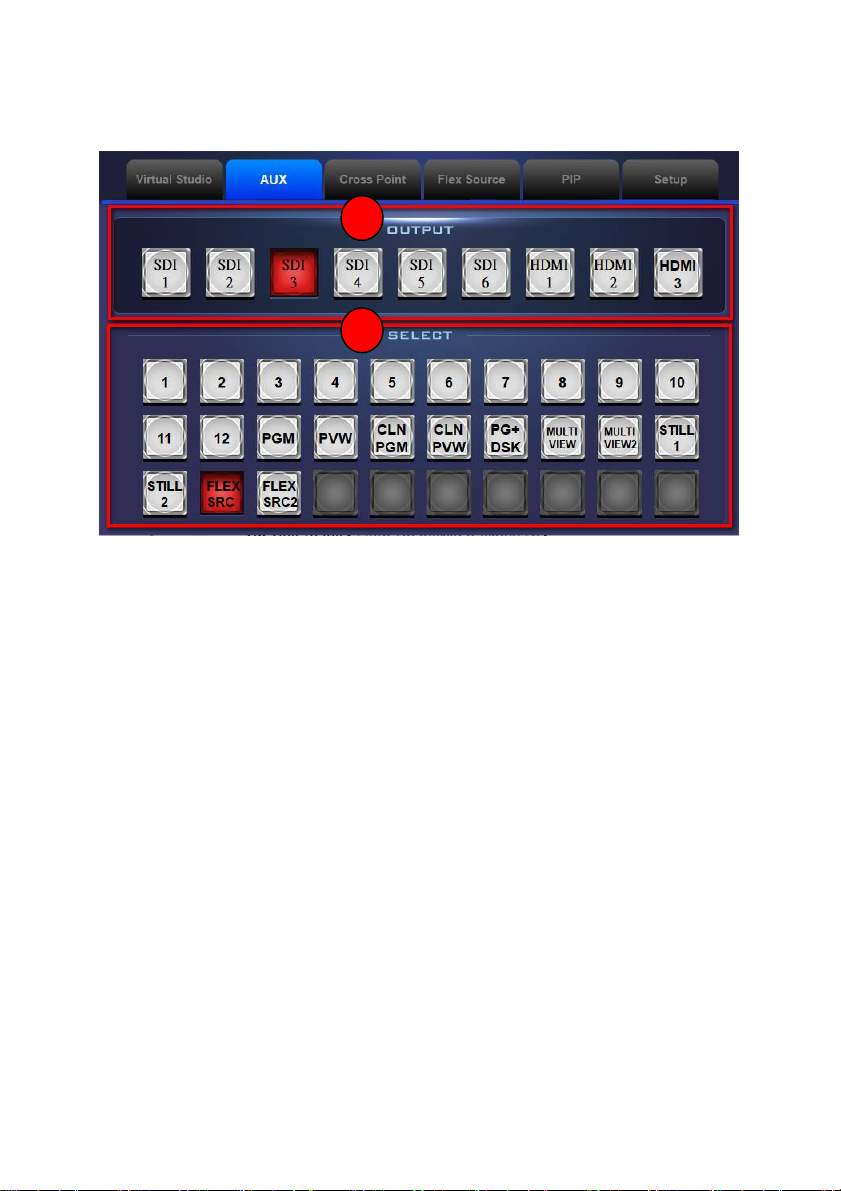

9.2 AUX

The Datavideo TPC-700/TPC-700P with the SE-3200 control software allows
users to use the “AUX” function. The “AUX” function allows users to assign
signal sources including CH1 to CH-12 input sources, PGM, PVW, CLN PGM,
CLN PVW, PG + DSK, MULTIV, MULTIV2, STILL1, STILL2, FLEX SRC and FLEX
SRC2 randomly to the output interfaces such as SDI1, SDI2, SDI3, SDI4, SDI5,
SDI5, SDI6, HDMI1, HDMI2 and HDMI3 to be the output sources. The main
interface of the “AUX” option is shown as following diagram.

9.2.1 How to Use the “AUX” Function

Please follow following steps for using the “AUX” function.

1. Please select your desired output interface for outputting the signal source

from the “OUTPUT” area.

42

2. Please select your desired signal source for output from the “SELECT” area.

1 2

3. Users can finish the signal assigning for the AUX function.

43

9.3 Cross Point

The “Cross Point” option allows users to adjust the sequence of the input
signals by themselves without changing any input cables. For example, users
can assign the signal source which is originally connected to input 2 to be the
signal source of input 1. After the setting is finished, users can see that the
source picture of the input 2 will be shown on the window of input 1. The
main interface of the “Cross Point” is shown as following diagram.

9.3.1 How to Use the Cross Point Function

Please follow following steps for using the Cross Point Function.

1. Please select the input channel that you want to change the input signal
source from the “INPUT” area.

2. Please select the channel No. that you want to use as the video input signal
source from the “VIDEO XPT” area.

3. Please select the channel No. that you want to use as the audio input signal
source from the “AUDIO XPT” area.

44

Note：If you want to turn off the output of the “VIDEO XPT” area, please tap

3

2

3

1

the “OFF” button. If you want to use the embedded audio of the output video
as the output audio source, please tap the “Follow” button.

 How to Enter the PGM AUDIO SETTING Interface

1. Please tap the “PGM AUDIO SETTING” button.

45

2. Users can enter the “PGM AUDIO SETTING” interface to adjust the audio

1 1

3

3

1 1

3

3 2 2

4

Gain and audio Delay.

 How to Use the “PGM AUDIO SETTING” Interface

1. Please tap the No.1 arrow to decrease the Audio Gain and Audio Delay.

2. Please tap the No. 2 arrow to increase the Audio Gain and Audio Delay.

46

3. Please tap the No. 3 slider to increase or decrease the Audio Gain and Audio
Delay by dragging the No.3 slider forward or backward.

4. Please tap the No. 4 “OK” button to make the setting effective and to go
back to the previous screen.

9.4 Flex Source

The Flex Source function allows users to show videos in different sources
simultaneously. Those videos can be shown in PROGRAM and PREVIEW
simultaneously and can be set in different permutations.

The Flex Source output consists of a set of background picture and four sets of
smaller source videos which are overlaid on the background picture. Those
four smaller source videos will be displayed by their corresponding sub-picture
windows.

The FLEX1 & FLEX2 buttons within the Flex Source interface allow
users to recall an independent different Bgnd background picture respectively
and four PIP sub-pictures which are shared by the FLEX 1 and FLEX 2 to form a
variety of Flex Source screen combinations. The two Bgnds for the Flex 1 and

Flex 2 are independent respectively. However, all of the four PIP sub-pictures
are shared by the Flex 1 and the Flex 2 and those four PIP sub-pictures are
linked. The main interface of the Flex Source option is shown as following
diagram.

47

9.4.1 How to Use the Flex Source Function

1 2

Please follow following steps for using the Flex Source function.

How to Set the Background Picture for the Flex Source

1. At first, please tap the “Src Bgnd” button which is located at the “FLEX 1”
area to select the background function for the Flex Source.

2. Please tap the source signal channel that you want to use to be the Src
background picture from the “SELECT” area. (The source signal channels
include BLK, 1~12, Still 1 & Still 2, MATTE and BARS).

How to Set the Sub-Picture Source Signal for the P-In-P of Flex Source

1. At first, please tap the “Src 1”, “Src 2”, “Src 3” or “Src 4” button within the
“FLEX 1” area.

2. Please tap the source signal channel that you want to use to be the Src 1,
Src 2, Src 3 or Src 4 sub-signal from the “SELECT” area.

3. Please move the white cross box by your finger to determine the sub­picture placement for the Src 1, Src 2, Src 3 or Src 4.

4. Please tap the “X”, “Y” or “SIZE” and then those characters will become
orange.

48

5. Please tap the left or the right arrow button to adjust the scale of the “X”,

Screen

“Y” or “SIZE”.

Note: When the X, Y or Size character become orange, users can tap that
character once again and then the character will become light blue. When the
character becomes light blue, users are forbidden to adjust the scale of X, Y or
SIZE.

The ON/OFF button allows users to open or to close the display of the
Flex Source Src1 to Src 4.

How to Use the FLEX 1 & FLEX 2 Buttons

The FLEX 1 & FLEX 2 buttons allow users to recall an independent Bgnd
background pictures for the FLEX 1 and FLEX 2 respectively and four PIP sub­pictures which are shared by the FLEX 1 and FLEX 2 to form a variety of Flex
Source screen combinations. Please refer to following examples for realizing
the relation between the FLEX 1 & FLEX 2 screen combinations.

Combination
No.

1

2

3

The Screen for FLEX 1 The Screen for FLEX 2

Flex 1 :

Bgnd x 1, PIP x 2

Flex 1 :

Bgnd x 1, PIP x 3

Flex 1 :

Bgnd x 1, PIP x 4

Flex 2 :

Different Bgnd x 1, PIP x 2

Flex 2 :

Different Bgnd x 1, PIP x 1

Flex 2 :

Different Bgnd x 1, PIP x 0

Users can know from the above-mentioned examples that the FLEX 1 mode
and the FLEX 2 mode can display different Bgnd background screen
respectively. However, the four PIP screens must be shared by the FLEX 1 and
FLEX 2 together. It means that if all of the four PIP screens are opened, the
same PIP screens will be shown on both FLEX 1 and FLEX 2.

49

Note: If users do not want to show the same PIP screens on both FLEX 1 and

1

2 3

4 5

FLEX 2, please remember to use the ON/OFF button to hide the
repetitive PIP screens.

9.5 PIP

The main interface of the PIP option allows users to set the PIP related
functions. Please refer to following steps for setting the PIP function.

How to Set the Sub-Picture Source Signal for the PIP

1. At first, please tap the “Src 1”, “Src 2”, “Src 3” or “Src 4” button from the
PIP area.

2. Please tap the source signal channel that you want to use to be the Src 1,
Src 2, Src 3 or Src 4 sub-signal from the “SOURCE” area. (The source signal
channels include BLK, 1~12, STILL 1 & STILL 2, FLEX1 & FLEX2, MATTE and
BARS).

3. Please move the white cross box by your finger to determine the sub­picture placement for the Src 1, Src 2, Src 3 or Src 4.

4. Please tap the “X”, “Y” or “SIZE” and then those characters will become
orange.

50

5. Please tap the left or the right arrow button to adjust the scale of the “X”,

1 2

3

4 5 6

7

8

“Y” or “SIZE”.

Note: When the X, Y or Size character become orange, users can tap that
character once again and then the character will become light blue. When the
character becomes light blue, users are forbidden to adjust the scale of X, Y or
SIZE.

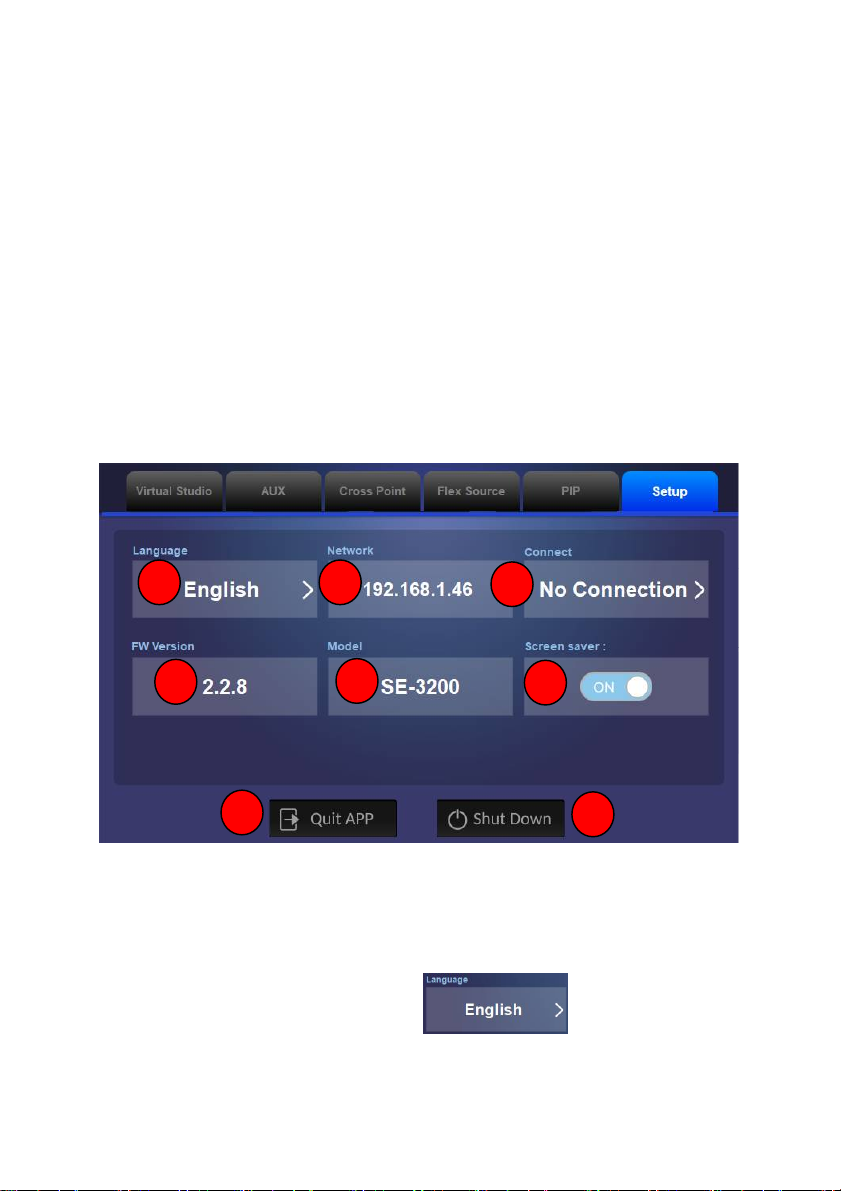

9.6 Setup

The built-in SE-3200 control interface of the TPC-700/TPC-700P allows users to
set many parameters including Language, Network, Connect, FW Version,
Model and Screen Saver. The main interface for the Setup is shown as
following diagram.

1. Language: This button allows users to select three different language
interfaces including Traditional Chinese, English and Simplified Chinese.

 Please tap this “Language” button .

51

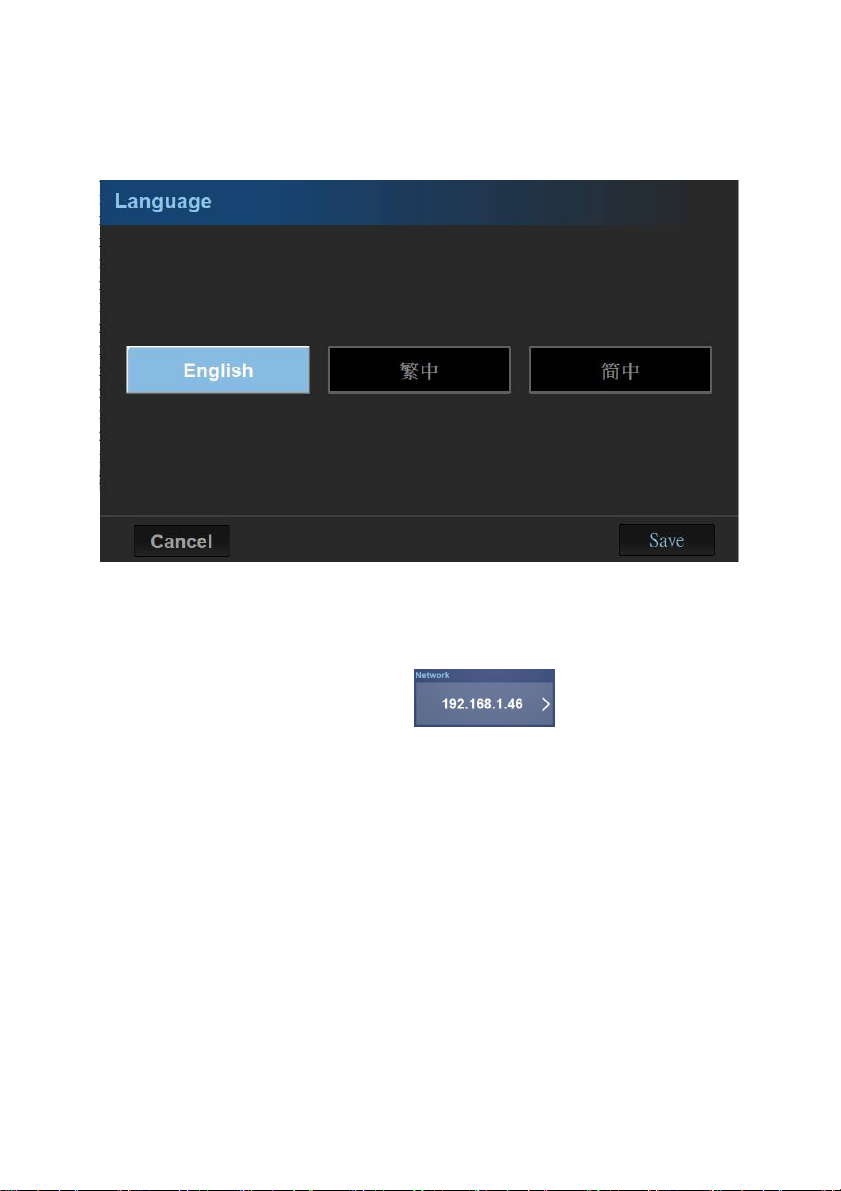

 After that, users can select their desired language. If the “Save” button

is pressed, it will go back to previous page after the setting is saved. If
the “Cancel” button is pressed, it will go back to previous page directly.

2. Network: This Network option will show current IP address.

 Please tap the “Network” button .

 The following Network interface will be shown.

52

1 2

1. Addr Mode：Please select Static IP Mode or DHCP Mode from this drop­down menu.

2. IP Address, Network Mask, Gateway, Primary DNS and Secondary DNS.
 Once the IP Addr, Network Mask, Gateway, Primary DNS or Secondary

DNS is pressed, the keyboard which is shown as following diagram will
be shown for users to enter related values.

53

 Please press the “OK” button and then it will go back to previous page

and apply those IP address related values which are entered by users
respectively. If the “Cancel” button is pressed, it will go back to previous
page directly.

3. Connect：Please press the Connect button and then it will enter the

interface which is shown as following diagram.

 Please press the “Scan” button and then it will scan current IP address.

Press the “Connect” button for connecting the TPC-700/TPC-700P to the
SE-3200. Press the “Disconnect” button for canceling the connection.

4. FW Version：This will show current software version.

5. Model：This will show the model name of the current connected and

controlled device.

6. Screen Saver: Press this button for switching between ON/OFF to turn on or
to turn off the screen saver.

 If the “Screen Saver” is “ON”: The screen saver will turn on to extend the

lifetime of the monitor.

54

 If the “Screen Saver” is “OFF”: The screen saver will be closed for easy

operation.

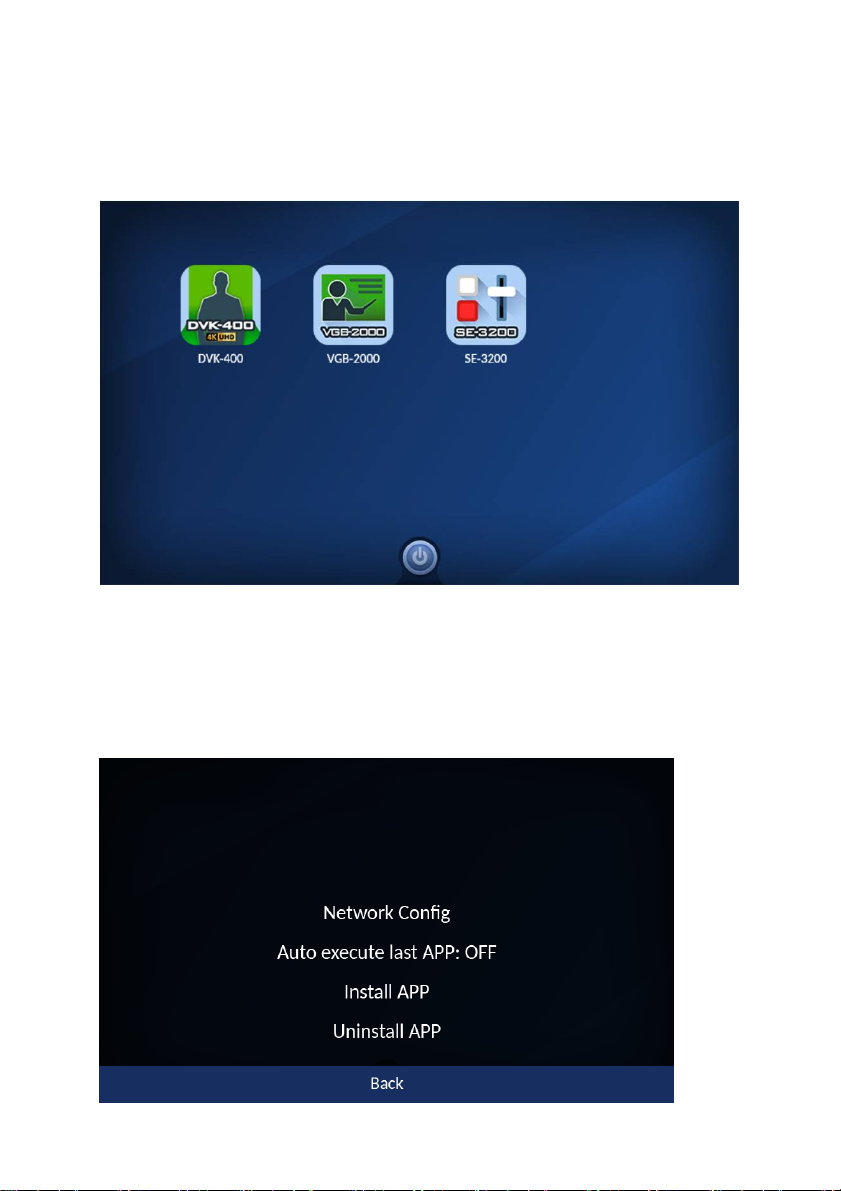

7. Quit App: Press this button can exit current App and go back to the main
screen of the TPC-700/TPC-700P.

8. Shut Down: Press this button can shut down the TPC-700/TPC-700P.

55

Chapter 10. Introduction of the Built-in VGB-2000 App
Interface for the TPC-700/TPC-700P

When the User Memory of the SE-1200MU is set, users can use the TPC-700
Touch Panel Controller to apply their needed default mode directly.

10.1 Main Interface of the TPC-700 App-Single & Dual

Please see following diagram for the Single & Dual Camera interface for the
TPC-700 App.

 Single Camera

 Dual Camera

56

10.2 Operation Steps for the VGB-2000 App for TPC-

700/TPC-700P

The Datavideo TPC-700 Touch Panel Controller allows users to tap the option
which is shown on the screen for applying the pre-saved effects that are set by
the SE-1200MU. This allows users to use more simple way for applying their
desired effects when shooting the teaching videos. For the operation of the
TPC-700, please see following steps.

Step 1. At first, please use a D-Sub 9 pin to RJ-45 adapter cable to connect
from the RS-232 interface which is on the rear panel of the VGB-2000 to the
RJ-45 interface of the TPC-700.

Step 2. After the preset settings of the SE-1200MU are set, users can apply
their desired effects by tapping the option which is shown on the TPC-700
screen directly.

 Single Camera Effects
 Close Up+ Interactive Pen Mark

57

 Close Up + Interactive Pen Mark + Logo

 Interactive Pen Mark + Logo

58

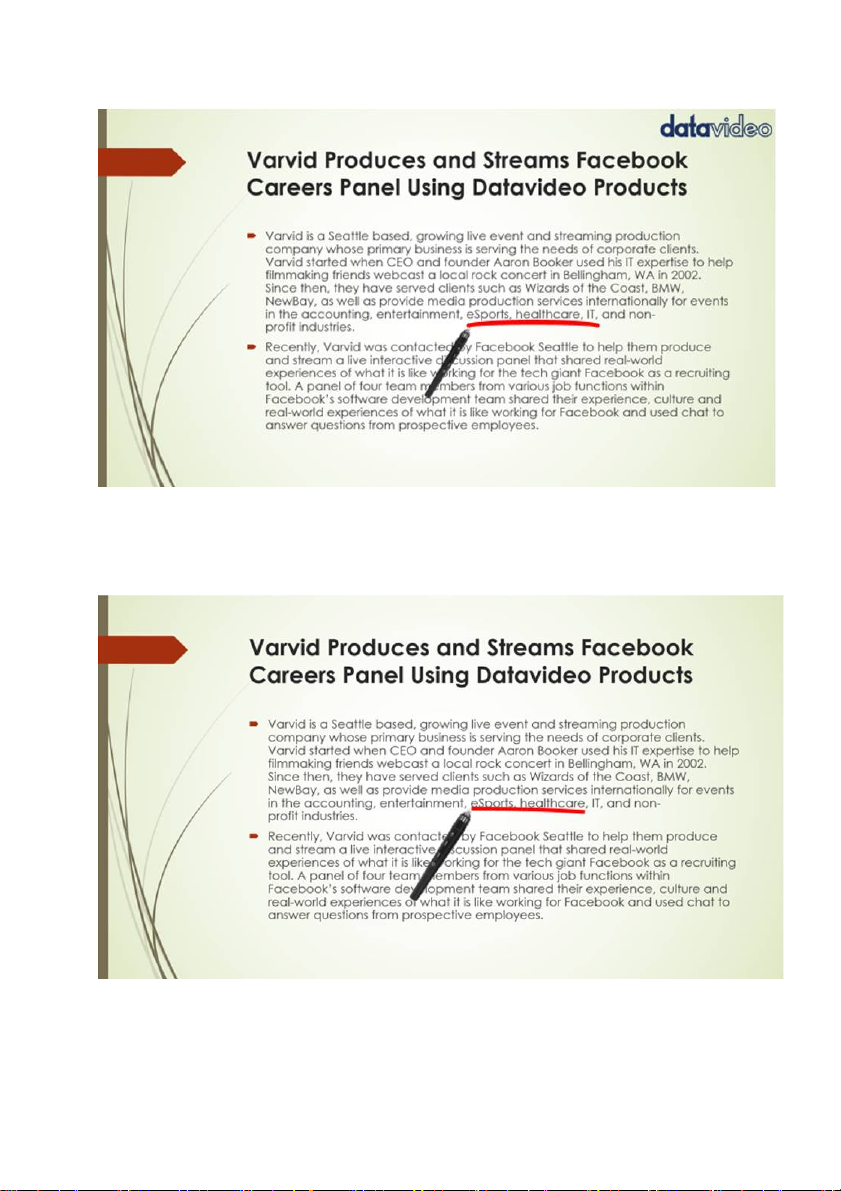

 Interactive Pen Mark

 Close Up with Chromakey + Slides

59

 Dual Camera Effects
 Close Up + Interactive Pen Mark

 Close Up + Interactive Pen Mark + Logo

60

 Interactive Pen Mark + Logo

 Interactive Pen Mark

61

 Close Up with Chromakey

 Wide Angle with Chromakey

62

 Wide Angle with Chromakey + Interactive Pen Mark

63

10.3 Setting Option of the VGB-2000 App for the TPC-

700/TPC-700P

For the “Setting” option of the VGB-2000 App, please see following section.

1. Please click the “Setting” option of the VGB-2000 App and then you can
enter the “Setting” interface which includes “Language”, “Quit APP”, “Shut
Down” and “Cancel” options which are shown as following diagram.

64

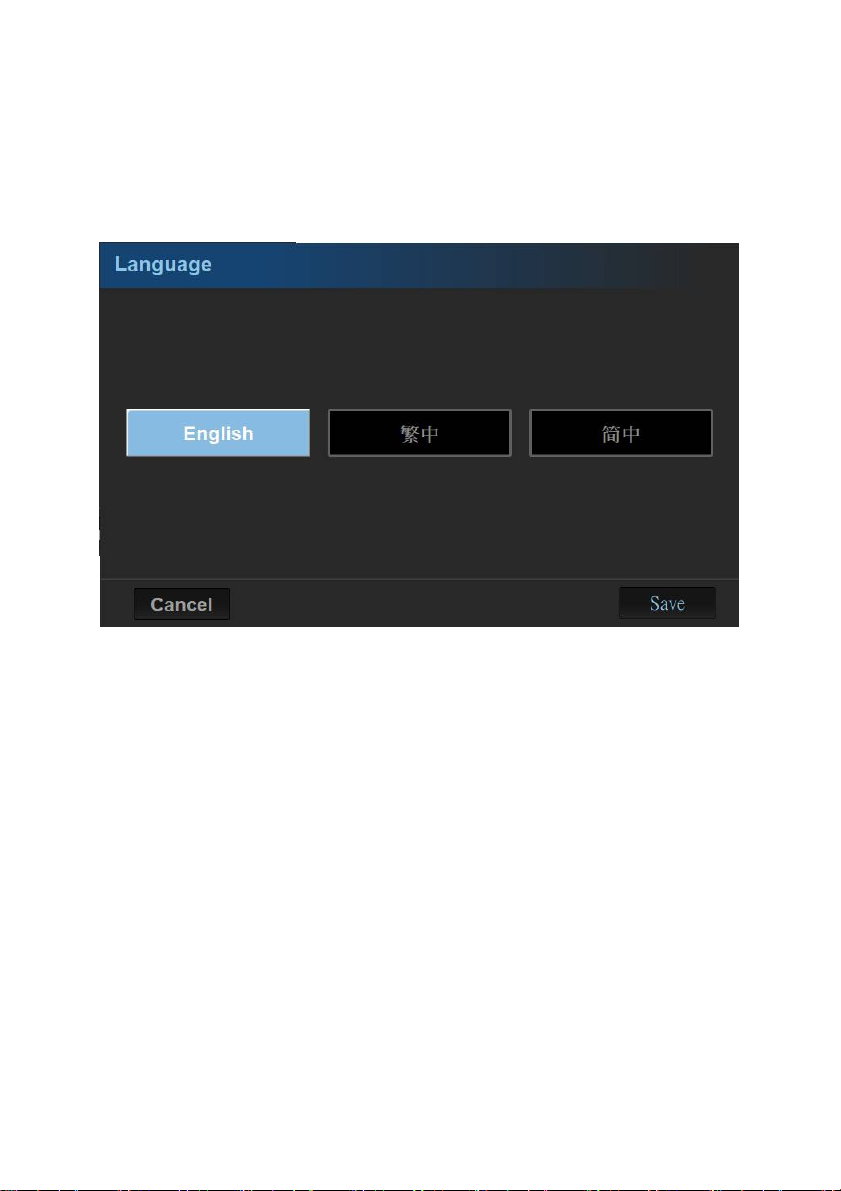

 Languages

After clicking the “Language” option, it can show three languages including
“English”, “Traditional Chinese” and “Simplified Chinese” for you to select.
After the selection is finished, please click the “Save” button to save the
settings.

 Quit APP

After clicking the “Quit App” button, you can quit the VGB-2000 App and then
go back to the main screen.

 Shut Down

Please click the “Shut Down” button and then click the “Yes” button to shut
down the device.

65

Chapter 11. Software Update

Please follow following steps for updating the software for the TPC-700/TPC­700P.

1. Please download the latest TPC-700/TPC-700P software from the Datavideo
official website www.datavideo.com .

2. Please unzip the downloaded software “TPC700_product model name_v
x.x.x” in your PC or laptop.

3. There is a folder with the latest software update files which the folder name
is “datavideo” after the software is unzipped.

4. Please copy the whole “datavideo” folder to the root directory of your USB
thumb drive.

5. Please insert your USB thumb drive with the latest TPC-700/TPC-700P
software into the USB port which is located at the left side of the TPC­700/TPC-700P.

6. Please turn off and then turn on the power of the TPC-700/TPC-700P.

7. The screen of the TPC-700/TPC-700P will be shown as following diagram
and the software update procedure will be started automatically.

66

8. After the software update procedure is finished, the following screen will be
shown, please tap the “OK” button and then all of the software update
procedure is done.

Note: After the software update is finished, there is a file which the file name
is “done” will be generated automatically by the TPC-700/TPC-700P system
and will be saved in your USB thumb drive. If users want to update the same
version of the software for the next time, please remember to delete that
“done” file in advance.

67

Chapter 12. Settings

S

ettings

After the TPC-700/TPC-700P is turned on, it will enter the main screen and
there is a “Settings” option which is located at the top-right side of the main
screen.

After clicking the “Settings” button, you can enter the “Settings” interface. In
the “Settings” interface, there are several options including “Network Config”,
“Auto execute last APP: ON/OFF”, “Install APP” and “Uninstall APP”. The main
interface of the “Settings” option is shown as following diagram, please see
following paragraphs for more details.

68

 Network Config:

When you click the “Network Config” option, you can see that there are
seven parameters including “DHCP ON/OFF”, “IP Address”, “Network
Mask”, “Gateway”, “Primary DNS”, “Secondary DNS” and “MAC Address”.
Moreover, there are three buttons including “Cancel”, “Reset” and
“Save” which are located at the bottom side of the screen. Click the
“Cancel” button allows you to go back to previous screen. Click the
“Reset” button allows you to reset the device to factory default values.
Click the “Save” button allows you to save all settings.

 Auto execute last APP ON/OFF:

Once the “Auto execute last APP ON/OFF” button is set to “ON”, the
system will operate the APP for the product which is operated for the
last time automatically. If this option is “OFF”, the system will not
operate the APP for the last product automatically.
Click the “Auto execute last APP ON/OFF” once allows you to switch
between ON and OFF.

 Install APP:

Install APP option allows you to install the APP of needed device. Please
see following steps for knowing how to install APP by the “Install APP”
function.

1. At first, please download latest APPs for different models which are installed
in the TPC-700/TPC-700P from Datavideo official website www.datavideo.com .

2. Please unzip the downloaded file TPC-700_product model name_v x.x.x in
your PC or laptop.

3. After the file is unzipped, there is a “datavideo” file folder with a file which
the name is “TPC700.apkg” in it.

4. Please prepare a USB flash drive and then save the unzipped “datavideo” file
folder with the “ TPC700.apkg” file in the root directory of your USB flash drive.

5. Please reboot the TPC-700 /TPC-700P or unplug and replug the power cable.

 For TPC-700, please unplug and replug the power cable which is

connected to the 12V DC power interface.

69

 For the TPC-700P, please unplug and replug the RJ-45 Ethernet cable

S

ettings

which is connected to the RJ-45 Ethernet interface of the TPC-700P.

6. After the rebooting or unplugging and replugging is finished, the device will
enter its initial screen. Please click “Settings”.

7. Please click “Install APP” and then the software update installation will be
started. If the “Back” button is clicked, it will go back to the initial screen.

70

 Uninstall APP:

The “Uninstall APP” option allows you to uninstall the APP for the
product which is needed to be removed. Please see following steps for
knowing how to uninstall APP by the “Uninstall APP” option.

1. At first, please click the “Uninstall APP” button.

2. And then you can select the APP for the model which is needed to be
uninstalled from “Select APP”. After that, please click the “OK” button
for uninstalling the selected APP.

71

Chapter 13. Dimensions

Unit: mm

72

Chapter 14. Specifications

TPC-700/TPC-700P Specifications

Touch Screen 7” capacitive touch screen

Touch Screen
Resolution

Software Upgrade via USB 2.0 interface

Control Protocol via RS-232(RJ-45 interface)

Power DC 12V

PoE 802.3af(For TPC-700P Only)

Power Consumption 10W

800 x 480

Dimension

Weight 0.85Kg

Operating Temp. 0~40 °C

220 x 152 x 79 (mm)

73

Note

74

Note

75
