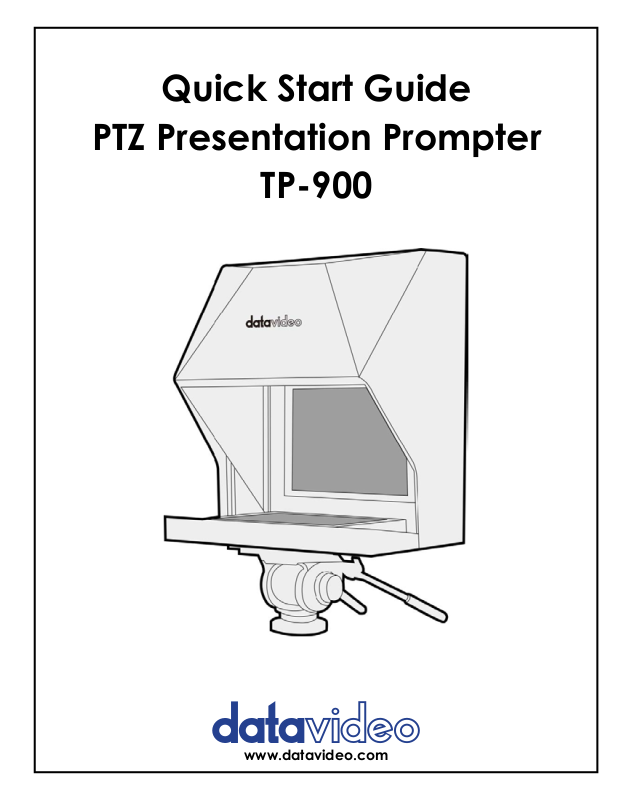

Quick Start Guide
PTZ Presentation Prompter
TP-900
www.datavideo.com
Page 2
H
F
U
R R
B
E
G
D
X
P
P
P
P
Q
Q
C
J K N
A
V
Item Description Quantity
A 15” LCD Control Unit 1
B 12V universal Mains PSU 1
C USB Mouse 1
D 5m Ethernet Cable 1
E 3.5mm input adapter for WR-500 remote control 1
F TP-900 metal base tray with tripod plate 1
G 150 x 150 PTZ Scissor Lift 1
H Cloth Hood 1
I M4 CRV hex tool 1
J 9mm long ¼ thumb screw with red dot 1
K 9mm long ¼ thumb screw with washers 1
L M6*40mm screws 8
M M6*14mm screws 10
N 16mm long screw 1
O 3/8 to ¼ adapter 1
T
S S
L
Y Z I
M
O
Item Description Quantity
P 565mm Vertical extrusions 4
Q 475mm horizontal extrusions with 90 degree
joining blocks
R 325mm glass support extrusions with single end
caps
S 250mm PTZ lift extrusions with both end caps 2
T 70/30 mirror glass 1
U Glass support bar 1
V Spare black extrusion end caps 2
W Spare M6*14mm screws 2
X 12V regulated DTap cable 2
Y Small CRV hex tool to remove the tripod plate
from item F
Z Medium CRV hex tool to remove 90 degree
joining blocks from item Q
https://datavideo.com/product/TP-900
W
2
2
1
1
Page 3
TP-900 Quick Start Guide
1. Grab TP-900 metal base tray (Item F) and lay
flat on surface such as a table.
2. Grab 4x 565mm vertical extrusions (Item P)
and 4x M6 14mm screws (Item M)
NOTE: Make sure screw opening closest to the
end is facing away from metal base tray (Item F).
3. Attach the four 565mm vertical extrusions
(Item P) to metal base tray (Item F) using the M6
14mm screws (Item M)
Use M4 CRV hex tool (Item I) for this.
4. Grab 2x 475mm Horizontal extrusions (Item Q)
& 4x M6 s 14mm screws (Item M). Remove circular
cover caps and place aside.
Use M4 CRV
hex tool
(Item I)
5. Replace the black circular plastic caps.
www.datavideo.com
Page 2
Page 4
TP-900 Quick Start Guide
6. Grab 2x 325mm glass support extrusions with
sing end caps (Item R) and 4x M6 40mm screws
(Item L)
7. Use M4 CRV hex tool
(Item I) to attach screws to the
vertical extrusions
1
2
8. Grab 2x 325mm glass support extrusions
(Item R) and 4x M6 14mm screws (Item M)
1
9.Use M4 CRV hex tool (Item I) to attach screws
to the vertical extrusions
10. Top view should look like this.
2
www.datavideo.com
Page 3
Page 5
TP-900 Quick Start Guide
11 . Remove squared black plastic end caps from
1 & 2 extrusion.
1
12. Remove squared black plastic cap from 1 & 2
extrusion for PTZ
2
13. Insert the 150 x 150 PTZ scissor lift (Item G)
in between the extrusion (1 & 2) as shown above.
15. Lock the position of the 150 x 150 PTZ Scissor Lift, (Item G) with
the 16mm long screw (Item N).
NOTE: If Item N does not lock, try loosening M6 14mm screws
on extrusion 2 and add 16mm long screw (Item N) back on then
proceed to reattach the screws.
www.datavideo.com
14. Ensure that adjustment knob is facing the rear
of the teleprompter as shown.
16. Can go up and down
by rotating knob
2
1
Page 4
Page 6
TP-900 Quick Start Guide
17. With the PTZ Scissor Lift locked, now lay on
flat table. Attach / screw quick release plate of
your tripod to on to the bottom of the TP-900
metal base plate (Item F)
18. Once installed, mount
onto your tripod.
NOTE: Tripod must be
able to uphold over 25 lbs
(Tripod not included)
19. Grab glass support bar (Item U) and 2x M6
14mm screws (Item M)
20. Use M4 CRV hex tool (Item I) to attach
screws to the vertical extrusions
21. Leave about a quart or an inch of space
between glass support bar (Item U) and glass
support extrusion (Item R).
www.datavideo.com
Page 5
Page 7
TP-900 Quick Start Guide
22. Grab 70/30 mirror glass (Item T). Carefully
remove plastic covering.
23. Place mirror glass carefully in the center.
NOTE: You will see a RED DOTS and GREEN
DOTS on the mirror glass. GREEN DOTS should
be facing the talent.
25. Grab the 15” LCD control unit monitor (Item A)
www.datavideo.com
24. Fasten the space between glass support bar
(Item U) and glass support extrusion (Item R) with
the M4 CRV hex tool (Item I).
Page 6
Page 8
TP-900 Quick Start Guide
26. Install the 15” LCD Control Unit (Item A) by
inserting the 9mm long ¼ thumb screw with red
dot (Item J) through the slot in the TP-900 metal
base tray with tripod plate(Item F).
2 7. Now bring the PTZ scissor lift down (Item G).
28. Grab your PTZ camera. (camera not
included) and turn upside down to install onto the
PTZ scissor lift (Item G).
30. Adjust the position of the 150 x 150 PTZ Scissor Lift (Item G)
as required.
Tip: Position the PTZ lens as close to the 70/30 mirror glass as
possible to achieve the best range of pan.
www.datavideo.com
29. Install your PTZ camera onto PTZ scissor lift
(Item G) with thumb screw (Item K).
CONTINUE ONTO NEXT PAGE
Page 9
TP-900 Quick Start Guide
31. Grab cloth cover (Item H).
22. Install the Cloth Hood, Item H. The hood is
secured to the inside of the TP-900 metal base
tray with tripod plate, Item F and Glass support
bar, Item U via integral magnets.
The rear of the hood can be expanded if the PTZ
camera or cables protrude past the rear of the
TP-900 frame.
https://datavideo.com/product/TP-900
