Page 1
DAC-8P
HD/SD-SDI TO HDMI
CONVERTER
Quick Start Guide
www.datavideo.com
Page 2
HD/SD-SDI TO HDMI CONVERTER
2
Standard Warranty
• Datavideo equipment is guaranteed against any manufacturing defects for
one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be
supplied at the time of any request for repair under warranty.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or
water is not covered by this warranty.
• All mail or transportation costs including insurance are at the expense of
the owner.
• All other claims of any nature are not covered.
• Cables & batteries are not covered under warranty.
• Warranty only valid within the country or region of purchase.
• Your statutory rights are not affected.
Two Year Warranty
• All Datavideo products purchased after 01-Oct.-2008 qualify for a free
one year extension to the standard Warranty, providing the product is
registered with Datavideo within 30 days of purchase. For information on
how to register please visit www.datavideo-tek.com or contact your local
Datavideo ofce or authorized Distributors
• Certain parts with limited lifetime expectancy such as LCD Panels, DVD
Drives, Hard Drives are only covered for the rst 10,000 hours, or 1 year
(whichever comes rst).
Any second year warranty claims must be made to your local Datavideo
office or one of its authorized Distributors before the extended warranty
expires.
Warranty
For EU Customers
only - WEEE Marking
This symbol on the product
indicates that it will not be
treated as household waste.
It must be handed over to
Disposal What’s in the box?
the applicable take back scheme for
the recycling of electrical and electronic
equipment. For more detailed information
about the recycling of this product, please
contact your local Datavideo ofce.
1 x DAC-8P
1 x Switching Adaptor DC 12V
500mA
1 x DAC-8P Quick Start Guide
Page 3
DAC-8P
3
HD/SD - SDI Input & Output (LOOP THRU)
HD/SD-SDI transfers professional level video
signals and it can connect to long distance
transmission systems.
Left BNC connector: HD/SD-SDI Input
Right BNC connector: Loop Thru Output
RCA Audio Input
Two channels Unbalanced L / R Audio input
Note: two channels SDI Audio or RCA Audio input
embedded into HDMI Signal
Mini Switch
Using mini switch can select audio source from
input.

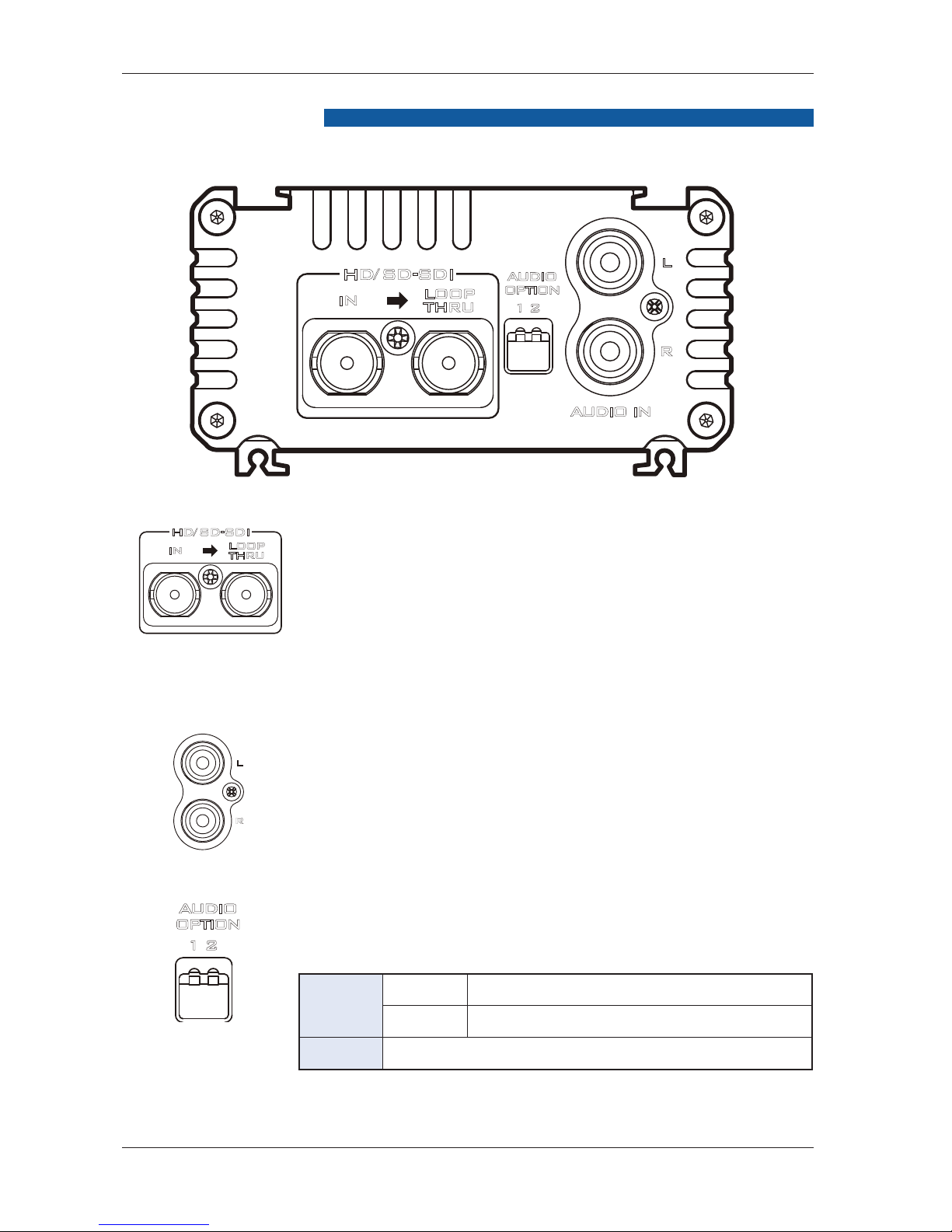

Front Panel
HD/ SD-SDI
IN
LOOP
THRU
L
R
AUDIO IN
AUDIO
OPTION
1 2
HD/ SD-SDI
IN
LOOP
THRU
L
R
AUDIO
OPTION
1 2
CH 1 ON ANALOG AUDIO
OFF SDI EMBEDDED AUDIO
CH 2 RESERVED
Page 4
HD/SD-SDI TO HDMI CONVERTER
4

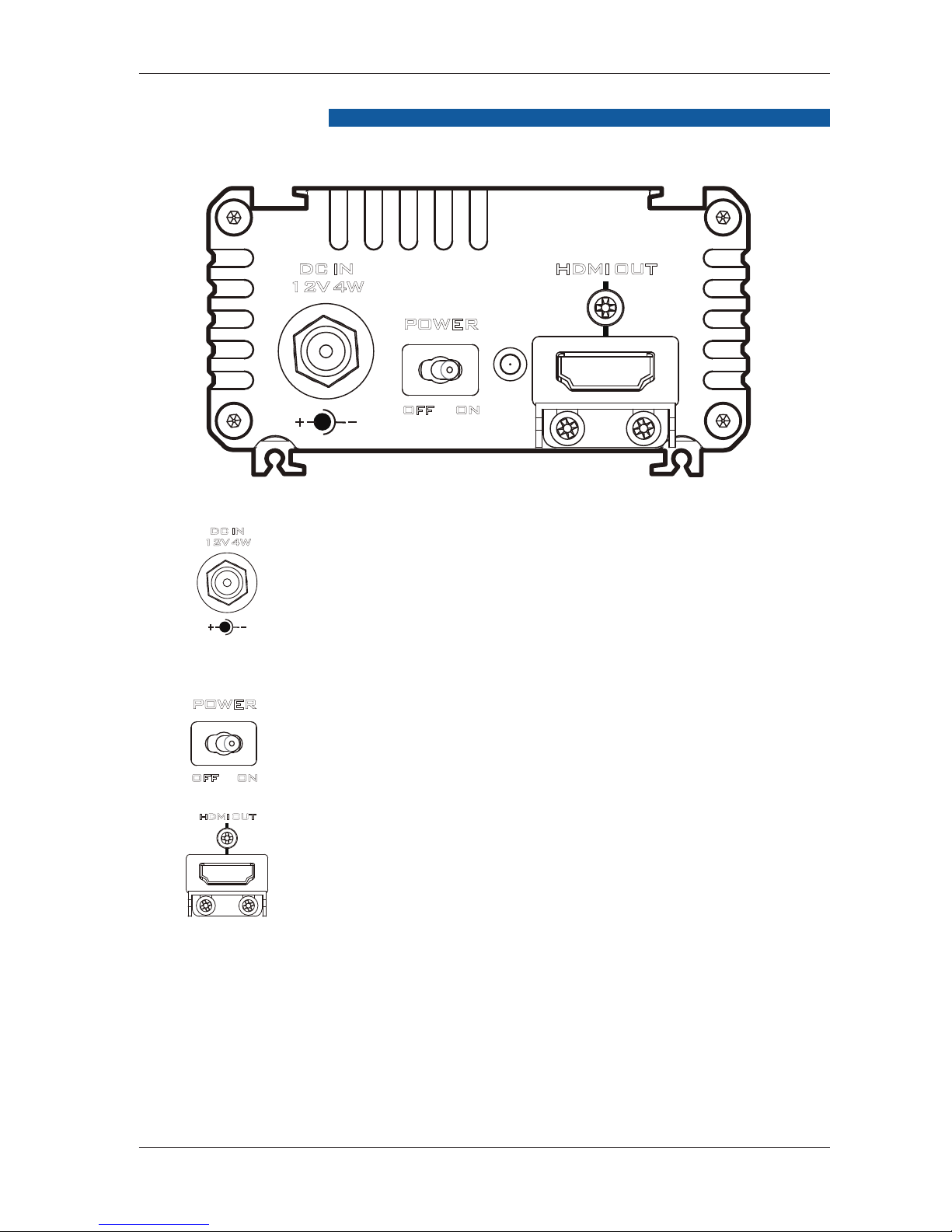

Rear Panel
DC IN
12V 4W
HDMI OUT
POWER
ON
OFF
DC IN
12V 4W
POWER
ON
OFF
HDMI OUT
DC In Socket
Connecting the power supply 12V/ 500mA PSU
to this socket. The connection can be secured by
screwing the outer fastening ring of the DC In plug
to the socket.
Power Switch
Switches the power On / Off.
HDMI Output
HDMI digital signal connector.
Page 5
DAC-8P
5
Specication
Input Interface • 1x HD/SD-SDI input
Outputs Interface • 1x HD/SD-SDI output (Loop Thru)
• 1x HDMI (V1.2) output
Supported HDMI
Output Formats
• 720x480 Interlace
• 720x576 Interlace
• 1280x720 / 50Hz Progressive
• 1280x720 / 59.94Hz Progressive
• 1280x720 / 60Hz Progressive
• 1920x1080 / 50Hz Interlace
• 1920x1080 / 59.94Hz Interlace
• 1920x1080 / 60Hz Interlace
• 1920x1080 / 50Hz Progressive
• 1920x1080 / 59.94Hz Progressive
• 1920x1080 / 60Hz Progressive
3G SDI Signal SMPTE 292 standard complied with
• Output return loss : More than 4.5 dB (3GHz)
• Output level : 0.8 Vpp ± 10%
• Rise time : Less than 130 ps
• Fall time : Less than 130 ps
• Difference between rise time and fall time within 50 ps
• Alignment jitter : Less than 0.3 UI
• Timing jitter : Less than 2.0 UI
• Rise over shot : 10%
• Fall over shot : 10%
• Equalizer use 5C-FB cable support 100 meters
HD SDI Signal SMPTE 292 standard complied with
• Output return loss : More than 15 dB (5MHz to 750MHz)
More than 10 dB (750MHz to 1.5 GHz)
• Output level : 0.8 Vpp ± 10%
• Rise time : Less than 270 ps
• Fall time : Less than 270 ps
• Difference between rise time and fall time within 100 ps
• Alignment jitter : Less than 0.2 UI
• Timing jitter : Less than 1.0 UI
• Eye aperture ratio : More than 90%
• DC offset : 0 ± 0.5V
• Equalizer use 5C-FB cable support 100 meters
Operating
Temperature
• 0°C to 40°C (32°F to 102°F)
Humidity • 10% to 90% (non condensing)
Dimension & Weight • 105mm (W) x 120mm (D) x 38mm (H) / 0.5Kgs
Power • Output DC 12V / 500mA (4W)
Page 6
HD/SD-SDI TO HDMI CONVERTER
6
Notes
Page 7
DAC-8P
7
Notes
Page 8
All the trademarks are the properties of their respective owners.
Datavideo Technologies Co., Ltd. All rights reserved 2018
Service & Support
Jan.07.2015 P/N: G082060579B6
Please refer to our website for update the latest
version manual.
www.datavideo.com/Converters/DAC-8P
It is our goal to make owning and using Datavideo products a satisfying
experience. Our support staff is available to assist you to set up and
operate your system. Contact your local ofce for specic support requests.
Plus, please visit www.datavideo.com to access our FAQ section.
