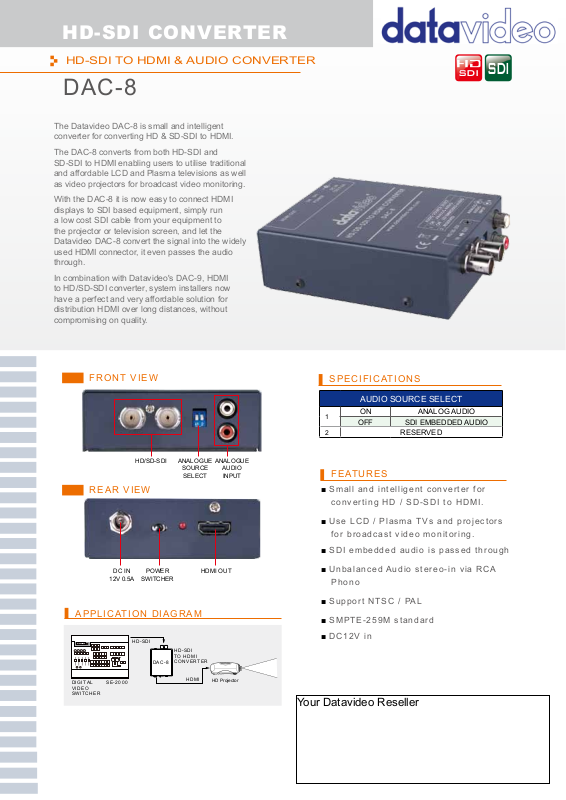

Datavideo DAC-8 DATASHEET

HD-SDI CONVERTER

HD-SDI TO HDMI & AUDIO CONVERTER

DAC-8

The Datavideo DAC-8 is small and intelligent converter for converting HD & SD-SDI to HDMI.

The DAC-8 converts from both HD-SDI and SD-SDI to HDMI enabling users to utilise traditional and affordable LCD and Plasma televisions as well as video projectors for broadcast video monitoring.

With the DAC-8 it is now easy to connect HDMI displays to SDI based equipment, simply run a low cost SDI cable from your equipment to the projector or television screen, and let the Datavideo DAC-8 convert the signal into the widely used HDMI connector, it even passes the audio through.

In combination with Datavideo's DAC-9, HDMI to HD/SD-SDI converter, system installers now have a perfect and very affordable solution for distribution HDMI over long distances, without compromising on quality.

SDI

FR O NT VI E W

HD/SD-SDI ANALOGUE

ANALOGUE

SOURCE

SELECT

RE A R VI E W

DC IN

12V 0.5A

POWER

SWITCHER

AP P LI CAT IO N D IA G RA M

HD -SD I

DA C-8

HD -SD I TO HD MI CO NVE RT ER

AUDIO INPUT

HDMI OUT

SP E CI FI C AT I O N S

AUDIO SOURCE SELECT

ON ANALOG AUDIO

OFF SDI EMBEDDED AUDIO

RESERVED

FE ATU R E S

■ Sm a l l a n d i n te l l ig e n t c o nv e r te r fo r

c on v e rt i n g H D / S D- S D I t o H D M I.

■ Us e LC D / P l as m a TV s an d pr o j ec t o rs

f or b ro a d ca s t v i d eo m on i t or i n g.

■ SD I em b e dd e d a u d io i s p a ss e d t h r ou g h

■ Un b a la n c ed Au d i o s t er e o -i n vi a RC A

P ho n o

■ Su p p or t NT S C / PAL

■ SM P T E- 2 5 9M s ta n d ar d

■ DC 1 2 V i n

VI DEO SW ITC HE R

HD MI

SE -20 00DI GIT AL

HD Projector
