Datavideo CCU-100 User guide

- 1 -

Table of Contents

Warnings and Precautions ..................................................................................... - 2 -

Warranty ..................................................................................................................... - 2 -

Standard Warranty ..................................................................................................... - 2 -

Two Year Warranty ..................................................................................................... - 3 -

Disposal ..................................................................................................................... - 3 -

1. Product Overview ............................................................................................. - 4 -

1.1 Features ............................................................................................................. - 4 -

2. Example CCU-100 Studio System based on Datavideo Products ........... - 5 -

3. CCU-100 Connections & Controls ................................................................. - 6 -

3.1 Front Panel ........................................................................................................ - 6 -

3.2 Rear Panel ......................................................................................................... - 7 -

4. AD-2 (S/P/J) Connections & Cont rols ........................................................... - 8 -

4.1 Front View ......................................................................................................... - 8 -

4.2 Rear View .......................................................................................................... - 9 -

4.3 Side View .......................................................................................................... - 10 -

4.4 Top View ........................................................................................................... - 11 -

4.5 Bottom View .................................................................................................... - 12 -

5. RMC-240 Connections & Controls ................................................................ - 12 -

6. HP-3 Connections & Control s ....................................................................... - 12 -

6.1 Features ............................................................................................................ - 13 -

7. Frequently-Asked Questions......................................................................... - 13 -

8. Specifications .................................................................................................. - 14 -

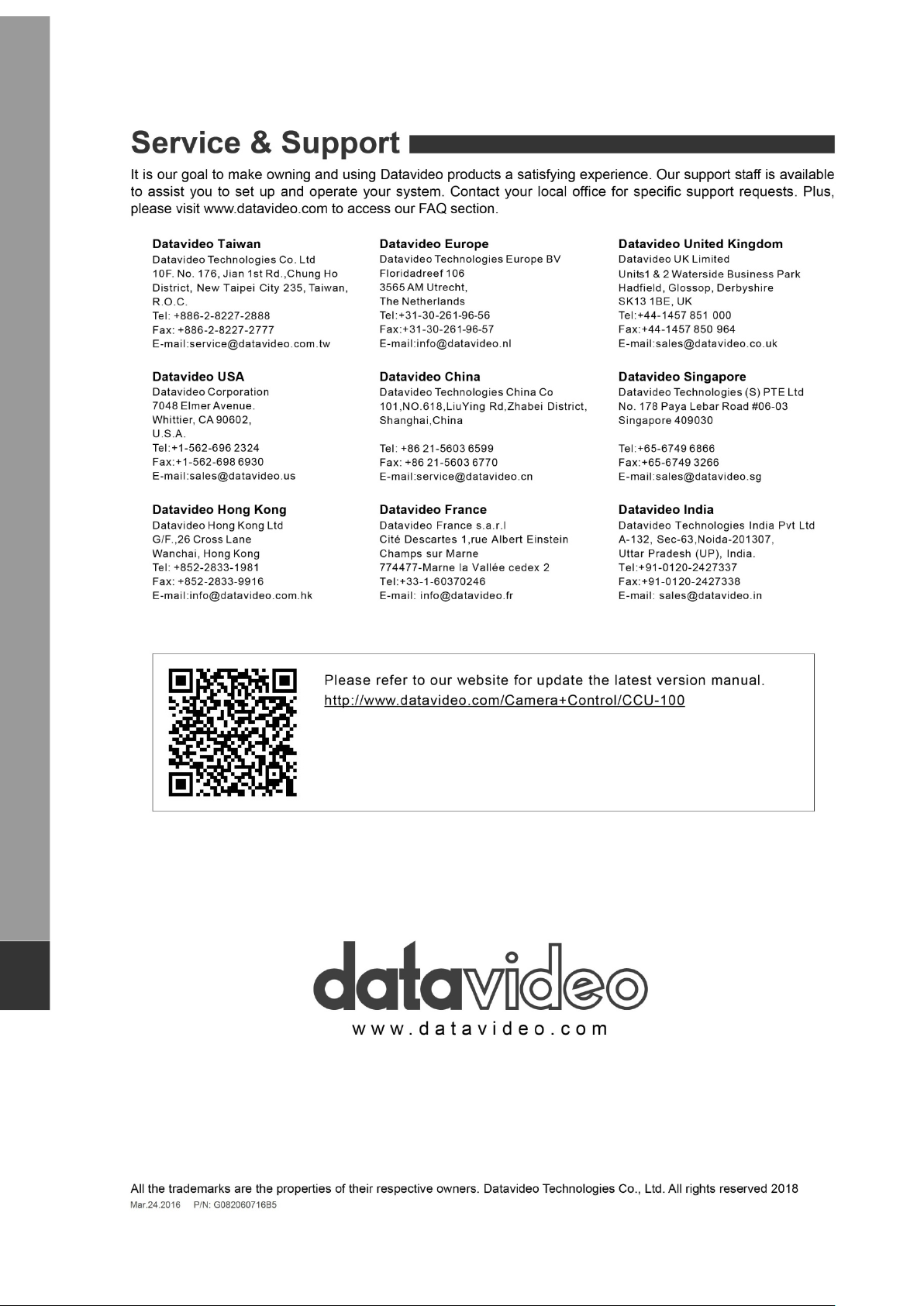

9. Service & Support ........................................................................................... - 17 -

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo
Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies
cannot exclude that some information in this manual, from time to time, may not be correct or may be
incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo
Technologies always recommend that you double check the information in this document for accuracy
before making any purchase decision or using the product. Datavideo Technologies is not responsible for
any omissions or errors, or for any subsequent loss or damage caused by using the information contained
within this manual. Further advice on the content of this manual or on the product can be obtained by
contacting your local Datavideo Office or dealer.

- 2 -

•

•

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a

damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious

damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe

and reliable operation of this unit, and to protect it from overheating, do not block or cover these
openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings
on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat
register or radiator. This unit should not be placed in a built-in installation unless proper ventilation
is provided.

7. This product should only be operated from the type of power source indicated on the marking label

of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer
or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will

be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on

the products plugged into the extension cord do not exceed the extension cord rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not

exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may

touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to service this product

yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to
dangerous voltage points or other risks, and will void your warranty. Refer all service issues to
qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service personnel under the

following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust

only those controls that are covered by the operating instructions in this manual; improper
adjustment of other controls may result in damage to the unit and may often require
extensive work by a qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

Datavideo equipment is guaranteed against any manufacturing defects for one year from the date of

purchase.

The original purchase invoice or other documentary evidence should be supplied at the time of any

request for repair under warranty.

- 3 -

•

•

•

•

•

•

•

•

Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered by this

warranty.

All mail or transportation costs including insurance are at the expense of the owner.
All other claims of any nature are not covered.
Cables & batteries are not covered under warranty.
Warranty only valid within the country or region of purchase.
Your statutory rights are not affected.

Two Year W arr anty

All Datavideo products purchased after 01-Oct.-2008 qualify for a free one year extension to the

standard Warranty, providing the product is registered with Datavideo within 30 days of purchase. For
information on how to register please visit www.datavideo-tek.com or contact your local Datavideo
office or authorized Distributors

Certain parts with limited lifetime expectancy such as OLED Panels, DVD Drives, Hard Drives are only

covered for the first 10,000 hours, or 1 year (whichever comes first).

Any second year warranty claims must be made to your local Datavideo office or one of its authorized
Distributors before the extended warranty expires.

Disposal

For EU Customers only - WEEE Marking

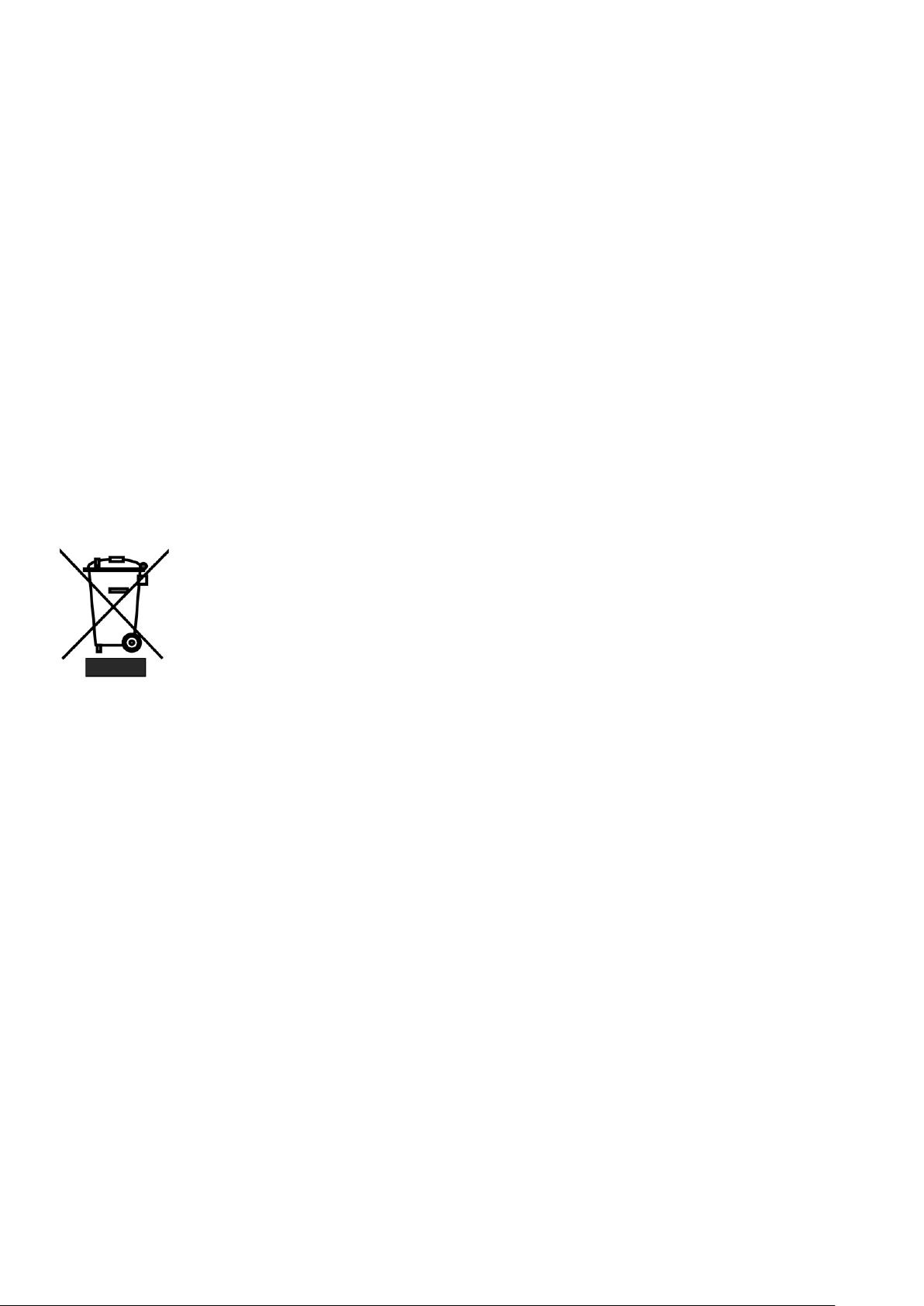

This symbol on the product indicates that it will not be treated as household waste. It
must be handed over to the applicable take back scheme for the recycling of Waste
Electrical and Electronic Equipment. For more detailed information about the recycling of
this product, please contact your local Datavideo office.

- 4 -

1. Product Overview

This CCU-100 kit is designed to easily connect several Datavideo products into an effective and professional
studio system. This guide assumes you may already own some or all of the other Datavideo products
mentioned in this document. Where an asterix symbol (*) is shown next to a model number, this product is
not supplied within the CCU-100 kit and an additional purchase may be required. Please speak with your
dealer to discuss your desired set up using the Datavideo equipment you may already have. For more
information on any of the products marked with an asterix (*) please visit our website www.datavideo.com

The CCU-100 kit can be used for passing on power to professional video cameras from the Datavideo PD-6*
power centre and handling signals sent over the camera cables (CB-43 / 44 / 45 / 49*) to a switcher. In this
way, it is used to remotely set up various camera parameters such as iris, shutter, gain, and master pedestal
using an MCU-200 (S/P/J)*.

As well as passing on camera control signals, the CCU-100 system simultaneously handles digital SDI and
analogue signals for camera video output, Program look back video, camera view finder data as well as tally
and intercom signals between the cameras and a video switcher.

The Datavideo AD-2 (S/P/J), Multi Transmission Adaptor Box, is an adaptor box that allows connections
between the CCU-100 Camera Control Unit and a single camera position. The CCU-100 and AD-2 (S/P/J)
form part of an integrated cabling solution that allows you to get things done fast, easy and within a
budget.

1.1 Features

• Control up to 4 cameras from one CCU-100 Camera Control Unit using the supplied AD-2 (S/P/J)

units.

• Remote control of camera functions including Iris, shutter, gain, master pedestal etc

• HD/SD SDI video transmission from digital camera

• Transmission of view finder / monitor video signals

• Return look back video signal for camera operator

• Two-way intercom with camera operators using an ITC-100*

• Datavideo switcher tally support

• DC Power supply from 4-PIN XLR sources such as PD-6 Power Center*

• RJ-45 Port providing connection to MCU 100 (S/P/J) / 200 (S/P/J)* for Remote Control

- 5 -

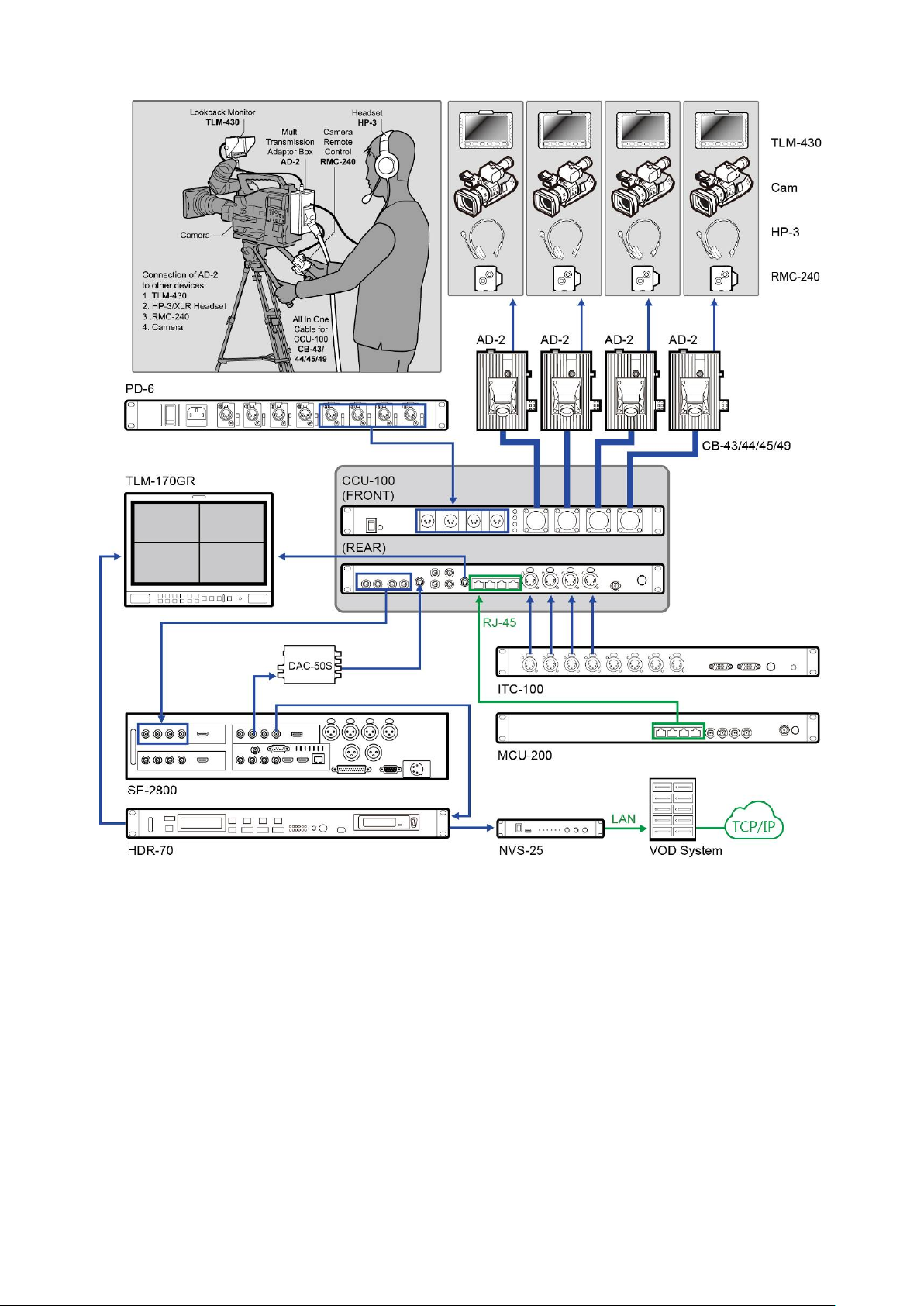

2. Example CCU-100 Studio S ystem based on Datavideo Products

Communication between AD-2 (S/P/J) and CCU-100 is bidirectional. The signals in each direction are listed
below:

CCU-100 – to – AD-2 (S/P/J)

• MCU-100 (S/P/J) / MCU-200 (S/P/J)* Control Signals

• Look Back Signal

• Power for camera and look back monitor

• Intercom System Signal

• Tally Light signal from switcher

AD-2 (S/P/J) – to – CCU-100

• Camera SDI Signal

• ITC-100* Intercom System Signal

• Camera View Finder Signal (composite video)

The View Finder Signals and the parameters are sent to the AD-2 (S/P/J), which in turn transmits to the
TLM-430 for viewing. To display various camera parameters on the TLM-430*, simply press the Shot
Mark button on the MCU-200 (S/P/J)*.

- 6 -

3. CCU-100 Connections & Controls

SDI, MCU Control, Power, Look Back,

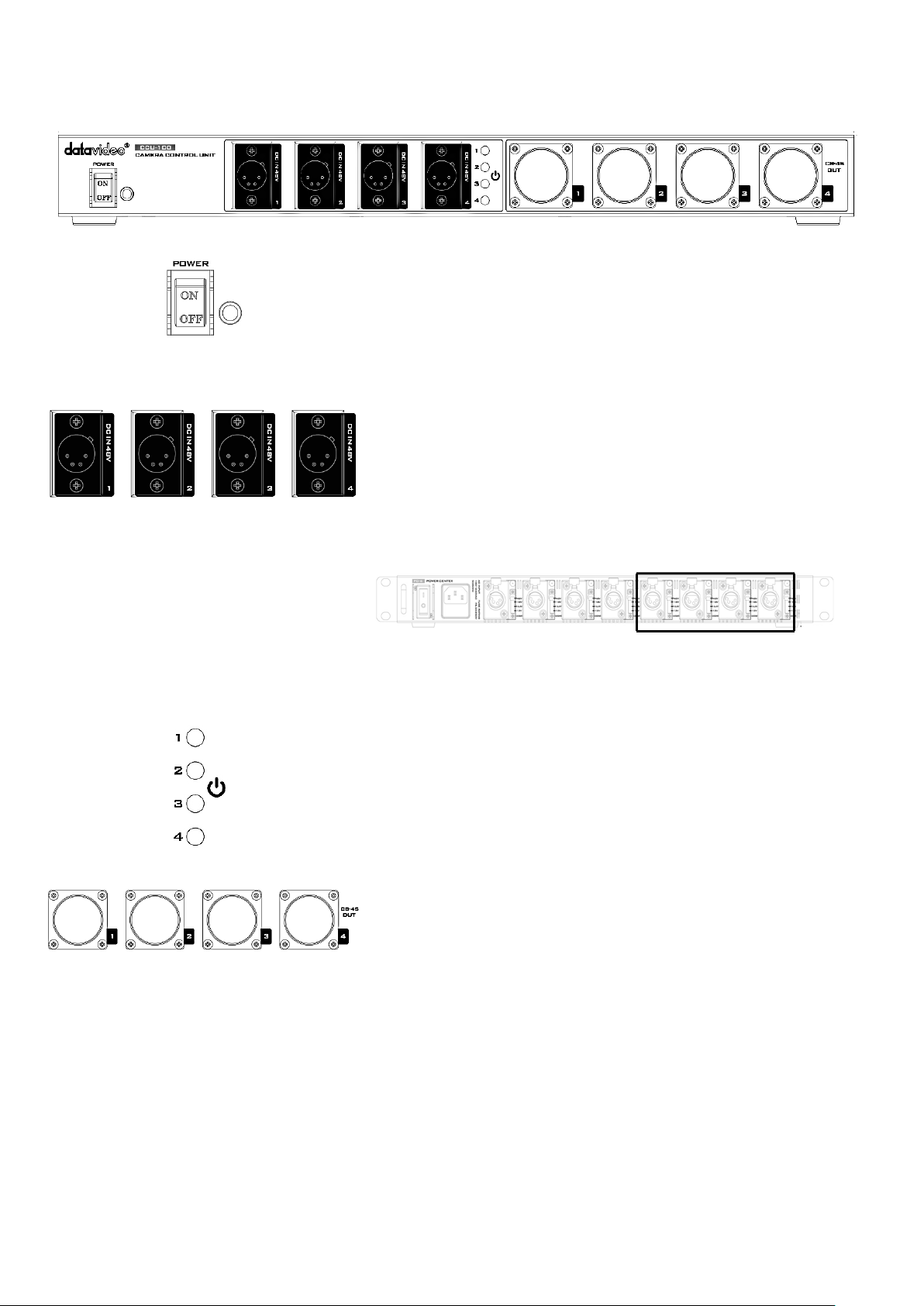

3.1 Front Panel

Power Switch

Switches the power On / Off.

Note: Make sure all cables are connected properly before
turning on the power.

DC IN 48V

The CCU-100 is powered by the PD-6 Power Center.

Note: Make sure the power cable is plugged into the PD-6
60W DC Ports and the voltage is set to 48V. Locations of the
60W DC Ports are depicted in the diagram below enclosed in
a rectangular box.

The 48V input will be converted by the AD-2 to a selectable
power of 8.4V, 12V or 16.8V.

LED Indicators

LED indicating power status of the corresponding power
connection

CB (all in one) cable connection (CB-43/ 44/ 45/ 49*)

Transmission of HD­View Finder, Intercom, and Tally between CCU-100 and AD-2
(S/P/J)

- 7 -

Look Back CV IN

4 View Finder CV OUT / View Finder QUAD CV OUT

The four CV output connectors transmit composite video View Finder

Ethernet Ports

Intercom IN

When connecting this unit to any other component, make sure that it

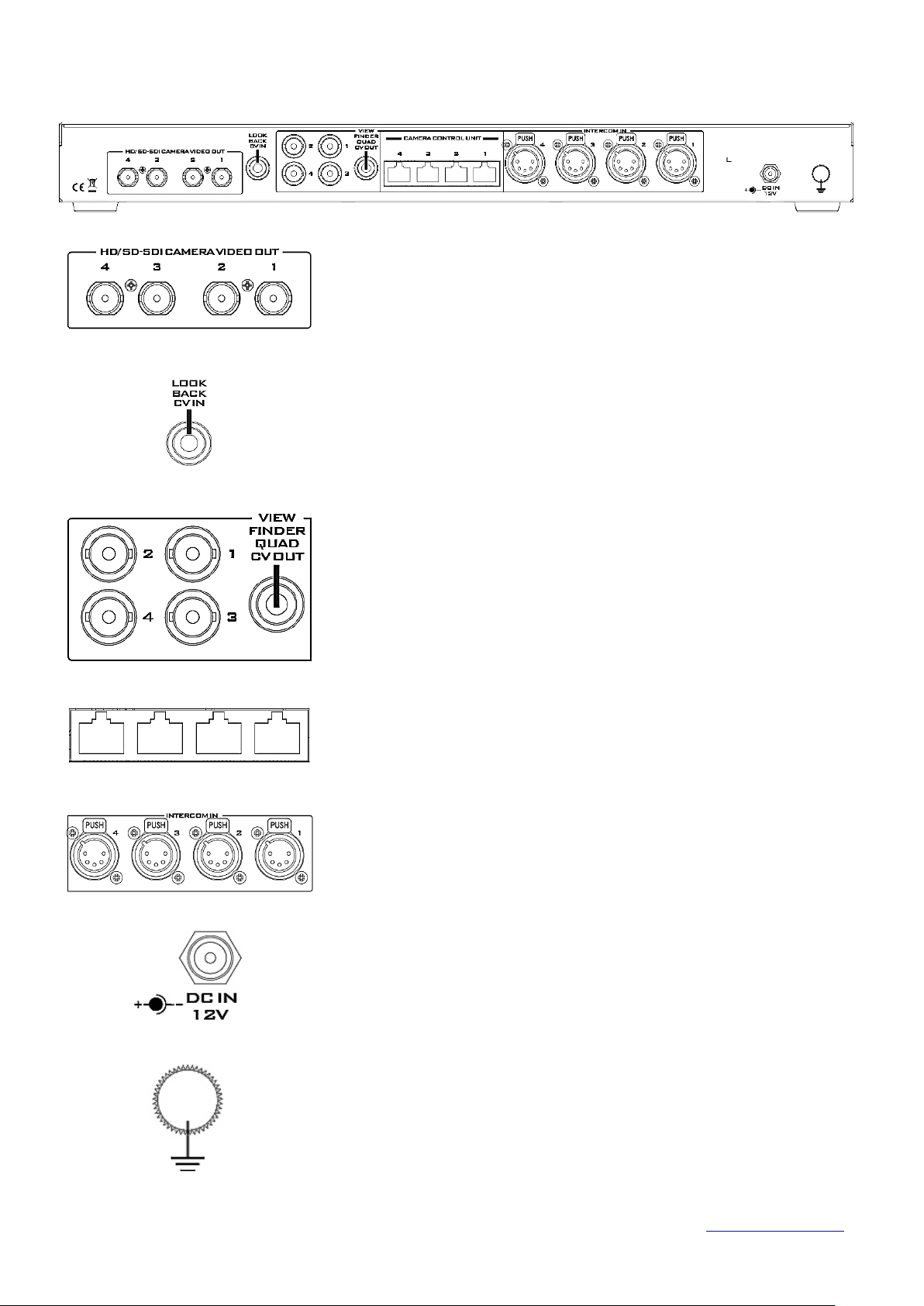

3.2 Rear Panel

HD/SD-SDI Camera Video OUT

The CCU-100 provides four HD/SD-SDI camera video output channels.
These outputs are generally connected to the switcher inputs.

This receives the composite video Look Back PGM signal from the
Switcher and allows signal transmission back to the camera
operators.

signals to the multiple individual monitors.

The View Finder Quad CV Out allows the user to view all four screens
mentioned above as smaller images on just one composite video
monitor.

These Ethernet ports are connected to the MCU-200 (S/P/J)* for
remote control of cameras connected to CCU-100.

These 5-PIN XLR connectors are connected to the ITC-100* Intercom
System for receiving communication signals from the camera
operators.

DC IN Socket

The DC IN socket receives power from the PD-2 Power Center. The
power connection can be secured by screwing the outer fastening
ring of the DC IN plug to the socket.

Grounding Terminal

For more information on any of the products marked with an asterix (*) please visit our website www.datavideo.com

is properly grounded by connecting this terminal to an appropriate
point. When connecting, use the socket and be sure to use wire with
a cross-sectional area of at least 1.0 mm2.

- 8 -

4. AD-2 (S/P/J) Connec t ions & Controls

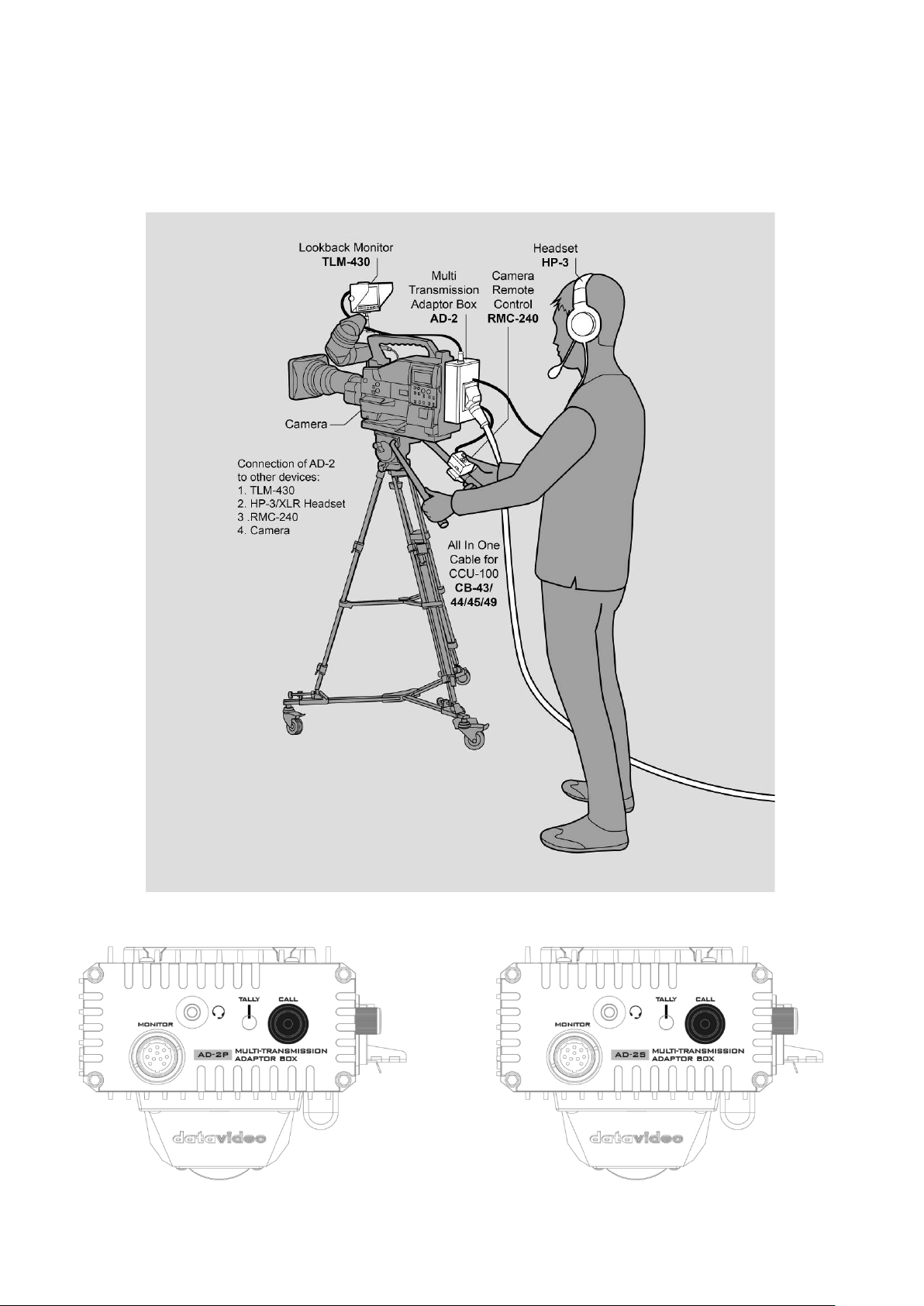

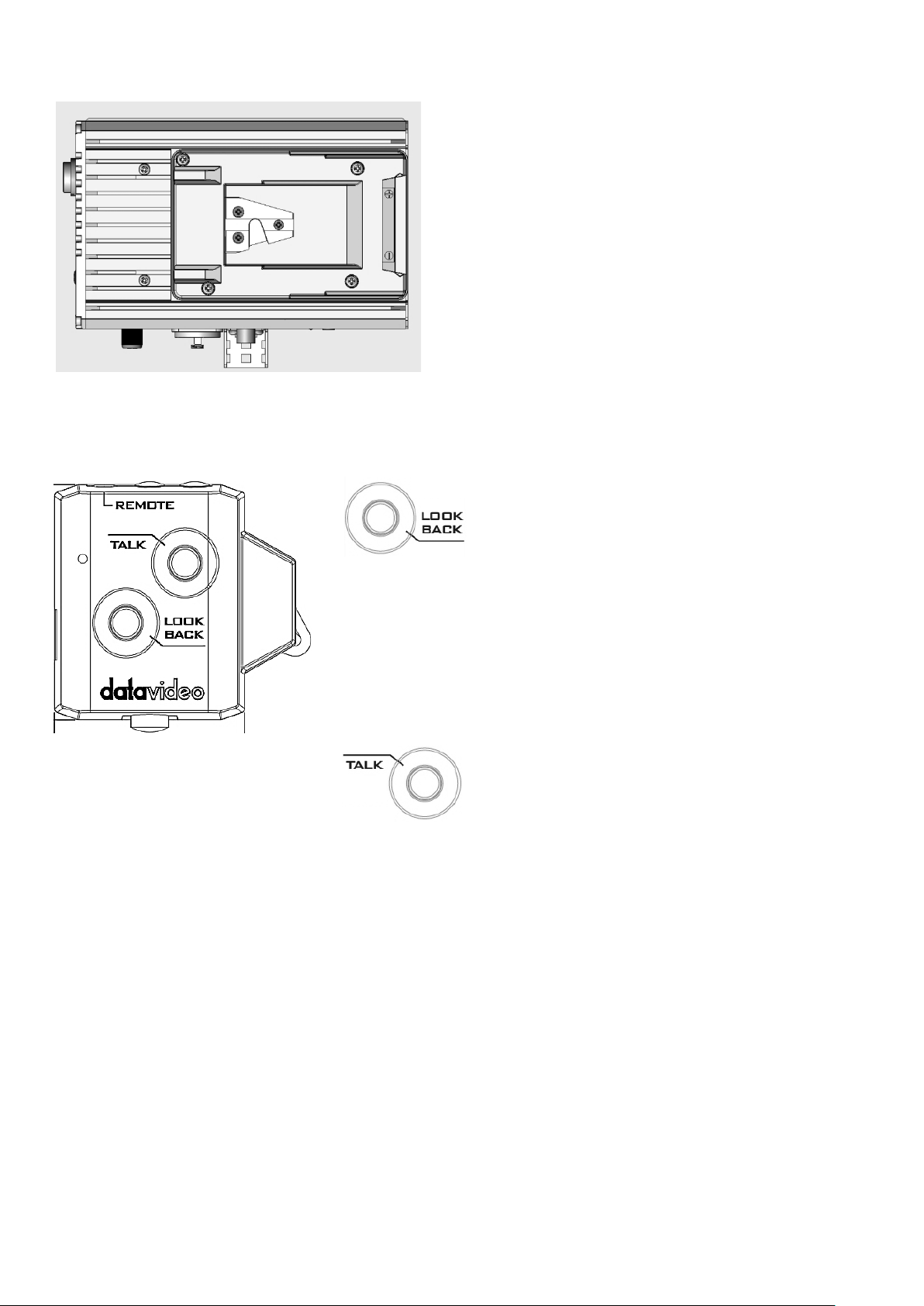

AD-2 (S/P/J) is a Multi-Transmission Adaptor Box which is attached to the rear of the camera by a standard
V-Mount plate as shown in the diagram below. It can also be used like a V-Mount Battery to power the
camera. If the standard V-Mount plate is not found on the rear of the camera, the user can purchase a SLED
(SLD-1) off the shelf from Datavideo.

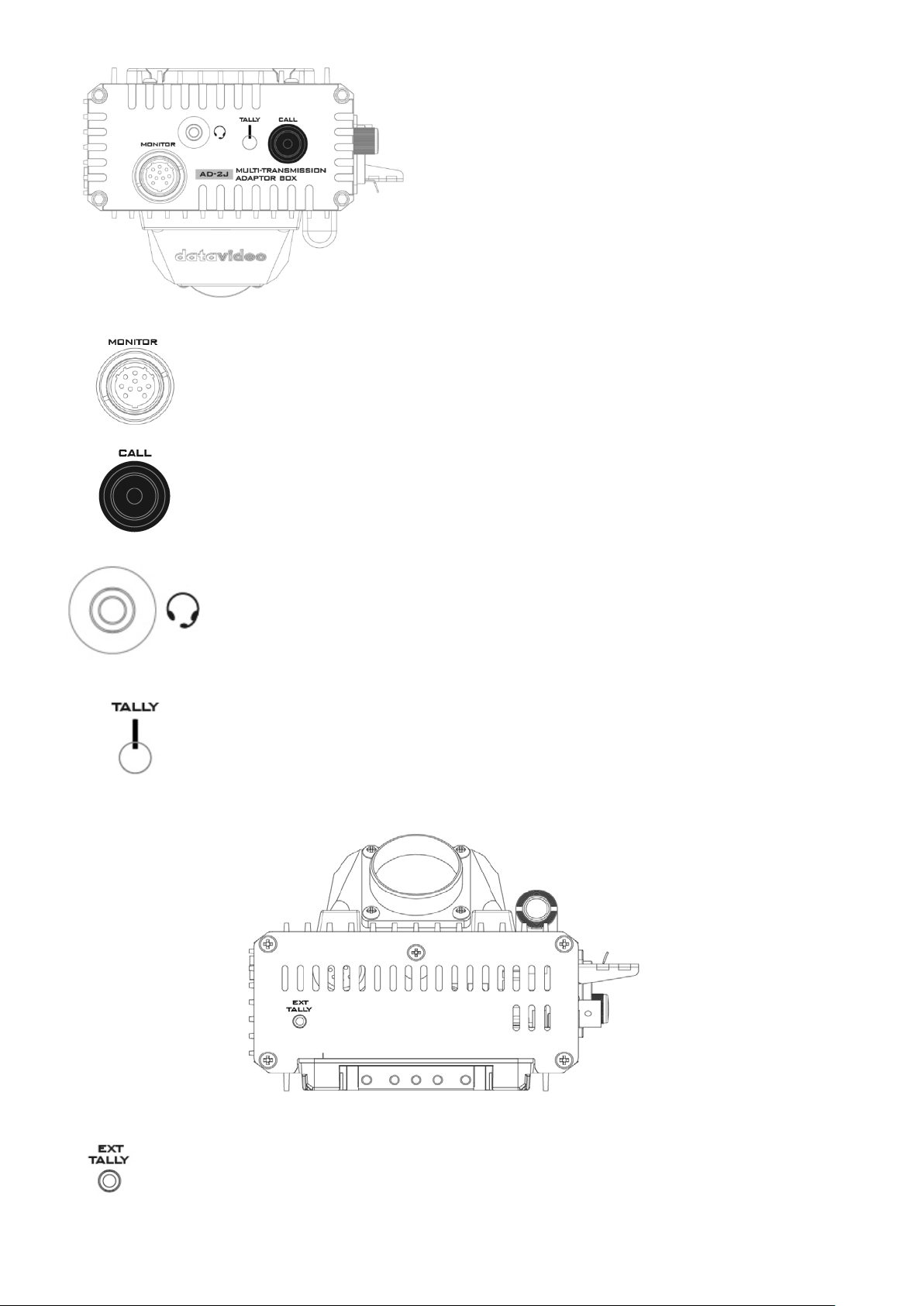

4.1 Front View

- 9 -

10-PIN Jack

Call Button

3.5-mm Phone Jack Connector

ector also allows the connection of other operator headsets / headphones

audio signal transmission to and from the

can be connected to this port via a music/TRS ¼” adaptor that

Bi-Color Tally LED
External Tally Socket

Transmission of Tally, Power, Look Back PGM video, and View Finder from the AD-2

(S/P/J) to the TLM-430 monitor.

The Call Button allows the camera operator to page the operator at the ITC-100

Intercom System with call tone via the CCU-100 Camera Control Unit.

This conn
to the AD-2 (S/P/J) and serves the
headsets. Headsets
comes with the CCU-100 product. Push the button on the adaptor to talk.

4.2 Rear View

Transmission of tally information from AD-2 (S/P/J) to SLD-1 SLED

Will illuminate RED when the channel is LIVE
Green Color means the channel is CUED

- 10 -

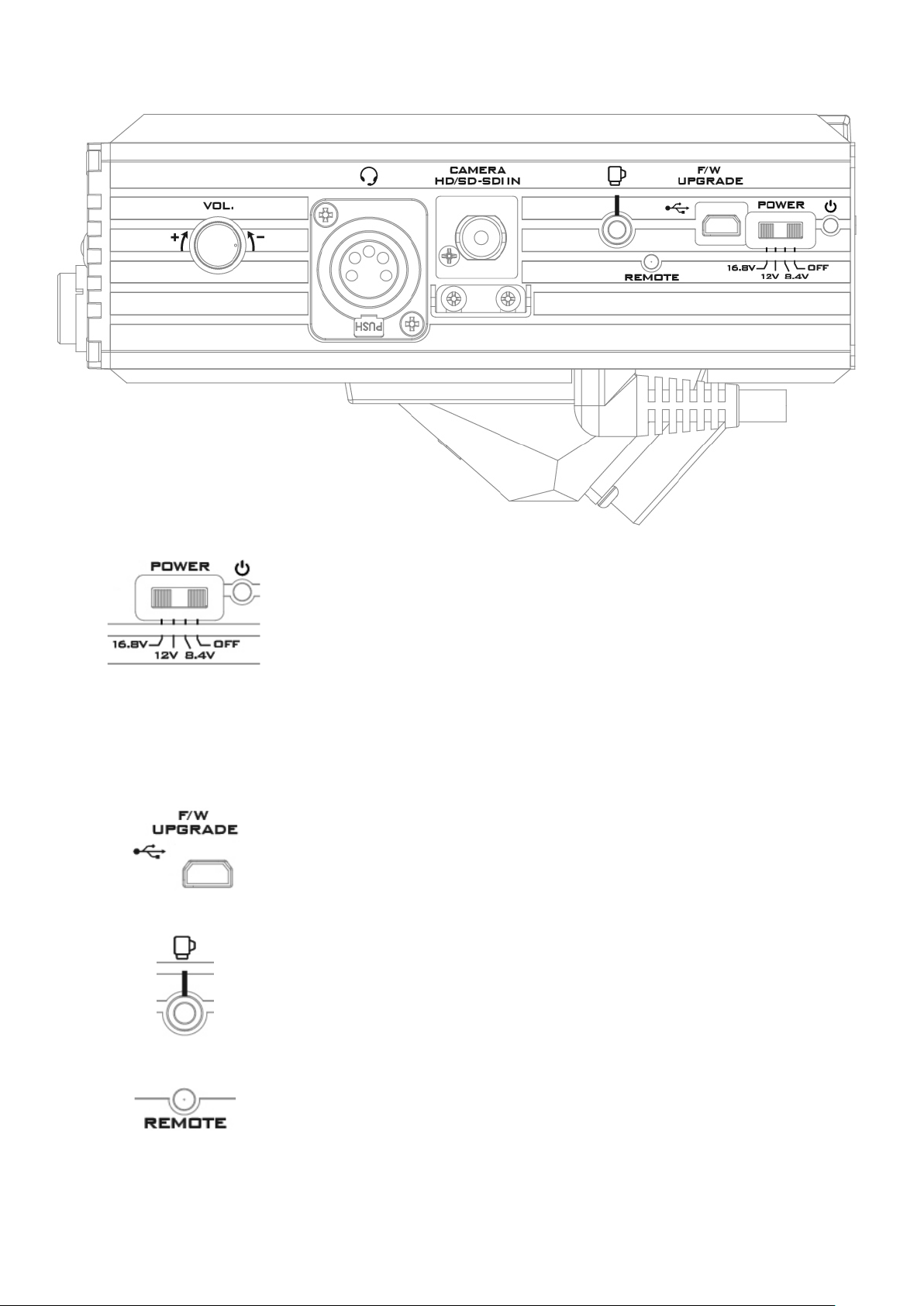

4.3 Side View

Power Switch

2 to a selectable

Mini USB Port

3.5mm Jack

allows the user to activate the communication between the
connected headset and the Intercom System as well as switch

Camera Remote Control Link Indicator

Selection of power output level (OFF/8.4 V/12 V/16.8 V) to camera

Power Indicator

Power Transmission Indicator
Green: 8.4 V
Amber: 12 V
Red: 16.8 V
Note: The 48V input will be converted by the AD­power of 8.4V, 12V or 16.8V.

This USB port is reserved specifically for Firmware Upgrade.

This connects to the RMC-240 remote control. This RMC-240 control

between Look Back and View Finder monitor modes.

Blue: Link Active

- 11 -

Camera HD/SD-SDI IN (BNC Connector)
XLR Connector

Volume Control Knob

for the

Camera Remote Control

HM890U, GY-HM850U, GY-HM650U, GY-HM600U and GY-LS300CHU)

4.4 Top View

This connector receives digital SDI video signal from the camera for
transmission to the switcher connected to the CCU-100.

AD-2 (S/P/J) has an XLR connector that allows use of HP-3 headsets,
this supports camera operator communication to and from the ITC­100 Intercom System via the CCU-100 Camera Control Unit.

This knob allows the user to adjust the audio volume
connected headset.

8 PIN for SONY Cameras (PMW EX3, PMW 300K, PMW 350K, PMW F5,
PDW-510, and HDW-F900R)
10 PIN for Panasonic Cameras (AG-HPX255 / 300 / 301 / 302 / 304 /
370 / 371 / 372 / 500 / 502 / 600, AJ-HDX900, and AJ-HPX2700G /

3000)

2.5 mm LANC Phone Jack / Multicore PS/2 for JVC Cameras (GY-

- 12 -

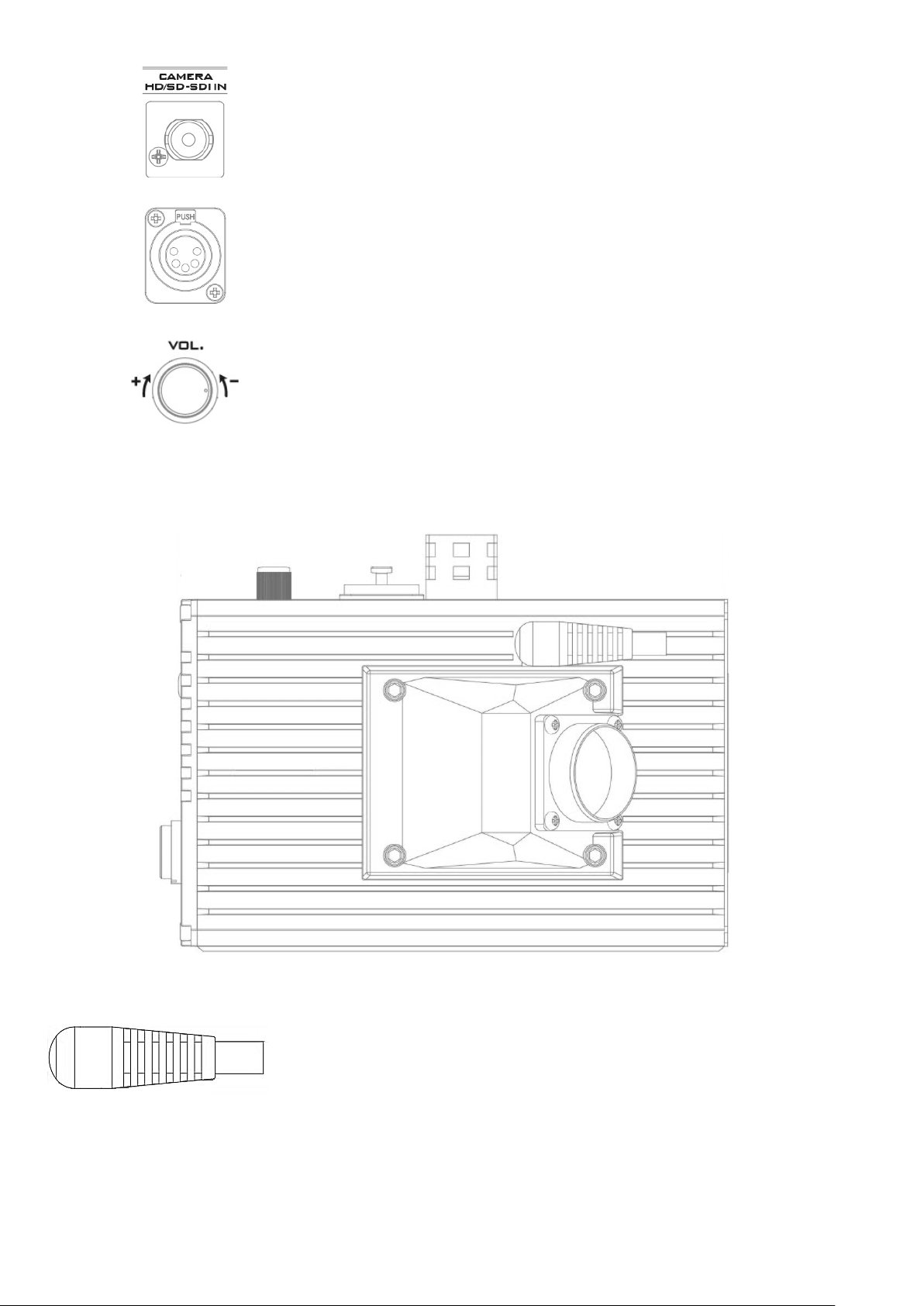

4.5 Bottom View

V-Mount Base

Look Back Button

TALK Button

100 Camera

Control Unit.

V-Mount base mounts AD-2 (S/P/J) to the rear of the

camera

5. RMC-240 Connec ti ons & Cont rols

Press to switch between Look Back and View

Finder TLM-430 monitor views.

6. HP-3 Connections & Controls

The HP-3 headsets are designed for the cameraman to communicate with the director. The HP-3 should be
connected to the 5-PIN XLR connector on the AD-2 (S/P/J). The Multi Transmission Adaptor Box (AD-2) then
transmits audio signals to and from the ITC-100 Intercom System via the CCU-100 Camera Control Unit.

Simply press to TALK. This Button is used to
transmit the HP-3 audio signals from the AD­2 (S/P/J) XLR connector back to the ITC-100
Intercom System via the CCU-

- 13 -

6.1 Features

• Reference quality, closed ear monitors

No.

Problems

Solutions

• High suppression of ambient noise

• Soft, circumaural ear pad

• Noise cancelling microphone

• Condenser omni-directional microphone

capsule

• Very high gain-before-feedback

• Flexible gooseneck mic boom for optimal

positioning

• Single exit, plug-in cable assembly

7. Frequently-Asked Questions

This section describes problems that you may encounter while using PTC-120. If you have questions, please
refer to related sections and follow all the suggested solutions. If problem still exists, please contact your
distributor or the service center.

Is there a defined system boot order for the

1.

CCU or any special care that needs to be
taken into account of?

The AD-2 handset does not issue side tone

2.

sound.

1. The recommended boot order is to turn on PD-6
first and then the rest of the devices.

2. Please make sure the 4-PIN XLR power cable is
the CCU proprietary cable, which is different from
the general XLR power cable.

3. It is recommended not to rewire the device
while the power is connected; any change of the
wiring should be done only after the power is
disconnected.

Please purchase AD-2 device of Version GB717-SL­B or later.

- 14 -

For View Finder Signal (QUAD CV Signal x 1/Single CV

NTSC/PAL

Power
Requirements

8. Specifications

Item Parameter Remarks

Camera Input 17 Pin Jack x 4

CCU-100 Main Unit Specifications

Connect to CB-43/44/45/49 All-in-One Cable
(Signal transmission: HD-SDI, MCU Control, Power, Look
Back, View Finder, Intercom, and Tally)

Video Input Composite: BNC x 1

HD/SD-SDI: BNC x 4

Video Output

Composite: BNC x 5

RJ-45 x 4 Connect to MCU-200 for remote control

Control Port

XLR 5 Pin x 4 Connect to ITC-100 (Intercom/Tally Signal)

Power LED x 1 CCU-100 Power Indicator (Power On: Red Color)

Indicator

Power LED x 4 Power Transmission Indicator (Power On: Red Color)

Power
Transmission

XLR 4 Pin male x 4

DC 12V

For Look Back CV Signal
NTSC/PAL

HD-SDI: SMPTE 292M
SD-SDI: SMPTE 259M

Signal x 4)

Transmit 48V from PD-6
PIN1:GND
PIN2:VCC
PIN3/4:NC

Dimension 440 x 243.3 x 49mm

AD-2 (S/P/J) Camera Adaptor Specifications

Item Parameter Remarks

Camera Output 17 Pin Jack x 1

Video Input HD/SD-SDI: BNC x 1

MIC / Headset XLR 5 Pin female x 1

Connect to CB-43/44/45/49 All-in-One Cable
(Signal transmission: HD-SDI, MCU Control, Power, Look

Back, View Finder, Intercom, and Tally)

HD-SDI: SMPTE 292M

SD-SDI: SMPTE 259M

PIN 1: MIC GND
PIN 2: MIC
PIN 3: EAR R/L
PIN 4: NONE

PIN 5: EAR GND

- 15 -

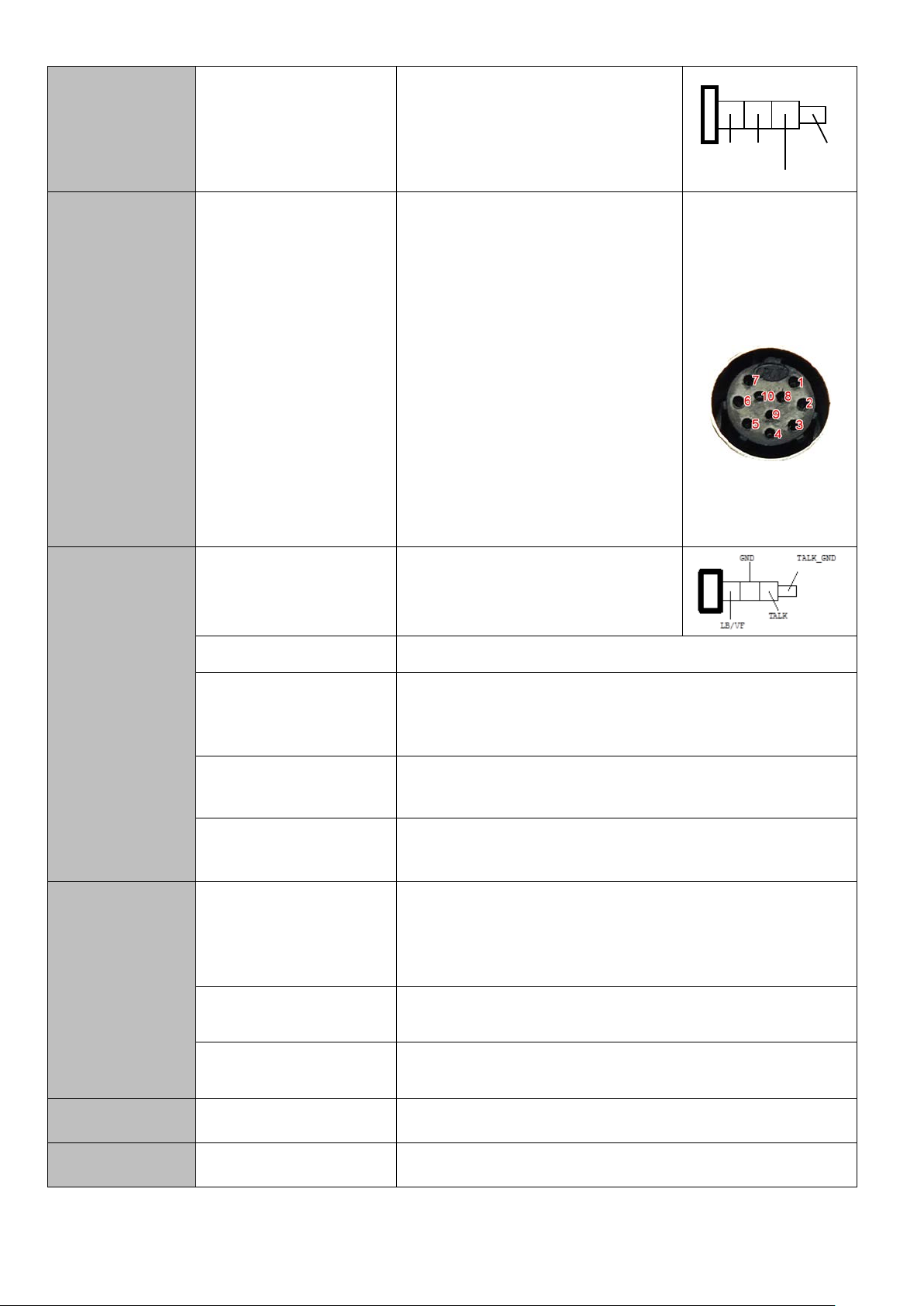

PHONE

MIC

FOR YUGA AD-1

TALK GND

Monitor Output
Port

3.5mm Jack x 1

10 Pin Jack x 1
(SDI out, Tally, Power,
Look Back, View Finder)

Tip: MIC
Ring1: Phone
Ring2: GND

Sleeve: Talk

PIN1: Power ground (P_GND)
PIN2: Signal ground (GND)
PIN3: Control signal for switching
between Look Back and View
Finder images (SW-LB/VF)
PIN4: Tally output (Green T_G)
PIN5: Tally output (Red T_R)
PIN6: CV image signal output (View
Finder CV_VF)
PIN7: CV image signal output (Look
Back CV_LB)
PIN8: Power output (OUT +8.4V/
12V/ 16.8V, Max:1 A)
PIN9: SDI output Signal
PIN10: SDI output ground (GND)

Front View of the

AD-2 Monitor

Connector

Control Port

Indicator

3.5mm Jack x 1

Volume Control x 1

Camera Remote Control

Call Button x 1

External Tally Socket

Power LED x 1

Camera remote control
link indicator

Connect to RMC-240
(Talk button and Look Back / View
Finder Switching)

SONY: 8 PIN
Panasonic: 10 PIN
JVC: 2.5 mm LANC Phone Jack / Multicore PS/2

Trigger audio transmission from headset 3.5mm jack back
to ITC-100

Transmission of tally information from AD-2 (S/P/J) to SLD­1 SLED

Power Transmission Indicator

8.4V: Green Color
12V: Amber Color

16.8V: Red Color

Link: Blue Color

Bi-Color Tally LED

LIVE Channel: Red Color
CUED Channel: Green Color

FW Upgrade mini USB x 1

Power Switch Off/8.4V/12V/16.8V Select power output level to camera

- 16 -

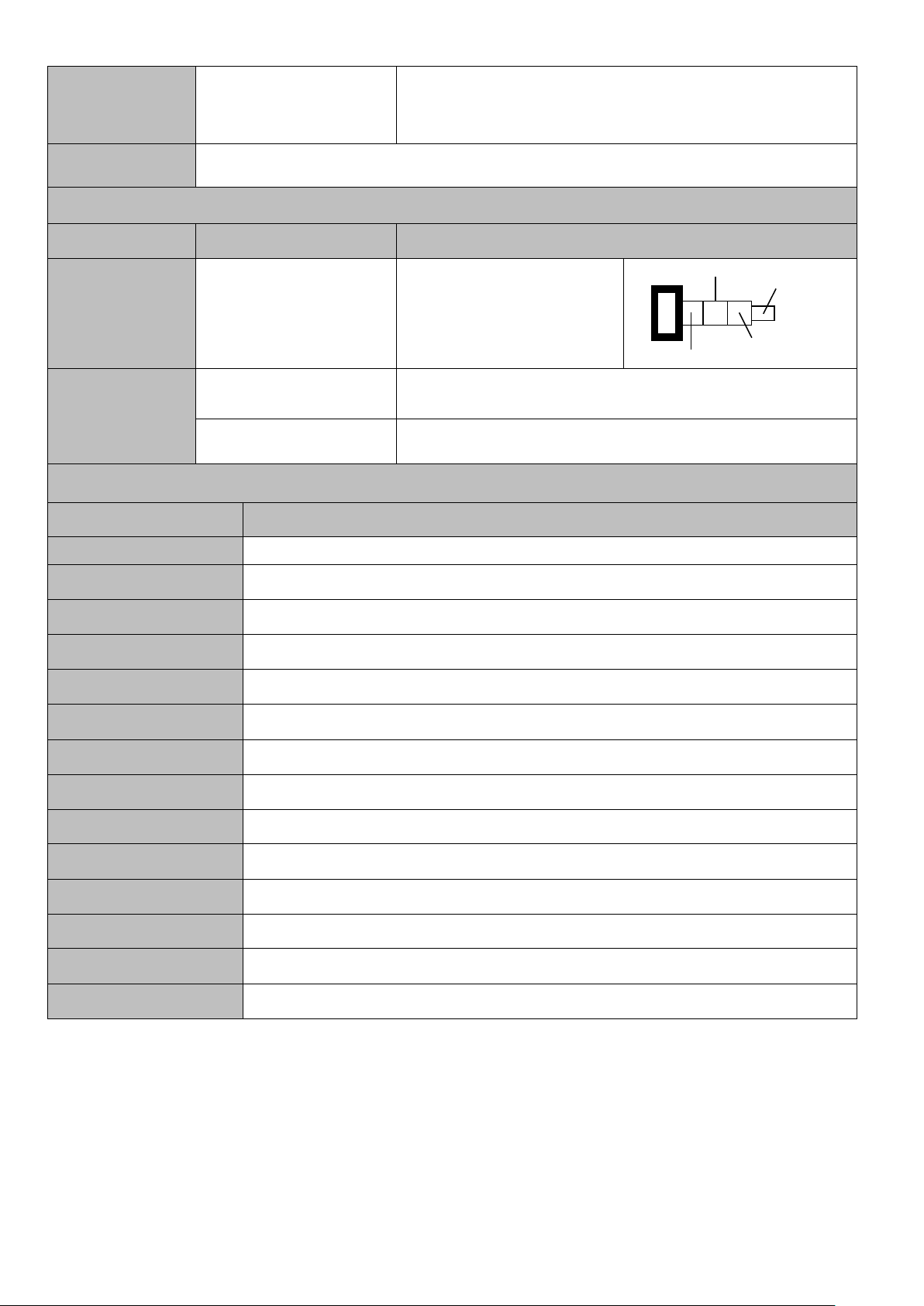

Power Output

TALK_GND

TALK

GND

LB/VF

Trigger audio transmission from headsets via XLR jack on

AD-2 (S/P) back to ITC-100

Power to Camera
(8.4V/12V/16.8V)

Dimension 175.5 x 126 x 85.2mm

RMC-240 Remote Control Specifications

Item Parameter Remarks

Control Port 3.5mm Jack x 1

Talk Button x 1

Function Key

Look Back Button x 1 Look Back/View Finder switching

HP-3 Headset Specification

Item Parameter

Power is generally fed from the V-mount battery pack.
Total: Max 48W (Power to Monitor, Tally Light, Camera)
(Condition: in 8.4V mode, the Max current is 4A)

Connect to AD-2 (S/P) (Talk
button and Look Back/View
Finder Switching)

Headphone

Transducer Principle Dynamic

Operating Principle Closed

Transmission Range 10Hz ~ 22 kHz

Nominal Impedance 24 Ohms

Nominal SPL at 1 kHz 96 dB

T.H.D. < 0.2 % (at 1KHz 1mW)

Nominal Power Ratio 100 mW

Microphone

Transducer Principle Condenser

Transmission Range 20~16 kHz

Polar Pattern Omni-directional

Nominal Impedance 2.2 KOhms

Sensitivity -6.4 dB

- 17 -

9. Service & Support
