Datavideo BC-200 Users Manual

4K BLOCK CAMERA

BC-200

Instruction Manual

Table of Contents

FCC COMPLIANCE STATEMENT ..................................... 4

WARNINGS AND PRECAUTIONS.................................... 4

WARRANTY .................................................................. 5

STANDARD WARRANTY ...................................................... 5

THREE YEAR WARRANTY ..................................................... 6

DISPOSAL ..................................................................... 7

1. INTRODUCTION ........................................................ 8

FEATURES ........................................................................ 8

2. SYSTEM DIAGRAM.................................................... 9

3. CONNECTIONS........................................................ 10

FRONT VIEW .................................................................. 10

REAR PANEL ................................................................... 11

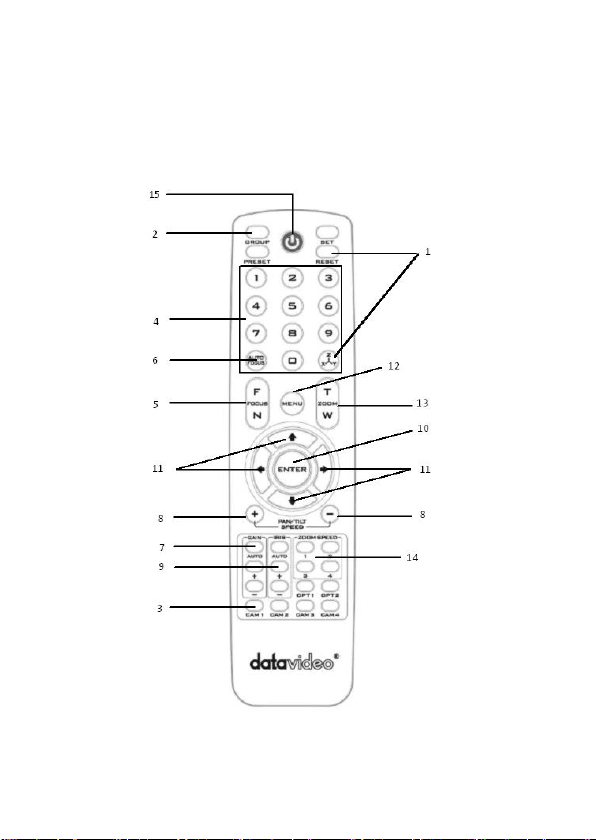

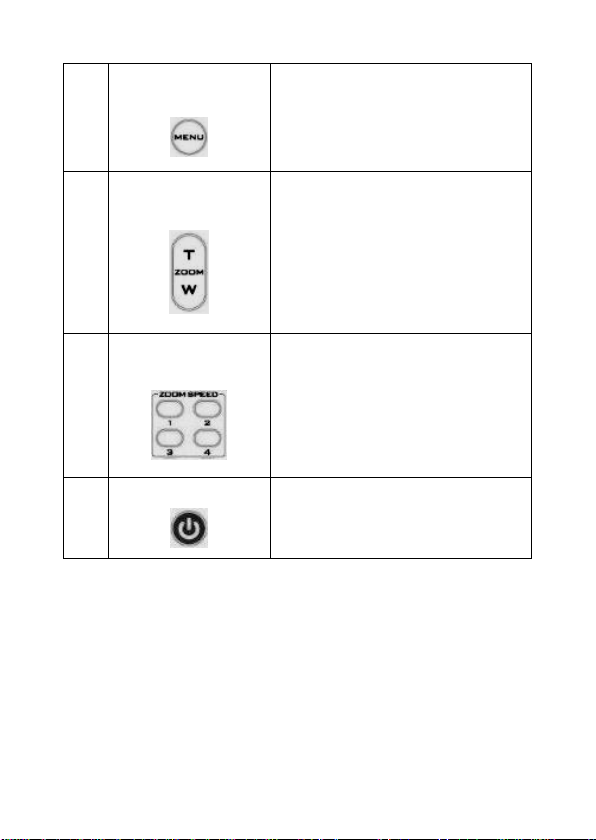

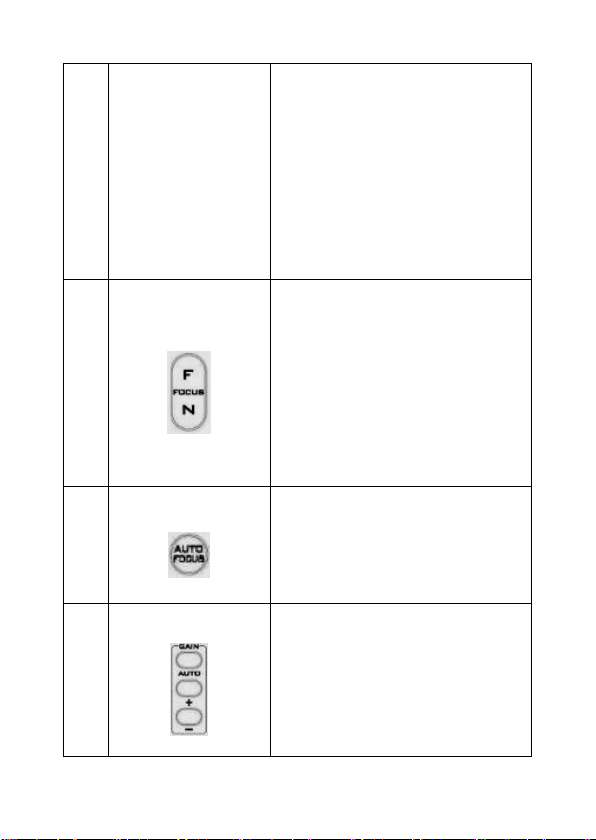

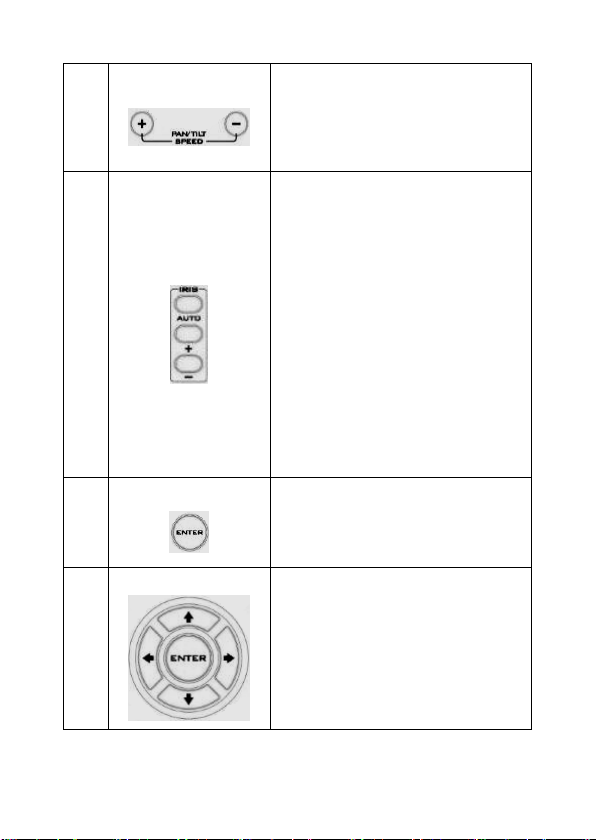

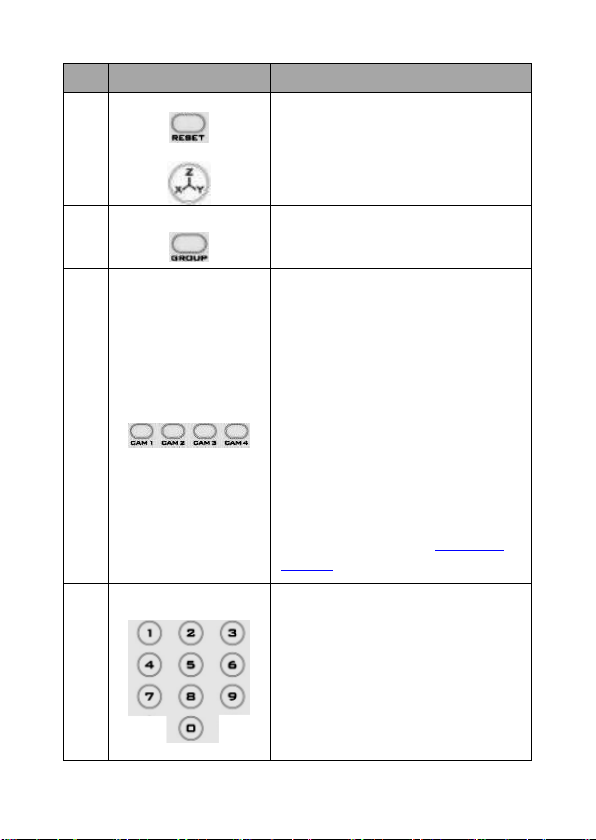

4. IR REMOTE CONTROL ............................................. 14

5. OSD MENU OPTIONS .............................................. 19

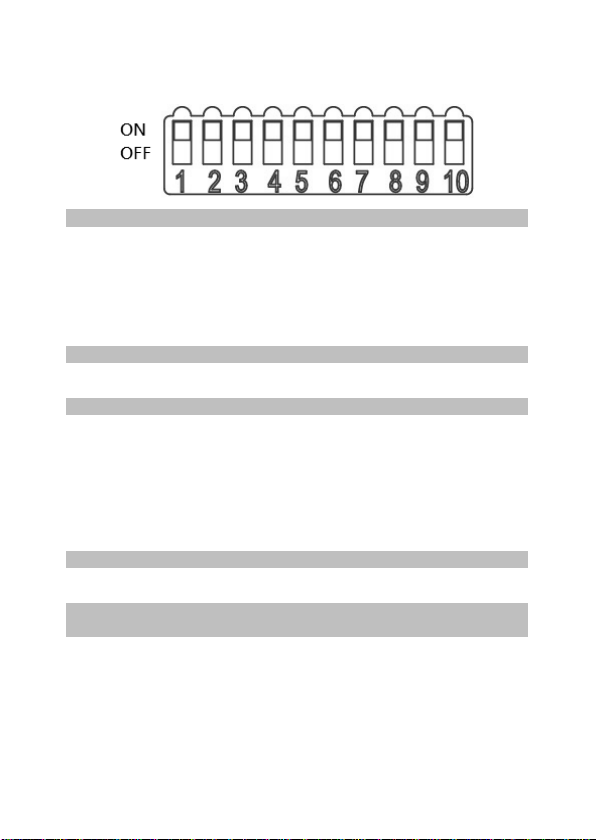

6. DIP SWITCH SETTINGS ............................................ 26

7. RMC-180 PTZ CAMERA CONTROL UNIT ................... 27

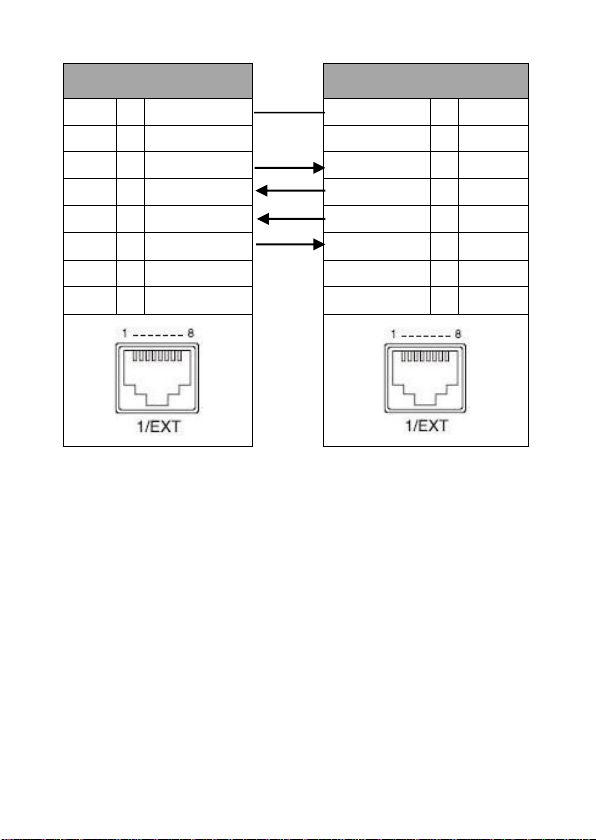

DIRECT CONNECTION TO CAMERA ...................................... 27

2

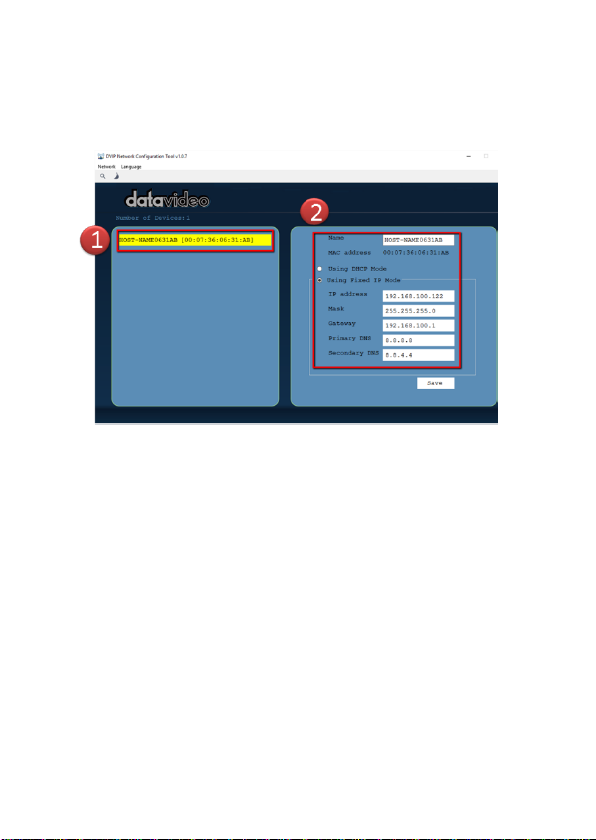

8.1 DVIP CONFIGURATION TOOL SETTING ........................... 29

8.1.1 User Interface ................................................ 29

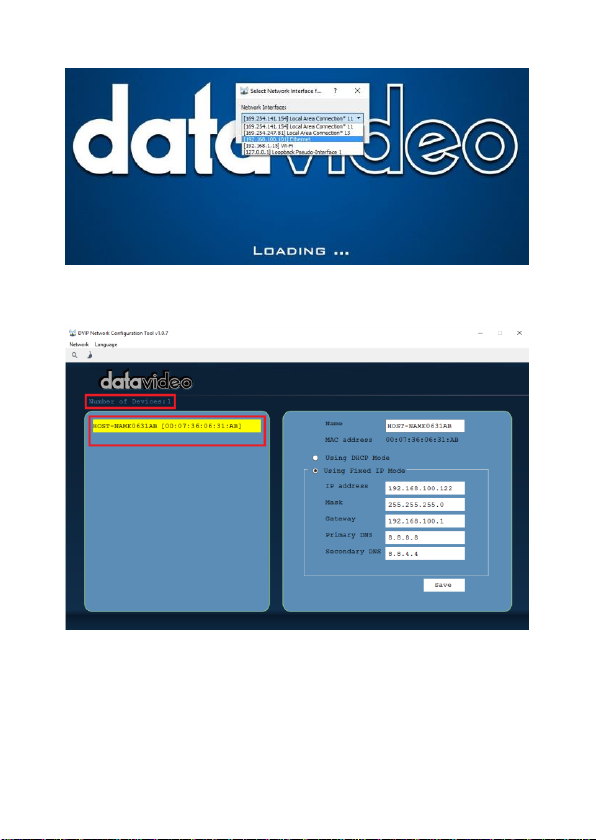

8.1.2 Device Search ................................................ 31

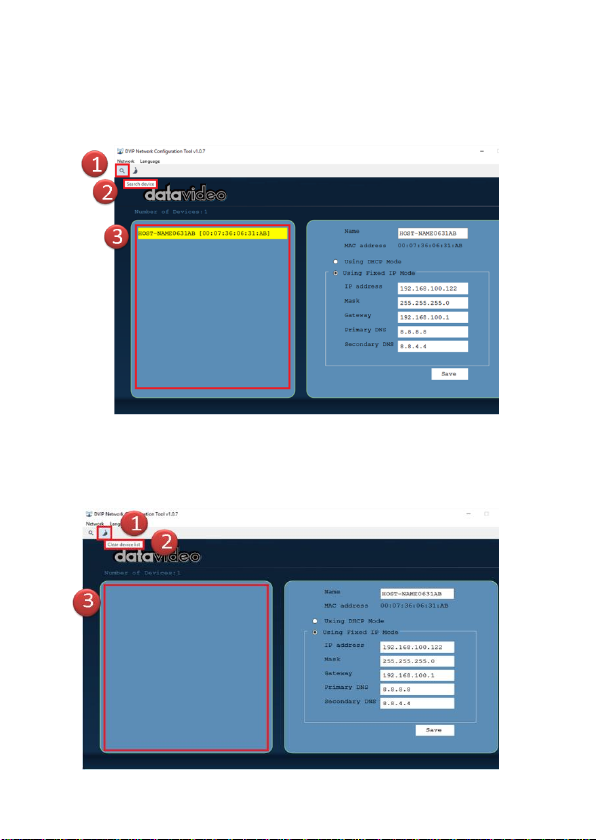

8.1.3 Clearing Device List ....................................... 31

8.1.4 Detailed Device Network Information ........... 32

8.1.5 Modify Device Information and Write to

Device ..................................................................... 33

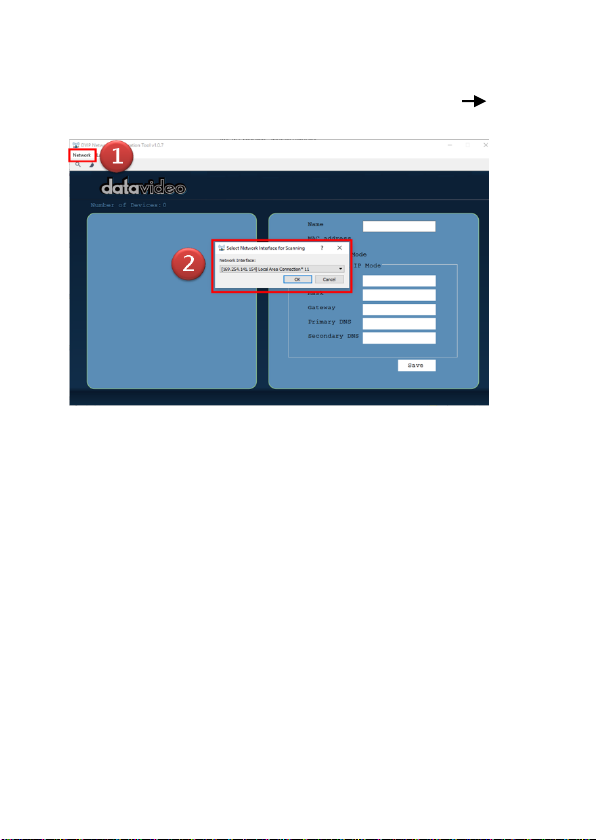

8.1.6 Switch to Other Network Interface ............... 34

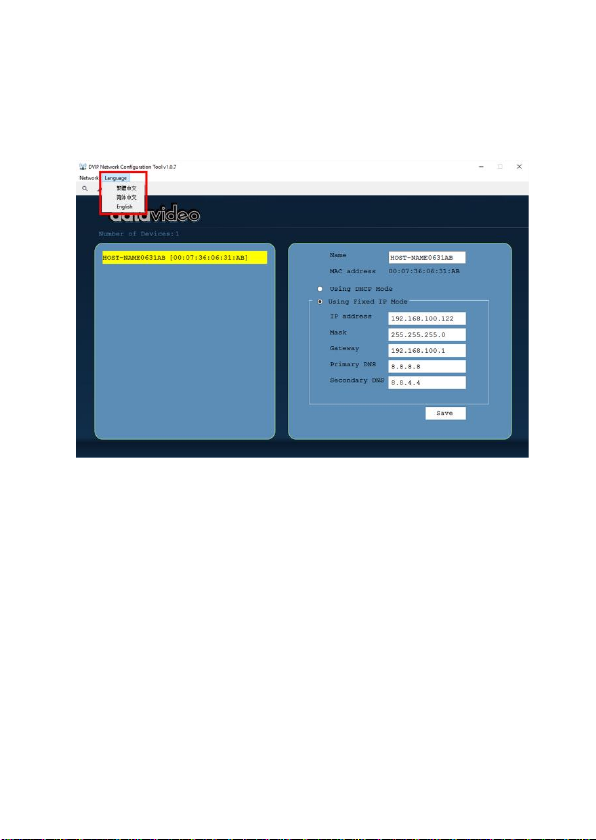

8.1.7 Language Selection ....................................... 35

9. FIRMWARE UPGRADE ............................................. 36

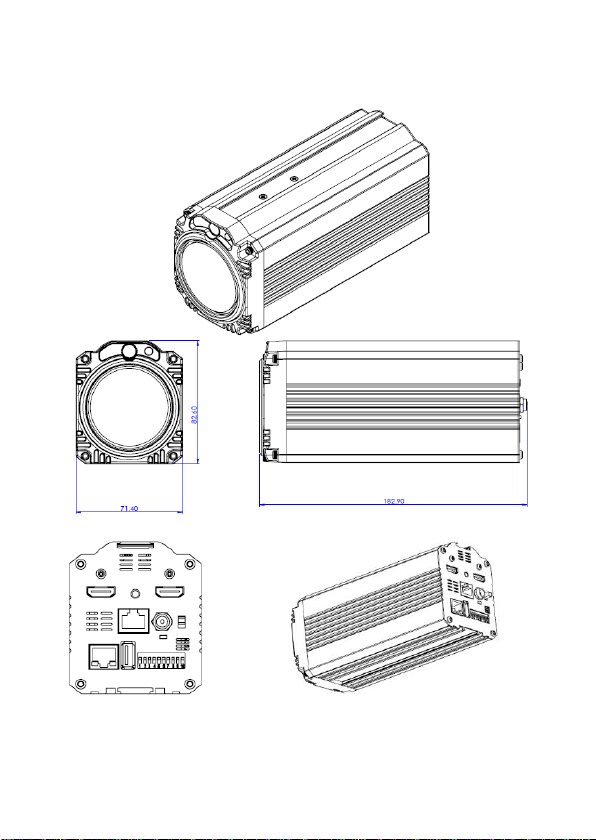

10. DIMENSIONS ........................................................ 37

11. SPECIFICATIONS ................................................... 38

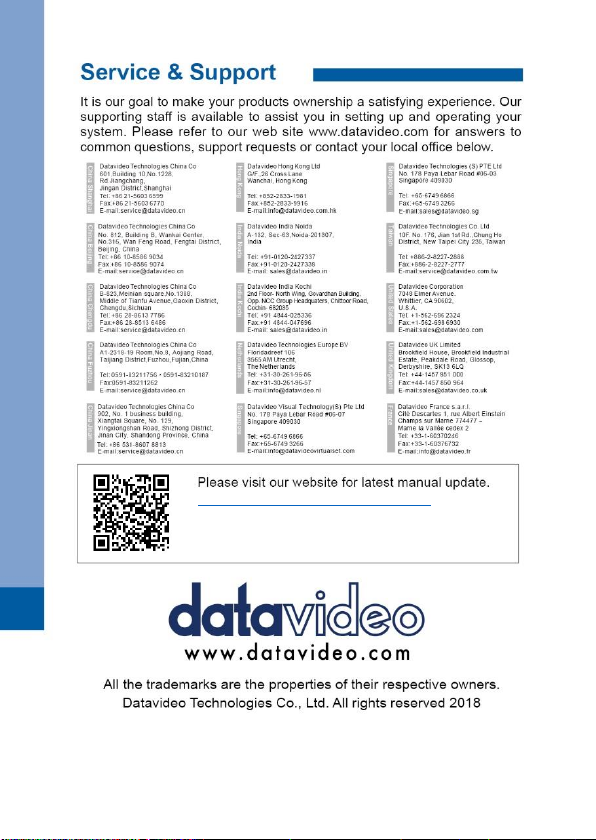

SERVICE AND SUPPORT .............................................. 40

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times,
Datavideo Technologies will try to give correct, complete and suitable information. However,
Datavideo Technologies cannot exclude that some information in this manual, from time to
time, may not be correct or may be incomplete. This manual may contain typing errors,
omissions or incorrect information. Datavideo Technologies always recommend that you
double check the information in this document for accuracy before making any purchase
decision or using the product. Datavideo Technologies is not responsible for any omissions or
errors, or for any subsequent loss or damage caused by using the information contained within
this manual. Further advice on the content of this manual or on the product can be obtained by
contacting your local Datavideo Office or dealer.

3

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including

interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later

reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use

liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit

may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are

provided for ventilation. To ensure safe and reliable operation of
this unit, and to protect it from overheating, do not block or cover
these openings. Do not place this unit on a bed, sofa, rug, or similar
surface, as the ventilation openings on the bottom of the cabinet
will be blocked. This unit should never be placed near or over a
heat register or radiator. This unit should not be placed in a built-in
installation unless proper ventilation is provided.

7. This product should only be operated from the type of power

source indicated on the marking label of the AC adapter. If you are
not sure of the type of power available, consult your Datavideo
dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this

unit where the power cord will be walked on, rolled over, or
otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the

total of the ampere ratings on the products plugged into the
extension cord do not exceed the extension cord rating.

4

10. Make sure that the total amperes of all the units that are plugged

into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet

ventilation slots, as they may touch dangerous voltage points or
short out parts that could result in risk of fire or electric shock.
Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not

attempt to service this product yourself. Opening or removing

covers that are marked “Do Not Remove” may expose you to

dangerous voltage points or other risks, and will void your
warranty. Refer all service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified

service personnel under the following conditions:
a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal

operating conditions. Adjust only those controls that are covered
by the operating instructions in this manual; improper
adjustment of other controls may result in damage to the unit
and may often require extensive work by a qualified technician
to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been

damaged;

f. When the product exhibits a distinct change in performance,

indicating a need for service.

Warranty

Standard Warranty

 Datavideo equipment are guaranteed against any manufacturing

defects for one year from the date of purchase.

 The original purchase invoice or other documentary evidence should

be supplied at the time of any request for repair under warranty.

5

 The product warranty period beings on the purchase date. If the

purchase date is unknown, the product warranty period begins on
the thirtieth day after shipment from a Datavideo office.

 All non-Datavideo manufactured products (product without

Datavideo logo) have only one year warranty from the date of
purchase.

 Damage caused by accident, misuse, unauthorized repairs, sand, grit

or water is not covered under warranty.

 Viruses and malware infections on the computer systems are not

covered under warranty.

 Any errors that are caused by unauthorized third-party software

installations, which are not required by our computer systems, are
not covered under warranty.

 All mail or transportation costs including insurance are at the

expense of the owner.

 All other claims of any nature are not covered.
 All accessories including headphones, cables, and batteries are not

covered under warranty.

 Warranty only valid in the country or region of purchase.
 Your statutory rights are not affected.

Three Year Warranty

 All Datavideo products purchased after July 1st,

2017 are qualified for a free two years extension
to the standard warranty, providing the product
is registered with Datavideo within 30 days of
purchase.

 Certain parts with limited lifetime expectancy such as LCD panels,

DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive,
Lighting, Camera module, PCIe Card are covered for 1 year.

 The three-year warranty must be registered on Datavideo's official

website or with your local Datavideo office or one of its authorized
distributors within 30 days of purchase.

6

Disposal

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging
indicates that this product must not be disposed of
with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment
by handing it over to a designated collection point

equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural
resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about where
you can drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or the shop
where you purchased the product.

replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE
Marking" is now used in all EU official documents.

for the recycling of waste electrical and electronic

CE Marking is the symbol as shown on the left of
this page. The letters "CE" are the abbreviation of
French phrase "Conformité Européene" which
literally means "European Conformity". The term
initially used was "EC Mark" and it was officially

7

1. Introduction

The BC-200 Block Camera is a 4K (3840x2160, QFHD) camera with an
infra-red remote control. It can be used for 4K high quality shooting in
an environment where space is limited. The video resolutions
supported are 2160p29.97 and 2160p25. The BC-200 provides 12x
optical focus, and SDI and HDMI video output interfaces. A tally light
indicator sits above the BC-200 camera lens.

The BC-200 supports SONY VISCA control protocol so that the camera
can be controlled via RS-422 or DVIP interface.

Features

 Lens: 1/2.3” type Exmor R CMOS
 12x optical zoom, f = 3.9 mm (Wide) to 46.8 mm (Tele), F1.8 to

F2.0

 Supported 4K formats: (3,840 x 2,160, QFHD)

2160p/29.97, 2160p/25

 Supported HD formats:

1080p/59.94/50, 1080i/59.94/50,
720p/59.94/50

 Video Output: 2 HDMI (Simultaneous)
 Tally LED Design (RS-422/ DVIP Operation)
 Supports SONY VISCA Protocol
 Supports DVIP and RS-422 Control Protocol

 Users can save up to 10 preset camera settings for future filming.
 Users can control up to 4 BC-200 devices simultaneously via the

RMC-180 PTZ camera remote control unit (including White
Balance, Focus, Iris, Shutter Speed, Zoom, Zoom Speed, Save
Preset, Recall Preset)

P.S. Shutter speed function must be set by the RMC-180 menu.

8

2. System Diagram

9

3. Connections

IR Receiver

Receives signal from the IR remote control.

Tally Light

As the camera is booting the tally light stays
solid green and turns solid red for about three
seconds just before the boot is complete. The
tally light remains solid green after the camera
finishes booting.

Lens

Camera lens for capturing images.

Front View

10

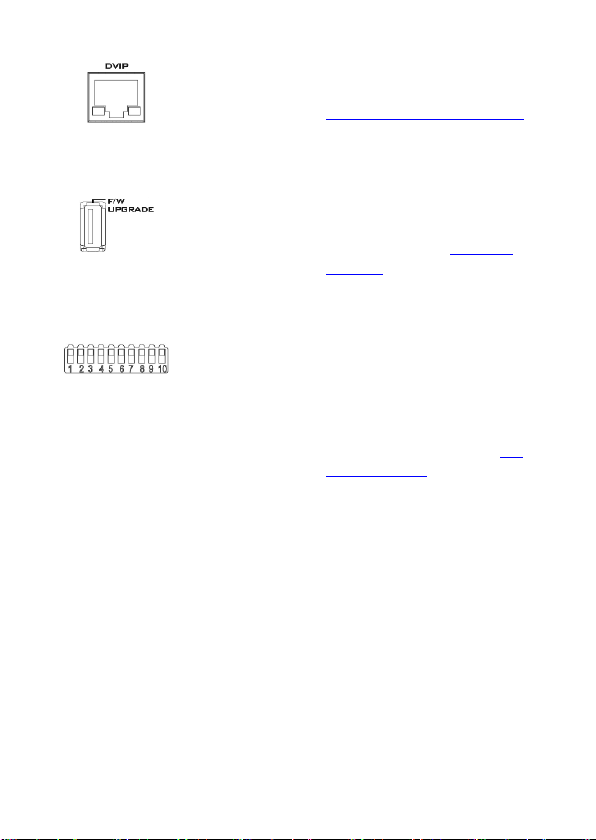

Rear Panel

11

SDI Output

Video output connected to SDI
monitor.

HDMI Output

Video output connected to
HDMI port of the monitor.

RS-422 Control
Port

Remote control port using the
RS-422 control protocol. See

RS-422 Control Protocol for

details.

12V DC Power IN

DC in socket connects the
supplied 12V PSU. The
connection can be secured by
screwing the outer fastening
ring of the DC In plug to the
socket.

Power Switch

Turns ON/OFF the camera.

Power LED
Indicator

Green: Power ON
OFF: Power OFF

12

DVIP Control
Port

Remote control port using the
DVIP control protocol. See

DVIP Control Operation Guide

for details.

Firmware
Upgrade Port

Connects USB drive for
firmware upgrade. For details,
please refer to the Firmware

Upgrade section.

DIP Switch

DIP Switch sets the camera
VISCA ID, Remote Control
Protocol, and Resolution, Video
Mode Selection Method, and
Camera ID Assignment. For
details, please refer to the DIP

Switch Settings section.

13

4. IR Remote Control

Use the IR remote control that comes with the product package to
operate the BC-200 Block Camera. The IR remote control functions are
described in the table below.

14

No

Item

Description

1

Reset

Press RESET or XYZ button to return
the camera lens to the default zoom
position (Z:0000).

2

Group

Not Applicable

3

Camera Select

Select CAM1-CAM4 in a multi­camera environment

Press Camera Select buttons to
select a camera from Camera 1 to
Camera 4 in a multi-camera
environment.

However before using the Camera
Select function, first assign an ID
number (CAM 1 – CAM 4) to the
camera intended for remote control
operation by adjusting the DIP
switch located at the rear of the
camera. Please refer to DIP Switch

Settings section for details.

4

Preset Setting

Various combinations of settings
(position, zoom, focus, gain control
and iris control) can be saved to
presets.

Adjust Preset Point

Adjust position, zoom, focus, gain
control and iris of the camera.

15

Set up Preset Point

Press any of the POSITION buttons
1~50 and then press SET button.

Recall saved settings

Press any of the POSITION buttons
1~50 and then press PRESET button.

Set up Group Scan mode

Press any of the POSITION buttons
1~8 and then press GROUP button.

5

Focus Setup

Manually focus camera lens on a
subject

Press either (F) FAR button or (N)
NEAR button to manually focus the
camera lens onto the subject.

Before using manual focus, make
sure Auto Focus mode is turned off
by pressing the AUTO FOCUS
button.

6

Auto Focus Control

Automatically focus camera lens on
a subject

Press AUTO FOCUS button and
camera lens will be automatically
focused on the subject.

7

Gain Control

Adjust Brightness

Press GAIN+ button to increase the
brightness or GAIN- button to
decrease the brightness.

Press AUTO button to activate auto
Gain Control and press again to exit.

16

8

P/T Speed

Adjust Pan/ Tilt Speed

Not Applicable

9

Auto Iris Control

Make the subject appear brighter

Adjust the iris opening (aperture), to
control the amount of light coming
through the lens (i.e. the
"exposure"). Press IRIS+ button to
enlarge the iris opening to allow
more light to come in so that the
subject appears brighter and press
IRIS- button to shrink the iris
opening to allow less light to come
in so that the subject appears less
bright.

Press AUTO button activate auto Iris
Control and press again to exit.

10

ENTER

ENTER

Press ENTER key to select a
particular menu option or confirm a
parameter value.

11

Direction Arrows

Browse Menu Options

Press UP, DOWN, LEFT and RIGHT
arrow buttons to browse the menu
options or adjust parameter values.

17

12

Enter/ Exit Camera

Menu

Press the MENU button to Enter or
Exit the Camera OSD Menu

13

Zoom In/Out

Buttons

Zoom

Press either (T) TELE button to zoom
in on the subject such that it
appears to be close to the camera or
(W) WIDE button to zoom out from
the subject such that it appears to
be far away from the camera.

14

Zoom Speed Buttons

(4 speed selection)

Adjust Zoom In/Out Speed

Press the ZOOM SPEED buttons to
switch to different zoom speeds (4
being the highest and 1 being the
lowest).

15

Power Button

Switch ON/OFF camera

18

5. OSD Menu Options

Main Menu

1. Camera Setting

White Balance

Color temperature adjustment to make the
image look more natural.

IRIS

This is an adjustable aperture used to control
the amount of light coming through the lens.
The more the iris is opened, the more light it
lets in and the brighter the scene will be.

AGC

The setting that automatically adjusts the
amplification of the signal from the camera
sensor.

Aperture

Aperture adjusts the image sharpness.
Increasing the aperture setting so that the
foreground and background of your images
appear sharp.

2. Video Output

Selection Way

This option configures how you can select the
video mode.
Enabling DIP SW 8 allows you to use the DIP

[MAIN MENU]
1: Camera Setting
2: Video Output
3: Remote Control
4: System
5: Escape

On-Screen Menu allows the user to change various camera settings
such as shooting conditions and the system setup. Press Menu button
on the IR remote control to enter the on-screen menu as shown below.

19

switch to set the video mode instead of the
remote control.

Pattern

Pattern generates color bars for color
calibration.

3. Remote Control

Remote control settings

4. System

System configuration

5. Escape

Exits the MENU

Main

Options

Camera Setting

Video Output

Remote
Control

System

Escape

Sub-Options

1. Camera Name

1. Selection
Way

1. Remote Way

1. Display

2. Mirror

2. Out Mode

2. Set RS-422

2. Tally
Light 3. White Balance

3. Pattern

3. Set DVIP

3. Reset All

4. Focus

4. Escape

4. Set IR

4. Update
Software

5. Iris 5. Escape

5. Escape

6. AGC

7. Fog Correction

8. Aperture

9. Color Gain

10. Exposure
Compensation

11. Backlight
Correction

12. Day/Night
Mode

13. Shutter

14. Gamma Mode

15. HR Mode

16. WD Mode

17. Escape

20

First Level

Main Options

Second Level

Sub-Options

Third Level

Parameters

Fourth Level

Parameters

Sub-Option

Descriptions

1. Camera
Setting

1. Camera
Name

NAME

DISPLAY SW

ON/OFF

POSITION

UPPER LEFT

LOWER LEFT

UPPER RIGHT

LOWER RIGHT

ESCAPE

2. Mirror

H+V V H

OFF

3. White
Balance

MODE

ATW/AWB
(AUTO) AWC (ONE PUSH)

MWB (MANUAL)

3200K (INDOOR)

5600K
(OUTDOOR)

4200K (FLUO)

SMART AWB
(Enabled in
ATW/AWB
(AUTO) mode)

OFF

SMART1~3

MWB RED
COMPONENT
(Enabled in MWB
(Manual))

0~128~255

MWB BLUE
COMPONENT
(Enabled in MWB
(Manual))

0~128~255

ESCAPE

4. Focus

FOCUS MODE
AUTO MANUAL

AF SENSITIVITY
LOW NORMAL

FOCUS SPEED

1 2

3

4

21

5 6 7 8

ESCAPE

5. Iris

IRIS MODE
AUTO

MANUAL

Manual IRIS
LEVEL

F1.8 F2.0 F2.4 F2.8

F3.4

F4

F4.8

F5.6

F6.8

F8 F9.6

F11

F14 CLOSE

ESCAPE

6. AGC

DAY (COLOR)
AGC

AGC MODE

ON/OFF

MANUAL GAIN

0dB~GAIN
LIMIT in steps
of 3 dB

GAIN LIMIT

9 dB

12 dB

15 dB

18 dB

21 dB

24 dB

27 dB

30 dB

33 dB

ESCAPE

DNR

DNR(AT AGC ON)
ON

OFF

DNR LEVEL
0 1 2

22

3 4 5

ESCAPE

ESCAPE

7. Fog
Correction

FOG
CORRECTION

ON/OFF

ESCAPE

8. Aperture

0~15

9.Color Gain

0~14

10. Exposure
Compensation

0~14

11. Backlight
Correction

OFF/ON

(This option is
enabled after
AGC is turned
on)

12. Day/Night
Mode

B/W

COLOR

13. Shutter
SHUTTER SPEED

1/25

1/30 1/50 1/60 1/75 1/90 1/100 1/120 1/125 1/150 1/180 1/215 1/250

1/300

1/350 1/425 1/500 1/600 1/725 1/1000 1/1250 1/1500

ESCAPE

23

14. Gamma
Mode

STANDARD
MODE1 (WD
OFF)
MODE2 (WD
OFF)

15. HR Mode

ON/OFF

(This option is
enabled after
AGC is turned
on)

16. WD Mode
VE

OFF

17. Escape

2. Video
Output

1. Selection
Way

BY MENU (Set
DIP8 to Off)

BY SWITCH(Set
DIP8 to On)

2. Out Mode

1080i59.94

1080i50

720p59.94

720p50

1080p59.94

1080p50

2160p29.97

2160p25

3. Pattern
OFF

COLOR BAR

4. Escape

3. Remote
Control

1. Remote Way
RS-422, SW

(Configurable
using DIP switch
4 ONLY)

DVIP, SW

2. Set RS-422

CAMERA ID
MODE

BY MENU

BY SWITCH

CAMERA ID

1~7

RS-422 BAUD
RATE
9600 19200 38400 115200 ESCAPE

3. Set DVIP

DVIP BAUD RATE

9600 19200 38400 57600

115200

24

ESCAPE

4. Set IR
IR GROUP ID

CAM1-4

(Configurable
using DIP
switch 9/10
ONLY)

ESCAPE

5. Escape

4. System

1. Display

ZOOM OSD

ON/OFF

DEBUG OSD

DEBUG IR OSD

ON/OFF

DEBUG CAM.
OSD

ON/OFF

DEBUG RS-422
OSD

ON/OFF

DEBUG DVIP OSD

ON/OFF
DEBUG REG OSD

ON/OFF

DEBUG FRAME
NO

ON/OFF

PWR ON CAM
TEST

ON/OFF
ESCAPE

2. Tally Light

RED/GREEN

GREEN

RED

OFF

3. Reset All

YES/NO

4. Update
Software
SW VERSION

ESCAPE MB CPU

V00.19c

UPDATE ALL

YES/NO

ESCAPE

5. Escape

5. Escape

25

6. DIP Switch Settings

DIP SW 1/2/3

VISCA ID

ON / OFF / OFF

VISCA-ID 1

OFF / ON / OFF

VISCA-ID 2

ON / ON / OFF

VISCA-ID 3

OFF / OFF / ON

VISCA-ID 4

ON / OFF / ON

VISCA-ID 5

OFF / ON / ON

VISCA-ID 6

ON / ON / ON

VISCA-ID 7

DIP SW 4

Remote Control Protocol

ON

DVIP

OFF

RS-422

DIP SW 5/6/7

Resolution

OFF / OFF / OFF

1920 x 1080i59.94

OFF / ON / OFF

1280 x 720p59.94

OFF / OFF / ON

1920 x 1080p59.94

OFF / ON / ON

3840 x 2160p29.97

ON / OFF / OFF

1920 x 1080i50

ON / ON / OFF

1280 x 720p50

ON / OFF / ON

1920 x 1080p50

ON / ON / ON

3840 x 2160p25

DIP SW 8

Video Mode Selection Method

ON

ON = video mode selectable by DIP switch only

OFF

OFF = video mode selectable by menu

DIP SW 9/10

Camera Select Function (IR Remote Control) –
Camera ID Assignment

OFF / OFF

CAM 1

ON / OFF

CAM 2

OFF / ON

CAM 3

ON / ON

CAM 4

26

7. RMC-180 PTZ Camera Control Unit

The RMC-180 PTZ Camera Controller is designed to control up to 4
Datavideo Block/Pan Tilt Zoom (PTZ) cameras such as the BC-200.

The four RJ-45 ports provided on the RMC-180 rear serve to connect
Block/PTZ cameras, thus allowing the user to use any RJ-45 cable to
connect the RMC-180 to the RS-422 port located on the Block/PTZ
camera’s rear panel. The communication protocol is VISCA.

Note: Before connecting the camera to these channel ports, please set
bit 4 of the camera DIP switch located at the bottom to OFF.

Direct Connection to Camera

To use the RMC-180 PTZ Camera Control Unit to directly control the BC­200 camera, connect the RS-422 port on the camera’s rear panel to the
RJ-45 port of the RMC-180 using any RJ-45 cable. The RS-422 wiring
scheme is shown below.

27

RMC-180 Controller

(RJ-45 Port)

BC-200 Camera

(RS-422 Port)

GND 1 White/Orange

White/Orange

1

GND

NC 2 Orange

Orange 2 NC

TX- 3 White/Green

White/Green

3

RX-

RX- 4 Blue

Blue 4 TX-

RX+ 5 White/Blue

White/Blue

5

TX+

TX+ 6 Green

Green 6 RX+

NC 7 White/Brown

White/Brown

7

NC

NC 8 Brown

Brown 8 NC

GND

28

8. DVIP Configuration Tool

The DVIP Configuration Tool allows users to setup the network setting
of the BC-200 HD block camera. Please see following sections for the
detail of the DVIP Configuration Tool setting.

8.1 DVIP Configuration Tool Setting

At first, you have to download the DVIP Configuration Tool from
Datavideo website’s product page to your PC. Moreover, you can also
get the DVIP Configuration Tool from your local distributor. After the
software download is completed, please follow following steps for
setting the DVIP Configuration Tool.

Step1. Connect your PC directly to the DVIP port of the BC-200 camera.
If there is more than one BC-200 camera, please connect all the BC-200
cameras to an Ethernet router. Please make sure that the Ethernet
router and all connected devices are within the same IP range.

Step2. On the PC, please open the DVIP Configuration Tool by double­clicking the “DVIP_Net_Conf.exe.”

8.1.1 User Interface

Step1. After the DVIP Configuration Tool is opened, please select the
corrected network interface card in your PC and then click the button
“OK”.
Note: Please make sure that the selected network interface card is
within the same IP range as the connected BC-200 camera or it is
impossible for the DVIP Configuration Tool to find the connected DVIP
device.

29

Step2. After logging in the interface card, the user will be able to view
the device name, MAC address and number of device.

30

8.1.2 Device Search

2

3

 On the tool bar, users can click the search icon to search for all

DVIP devices.

2

8.1.3 Clearing Device List

 On the tool bar, users are allowed to clear the device list by

clicking the “Device List Clear” button.

31

8.1.4 Detailed Device Network Information

 After selecting a device in the left column, you will then be able to

view each device information on the right, including name, MAC,
IP address and etc.

32

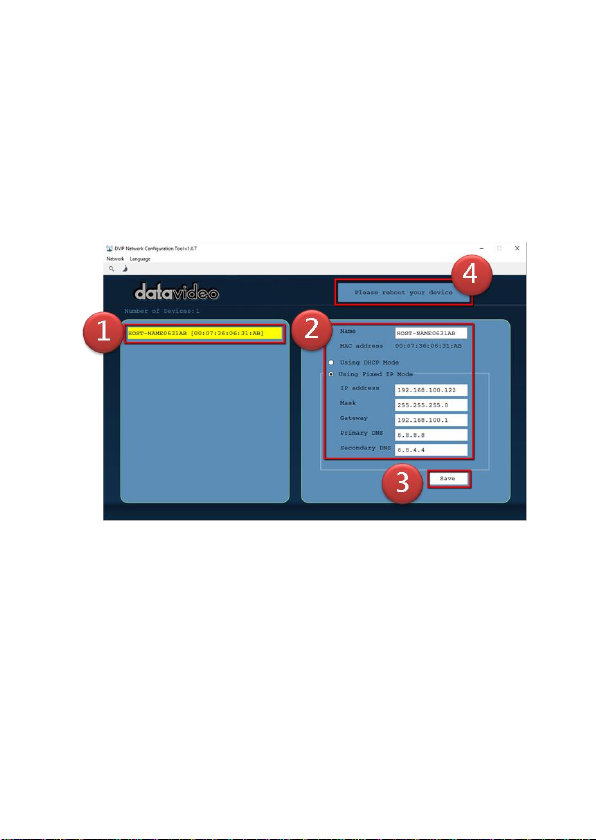

8.1.5 Modify Device Information and Write to Device

 The user is allowed to modify the device information in the right

column such as device name, MAC, IP address and etc. Click the
Save button to write the information into the device. Right after
the Save button is clicked, you will be able to see a prompt
message at the top right corner to request for a device reboot
for the new settings to become effective.

33

8.1.6 Switch to Other Network Interface

 To select other network interface cards, click Network

Network Card

34

8.1.7 Language Selection

 On the tool bar, select a language: Traditional Chinese,

Simplified Chinese or English

35

9. Firmware Upgrade

1) Copy MB CPU image files into the root directory of a USB hard

drive (<16 GB) and insert it into the USB Upgrade port (You may
use a USB extension cord).

2) Open the OSD menu using IR remote control by pressing the

MENU button.

3) Browse to

=> 4: SYSYEM
=> 4: UPDATE SOFTWARE
=> 3: UPDATE ALL
=>YES
=> ENTER

4) Wait for another five minutes until the following lines appear on

the screen

- Updated MCPU =>OK
The OSD will flash “Write OK/Power ON Again”.

Note: it takes approximately 5-7 minutes to complete the
update.

5) Turn off the device by unplugging the power cord. Plug the power

cord back into the socket and then turn on the device again.

6) FW Update is complete.

36

10. Dimensions

All measurements in millimeters (mm)

37

11. Specifications

Video

Image Pickup Element

1/2.3” type Exmor CMOS sensor

Effective Picture Elements

Approx. 8.93 Mega pixels

Signal System

4K (3,840 x 2,160, QFHD)
2160p / 29.97, 2160p/25
HD:
1080p59.94/50
1080i59.94/50
720p59.94/50

Min. Illumination

50%, High Sensitivity Mode
Color : 0.75 lx (F1.8, AGC ON, 1/30
sec)
50%, Normal Mode:
Color: 3 lx (F1.8, AGC ON, 1/30 sec)

Recommended
Illumination

100 lx – 100,000 lx

Gain

Auto / Manual (0 to 33 dB)
Max. Gain Limit (9 to 33 dB)

Shutter Speed

1/25 (1/30), 1/50 (1/60), 1/75(1/90),
1/100, 1/120 (1/125), 1/150(1/180),
1/215(1/250), 1/300(1/350),
1/425(1/500), 1/600(1/725), 1/1000,
1/1250(1/1500)sec

Backlight Compensation

Yes

Exposure Control

Auto, Manual, Priority Mode (shutter
priority & iris priority) Bright, EV
compensation

White Balance

Auto, Indoor, Outdoor, Sodium Vapor
Lamp, One-push, Manual

Focusing System

Auto (Sensitivity: normal, low), One­Push AF, Manual, Zoom Trigger AF

38

Lens

Lens Type

12x Optical Zoom, f = 3.9 mm (WIDE)
to 46.8 mm (TELE)
F1.8 to F2.0

Digital Zoom

12x

Angle of View (Horizontal)

70.7 degrees (WIDE END) to 6.4
degrees (TELE END)

Minimum Object Distance

10 mm (WIDE END) to 1,500 mm
(TELE END) (Default: 300 mm)

Video Output

Video Output

HDMI x 2

Control

Protocol

VISCA / DVIP Protocol

Remote Control

RS-422 & DVIP by RJ-45 interface

F/W Update

USB 2.0

IR Control

One IR controller

Others

Operating Temperature

0°C ~ 40°C (32°F~104°F)

Storage Temperature

- 10°C ~ 60°C (14°F~140°F)

Operating Humidity:

10 % to 80 % (non-condensing)

Power

DC 12V 1A

Power Consumption

10W

Dimensions (W x H x D)

71.4 x 82.6 x 182.9(mm) (without
Tripod mount adapter)

71.4 x 95.2 x 182.9(mm) (with Tripod
mount adapter)

Net Weight

0.936Kg(w/tripod mount adapter)

39

www.datavideo.com/product/BC-200

Mar-22.2018

Ver:E6
