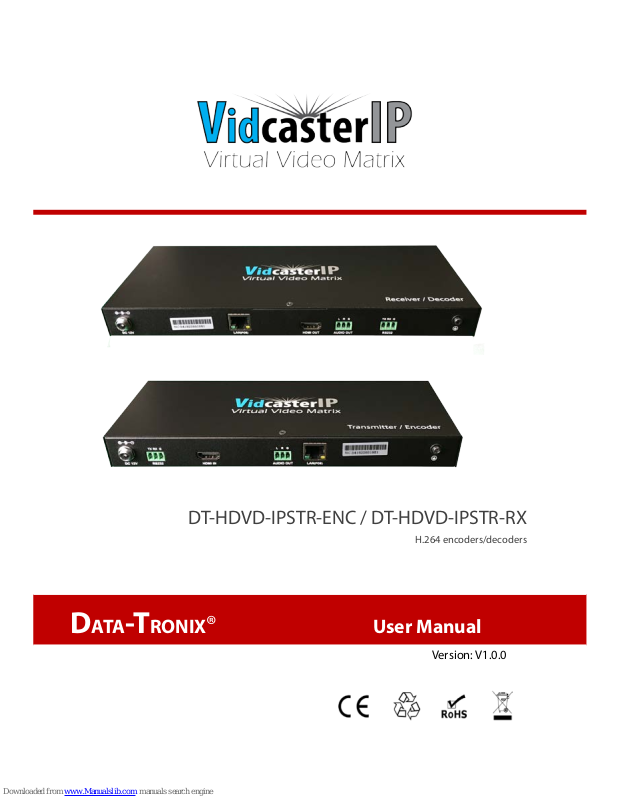

Version: V1.0.0
DT-HDVD-IPSTR-ENC / DT-HDVD-IPSTR-RX
H.264 encoders/decoders
ATA
-T
RONIX® User Manual
Important Safety Instructions
1. Do not expose this apparatus to
rain, moisture, dripping or
splashing and that no objects filled
with liquids, such as vases, shall be
placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit in
a bookcase, built-in cabinet or in
another confined space. Ensure the
unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct the
unit’s ventilation openings with
newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
5. Do not place sources of flames,
such as lighted candles, on the
unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
SecurityTronix
10. Refer all servicing to
qualified service
personnel.
www.datatronix.biz
1
Table of Contents
Introduction ...................................................................................................................................... 2
Overview .................................................................................................................................. 2
Encoder............................................................................................................................ 2
Decoder ........................................................................................................................... 3
Key Features ............................................................................................................................ 4
Encoder............................................................................................................................ 4
Decoder ........................................................................................................................... 5
Package Contents .................................................................................................................. 7
Encoder............................................................................................................................ 7
Decoder ........................................................................................................................... 7
Specifications .......................................................................................................................... 8
Encoder............................................................................................................................ 8
Decoder ......................................................................................................................... 10
Panel Description ................................................................................................................. 13
Encoder.......................................................................................................................... 13
Front Panel ............................................................................................................ 13
Rear Panel ............................................................................................................. 13
Decoder ......................................................................................................................... 15
Front Panel ............................................................................................................ 15
Rear Panel ............................................................................................................. 15
Typical Applications ...................................................................................................................... 17
IP Matrix .................................................................................................................................. 17
Video Wall ....................................................................... Error! Bookmark not defined.
Hardware Installation ................................................................................................................... 18
Operating the Encoders/Decoders .......................................................................................... 19
Upgrading the Encoders/Decoders ......................................................................................... 20
Troubleshooting ............................................................................................................................ 21
Warranty Terms and Conditions ............................................................................................... 25
www.datatronix.biz
2
Introduction
Overview
Encoder
DT-HDVD-IPSTR-ENC is a live H.264 encoder which is used with H.264
decoders to deliver streaming media over IP networks, providing
complete end-to-end streaming systems. It offers one HDMI input,
two streaming media outputs and one stereo audio de-embedding
output. It employs standards-based H.264/MPEG-4 AVC encoding and
supports input signals up to 1920 x 1200@60Hz. The encoder is
capable of outputting two IP streams. One large IP stream supports a
streaming resolution from 480p@60Hz to 1920 x 1200@60Hz to view a
video on the decoder side, the other small one supports resolution
352x288@5Hz to easily fully-preview video from an encoder on PC
software or iPad. Encoders support PoE and can remotely be powered
by compatible power source equipment such as a PoE Ethernet switch,
eliminating the need for a nearby power outlet. They offer
integration-friendly control features such as PC configurator and IP
controller providing simple, flexible control and management options.
In addition, they include RS232 pass-through capacity to control a
third party device such as a projector through IP configurator and IP
controller on your computer. Encoding control provides adjustments
for encoding bit rate and quality. By extending A/V signals over
networks, A/V system capability is significantly expanded. The
VidCasterIP system offers solutions for conference rooms, shopping
malls, hotels, high resolution signage, monitoring centers, schools and
corporate training environments, etc.
www.datatronix.biz
3
Decoder
DT-HDVD-IPSTR-RX is a live H.264 decoder that uses H.264 decoders
to provide complete end-to-end streaming systems. It integrates one
streaming media input and one HDMI output and one stereo
de-embedding audio output. The decoder employs standards-based
H.264/MPEG-4 AVC video decoding and supports streaming
resolutions up to 1920 x 1200@60Hz. High performance signal
processing scales and optimize video input signals to obtain the
intended viewing effects. The output resolutions range from
480p@60Hz to 1920 x 1200@60Hz scaled based on the EDID of the
display. Also, a fixed resolution can be selected from 480p@60Hz to
1920 x 1200@60Hz for output using PC configurator. Decoders
support PoE function and can remotely be powered by compatible
power source equipment such as a PoE Ethernet switch, eliminating
the need for a nearby power outlet. They also feature CEC function,
which allows you to make TV sets play and standby through PC
configurator. They offer integration-friendly control features such as
PC configurator and IP controller providing simple, flexible control
and management options. In addition, they include RS232
pass-through capacity to control a third party device such as a
projector through IP configurator and IP controller on your computer.
The VidCasterIP system offers solutions for conference rooms,
shopping malls, hotels, high resolution signage, monitoring centers,
schools and corporate training environments, etc.
www.datatronix.biz
4
Key Features
Encoder
Streams HDMI signals over IP networks
Supports live IP video stream encoding
Use with H.264 decoders to provide complete end-to-end
streaming systems
Features one HDMI input, two streaming media outputs and one
stereo audio de-embedding output
Supports the resolutions of input signals up to 1920 x
1200@60Hz
Capable of outputting two IP streams. One large IP stream
supports a streaming resolution from 480p@60Hz to 1920 x
1200@60Hz to view a video on the decoder side, the other small
one supports resolution 352x288@5Hz to easily fully-preview a
video from an encoder on PC software or iPad
Offers integration-friendly control features such as PC
configurator and IP controller
Offers RS232 pass-through capacity to control a third party
device such as a projector through IP configurator and IP
controller on your computer
Use with the IP controller for matrix control and management via
LAN (Telnet & Web GUI), as well as for allowing the third party
control system to configure and manage the streaming systems
Supports PoE to be remotely powered by compatible power
source equipment, eliminating the need for a nearby power
outlet
Employs standards-based H.264/MPEG-4 AVC video encoding
Supports HDCP
Configurable encoding data rate up to 30 Mbps
www.datatronix.biz
5
Supports AutoIP, zero-configuration networking (zeroconf), a set
of special technologies that automatically assign dynamic IP
addresses to encoders on startup and a server-less method of
choosing an IP address
Supports communications protocols used on the Internet such as
I P, TCP, UDP, IGM P a n d Te l n et
Decoder
Supports live IP video stream decoding
Use with H.264 encoders to provide complete end-to-end
streaming systems
Integrates one streaming media input, one HDMI output and one
stereo audio de-embedding output
Supports streaming resolutions up to 1920 x 1200@60Hz
Offers auto scaler function. The output resolutions range from
480p@60Hz to 1920 x 1200@60Hz scaled based on the EDID of
the display. Also, a fixed resolution can be selected from
480p@60Hz to 1920 x 1200@60Hz for output using PC
configurator
Offers integration-friendly control features such as PC
configurator and IP controller
Offers RS232 pass-through capacity to control a third party
device such as a projector through IP configurator and IP
controller on your computer
Use with the IP controller for matrix control and management via
LAN (Telnet & Web GUI), as well as for allowing the third party
control system to control and manage the streaming systems
Employs standards-based H.264/MPEG-4 AVC video decoding
www.datatronix.biz
6
Supports HDCP
Supports PoE to be remotely powered by compatible power
source equipment, eliminating the need for a nearby power
outlet
Features CEC function
Supports AutoIP, zero-configuration networking (zeroconf), a set
of special technologies that automatically assign dynamic IP
addresses to decoders on startup and a server-less method of
choosing an IP address
Supports communications protocols used on the Internet such as
I P, TC P, UDP, IGMP and Telnet
Supports seamless switching
www.datatronix.biz
7
Package Contents
Encoder
1 x Encoder
1 x Power Adapter (12V 1A DC)
1 x Detachable Plug
2 x Phoenix Connector (Male, 3.5 mm, 3 pins)
2 x Mounting Ear
Decoder
1 x Decoder
1 x Power Adapter (12V 1A DC)
1 x Detachable Plug
2 x Phoenix Connector (Male, 3.5 mm, 3 pins)
2 x Mounting Ear
www.datatronix.biz
8
Specifications
Encoder
Video
Input Video Port 1 x HDMI IN
Input Video Type HDMI 1.3
Input Video
Resolutions
HDMI:
640 x 480@60Hz, 720 x 480p@60Hz, 720 x
576p@50Hz, 800 x 600@60Hz, 1280 x
720p@50Hz, 1280 x 720p@60Hz, 1024 x
768@60Hz, 1360 x 768@60Hz, 1366 x
768@60Hz, 1280 x 800@60Hz, 1440 x
900@60Hz,1280 x 1024@60Hz, 1400 x
1050@60Hz, 1680 x 1050@60Hz, 1920 x
1080p@24Hz, 1920 x 1080p@25Hz, 1920 x
1080p@30Hz, 1920 x 1080p@50Hz, 1920 x
1080p@60Hz, 1920 x 1200@60Hz
Input Video Signal 0.5~1.2 V p-p
Encoding Data
Rate
Up to 30 Mbps, configurable
Output Video
Ports
1 x LAN
Output Video Type H.264/MPEG-4 AVC
Output Video
Resolutions
Large IP stream:
480p@60Hz~1920 x
1200@60Hz
Small IP stream: 352 x 288@5Hz
Video Impendence 100 Ω
Input DDC Signal 5 V p-p (TTL)
End-to-End Time
About 79 ms in average
(Low latency
www.datatronix.biz
9
Latency
mode)
About 250 ms in average (High quality
mode)
Audio
Input Audio Port 1 x HDMI IN
Input Audio
Format
Audio embedded in HDMI input
Output Audio Port 1 x Phoenix connector
Output Audio
Format
Stereo analog line level signal
Control
Control Method PC configurator and IP controller
General
Operating
Temperature/
Humidity
+32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing
Storage
Temperature/
Humidity
-4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Power 12 VDC 1 A
Device Power
Consumption
6 W (Max.)
Note:
Powered by PoE: 10 W (Min.) for safe
operation
ESD Protection
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Surge Protection Voltage: ±1 kV
www.datatronix.biz
10
General
Case Dimensions
(W x H x D)
310 mm x 76 mm x 180 mm
12.2'' x 3.0'' x 7.1''
Product
Dimensions
(W x H x D)
237 mm x 25 mm x 94.3 mm
9.3'' x 1.0'' x 3.7''
Weight 0.48 kg
Certification CE, FCC, RoHS compliant
Decoder
Video
Input Video Port 1 x LAN
Input Video Type H.264/MPEG-4 AVC
Input Video
Resolutions
480p@60Hz~1920x1200@60Hz
Output Video
Port
1 x HDMI
Output Video
Type
HDMI 1.3
Output Video
Resolutions
HDMI
：
640 x 480@60Hz, 720 x 480p@60Hz, 720 x
576p@50Hz, 800 x 600@60Hz, 1280 x
720p@50Hz, 1280 x 720p@60Hz, 1024 x
768@60Hz, 1280 x 768@60Hz, 1366 x 768@60Hz,
1280 x 800@60Hz, 1440 x 900@60Hz, 1280 x
1024@60Hz, 1680 x 1050@60Hz, 1920 x
1080p@24Hz, 1920 x 1080p@25Hz, 1920 x
1080p@30Hz, 1920 x 1080p@50Hz, 1920 x
1080p@60Hz, 1600 x 1200@60Hz, 1920 x
1200@60Hz
Video
100 Ω
www.datatronix.biz
11
Video
Impendence
End-to-End Time
Latency
About 79 ms in average (Low latency mode)
About 250 ms in average (High quality
mode)
Audio
Input Audio Port 1 x LAN
Input Audio
Format
Audio embedded in streaming media input
Output Audio
Port
1 x Phoenix connector
Output Audio
Format
Stereo
Control
Control Method PC configurator and IP controller
General
Operating
Temperature/
humidity
+32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing
Storage
Temperature/
humidity
-4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Power 12VDC 1A
Device Power
Consumption
6 W (Max.)
Note: Powered by PoE: 10 W (Min.) for safe
operation
www.datatronix.biz
12
General
ESD Protection
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Surge Protection Voltage: ±1 kV
Case Dimensions
(W x H x D)
310 mm x 76 mm x 180 mm
12.2'' x 3.0'' x 7.1''
Product
Dimensions
(W x H x D)
266 mm x 25 mm x 111.3 mm
10.5'' x 1'' x 4.4''
Weight 0.60 kg
Certification CE, FCC, RoHS compliant
www.datatronix.biz
13
Panel Description
Encoder
Front Panel
21
No.
Indicator
Status
Description
1
POWER
Indicator
On Encoder is powered on.
Off Encoder is powered off.
2
STATU S
Indicator
On Encoder is working properly.
Off Encoder is not working properly
Rear Panel
21 3
4
5
6
No.
Name
Description
1 Power Input
Connects to a 12 V 1 A power supply.
Note: We recommend that you power
encoders/decoders using power adapters or a
PoE switch; Do not connect the encoder to a
PoE and power supplies at the same time. For
example, if you want to use power adapters,
ensure that PoE function of the connected
LAN ports in the switch is disabled or a
non-PoE switched is used.
www.datatronix.biz
14
No.
Name
Description
2
RS232
Pass-through
Control
1 x RS232: connects to a third party device
such as a camera, which can be controlled by
IP configurator and IP controller on your
computer.
Note: This is a phoenix connector (female, 3.5
mm, 3 pins).
3 Video Input
1 x HDMI IN: connects to an HDMI video
source such as a DVD player and a computer.
4 Audio Output
1 x AUDIO OUT: connects to an audio output
device such as an amplifier and a speaker.
Note: This is a phoenix connector (female, 3.5
mm, 3 pins).
5 Video Output
1 x LAN (POE): connects to an Ethernet
switch for streaming media output.
Note: If you use a PoE Ethernet switch,
encoders can be powered by this switch,
eliminating the need for a nearby power
outlet.
6
Grounding
Screw
Connects to the ground for preventing
electric shock and device damage.
www.datatronix.biz
15
Decoder
Front Panel
2
1
No. Indicator Status Description
1
POWER
Indicator
On Decoder is powered on.
Off Decoder is powered off.
2
STATU S
Indicator
On
Decoder is linked to encoder and is
actively outputting video.
Flashing Decoder is not linked to encoder.
Rear Panel
2
1
3
4
5
6
No.
Name
Description
1 Power Input
Connects to a 12 V 1 A power supply.
Note: We recommend that you power
encoders/decoders using power adapters or
a PoE switch; Do not connect the encoder to
a PoE and power supplies at the same time.
For example, if you want to use power
adapters, ensure that PoE function of the
connected LAN ports in the switch is
disabled or a non-PoE switched is used.
2 Video Input
1 x LAN (POE):
connects to a switch for
www.datatronix.biz
16
No.
Name
Description
streaming media input.
Note: If you use a PoE Ethernet switch,
decoders can be powered by this switch,
eliminating the need for a nearby power
outlet.
3 Video Output
1 x HDMI OUT: connects to an A/V device
such as an HDMI display device.
4 Audio Output
1 x AUDIO OUT:
connects to an audio
output device such as an amplifier and a
speaker.
Note: This is a phoenix connector (female,
3.5 mm, 3 pins).
5
RS232
Pass-through
Control
1 x RS232: connects to a third party device
such as a projector, which can be controlled
by IP configurator and IP controller on your
computer.
Note: This is a phoenix connector (female,
3.5 mm, 3 pins).
6
Grounding
Screw
Connects to the ground for preventing from
electric shock and device damage.
www.datatronix.biz
17
Typical Application
IP Matrix
You can use encoders and decoders to build a network of IP matrix.
With PC configurator and IP controller, you can configure and manage
this function. For more information, see the respective software user
guides.
18
Hardware Installation
Warning:
Before the installation, disconnect the power supplies from all the devices.
Note:
If the Ethernet switch doesn’t support PoE, connect encoders and decoders to their power supplies.
If the PoE switch is unable to provide enough power, connect encoders/decoders to the power adapters and
disable PoE function of the connected LAN ports in the switch. We would recommend that you power
encoders/decoders using power adapters or a PoE switch instead of using their power supplies at the same time.
19
Operating the Encoders/Decoders
For more information on how to configure and manage the streaming
systems, see the user guides of PC configurator (HDMI over IP console)
and IP controller.
20
Upgrading the Encoders/Decoders
You can use MaintainTool to upgrade the encoders/decoders to their
latest versions to obtain new features. For more information, see the
user guide of MaintainTool.
21
Troubleshooting
1. The PC configurator or Maintain Tool cannot find any
encoder/decoder.
Check the Windows Firewall.
Taking Windows 7 as an example: Click Start menu, go to
Control Panel > System and Security > Windows Firewall >
Allowed Programs, select Home/Work (Private) and Public for
PC configurator and Maintain Tool.
For PC configurator (HDMI over IP Console):
22
For Maintain Tool:
Check the IP address and subnet mask of your computer. The
computer, encoders/decoders and Ethernet switch should be on
the same subnet. Therefore, set your computer's IP address as
169.254.X.X and subnet mask 255.255.0.0. For more information,
see the user guide of MaintainTool.
Check that Ethernet switch is configured properly, and that IGMP
snooping and IGMP querier are enabled.
2. Why do the displays show no pictures?
Check that all the devices are powered on.
Check that all the cables are qualified and connected properly.
Check the status of the STATUS indicators on decoders to see if
encoders and decoders are linked correctly. If link exceptions
occur, link them using the PC configurator or PC controller on
23
your computer. For more information about the STAT US
indicators, see "Front Panel" of encoder. If exceptions still exist,
see the other solutions to this question.
Check that the displays work properly, and that source devices
have normal signals output.
Check that the displays are switched to the correct source input
modes, for example switching to HDMI 1 if a display's HDMI 1
port is connected to a decoder via an HDMI cable.
We would recommend that you power encoders/decoders using
power adapters or a PoE switch instead of using their power
supplies at the same time. For example, if you want to use power
adapters, ensure that PoE function of the connected LAN ports in
the switch is disabled or a non-PoE switched is used.
Check that displays support HDCP if source videos are
HDCP-encrypted.
Check that no compatibility issues exist between displays and
decoders. If so, replace the displays with other models.
Check that encoders support the resolutions of the input signals.
For more information about the resolutions, see "Specifications"
section.
Check that Ethernet switch is configured properly, and that IGMP
snooping and IGMP querier are enabled.
3. Why do the A/V devices such as DVD players, TV sets, amplifiers
or speakers have no sound output?
Check that all the devices are powered on.
Check that all the cables are qualified and connected properly.
Check the status of the STATUS indicators on decoders to see if
encoders and decoders are linked correctly. If link exceptions
occur, link them using the PC configurator or PC controller on
24
your computer. For more information about the STATUS
indicators, see "Front Panel" of encoder. If exceptions still exist,
see the other solutions to this question.
Check that the A/V devices work properly.
Check that the A/V devices have normal signals output.
Check that the A/V devices are not set to mute or 0 for volume.
Check that encoders/decoders are not set to mute using PC
configurator. For more information, see the user guide of PC
configurator.
We would recommend that you power encoders/decoders using
power adapters or a PoE switch instead of using their power
supplies at the same time. For example, if you want to use power
adapters, ensure that PoE function of the connected LAN ports in
the switch is disabled or a non-PoE switched is used.
Check that displays support HDCP if source videos are
HDCP-encrypted.
Check that no compatibility issues exist between the A/V devices
and encoders/decoders. If so, replace the A/V devices with other
models.
Check that encoders support the resolutions of the input signals.
For more information about the resolutions, see "Specifications"
section.
Check that Ethernet switch is configured properly, and that IGMP
snooping and IGMP querier are enabled.
25
Warranty Terms and Conditions
DATATRONIX 1-Year Limited Warranty
DATATRONIX. (the "Company") warrants to the Original Purchaser that the item
purchased is free from defects in workmanship or material under normal use. This
warranty starts on the date of shipment of the hardware to the Original Purchaser.
During the warranty period, the Company agrees to repair or replace, at its sole option,
without charge to Original Purchaser, any defective component. To obtain service, the
Original Purchaser must return the item to the Company properly packaged for
shipping. All defective products must be returned to the Company within thirty (30)
days of failure. Products must be returned with a description of the failure and Return
Merchandise Authorization (RMA) number supplied by the Company. To receive an
RMA number and a return shipping address on where to deliver the hardware, call
610-429-1821. The shipping, and insurance charges incurred in shipping to the
Company will be paid by Original Purchaser, and all risk for the hardware shall remain
with the Original Purchaser until such time as Company takes receipt of the hardware.
Upon receipt, the Company will promptly repair or replace the defective unit, and then
return said unit to Original Purchaser, shipping prepaid. The Company may use
reconditioned or like-new parts or units, at its sole option, when repairing any
hardware. Repaired products shall carry the same amount of outstanding warranty as
from original purchase. Any claim under the warranty must include dated proof of
purchase or invoice. In any event, the Company's liability for defective hardware is
limited to repairing or replacing the hardware. This warranty is contingent upon proper
use of the hardware by Original Purchaser and does not cover: if damage is due to Acts
of God (including fire, flood, earthquake, storm, hurricane or other natural disaster),
accident, unusual physical, electrical, or electromechanical stress, modifications,
neglect, misuse, operation with media not approved by the Company, tampering
26
with or altering of the hardware, riot, war, invasion, act of foreign enemies, hostilities
(regardless of whether war is declared), civil war, rebellion, revolution, insurrection,
military or usurped power or confiscation, terrorist activities, nationalization,
government sanction, blockage, embargo, labor dispute, strike, lockout or interruption
or failure of electricity, air conditioning, or humidity control, internet, network, or
telephone service The warranties given herein, together with any implied warranties
covering the hardware, including any warranties of merchantability or fitness for a
particular purpose, are limited in duration to one year from the date of shipment to the
Original Purchaser. Jurisdictions vary with regard to the enforceability of warranty
limitations, and you should check the laws of your local jurisdiction to _nd out whether
the above limitation applies to you. The Company shall not be liable to you for loss of
data, loss of profits, lost savings, special, incidental, consequential, indirect, or other
similar damages arising from breach of warranty, breach of contract, negligence, or
other legal action even if the Company or its agent has been advised of the possibility of
such damages, or for any claim brought against you by another party. Jurisdictions
vary with regard to the enforceability of provisions excluding or limiting liability for
incidental or consequential damages. You should check the laws of your local
jurisdiction to find out whether the above exclusion applies to you. This warranty
allocates risks of product failure between Original Purchaser and the Company. The
Company's hardware pricing reflects this allocation of risk and the limitations of
liability contained in this warranty. The warranty set forth above is in lieu of all other
express warranties, whether oral or written. The agents, employees, distributors, and
dealers of the Company are not authorized to make modification to this warranty, or
additional warranties binding on the Company. Accordingly, additional statements
such as dealer advertising or presentations, whether oral or written, do not constitute
warranties by the Company and should not be relied upon. This warranty gives you
specific legal rights. You may also have other rights which vary from one jurisdiction to
another.
DATA-TRONIX Offices
Address: 1085 Andrew Dr. Ste. A
West Chester, PA 19380
Official Website: www.datatronix.biz
DATA-TRONIX Technical Support
(800) 688-9282 Press ‘3’, then ‘4’.
We reserve the right to change specification or product dimensions at any time.
Loading...
