INTEGRATED CIRCUITS

DATA SH EET

TDA8421

Hi-fi stereo audio processor;

C bus

Product speciﬁcation File under Integrated Circuits, IC02

May 1988

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

GENERAL DESCRIPTION

The TDA8421 is a monolithic bipolar integrated stereo sound circuit with a loudspeaker channel (CH1) and a headphone channel (CH2), digital controlled via the I2C bus, for application in hi-fi audio and television sound.

Features

• Input selector

• Mode selector

• Loudspeaker channel (CH1); with volume control, balance control and mute

• Headphone channel (CH2); with volume control, balance control and mute

• Pseudo stereo and spatial function

• Bass and treble control

• Electrostatic discharge protection diodes

TDA8421

QUICK REFERENCE DATA

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Supply voltage (pin 4) V Input signal handling V Input sensitivity

full power at the output stage V Signal plus noise-to-noise ratio (S+N)/N − 90 − dB Total harmonic distortion THD − 0,05 − % Channel separation α−75 − dB Volume control range CH1 G −62 − 16 dB Treble control range G −12 − 12 dB Bass control range G −12 − 15 dB Volume control range CH2 G −62 − 0dB

PACKAGE OUTLINE

28-lead dual in-line; plastic (SOT117); SOT 117-1; 1996 november 19.

CC I

7,5 12 14 V

2 −−V

− 200 − mV

May 1988 2

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

May 1988 3

Fig.1 Block diagram.

* These values are dependent on the required frequency response and effect.

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

PINNING

TDA8421

Fig.2 Pinning diagram.

FUNCTIONAL DESCRIPTION Input selector

The input to channel 1 (CH1) and channel 2 (CH2) is determined by the input selector. The selection is made from the following AF input signals:

• IN1 L (pin 26); IN1 R (pin 28) or

• IN2 L (pin 1); IN2 R (pin 3)

Where IN1 is an internal input signal and IN2 an external input signal.

Mode selector

For each channel (CH1 and CH2) there is a mode selector which selects between stereo, sound A and sound B in the event of bilingual transmission. Both mode selectors can be controlled independently.

May 1988 4

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

Headphone channel (CH2)

Volume control and balance The stages for volume control for CH2 consist of two parts

for left and right. In each part the gain can be adjusted between 0 and −62 dB in steps of 2 dB. An additional step allows an attenuation of ≥ 90 dB. Both parts can be controlled independently over the whole range, which allows the balance to be varied by controlling the volume of left and right.

Loudspeaker channel (CH1)

Volume control and balance The loudspeaker channel (CH1) also consists of two parts

for volume control (left and right). In each part the gain can be adjusted between + 16 dB and −62 dB in steps of 2 dB. An additional step allows an attenuation of ≥ 90 dB. Both parts can be controlled independently over the whole range, which allows the balance to be varied by controlling the volume of left and right.

Stereo/pseudo stereo/spatial stereo mode

It is possible to select three modes. Stereo, pseudo or spatial stereo. The pseudo stereo mode receives mono transmissions and the stereo and spatial stereo mode receives stereo transmissions.

Bass control

The bass control stage can be switched from an emphasis of 15 dB to an attenuation of 12 dB for low frequencies in steps of 3 dB.

Treble control

TDA8421

Bias and power supply

The TDA8421 includes a bias and power supply stage, which generates a voltage of impedance and injector currents for the logic part.

Power-on reset

The on-chip power-on reset circuit sets the mute bit to active, which mutes both the loudspeaker channel (CH1) and the headphone channel (CH2). The muting can be switched by transmission of the mute bit.

C bus receiver and data handling

Bus specification The TDA8421 is controlled via the 2-wire I2C bus by a

microcomputer. The two wires (SDA - serial data, SCL serial clock) carry information between the devices connected to the bus. Both SDA and SCL are bidirectional lines, connected to a positive supply voltage via a pull up resistor. When the bus is free both lines are HIGH. The data on the SDA line must be stable during the HIGH period of the clock. The HIGH or LOW state of the data line can only change when the clock signal on the SCL line is LOW. The set up and hold times are specified in AC CHARACTERISTICS.

A HIGH-to-LOW transition of the SDA line while SCL is HIGH is defined as a start condition. A LOW-to-HIGH transition of the SDA line while SCL is HIGH is defined as a stop condition. The bus receiver will be reset by the reception of a start condition. The bus is considered to be busy after the start condition. The bus is considered to be free again after a stop condition.

⁄2VCCwith a low output

The treble control stage can be switched from + 12 dB to

−12 dB in steps of 3 dB.

Fig.3 TDA8421 module address.

The module address is determined by pin 16. When connected to ground MAD = 0; when connected to V Thus two TDA8421s can be selected within a system.

May 1988 5

Module address

Data transmission to the TDA8421 starts with the module address MAD.

MAD = 1.

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

Subaddress

After the module address byte a second byte is used to select the functions for both channels:

• CH1 - Volume left, volume right, bass, treble and switch functions

• CH2 - Volume left, volume right and switch functions

The subaddress SAD is stored within the TDA8421. Table 1 defines the coding of the second byte after the module address MAD.

Table 1 Second byte after module address MAD

128 64 32 16 8 4 2 1

MSB

CH1

CH2

FUNCTION

volume left 0 0 0 0 0 0 0 0 volume right 0 0 0 0 0 0 0 1 bass 0 0 0 0 0 0 1 0 treble 0 0 0 0 0 0 1 1 switch functions 0 0 0 0 1 0 0 0 volume left 0 0 0 0 0 1 0 0 volume right 0 0 0 0 0 1 0 1 switch functions 0 0 0 0 1 1 0 0

76543210

subaddress SAD

TDA8421

LSB

Deﬁnition of 3rd byte

A third byte is used to transmit data to the TDA8421. Table 2 defines the coding of the third byte after module address MAD and subaddress SAD.

Table 2 Third byte after module address MAD and subaddress SAD

MSB LSB

CH1

CH2

FUNCTION

volume left VL1 1 1 V05 V04 V03 V02 V01 V00 volume right VR1 1 1 V15 V14 V13 V12 V11 V10 bass BA 1 1 1 1 BA3 BA2 BA1 BA0 treble TR 1 1 1 1 TR3 TR2 TR1 TR0 switch functions S1 1 1 MU EFL STL ML1 ML0 IS

volume left VL2 1 1 V25 V24 V23 V22 V21 V20 volume right VR2 1 1 V35 V34 V33 V32 V31 V30 switch functions S2 1 1 1 1 EXS MH1 MH0 1

765 4 3 2 1 0

May 1988 6

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

Truth tables

Truth tables for the switch functions Table 3 Input selector

function IS

IN1 0 IN2 1

Table 5 Stereo/pseudo stereo/spatial stereo

choise STL EFL

spatial 1 1 stereo 1 0 pseudo 0 1

----------- 0 0

TDA8421

Table 4 Mode selectors

CH1 CH2

mode

stereo 1 1 1 1 sound A 1 0 1 0 sound B 0 1 0 1

---------- 0 0 0 0

Table 6 Mute

active; automatic after POR not active 0

Notes

1. Attenuation ≥ 90 dB; POR = Power-On Reset.

(1)

ML0 ML1 MH0 MH1

mute MU

Table 7 Output for external switch

EXSN EXS

ground 1 open collector 0

Truth tables for the volume base and treble controls.

Table 8 Volume control

CH1 CH2 V × 5V×4V×3V×2V×1V×0

160111111 14 −2 ⋅⋅⋅⋅⋅⋅

⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅

−46 −62100000

−48 ≤−90011111 ⋅⋅⋅⋅⋅⋅⋅⋅

−62 ≤−90011000 ≤−90 ≤−90010111 ⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅⋅⋅⋅ ≤−90 ≤−90000000

Note

1. The values of CH1 and CH2 are in 2 dB/step measured in dBs. May 1988 7

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

Table 9 Bass control

3dB/STEP

(dB)

15 1111

--- --- --- --- ---

--- --- --- --- --15 1011 12 1010

--- --- --- --- ---

--- --- --- --- --00110

--- --- --- --- ---

−12 0010

--- --- --- --- ---

−12 0000

BA3 BA2 BA1 BA0

TDA8421

Table 10 Treble control

3dB/STEP

(dB)

12 1111

--- --- --- --- ---

12 1010

--- --- --- --- ---

--- --- --- --- --00110

--- --- --- --- ---

−12 0010

--- --- --- --- ---

−12 0000

TR3 TR2 TR1 TR0

May 1988 8

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

Sequence of data transmission

After a power-on reset all eight functions have to be adjusted with eight data transmissions. It is recommended that data information for switch functions in CH1 are transmitted last because all functions have to be adjusted when the muting is switched off. The sequence of transmission of other data information is not critical.

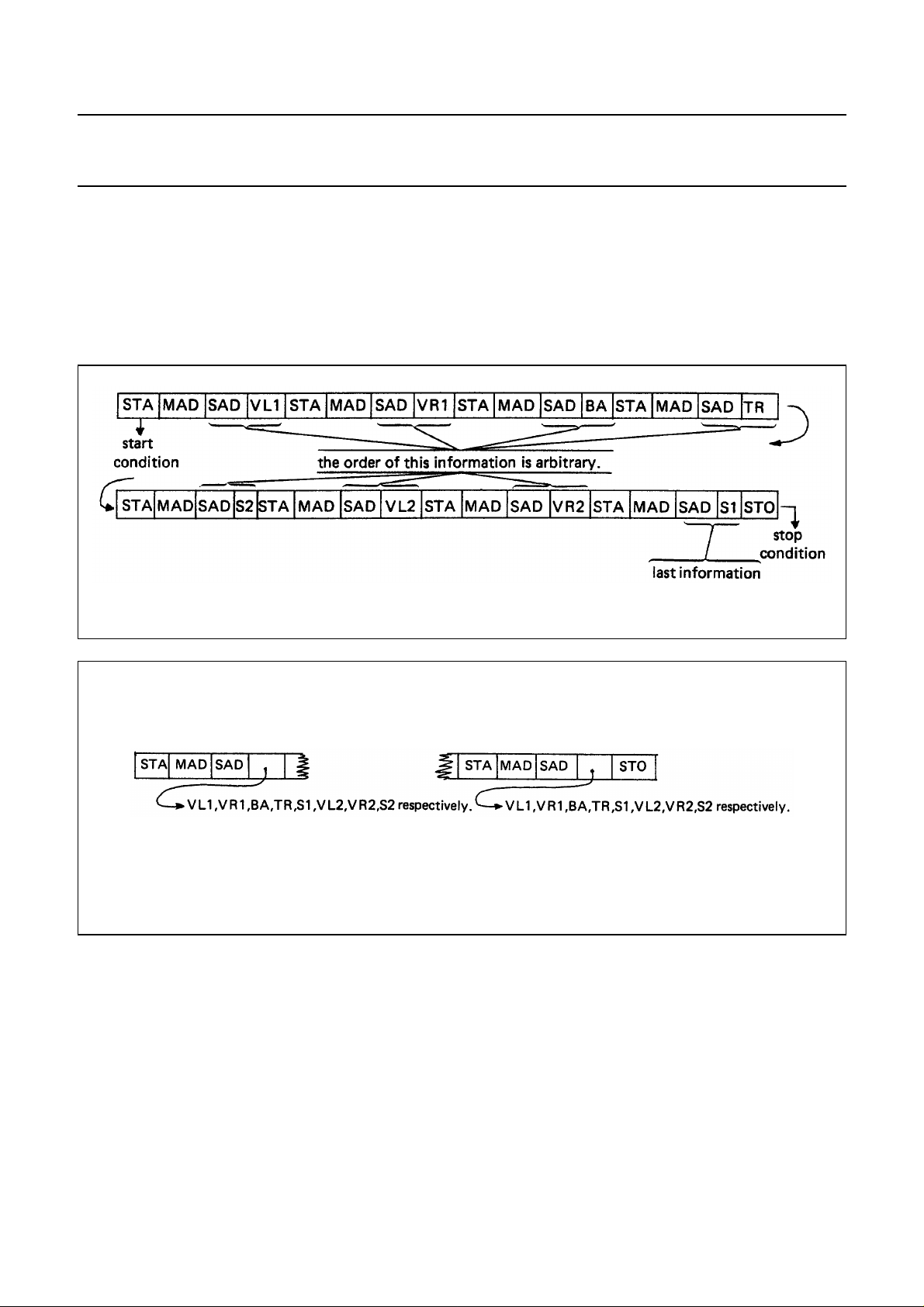

The order of data transmission is shown in Figures 4 and 5. The number of data transmissions is unrestricted but before each data byte the module address MAD and the correct subaddress SAD is required.

TDA8421

Fig.4 Data transmission after a power-on reset.

Fig.5 Data transmission except after power-on reset.

May 1988 9

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

RATINGS

Limiting values in accordance with the Absolute Maximum System (IEC 134)

PARAMETER SYMBOL MIN. MAX. UNIT

Supply voltage V Voltage range at pins for external capacitors

pins 2, 6, 8 to 10, 19 to 21, 23 to 25, 27 V pin 13 V pin 14 V pin 15 V pin 16 V

Voltage range

at pins 1, 3, 7, 11, 18, 22, 26, 28 V Output current at pins 7, 11, 18, 22 I Total power dissipation

at T

< 70 °CP

amb

Operating ambient temperature range T Storage temperature range T Electrostatic handling

(1)

±V

cap SDA SCL EXSN MAD

, V

tot amb stg

ESD

016V

0VCCV 0VCCV 0VCCV 0VCCV 0VCCV

0VCCV

− 45 mA

− 1350 mW 070°C

−25 150 °C

− 2000 V

TDA8421

Note

1. Equivalent to discharging a 100 pF capacitor through a 1,5 kΩ resistor.

May 1988 10

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

DC CHARACTERISTICS

= 12 V; T

Supply voltage (pin 4) V Supply current

at V

= 12 V I

Internal input voltage

IN1 L,R (pins 26,28) IN2 L,R (pins

1,3) DC voltage internally generated;

capacitive coupling recommended V MAD (pin 16)

input voltage HIGH V

input voltage LOW V

input current HIGH I

input current LOW I SDA; SCL (pins 13 and 14)

input voltage HIGH V

input voltage LOW V

input current HIGH I

input current LOW I Output voltage at

CH1 (pins 11 and 18);

CH2 (pins 7 and 22)

pins with external capacitors

pins 6 to 10; 19 to 21; 23 to 25 V

pin 2 V External switch (pin 15)

at I

EXSN

Output voltage HIGH V Output voltage LOW V

=25°C; unless otherwise speciﬁed

amb

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

IL IH IL

cap.n

cap.2

= 1 mA

EXSNH

EXSNL

TDA8421

7,5 12 14 V

− 42 55 mA

5,4 6,0 6,6 V

3,0 − V

0 − 1,5 V

−− 1,0 µA

− 110µA

3,0 − V

−0,3 − 1,5 V

−− 1,0 µA

− 110µA

5,4

−

⁄2V

6,6 V

− V

− VCC−0,1 − V

−− 16 V

−− 0,3 V

May 1988 11

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

AC CHARACTERISTICS

= 12 V; bass/treble in linear position; pseudo and spatial stereo off; RL> 10 kΩ; CL< 100 pF;

= 25 °C unless otherwise speciﬁed.

amb

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

C bus timing (see Fig.6)

SDA, SCL (pin 13 and 14) Clock frequency range f The HIGH period of the clock t The LOW period of the clock t SCL rise time t SCL fall time t Set-up time for start condition t Hold time for start condition t Set-up time for stop condition t

SCL HIGH LOW r f SU;STA HD; STA SU; STO

0 − 100 kHz 4 −− µs 4,7 −− µs

−−1 µs

−−0,3 µs

4,7 −− µs 4 −− µs 4,7 −− µs

Time bus must be free before a new

transmission can start t

Set-up time DATA t

BUF SU; DAT

4,7 −− µs 250 −− ns

Input signals

IN1 L (pin 26) IN1 R (pin 28) IN2 L (pin 1) IN2 R (pin 3) Input signal handling (r.m.s. value)

at V

= −4 dB; THD ≤ 0,5% V

Input resistance R

i(rms) n-5

2 −− V 35 50 − kΩ

Frequency response (−0,5 dB)

bass and treble in linear position; stereo mode; effects off f 20 − 20 000 Hz

May 1988 12

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

LOUDSPEAKER CHANNEL OUTPUTS

CH1 LEFT (pin 18); CH1 RIGHT (pin 11) Output voltage range (r.m.s. value)

at THD ≤ 0,5% V Load resistance R Output impedance Z

o(rms) L O

2 −− V 10 −− kΩ

−−100 Ω

Noise level

weighted according to CCIR468-2

gain = 16 dB V

gain = 0 dB V

gain = ≤−90 dB V

n n n

− 90 −µV

− 20 40 µV

− 15 −µV

Total harmonic distortion

(f = 20 Hz to 12,5 kHz)

for V

i(rms)

= 0,5 V;

gain = + 16 dB to −30 dB THD − 0,05 0,2 %

for V

i(rms)

= 1,0 V;

gain = +2 dB to −30 dB THD − 0,07 0,2 %

i(rms)

= 2,0 V;

for V

gain = −4 dB to −30 dB THD − 0,1 − % Channel separation at 10 kHz

gain = 0 dB α

− 75 − dB

Ripple rejection (gain = 0 dB;

bass and treble in linear position)

= 100 Hz RR

ripple

100

− 50 − dB

Crosstalk attenuation from logic

inputs to AF outputs (gain = 0 dB;

bass and treble in linear position) α

− 110 − dB

VOLUME CONTROL

For truth table see Table 8

May 1988 13

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Loudspeaker channel (CH1)

Control range at f = 1 kHz

maximum voltage gain (16 dB step) G

minimum voltage gain (−62 dB step) G

last position G

mute position G Resolution G

max min off mute step

15 −− dB

−60 −− dB

−80 −85 − dB

−85 −90 − dB

− 2 − dB/step

Gain difference between left and

right AF channel (note 1)

gain from 16 dB to −30 dB ∆G −−0,5 dB

gain from −30 dB to −62 dB ∆G −−1dB TREBLE CONTROL (CH1) For truth table see Table 10

Control range

for C

10-5

; C

19-5

= 5,6 nF

Maximum emphasis at 15 kHz with

respect to linear position G 11 12 13 dB Maximum attenuation at 15 kHz with

respect to linear position G 11 12 13 dB Resolution G

step

− 3 − dB/step

BASS CONTROL

For truth table see Table 9 Control range

for C

8-9

; C

20-21

= 33 nF

Maximum emphasis at 40 kHz with

respect to linear position G 14 15 16 dB Maximum attenuation at 40 kHz with

respect to linear position G 11 12 13 dB Resolution G

step

− 3 − dB/step

SPATIAL AND PSEUDO FUNCTION

Spatial: Antiphase crosstalk α−50 − % Pseudo: Phase shift (see Fig.15)

May 1988 14

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

HEADPHONE CHANNEL OUTPUTS

CH2 LEFT (pin 22); CH2 RIGHT (pin 7) Output voltage range (r.m.s. value)

at THD ≤ 0,5% V Load resistance R Output impedance Z

o(rms) L O

2 −− V 10 −− kΩ

−−100 Ω

Noise level

(weighted according to CCIR468-2)

gain = 0 dB V

gain = 16 dB V

gain = ≤ −90 dB V

n n n

− 15 −µV

− 12 25 µV

− 10 −µV

Total harmonic distortion

(f = 20 Hz to 12,5 kHz)

for V

gain = 0 dB to −30 dB

for V

gain = 0 dB to −30 dB

for V

i(rms)

= 0,2 V;

= 1,0 V;

= 2,0 V

THD − 0,01 0,2 %

THD − 0,1 − %

gain = −4 dB to −30 dB THD − 0,3 − % Channel separation at 10 kHz

gain = 0 dB α

− 75 − dB

Ripple rejection (gain = 0 dB;

bass and treble in linear position)

= 100 Hz RR

ripple

100

− 50 − dB

Crosstalk attenuation from logic

inputs to AF outputs (gain = 0 dB;

bass and treble in linear position) α

− 110 − dB

Crosstalk between any input/output

f = 100 Hz to 12,5 kHz α 65 70 − dB Crosstalk IN1/IN2

gain = 0 dB; RG= 0 α 95 100 − dB

May 1988 15

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Headphone channel (CH2)

Control range

maximum voltage gain (0 dB step) G

minimum voltage gain (−62 dB step) G

last position G

mute position G Resolution G

max min off mute step

−1 −− dB

−57 −− dB

−80 −85 − dB

−85 −90 − dB

− 2 − dB/step

Gain difference between left and

right AF channel (note 1)

gain from 0 dB to −40 dB ∆G −−0,5 dB

gain from −40 dB to −62 dB ∆G −−2dB

Note to the AC characteristics

1. Balance is realized via software by different volume settings in both channels.

May 1988 16

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

= start code set-up time

SU; STA

= start code hold time

HD; STA

= stop code set-up time

SU; STO

Fig.6 Timing requirements for I2C bus.

Fig.7 Distortion loudspeaker channel CH1 as a

function of the output voltage with gain as parameter.

= BUS free time

BUF

= data set-up time

SU; DAT

= DATA hold time

HD; DAT

Fig.8 Distortion loudspeaker channel CH1 as a

function of the output voltage with input voltage as parameter.

May 1988 17

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

Fig.9 Channel separation loudspeaker channel CH1 as a function of frequency.

Fig.10 Signal-to-noise ratio as a function of output power.

Input voltage Vi= 0,5 V; according to CCIR; quasi peak; Po= 15 W.

May 1988 18

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

Fig.11 Crosstalk 2-tone mode as a function of frequency.

CH1: mode AA, Gain + 16 dB; CH2: mode BB, Gain 0 dB. Signal input RIGHT; input LEFT to ground, measured at output CH1.

Fig.12 Crosstalk between IN1 and IN2 as a function of frequency; measured at output CH1; RG= 0.

a) Gain = + 16 dB; Vi= 200 mV. b) Gain = 0 dB; Vi= 1 V.

May 1988 19

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

Fig.13 Bass and treble tone control. C

= 33 nF, C

bass

treble

= 5,6 nF.

Fig.14 Bass and treble tone control. C

May 1988 20

= 68 nF, C

bass

treble

= 3.9 nF.

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

CURVE

1 15 15 normal 2 5,6 47 intensiﬁed 3 5,6 68 more intensiﬁed

PIN 24

(nF)

EFFECT

Fig.15 Pseudo (phase) as a function of frequency

CH 1 left.

May 1988 21

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

Fig.16 Test and application circuit diagram.

May 1988 22

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

Fig.17 Turn-on/off power supply circuit diagram.

TDA8421

ICC= 45 mA;

= 259 mA;

load

= 2,64 ms;

= 102 ms.

off

Fig.18 Turn-on behaviour;

C = 2,2 µF; RL= 10 kΩ.

Fig.20 Turn-off behaviour; with modulation (shaded area).

May 1988 23

Fig.19 Turn-off behaviour; without modulation.

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

TDA8421

Fig.21 Level diagram loudspeaker channel CH1 with V

= 200 mV; Vo= 1,25 for P

i(min)

max

Fig.22 Level diagram headphone channel CH2 with Vi= 200 mV; Vo= 200 mV for P

May 1988 24

max

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

PACKAGE OUTLINE

handbook, full pagewidth

DIP28: plastic dual in-line package; 28 leads (600 mil)

seating plane

TDA8421

SOT117-1

w M

(e )

pin 1 index

0 5 10 mm

scale

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

UNIT

inches

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

max.

1 2

min.

max.

1.7

1.3

0.066

0.051

0.53

0.38

0.020

0.014

cD E weM

0.32

0.23

0.013

0.009

(1) (1)

36.0

35.0

1.41

1.34

14.1

13.7

0.56

0.54

(1)

3.9

3.4

15.80

15.24

0.62

0.60

17.15

15.90

0.68

0.63

0.252.54 15.24

0.010.10 0.60

0.15

0.13

max.

1.75.1 0.51 4.0

0.0670.20 0.020 0.16

OUTLINE VERSION

SOT117-1

IEC JEDEC EIAJ

051G05 MO-015AH

REFERENCES

May 1988 25

EUROPEAN

PROJECTION

ISSUE DATE

92-11-17 95-01-14

Philips Semiconductors Product speciﬁcation

Hi-ﬁ stereo audio processor; I2C bus

SOLDERING Introduction

There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.

This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in

“IC Package Databook”

our

Soldering by dipping or by wave

The maximum permissible temperature of the solder is 260 °C; solder at this temperature must not be in contact

DEFINITIONS

(order code 9398 652 90011).

TDA8421

with the joint for more than 5 seconds. The total contact time of successive solder waves must not exceed 5 seconds.

The device may be mounted up to the seating plane, but the temperature of the plastic body must not exceed the specified maximum storage temperature (T printed-circuit board has been pre-heated, forced cooling may be necessary immediately after soldering to keep the temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the lead(s) of the package, below the seating plane or not more than 2 mm above it. If the temperature of the soldering iron bit is less than 300 °C it may remain in contact for up to 10 seconds. If the bit temperature is between 300 and 400 °C, contact may be up to 5 seconds.

stg max

). If the

Data sheet status

Objective speciﬁcation This data sheet contains target or goal speciﬁcations for product development. Preliminary speciﬁcation This data sheet contains preliminary data; supplementary data may be published later. Product speciﬁcation This data sheet contains ﬁnal product speciﬁcations.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the speciﬁcation.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

PURCHASE OF PHILIPS I

C COMPONENTS

Purchase of Philips I components in the I2C system provided the system conforms to the I2C specification defined by Philips. This specification can be ordered using the code 9398 393 40011.

May 1988 26

C components conveys a license under the Philips’ I2C patent to use the

DATASHEETS tda8421 DATASHEETS (Philips)

Specifications and Main Features

Frequently Asked Questions

User Manual

GENERAL DESCRIPTION

Features

QUICK REFERENCE DATA

PINNING

Mode selector

Headphone channel (CH2)

Loudspeaker channel (CH1)

Stereo/pseudo stereo/spatial stereo mode

Bass control

Treble control

Bias and power supply

Power-on reset

Module address

Subaddress

Sequence of data transmission

RATINGS

DC CHARACTERISTICS

AC CHARACTERISTICS

PACKAGE OUTLINE

SOT117-1

Soldering by dipping or by wave

DEFINITIONS

Repairing soldered joints

LIFE SUPPORT APPLICATIONS
