SAA2012

Adaptive allocation and scaling for
record processing in DCC systems

Product specification
Supersedes data of February 1993
File under Integrated Circuits, Miscellaneous

Philips Semiconductors

September 1995

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

FEATURES

• Stereo or 2-channel mono encoding

• Status may be read continuously

• Microcontroller interface

• I2S interfaces

• Allocation algorithm including optional emphasis

correction (for 44.1 kHz)

• Reduced power consumption

• 4 V nominal operating voltage capability.

GENERAL DESCRIPTION

Performing the Adaptive Allocation and Scaling function in
the Precision Adaptive Sub-band Coding (PASC) system,
the SAA2012 is intended for use in conjunction with the
stereo filter and codec (SAA2002).

SAA2012

ORDERING INFORMATION

EXTENDED TYPE

NUMBER

SAA2012GP 44 QFP; note 1 plastic SOT205AG

Note

1. When using reflow soldering it is recommended that the Dry Packing instructions in the “

Pocketbook

” are followed. The pocketbook can be ordered using the code 9398 510 34011.

PINS PIN POSITION MATERIAL CODE

PACKAGE

Quality Reference

September 1995 2

Philips Semiconductors Product specification

Adaptive allocation and scaling for

33
32

SAA2012

FDAC

SCL

record processing in DCC systems

BLOCK DIAGRAM

SWS

FS256

FDAF

31

39

34

INTERFACE INTERFACECOMPENSATION DELAY

V

DD

14,24,40

NODONE

RESOL0

RESOL1

FDIR

FRESET

FSYNC
SCALE

TEST3
TEST4

LTDATA
LTCNT1
LTCNT0

LTENA

LTCLK
CLK24

RESET

PWRDWN

20
21
22

37
36
35
38

15
16

5
1
2

3
4

26
23
30

CONTROL

SAA2012

LT INTERFACE

ALLOCATION AND

SCALING 

CALCULATION

6,25,44

V

SS

11

7
8
9

10

MEA660

LTDATAC

LTCNT1C

LTCNT0C

LTENC

LTCLKC

September 1995 3

Fig.1 Block diagram.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

PINNING

SYMBOL PIN DESCRIPTION

LTCNT1 1 mode control 1, microcontroller interface input
LTCNT0 2 mode control 0, microcontroller interface input
LTENA 3 enable microcontroller interface input
LTCLK 4 bit clock microcontroller interface input
LTDATA 5 data, microcontroller interface (3-state input/output)
V

SS

LTCNT1C 7 control 1, microcomputer interface, SAA2002 side output
LTCNT0C 8 control 0, microcomputer interface, SAA2002 side output
LTENC 9 enable microcontroller interface, SAA2002 side output
LTCLKC 10 bit clock; microcontroller interface, SAA2002 side output
LTDATAC 11 data; microcontroller interface, SAA2002 side (3-state input/output)
TEST1 12 test 1 output; do not connect
TEST2 13 test 2 output; do not connect
V

DD

TEST3 15 test 3 mode input; to be connected to V
TEST4 16 test 4 mode input; to be connected to V
TEST5 17 test 5 input; to be connected to V
TEST6 18 test 6 input; to be connected to V
TEST7 19 test 7 input; to be connected to V
NODONE 20 no done state selection input
RESOL0 21 resolution selection 0 input
RESOL1 22 resolution selection 1 input
RESET 23 active HIGH reset input
V

DD

V

SS

CLK24 26 24.576 MHz processing clock input
TEST8 27 test 8 input; to be connected to V
TEST9 28 test 9 input; to be connected to V
TEST10 29 test 10 input; to be connected to V
PWRDWN 30 SLEEP mode input
SWS 31 word selection input; filtered - I
SCL 32 bit clock input; filtered - I
FDAC 33 filtered data - I
FDAF 34 filtered data - I
FSYNC 35 sub-band synchronization on input; filtered - I
FRESET 36 reset signal input from SAA2002
FDIR 37 direction input of the I
SCALE 38 scale factor index select (note 1)
FS256 39 system clock input; sample frequency × 256
V

DD

6 supply ground (0 V)

14 supply voltage (+5 V)

24 supply voltage (+5 V)
25 supply ground (0 V)

2

S-interface; SAA2002 side (3-state input/output)

2

S-interface; SAA2002 side (3-state input/output)

40 supply voltage (+5 V)

2

S-interface

2

S-interface

SS

SS

SS

SS

SS

SS

2

S-interface

DD

DD

2

S-interface

SAA2012

September 1995 4

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

SYMBOL PIN DESCRIPTION

n.c. 41 not connected
n.c. 42 not connected
n.c. 43 not connected
V

SS

Note

1. The SCALE input must be set LOW for use with the SAA2002. If operation with the SAA2001/2021 combination is
required the SCALE input must be set HIGH.

44 supply ground (0 V)

SAA2012

LTCNT1
LTCNT0

LTENA
LTCLK

LTDATA

V

SS
LTCNT1C
LTCNT0C

LTENC

LTCLKC

LTDATAC

SS

V

n.c.

n.c.

44

43

42

1
2
3
4
5
6
7
8

9
10
11

12

13

14

V

TEST1

TEST2

n.c.
41

15

DD

TEST3

DD

V

FS256

40

39

SAA2012

16

17

TEST4

TEST5

SCALE

38

18

TEST6

FDIR
37

19

TEST7

FRESET

FSYNC

36

35

21

20

RESOL0

NODONE

FDAF

34

22

RESOL1

33
32
31
30
29
28
27
26
25
24
23

MEA656

FDAC
SCL
SWS
PWRDWN

TEST10
TEST9

TEST8
CLK24
V

SS

V

DD

RESET

September 1995 5

Fig.2 Pin configuration.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

drive

capstan

heads

and

tape

SAA2012

write

TDA1319

TDA1316 or

speed control

2

codec

SAA2002

stereo filter

I S

(sub-band)

read

digital

SAA2032

SAA2022

adaptive

SAA2012

TDA1318

TDA1317 or

equalizer

RAM

256 kbits

scale factors

allocation and

TAPE DRIVE PROCESSING

MEA695 - 2

MICROCONTROLLER

Fig.3 DCC data flow diagram.

September 1995 6

2

I S

ADC

SAA7360

RECORDING + PLAY BACK

input

analog

DAC

SAA7323

output

analog

DAIO

TDA1315

digital input

digital output

AUDIO INPUT/OUTPUT PASC PROCESSING

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

FUNCTIONAL DESCRIPTION

PASC

Precision Adaptive Sub-band Coding achieves highly
efficient digital encoding with a bit-rate of 384 kbits/s. It
utilizes a system producing sub-band samples from an
incoming digital audio signal. This relies upon the audibility
of signals above a given level and upon high amplitude
signals masking those of lower amplitude. Although each
sub-band signal is of approximately 750 Hz bandwidth, it
possesses considerable overlap with those adjacent to it.

During the process of encoding, the PASC processor
analyses the broadband audio signal at sampling
frequency (f
sampling frequency (fs/32).

The PASC signal consists of frames conveying the
information corresponding to 384 sub-band samples.
These also include a synchronization pattern identifying
the start of each new frame. The allocation information for
the 32 sub-bands is transferred as 4-bit values. If the
amplitude of a sub-band signal is below the masking
threshold it will be omitted from the PASC signal.

The duration of a PASC frame depends upon sampling
frequency and is adjusted to 384 divided by fs.

Adaptive Allocation and Scaling

The PASC system calculates the masking power of the
sub-band signals and adds the masking threshold.
Sub-band signals with power below this threshold denote
information to be discarded. Non-masked signals are
coded using floating point notation in which a mantissa
corresponds in length to the difference between peak
power and masking threshold. The process is repeated for
every PASC frame and is known as the Adaptive
Allocation of the available capacity.

Encoding mode

Signal FDIR sets the data flow direction on the
Filtered-I
(FDIR = LOW) the device will accept samples from FDAF.
These will be delayed by a number of sample periods
depending upon the setting of the SCALE input. In the
event of operation with the SAA2002 (SCALE = 0) this
delay will be 480 SWS periods. This will ensure alignment
of the data with the computed allocations.

After the delay the samples will be presented on FDAC
(pin 33). The circuit also performs all the calculations
required to build the allocation table which is used in the
codec (SAA2002).

) by splitting it into 32 sub-band signals at a

s

2

S-interface. In the encoding mode

SAA2012

When used with the SAA2002 the calculated scale factor
indices are sent via the LT interface. These operations are
performed for every frame of the sub-band codec.

In order to synchronize with the codec and utilize the
correct tables for the calculations the SAA2012 frequently
requests the status of the codec. It monitors the bit-rate,
sample frequency, operation mode and the emphasis
information and uses the ‘ready-to-receive’ bit of the codec
to determine the moment of the transfer of allocation
information.

Decoding Mode

In the decoding mode (FDIR = HIGH) the SAA2012 will
take samples from FDAC which will be presented on the
FDAF after a delay of 160 SWS periods. The LT interface
between microcontroller and codec (SAA2002) will only be
affected by the ‘ready-to-receive’ bit from the codec
(SAA2002).

Microcontroller Interface Operation

Information on the interface between microcontroller and
codec (SAA2002) will flow in a regular sequence
synchronized with the codec (SAA2002):

• With every FSYNC the SAA2012 will read the status of
the codec (SAA2002).

• Following the calculation of the allocation and scale
factors the SAA2012 will send the first allocation
information unit (16-bits). It will then continuously read
the codec (SAA2012) status to ascertain when it is able
to receive further allocation information units. When the
transfer of these units is complete the SAA2012 will
send settings and (for SCALE = 0) scale factor indices.

• The extended settings will be sent to the codec as soon
as possible after reception from the microcontroller.

The microcontroller communicates with the SAA2012 in a
similar fashion:

• Status can be read continuously. The SAA2012 will
output a copy of the codec (SAA2002) status on the
LTDATA line except for the ‘ready-to-receive’ bits which
are generated by the SAA2012. These indicate whether
the SAA2012 is ready to receive the next settings or
extended settings.

• Settings can be sent following every occasion that the
‘ready-to-receive’ bit ‘S’ changes to logic 1.

• Extended settings can be sent following each occasion
that the ‘ready-to-receive’ bit ‘E’ changes to logic 1.

September 1995 7

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

Mode Control

Operation is controlled by the FRESET and FDIR signals.
FRESET causes a general reset. The FDIR signal is
sampled at the falling edge of the FRESET signal to
determine the operation mode:

• FDIR = logic 1 decoding mode, SAA2012 in
feed-through mode

• FDIR = logic 0 encoding mode, SAA2012 in
calculation mode.

Figure 4 shows the timing diagram for FRESET and FDIR.

Resolution Selection

The (SAA2012) is designed for operation with input
devices (ADCs) which may possess a different sample
resolution capability, i.e. audio sample inputs into the
sub-band filters. RESOL0 (pin 21) and RESOL1 (pin 22)
may be utilized to adjust the allocation information
calculation to the resolution of the samples.

With the instance of NODONE (pin 20) being HIGH, all
available bits in the bit-pool will be allocated. If NODONE
is LOW, no bits will be allocated to the sub-bands with
energy levels below the theoretical threshold for the
selected resolution. For encoding in accordance with the
DCC standard NODONE must be HIGH.

SAA2012

Table 1 Resolution selection.

RESOL1 RESOL0 RESOLUTION

0 0 16 bits
0 1 18 bits
1 0 14 bits
1 1 15 bits

Sleep mode switching

When the potential on the RESET pin (pin 23) is held HIGH
for at least 5T
after which it will operate in its decoding mode.

The sleep mode is activated when the PWRDWN pin
(pin 30) is held HIGH. The 3-state buffers will be set to a
high impedance while the normal outputs will retain the
state attained prior to this mode being entered. This mode
can only be used if other associated circuits react
accordingly. The sleep mode is de-activated by a reset
action.

Operation for the sleep mode switching is shown in Fig.5.

clock periods, the device will be reset

clk24

FRESET

t

suD

FDIR

trH > 5T
t

suD

= 210 ns (for CLK = 24.576 MHz) minimum time; FRESET = HIGH.

clk24

< 0 ns minimum set-up time; FDIR to FRESET = LOW.

Fig.4 Timing of FRESET and FDIR.

September 1995 8

t

rH

MBC123 - 1

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

PWRDWN

RESET

sleep mode active

SAA2012

t

rH

MEA659 - 1

trH > 5T

= 210 ns (for CLK = 24.576 MHz) minimum time; RESET = HIGH.

clk24

Fig.5 Sleep mode switching.

channel

SWS

SCL

FDA

bit :

1

0

msb lsb

left 32 bits

7 bits

2102322212

2322212

msb

right

0

MBC149 - 1

September 1995 9

Fig.6 Format for transferring filtered data.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

SAA2012

channel

SWS

FSYNC
sub-band

LRLLLLLLRRRRRR

31 0 1 31 0 1

MBC126 - 2

Fig.7 FSYNC relative to SWS.

Filtered-I2S-Interfaces

Interfaces with the sub-band filter and codec (SAA2002) consist of the signals shown in Table 2.

2

Table 2 The filtered-I

S-interface.

SIGNAL TYPE DESCRIPTION FREQUENCY

SWS input word selection f

SCL input bit clock 64f
FDAF bi-directional filtered data to/from the filter section of SAA2002 −
FDAC bi-directional filtered data to/from the codec section of SAA2002 −

FSYNC input filter synchronization f

FRESET input reset −

2

FDIR input filtered - I

S-interface direction of data flow −

s

s

s

/32

The format for transferring filtered data is shown in Fig.6.
Input frequency (f

) must be provided as system clock. This frequency is used by the interfaces with the SAA2002.

i

The frequency of the SWS signal (pin 31) is equal to the sample frequency (fs). Bit clock SCL (pin 32) is 64 times fs; thus
each SWS period contains 64 data bits, 48 of which are actually used in data transfer. The half period when SWS is logic
0 is used to transfer left-channel information, when SWS is logic 1 transfer of right-channel data is allowed.

The 24-bit samples are transferred with the most significant bit first. This bit is transferred during the bit clock period, one
bit time after the change in SWS.

FSYNC signal is provided for the purposes of synchronization and indicates the portion of the SWS period during which
the samples of sub-band 0 are transferred.

The relationship between FSYNC and the SWS is logic 0 data transfer period is shown in Fig.7

September 1995 10

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

t

cH

SCL

t

d3

output

input

SAA2012

4T

t

cL

t

d4

t

su1

t

h1

MBC127 - 2

OUTPUT applies to FDAF and FDAC in the output mode.
INPUT applies to FDAF and FDAC in the input mode, SWS and FSYNC.
T = 1 fs 256 cycle time.
tHc≥ T + 35 ns minimum HIGH time SCL.
tLc≥ T + 35 ns minimum LOW time SCL.
td3≥ 2T − 10 ns hold time output after SCL HIGH.
td4≤ 3T + 60 ns delay time output after SCL HIGH.
t

≥ 20 ns set-up time input before SCL HIGH.

su1

th1≥ T + 35 ns hold time input after SCL HIGH.

FDIR

t

W1

FDA

HIGH Z HIGH Z

t

W2

MEA692 - 1

tW1≥ 3T minimum time high impedance to FDA enabled.
tW2≥ 2T + 35 ns maximum time FDA enabled to high impedance.

September 1995 11

Fig.8 Filtered-I2S interface timing.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

Microcontroller Interface

Two microcontroller interfaces are provided; one for
connection to the microcontroller interface of the
SAA2002, the other to connect to the system controller.
Information is conveyed via the SAA2012 which executes
monitoring and extracts signals (e.g. settings and
synchronization) essential to its operation. It also sends
allocation information to the SAA2002. However, the
SAA2012 does not monitor the external settings bits from
the microcontroller (see “Extended settings
(LTCNT1(C) = LTCNT0(C) = logic 0)” ).

Table 3 SAA2012 Interface with microcontroller.

SIGNAL TYPE DESCRIPTION

LTCLK input bit clock
LTDATA bi-directional data
LTCNT0 input control line 0
LTCNT1 input control line 1

LTENA input enable

The SAA2012 is a slave on this interface which is active
only when the enable signal LTENA (pin 3) is logic 1. This
allows connection of this interface to other devices. Only
the enable signal is not common to all devices.

SAA2012

Table 4 SAA2012 Interface with SAA2002.

SIGNAL TYPE DESCRIPTION

LTCLK output bit clock

LTDATAC bi-directional data
LTCNT0C output control line 0
LTCNT1C output control line 1

LTENC output enable

The SAA2012 is master on this interface and provides all
signals with the exception of the data in the instance of
status transfer from SAA2002 to SAA2012.

Information conveyed via these interfaces is transferred in
8 or 16-bit serial units with the type of information
designated by the control lines LTCNT1C and LTCNT0C.

A transfer of information begins when the master sets the
control lines for the required action. It then sets the
LTENA/C line to logic 1. Once this signal is established the
slave determines the kind of action required and prepares
for the transfer of data.

When the master supplies the LTCLK/C signals, data is
transferred either to or from the slave in units of 8-bits; the
least significant bit (LSB) is always transferred first. A
transfer of 16-bits is made in two, 8-bit units with the most
significant 8-bit (MSB) unit first. In between the two 8-bit
units the LTENA/C signals remain logic 1.

An example of information transfer via SAA2012 interfaces
is shown in Fig.9.

Table 5 SAA2012 interface control lines functions.

LTCNT1(C) LTCNT0(C) MODE FROM TO TRANSFER OF

0 0 extended settings microcontroller SAA2002 8 bits
0 1 allocation; note 1 SAA2012 SAA2002 16/48 × 16 bits
1 0 settings microcontroller SAA2002 16 bits
1 1 status codec microcontroller 8 or 16 bits

Note

1. This mode only on the interface between SAA2012 and SAA2002.
If SCALE = logic 1 then 16 × 16-bits.
If SCALE = logic 0 then 48 × 16-bits.

September 1995 12

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

LTENA/C

LTCNT0(C)/1(C)

LTCLK(C)

LTDATA(C)

01234567

SAA2012

MBC128

LTENA/C

LTCNT0(C)/1(C)

LTCLK(C)

LTDATA(C)

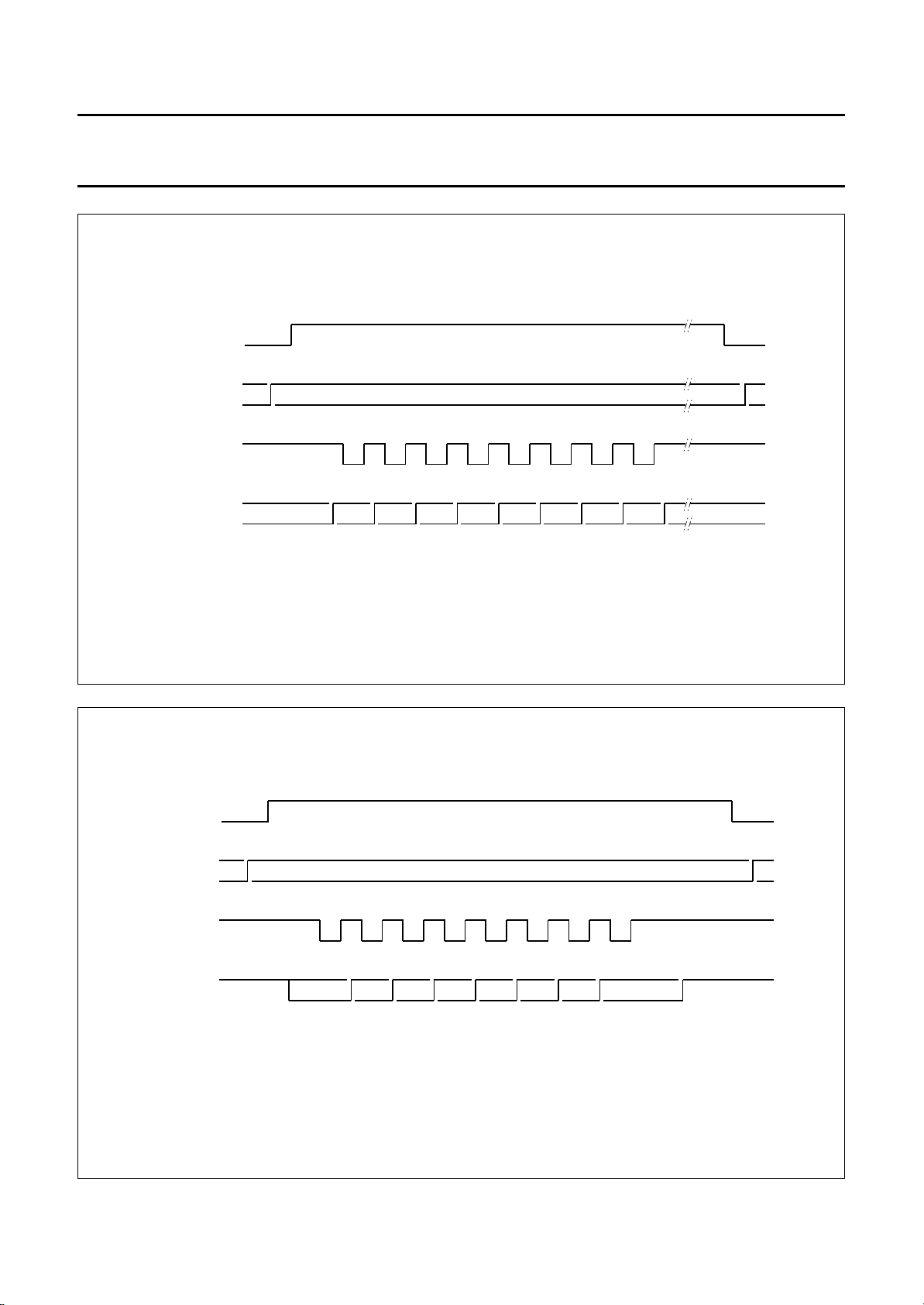

Fig.9 Example of information transfer via SAA2012 interfaces.

E0 E1 E2 E3 E4 E5 E6 E7

MBC129

Refer to the SAA2002 description for the meaning of these bits as they pass SAA2012 unchanged.

September 1995 13

Fig.10 Extended settings LTCNT1(C) and LTCNT0(C).

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

Extended settings (LTCNT1(C) = LTCNT0(C) = logic 0)

Eight information bits, generated by the microcontroller,
are transferred in this mode. The SAA2012 will transfer
these bits to the SAA2002 as soon as possible but does
not monitor this information.

The relationship of the extended settings is shown in Fig.10.

Allocation and SCALING information
(LTCNT1(C) = logic 0, LTCNT0(C) = logic 1)

In the encoding mode (FDIR = logic 0) the SAA2012 will
transfer allocation information to the SAA2002. This will
occur once for every SAA2002 frame.

The information will consist of 16 transfers each of 16-bits.
To synchronize the SAA2012 operation with that of the
SAA2002, following the first 16-bit transfer of allocation
data the SAA2012 checks the SAA2002 status to ensure it
is ready to receive the remainder of the allocation
information. Transfer of allocation data is completed by
sending settings. Between 16-bit transfers the LTENC line
returns to logic 0 as shown in Fig.11.

The order in which the bits occur on the interface during
allocation information transfer is shown in Fig.12.

The 4-bit sub-band allocation unit contains the number of
bits allocated to the sub-band minus 1. A value of 0000
indicates no bits allocated to that sub-band.

SAA2012

With stereo encoding, left and right channels are
designated L and R. This changes to channels I or II for
2-channel mono mode. If SCALE = logic 0 the transfer of
allocation information will be followed by the transfer of
scale factors. Each 16-bit transfer contains two scale
factor indices.

The following algorithm shows the process of information
transfer:

COUNT = 0
SEND ALLOCATION (COUNT)
REPEAT
READ STATUS
UNTIL
READY-TO-RECEIVE
FOR COUNT = 1 to 15
DO
SEND ALLOCATION (COUNT)
SEND SETTINGS
IF SCALE = 0
THEN
FOR COUNT = 0 to 31
DO
SEND SCALE FACTORS (COUNT)

September 1995 14

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

LTENC

16 bits 16 bits

LTCLKC

SAA2012

MBC130

LTENA/C

LTCNT0(C)/1(C)

LTCLK(C)

LTDATA(C)

bit :

Fig.11 LTENC behaviour for 16-bit transfers.

A or SL : 8 9 1 1 1 1 1

01234

012345671

5

MEA691

September 1995 15

Fig.12 The order of interface bits during allocation information transfer.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

Table 6

BITS

CHANNEL SUB-BAND

MSB LSB

A15 A14 A13 A12 L 2 × COUNT
A11 A10 A9 A8 R 2 × COUNT

A7 A6 A5 A4 L (2 × COUNT) + 1
A3 A2 A1 A0 R (2 × COUNT) + 1

Table 7

BITS

CHANNEL CONTENTS

MSB LSB

SL15 SL14 −−00
SL13 SL12 - SL11 - SL10 - SL9 SL8 L SCALE FACTOR (COUNT)

SL7 SL6 −−00
SL5 SL4 - SL3 - SL2 - SL1 SL0 R SCALE FACTOR (COUNT)

SAA2012

LTENA/C

LTCNT0(C)/1(C)

LTCLK(C)

LTDATA(C)

bit :

S : 8911111

01234

012345671

5

Fig.13 The order of bits on the interface.

MBC132

September 1995 16

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

Settings (LTCNT1(C) = logic 1, LTCNT0(C) = logic 0)

Without using the information, the SAA2012 transfers microcontroller settings to the SAA2002.
Prior to sending settings, the microcontroller would utilize the SAA2012 status readings to ensure its readiness to accept

and convey the data.
Following reception of the settings the SAA2012 will cause the ready-to-receive bit to be logic 0 until the settings have

been sent to the SAA2002. The microcontroller can only send this data when this bit is logic 1.
The order of bits on the interface is shown in Fig.13.

Table 8 Microprocessor settings applied to the SAA2002 via the SAA2012.

SAA2012

BITS

MSB LSB

S15 S14 S13 S12 bit-rate index bit-rate indication encode
S11 −−S10 sample frequency 44.1, 48 or 32 kHz indication encode

S9 −−−DECODE 1 = decode; 0 = encode encode/decode
S8 −−−external 256f
S7 −−−2-channel mono 1 = (2-channel mono); 0 = stereo encode
S6 −−−MUTESFC 1 = mute; 0 = no mute encode/decode
S5 −−−not used − encode/decode
S4 −−−CH I 1 = channel I; 0 = channel II decode
S3 −−S2 Tr0 - Tr1 transparent bits encode
S1 −−S0 EMPHASIS emphasis indication encode

Status (LTCNT1(C) = LTCNT0(C) = logic 1)

The SAA2002 and SAA2012 operation may be checked by reading these bits. All, except the ready-to-receive bits, are
generated by the SAA2002.

The bit rate index shows the bit rate of the sub-band signal in units of 32 kbits/s. The SAA2012 is designed for bit rates
of 384, 256, 192 and 128 kbits/s only.

Table 9 Order of SAA2002 bits as they appear on the interface (see also Fig.14).

BITS

MSB LSB

T15 T14 T13 T12 bitrate index bit-rate indication encode/decode
T11 −−T10 sample frequency 44.1, 48 or 32 kHz indication encode/decode

T9 −−−ready-to-receive S 1 = ready; 0 = not ready encode/decode
T8 −−−ready-to-receive E 1 = ready; 0 = not ready encode/decode
T7 −−T6 MODE sub-band signal mode ID encode/decode
T5 −−−SYNC synchronization indicator decode
T4 −−−CLKOK 1 = OK; 0 = not OK encode/decode
T3 −−T2 Tr0 - Tr1 transparent bits encode/decode
T1 −−T0 EMPHASIS emphasis indication encode/decode

NAME FUNCTION VALID IN

s

NAME FUNCTION VALID IN

1 = external; 0 = internal encode/decode

September 1995 17

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

LTENA/C

LTCNT0(C)/1(C)

LTCLK(C)

LTDATA(C)

bit :

T : 8911111

01234

5

SAA2012

012345671

MBC133

Fig.14 The order of appearance of bits on the interface.

Table 10 Sample frequency indication.

MSB LSB f

s

REMARK

0 0 44.1 kHz default value
0 1 48 kHz
1 0 32 kHz
11− do not use

With EMPHASIS activated (S1 = T1 = logic 0 and
S0 = T0 = logic 1) only bit rates 384 and 256 kbits/s can
be used.

A ready-to-receive S or E indicates whether or not the
SAA2012 can receive new settings or extended settings
respectively from the microcontroller and should be
checked prior to sending new information.

The SAA2012 can only be used to encode stereo (mode

00) signals and 2-channel mono (mode 10) signals.

During the decoding mode this bit indicates if the operation
of the SAA2002 is in synchronization with the PASC
signal. If not the SAA2002 cannot perform the decoding.

CLKOK indicates whether or not the f

s256

clock

corresponds with the specified sample frequency.
EMPHASIS indication may be used to apply correct

de-emphasis. During the encoding 50/15 µs mode the
SAA2012 will correct the calculated allocation if emphasis
is applied for a 44.1 kHz sampling frequency.

Table 11 MODE indication.

MSB LSB MODE OUTPUT

0 0 stereo L and R
0 1 joint stereo L and R
1 0 2-channel mono I or II as selected
1 1 1-channel mono mono, no selection

Frequency Range Limitation

In encode mode the frequency range will be limited at
lower rates. This is implemented by making the samples of
higher frequency sub-bands equal to 0 before the
allocation calculation. This automatically ensures that
these sub-bands do not get any bits allocated.

Table 12 shows the sub-bands affected and the resulting
frequency range.

The transfer of either 8-bits or 16-bits is permitted for the
transfer of status information. When only 8-bits are
transferred, these will always form the first byte and may
be used in checking the ready-to-receive bit.

September 1995 18

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

Table 12 The sub-bands affected and the resulting frequency range.

BIT RATE f

s

256 kbits/s 48 kHz 29, 30, 31 >21750 Hz
192 kbits/s 48 kHz 20, 21, 22, ..., 31 >15000 Hz

44.1 kHz 22, 23, 24, ..., 31 >15159 Hz

128 kbits/s 48 kHz 12, 13, 14, ..., 31 >9000 Hz

44.1 kHz 13, 14, 15, ..., 31 >8957 Hz
32 kHz 20, 21, 22, ..., 31 >10000 Hz

t

Le

LTENA

t

su1

t

h1

SUB-BANDS SET TO LOGIC 0 FREQUENCY

t

h2

SAA2012

LTCNT0/1

LTCLK

LTDATA

bit :

t

su4

t

su2

t t

su3 h3

01

tLe > 210 ns minimum LOW time LTENA prior to transfer.
t

> 50 ns set-up time LTCNT0, 1 before LTENA HIGH.

su1

th1 > 210 ns hold time LTCNT0/1 after LTENA HIGH.
t

> 210 ns set-up time LTENA before LTCLK LOW.

su2

th2 > 210 ns hold time LTENA after LTCLK HIGH.
tcL > 210 ns minimum LOW time LTCLK.
tcH > 210 ns minimum HIGH time LTCLK.
t

> 210 ns set-up time LTDATA before LTCLK HIGH.

su3

th3 > 50 ns hold time LTDATA after LTCLK HIGH.
t

> 210 ns set-up time LTCLK before LTENA HIGH.

su4

t

t

cL

cH

MEA658 - 2

September 1995 19

Fig.15 Microcontroller to SAA2012 timing.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

LTENA

LTCNT0/1

LTCLK

tW1 > 550 ns minimum time between two 8-bit transfers.

Fig.16 16-bit transfers.

t

Le

LTENA must remain HIGH

t

W1

SAA2012

MBC135 - 1

LTENA

LTCNT0/1

LTCLK

LTDATA

bit :

t

su4

t

su1

t

h1

t

su2

t t

d1 d2

01

tLe > 210 ns minimum LOW time LTENA prior to transfer.
t

> 50 ns set-up time LTCNT0/1 before LTENA HIGH.

su1

th1 > 210 ns hold time LTCNT0(C)/1(C) after LTENA HIGH.
t

> 210 ns set-up time LTENA before LTCLK LOW.

su2

th2 > 210 ns hold time LTENA before LTCLK HIGH.
tcL > 210 ns minimum LOW time LTCLK.
tcH > 210 ns minimum HIGH time LTCLK.
td1 < 385 ns maximum delay LTDATA after LTENA HIGH.
td2 < 385 ns maximum delay LTDATA after LTCLK HIGH.
th5 > 145 ns hold time LTDATA after LTCLK HIGH.
t

> 210 ns set-up time LTCLK before LTENA HIGH.

su4

th6 > 0 ns hold time LTDATA after LTENA LOW.

t

h2

t

t

cL

cH

th5t

h6

MEA657 - 2

September 1995 20

Fig.17 SAA2012 to microcontroller timing.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

LTENA

LTCNT0/1

LTCLK

tW2 > 550 ns minimum time between two 8-bit transfers.

Fig.18 16-bit transfers.

LTENA must remain HIGH

t

W2

SAA2012

MBC137

t

Le

LTENC

t

su1

LTCNT0(C)/1(C)

LTCLKC

LTDATAC

bit :

t

su4

t

su2

t t

su3 h3

01

tLe > 400 ns minimum LOW time LTENA prior to transfer.
t

> 400 ns set-up time LTCNT0(C)/1(C) before LTENC HIGH.

su1

t

> 200 ns set-up time LTENC before LTCLKC LOW.

su2

th2 > 400 ns hold time LTENC before LTCLK HIGH.
tcL > 210 ns minimum LOW time LTCLKC.
tcH > 210 ns minimum HIGH time LTCLKC.
t

> 210 ns set-up time LTDATAC before LTCLKC HIGH.

su3

th3 > 160 ns hold time LTDATAC after LTCLKC HIGH.
t

> 900 ns set-up time LTCLKC before LTENC HIGH.

su4

t

h2

t

t

cL

cH

MBC138 - 2

September 1995 21

Fig.19 SAA2012 to SAA2002 timing.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

LTENC

LTCNT0(C)/1(C)

LTCLKC

tW2 > 600 ns minimum time between two 8-bit transfers.

Fig.20 16-bit transfers.

t

Le

SAA2012

LTENC must remain HIGH

MBC139

LTENC

t

su1

LTCNT0(C)/1(C)

LTCLKC

LTDATAC

bit :

t

su4

t

su2

t t

d1 d2

01

tLe > 400 ns minimum LOW time LTENC prior to transfer.
t

> 400 ns set-up time LTCNT0(C)/1(C) before LTENC HIGH.

su1

t

> 200 ns set-up time LTENC before LTCLKC LOW.

su2

th2 > 400 ns hold time LTENC before LTCLKC HIGH.
tcL > 210 ns minimum LOW time LTCLKC.
tcH > 210 ns minimum HIGH time LTCLKC.
td1 < 300 ns maximum delay LTDATAC after LTENC HIGH.
td2 < 300 ns maximum delay LTDATAC after LTCLKC HIGH.
t

> 900 ns set-up time LTCLKC before LTENC HIGH.

su4

th5 > 160 ns hold time, after LTCLKC HIGH.
th6 > 0 ns hold time LTDATAC after LTENC LOW.

t

h2

t

t

cL

cH

th5t

h6

MBC140 - 2

September 1995 22

Fig.21 SAA2002 to SAA2012 timing.

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

SAA2012

LTENC

LTCNT0(C)/1(C)

LTCLKC

LTENC must remain HIGH

t

W2

MBC141

tW2 > 600 ns minimum time between two 8-bit transfers.

Fig.22 16-bit transfers.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

DD

V

I

I

DD

I

I

I

O

P

tot

T

stg

T

amb

V

es1

V

es2

supply voltage −0.5 +6.5 V
input voltage note 1 −0.5 VDD + 0.5 V
supply current − 100 mA
input current −±10 mA
output current −±40 mA
total power dissipation − 550 mW
storage temperature −55 +150 °C
operating ambient temperature −40 +85 °C
electrostatic handling note 2 −1500 +1500 V
electrostatic handling note 3 −70 +70 V

Notes

1. Input voltage should not exceed 6.5 V unless otherwise specified.

2. Equivalent to discharging a 100 pF capacitor through a 1.5 kΩ series resistor.

3. Equivalent to discharging a 200 pF capacitor through a 0 Ω series resistor.

September 1995 23

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

DC CHARACTERISTICS

V

= 3.8 to 5.5 V; T

DD

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

DD

I

DD

Inputs

V

IL

V

IH

I

I

Outputs

V

OL

V

OH

3-state outputs

I

OZ

= −40 to +85 °C; unless otherwise specified.

amb

supply voltage 3.8 5.0 5.5 V
operating supply current VDD= 3.8 V − 15 17 mA

=5V − 23 25 mA

V

DD

LOW level input voltage 0 − 0.3V
HIGH level input voltage 0.7V

DD

− V

input current −−10 µA

LOW level output voltage note 1 −−0.4 V
HIGH level output voltage note 1 VDD −

−−V

0.5

3-state OFF state current VI = 0 to 5.5 V −−10 µA

SAA2012

V

DD

DD

V

Note

1. Maximum load current for LTDATA, LTCNT1C, LTCNT0C, LTENC, LTCLKC, TEST1, TEST2, FDAC and
FDAF = 2 mA; for LTDATAC = 3 mA.

AC CHARACTERISTICS

= 3.8 to 5.5 V; T

V

DD

= −40 to +85 °C; unless otherwise specified.

amb

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Clock CLK24

f

s

sample frequency 23 24.576 26 MHz

Clock FS256

f

s

sample frequency −−13 MHz

Inputs FSYNC, SWS, LTCNT1, LTCNT0, LTENA, LTCLK, LTDATA, LTDATAC, FDAF, FDAC, SCL and SWS

C

I

NPUT SET-UP TIME

I
t

su

input capacitance −−10 pF

set-up time of inputs referenced to

note 1 15 −−ns

CLK24 rising edge

t

su

set-up time of inputs referenced to

note 2 15 −−ns

256fs rising edge

NPUT HOLD TIME

I
t

h

hold time of inputs referenced to

note 1 20 −−ns

CLK24 rising edge

t

h

hold time of inputs referenced to 256f

note 2 10 −−ns

s

rising edge

September 1995 24

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Outputs LTDATA, LTDATAC, LTCNT1C, LTCNT0C, LTENC, LTCLKC, FDAF and FDAC

C

o

t

d

t

d

3-state outputs

t

PHZ

t

PLZ

t

PZH

t

PZL

Notes

1. Inputs FSYNC, SWS, LTCNT1, LTCNT0, LTENA, LTCLK, LTDATA and LTDATAC.

2. Inputs FDAF, FDAC, SCL and SWS.

3. Outputs LTDATA, LTDATAC, LTCNT1C, LTCNT0C, LTENC and LTCLK.

4. Outputs FDAF and FDAC.

output capacitance −−10 pF
output delay referenced to CLK24

CL = 25 pF; note 3 −−45 ns

rising edge
output delay referenced to 256fs rising

CL = 25 pF; note 4 −−30 ns

edge

disable time HIGH-to-Z CL = 25 pF −−65 ns
disable time LOW-to-Z CL = 25 pF −−65 ns
enable time Z-to-HIGH CL = 25 pF −−65 ns
enable time Z-to-LOW CL = 25 pF −−65 ns

SAA2012

September 1995 25

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

PACKAGE OUTLINE

SAA2012

seating plane

1

11

44

pin 1 index

12

1.0

0.50

0.35

0.15

19.2

18.2

14.1

13.9

S

0.15 M A

S

34

2.4

33

1.8

23

0.50

0.35

22

2.4
(4x)

1.8

A

1.0

(4x)

0.15 M B

14.1

13.9

B

19.2

18.2

X

Dimensions in mm.

September 1995 26

2.3

0.25

2.1

0.05

detail X

Fig.23 44-lead quad flat-pack; plastic (SOT205AG).

2.0

1.2

1.2

0.9

0.25

0.14

o

0 to 7

MBC659 - 1

2.60

2.15

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

SOLDERING
Plastic quad flat-packs

YWAVE

B
During placement and before soldering, the component

must be fixed with a droplet of adhesive. After curing the
adhesive, the component can be soldered. The adhesive
can be applied by screen printing, pin transfer or syringe
dispensing.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder bath is
10 s, if allowed to cool to less than 150 °C within 6 s.
Typical dwell time is 4 s at 250 °C.

A modified wave soldering technique is recommended
using two solder waves (dual-wave), in which a turbulent
wave with high upward pressure is followed by a smooth
laminar wave. Using a mildly-activated flux eliminates the
need for removal of corrosive residues in most
applications.

Y SOLDER PASTE REFLOW

B

SAA2012

Several techniques exist for reflowing; for example,
thermal conduction by heated belt, infrared, and
vapour-phase reflow. Dwell times vary between 50 and
300 s according to method. Typical reflow temperatures
range from 215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 min at 45 °C.

EPAIRING SOLDERED JOINTS (BY HAND-HELD SOLDERING

R

IRON OR PULSE

Fix the component by first soldering two, diagonally
opposite, end pins. Apply the heating tool to the flat part of
the pin only. Contact time must be limited to 10 s at up to
300 °C. When using proper tools, all other pins can be
soldered in one operation within 2 to 5 s at between 270
and 320 °C. (Pulse-heated soldering is not recommended
for SO packages.)

For pulse-heated solder tool (resistance) soldering of VSO
packages, solder is applied to the substrate by dipping or
by an extra thick tin/lead plating before package
placement.

-HEATED SOLDER TOOL)

Reflow soldering requires the solder paste (a suspension
of fine solder particles, flux and binding agent) to be
applied to the substrate by screen printing, stencilling or
pressure-syringe dispensing before device placement.

September 1995 27

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress rating only and operation of
the device at these or at any other conditions above those given in the Characteristics sections of the specification is
not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

SAA2012

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

The Digital Compact Cassette logo is a registered trade mark of Philips Electronics N.V.

September 1995 28

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

SAA2012

NOTES

September 1995 29

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

SAA2012

NOTES

September 1995 30

Philips Semiconductors Product specification

Adaptive allocation and scaling for
record processing in DCC systems

SAA2012

NOTES

September 1995 31

Philips Semiconductors – a worldwide company

Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428)

BUENOS AIRES, Tel. [phone], Fax. [phone]

Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]

Austria: Triester Str. 64, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]

Belgium: Postbus 90050, 5600 PB EINDHOVEN, The Netherlands,

Tel. [phone], Fax. [phone]

Brazil: Rua do Rocio 220 - 5

CEP: 04552-903-SÃO PAULO-SP, Brazil.
P.O. Box 7383 (01064-970).
Tel. [phone], Fax. [phone]

Canada: INTEGRATED CIRCUITS:

Tel. [phone], Fax. [phone]
DISCRETE SEMICONDUCTORS: 601 Milner Ave,
SCARBOROUGH, ONTARIO, M1B 1M8,
Tel. [phone] ext. 2336, Fax. [phone]

Chile: Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone]

Colombia: Carrera 21 No. 56-17, BOGOTA, D.E., P.O. Box 77621,

Tel. [phone], Fax. [phone]

Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex,
Tel. [phone], Fax. [phone]

Germany: P.O. Box 10 63 23, 20095 HAMBURG ,

Tel. [phone], Fax. [phone]

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone] 911, Fax. [phone]

Hong Kong: 15/F Philips Ind. Bldg., 24-28 Kung Yip St.,

KWAI CHUNG, Tel. [phone], Fax. [phone]

India: PHILIPS ELECTRONICS & ELECTRICALS Ltd.,

Components Dept., Shivsagar Estate, Block 'A',
Dr. Annie Besant Rd., Worli, BOMBAY 400 018,
Tel. [phone], Fax. [phone]

Indonesia: Philips House, Jalan H.R. Rasuna Said Kav. 3-4,

P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]

Italy: Viale F. Testi, 327, 20162 MILANO,

Tel. [phone], Fax. [phone]

Japan: Philips Bldg13-37, Kohnan 2-chome, Minato-ku, KOKIO 108,

Tel. [phone], Fax. [phone]

Korea: (Republic of) Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. [phone], Fax. [phone]

Mexico: Philips Components, 5900 Gateway East, Suite 200,

EL PASO, TX 79905, Tel. [phone], Fax. [phone]

Netherlands: Postbus 90050, 5600 PB EINDHOVEN,

Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

th

floor, Suite 51,

Pakistan: Philips Markaz, M.A. Jinnah Rd., KARACHI 3,

Tel. [phone], Fax. [phone]

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Portugal: Av. Eng. Duarte Pacheco 6, 1009 LISBOA Codex,

Tel. [phone], Fax. [phone]

Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

South Africa: 195-215 Main Road, Martindale,

P.O. Box 7430,JOHANNESBURG 2000,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla. S-164 85 STOCKHOLM,

Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. [phone], Fax. [phone]

Taiwan: 23-30F, 66, Chung Hsiao West Road, Sec. 1, P.O. Box

22978, TAIPEI 10446, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

60/14 MOO 11, Bangna - Trad Road Km. 3
Prakanong, BANGKOK 10260,
Tel. [phone] to 9, (2)398-2083, Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 LEVENT/ISTANBUL,

Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Limited, P.O. Box 65,

Philips House, Torrington Place, LONDON, WC1E 7HD,
Tel. [phone], Fax. [phone]

United States:INTEGRATED CIRCUITS:

811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]
DISCRETE SEMICONDUCTORS: 2001 West Blue Heron Blvd.,

P.O. Box 10330, RIVIERA BEACH, FLORIDA 33404,
Tel. [phone] and [phone], Fax. [phone]

Uruguay: Coronel Mora 433, MONTEVIDEO,

Tel. [phone], Fax. [phone]

For all other countries apply to: Philips Semiconductors,
International Marketing and Sales, Building BAF-1,
P.O. Box 218, 5600 MD, EINDHOVEN, The Netherlands,
Telex 35000 phtcnl, Fax. [phone]

SCD29 © Philips Electronics N.V. 1994

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands

Philips Semiconductors
