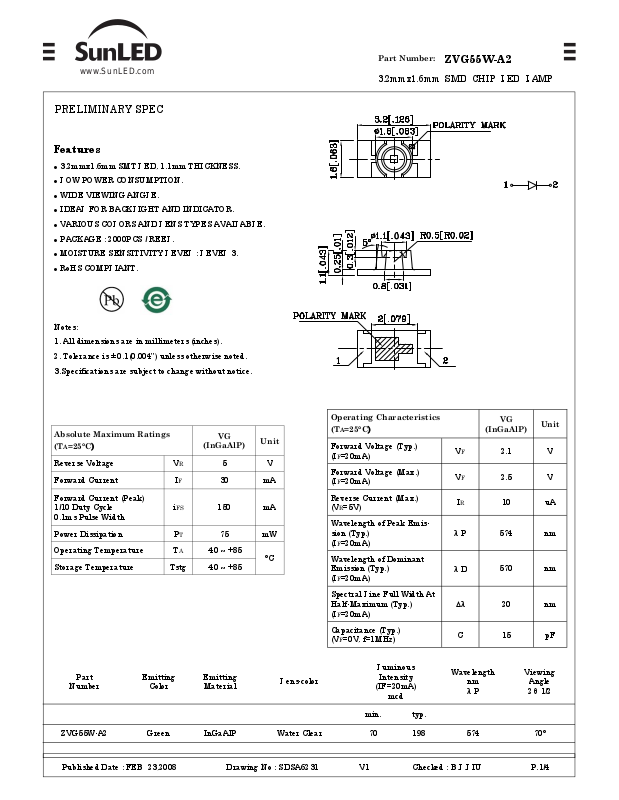

Page 1
www.SunLED.com
PRELIMINARY SPEC
Features
z 3.2mmx1.6mm SMT LED, 1.1mm THICKNESS.
z LOW POWER CONSUMPTION.
z WIDE VIEWING ANGLE.
z IDEAL FOR BACKLIGHT AND INDICATOR.
z VARIOUS COLORS AND LENS TYPES AVAILABLE.
z PACKAGE : 2000PCS / REEL.
z MOISTURE SENSITIVITY LEVEL : LEVEL 3.
z RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.1(0.004") unless otherwise noted.
3.Specifications are subject to change without notice.
Part Number:
ZVG55W-A2
3.2mmx1.6mm SMD CHIP LED LAMP
Absolute Maximum Ratings
A=25°C)
(T
Reverse Voltage V
Forward Current I
R 5 V
F 30 mA
VG
(InGaAlP)
Forward Current (Peak)
1/10 Duty Cycle
i
FS 150 mA
0.1ms Pulse Width
Power Dissipation P
Operating Temperature T
T 75 mW
A -40 ~ +85
Storage Temperature Tstg -40 ~ +85
Part
Number
Emitting
Color
Emitting
Material
Unit
°C
Lens-color
Operating Characteristics
A=25°C)
(T
Forward Voltage (Typ.)
(I
F=20mA)
Forward Voltage (Max.)
F=20mA)
(I
Reverse Current (Max.)
R=5V)
(V
Wavelength of Peak Emission (Typ.)
(I
F=20mA)
Wavelength of Dominant
Emission (Typ.)
F=20mA)
(I
Spectral Line Full Width At
Half-Maximum (Typ.)
(I
F=20mA)
Capacitance (Typ.)
F=0V, f=1MHz)
(V
Luminous
Intensity
(IF=20mA)
mcd
VG
(InGaAlP)
F 2.1 V
V
F 2.5 V
V
R 10 uA
I
λ P
λ D
Δλ
574 nm
570 nm
nm
20
C 15 pF
Wavelength
nm
λ P
Viewing
Angle
2 θ 1/2
Unit
min. typ.
ZVG55W-A2 Green InGaAlP Water Clear 70 198 574 70°
Published Date : FEB 23,2008 Drawing No : SDSA6231 V1 Checked : B.L.LIU P.1/4

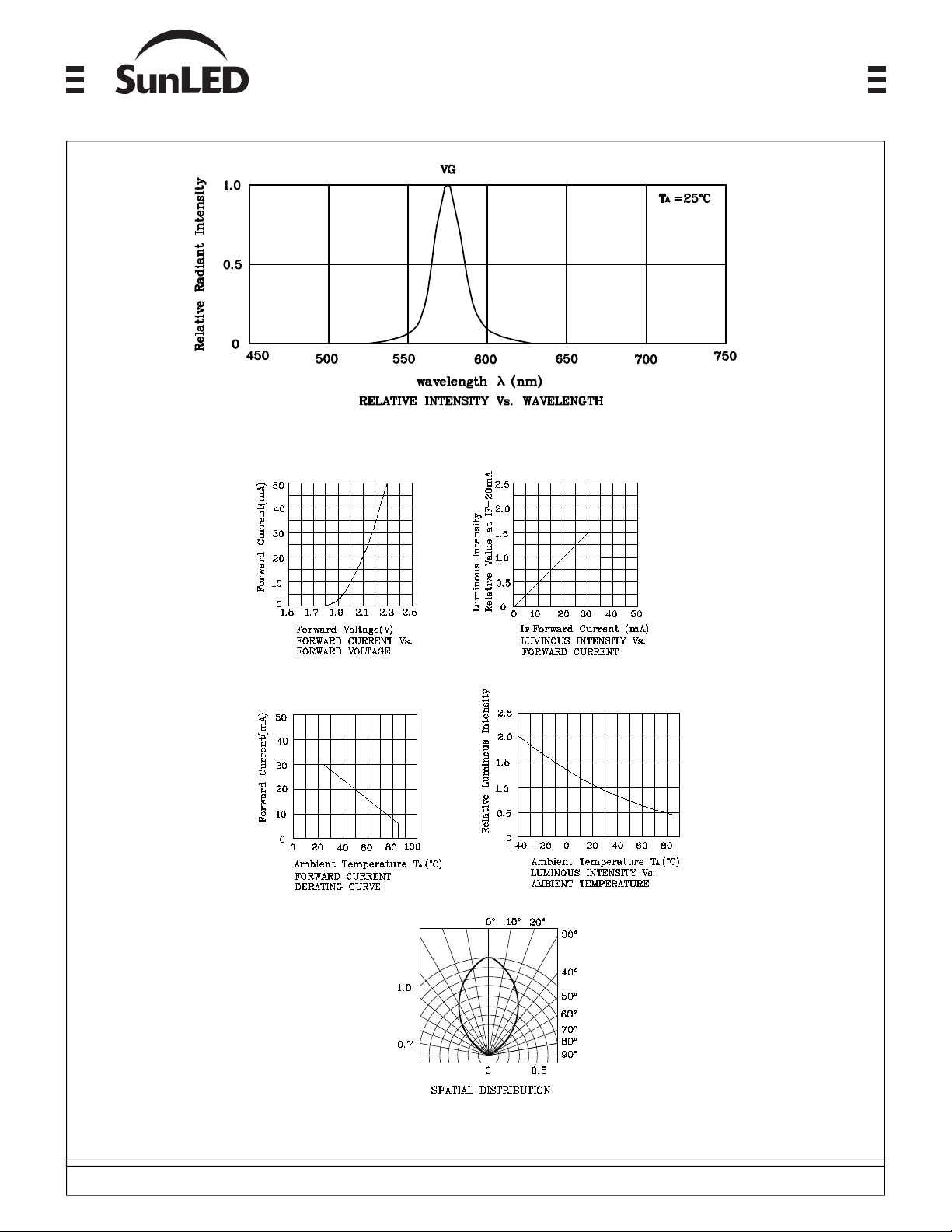

Page 2
www.SunLED.com
VG
Part Number:
3.2mmx1.6mm SMD CHIP LED LAMP
ZVG55W-A2
Published Date : FEB 23,2008 Drawing No : SDSA6231 V1 Checked : B.L.LIU P.2/4
Page 3
Part Number:
www.SunLED.com
ZVG55W-A2
3.2mmx1.6mm SMD CHIP LED LAMP

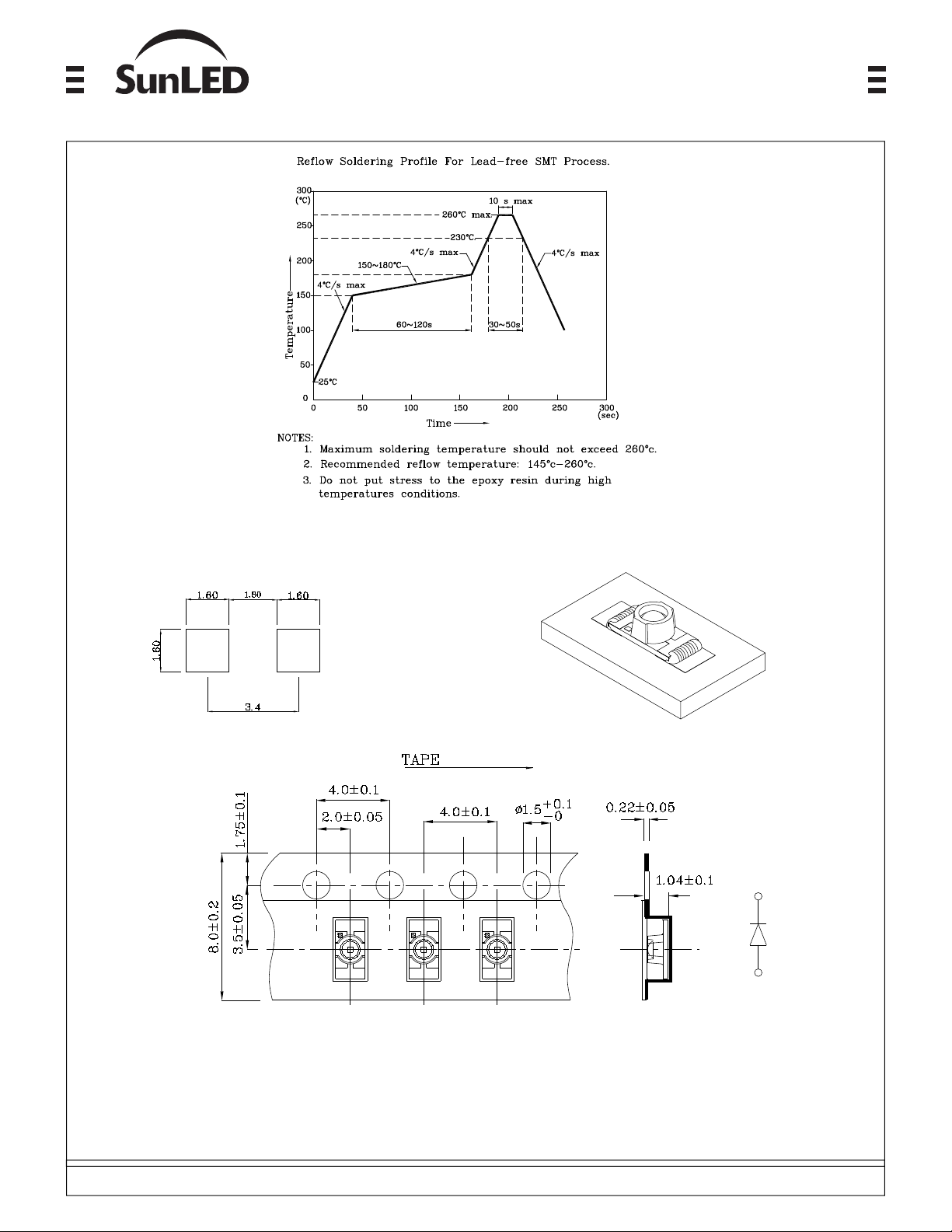

Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Tape Specification (Units : mm)
The device has a single mounting surface. The device
must be mounted according to the specifications
.
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity/ Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 23,2008 Drawing No : SDSA6231 V1 Checked : B.L.LIU P.3/4
Page 4
Part Number:
www.SunLED.com
3.2mmx1.6mm SMD CHIP LED LAMP

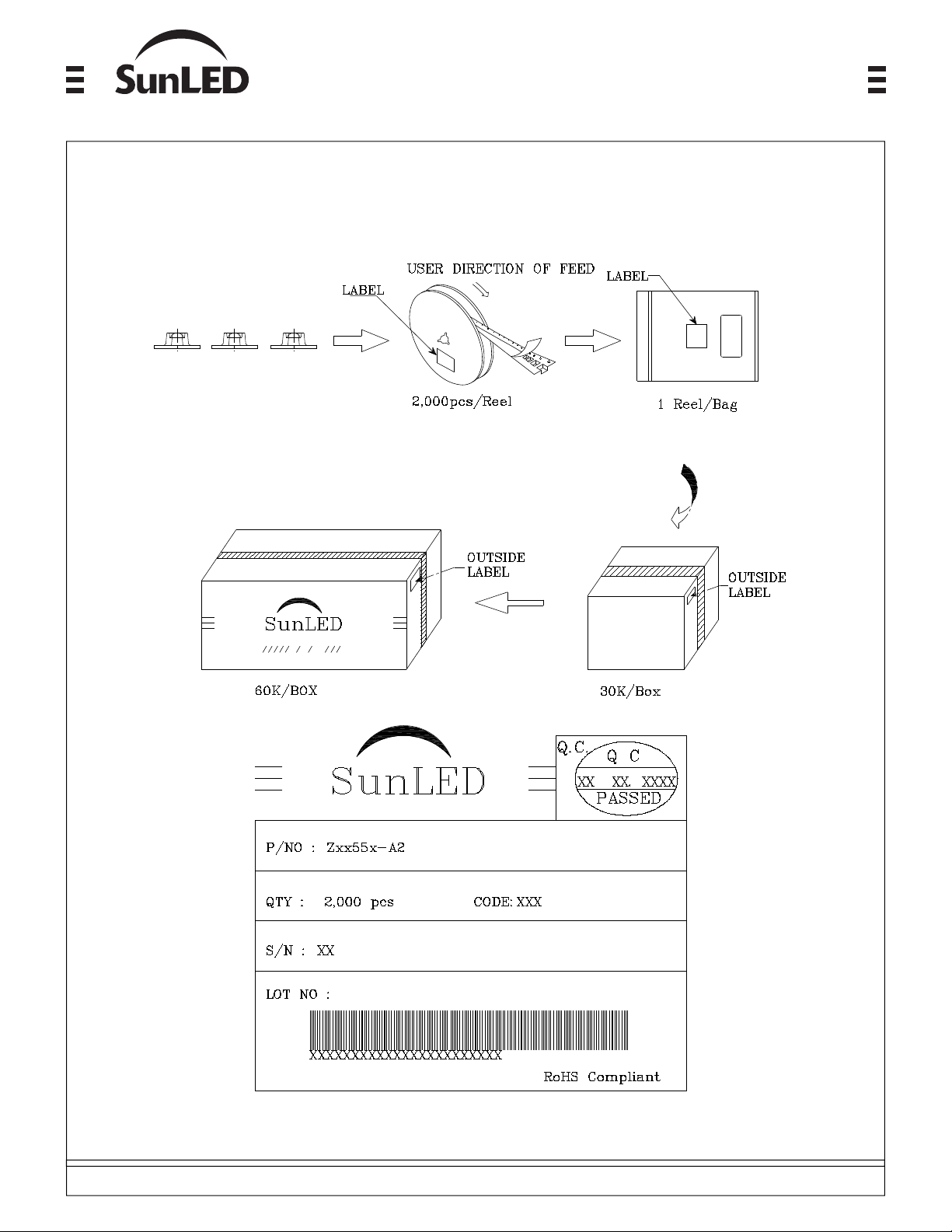

PACKING & LABEL SPECIFICATIONS ZVG55W-A2
ZVG55W-A2
Published Date : FEB 23,2008 Drawing No : SDSA6231 V1 Checked : B.L.LIU P.4/4
