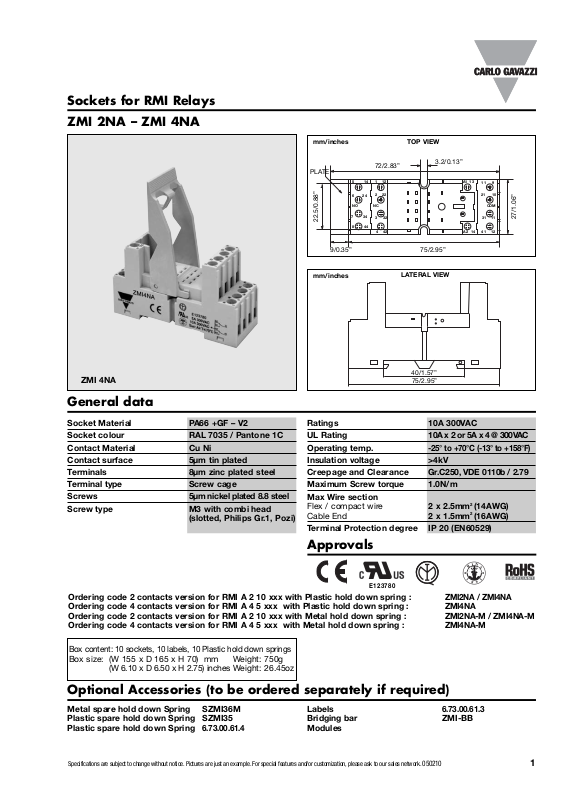

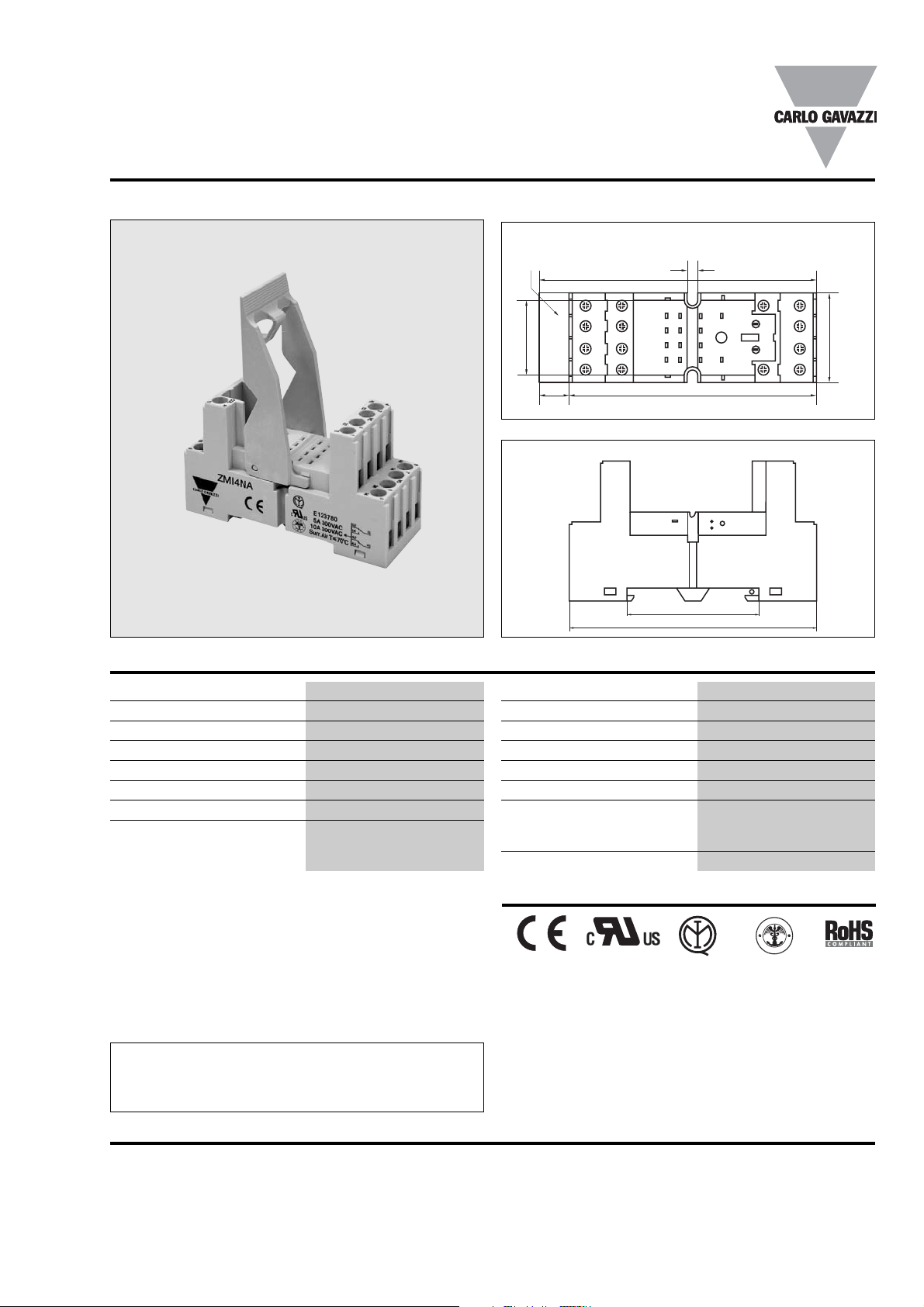

Sockets for RMI Relays
General data
Socket Material PA66 +GF – V2
Socket colour RAL 7035 / Pantone 1C
Contact Material Cu Ni
Contact surface 5µm tin plated
Terminals 8µm zinc plated steel
Terminal type Screw cage
Screws 5µm nickel plated 8.8 steel
Screw type M3 with combi head
(slotted, Philips Gr.1, Pozi)
Ratings 10A 300VAC
UL Rating 10A x 2 or 5A x 4 @ 300VAC
Operating temp.
-25° to +70°C (-13° to +158°F)
Insulation voltage >4kV
Creepage and Clearance Gr.C250, VDE 0110b / 2.79
Maximum Screw torque 1.0N/m
Max Wire section
Flex / compact wire 2 x 2.5mm
2
(14AWG)
Cable End 2 x 1.5mm2 (16AWG)
Terminal Protection degree IP 20 (EN60529)
ZMI 2NA – ZMI 4NA
Optional Accessories (to be ordered separately if required)
Metal spare hold down Spring SZMI36M
Plastic spare hold down Spring SZMI35
Plastic spare hold down Spring
6.73.00.61.4
Labels
6.73.00.61.3
Bridging bar ZMI-BB
Modules
Ordering code 2 contacts version for RMI A 2 10 xxx with Plastic hold down spring :
ZMI2NA / ZMI4NA
Ordering code 4 contacts version for RMI A 4 5 xxx with Plastic hold down spring :
ZMI4NA
Ordering code 2 contacts version for RMI A 2 10 xxx with Metal hold down spring :
ZMI2NA-M / ZMI4NA-M
Ordering code 4 contacts version for RMI A 4 5 xxx with Metal hold down spring :
ZMI4NA-M
40/1.57”
75/2.95”
75/2.95”
27/1.06”
22.5/0.88”
3.2/0.13”
PLATE
9/0.35”
72/2.83”
LATERAL VIEW
TOP VIEW
ZMI 4NA
9
101121
COM
1131
12
41
5
6
NO
7
8
13
14
14
24
34
44
1
2
NC
3
4
12
22
32
42
A1
A2
mm/inches
mm/inches
Approvals
Box content: 10 sockets, 10 labels, 10 Plastic hold down springs
Box size: (W 155 x D 165 x H 70) mm Weight: 750g
(W 6.10 x D 6.50 x H 2.75) inches Weight: 26.45oz
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network.
050210
1
E123780
N
I
A
R
1
1
8
6
Page 2
2 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 050210

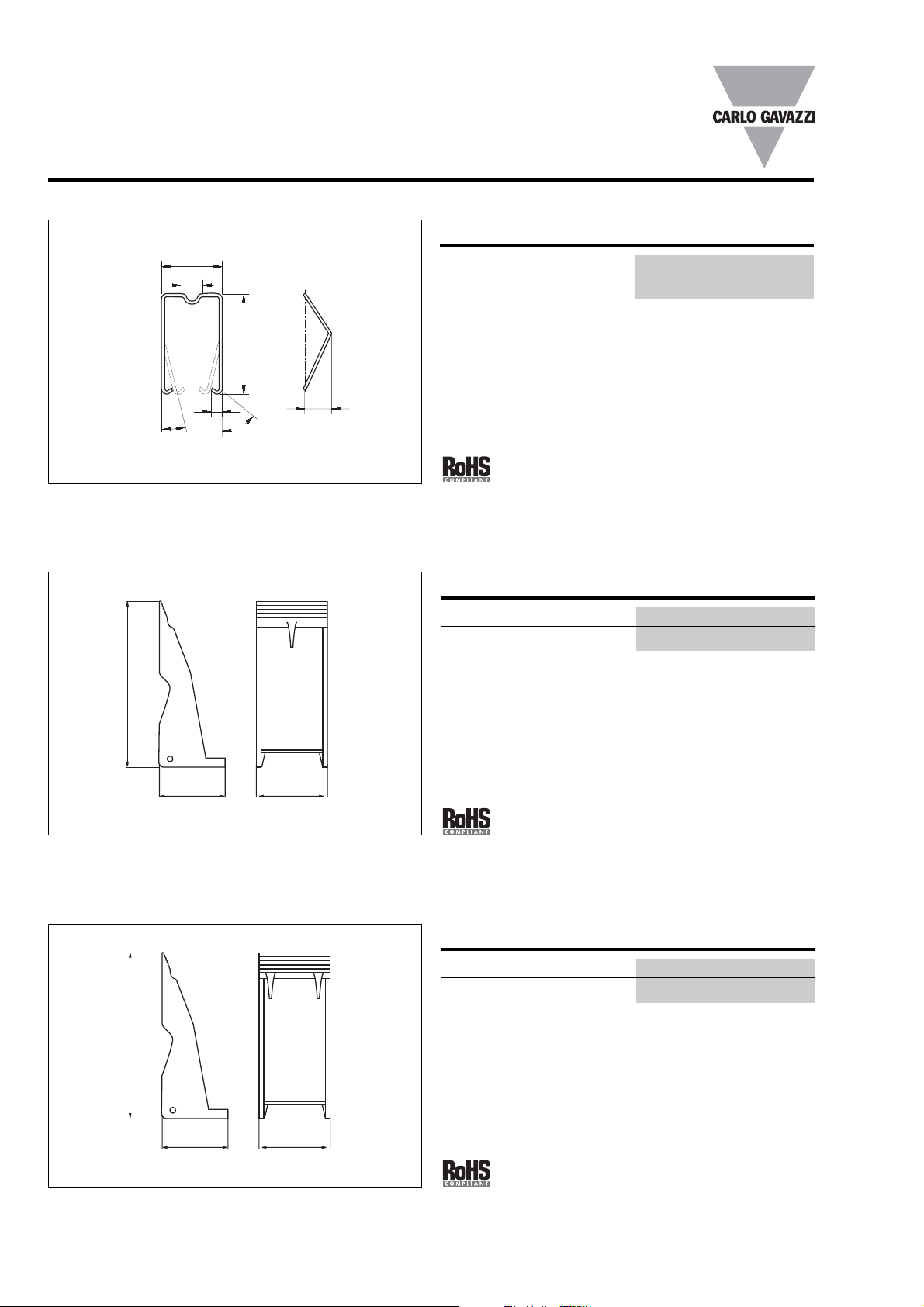

Optional Springs for ZMI series, ZR08 and ZDM14A
SZMI 36M
Packaging
Box content: 1 plastic bag, 10pcs.
Weight: ~5g (0.18oz)
mm/inchesmm/inches
23/0.90”
38/1.50”
5/0.20”
53°
3.8/0.15”
10°
10/0.39”
6.73.00.61.4
Packaging
Box content: 1 plastic bag, 10pcs.
Weight: ~20g (0.70oz)
59/2.32”
25/0.98”
mm/inchesmm/inches
23/0.91”
SZMI 35
Packaging
Box content: 1 plastic bag, 10pcs.
Weight: ~20g (0.70oz)
59/2.32”
25/0.98”
mm/inchesmm/inches
23/0.91”
SZMI 36M
SZMI 35
6.73.00.61.4
Spring material Stainless steel
General data
Spring material PA66 + GF (V0)
Spring colour RAL 7035 / Pantone 1C
General data
Spring material PA6 + GF (V2)
Spring colour RAL 7035 / Pantone 1C
General data
Page 3
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network.
050210
3

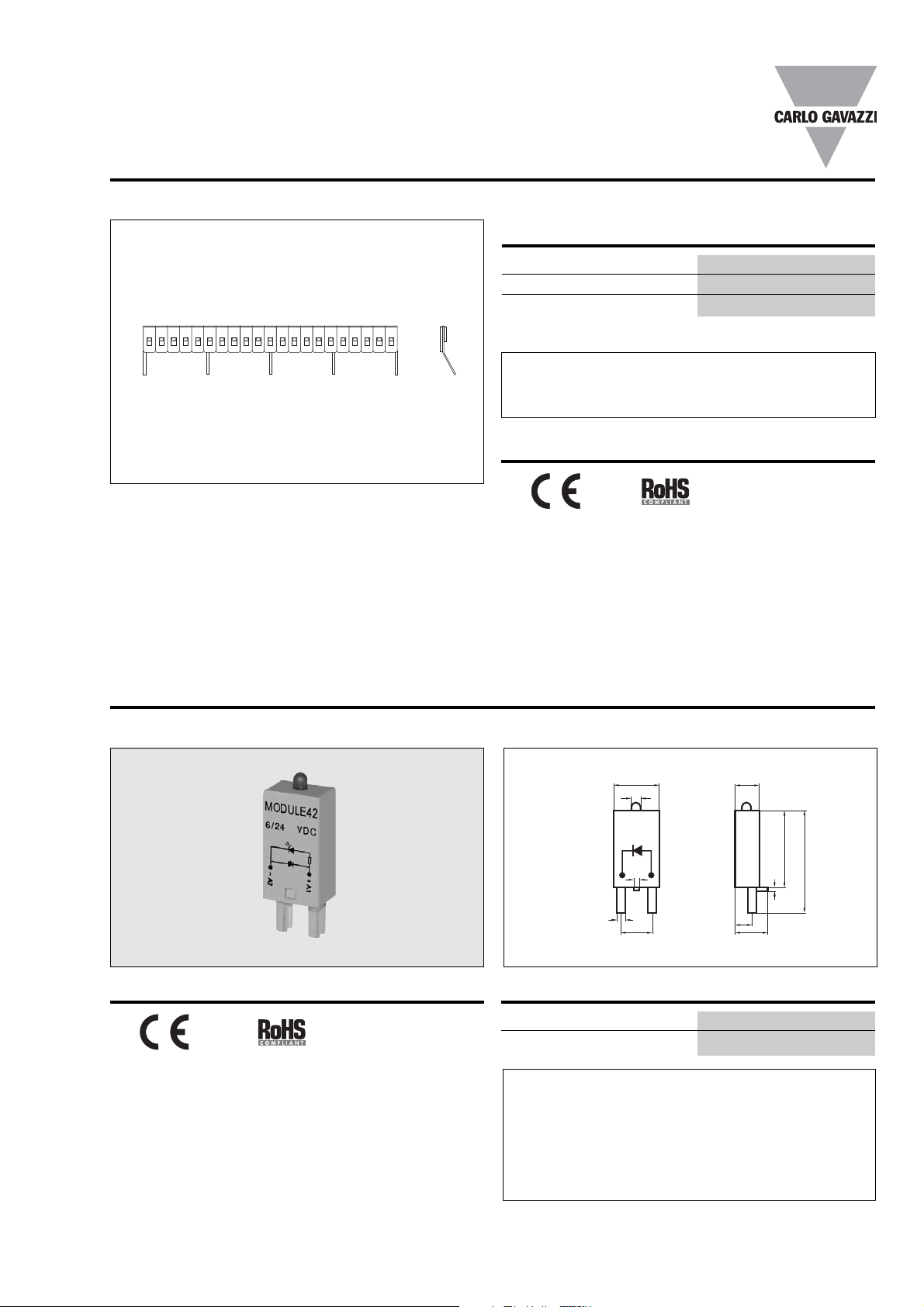

Optional Function Modules
3/0.12”
2/
0.08”
3.4/0.13”
7.62/3”
13/0.51” 9/0.35”
23.5/0.93”
31.5/1.24”
12.25/0.48”
5.45/0.21”
1.5/0.06”
MODULE 42
Packaging
Box content: 1 bag, 100pcs.
Box size: W 160 x D 70 x H 80 mm Weight: ~350g
(W 6.30 x D 2.75 x H 3.15) inches Weight: ~12.3oz
DIMENSIONS
mm/inchesmm/inches
Modules for ZMI and ZD sockets
Approvals
European low-voltage
directive compliant
Module material PA66+GF (V0)
Module colour RAL 7035 / Pantone 1C
General data
Optional sockets bridging bars
ZMI-BB
Packaging
Box content: 1 plastic bag, 10pcs.
Weight: ~50g (~1.76oz)
mm/inchesmm/inches
ZMI-BB
Plastic insulator material PA66 + GF (V0)
Plastic insulator colour Black
Metal jumper Tinned copper
General data
Approvals
MODULE 12
6/230 VDC
+A2
-A1
Page 4

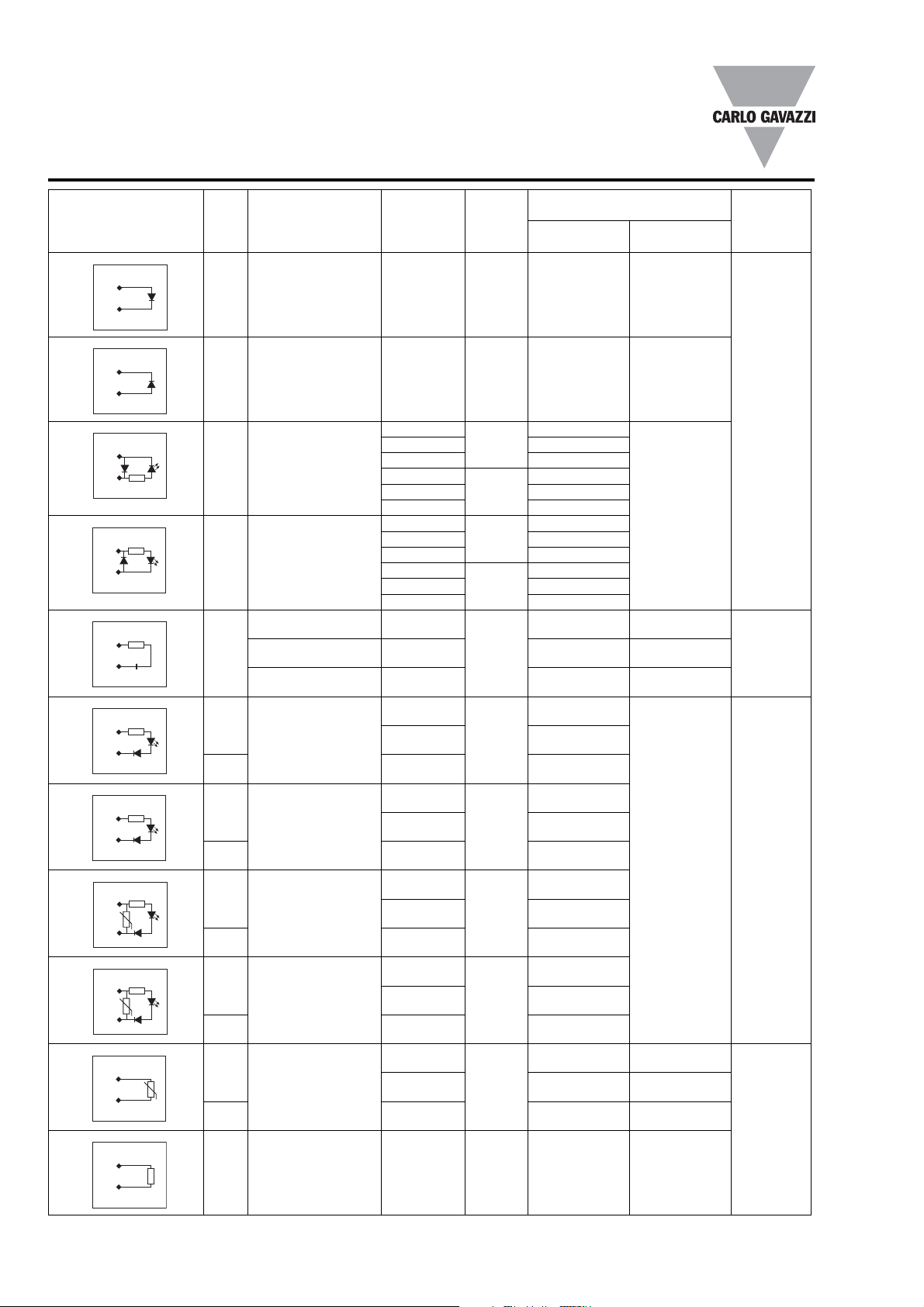

Diagram
Type Description
Operating
voltage
LED
Colour
Ordering code
Notes
ZMI, ZD, ZDM
Sockets
ZPD9, ZPD11
-A1
+A2
12
Free wheeling diode A2 + 6 / 230VDC n.a.
MODULE12 MODULE11
Only for DC
relays
+A1
-A2
22
Free wheeling diode A1 + 6 / 230VDC n.a.
MODULE22 MODULE21
-A1
+A2
32
Free wheeling diode A2 +,
with LED
6 / 24VDC
Red
MODULE32
n.a.
24 / 60VDC
MODULE32B
110 / 230VDC
MODULE32C
6 / 24VDC
Green**
MODULE32/G
24 / 60VDC
MODULE32B/G
110 / 230VDC
MODULE32C/G
+A1
-A2
42
Free wheeling diode A1 +,
with LED
6 / 24VDC
Red
MODULE42
24 / 60VDC
MODULE42B
110 / 230VDC
MODULE42C
6 / 24VDC
Green**
MODULE42/G
24 / 60VDC
MODULE42B/G
110 / 230VDC
MODULE42C/G
A1
A2
52
RC Filter 110/240VAC
n.a.
MODULE52 MODULE51
Only for AC
relays
RC Filter 6 / 24VAC
MODULE52B MODULE51B
RC Filter 24 / 60VAC
MODULE52D MODULE51D
+A1
-A2
~
~
62
Signalling LED
6 / 24V
Red
MODULE62
n.a.
Can work with AC
and DC Relays
24 / 60V
MODULE62E
92
110 / 230V
MODULE92
+A1
-A2
~
~
62
Signalling LED
6 / 24V
Green**
MODULE62/G
24 / 60V
MODULE62E/G
92
110 / 230V
MODULE92/G
+A1
-A2
~
~
62
Signalling LED, with
Varistor
6 / 24V
Red
MODULE62C
24 / 60V
MODULE62D
92
110 / 230V
MODULE92C
+A1
-A2
~
~
62
Signalling LED, with
Varistor
6 / 24V
Green**
MODULE62C/G
24 / 60V
MODULE62D/G
92
110 / 230V
MODULE92C/G
A1
A2
72
Varistor
6 / 24VAC
n.a.
MODULE72 MODULE71
115VAC
MODULE72A MODULE71A
82
230VAC
MODULE82 MODULE81
A1
A2
102
Resistor 110 / 230VAC n.a.
MODULE102 n.a.
Types and electrical configurations
** Non standard devices normally not in stock and production upon request
4 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 050210
Page 5
Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network.
050210
5

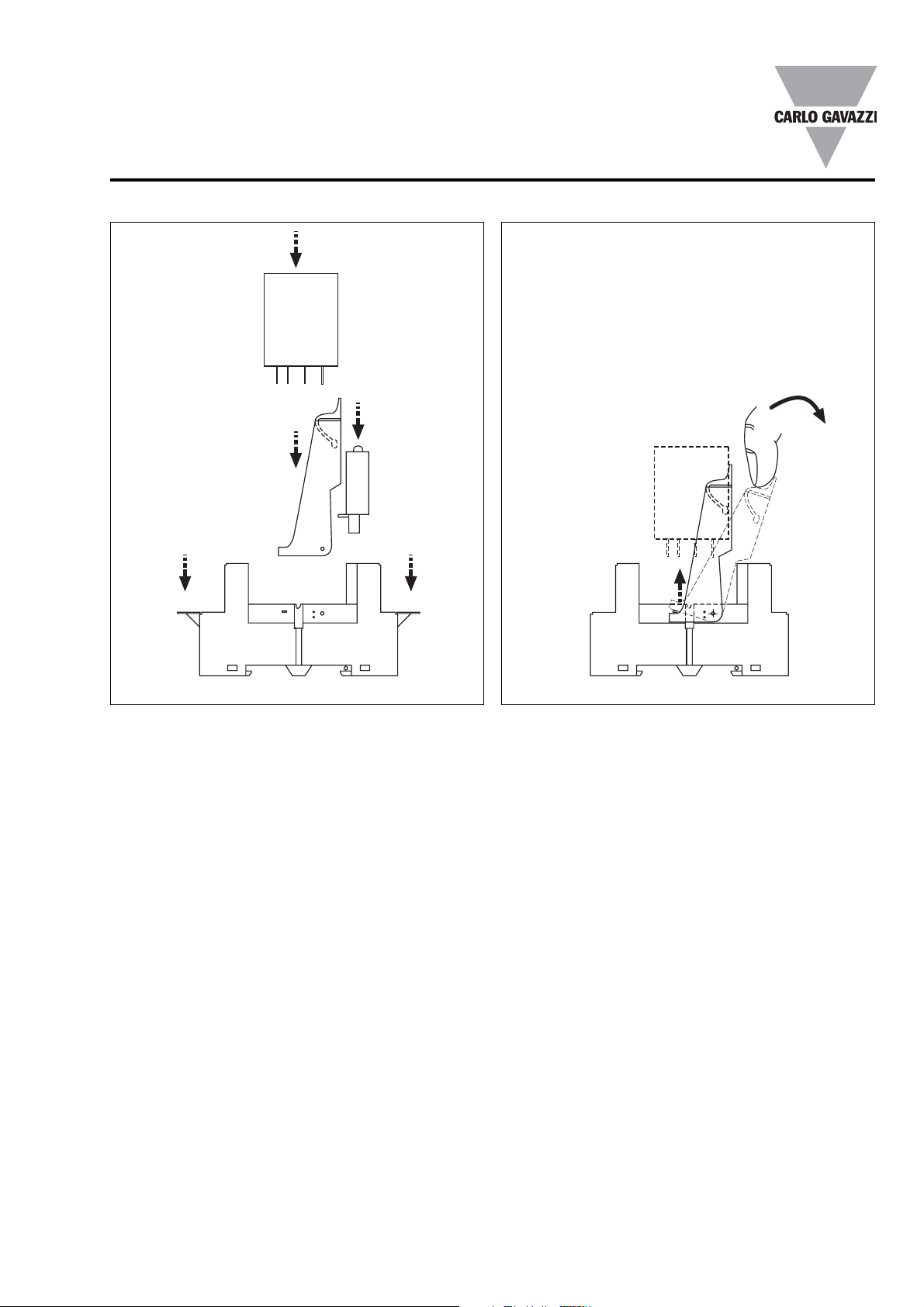

Installation Operations
MODULE
SPRING FOR RELAY
PLATE
ZMI ASSEMBLY VIEW RELAY REMOVAL
PLATE
RELAY
