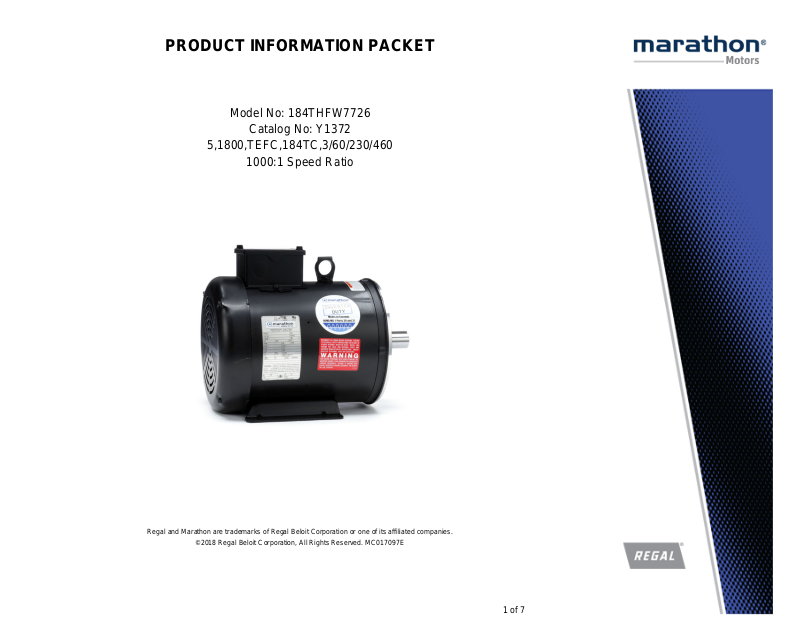

PRODUCT INFORMATION PACKET
Model No: 184THFW7726
Catalog No: Y1372
5,1800,TEFC,184TC,3/60/230/460
1000:1 Speed Ratio
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 7
Product Information Packet: Model No: 184THFW7726, Catalog No:Y1372 5,1800,TEFC,184TC,3/60/230/460
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 87.5 % Duty Continous
Insulation Class
KVA Code J Frame 184TC
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6205 UL Recognized
CSA
IP Code
5 Hp
13.0/6.5 A
1
H
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
3.7 kW
1760 rpm
3
INV
6206
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Inverter Duty
Starting Method
Inverter Only
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 1.125 in Shaft Extension 2.87 in
Assembly/Box Mounting
Outline Drawing
Bolt-on Base
13.97 in
F3
035651-850
Motor Orientation
Frame Length

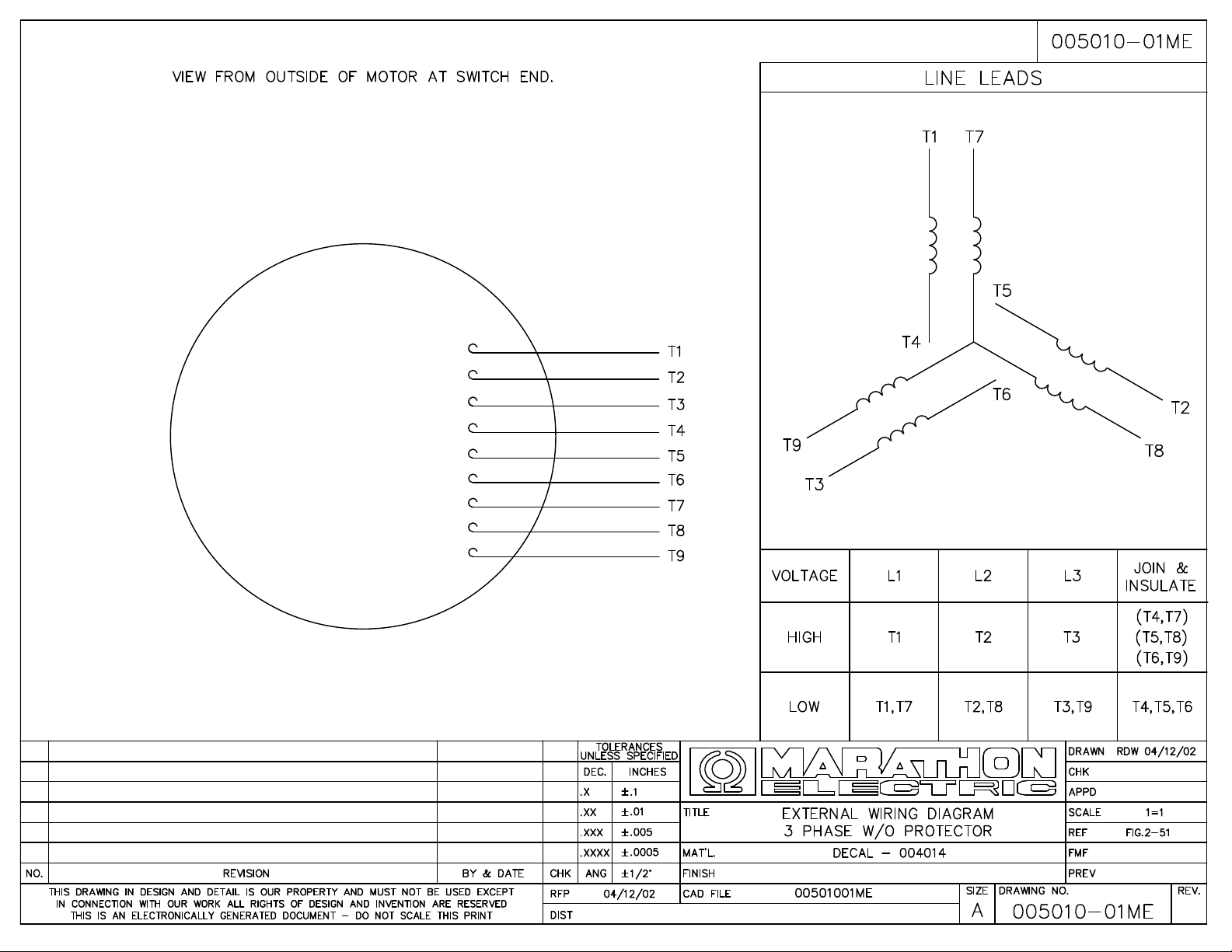

Connection Diagram
Horizontal
8.50 in
005010.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 07/02/2018
2 of 7
VIEW - "A"
A
1/20/2011 2:51:24 PM
3 of 7
4 of 7
7/20/2012 2:29:41 PM - Converted by Connexus
CERTIFICATION DATA SHEET
Model#: 184THFW7726 AA WINDING#: T84178 R1 3
CONN. DIAGRAM: 005010.01ME ASSEMBLY: F3
OUTLINE: 035651-850
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
5 3.7 1800 1760 184TC TEFC J INV
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 230/460 13/6.5 INVERTER
ONLY
CONTINUOUSH3 1.0 40 3300
FULL LOAD EFF: 87.5 3/4 LOAD EFF: 88.6 1/2 LOAD EFF: 87.7 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 81.6 3/4 LOAD PF: 76.7 1/2 LOAD PF: 66.2 0 SQ CAGE INV DUTY 5.6 / 2.8
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
15 LB-FT 94.8 / 47.4 29.2 LB-FT 195 48.6 LB-FT 324 70
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
- dBA - dBA 0.357 LB-FT^2 - LB-FT^2 10 SEC. - 0 LBS.
EQUIVALENT WYE CKT.PARAMETERS (OHMS PER PHASE)
R1
R2 X1 X2 XM
0 0 0 0 0
RM
ZREF XR TD TD0
0 0 0 0 0
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD BOLT-ON HORIZONTAL FALSE NONE FALSE NONE BLACK
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE AISI 1045 (C-240) ROLLED STEEL
6206 6205
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 20:1
INV. HP SPEED RANGE: 2.0 X BASE SPEED
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
Uncontrolled Copy
5 of 7
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 06:19:55 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
6 of 7
Date:
Customer:
Attention:
Submitted by:
Data @
460
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
2.80 3.2 4.0 5.2 6.5 7.4 8.0 47.4
Torque (ft-lb)
0.00 3.7 7.4 11.2 15.0 17.2 18.9 29.2
RPM
1800 1790 1778 1766 1760 1,754 1737 0
Efficiency (%)
82.4 87.7 88.6 87.5 87.7 86.1
P.F. (%)
6.9 44.6 66.2 76.7 81.6 82.9 84.6 0.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 900 1656 1760 1800
Information Block
Current (Amps)
47.4 43.6 28.4 6.5 2.80 5.0
Torque (ft-lb)
29.2 28.0 48.6 15.0 0.00 1800
184
TEFC
TFW
230/460
V
60
Hz
B
J
1.15
70
°
C
CONT
40
°
C
1,000
feet
0.36
Lb-Ft²
T84178 R1
999 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.0000 0.0000 0.0000 0.0000 0.0000
CONSTANT 20:1
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 035651-850
Conn. Diag 005010.01ME
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
29-06-2017 184THFW7726
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
0.0
10.0
20.0
30.0
40.0
50.0
60.0
0 200 400 600 8 00 1000 1200 1400 1600 1800 2000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
7 of 7
