Datasheet XWD1215, XWD1212, XWD1205, XWD6015, XWD6012 Datasheet (Power-One)

...
Page 1
(888) IPD-CONVerters
●
(888) 473-2668 ● www.ipdconverters.com

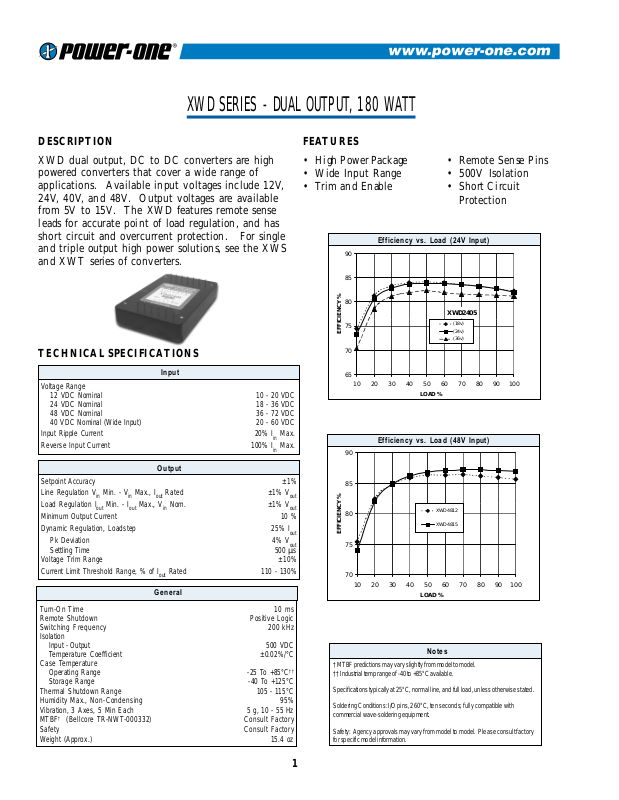

XWD SERIES - DUAL OUTPUT, 180 WATT
DESCRIPTION FEA TURES
XWD dual output, DC to DC converters are high powered converters that cover a wide range of applications. Available input voltages include 12V, 24V, 40V, and 48V. Output voltages are available from 5V to 15V. The XWD features remote sense leads for accurate point of load regulation, and has short circuit and overcurrent protection. For single and triple output high power solutions, see the XWS and XWT series of converters.
TECHNICAL SPECIFICA TIONS
Input
Voltage Range
12 VDC Nominal 10 - 20 VDC 24 VDC Nominal 18 - 36 VDC 48 VDC Nominal 36 - 72 VDC 40 VDC Nominal (Wide Input) 20 - 60 VDC
Input Ripple Current 20% I Reverse Input Current 100% I
Output
Setpoint Accuracy ±1% Line Regulation Vin Min. - Vin Max., I Load Regulation I
Min. - I
out
out
Rated ±1% V
out
Max., Vin Nom. ±1% V Minimum Output Current 10 % Dynamic Regulation, Loadstep 25% I
Pk Deviation 4% V Settling Time 500 µs
Voltage Trim Range ±10% Current Limit Threshold Range, % of I
Rated 110 - 130%
out
General
Turn-On Time 10 ms Remote Shutdown Positive Logic Switching Frequency 200 kHz Isolation
Input - Output 500 VDC Temperature Coefficient ±0.02%/°C
Case Temperature
Operating Range -25 To +85°C
Storage Range -40 To +125°C Thermal Shutdown Range 105 - 115°C Humidity Max., Non-Condensing 95% Vibration, 3 Axes, 5 Min Each 5 g, 10 - 55 Hz MTBF† (Bellcore TR-NWT-000332) Consult Factory Safety Consult Factory Weight (Approx.) 15.4 oz
Max.
in
Max.
in
• High Power Package
• Wide Input Range
• Trim and Enable
90
85
80
75
EFFICIENCY %
70
65
10 20 30 40 50 60 70 80 90 100
90
85
out out
out out
††
80
EFFICIENCY %
75
70
10 20 30 40 50 60 70 80 90 100
† MTBF predictions may vary slightly from model to model. †† Industrial temp range of -40 to +85°C available.
Specifications typically at 25°C, normal line, and full load, unless otherwise stated. Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment. Safety: Agency approvals may vary from model to model. Please consult factory
for specific model information.
• Remote Sense Pins
• 500V Isolation
• Short Circuit Protection
Efficiency vs. Load (24V Input)
XWD2405
(18v) (24v) (36v)
LOAD %
Efficiency vs. Load (48V Input)
XWD4812
XWD4815
LOAD %
Notes
1
Page 2
XWD SERIES - DUAL OUTPUT, 180 WATT
MODELS - (See the last page of Section C for options.)
Vin
(Volts)
12 12 12 24 24 24 48 48 48 40 40 40
Vin Range
(Volts)
10 - 20 10 - 20 10 - 20 18 - 36 18 - 36 18 - 36 36 - 72 36 - 72 36 - 72 20 - 60 20 - 60 20 - 60
Iin Max.*
(Amps)
14.0
16.9
16.7
11.3
13.3
13.3
5.5
6.5
6.5
10.3
12.2
12.2
* Maxi mum i np ut c urre nt at mi ni mum i np ut v o l tag e , maximum rate d output power. ** A t nominal V in, ra te d outp u t.
MECHANICAL DRAWING
5.50"
(139.7mm)
#4-40 THREADED INSERTS 4PLS.
1
2
3
3.50"
(88.9mm)
-0.60"
(-15.2mm)
4
5
6
7
0
DIA 0.040" 13PL.
(1.0mm)
BOTTOM VIEW
Vout
(Volts)
± 5 ± 12 ± 15
± 5 ± 12 ± 15
± 5 ± 12 ± 15
± 5 ± 12 ± 15
Iout Rated
(Amps)
± 4.15
8
9
10
11
12
13
14
4.300"
(109.2mm)
± 10
± 5.2
± 15
± 7.5
± 6
± 15
± 7.5
± 6
± 15
± 7.5
± 6
Rippl e & Noise
Pk-Pk (mV)
50 120 150
50 120 150
50 120 150
50 120 150
2.625"(66.7mm)
2.250"(57.2mm)
1.875"(47.6mm)
1.500"(38.1mm)
1.125"(28.6mm)
0.750"(19.1mm)
0.375"(9.5mm)
0
-0.375"(-9.5mm)
-0.625"(-15.9mm)
Efficiency
Typ. **
79% 81% 82% 82% 83% 83% 84% 85% 85% 80% 81% 81%
Model
XW D 1 20 5 XW D 1 21 2 XW D 1 21 5 XW D 2 40 5 XW D 2 41 2 XW D 2 41 5 XW D 4 80 5 XW D 4 81 2 XW D 4 81 5 XW D 6 00 5 XW D 6 01 2 XW D 6 01 5
Thermal Impedance
Natural convection 2.5 °C/W 100 LFM 2.1 °C/W 200 LFM 1.7 °C/W 300 LFM 1.3 °C/W 400 LFM 1.1 °C/W
Note: Thermal impedance data is dependent on many environmental factors. The exact thermal performance should be validated for specific application.
Pin Function
1 No Pin 2-V 3-V 4+V 5+V
in in
in in
6 Enable 7 Case 8 -V1 Sense
9 -V1 10 +V1
out
out
11 +V1 Sense1 12 - V2
out
13 Trim 14 + V2
out
Tolerances
Inches: (Millimeters) .XX ± 0.040 .X ± 1.0 .XXX ± 0.010 .XX ± 0.25
Pin: ± 0.002 ± 0.05
0.92"
(23.4mm)
(Dimensions as listed unless otherwise specified.)
2
Page 3
OPTIONS
When ordering equipment options, use the following suffix information. Select the option(s) that you prefer and add them to the model number. Example ordering options are located below the options table.
OPTION SUFFIX APPLICABLE SERIES REMARKS
Negative Logic N HAS, HBD, HBS, HES, LES, QBS,
Lucent Compatible Trim T HAS, HBD, HBS, HES, QBS, QES Terminal Strip TS XWS, XWD, XWT Trim 1 IAS, LES Enable 2 I A D, IAS, LES, SMS Trim and Enable 3 I AS, LES Current Share 4 S MS Headerless Y Encapsulated EWS, IWS, OWS
PIN LENGTH AND HEATSINK OPTIONS
0.110” (2.8mm) Pin Length 8 All Units (Except SMS)
0.150” (3.8mm) Pin Length 9 All Units (Except SMS)
0.24” (6.1mm) Horizontal Heatsink 1H All Units (Except DIP, SIP, and SM
0.24” (6.1mm) Vertical Heatsink 1V All Units (Except DIP, SIP, and SM
0.45” (11.4mm) Horizontal Heatsink
0.45” (11.4mm) Vertical Heatsink 2V All Units (Except DIP, SIP, and SM
0.95” (24.1mm) Horizontal Heatsink
0.95” (24.1mm) Vertical Heatsink 3V All Units (Except DIP, SIP, and SM
2H All Units (Except DIP, SIP, and SM
3H All Units (Except DIP, SIP, and SM
QES, TES, TQD
Packages)
Packages)
Packages)
Packages)
Packages)
Packages)
TTL “Low” Turns Module ON TTL “High” Turns Module OFF
Standard Pin Length is 0.180” (4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and
0.95” vertical heatsink. LES015YJ-3N = LES015YJ with optional trim and enable, negative logic. QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.
NUCLEAR AND MEDICAL APPLICATIONS Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
3
