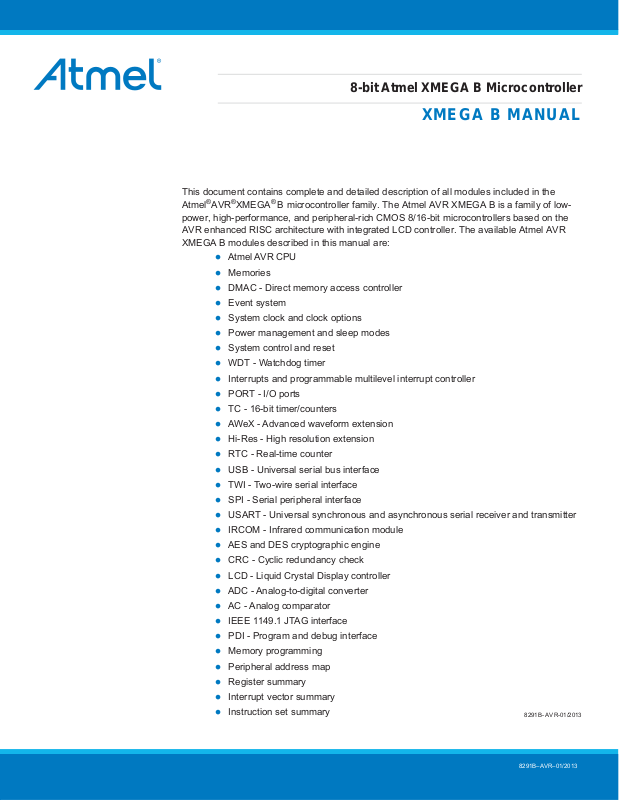

8-bit Atmel XMEGA B Microcontroller

XMEGA B MANUAL

This document contains complete and detailed description of all modules included in the

AVR®XMEGA® B microcontroller family. The Atmel AVR XMEGA B is a family of low-

Atmel power, high-performance, and peripheral-rich CMOS 8/16-bit microcontrollers based on the AVR enhanced RISC architecture with integrated LCD controller. The available Atmel AVR XMEGA B modules described in this manual are:

 Atmel AVR CPU

 Memories

 DMAC - Direct memory access controller

 Event system

 System clock and clock options

 Power management and sleep modes

 System control and reset

 WDT - Watchdog timer

 Interrupts and programmable multilevel interrupt controller

 PORT - I/O ports

 TC - 16-bit timer/counters

 AWeX - Advanced waveform extension

 Hi-Res - High resolution extension

 RTC - Real-time counter

 USB - Universal serial bus interface

 TWI - Two-wire serial interface

 SPI - Serial peripheral interface

 USART - Universal synchronous and asynchronous serial receiver and transmitter

 IRCOM - Infrared communication module

 AES and DES cryptographic engine

 CRC - Cyclic redundancy check

 LCD - Liquid Crystal Display controller

 ADC - Analog-to-digital converter

 AC - Analog comparator

 IEEE 1149.1 JTAG interface

 PDI - Program and debug interface

 Memory programming

 Peripheral address map

 Register summary

 Interrupt vector summary

 Instruction set summary

8291B- AVR-01/2013

8291B–AVR–01/2013

Page 2

1. About the Manual

This document contains in-depth documentation of all peripherals and modules available for the Atmel AVR XMEGA B microcontroller family. All features are documented on a functional level and described in a general sense. All peripherals and modules described in this manual may not be present in all Atmel AVR XMEGA B devices.

For all device-specific information such as characterization data, memory sizes, modules, peripherals available and their absolute memory addresses, refer to the device datasheets. When several instances of a peripheral exists in one device, each instance will have a unique name. For example each port module (PORT) have unique name, such as PORTA, PORTB, etc. Register and bit names are unique within one module instance.

For more details on applied use and code examples for peripherals and modules, refer to the Atmel AVR XMEGA specific application notes available from http://www.atmel.com/avr.

1.1 Reading the Manual

The main sections describe the various modules and peripherals. Each section contains a short feature list and overview describing the module. The remaining section describes the features and functions in more detail.

The register description sections list all registers and describe each register, bit and flag with their function. This includes details on how to set up and enable various features in the module. When multiple bits are needed for a configuration setting, these are grouped together in a bit group. The possible bit group configurations are listed for all bit groups together with their associated Group Configuration and a short description. The Group Configuration refers to the defined configuration name used in the Atmel AVR XMEGA assembler header files and application note source code.

The register summary sections list the internal register map for each module type.

The interrupt vector summary sections list the interrupt vectors and offset address for each module type.

1.2 Resources

A comprehensive set of development tools, application notes, and datasheets are available for download from

http://www.atmel.com/avr.

1.3 Recommended Reading

 Atmel AVR XMEGA B device datasheets  AVR XMEGA application notes

This manual contains general modules and peripheral descriptions. The AVR XMEGA B device datasheets contains the device-specific information. The XMEGA application notes and Atmel Software Framework contain example code and show applied use of the modules and peripherals.

For new users, it is recommended to read the AVR1000 - Getting Started Writing C Code for Atmel XMEGA.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 3

2. Overview

The AVR XMEGA B microcontrollers is a family of low-power, high-performance, and peripheral-rich CMOS 8/16-bit microcontrollers based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the Atmel AVR XMEGA B devices achieve throughputs approaching one million instructions per second (MIPS) per megahertz, allowing the system designer to optimize power consumption versus processing speed.

The AVR CPU combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the arithmetic logic unit (ALU), allowing two independent registers to be accessed in a single instruction, executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs many times faster than conventional single-accumulator or CISC based microcontrollers.

The Atmel AVR XMEGA B devices provide the following features: in-system programmable flash with read-while-write capabilities; internal EEPROM and SRAM; two-channel DMA controller; four-channel event system and programmable multilevel interrupt controller; up to 53 general purpose I/O lines; 16-bit real-time counter (RTC); up to three flexible 16-bit timer/counters with capture, compare and PWM modes; up to two USARTs; one I serial interface (TWI); one full-speed USB 2.0 interface; one serial peripheral interface (SPI); one LCD controller supporting display capacity up to 4 Common and up to 40 Segment terminals; CRC module; AES and DES cryptographic engine; up to two 8-channel, 12-bit ADCs with programmable gain; up to four analog comparators with window mode; programmable watchdog timer with separate internal oscillator; accurate internal oscillators with PLL and prescaler; and programmable brown-out detection.

The program and debug interface (PDI), a fast, two-pin interface for programming and debugging, is available. Selected devices also have an IEEE std. 1149.1 compliant JTAG interface, and this can also be used for on-chip debug and programming.

The Atmel AVR XMEGA devices have five software selectable power saving modes. The idle mode stops the CPU while allowing the SRAM, DMA controller, event system, interrupt controller, and all peripherals to continue functioning. The power-down mode saves the SRAM and register contents, but stops the oscillators, disabling all other functions until the next TWI, USB resume, or pin-change interrupt, or reset. In power-save mode, the asynchronous real-time counter continues to run, allowing the application to maintain a timer base while the rest of the device is sleeping. In this mode, the LCD controller is allowed to refresh data to the panel. In standby mode, the external crystal oscillator keeps running while the rest of the device is sleeping. This allows very fast startup from the external crystal, combined with low power consumption. In extended standby mode, both the main oscillator and the asynchronous timer continue to run. In this mode, the LCD controller is allowed to refresh data to the panel. To further reduce power consumption, the peripheral clock to each individual peripheral can optionally be stopped in active mode and idle sleep mode.

The devices are manufactured using Atmel high-density, nonvolatile memory technology. The program flash memory can be reprogrammed in-system through the PDI or JTAG interfaces. A boot loader running in the device can use any interface to download the application program to the flash memory. The boot loader software in the boot flash section will continue to run while the application flash section is updated, providing true read-while-write operation. By combining an 8/16-bit RISC CPU with In-system, self-programmable flash, the Atmel AVR XMEGA is a powerful microcontroller family that provides a highly flexible and cost effective solution for many embedded applications.

The Atmel AVR XMEGA B devices are supported with a full suite of program and system development tools, including C compilers, macro assemblers, program debugger/simulators, programmers, and evaluation kits.

C and SMBUS compatible two-wire

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 4

Figure 2-1. Atmel AVR XMEGA B block diagram.

XTAL1 / TOSC1

XTAL2 / TOSC2

PR[0..1]

Ground

Digital function

Analog function / Oscillators

LCDPower

Programming, debug, test

External clock / Crystal pins

General Purpose I/O

PA[0..7]

PB[0..7]/

JTAG

PORT A (8)

ACA

ADCA

AREFA

VCC/10

Int. Refs.

Tempref

AREFB

ADCB

ACB

PORT B (8)

PORT R (2)

EVENT ROUTING NETWORK

Event System

Controller

DMA

Controller

BUS Matrix

AES

DES

CRC

Oscillator

Circuits/

Clock

Generation

DATA BUS

Oscillator

Control

SRAM

Sleep

Controller

Prog/Debug

Controller

OCD

CPU

NVM Controller

Flash EEPROM

Interrupt

Controller

Real Time

Counter

Watchdog Oscillator

Watchdog

Supervision POR/BOD &

PDI

JTAG

Timer

Power

RESET

PORT B

LCD

PORT M (8)

PORT G (8)

VCC

GND

RESET / PDI_CLK

PDI_DATA

LCD POWER[0..4] COM[0..3] SEG[0..23]

SEG[31..24] / PM[0..7]

SEG[39..32] / PG[0..7]

DATA BUS

EVENT ROUTING NETWORK

IRCOM

TCC0:1

USARTC0

PORT C (8)

PC[0..7]

SPIC

TWIC

PORT D (3)

USB

PORT E (8)

PD[0..2] PE[0..7]

TCE0

TOSC1

TOSC2

USARTE0

(Alternate)

To Clock

Generator

In Table 2-1 on page 5 a feature summary for the XMEGA B family is shown, split into one feature summary column for each sub-family. Each sub-family has identical feature set, but different memory options, refer to their device datasheet for ordering codes and memory options.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 5

Table 2-1. XMEGA B feature summary overview.

Feature Details / sub-family B1 B3

Pins, I/O

Total 100 64 Programmable I/O pins 53 36 Program memory (KB) 64 - 128 64 - 128 Boot memory (KB) 4 - 8 4 - 8

Memory

SRAM (KB) 4 - 8 4 - 8 EEPROM 2 2 - 4 General purpose registers 16 16 TQFP 100A 64A

Package

QFN /VQFN – 64M2 BGA 100C1/100C2 –

QTouch Sense channels 56 56 DMA Controller Channels 2 2

Channels 4 4

Event System

QDEC 1 1

0.4 - 16MHz XOSC Yes Ye s

Crystal Oscillator

32.768 kHz TOSC Yes Yes

Internal Oscillator

Timer / Counter

Serial Communication

2MHz calibrated Yes Yes 32MHz calibrated Yes Yes 128MHz PLL Yes Yes

32.768kHz calibrated Yes Ye s 32kHz ULP Yes Yes TC0 - 16-bit, 4 CC 2 1 TC1 - 16-bit, 2 CC 1 1 TC2 - 2x 8-bit 2 1 Hi-Res 1 1 AWeX 1 1 RTC 1 1 RTC32 USB full-speed device 1 1 USART 2 1 SPI 1 1 TWI 1 1

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 6

Feature Details / sub-family B1 B3

AES-128 Yes Yes

Crypto /CRC

DES Yes Yes CRC-16 Ye s Yes CRC-32 Ye s Yes

Liquid Crystal Display

Controller (LCD)

Segments 40 25 Common terminals 4 4

2 1

Resolution (bits) 12 12

Analog to Digital Converter

(ADC)

Sampling speed (kbps) 300 300 Input channels per ADC 16 8 Conversion channels 1 1

Analog Comparator (AC) 4 2

PDI Yes Yes

Program and Debug Interface

JTAG Ye s Ye s Boundary scan Yes Yes

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 7

3. Atmel AVR CPU

3.1 Features

 8/16-bit, high-performance Atmel AVR RISC CPU

 142 instructions  Hardware multiplier

 32x8-bit registers directly connected to the ALU

 Stack in RAM

 Stack pointer accessible in I/O memory space

 Direct addressing of up to 16MB of program memory and 16MB of data memory

 True 16/24-bit access to 16/24-bit I/O registers

 Efficient support for 8-, 16-, and 32-bit arithmetic

 Configuration change protection of system-critical features

3.2 Overview

All Atmel AVR XMEGA devices use the 8/16-bit AVR CPU. The main function of the CPU is to execute the code and perform all calculations. The CPU is able to access memories, perform calculations, control peripherals, and execute the program in the flash memory. Interrupt handling is described in a separate section, “Interrupts and Programmable

Multilevel Interrupt Controller” on page 118.

3.3 Architectural Overview

In order to maximize performance and parallelism, the AVR CPU uses a Harvard architecture with separate memories and buses for program and data. Instructions in the program memory are executed with single-level pipelining. While one instruction is being executed, the next instruction is pre-fetched from the program memory. This enables instructions to be executed on every clock cycle. For a summary of all AVR instructions, refer to “Instruction Set Summary” on page

397. For details of all AVR instructions, refer to http://www.atmel.com/avr.

Figure 3-1. Block diagram of the AVR CPU architecture.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 8

The arithmetic logic unit (ALU) supports arithmetic and logic operations between registers or between a constant and a register. Single-register operations can also be executed in the ALU. After an arithmetic operation, the status register is updated to reflect information about the result of the operation.

The ALU is directly connected to the fast-access register file. The 32 x 8-bit general purpose working registers all have single clock cycle access time allowing single-cycle arithmetic logic unit operation between registers or between a register and an immediate. Six of the 32 registers can be used as three 16-bit address pointers for program and data space addressing, enabling efficient address calculations.

The memory spaces are linear. The data memory space and the program memory space are two different memory spaces.

The data memory space is divided into I/O registers, SRAM, and external RAM. In addition, the EEPROM can be memory mapped in the data memory.

All I/O status and control registers reside in the lowest 4KB addresses of the data memory. This is referred to as the I/O memory space. The lowest 64 addresses can be accessed directly, or as the data space locations from 0x00 to 0x3F. The rest is the extended I/O memory space, ranging from 0x0040 to 0x0FFF. I/O registers here must be accessed as data space locations using load (LD/LDS/LDD) and store (ST/STS/STD) instructions.

The SRAM holds data. Code execution from SRAM is not supported. It can easily be accessed through the five different addressing modes supported in the AVR architecture. The first SRAM address is 0x2000.

Data addresses 0x1000 to 0x1FFF are reserved for memory mapping of EEPROM.

The program memory is divided in two sections, the application program section and the boot program section. Both sections have dedicated lock bits for write and read/write protection. The SPM instruction that is used for selfprogramming of the application flash memory must reside in the boot program section. The application section contains an application table section with separate lock bits for write and read/write protection. The application table section can be used for save storing of nonvolatile data in the program memory.

3.4 ALU - Arithmetic Logic Unit

The arithmetic logic unit supports arithmetic and logic operations between registers or between a constant and a register. Single-register operations can also be executed. The ALU operates in direct connection with all 32 general purpose registers. In a single clock cycle, arithmetic operations between general purpose registers or between a register and an immediate are executed and the result is stored in the register file. After an arithmetic or logic operation, the status register is updated to reflect information about the result of the operation.

ALU operations are divided into three main categories – arithmetic, logical, and bit functions. Both 8- and 16-bit arithmetic is supported, and the instruction set allows for efficient implementation of 32-bit arithmetic. The hardware multiplier supports signed and unsigned multiplication and fractional format.

3.4.1 Hardware Multiplier

The multiplier is capable of multiplying two 8-bit numbers into a 16-bit result. The hardware multiplier supports different variations of signed and unsigned integer and fractional numbers:

 Multiplication of unsigned integers  Multiplication of signed integers  Multiplication of a signed integer with an unsigned integer  Multiplication of unsigned fractional numbers  Multiplication of signed fractional numbers  Multiplication of a signed fractional number with an unsigned one

A multiplication takes two CPU clock cycles.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 9

3.5 Program Flow

4th Instruction Fetch

T1 T2 T3 T4

After reset, the CPU starts to execute instructions from the lowest address in the flash program memory ‘0.’ The program counter (PC) addresses the next instruction to be fetched.

Program flow is provided by conditional and unconditional jump and call instructions capable of addressing the whole address space directly. Most AVR instructions use a 16-bit word format, while a limited number use a 32-bit format.

During interrupts and subroutine calls, the return address PC is stored on the stack. The stack is allocated in the general data SRAM, and consequently the stack size is only limited by the total SRAM size and the usage of the SRAM. After reset, the stack pointer (SP) points to the highest address in the internal SRAM. The SP is read/write accessible in the I/O memory space, enabling easy implementation of multiple stacks or stack areas. The data SRAM can easily be accessed through the five different addressing modes supported in the AVR CPU.

3.6 Instruction Execution Timing

The AVR CPU is clocked by the CPU clock, clk

. No internal clock division is used. Figure 3-2 on page 9 shows the

CPU

parallel instruction fetches and instruction executions enabled by the Harvard architecture and the fast-access register file concept. This is the basic pipelining concept used to obtain up to 1MIPS/MHz performance with high power efficiency.

Figure 3-2. The parallel instruction fetches and instruction executions.

clk

CPU

1st Instruction Fetch

1st Instruction Execute

2nd Instruction Fetch

nd Instruction Execute

3rd Instruction Fetch

3rd Instruction Execute

Figure 3-3 on page 9 shows the internal timing concept for the register file. In a single clock cycle, an ALU operation

using two register operands is executed and the result is stored back to the destination register.

Figure 3-3. Single Cycle ALU Operation

T1 T2 T3 T4

clk

CPU

Total Execution Time

ALU Operation Execute

Result Write Back

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 10

3.7 Status Register

The status register (SREG) contains information about the result of the most recently executed arithmetic or logic instruction. This information can be used for altering program flow in order to perform conditional operations. Note that the status register is updated after all ALU operations, as specified in the instruction set reference. This will in many cases remove the need for using the dedicated compare instructions, resulting in faster and more compact code.

The status register is not automatically stored when entering an interrupt routine nor restored when returning from an interrupt. This must be handled by software.

The status register is accessible in the I/O memory space.

3.8 Stack and Stack Pointer

The stack is used for storing return addresses after interrupts and subroutine calls. It can also be used for storing temporary data. The stack pointer (SP) register always points to the top of the stack. It is implemented as two 8-bit registers that are accessible in the I/O memory space. Data are pushed and popped from the stack using the PUSH and POP instructions. The stack grows from a higher memory location to a lower memory location. This implies that pushing data onto the stack decreases the SP, and popping data off the stack increases the SP. The SP is automatically loaded after reset, and the initial value is the highest address of the internal SRAM. If the SP is changed, it must be set to point above address 0x2000, and it must be defined before any subroutine calls are executed or before interrupts are enabled.

During interrupts or subroutine calls, the return address is automatically pushed on the stack. The return address can be two or three bytes, depending on program memory size of the device. For devices with 128KB or less of program memory, the return address is two bytes, and hence the stack pointer is decremented/incremented by two. For devices with more than 128KB of program memory, the return address is three bytes, and hence the SP is decremented/incremented by three. The return address is popped off the stack when returning from interrupts using the RETI instruction, and from subroutine calls using the RET instruction.

The SP is decremented by one when data are pushed on the stack with the PUSH instruction, and incremented by one when data is popped off the stack using the POP instruction.

To prevent corruption when updating the stack pointer from software, a write to SPL will automatically disable interrupts for up to four instructions or until the next I/O memory write.

3.9 Register File

The register file consists of 32 x 8-bit general purpose working registers with single clock cycle access time. The register file supports the following input/output schemes:

 One 8-bit output operand and one 8-bit result input  Two 8-bit output operands and one 8-bit result input  Two 8-bit output operands and one 16-bit result input  One 16-bit output operand and one 16-bit result input

Six of the 32 registers can be used as three 16-bit address register pointers for data space addressing, enabling efficient address calculations. One of these address pointers can also be used as an address pointer for lookup tables in flash program memory.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 11

Figure 3-4. AVR CPU general purpose working registers.

7 0 Addr.

R0 0x00

R1 0x01

R2 0x02

…

R13 0x0D

General R14 0x0E

Purpose R15 0x0F

Working R16 0x10

Registers R17 0x11

…

R26 0x1A X-register Low Byte

R27 0x1B X-register High Byte

R28 0x1C Y-register Low Byte

R29 0x1D Y-register High Byte

R30 0x1E Z-register Low Byte

R31 0x1F Z-register High Byte

The register file is located in a separate address space, and so the registers are not accessible as data memory.

3.9.1 The X-, Y-, and Z- Registers

Registers R26..R31 have added functions besides their general-purpose usage.

These registers can form 16-bit address pointers for addressing data memory. These three address registers are called the X-register, Y-register, and Z-register. The Z-register can also be used as an address pointer to read from and/or write to the flash program memory, signature rows, fuses, and lock bits.

Figure 3-5. The X-, Y- and Z-registers.

Bit (individually) 7 R27 0 7 R26 0 X-register XH XL

Bit (X-register) 15 8 7 0

Bit (individually) 7 R29 0 7 R28 0 Y-register YH YL

Bit (Y-register) 15 8 7 0

Bit (individually) 7 R31 0 7 R30 0 Z-register ZH ZL

Bit (Z-register) 15 8 7 0

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 12

The lowest register address holds the least-significant byte (LSB), and the highest register address holds the mostsignificant byte (MSB). In the different addressing modes, these address registers function as fixed displacement, automatic increment, and automatic decrement (see the instruction set reference for details).

3.10 RAMP and Extended Indirect Registers

In order to access program memory or data memory above 64KB, the address pointer must be larger than 16 bits. This is done by concatenating one register to one of the X-, Y-, or Z-registers. This register then holds the most-significant byte (MSB) in a 24-bit address or address pointer.

These registers are available only on devices with external bus interface and/or more than 64KB of program or data memory space. For these devices, only the number of bits required to address the whole program and data memory space in the device is implemented in the registers.

3.10.1 RAMPX, RAMPY and RAMPZ Registers

The RAMPX, RAMPY and RAMPZ registers are concatenated with the X-, Y-, and Z-registers, respectively, to enable indirect addressing of the whole data memory space above 64KB and up to 16MB.

Figure 3-6. The combined RAMPX + X, RAMPY + Y and RAMPZ + Z registers.

Bit (Individually) 7 0 7 0 7 0

RAMPX XH XL

Bit (X-pointer) 23 16 15 8 7 0

Bit (Individually) 7 0 7 0 7 0

Bit (Y-pointer) 23 16 15 8 7 0

Bit (Individually) 7 0 7

Bit (Z-pointer) 23 16 15 8 7 0

When reading (ELPM) and writing (SPM) program memory locations above the first 128KB of the program memory, RAMPZ is concatenated with the Z-register to form the 24-bit address. LPM is not affected by the RAMPZ setting.

3.10.2 RAMPD Register

This register is concatenated with the operand to enable direct addressing of the whole data memory space above 64KB. Together, RAMPD and the operand will form a 24-bit address.

Figure 3-7. The combined RAMPD + K register.

Bit (Individually) 7 0 15 0

Bit (D-pointer) 23 16 15 0

RAMPY YH YL

RAMPZ ZH ZL

RAMPD K

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 13

3.10.3 EIND - Extended Indirect Register

EIND is concatenated with the Z-register to enable indirect jump and call to locations above the first 128KB (64K words) of the program memory.

Figure 3-8. The combined EIND + Z register.

Bit (Individually) 7 0 7

EIND ZH ZL

Bit (D-pointer) 23 16 15 8 7 0

3.11 Accessing 16-bit Registers

The AVR data bus is 8 bits wide, and so accessing 16-bit registers requires atomic operations. These registers must be byte-accessed using two read or write operations. 16-bit registers are connected to the 8-bit bus and a temporary register using a 16-bit bus.

For a write operation, the low byte of the 16-bit register must be written before the high byte. The low byte is then written into the temporary register. When the high byte of the 16-bit register is written, the temporary register is copied into the low byte of the 16-bit register in the same clock cycle.

For a read operation, the low byte of the 16-bit register must be read before the high byte. When the low byte register is read by the CPU, the high byte of the 16-bit register is copied into the temporary register in the same clock cycle as the low byte is read. When the high byte is read, it is then read from the temporary register.

This ensures that the low and high bytes of 16-bit registers are always accessed simultaneously when reading or writing the register.

Interrupts can corrupt the timed sequence if an interrupt is triggered and accesses the same 16-bit register during an atomic 16-bit read/write operation. To prevent this, interrupts can be disabled when writing or reading 16-bit registers.

The temporary registers can also be read and written directly from user software.

3.11.1 Accessing 24- and 32-bit Registers

For 24- and 32-bit registers, the read and write access is done in the same way as described for 16-bit registers, except there are two temporary registers for 24-bit registers and three for 32-bit registers. The least-significant byte must be written first when doing a write, and read first when doing a read.

3.12 Configuration Change Protection

System critical I/O register settings are protected from accidental modification. The SPM instruction is protected from accidental execution, and the LPM instruction is protected when reading the fuses and signature row. This is handled globally by the configuration change protection (CCP) register. Changes to the protected I/O registers or bits, or execution of protected instructions, are only possible after the CPU writes a signature to the CCP register. The different signatures are described in the register description.

There are two modes of operation: one for protected I/O registers, and one for the protected instructions, SPM/LPM.

3.12.1 Sequence for write operation to protected I/O registers

1. The application code writes the signature that enable change of protected I/O registers to the CCP register.

2. Within four instruction cycles, the application code must write the appropriate data to the protected register. Most protected registers also contain a write enable/change enable bit. This bit must be written to one in the same operation as the data are written. The protected change is immediately disabled if the CPU performs write operations to the I/O register or data memory or if the SPM, LPM, or SLEEP instruction is executed.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 14

3.12.2 Sequence for execution of protected SPM/LPM

1. The application code writes the signature for the execution of protected SPM/LPM to the CCP register.

2. Within four instruction cycles, the application code must execute the appropriate instruction. The protected change is immediately disabled if the CPU performs write operations to the data memory or if the SLEEP instruction is executed.

Once the correct signature is written by the CPU, interrupts will be ignored for the duration of the configuration change enable period. Any interrupt request (including non-maskable interrupts) during the CCP period will set the corresponding interrupt flag as normal, and the request is kept pending. After the CCP period is completed, any pending interrupts are executed according to their level and priority. DMA requests are still handled, but do not influence the protected configuration change enable period. A signature written by DMA is ignored.

3.13 Fuse Lock

For some system-critical features, it is possible to program a fuse to disable all changes to the associated I/O control registers. If this is done, it will not be possible to change the registers from the user software, and the fuse can only be reprogrammed using an external programmer. Details on this are described in the datasheet module where this feature is available.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 15

3.14 Register Descriptions

3.14.1 CCP – Configuration Change Protection register

Bit 76543210 +0x04 CCP[7:0]

Read/Write W W W W W W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – CCP[7:0]: Configuration Change Protection

The CCP register must be written with the correct signature to enable change of the protected I/O register or execution of the protected instruction for a maximum period of four CPU instruction cycles. All interrupts are ignored during these cycles. After these cycles, interrupts will automatically be handled again by the CPU, and any pending interrupts will be executed according to their level and priority. When the protected I/O register signature is written, CCP[0] will read as one as long as the protected feature is enabled. Similarly when the protected SPM/LPM signature is written, CCP[1] will read as one as long as the protected feature is enabled. CCP[7:2] will always read as zero. Table 3-1 shows the signature for the various modes.

Table 3-1. Modes of CPU change protection.

Signature Group Configuration Description

0x9D SPM Protected SPM/LPM

0xD8 IOREG Protected IO register

3.14.2 RAMPD – Extended Direct Addressing register

This register is concatenated with the operand for direct addressing (LDS/STS) of the whole data memory space on devices with more than 64KB of data memory. This register is not available if the data memory, including external memory, is less than 64KB.

Bit 76543210 +0x08 RAMPD[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – RAMPD[7:0]: Extended Direct Addressing bits

These bits hold the MSB of the 24-bit address created by RAMPD and the 16-bit operand. Only the number of bits required to address the available data memory is implemented for each device. Unused bits will always read as zero.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 16

3.14.3 RAMPX – Extended X-Pointer register

This register is concatenated with the X-register for indirect addressing (LD/LDD/ST/STD) of the whole data memory space on devices with more than 64KB of data memory. This register is not available if the data memory, including external memory, is less than 64KB.

Bit 76543210 +0x09 RAMPX[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – RAMPX[7:0]: Extended X-pointer Address bits

These bits hold the MSB of the 24-bit address created by RAMPX and the 16-bit X-register. Only the number of bits required to address the available data memory is implemented for each device. Unused bits will always read as zero.

3.14.4 RAMPY – Extended Y-Pointer register

This register is concatenated with the Y-register for indirect addressing (LD/LDD/ST/STD) of the whole data memory space on devices with more than 64KB of data memory. This register is not available if the data memory, including external memory, is less than 64KB.

Bit 76543210 +0x0A RAMPY[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 000000

 Bit 7:0 – RAMPY[7:0]: Extended Y-pointer Address bits

These bits hold the MSB of the 24-bit address created by RAMPY and the 16-bit Y-register. Only the number of bits required to address the available data memory is implemented for each device. Unused bits will always read as zero.

3.14.5 RAMPZ – Extended Z-Pointer register

This register is concatenated with the Z-register for indirect addressing (LD/LDD/ST/STD) of the whole data memory space on devices with more than 64KB of data memory. RAMPZ is concatenated with the Z-register when reading (ELPM) program memory locations above the first 64KB and writing (SPM) program memory locations above the first 128KB of the program memory.

This register is not available if the data memory, including external memory and program memory in the device, is less than 64KB.

Bit 76543210 +0x0B RAMPZ[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 00000000

 Bit 7:0 – RAMPZ[7:0]: Extended Z-pointer Address bits

These bits hold the MSB of the 24-bit address created by RAMPZ and the 16-bit Z-register. Only the number of bits required to address the available data and program memory is implemented for each device. Unused bits will always read as zero.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 17

3.14.6 EIND – Extended Indirect register

This register is concatenated with the Z-register for enabling extended indirect jump (EIJMP) and call (EICALL) to the whole program memory space on devices with more than 128KB of program memory. The register should be used for jumps to addresses below 128KB if ECALL/EIJMP are used, and it will not be used if CALL and IJMP commands are used. For jump or call to addresses below 128KB, this register is not used. This register is not available if the program memory in the device is less than 128KB.

Bit 76543210 +0x0C EIND[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – EIND[7:0]: Extended Indirect Address bits

These bits hold the MSB of the 24-bit address created by EIND and the 16-bit Z-register. Only the number of bits required to access the available program memory is implemented for each device. Unused bits will always read as zero.

3.14.7 SPL – Stack Pointer Register Low

The SPH and SPL register pair represent the 16-bit SP value. The SP holds the stack pointer that points to the top of the stack. After reset, the stack pointer points to the highest internal SRAM address. To prevent corruption when updating the stack pointer from software, a write to SPL will automatically disable interrupts for the next four instructions or until the next I/O memory write.

Only the number of bits required to address the available data memory, including external memory, up to 64KB is implemented for each device. Unused bits will always read as zero.

Bit 76543210 +0x0D SP[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value

Note: 1. Refer to specific device datasheets for exact initial values.

 Bit 7:0 – SP[7:0]: Stack Pointer Register Low

(1)

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

These bits hold the LSB of the 16-bit stack pointer (SP).

3.14.8 SPH – Stack Pointer Register High

Bit 76543210 +0x0E SP[15:8]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value

Note: 1. Refer to specific device datasheets for exact initial values.

 Bit 7:0 – SP[15:8]: Stack Pointer Register High

(1)

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

These bits hold the MSB of the 16-bit stack pointer (SP).

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 18

3.14.9 SREG – Status Register

The status register (SREG) contains information about the result of the most recently executed arithmetic or logic instruction.

Bit 76543210 +0x0F ITHSVNZC

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7 – I: Global Interrupt Enable

The global interrupt enable bit must be set for interrupts to be enabled. If the global interrupt enable register is cleared, none of the interrupts are enabled independent of the individual interrupt enable settings. This bit is not cleared by hardware after an interrupt has occurred. This bit can be set and cleared by the application with the SEI and CLI instructions, as described in “Instruction Set Description.” Changing the I flag through the I/O-register result in a onecycle wait state on the access.

 Bit 6 – T: Bit Copy Storage

The bit copy instructions bit load (BLD) and bit store (BST) use the T bit as source or destination for the operated bit. A bit from a register in the register file can be copied into this bit by the BST instruction, and this bit can be copied into a bit in a register in the register file by the BLD instruction.

 Bit 5 – H: Half Carry Flag

The half carry flag (H) indicates a half carry in some arithmetic operations. Half carry Is useful in BCD arithmetic. See “Instruction Set Description” for detailed information.

 Bit 4 – S: Sign Bit, S = N V

The sign bit is always an exclusive or between the negative flag, N, and the two’s complement overflow flag, V. See “Instruction Set Description” for detailed information.

 Bit 3 – V: Two’s Complement Overflow Flag

The two’s complement overflow flag (V) supports two’s complement arithmetic. See “Instruction Set Description” for detailed information.

 Bit 2 – N: Negative Flag

The negative flag (N) indicates a negative result in an arithmetic or logic operation. See “Instruction Set Description” for detailed information.

 Bit 1 – Z: Zero Flag

The zero flag (Z) indicates a zero result in an arithmetic or logic operation. See “Instruction Set Description” for detailed information.

 Bit 0 – C: Carry Flag

The carry flag (C) indicates a carry in an arithmetic or logic operation. See “Instruction Set Description” for detailed information.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 19

3.15 Register Summary

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00 Reserved – – – – – – – – +0x01 Reserved – – – – – – – – +0x02 Reserved – – – – – – – – +0x03 Reserved – – – – – – – – +0x04 CCP CCP[7:0] 15 +0x05 Reserved – – – – – – – – +0x06 Reserved – – – – – – – – +0x07 Reserved – – – – – – – – +0x08 RAMPD RAMPD[7:0] 15 +0x09 RAMPX RAMPX[7:0] 16 +0x0A RAMPY RAMPY[7:0] 16 +0x0B RAMPZ RAMPZ[7:0] 16 +0x0C EIND EIND[7:0] 17 +0x0D SPL SPL[7:0] 17 +0x0E SPH SPH[7:0] 17 +0x0F SREG I T H S V N Z C 18

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 20

4. Memories

4.1 Features

 Flash program memory

 One linear address space  In-system programmable  Self-programming and boot loader support  Application section for application code  Application table section for application code or data storage  Boot section for application code or bootloader code  Separate read/write protection lock bits for all sections  Built in fast CRC check of a selectable flash program memory section

 Data memory

 One linear address space  Single-cycle access from CPU  SRAM  EEPROM

 Byte and page accessible  Optional memory mapping for direct load and store

 I/O memory

 Configuration and status registers for all peripherals and modules  16 bit-accessible general purpose registers for global variables or flags

 Bus arbitration

 Safe and deterministic handling of priority between CPU, DMA controller, and other bus masters

 Separate buses for SRAM, EEPROM and I/O memory access

 Simultaneous bus access for CPU and DMA controller

 Production signature row memory for factory programmed data

 ID for each microcontroller device type  Serial number for each device  Calibration bytes for factory calibrated peripherals

 User signature row

 One flash page in size  Can be read and written from software  Content is kept after chip erase

4.2 Overview

This section describes the different memory sections. The AVR architecture has two main memory spaces, the program memory and the data memory. Executable code can reside only in the program memory, while data can be stored in the program memory and the data memory. The data memory includes the internal SRAM, and as well as EEPROM for nonvolatile data storage. All memory spaces are linear and require no memory bank switching. Nonvolatile memory (NVM) spaces can be locked for further write and read/write operations. This prevents unrestricted access to the application software.

A separate memory section contains the fuse bytes. These are used for configuring important system functions, and can only be written by an external programmer.

4.3 Flash Program Memory

All XMEGA devices contain on-chip, in-system reprogrammable flash memory for program storage. The flash memory can be accessed for read and write from an external programmer through the PDI or from application software running in the device.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 21

All AVR CPU instructions are 16 or 32 bits wide, and each flash location is 16 bits wide. The flash memory is organized in two main sections, the application section and the boot loader section, as shown in Figure 4-1 on page 21. The sizes of the different sections are fixed, but device-dependent. These two sections have separate lock bits, and can have different levels of protection. The store program memory (SPM) instruction, which is used to write to the flash from the application software, will only operate when executed from the boot loader section.

The application section contains an application table section with separate lock settings. This enables safe storage of nonvolatile data in the program memory.

Figure 4-1. Flash memory sections.

0x000000

Application Flash

Section

4.3.1 Application Section

The Application section is the section of the flash that is used for storing the executable application code. The protection level for the application section can be selected by the boot lock bits for this section. The application section can not store any boot loader code since the SPM instruction cannot be executed from the application section.

4.3.2 Application Table Section

The application table section is a part of the application section of the flash memory that can be used for storing data. The size is identical to the boot loader section. The protection level for the application table section can be selected by the boot lock bits for this section. The possibilities for different protection levels on the application section and the application table section enable safe parameter storage in the program memory. If this section is not used for data, application code can reside here.

4.3.3 Boot Loader Section

While the application section is used for storing the application code, the boot loader software must be located in the boot loader section because the SPM instruction can only initiate programming when executing from this section. The SPM instruction can access the entire flash, including the boot loader section itself. The protection level for the boot loader section can be selected by the boot loader lock bits. If this section is not used for boot loader software, application code can be stored here.

Application Table

Flash Section

End Application Start Boot Loader

Boot Loader Flash

Section

Flashend

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 22

4.3.4 Production Signature Row

The production signature row is a separate memory section for factory programmed data. It contains calibration data for functions such as oscillators and analog modules. Some of the calibration values will be automatically loaded to the corresponding module or peripheral unit during reset. Other values must be loaded from the signature row and written to the corresponding peripheral registers from software. For details on calibration conditions such as temperature, voltage references, etc., refer to the device datasheet.

The production signature row also contains an ID that identifies each microcontroller device type and a serial number for each manufactured device. The serial number consists of the production lot number, wafer number, and wafer coordinates for the device.

The production signature row cannot be written or erased, but it can be read from application software and external programmers.

For accessing the production signature row, refer to “NVM Flash Commands” on page 382.

4.3.5 User Signature Row

The user signature row is a separate memory section that is fully accessible (read and write) from application software and external programmers. It is one flash page in size, and is meant for static user parameter storage, such as calibration data, custom serial number, identification numbers, random number seeds, etc. This section is not erased by chip erase commands that erase the flash, and requires a dedicated erase command. This ensures parameter storage during multiple program/erase operations and on-chip debug sessions.

4.4 Fuses and Lockbits

The fuses are used to configure important system functions, and can only be written from an external programmer. The application software can read the fuses. The fuses are used to configure reset sources such as brownout detector and watchdog, startup configuration, JTAG enable, and JTAG user ID.

The lock bits are used to set protection levels for the different flash sections (i.e., if read and/or write access should be blocked). Lock bits can be written by external programmers and application software, but only to stricter protection levels. Chip erase is the only way to erase the lock bits. To ensure that flash contents are protected even during chip erase, the lock bits are erased after the rest of the flash memory has been erased.

An unprogrammed fuse or lock bit will have the value one, while a programmed fuse or lock bit will have the value zero.

Both fuses and lock bits are reprogrammable like the flash program memory.

4.5 Data Memory

The data memory contains the I/O memory, internal SRAM and optionally memory mapped EEPROM. The data memory is organized as one continuous memory section, as shown in Figure 4-2 on page 23.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 23

Figure 4-2. Data memory map.

Start/End Address Data Memory

0x0000

I/O Memory

(Up to 4 KB)

0x1000

EEPROM

(Up to 4 KB)

0x2000

Internal SRAM

(Up to 8 KB)

I/O memory, EEPROM, and SRAM will always have the same start addresses for all XMEGA devices.

4.6 Internal SRAM

The internal SRAM always starts at hexadecimal address 0x2000. SRAM is accessed by the CPU using the load (LD/LDS/LDD) and store (ST/STS/STD) instructions.

4.7 EEPROM

XMEGA devices have EEPROM for nonvolatile data storage. It is either addressable in a separate data space (default) or memory mapped and accessed in normal data space. The EEPROM supports both byte and page access. Memory mapped EEPROM allows highly efficient EEPROM reading and EEPROM buffer loading. When doing this, EEPROM is accessible using load and store instructions. Memory mapped EEPROM will always start at hexadecimal address 0x1000.

4.8 I/O Memory

The status and configuration registers for peripherals and modules, including the CPU, are addressable through I/O memory locations. All I/O locations can be accessed by the load (LD/LDS/LDD) and store (ST/STS/STD) instructions, which are used to transfer data between the 32 registers in the register file and the I/O memory. The IN and OUT instructions can address I/O memory locations in the range of 0x00 to 0x3F directly. In the address range 0x00 - 0x1F, single-cycle instructions for manipulation and checking of individual bits are available.

4.8.1 General Purpose I/O Registers

The lowest 4 I/O memory addresses are reserved as general purpose I/O registers. These registers can be used for storing global variables and flags, as they are directly bit-accessible using the SBI, CBI, SBIS, and SBIC instructions.

4.9 Data Memory and Bus Arbitration

Since the data memory is organized as four separate sets of memories, the different bus masters (CPU, DMA controller read and DMA controller write, etc.) can access different memories at the same time. As Figure 4-3 on page 24 shows,

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 24

the CPU can access the EEPROM memory while the DMA controller is transferring data from internal SRAM to I/O memory. The USB module acts as a bus master, and is connected directly to internal SRAM through a pseudo-dual-port (PDP) interface.

Figure 4-3. Bus access.

4.9.1 Bus Priority

DMA

CH0 CH1

Flash

EEPROM

Non-Volatile

Memory

CPU

AVR core

OCD

Bus matrix

CRC

Crypto

Modules

Power

Management

ADC

LCD

Event

System

USART

SPI

TWI

USB

Interrupt

Controller

Oscillator

Control

Timer /

Counter

Real Time

Counter

I/O

Peripherals and system modules

External

Programming

PDI

SRAM

RAM

When several masters request access to the same bus, the bus priority is in the following order (from higher to lower priority):

1. Bus Master with ongoing access.

2. Bus Master with ongoing burst.

1. Alternating DMA controller read and DMA controller write when they access the same data memory section.

3. Bus Master requesting burst access.

1. CPU has priority.

4. Bus Master requesting bus access.

1. CPU has priority.

4.10 Memory Timing

Read and write access to the I/O memory takes one CPU clock cycle. A write to SRAM takes one cycle, and a read from SRAM takes two cycles. For burst read (DMA), new data are available every cycle. EEPROM page load (write) takes one cycle, and three cycles are required for read. For burst read, new data are available every second cycle. Refer to the instruction summary for more details on instructions and instruction timing.

4.11 Device ID and Revision

Each device has a three-byte device ID. This ID identifies Atmel as the manufacturer of the device and the device type. A separate register contains the revision number of the device.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 25

4.12 JTAG Disable

It is possible to disable the JTAG interface from the application software. This will prevent all external JTAG access to the device until the next device reset or until JTAG is enabled again from the application software. As long as JTAG is disabled, the I/O pins required for JTAG can be used as normal I/O pins.

4.13 I/O Memory Protection

Some features in the device are regarded as critical for safety in some applications. Due to this, it is possible to lock the I/O register related to the clock system, the event system, and the advanced waveform extensions. As long as the lock is enabled, all related I/O registers are locked and they can not be written from the application software. The lock registers themselves are protected by the configuration change protection mechanism. For details, refer to “Configuration Change

Protection” on page 14.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 26

4.14 Register Description – NVM Controller

4.14.1 ADDR0 – Address register 0

The ADDR0, ADDR1, and ADDR2 registers represent the 24-bit value, ADDR. This is used for addressing all NVM sections for read, write, and CRC operations.

Bit 76543210 +0x00 ADDR[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – ADDR[7:0]: Register Byte 0

This register gives the address low byte when accessing NVM locations.

4.14.2 ADDR1 – Address register 1

Bit 76543210 +0x01 ADDR[15:8]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – ADDR[15:8]: Address Register Byte 1

This register gives the address high byte when accessing NVM locations.

4.14.3 ADDR2 – Address register 2

Bit 76543210 +0x02 ADDR[23:16]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – ADDR[23:16]: Address Register Byte 2

This register gives the address extended byte when accessing NVM locations.

4.14.4 DATA0 – Data register 0

The DATA0, DATA1, and DATA registers represent the 24-bit value, DATA. This holds data during NVM read, write, and CRC access.

Bit 76543210 +0x04 DATA[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – DATA[7:0]: Data Register Byte 0

This register gives the data value byte 0 when accessing NVM locations.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 27

4.14.5 DATA1 – Data register 1

Bit 76543210 +0x05 DATA[15:8]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – DATA[15:8]: Data Register Byte 1

This register gives the data value byte 1 when accessing NVM locations.

4.14.6 DATA2 – Data register 2

Bit 76543210 +0x06 DATA[23:16]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – DATA[23:16]: Data Register Byte 2

This register gives the data value byte 2 when accessing NVM locations.

4.14.7 CMD – Command register

Bit 76543210

+0x0A

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

– CMD[6:0]

 Bit 7 – Reserved

This bit is unused and reserved for future use. For compatibility with future devices, always write this bit to zero when this register is written.

 Bit 6:0 -CMD[6:0]: Command

These bits define the programming commands for the flash. Bit 6 is only set for external programming commands. See

“Memory Programming” on page 385” for programming commands.

4.14.8 CTRLA – Control register A

Bit 76543210

+0x0B

Read/Write RRRRRRRS

Initial Value 00000000

 Bit 7:1 – Reserved

– – – – – – – CMDEX

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 0 – CMDEX: Command Execute

Setting this bit will execute the command in the CMD register. This bit is protected by the configuration change protection (CCP) mechanism. Refer to “Configuration Change Protection” on page 14 for details on the CCP.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 28

4.14.9 CTRLB – Control register B

Bit 7 6 5 4 3 2 1 0

+0x0C

Read/Write R R R R R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:4 – Reserved

– – – – EEMAPEN FPRM EPRM SPMLOCK

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 3 – EEMAPEN: EEPROM Data Memory Mapping Enable

Setting this bit enables data memory mapping of the EEPROM section. The EEPROM can then be accessed using load and store instructions.

 Bit 2 – FPRM: Flash Power Reduction Mode

Setting this bit enables power saving for the flash memory. If code is running from the application section, the boot loader section will be turned off, and vice versa. If access to the section that is turned off is required, the CPU will be halted for a time equal to the start-up time from the idle sleep mode.

 Bit 1 – EPRM: EEPROM Power Reduction Mode

Setting this bit enables power saving for the EEPROM. The EEPROM will then be turned off in a manner equivalent to entering sleep mode. If access is required, the bus master will be halted for a time equal to the start-up time from idle sleep mode.

 Bit 0 – SPMLOCK: SPM Locked

This bit can be written to prevent all further self-programming. The bit is cleared at reset, and cannot be cleared from software. This bit is protected by the configuration change protection (CCP) mechanism.Refer to “Configuration Change

Protection” on page 14 for details on the CCP.

4.14.10 INTCTRL – Interrupt Control register

Bit 76543210

+0x0D

Read/Write R R R R R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:4 – Reserved

– – – – SPMLVL[1:0] EELVL[1:0]

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 3:2 – SPMLVL[1:0]: SPM Ready Interrupt Level

These bits enable the interrupt and select the interrupt level, as described in “Interrupts and Programmable Multilevel

Interrupt Controller” on page 121. This is a level interrupt that will be triggered only when the NVMBUSY flag in the

STATUS register is set to zero. Thus, the interrupt should not be enabled before triggering an NVM command, as the NVMBUSY flag will not be set before the NVM command is triggered. The interrupt should be disabled in the interrupt handler.

 Bit 1:0 – EELVL[1:0]: EEPROM Ready Interrupt Level

These bits enable the EEPROM ready interrupt and select the interrupt level, as described in “Interrupts and

Programmable Multilevel Interrupt Controller” on page 121. This is a level interrupt that will be triggered only when the

NVMBUSY flag in the STATUS register is set to zerozero. Thus, the interrupt should not be enabled before triggering an NVM command, as the NVMBUSY flag won’t be set before the NVM command is triggered. The interrupt should be disabled in the interrupt handler.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 29

4.14.11 STATUS – Status register

Bit 7 6 5432 1 0 +0x04 NVMBUSY FBUSY

Read/Write R R R R R R R R

Initial Value 0 0 0 0 0 0 0 0

 Bit 7 – NVMBUSY: Nonvolatile Memory Busy

The NVMBUSY flag indicates if the NVM (Flash, EEPROM, lock bit) is being programmed. Once an operation is started, this flag is set and remains set until the operation is completed. The NVMBUSY flag is automatically cleared when the operation is finished.

 Bit 7 - NVMBUSY: Nonvolatile Memory Busy  Bit 6 – FBUSY: Flash Busy

The FBUSY flag indicates if a flash programming operation is initiated. Once an operation is started, the FBUSY flag is set and the application section cannot be accessed. The FBUSY flag is automatically cleared when the operation is finished.

 Bit 5:2 – Reserved

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 1 – EELOAD: EEPROM Page Buffer Active Loading

The EELOAD flag indicates that the temporary EEPROM page buffer has been loaded with one or more data bytes. It remains set until an EEPROM page write or a page buffer flush operation is executed. For more details, see “Flash and

EEPROM Programming Sequences” on page 388.

 Bit 0 – FLOAD: Flash Page Buffer Active Loading

The FLOAD flag indicates that the temporary flash page buffer has been loaded with one or more data bytes. It remains set until an application, boot page write, or page buffer flush operation is executed. For more details, see “Flash and

EEPROM Programming Sequences” on page 388.

– – – – EELOAD FLOAD

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 30

4.14.12 LOCKBITS – Lock Bits register

Bit 76543210 +0x07 BLBB[1:0] BLBA[1:0] BLBAT[1:0] LB[1:0]

Read/Write R R R R R R R R

Initial Value 1 1 1 1 1 1 1 1

This register is a mapping of the NVM lock bits into the I/O memory space, which enables direct read access from the application software. Refer to “LOCKBITS – Lock Bits register” on page 34 for a description.

4.15 Register Descriptions – Fuses and Lock Bits

4.15.1 FUSEBYTE0 – Fuse Byte 0

Bit 7 6543210 +0x00 JTAGUID[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7 – JTAGUID[7:0]: JTAG USER ID

These fuses can be used to set the default JTAG user ID for the device. During reset, the JTAGUID fuse bits will be loaded into the MCU JTAG user ID register.

4.15.2 FUSEBYTE1 – Fuse Byte1

Bit 7 6543210 +0x01 WDWPER[3:0] WDPER[3:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:4 – WDWPER[3:0]: Watchdog Window Timeout Period

These fuse bits are used to set initial value of the closed window for the Watchdog Timer in Window Mode. During reset these fuse bits are automatically written to the WPER bits Watchdog Window Mode Control Register, refer to “WINCTRL

– Window Mode Control register” on page 118 for details.

 Bit 3:0 – WDPER[3:0]: Watchdog Timeout Period

These fuse bits are used to set the initial value of the watchdog timeout period. During reset, these fuse bits are automatically written to the PER bits in the watchdog control register. .RRefer to “CTRL – Control register” on page 117 for details.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 31

4.15.3 FUSEBYTE2 – Fuse Byte 2

Bit 7 6 5 4 3 2 1 0

+0x02

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 1 1 1 1 1 1 1 1

 Bit 7 – Reserved

– BOOTRST TOSCSEL – – – BODPD[1:0]

This fuse bit is reserved. For compatibility with future devices, always write this bit to one when this register is written.

 Bit 6 – BOOTRST: Boot Loader Section Reset Vector

This fuse can be programmed so the reset vector is pointing to the first address in the boot loader flash section. The device will then start executing from the boot loader flash section after reset.

Table 4-1. Boot reset fuse.

BOOTRST Reset address

0 Reset vector = Boot loader reset

1 Reset vector = Application reset (address 0x0000)

 Bit 5 – TOSCSEL: 32.768kHz Timer Oscillator Pin Selection

This fuse is used to select the pin location for the 32.768kHz timer oscillator (TOSC). This fuse is available only on devices where XTAL and TOSC pins by default are shared.

Table 4-2. TOSCSEL fuse.

TOSCSEL Group configuration Description

0 ALTERNATE

(1)

TOSC1/2 on separate pins

1 XTAL TOSC1/2 shared with XTAL

Note: 1. See the device datasheet for alternate TOSC position.

 Bit 4:2 – Reserved

These fuse bits are reserved. For compatibility with future devices, always write these bits to one when this register is written.

 Bit 1:0 – BODPD[1:0]: BOD Operation in Power-down Mode

These fuse bits set the BOD operation mode in all sleep modes except idle mode. For details on the BOD and BOD operation modes, refer to “Brownout Detection” on page 109.

Table 4-3. BOD operation modes in sleep modes.

BODPD[1:0] Description

00 Reserved

01 BOD enabled in sampled mode

10 BOD enabled continuously

11 BOD disabled

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 32

4.15.4 FUSEBYTE4 – Fuse Byte 4

Bit 7 6 5 4 3 2 1 0

+0x04

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 1 1 1 1 1 1 1 0

 Bit 7:5 – Reserved

– – – RSTDISBL STARTUPTIME[1:0] WDLOCK JTAGEN

These fuse bits are reserved. For compatibility with future devices, always write these bits to one when this register is written.

 Bit: 4 – RSTDISBL: External Reset Disable

This fuse can be programmed to disable the external reset pin functionality. When this is done, pulling the reset pin low will not cause an external reset. A reset is required before this bit will be read correctly after it is changed.

 Bit 3:2 – STARTUPTIME[1:0]: Start-up time

These fuse bits can be used to set at a programmable timeout period from when all reset sources are released until the internal reset is released from the delay counter. A reset is required before these bits will be read correctly after they are changed.

The delay is timed from the 1kHz output of the ULP oscillator. Refer to “Reset Sequence” on page 108 for details.

Table 4-4. Start-up time.

STARTUPTIME[1:0] 1kHz ULP oscillator cycles

00 64

01 4

10 Reserved

11 0

 Bit 1 – WDLOCK: Watchdog Timer Lock

The WDLOCK fuse can be programmed to lock the watchdog timer configuration. When this fuse is programmed, the watchdog timer configuration cannot be changed, and the ENABLE bit in the watchdog CTRL register is automatically set at reset and cannot be cleared from the application software. The WEN bit in the watchdog WINCTRL register is not set automatically, and needs to be set from software. A reset is required before this bit will be read correctly after it is changed.

Table 4-5. Watchdog timer lock.

WDLOCK Description

0 Watchdog timer locked for modifications

1 Watchdog timer not locked

 Bit 0 – JTAGEN: JTAG Enabled

This fuse controls whether or not the JTAG interface is enabled.

When the JTAG interface is disabled, all access through JTAG is prohibited, and the device can be accessed using only the program and debug interface (PDI). The JTAGEN fuse is available only on devices with JTAG interface. A reset is required before this bit will be read correctly after it is changed.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 33

Table 4-6. JTAG Enabled

JTAGEN Description

0 JTAG enabled

1 JTAG disabled

4.15.5 FUSEBYTE5 – Fuse Byte 5

Bit 7 6 5 4 3 2 1 0

+0x05

Read/Write R/W R/W R R R/W R/W R/W R/W

Initial Value 1 1 – – – – – –

 Bit 7:6 – Reserved

– – BODACT[1:0] EESAVE BODLEVEL[2:0]

These bits are reserved. For compatibility with future devices, always write these bits to one when this register is written.

 Bit 5:4 – BODACT[1:0]: BOD Operation in Active Mode

These fuse bits set the BOD operation mode when the device is in active and idle modes. For details on the BOD and BOD operation modes, refer to “Brownout Detection” on page 109.

Table 4-7. BOD operation modes in active and idle mode.

BODACT[1:0] Description

00 Reserved

01 BOD enabled in sampled mode

10 BOD enabled continuously

11 BOD disabled

 Bit 3 – EESAVE: EEPROM is Preserved through the Chip Erase

A chip erase command will normally erase the flash, EEPROM, and internal SRAM. If this fuse is programmed, the EEPROM is not erased during chip erase. This is useful if EEPROM is used to store data independently of the software revision.

Table 4-8. EEPROM preserved through chip erase.

EESAVR Description

0 EEPROM is preserved during chip erase

1 EEPROM is erased during chip erase

Changes to the EESAVE fuse bit take effect immediately after the write timeout elapses. Hence, it is possible to update EESAVE and perform a chip erase according to the new setting of EESAVE without leaving and reentering programming mode.

 Bit 2:0 – BODLEVEL[2:0]: Brownout Detection Voltage Level

These fuse bits sets the BOD voltage level. R ,,evenor.Refer to “Reset System” on page 107 for details. For BOD level nominal values, see Table 9-2 on page 110.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 34

4.15.6 LOCKBITS – Lock Bits register

Bit 76543210 +0x07 BLBB[1:0] BLBA[1:0] BLBAT[1:0] LB[1:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 11111111

 Bit 7:6 – BLBB[1:0]: Boot Lock Bit Boot Loader Section

These lock bits control the software security level for accessing the boot loader section. The BLBB bits can only be written to a more strict locking. Resetting the BLBB bits is possible only by executing a chip erase command.

Table 4-9. Boot lock bit for the boot loader section.

BLBB[1:0] Group Configuration Description

11 NOLOCK

No lock – no restrictions for SPM and (E)LPM accessing the boot loader section.

10 WLOCK Write lock – SPM is not allowed to write the boot loader section.

Read lock – (E)LPM executing from the application section is not allowed to read from the boot loader section.

01 RLOCK

If the interrupt vectors are placed in the application section, interrupts are disabled while executing from the boot loader section.

Read and write lock – SPM is not allowed to write to the boot loader section, and (E)LPM executing from the application section is not

00 RWLOCK

allowed to read from the boot loader section.

If the interrupt vectors are placed in the application section, interrupts are disabled while executing from the boot loader section.

 Bit 5:4 – BLBA[1:0]: Boot Lock Bit Application Section

These lock bits control the software security level for accessing the application section. The BLBA bits can only be written to a more strict locking. Resetting the BLBA bits is possible only by executing a chip erase command.

Table 4-10. Boot lock bit for the application section.

BLBA[1:0] Group Configuration Description

11 NOLOCK

No Lock - no restrictions for SPM and (E)LPM accessing the application section.

10 WLOCK Write lock – SPM is not allowed to write the application section.

Read lock – (E)LPM executing from the boot loader section is not

01 RLOCK

allowed to read from the application section.

If the interrupt vectors are placed in the boot loader section, interrupts are disabled while executing from the application section.

Read and write lock – SPM is not allowed to write to the application section, and (E)LPM executing from the boot loader section is not

00 RWLOCK

allowed to read from the application section.

If the interrupt vectors are placed in the boot loader section, interrupts are disabled while executing from the application section.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 35

 Bit 3:2 – BLBAT[1:0]: Boot Lock Bit Application Table Section

These lock bits control the software security level for accessing the application table section for software access. The BLBAT bits can only be written to a more strict locking. Resetting the BLBAT bits is possible only by executing a chip erase command.

Table 4-11. Boot lock bit for the application table section.

BLBAT[1:0] Group Configuration Description

11 NOLOCK

No lock – no restrictions for SPM and (E)LPM accessing the application table section.

10 WLOCK Write lock – SPM is not allowed to write the application table

Read lock – (E)LPM executing from the boot loader section is not

01 RLOCK

allowed to read from the application table section.

If the interrupt vectors are placed in the boot loader section, interrupts are disabled while executing from the application section.

Read and write lock – SPM is not allowed to write to the application table section, and (E)LPM executing from the boot loader section is

00 RWLOCK

not allowed to read from the application table section.

If the interrupt vectors are placed in the boot loader section, interrupts are disabled while executing from the application section.

 Bit 1:0 – LB[1:0]: Lock Bits

(1)

These lock bits control the security level for the flash and EEPROM during external programming. These bits are writable only through an external programming interface. Resetting the lock bits is possible only by executing a chip erase command. All other access; using the TIF and OCD, is blocked if any of the Lock Bits are written to 0. These bits do not block any software access to the memory.

Table 4-12. Lock bit protection mode.

LB[1:0] Group Configuration Description

11 NOLOCK3 No lock – no memory locks enabled.

Write lock – programming of the flash and EEPROM is disabled for

10 WLOCK

the programming interface. Fuse bits are locked for write from the programming interface.

Read and write lock – programming and read/verification of the

00 RWLOCK

flash and EEPROM are disabled for the programming interface. The lock bits and fuses are locked for read and write from the programming interface.

Note: 1. Program the Fuse Bits and Boot Lock Bits before programming the Lock Bits.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 36

4.16 Register Description – Production Signature Row

4.16.1 RCOSC2M – Internal 2MHz Oscillator Calibration register

Bit 7 6 5 4 3 2 1 0 +0x00 RCOSC2M[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – RCOSC2M[7:0]: Internal 2MHz Oscillator Calibration Value

This byte contains the oscillator calibration value for the internal 2MHz oscillator. Calibration of the oscillator is performed during production testing of the device. During reset, this value is automatically loaded into calibration register B for the 2MHz DFLL. Refer to “CALB – Calibration register B” on page 94 for more details.

4.16.2 RCOSC2MA – Internal 2MHz Oscillator Calibration register

Bit 7 6 5 4 3 2 1 0 +0x01 RCOSC2MA[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – RCOSC2MA[7:0]: Internal 2MHz Oscillator Calibration Value

This byte contains the oscillator calibration value for the internal 2MHz oscillator. Calibration of the oscillator is performed during production testing of the device. During reset, this value is automatically loaded into calibration register A for the 2MHz DFLL. Refer to “CALA – Calibration register A” on page 93 for more details.

4.16.3 RCOSC32K – Internal 32.768kHz Oscillator Calibration register

Bit 7 6 5 4 3 2 1 0 +0x02 RCOSC32K[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – RCOSC32K[7:0]: Internal 32.768kHz Oscillator Calibration Value

This byte contains the oscillator calibration value for the internal 32.768kHz oscillator. Calibration of the oscillator is performed during production testing of the device. During reset, this value is automatically loaded into the calibration register for the 32.768kHz oscillator. Refer to “RC32KCAL – 32kHz Oscillator Calibration register” on page 92 for more details.

4.16.4 RCOSC32M – Internal 32MHz Oscillator Calibration register

Bit 7 6 5 4 3 2 1 0 +0x03 RCOSC32M[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – RCOSC32M[7:0]: Internal 32MHz Oscillator Calibration Value

This byte contains the oscillator calibration value for the internal 32MHz oscillator. Calibration of the oscillator is performed during production testing of the device. During reset, this value is automatically loaded into calibration register B for the 32MHz DFLL. Refer to “CALB – Calibration register B” on page 94 for more details.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 37

4.16.5 RCOSC32MA – Internal 32MHz RC Oscillator Calibration register

Bit 7 6 5 4 3 2 1 0 +0x04 RCOSC32MA[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – RCOSC32MA[7:0]: Internal 32MHz Oscillator Calibration Value

This byte contains the oscillator calibration value for the internal 32MHz oscillator. Calibration of the oscillator is performed during production testing of the device. During reset, this value is automatically loaded into calibration register A for the 32MHz DFLL. Refer to “CALA – Calibration register A” on page 93 for more details.

4.16.6 LOTNUM0 – Lot Number register 0

LOTNUM0, LOTNUM1, LOTNUM2, LOTNUM3, LOTNUM4, and LOTNUM5 contain the lot number for each device. Together with the wafer number and wafer coordinates, this gives a serial number for the device.

Bit 7 6 5 4 3 2 1 0 +0x08 LOTNUM0[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – LOTNUM0[7:0]: Lot Number Byte 0

This byte contains byte 0 of the lot number for the device.

4.16.7 LOTNUM1 – Lot Number register 1

Bit 7 6 5 4 3 2 1 0 +0x09 LOTNUM1[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – LOTNUM1[7:0]: Lot Number Byte 1

This byte contains byte 1 of the lot number for the device.

4.16.8 LOTNUM2 – Lot Number register 2

Bit 7 6 5 4 3 2 1 0 +0x0A LOTNUM2[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – LOTNUM2[7:0]: Lot Number Byte 2

This byte contains byte 2 of the lot number for the device.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 38

4.16.9 LOTNUM3- Lot Number register 3

Bit 7 6 5 4 3 2 1 0 +0x0B LOTNUM3[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – LOTNUM3[7:0]: Lot Number Byte 3

This byte contains byte 3 of the lot number for the device.

4.16.10 LOTNUM4 – Lot Number register 4

Bit 7 6 5 4 3 2 1 0 +0x0C LOTNUM4[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – LOTNUM4[7:0]: Lot Number Byte 4

This byte contains byte 4 of the lot number for the device.

4.16.11 LOTNUM5 – Lot Number register 5

Bit 7654 3 2 1 0 +0x0D LOTNUM5[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – LOTNUM5[7:0]: Lot Number Byte 5

This byte contains byte 5 of the lot number for the device.

4.16.12 WAFNUM – Wafer Number register

Bit 7 6 5 4 3 2 1 0 +0x10 WAFNUM[7:0]

Read/Write R R R R R R R R

Initial Value 0 0 0 x x x x x

 Bit 7:0 – WAFNUM[7:0]: Wafer Number

This byte contains the wafer number for each device. Together with the lot number and wafer coordinates, this gives a serial number for the device.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 39

4.16.13 COORDX0 – Wafer Coordinate X register 0

COORDX0, COORDX1, COORDY0, and COORDY1 contain the wafer X and Y coordinates for each device. Together with the lot number and wafer number, this gives a serial number for each device.

Bit 7654 3 2 1 0 +0x12 COORDX0[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – COORDX0[7:0]: Wafer Coordinate X Byte 0

This byte contains byte 0 of wafer coordinate X for the device.

4.16.14 COORDX1 – Wafer Coordinate X register 1

Bit 7 6 5 4 3 2 1 0 +0x13 COORDX1[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – COORDX0[7:0]: Wafer Coordinate X Byte 1

This byte contains byte 1 of wafer coordinate X for the device.

4.16.15 COORDY0 – Wafer Coordinate Y register 0

Bit 7 6 5 4 3 2 1 0 +0x14 COORDY0[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – COORDY0[7:0]: Wafer Coordinate Y Byte 0

This byte contains byte 0 of wafer coordinate Y for the device.

4.16.16 COORDY1 – Wafer Coordinate Y register 1

Bit 7 6 5 4 3 2 1 0 +0x15 COORDY1[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – COORDY1[7:0]: Wafer Coordinate Y Byte 1

This byte contains byte 1 of wafer coordinate Y for the device.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 40

4.16.17 USBCAL0 – USB Calibration register 0

USBCAL0 and USBCAL1 contain the calibration value for the USB pins. Calibration is done during production to enable operation without requiring external components on the USB lines for the device. The calibration bytes are not loaded automatically into the USB calibration registers, and so this must be done from software.

Bit 7 6 5 4 3 2 1 0 +0x1A USBCAL0[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – USBCAL0[7:0]: USB Pad Calibration Byte 0

This byte contains byte 0 of the USB pin calibration data, and must be loaded into the USB CALL register.

4.16.18 USBCAL1 – USB Pad Calibration register 1

Bit 7 6 5 4 3 2 1 0 +0x1B USBCAL1[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – USBCAL1[7:0]: USB Pad Calibration Byte 1

This byte contains byte 1 of the USB pin calibration data, and must be loaded into the USB CALH register.

4.16.19 RCOSC48M – USB RCOSC Calibration

Bit 7 6 5 4 3 2 1 0 +0x1C RCOSC48M[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – RCOSC48M[7:0]: 48MHz RSCOSC Calibration

This byte contains a 48MHz calibration value for the internal 32MHz oscillator. When this calibration value is written to calibration register B for the 32MHz DFLL, the oscillator is calibrated to 48MHz to enable full-speed USB operation from internal oscillator.

Note: The COMP2 and COMP1 registers inside the DFLL32M must be set to B71B.

4.16.20 ADCACAL0 – ADCA Calibration register 0

ADCACAL0 and ADCACAL1 contain the calibration value for the analog-to-digital converter A (ADCA). Calibration is done during production testing of the device. The calibration bytes are not loaded automatically into the ADC calibration registers, and so this must be done from software.

Bit 7 6 5 4 3 2 1 0 +0x20 ADCACAL0[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – ADCACAL0[7:0]: ADCA Calibration Byte 0

This byte contains byte 0 of the ADCA calibration data, and must be loaded into the ADCA CALL register.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 41

4.16.21 ADCACAL1 – ADCA Calibration register 1

Bit 7 6 5 4 3 2 1 0 +0x21 ADCACAL1[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – ADCACAL1[7:0]: ADCA Calibration Byte 1

This byte contains byte 1 of the ADCA calibration data, and must be loaded into the ADCA CALH register.

4.16.22 ADCBCAL0 – ADCB Calibration register 0

ADCBCAL0 and ADCBCAL1 contains the calibration value for the analog-to-digital converter B (ADCB). Calibration is done during production testing of the device. The calibration bytes are not loaded automatically into the ADC calibration registers, and so this must be done from software.

Bit 7 6 5 4 3 2 1 0 +0x24 ADCBCAL0[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – ADCBCAL0[7:0]: ADCB Calibration Byte 0

This byte contains byte 0 of the ADCB calibration data, and must be loaded into the ADCB CALL register.

4.16.23 ADCBCAL1 – ADCB Calibration register 1

Bit 7654 3 2 1 0 +0x25 ADCBCAL1[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – ADCBCAL0[7:0]: ADCB Calibration Byte 1

This byte contains byte 1 of the ADCB calibration data, and must be loaded into the ADCB CALH register.

4.16.24 TEMPSENSE0 – Temperature Sensor Calibration register 0

TEMPSENSE0 and TEMPSENSE1 contain the 12-bit ADCA value from a temperature measurement done with the internal temperature sensor. The measurement is done in production testing at 85C, and can be used for single- or multi-point temperature sensor calibration.

Bit 7 6 5 4 3 2 1 0 +0x2E TEMPSENSE0[7:0]

Read/Write R R R R R R R R

Initial Value x x x x x x x x

 Bit 7:0 – TEMPSENSE0[7:0]: Temperature Sensor Calibration Byte 0

This byte contains the byte 0 of the temperature measurement.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 42

4.16.25 TEMPSENSE1 – Temperature Sensor Calibration Register 1

Bit 7 6 5 4 3 2 1 0 +0x2F TEMPSENSE1[7:0]

Read/Write R R R R R R R R

Initial Value 0 0 0 0 x x x x

 Bit 7:0 – TEMPSENSE1[7:0]: Temperature Sensor Calibration Byte 1

This byte contains byte 1 of the temperature measurement.

4.17 Register Description – General Purpose I/O Memory

4.17.1 GPIORn – General Purpose I/O Register n

Bit 76543210 +n GPIORn[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

These are general purpose registers that can be used to store data, such as global variables and flags, in the bitaccessible I/O memory space.

4.18 Register Descriptions – MCU Control

4.18.1 DEVID0 – Device ID register 0

DEVID0, DEVID1, and DEVID2 contain the three-byte identification that identifies each microcontroller device type. For details on the actual ID, refer to the device datasheet.

Bit 76543210 +0x00 DEVID0[7:0]

Read/Write R R R R R R R R

Initial Value 0 0 0 1 1 1 1 0

 Bit 7:0 – DEVID0[7:0]: Device ID Byte 0

Byte 0 of the device ID. This byte will always be read as 0x1E. This indicates that the device is manufactured by Atmel.

4.18.2 DEVID1 – Device ID register 1

Bit 76543210 +0x01 DEVID1[7:0]

Read/Write R R R R R R R R

Initial Value 1/0 1/0 1/0 1/0 1/0 1/0 1/0 1/0

 Bit 7:0 – DEVID[7:0]: Device ID Byte 1

Byte 1 of the device ID indicates the flash size of the device.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 43

4.18.3 DEVID2 – Device ID register 2

Bit 76543210 +0x02 DEVID2[7:0]

Read/Write R R R R R R R R

Initial Value 1/0 1/0 1/0 1/0 1/0 1/0 1/0 1/0

 Bit 7:0 – DEVID2[7:0]: Device ID Byte 2

Byte 2 of the device ID indicates the device number.

4.18.4 REVID – Revision ID

Bit 76543210

+0x03

Read/Write R R R R R R R R

Initial Value 0 0 0 0 1/0 1/0 1/0 1/0

 Bit 7:4 – Reserved

– – – – REVID[3:0]

These bits are unused and reserved for future use.

 Bit 3:0 – REVID[3:0]: Revision ID

These bits contains the device revision. 0 = A, 1 = B, and so on.

4.18.5 JTAGUID – JTAG User ID register

Bit 76543210 +0x04 JTAGUID[7:0]

Read/Write R R R R R R R R

Initial Value 1/0 1/0 1/0 1/0 1/0 1/0 1/0 1/0

 Bit 7:0 – JTAGUID[7:0]: JTAG User ID

The JTAGUID can be used to identify two devices with identical device IDs in a JTAG scan chain. The JTAGUID will automatically be loaded from flash during reset and placed in these registers.

4.18.6 MCUCR – MCU Control register

Bit 76543210

+0x06

Read/Write R R R R R R R R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:1 – Reserved

– – – – – – – JTAGD

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 0 – JTAGD: JTAG Disable

Setting this bit will disable the JTAG interface. This bit is protected by the configuration change protection mechanism. For details, refer to “Configuration Change Protection” on page 14.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 44

4.18.7 ANAINIT – Analog Initialization register

Bit 76543210

+0x07

Read/Write R R R R R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:4 – Reserved

– – – – STARTUPDLYB[1:0] STARTUPDLYA[1:0]

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 3:2 / 1:0 – STARTUPDLYx: Start-Up Delay

Setting these bits enables sequential start of the internal components used for the ADC, DAC, and analog comparator with the main input/output connected to that port. When this is done, the internal components, such as voltage reference and bias currents, are started sequentially when the module is enabled. This reduces the peak current consumption during startup of the module. For maximum effect, the start-up delay should be set so that it is larger than 0.5μs.

Table 4-13. Analog start-up delay.

STARTUPDLYx Group Configuration Description

00 NONE Direct startup

11 2CLK 2 * CLK

10 8CLK 8 * CLK

11 32CLK 32 * CLK

4.18.8 EVSYSLOCK – Event System Lock register

Bit 7 6 5 4 3 2 1 0

+0x08

Read/Write R R R R R R R R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:1 – Reserved

– – – – – – – EVSYS0LOCK

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 0 – EVSYS0LOCK:

Setting this bit will lock all registers in the event system related to event channels 0 to 3 for further modification. The following registers in the event system are locked: CH0MUX, CH0CTRL, CH1MUX, CH1CTRL, CH2MUX, CH2CTRL, CH3MUX, and CH3CTRL. This bit is protected by the configuration change protection mechanism. For details, refer to

“Configuration Change Protection” on page 14.

PER

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 45

4.18.9 AWEXLOCK – Advanced Waveform Extension Lock register

Bit 7 6 5 4 3 2 1 0

+0x09

Read/Write R R R R R R R R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:1 – Reserved

– – – – – – – AWEXCLOCK

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 0 – AWEXCLOCK: Advanced Waveform Extension Lock for TCC0

Setting this bit will lock all registers in the AWEXC module for Timer/Counter C0 foragainst further modification. This bit is protected by the configuration change protection mechanism. For details, refer to “Configuration Change Protection” on

page 14.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 46

4.19 Register Summary - NVM Controller

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00 ADDR0 Address Byte 0 25 +0x01 ADDR1 Address Byte 1 25 +0x02 ADDR2 Address Byte 2 25 +0x03 Reserved – – – – – – – – +0x04 DATA0 Data Byte 0 26 +0x05 DATA1 Data Byte 1 26 +0x06 DATA2 Data Byte 2 26 +0x07 Reserved – – – – – – – – +0x08 Reserved – – – – – – – – +0x09 Reserved – – – – – – – – +0x0A CMD – CMD[6:0] 26 +0x0B CTRLA +0x0C CTRLB +0x0D INTCTRL +0x0E Reserved – – – – – – – – +0x0F STATUS NVMBUSY FBUSY – – – – EELOAD FLOAD 28 +0x10 LOCKBITS BLBB[1:0] BLBA[1:0] BLBAT[1:0] LB[1:0] 29

– – – – – – – CMDEX 27 – – – – EEMAPEN FPRM EPRM SPMLOCK 27 – – – – SPMLVL[1:0] EELVL[1:0] 28

4.20 Register Summary - Fuses and Lock Bits

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00 FUSEBYTE JTAGUID 30 +0x01 FUSEBYTE WDWPER3:0] WDPER[3:0] 30 +0x02 FUSEBYTE +0x03 Reserved – – – – – – – – +0x04 FUSEBYTE – – – RSTDISBL STARTUPTIME[1:0] WDLOCK JTAGEN 31 +0x05 FUSEBYTE +0x06 Reserved – – – – – – – – +0x07 LOCKBITS BLBB[1:0] BLBA[1:0] BLBAT[1:0] LB[1:0] 34

– BOOTRST TOSCSEL – – – BODPD[1:0] 30

– – BODACT[1:0] EESAVE BODLEVEL[2:0] 32

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 47

4.21 Register Summary - Production Signature Row

Address Auto Load Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00

+0x01

+0x02

+0x03

+0x04

+0x05

+0x06

+0x07

+0x08

+0x09

+0x0A

+0x0B

+0x0C

+0x0D

+0x0E

+0x0F

+0x10

+0x11

+0x12

+0x13

+0x14

+0x15

+0x16

+0x17

+0x18

+0x19

+0x1A

+0x1B

+0x1C

+0x1D

+0x0E

+0x1E

+0x20

+0x21

+0x22

+0x23

+0x24

+0x25

+0x26

+0x27

+0x28

+0x29

+0x2A

+0x2B

+0x2C

+0x2D

+0x2E

+0x2F

+0x30

+0x31

+0x32

+0x33

+0x34

+0x35

+0x36

+0x37

+0x38

+0x39

0x3A

+0x3B

+0x3C

+0x3D

+0x3E

YES RCOSC2M RCOSC2M[7:0]

YES RCOSC2MA RCOSC2MA[7:0]

YES RCOSC32K RCOSC32K[7:0] 36

YES RCOSC32M RCOSC32M[7:0] 36

YES RCOSC32MA RCOSC32MA[7:0] 37

NO LOTNUM0 LOTNUM0[7:0] 37

NO LOTNUM1 LOTNUM1[7:0] 37

NO LOTNUM2 LOTNUM2[7:0] 37

NO LOTNUM3 LOTNUM3[7:0] 38

NO LOTNUM4 LOTNUM4[7:0] 38

NO LOTNUM5 LOTNUM5[7:0] 38

NO WAFNUM WAFNUM[7:0] 38

NO COORDX0 COORDX0[7:0] 39

NO COORDX1 COORDX1[7:0] 39

NO COORDY0 COORDY0[7:0] 39

NO COORDY1 COORDY1[7:0] 39

NO ADCACAL0 ADCACAL0[7:0] 40

NO ADCACAL1 ADCACAL1{7:0] 41

NO ADCBCAL0 ADCBCAL0[7:0] 41

NO ADCBCAL1 ADCBCAL1[7:0] 41

NO TEMPSENSE0 TEMPSENSE0[7:0] 41

NO TEMPSENSE1

Reserved – – – – – – – –

USBCAL0 USBCAL0[7:0] 40

USBCAL1 USBCAL1[7:0] 40

RCOSC48M RCOSC48M[7:0] 40

Reserved – – – – – – – –

– – – – TEMPSENSE1[11:8] 42

Reserved – – – – – – – –

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 48

4.22 Register Summary - General Purpose I/O Registers

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00

+0x01

+0x02

+0x03

+0x04

+0x05

+0x06

+0x07

+0x08

+0x09

+0x0A

+0x0B

+0x0C

+0x0D

+0x0E

+0x0F

GPIOR0 GPIOR[7:0]

GPIOR1 GPIOR[7:0]

GPIOR2 GPIOR[7:0]

GPIOR3 GPIOR[7:0]

Reserved – – – – – – – –

4.23 Register Summary - MCU Control

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00

+0x01

+0x02

+0x03

+0x04

+0x05

+0x06

+0x07

+0x08

+0x09

+0x0A

+0x0B

DEVID0 DEVID0[7:0]

DEVID1 DEVID1[7:0]

DEVID2 DEVID2[7:0]

REVID

JTAGUID JTAGUID[7:0]

Reserved – – – – – – – –

MCUCR

ANAINIT

EVSYSLOCK

AWEXLOCK

Reserved – – – – – – – –

– – – – REVID[3:0]

– – – – – – – JTAGD

– – – – STARTUPDLYB[1:0] STARTUPDLYA[1:0] 44

– – – – – – – EVSYS0LOC 44

– – – – – – – AWEXCLOCK 45

4.24 Interrupt Vector Summary - NVM Controller

Offset Source Interrupt Description

0x00 EE_vect Nonvolatile memory EEPROM interrupt vector

0x02 SPM_vect Nonvolatile memory SPM interrupt vector

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 49

5. DMAC - Direct Memory Access Controller

5.1 Features

 Allows high speed data transfers with minimal CPU intervention

 from data memory to data memory  from data memory to peripheral  from peripheral to data memory  from peripheral to peripheral

 Two DMA channels with separate

 transfer triggers  interrupt vectors  addressing modes

 Programmable channel priority

 From 1 byte to 16MB of data in a single transaction

 Up to 64KB block transfers with repeat  1, 2, 4, or 8 byte burst transfers

 Multiple addressing modes

 Static  Incremental  Decremental

 Optional reload of source and destination addresses at the end of each

 Burst  Block  Transaction

 Optional interrupt on end of transaction

 Optional connection to CRC generator for CRC on DMA data

5.2 Overview

The two-channel direct memory access (DMA) controller can transfer data between memories and peripherals, and thus offload these tasks from the CPU. It enables high data transfer rates with minimum CPU intervention, and frees up CPU time. The two DMA channels enable up to two independent and parallel transfers.

The DMA controller can move data between SRAM and peripherals, between SRAM locations and directly between peripheral registers. With access to all peripherals, the DMA controller can handle automatic transfer of data to/from communication modules. The DMA controller can also read from memory mapped EEPROM.

Data transfers are done in continuous bursts of 1, 2, 4, or 8 bytes. They build block transfers of configurable size from 1 byte to 64KB. A repeat counter can be used to repeat each block transfer for single transactions up to 16MB. Source and destination addressing can be static, incremental or decremental. Automatic reload of source and/or destination addresses can be done after each burst or block transfer, or when a transaction is complete. Application software, peripherals, and events can trigger DMA transfers.

The two DMA channels have individual configuration and control settings. This include source, destination, transfer triggers, and transaction sizes. They have individual interrupt settings. Interrupt requests can be generated when a transaction is complete or when the DMA controller detects an error on a DMA channel.

To allow for continuous transfers, two channels can be interlinked so that the second takes over the transfer when the first is finished, and vice versa.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 50

Figure 5-1. DMA Overview.

DMA Channel 0

CTRLA CTRLB

Enable Burst

TRFCNT REPCNT

DMA Channel 1

5.3 DMA Transaction

A complete DMA read and write operation between memories and/or peripherals is called a DMA transaction. A transaction is done in data blocks, and the size of the transaction (number of bytes to transfer) is selectable from software and controlled by the block size and repeat counter settings. Each block transfer is divided into smaller bursts.

5.3.1 Block Transfer and Repeat

Control Logic

TRIGSRC

DESTADDR

SRCADDR

DMA trigger / Event

Arbitration

Arbiter

CTRL

BUF

R/W Master port

Read

Write

Slave port

Read /

Write

Bus

matrix

The size of the block transfer is set by the block transfer count register, and can be anything from 1 byte to 64KB.

A repeat counter can be enabled to set a number of repeated block transfers before a transaction is complete. The repeat is from 1 to 255, and an unlimited repeat count can be achieved by setting the repeat count to zero.

5.3.2 Burst Transfer

Since the AVR CPU and DMA controller use the same data buses, a block transfer is divided into smaller burst transfers. The burst transfer is selectable to 1, 2, 4, or 8 bytes. This means that if the DMA acquires the data bus and a transfer request is pending, it will occupy the bus until all bytes in the burst are transferred.

A bus arbiter controls when the DMA controller and the AVR CPU can use the bus. The CPU always has priority, and so as long as the CPU requests access to the bus, any pending burst transfer must wait. The CPU requests bus access when it executes an instruction that writes or reads data to SRAM, I/O memory, EEPROM or the external bus interface. For more details on memory access bus arbitration, refer to “Data Memory” on page 22.

Figure 5-2. DMA transaction.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 51

5.4 Transfer Triggers

DMA transfers can be started only when a DMA transfer request is detected. A transfer request can be triggered from software, from an external trigger source (peripheral), or from an event. There are dedicated source trigger selections for each DMA channel. The available trigger sources may vary from device to device, depending on the modules or peripherals that exist in the device. Using a transfer trigger for a module or peripherals that does not exist will have no effect. For a list of all transfer triggers, refer to “TRIGSRC – Trigger Source” on page 59.

By default, a trigger starts a block transfer operation. When the block transfer is complete, the channel is automatically disabled. When enabled again, the channel will wait for the next block transfer trigger. It is possible to select the trigger to start a burst transfer instead of a block transfer. This is called a single-shot transfer, and for each trigger only one burst is transferred. When repeat mode is enabled, the next block transfer does not require a transfer trigger. It will start as soon as the previous block is done.

If the trigger source generates a transfer request during an ongoing transfer, this will be kept pending, and the transfer can start when the ongoing one is done. Only one pending transfer can be kept, and so if the trigger source generates more transfer requests when one is already pending, these will be lost.

5.5 Addressing

The source and destination address for a DMA transfer can either be static or automatically incremented or decremented, with individual selections for source and destination. When address increment or decrement is used, the default behaviour is to update the address after each access. The original source and destination addresses are stored by the DMA controller, and so the source and destination addresses can be individually configured to be reloaded at the following points:

 End of each burst transfer  End of each block transfer  End of transaction  Never reloaded

5.6 Priority Between Channels

If several channels request a data transfer at the same time, a priority scheme is available to determine which channel is allowed to transfer data. Application software can decide whether one or more channels should have a fixed priority or if a round robin scheme should be used. A round robin scheme means that the channel that last transferred data will have the lowest priority.

5.7 Double Buffering

To allow for continuous transfer, two channels can be interlinked so that the second takes over the transfer when the first is finished, and vice versa. This leaves time for the application to process the data transferred by the first channel, prepare fresh data buffers, and set up the channel registers again while the second channel is working. This is referred to as double buffering or chained transfers.

When double buffering is enabled for a channel pair, it is important that the two channels are configured with the same repeat count. The block sizes need not be equal, but for most applications they should be, along with the rest of the channel’s operation mode settings.

Note that the double buffering channel pairs are limited to channels 0 and 1 as the first pair and channels 2 and 3 as the second pair. However, it is possible to have one pair operate in double buffered mode while the other is left unused or operating independently.

5.8 Transfer Buffers

To avoid unnecessary bus loading when doing data transfer between memories with different access timing (for example, I/O register and external memory), the DMA controller has a four-byte buffer. Two bytes will be read from the source address and written to this buffer before a write to the destination is started.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 52

5.9 Error detection

The DMA controller can detect erroneous operation. Error conditions are detected individually for each DMA channel, and the error conditions are:

 Write to memory mapped EEPROM locations  Reading EEPROM when the EEPROM is off (sleep entered)  DMA controller or a busy channel is disabled in software during a transfer

5.10 Software Reset

Both the DMA controller and a DMA channel can be reset from the user software. When the DMA controller is reset, all registers associated with the DMA controller, including channels, are cleared. A software reset can be done only when the DMA controller is disabled.

When a DMA channel is reset, all registers associated with the DMA channel are cleared. A software reset can be done only when the DMA channel is disabled.

5.11 Protection

In order to ensure safe operation, some of the channel registers are protected during a transaction. When the DMA channel busy flag (CHnBUSY) is set for a channel, the user can modify only the following registers and bits:

 CTRL register  INTFLAGS register  TEMP registers  CHEN, CHRST, TRFREQ, and REPEAT bits of the channel CTRL register  TRIGSRC register

5.12 Interrupts

The DMA controller can generate interrupts when an error is detected on a DMA channel or when a transaction is complete for a DMA channel. Each DMA channel has a separate interrupt vector, and there are different interrupt flags for error and transaction complete.

If repeat is not enabled, the transaction complete flag is set at the end of the block transfer. If unlimited repeat is enabled, the transaction complete flag is also set at the end of each block transfer.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 53

5.13 Register Description – DMA Controller

5.13.1 CTRL – Control register

Bit 7654 3 2 10 +0x00 ENABLE RESET

Read/Write R/W R/W R R R R/W R R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7 – ENABLE: Enable

Setting this bit enables the DMA controller. If the DMA controller is enabled and this bit is written to zero, the ENABLE bit is not cleared before the internal transfer buffer is empty, and the DMA data transfer is aborted.

 Bit 6 – RESET: Software Reset

Writing a one to RESET will be ignored as long as DMA is enabled (ENABLE = 1). This bit can be set only when the DMA controller is disabled (ENABLE = 0).

 Bit 5:3 – Reserved

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 2 – DBUFMODE: Double Buffer Mode

This bit enables the double buffer mode.

 Bit 1 – Reserved

This bit is unused and reserved for future use. For compatibility with future devices, always write this bits to zero when this register is written.

 Bit 0 – PRIMODE: Channel Priority Mode

This bit determines the internal channel priority according to Table 5-1.

– – – DBUFMODE – PRIMODE

Table 5-1. Channel priority settings

PRIMODE Group Configuration Description

0 RR01 Round robin

1 CH01 Channel0 has priority

5.13.2 INTFLAGS – Interrupt Status register

Bit 7654 3 2 1 0

+0x03

Read/Write R R R/W R/W R R R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:6 – Reserved

– – CH1ERRIF CH0ERRIF – – CH1TRNFIF CH0TRNFIF

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 54

 Bit 5:4 – CHnERRIF[1:0]: Channel n Error Interrupt Flag

If an error condition is detected on DMA channel n, the CHnERRIF flag will be set. Writing a one to this bit location will clear the flag.

 Bit 3:2 – Reserved

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 1:0 – CHnTRNFIF[1:0]: Channel n Transaction Complete Interrupt Flag

When a transaction on channel n has been completed, the CHnTRFIF flag will be set. If unlimited repeat count is enabled, this flag is read as one after each block transfer. Writing a one to this bit location will clear the flag.

5.13.3 STATUS – Status register

Bit 76543210

+0x04

Read/Write R R R R R R R R

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:6 – Reserved

– – CH1BUSY CH0BUSY – – CH1PEND CH0PEND

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 5:4 – CHnBUSY[1:0]: Channel Busy

When channel n starts a DMA transaction, the CHnBUSY flag will be read as one. This flag is automatically cleared when the DMA channel is disabled, when the channel n transaction complete interrupt flag is set, or if the DMA channel n error interrupt flag is set.

 Bit 3:2 – Reserved

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written

 Bit 1:0 – CHnPEND[1:0]: Channel Pending

If a block transfer is pending on DMA channel n, the CHnPEND flag will be read as one. This flag is automatically cleared when the block transfer starts or if the transfer is aborted.

5.13.4 TEMPL – Temporary register Low

Bit 76543210 +0x06 TEMP[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – TEMP[7:0]: Temporary register 0

This register is used when reading 16- and 24-bit registers in the DMA controller. Byte 1 of the 16/24-bit register is stored here when it is written by the CPU. Byte 1 of the 16/24-bit register is stored when byte 0 is read by the CPU. This register can also be read and written from the user software.

Reading and writing 16- and 24-bit registers requires special attention. For details, refer to “Accessing 16-bit Registers”

on page 13.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 55

5.13.5 TEMPH – Temporary Register High

Bit 76543210 +0x07 TEMP[15:8]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 00000000

 Bit 7:0 – TEMP[15:8]: Temporary Register

This register is used when reading and writing 24-bit registers in the DMA controller. Byte 2 of the 24-bit register is stored when it is written by the CPU. Byte 2 of the 24-bit register is stored here when byte 1 is read by the CPU. This register can also be read and written from the user software.

Reading and writing 24-bit registers requires special attention. For details, refer to “Accessing 16-bit Registers” on page

13.

5.14 Register Description – DMA Channel

5.14.1 CTRLA – Control register A

Bit 76543210 +0x00 ENABLE RESET REPEAT TRFREQ

Read/Write R/W R/W R/W R/W R R/W R/W R/W

Initial Value 0 0 000000

– SINGLE BURSTLEN[1:0]

 Bit 7 – ENABLE: Channel Enable

Setting this bit enables the DMA channel. This bit is automatically cleared when the transaction is completed. If the DMA channel is enabled and this bit is written to zero, the CHEN bit is not cleared until the internal transfer buffer is empty and the DMA transfer is aborted.

 Bit 6 – RESET: Software Reset

Setting this bit will reset the DMA channel. It can only be set when the DMA channel is disabled (CHEN = 0). Writing a one to this bit will be ignored as long as the channel is enabled (CHEN=1). This bit is automatically cleared when reset is completed.

 Bit 5 – REPEAT: Repeat Mode

Setting this bit enables the repeat mode. In repeat mode, this bit is cleared by hardware at the beginning of the last block transfer. The REPCNT register should be configured before setting the REPEAT bit.

 Bit 4 – TRFREQ: Transfer Request

Setting this bit requests a data transfer on the DMA channel. This bit is automatically cleared at the beginning of the data transfer. Writing this bit does not have any effect unless the channel is enabled.

 Bit 3 – Reserved

This bit is unused and reserved for future use. For compatibility with future devices, always write this bit to zero when this register is written.

 Bit 2 – SINGLE: Single-Shot Data transfer

Setting this bit enables the single-shot mode. The channel will then do a burst transfer of BURSTLEN bytes on the transfer trigger. A write to this bit will be ignored while the channel is enabled.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 56

 Bit 1:0 – BURSTLEN[1:0]: Burst Mode

These bits decide the DMA channel burst mode according to Table 5-2 on page 56. These bits cannot be changed if the channel is busy.

Table 5-2. DMA channel burst mode

BURSTLEN[1:0] Group Configuration Description

00 1BYTE 1 byte burst mode

01 2BYTE 2 bytes burst mode

10 4BYTE 4 bytes burst mode

11 8BYTE 8 bytes burst mode

Table 5-3. Summary of triggers, transaction complete flag and channel disable according to DMA channel

configuration.

REPEAT SINGLE REPCNT Trigger Flag Set After Channel Disabled After

0 0 0 Block 1 block 1 block

0 0 1 Block 1 block 1 block

0 0 n > 1 Block 1 block 1 block

0 1 0 BURSTLEN 1 block 1 block

0 1 1 BURSTLEN 1 block 1 block

0 1 n > 1 BURSTLEN 1 block 1 block

1 0 0 Block Each block Each block

1 0 1 Transaction 1 block 1 block

1 0 n > 1 Transaction n blocks n blocks

1 1 0 BURSTLEN Each block Never

1 1 1 BURSTLEN 1 block 1 block

1 1 n > 1 BURSTLEN n blocks n blocks

5.14.2 CTRLB – Control register B

Bit 76543210 +0x01 CHBUSY CHPEND ERRIF TRNIF ERRINTLVL[1:0] TRNINTLVL[1:0]

Read/Write R R R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7 – CHBUSY: Channel Busy

When the DMA channel starts a DMA transaction, the CHBUSY flag will be read as one. This flag is automatically cleared when the DMA channel is disabled, when the channel transaction complete interrupt flag is set or when the channel error interrupt flag is set.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 57

 Bit 6 – CHPEND: Channel Pending

If a block transfer is pending on the DMA channel, the CHPEND flag will be read as one. This flag is automatically cleared when the transfer starts or if the transfer is aborted.

 Bit 5 – ERRIF: Error Interrupt Flag

If an error condition is detected on the DMA channel, the ERRIF flag will be set and the optional interrupt is generated. Since the DMA channel error interrupt shares the interrupt address with the DMA channel n transaction complete interrupt, ERRIF will not be cleared when the interrupt vector is executed. This flag is cleared by writing a one to this location.

 Bit 4 – TRNIF: Channel n Transaction Complete Interrupt Flag

When a transaction on the DMA channel has been completed, the TRNIF flag will be set and the optional interrupt is generated. When repeat is not enabled, the transaction is complete and TRNIFR is set after the block transfer. When unlimited repeat is enabled, TRNIF is also set after each block transfer.

Since the DMA channel transaction n complete interrupt shares the interrupt address with the DMA channel error interrupt, TRNIF will not be cleared when the interrupt vector is executed. This flag is cleared by writing a one to this location.

 Bit 3:2 – ERRINTLVL[1:0]: Channel Error Interrupt Level

These bits enable the interrupt for DMA channel transfer errors and select the interrupt level, as described in “Interrupts

and Programmable Multilevel Interrupt Controller” on page 118. The enabled interrupt will trigger for the conditions when

ERRIF is set.

 Bit 1:0 – TRNINTLVL[1:0]: Channel Transaction Complete Interrupt Level

These bits enable the interrupt for DMA channel transaction completes and select the interrupt level, as described in

“Interrupts and Programmable Multilevel Interrupt Controller” on page 118. The enabled interrupt will trigger for the

conditions when TRNIF is set.

5.14.3 ADDRCTRL – Address Control register

Bit 76543210 +0x02 SRCRELOAD[1:0] SRCDIR[1:0] DESTRELOAD[1:0] DESTDIR[1:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0000000

 Bit 7:6 – SRCRELOAD[1:0]: Channel Source Address Reload

These bits decide the DMA channel source address reload according to Table 5-4. A write to these bits is ignored while the channel is busy.

Table 5-4. DMA channel source address reload settings

SRCRELOAD[1:0] Group Configuration Description

00 NONE No reload performed.

01 BLOCK

10 BURST

11 TRANSACTION

DMA source address register is reloaded with initial value at end of each block transfer.

DMA source address register is reloaded with initial value at end of each burst transfer.

DMA source address register is reloaded with initial value at end of each transaction.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 58

 Bit 5:4 – SRCDIR[1:0]: Channel Source Address Mode

These bits decide the DMA channel source address mode according to Table 5-5. These bits cannot be changed if the channel is busy.

Table 5-5. DMA channel source address mode settings.

SRCDIR[1:0] Group Configuration Description

00 FIXED Fixed

01 INC Increment

10 DEC Decrement

11 - Reserved

 Bit 3:2 – DESTRELOAD[1:0]: Channel Destination Address Reload

These bits decide the DMA channel destination address reload according to Table 5-6. These bits cannot be changed if the channel is busy.

Table 5-6. DMA channel destination address reload settings

DESTRELOAD[1:0] Group Configuration Description

00 NONE No reload performed.

01 BLOCK

10 BURST

11 TRANSACTION

 Bit 1:0 – DESTDIR[1:0]: Channel Destination Address Mode

DMA channel destination address register is reloaded with initial value at end of each block transfer.

DMA channel destination address register is reloaded with initial value at end of each burst transfer.

DMA channel destination address register is reloaded with initial value at end of each transaction.

These bits decide the DMA channel destination address mode according to Table 5-7. These bits cannot be changed if the channel is busy.

Table 5-7. DMA channel destination address mode settings

DESTDIR[1:0] Group Configuration Description

00 FIXED Fixed

01 INC Increment

10 DEC Decrement

11 - Reserved

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 59

5.14.4 TRIGSRC – Trigger Source

Bit 76543210 +0x03 TRIGSRC[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – TRIGSRC[7:0]: Channel Trigger Source Select

These bits select which trigger source is used for triggering a transfer on the DMA channel. A zero value means that the trigger source is disabled. For each trigger source, the value to put in the TRIGSRC register is the sum of the module’s or peripheral’s base value and the offset value for the trigger source in the module or peripheral. Table 5-8 on page 59 shows the base value for all modules and peripherals. Table 5-9 on page 60 to Table 5-11 on page 60 shows the offset value for the trigger sources in the different modules and peripheral types. For modules or peripherals which do not exist for a device, the transfer trigger does not exist. Refer to the device datasheet for the list of peripherals available.

If the interrupt flag related to the trigger source is cleared or the interrupt level enabled so that an interrupt is triggered, the DMA request will be lost. Since a DMA request can clear the interrupt flag, interrupts can be lost.

Note: For most trigger sources, the request is cleared by accessing a register belonging to the peripheral with the request. Refer to the dif-

ferent peripheral chapters for how requests are generated and cleared.

Table 5-8. DMA trigger source base values for all modules and peripherals.

TRIGSRC Base Value Group Configuration Description

0x00 OFF Software triggers only

0x01 SYS Event system DMA triggers base value

0x04 AES AES DMA trigger value

0x10 ADCA ADCA DMA trigger value

0x40 TCC0 Timer/counter C0 DMA triggers base value

0x46 TCC1 Timer/counter C1 triggers base value

0x4A SPIC SPI C DMA trigger value

0x4B USARTC0 USART C0 DMA triggers base value

0x60 TCD0 Timer/counter D0 DMA triggers base value

0x6A SPID SPI D DMA triggers value

0x6B USARTD0 USART D0 DMA triggers base value

0x80 TCE0 Timer/counter E0 DMA triggers base value

0x8B USARTE0 USART E0 DMA triggers base value

0xA0 TCF0 Timer/counter F0 DMA triggers base value

0xAB USARTF0 USART F0 DMA triggers base value

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 60

Table 5-9. DMA trigger source offset values for event system triggers.

TRGSRC Offset Value Group Configuration Description

+0x00 CH0 Event channel 0

+0x01 CH1 Event channel 1

+0x02 CH2 Event channel 2

Table 5-10. DMA trigger source offset values for timer/ counter triggers.

TRGSRC Offset Value Group Configuration Description

+0x00 OVF Overflow/underflow

+0x01 ERR Error

+0x02 CCA Compare or capture channel A

+0x03 CCB Compare or capture channel B

+0x04 CCC

+0x05 CCD

Note: 1. CC channel C and D triggers are available only for timer/counters 0.

(1)

Compare or capture channel C

Compare or capture channel D

Table 5-11. DMA trigger source offset values for USART triggers.

TRGSRC Offset Value Group Configuration Description

0x00 RXC Receive complete

0x01 DRE Data register empty

The group configuration is the “base_offset;” for example, TCC1_CCA for the timer/counter C1 CC channel A the transfer trigger.

5.14.5 TRFCNTL – Channel Block Transfer Count register Low

The TRFCNTH and TRFCNTL register pair represents the 16-bit value TRFCNT. TRFCNT defines the number of bytes in a block transfer. The value of TRFCNT is decremented after each byte read by the DMA channel. When TRFCNT reaches zero, the register is reloaded with the last value written to it.

Bit 76543210 +0x04 TRFCNT[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 00000000

 Bit 7:0 – TRFCNT[7:0]: Channel n Block Transfer Count low byte

These bits hold the LSB of the 16-bit block transfer count.

The default value of this register is 0x1. If a user writes 0x0 to this register and fires a DMA trigger, DMA will be doing 0xFFFF transfers.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 61

5.14.6 TRFCNTH – Channel Block Transfer Count register High

Reading and writing 16-bit values requires special attention. For details, refer to “Accessing 16-bit Registers” on page 13.

Bit 76543210 +0x05 TRFCNT[15:8]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 00000

 Bit 7:0 – TRFCNT[15:8]: Channel n Block Transfer Count high byte

These bits hold the MSB of the 16-bit block transfer count.

The default value of this register is 0x1. If a user writes 0x0 to this register and fires a DMA trigger, DMA will be doing 0xFFFF transfers.

5.14.7 REPCNT – Repeat Counter register

Bit 76543210 +0x06 REPCNT[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 000000

REPCNT counts how many times a block transfer is performed. For each block transfer, this register will be decremented.

When repeat mode is enabled (see REPEAT bit in “ADDRCTRL – Address Control register” on page 57), this register is used to control when the transaction is complete. The counter is decremented after each block transfer if the DMA has to serve a limited number of repeated block transfers. When repeat mode is enabled, the channel is disabled when REPCNT reaches zero and the last block transfer is completed. Unlimited repeat is achieved by setting this register to zero.

5.14.8 SRCADDR0 – Source Address 0

SRCADDR0, SRCADDR1, and SRCADDR2 represent the 24-bit value SRCADDR, which is the DMA channel source address. SRCADDR2 is the most significant byte in the register. SRCADDR may be automatically incremented or decremented based on settings in the SRCDIR bits in “ADDRCTRL – Address Control register” on page 57.

Bit 76543210 +0x08 SRCADDR[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – SRCADDR[7:0]: Channel Source Address byte 0

These bits hold byte 0 of the 24-bit source address.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 62

5.14.9 SRCADDR1 – Channel Source Address 1

Bit 76543210 +0x09 SRCADDR[15:8]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 00000

 Bit 7:0 – SRCADDR[15:8]: Channel Source Address byte 1

These bits hold byte 1 of the 24-bit source address.

5.14.10 SRCADDR2 – Channel Source Address 2

Reading and writing 24-bit values require special attention. For details, refer to “Accessing 24- and 32-bit Registers” on

page 13.

Bit 76543210 +0x0A SRCADDR[23:16]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – SRCADDR[23:16]: Channel Source Address byte 2

These bits hold byte 2 of the 24-bit source address.

5.14.11 DESTADDR0 – Channel Destination Address 0

DESTADDR0, DESTADDR1, and DESTADDR2 represent the 24-bit value DESTADDR, which is the DMA channel destination address. DESTADDR2 holds the most significant byte in the register. DESTADDR may be automatically incremented or decremented based on settings in the DESTDIR bits in “ADDRCTRL – Address Control register” on page

57.

Bit 76543210 +0x0C DESTADDR[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 00000000

 Bit 7:0 – DESTADDR[7:0]: Channel Destination Address byte 0

These bits hold byte 0 of the 24-bit source address.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 63

5.14.12 DESTADDR1 – Channel Destination Address 1

Bit 76543210 +0x0D DESTADDR[15:8]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – DESTADDR[15:8]: Channel Destination Address byte 1

These bits hold byte 1 of the 24-bit source address.

5.14.13 DESTADDR2 – Channel Destination Address 2

Reading and writing 24-bit values require special attention. For details, refer to “Accessing 24- and 32-bit Registers” on

page 13.

Bit 76543210 +0x0E DESTADDR[23:16]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:0 – DESTADDR[23:16]: Channel Destination Address byte 2

These bits hold byte 2 of the 24-bit source address.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 64

5.15 Register Summary – DMA Controller

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00

+0x01

+0x02

+0x03

+0x04

+0x05

+0x06

+0x07

+0x10

+0x20

+0x30

+0x40

CTRL ENABLE RESET – – – DBUFMODE – PRIMODE

Reserved – – – – – – – –

INTFLAGS – – CH1ERRIF CH0ERRIF – – CH1TRNFIF CH0TRNFIF 53

STATUS – – CH1BUSY CH0BUSY – – CH1PEND CH0PEND 54

Reserved – – – – – – – –

TEMPL TEMP[7:0] 54

TEMPH TEMP[15:8] 55

CH0 Offset Offset address for DMA Channel 0

CH1 Offset Offset address for DMA Channel 1

Reserved – – – – – – – –

5.16 Register Summary – DMA Channel

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00

+0x01

+0x02

+0x03

+0x04

+0x05

+0x06

+0x07

+0x08

+0x09

+0x0A

+0x0B

+0x0C

+0x0D

+0x0E

+0x0F

CTRLA ENABLE RESET REPEAT TRFREQ – SINGLE BURSTLEN[1:0] 55

CTRLB CHBUSY CHPEND ERRIF TRNIF ERRINTLVL[1:0] TRNINTLVL[1:0] 56

ADDCTRL SRCRELOAD[1:0] SRCDIR[1:0] DESTRELOAD[1:0] DESTDIR[1:0] 57

TRIGSRC TRIGSRC[7:0] 59

TRFCNTL TRFCNT[7:0] 60

TRFCNTH TRFCNT[15:8] 61

REPCNT REPCNT[7:0] 61

Reserved – – – – – – – –

SRCADDR0 SRCADDR[7:0] 61

SRCADDR1 SRCADDR[15:8] 62

SRCADDR2 SRCADDR[23:16] 62

Reserved – – – – – – – –

DESTADDR0 DESTADDR[7:0] 62

DESTADDR1 DESTADDR[15:8] 63

DESTADDR2 DESTADDR[23:16] 63

Reserved – – – – – – – –

5.17 DMA Interrupt Vector Summary

Offset Source Interrupt Description

0x00 CH0_vect DMA controller channel 0 interrupt vector

0x02 CH1_vect DMA controller channel 1 interrupt vector

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 65

6. Event System

6.1 Features

 System for direct peripheral-to-peripheral communication and signaling

 Peripherals can directly send, receive, and react to peripheral events

 CPU and DMA controller independent operation  100% predictable signal timing  Short and guaranteed response time

 Four event channels for up to eight different and parallel signal routings and configurations

 Events can be sent and/or used by most peripherals, clock system, and software

 Additional functions include

 Quadrature decoders  Digital filtering of I/O pin state

 Works in active mode and idle sleep mode

6.2 Overview

The event system enables direct peripheral-to-peripheral communication and signaling. It allows a change in one peripheral’s state to automatically trigger actions in other peripherals. It is designed to provide a predictable system for short and predictable response times between peripherals. It allows for autonomous peripheral control and interaction without the use of interrupts CPU or DMA controller resources, and is thus a powerful tool for reducing the complexity, size and execution time of application code. It also allows for synchronized timing of actions in several peripheral modules.

A change in a peripheral’s state is referred to as an event, and usually corresponds to the peripheral’s interrupt conditions. Events can be directly passed to other peripherals using a dedicated routing network called the event routing network. How events are routed and used by the peripherals is configured in software.

Figure 6-1 on page 66 shows a basic diagram of all connected peripherals. The event system can directly connect

together analog converters, analog comparators, I/O port pins, the real-time counter, timer/counters, IR communication module (IRCOM) and USB interface. It can also be used to trigger DMA transactions (DMA controller). Events can also be generated from software and the peripheral clock.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 66

Figure 6-1. Event system overview and connected peripherals.

ADC

CPU /

Software

Port pins

DMA

Controller

Event Routing Network

Event

System

Controller

IRCOM

clk

PER

Prescaler

Real Time

Counter

Timer /

Counters

USB

The event routing network consists of four software-configurable multiplexers that control how events are routed and used. These are called event channels, and allow for up to four parallel event configurations and routings. The maximum routing latency is two peripheral clock cycles. The event system works in both active mode and idle sleep mode.

6.3 Events

In the context of the event system, an indication that a change of state within a peripheral has occurred is called an event. There are two main types of events: signaling events and data events. Signaling events only indicate a change of state while data events contain additional information about the event.

The peripheral from which the event originates is called the event generator. Within each peripheral (for example, a timer/counter), there can be several event sources, such as a timer compare match or timer overflow. The peripheral using the event is called the event user, and the action that is triggered is called the event action.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 67

Figure 6-2. Example of event source, generator, user, and action.

Events can also be generated manually in software.

6.3.1 Signaling Events

Signaling events are the most basic type of event. A signaling event does not contain any information apart from the indication of a change in a peripheral. Most peripherals can only generate and use signaling events. Unless otherwise stated, all occurrences of the word ”event” are to be understood as meaning signaling events.

Event Generator

Timer/Counter

Compare Match

Over-/Underflow

Error

Event Source

Event

Routing

Network

Event User

Event Action Selection

Event Action

ADC

Syncsweep

Single

Conversion

6.3.2 Data Events

Data events differ from signaling events in that they contain information that event users can decode to decide event actions based on the receiver information.

Although the event routing network can route all events to all event users, those that are only meant to use signaling events do not have decoding capabilities needed to utilize data events. How event users decode data events is shown in

Table 6-1 on page 68.

Event users that can utilize data events can also use signaling events. This is configurable, and is described in the datasheet module for each peripheral.

6.3.3 Peripheral Clock Events

Each event channel includes a peripheral clock prescaler with a range from 1 (no prescaling) to 32768. This enables configurable periodic event generation based on the peripheral clock. It is possible to periodically trigger events in a peripheral or to periodically trigger synchronized events in several peripherals. Since each event channel include a prescaler, different peripherals can receive triggers with different intervals.

6.3.4 Software Events

Events can be generated from software by writing the DATA and STROBE registers. The DATA register must be written first, since writing the STROBE register triggers the operation. The DATA and STROBE registers contain one bit for each event channel. Bit n corresponds to event channel n. It is possible to generate events on several channels at the same time by writing to several bit locations at once.

Software-generated events last for one clock cycle and will overwrite events from other event generators on that event channel during that clock cycle.

Table 6-1 on page 68 shows the different events, how they can be manually generated, and how they are decoded.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 68

Table 6-1. Manually generated events and decoding of events.

STROBE DATA Data Event User Signaling Event User

0 0 No event No event

0 1 Data event 01 No event

1 0 Data event 02 Signaling event

1 1 Data event 03 Signaling event

6.4 Event Routing Network

The event routing network routes the events between peripherals. It consists of eight multiplexers (CHnMUX), which can each be configured to route any event source to any event users. The output from a multiplexer is referred to as an event channel. For each peripheral, it is selectable if and how incoming events should trigger event actions. Details on configurations can be found in the datasheet for each peripheral. The event routing network is shown in Figure 6-3 on

page 69.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 69

Figure 6-3. Event routing network.

Event Channel 3 Event Channel 2 Event Channel 1 Event Channel 0

(4)

TCC0

TCC1

(4)

TCD0

TCE0

TCF0

ADCA

USB

ACA

(6)

(4)

(6)

(4)

(3)

(10)

CH0CTRL[7:0]

CH0MUX[7:0]

CH1CTRL[7:0]

CH1MUX[7:0]

(29)

CH2CTRL[7:0]

CH2MUX[7:0]

Four multiplexers means that it is possible to route up to four events at the same time. It is also possible to route one event through several multiplexers.

Not all XMEGA devices contain all peripherals. This only means that a peripheral is not available for generating or using events. The network configuration itself is compatible between all devices.

6.5 Event Timing

An event normally lasts for one peripheral clock cycle, but some event sources, such as a low level on an I/O pin, will generate events continuously. Details on this are described in the datasheet for each peripheral, but unless otherwise stated, an event lasts for one peripheral clock cycle.

RTC

Clk

PER

PORTA

PORTB

PORTC

PORTD

PORTE

PORTF

(2)

(16)

(8)

(48)

CH3CTRL[7:0]

CH3MUX[7:0]

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 70

It takes a maximum of two peripheral clock cycles from when an event is generated until the event actions in other peripherals are triggered. This ensures short and 100% predictable response times, independent of CPU or DMA controller load or software revisions.

6.6 Filtering

Each event channel includes a digital filter. When this is enabled, an event must be sampled with the same value for a configurable number of system clock cycles before it is accepted. This is primarily intended for pin change events.

6.7 Quadrature Decoder

The event system includes one quadrature decoder (QDEC), which enable the device to decode quadrature input on I/O pins and send data events that a timer/counter can decode to count up, count down, or index/reset. Table 6-2 summarizes which quadrature decoder data events are available, how they are decoded, and how they can be generated. The QDEC and related features, control and status registers are available for event channel 0.

Table 6-2. Quadrature decoder data events.

STROBE DATA Data Event User Signaling Event User

0 0 No event No event

0 1 Index/reset No event

1 0 Count down Signaling event

1 1 Count up Signaling event

6.7.1 Quadrature Operation

A quadrature signal is characterized by having two square waves that are phase shifted 90 degrees relative to each other. Rotational movement can be measured by counting the edges of the two waveforms. The phase relationship between the two square waves determines the direction of rotation.

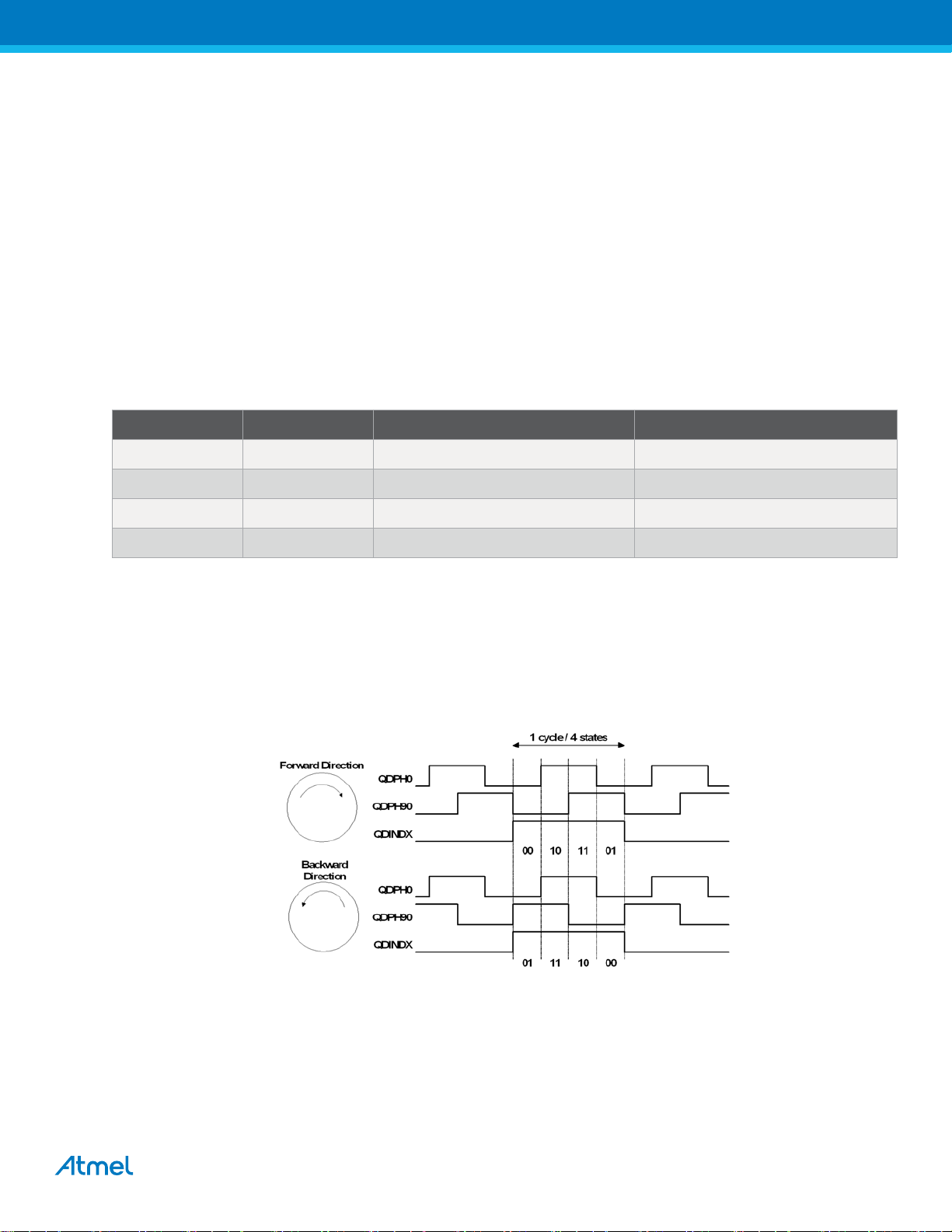

Figure 6-4. Quadrature signals from a rotary encoder.

Figure 6-4 shows typical quadrature signals from a rotary encoder. The signals QDPH0 and QDPH90 are the two

quadrature signals. When QDPH90 leads QDPH0, the rotation is defined as positive or forward. When QDPH0 leads QDPH90, the rotation is defined as negative or reverse. The concatenation of the two phase signals is called the quadrature state or the phase state.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 71

In order to know the absolute rotary displacement, a third index signal (QINDX) can be used. This gives an indication once per revolution.

6.7.2 QDEC Setup

For a full QDEC setup, the following is required:

 Tho or three I/O port pins for quadrature signal input  Two event system channels for quadrature decoding  One timer/counter for up, down, and optional index count

The following procedure should be used for QDEC setup:

1. Choose two successive pins on a port as QDEC phase inputs.

2. Set the pin direction for QDPH0 and QDPH90 as input.

3. Set the pin configuration for QDPH0 and QDPH90 to low level sense.

4. Select the QDPH0 pin as a multiplexer input for an event channel, n.

5. Enable quadrature decoding and digital filtering in the event channel.

6. Optional:

1. Set up a QDEC index (QINDX).

2. Select a third pin for QINDX input.

3. Set the pin direction for QINDX as input.

4. Set the pin configuration for QINDX to sense both edges.

5. Select QINDX as a multiplexer input for event channel n+1

6. Set the quadrature index enable bit in event channel n+1.

7. Select the index recognition mode for event channel n+1.

7. Set quadrature decoding as the event action for a timer/counter.

8. Select event channel n as the event source for the timer/counter.

 Set the period register of the timer/counter to ('line count' * 4 - 1), the line count of the quadrature encoder.  Enable the timer/counter without clock prescaling.

The angle of a quadrature encoder attached to QDPH0, QDPH90 (and QINDX) can now be read directly from the timer/counter count register. If the count register is different from BOTTOM when the index is recognized, the timer/counter error flag is set. Similarly, the error flag is set if the position counter passes BOTTOM without the recognition of the index.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 72

6.8 Register Description

6.8.1 CHnMUX – Event Channel n Multiplexer register

Bit 76543210

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 00000000

 Bit 7:0 – CHnMUX[7:0]: Channel Multiplexer

These bits select the event source according to Table 6-3. This table is valid for all XMEGA devices regardless of whether the peripheral is present or not. Selecting event sources from peripherals that are not present will give the same result as when this register is zero. When this register is zero, no events are routed through. Manually generated events will override CHnMUX and be routed to the event channel even if this register is zero.

Table 6-3. CHnMUX[7:0] bit settings.

CHnMUX[7:4] CHnMUX[3:0] Group Configuration Event Source

0000 0 0 0 0 None (manually generated events only)

0000 0 0 0 1 (Reserved)

CHnMUX[7:0]

0000 0 0 1 X (Reserved)

0000 0 1 X X (Reserved)

0000 1 0 0 0 RTC_OVF RTC overflow

0000 1 0 0 1 RTC_CMP RTC compare match

0000 1 0 1 0

USB start of frame on CH0 USB error on CH1 USB overflow on CH2

(2)

USB setup on CH3

0000 1 0 1 X (Reserved)

0000 1 1 X X (Reserved)

0001 0 0 0 0 ACA_CH0 ACA channel 0

0001 0 0 0 1 ACA_CH1 ACA channel 1

0001 0 0 1 0 ACA_WIN ACA window

0001 0 0 1 1 (Reserved)

0001 0 1 X X (Reserved)

0001 1 X X X (Reserved)

0010 0 0 0 0 ADCA_CH0 ADCA

(2)

0010 0 0 0 1 (Reserved)

0010 0 0 1 X (Reserved)

0010 0 1 X X (Reserved)

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 73

CHnMUX[7:4] CHnMUX[3:0] Group Configuration Event Source

0010 1 X X X (Reserved)

0011 X X X X (Reserved)

0100 X X X X (Reserved)

0101 0 n PORTA_PINn

0101 1 n PORTB_PINn

0110 0 n PORTC_PINn

0110 1 n PORTD_PINn

0111 0 n PORTE_PINn

0111 1 n PORTF_PINn

(1)

PORTA pin n (n= 0, 1, 2 ... or 7)

PORTB pin n (n= 0, 1, 2 ... or 7)

PORTC pin n (n= 0, 1, 2 ... or 7)

PORTD pin n (n= 0, 1, 2 ... or 7)

PORTE pin n (n= 0, 1, 2 ... or 7)

PORTF pin n (n= 0, 1, 2 ... or 7)

1000 M PRESCALER_M Clk

1001 X X X X (Reserved)

1010 X X X X (Reserved)

1011 X X X X (Reserved)

1100 0 E See Table 6-4 Timer/counter C0 event type E

1100 1 E See Table 6-4 Timer/counter C1 event type E

1101 0 E See Table 6-4 Timer/counter D0 event type E

1111 1 X X X (Reserved)

1110 0 E See Table 6-4 Timer/counter E0 event type E

1111 1 X X X (Reserved)

1111 0 E See Table 6-4 Timer/counter F0 event type E

1111 1 X X X (Reserved)

Notes: 1. The description of how the ports generate events is described in “Port Event” on page 133.

2. The different USB events can be selected for only event channel, 0 to 3.

Table 6-4. Timer/counter events

divide by 2M (M=0 to 15)

PER

T/C Event E Group Configuration Event Type

0 0 0 TCxn_OVF Over/Underflow (x = C, D, E or F) (n= 0 or 1)

0 0 1 TCxn_ERR Error (x = C, D, E or F) (n= 0 or 1)

0 1 X – (Reserved)

1 0 0 TCxn_CCA Capture or compare A (x = C, D, E or F) (n= 0 or 1)

1 0 1 TCxn_CCB Capture or compare B (x = C, D, E or F) (n= 0 or 1)

1 1 0 TCxn_CCC Capture or compare C (x = C, D, E or F) (n= 0)

1 1 1 TCxn_CCD Capture or compare D (x = C, D, E or F) (n= 0)

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 74

6.8.2 CHnCTRL – Event Channel n Control register

Bit 76543210

– QDIRM[1:0] – – – – – DIGFILT[2:0]

Read/Write R R/W R/W R/W R/W R/W R/W R

Initial Value 0 0 0 0 0 0 0 0

Note: 1. Only available for CH0CTRL and CH2CTRL. These bits are reserved in CH1CTRL and CH3CTRL.

 Bit 7 – Reserved

(1)

This bit is reserved and will always be read as zero. For compatibility with future devices, always write this bit to zero when this register is written.

 Bit 6:5 – QDIRM[1:0]: Quadrature Decode Index Recognition Mode

These bits determine the quadrature state for the QDPH0 and QDPH90 signals, where a valid index signal is recognized and the counter index data event is given according to Table 6-5. These bits should only be set when a quadrature encoder with a connected index signal is used.These bits are available only for CH0CTRL and CH2CTRL.

Table 6-5. QDIRM bit settings.

QDIRM[1:0] Index Recognition State

QDIEN

(1)

QDEN

(1)

DIGFILT[2:0]

0 0 {QDPH0, QDPH90} = 0b00

0 1 {QDPH0, QDPH90} = 0b01

1 0 {QDPH0, QDPH90} = 0b10

1 1 {QDPH0, QDPH90} = 0b11

 Bit 4 – QDIEN: Quadrature Decode Index Enable

When this bit is set, the event channel will be used as a QDEC index source, and the index data event will be enabled.

This bit is available only for CH0CTRL and CH2CTRL.

 Bit 3 – QDEN: Quadrature Decode Enable

Setting this bit enables QDEC operation.

This bit is available only for CH0CTRL and CH2CTRL.

 Bit 2:0 – DIGFILT[2:0]: Digital Filter Coefficient

These bits define the length of digital filtering used, according to Table 6-6 on page 74. Events will be passed through to the event channel only when the event source has been active and sampled with the same level for the number of peripheral clock cycles defined by DIGFILT.

Table 6-6. Digital filter coefficient values .

DIGFILT[2:0] Group Configuration Description

000 1SAMPLE One sample

001 2SAMPLES Two samples

010 3SAMPLES Three samples

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 75

Table 6-6. Digital filter coefficient values (Continued).

DIGFILT[2:0] Group Configuration Description

011 4SAMPLES Four samples

100 5SAMPLES Five samples

101 6SAMPLES Six samples

110 7SAMPLES Seven samples

111 8SAMPLES Eight samples

6.8.3 STROBE – Strobe register

If the STROBE register location is written, each event channel will be set according to the STROBE[n] and corresponding DATA[n] bit settings, if any are unequal to zero.

A single event lasting for one peripheral clock cycle will be generated.

Bit 7 6 5 4 3 2 1 0 +0x10 STROBE[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

6.8.4 DATA – Data register

This register contains the data value when manually generating a data event. This register must be written before the STROBE register. For details, See ”STROBE – Strobe register” on page 75.

Bit 76543210 +0x11 DATA[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 00000000

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 76

6.9 Register Summary

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00 CH0MUX CH0MUX[7:0] 72 +0x01 CH1MUX CH1MUX[7:0] 72 +0x02 CH2MUX CH2MUX[7:0] 72 +0x03 CH3MUX CH3MUX[7:0] 72 +0x04 Reserved – – – – – – – – +0x05 Reserved – – – – – – – – +0x06 Reserved – – – – – – – – +0x07 Reserved – – – – – – – – +0x08 CH0CTRL – QDIRM[1:0] QDIEN QDEN DIGFILT[2:0] 74 +0x09 CH1CTRL – – – – – DIGFILT[2:0] 74 +0x0A CH2CTRL – QDIRM[1:0] QDIEN QDEN DIGFILT[2:0] 74 +0x0B CH3CTRL – – – – – DIGFILT[2:0] 74 +0x0C Reserved – – – – – – – – +0x0D Reserved – – – – – – – – +0x0E Reserved – – – – – – – – +0x0F Reserved – – – – – – – – +0x10 STROBE STROBE[7:0] 75 +0x11 DATA DATA[7:0] 75

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 77

7. System Clock and Clock Options

7.1 Features

 Fast start-up time

 Safe run-time clock switching

 Internal oscillators:

 32MHz run-time calibrated oscillator  2MHz run-time calibrated oscillator  32.768kHz calibrated oscillator  32kHz ultra low power (ULP) oscillator with 1kHz output

 External clock options

 0.4MHz - 16MHz crystal oscillator  32.768kHz crystal oscillator  External clock

 PLL with 20MHz - 128MHz output frequency

 Internal and external clock options and 1x to 31x multiplication  Lock detector

 Clock prescalers with 1x to 2048x division

 Fast peripheral clocks running at 2 and 4 times the CPU clock

 Automatic run-time calibration of internal oscillators

 External oscillator and PLL lock failure detection with optional non-maskable interrupt

7.2 Overview

XMEGA devices have a flexible clock system supporting a large number of clock sources. It incorporates both accurate internal oscillators and external crystal oscillator and resonator support. A high-frequency phase locked loop (PLL) and clock prescalers can be used to generate a wide range of clock frequencies. A calibration feature (DFLL) is available, and can be used for automatic run-time calibration of the internal oscillators to remove frequency drift over voltage and temperature. An oscillator failure monitor can be enabled to issue a non-maskable interrupt and switch to the internal oscillator if the external oscillator or PLL fails.

When a reset occurs, all clock sources except the 32kHz ultra low power oscillator are disabled. After reset, the device will always start up running from the 2MHz internal oscillator. During normal operation, the system clock source and prescalers can be changed from software at any time.

Figure 7-1 on page 78 presents the principal clock system in the XMEGA family of devices. Not all of the clocks need to

be active at a given time. The clocks for the CPU and peripherals can be stopped using sleep modes and power reduction registers, as described in “Power Management and Sleep Modes” on page 97.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 78

Figure 7-1. The clock system, clock sources, and clock distribution.

LCD

clk

Brown-out

Detector

LCD

Watchdog

Timer

DIV32

Real Time

Counter

clk

RTC

RTCSRC

DIV32

Peripherals RAM AVR CPU

clk

PER

clk

PER2

clk

PER4

System Clock Prescalers

clk

SYS

System Clock Multiplexer

(SCLKSEL)

PLL

DIV32

clk

CPU

Non-Volatile

Memory

USB

clk

USB

Prescaler

USBSRC

32 kHz

Int. ULP

32.768 kHz Int. OSC

32.768 kHz TOSC

TOSC1

XOSCSEL

TOSC2

0.4 – 16 MHz XTAL

TAL1 X

XTAL2

PLLSRC

DIV4

32 MHz Int. Osc

PC[7:0]

2MHz

Int. Osc

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 79

7.3 Clock Distribution

Figure 7-1 on page 78 presents the principal clock distribution system used in XMEGA devices.

7.3.1 System Clock - Clk

SYS

The system clock is the output from the main system clock selection. This is fed into the prescalers that are used to generate all internal clocks except the asynchronous and USB clocks.

7.3.2 CPU Clock - Clk

CPU

The CPU clock is routed to the CPU and nonvolatile memory. Halting the CPU clock inhibits the CPU from executing instructions.

7.3.3 Peripheral Clock - Clk

PER

The majority of peripherals and system modules use the peripheral clock. This includes the DMA controller, event system, interrupt controller, external bus interface and RAM. This clock is always synchronous to the CPU clock, but may run even when the CPU clock is turned off.

7.3.4 Peripheral 2x/4x Clocks - Clk

Modules that can run at two or four times the CPU clock frequency can use the peripheral 2x and peripheral 4x clocks.

7.3.5 Asynchronous Clock - Clk

RTC

The asynchronous clock allows the real-time counter (RTC) and LCD to be clocked directly from an external 32.768kHz crystal oscillator or from the internal 32.768kHz oscillator or ULP oscillator. The dedicated clock domain allows operation of these peripherals even when the device is in sleep mode and the rest of the clocks are stopped.

7.3.6 USB Clock - Clk

USB

The USB device module requires a 12MHz or 48MHz clock. It has a separate clock source selection in order to avoid system clock source limitations when USB is used.

PER2

/Clk

LCD

PER4

7.4 Clock Sources

The clock sources are divided in two main groups: internal oscillators and external clock sources. Most of the clock sources can be directly enabled and disabled from software, while others are automatically enabled or disabled, depending on peripheral settings. After reset, the device starts up running from the 2MHz internal oscillator. The other clock sources, DFLLs and PLL, are turned off by default.

7.4.1 Internal Oscillators

The internal oscillators do not require any external components to run. For details on characteristics and accuracy of the internal oscillators, refer to the device datasheet.

7.4.1.1 32kHz Ultra Low Power Oscillator

This oscillator provides an approximate 32kHz clock. The 32kHz ultra low power (ULP) internal oscillator is a very low power clock source, and it is not designed for high accuracy.The oscillator employs a built-in prescaler that provides a 1kHz output for the RTC. The oscillator is automatically enabled/disabled when it is used as clock source for any part of the device. This oscillator can be selected as the clock source for the RTC and for the LCD.

7.4.1.2 32.768kHz Calibrated Oscillator

This oscillator provides an approximate 32.768kHz clock. It is calibrated during production to provide a default frequency close to its nominal frequency. The calibration register can also be written from software for run-time calibration of the oscillator frequency. The oscillator employs a built-in prescaler, which provides both a 32.768kHz output and a 1.024kHz output.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 80

7.4.1.3 32MHz Run-time Calibrated Oscillator

The 32MHz run-time calibrated internal oscillator is a high-requency oscillator. It is calibrated during production to provide a default frequency close to its nominal frequency. A digital frequency looked loop (DFLL) can be enabled for automatic run-time calibration of the oscillator to compensate for temperature and voltage drift and optimize the oscillator accuracy. This oscillator can also be adjusted and calibrated to any frequency between 30MHz and 55MHz. The production signature row contains 48MHz calibration values intended used when the oscillator is used a full-speed USB clock source.

7.4.1.4 2MHz Run-time Calibrated Oscillator

The 2MHz run-time calibrated internal oscillator is the default system clock source after reset. It is calibrated during production to provide a default frequency close to its nominal frequency. A DFLL can be enabled for automatic run-time calibration of the oscillator to compensate for temperature and voltage drift and optimize the oscillator accuracy.

7.4.2 External Clock Sources

The XTAL1 and XTAL2 pins can be used to drive an external oscillator, either a quartz crystal or a ceramic resonator. XTAL1 can be used as input for an external clock signal. The TOSC1 and TOSC2 pins is dedicated to driving a

32.768kHz crystal oscillator.

7.4.2.1 0.4MHz - 16MHz Crystal Oscillator

This oscillator can operate in four different modes optimized for different frequency ranges, all within 0.4MHz - 16MHz.

Figure 7-2 shows a typical connection of a crystal oscillator or resonator.

Figure 7-2. Crystal oscillator connection.

Two capacitors, C1 and C2, may be added to match the required load capacitance for the connected crystal.

7.4.2.2 External Clock Input

To drive the device from an external clock source, XTAL1 pin or any pin of PORTC can be used. XTAL1 must be driven as shown in Figure 7-3 on page 80. In this mode, XTAL2 can be used as a general I/O pin.

Figure 7-3. External clock drive configuration.

General

Purpose

I/O

External

Clock

Signal

XTAL2

XTAL1

GND

XTAL2

XTAL1

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 81

7.4.2.3 32.768kHz Crystal Oscillator

A 32.768kHz crystal oscillator can be connected between the TOSC1 and TOSC2 pins and enables a dedicated low frequency oscillator input circuit. A typical connection is shown in Figure 7-4 on page 81. A low power mode with reduced voltage swing on TOSC2 is available. This oscillator can be used as a clock source for the system clock, RTC and LCD, and as the DFLL reference clock.

Figure 7-4. 32.768kHz crystal oscillator connection.

Two capacitors, C1 and C2, may be added to match the required load capacitance for the connected crystal. For details on recommened TOSC characteristics and capacitor laod, refer to device datasheets.

7.5 System Clock Selection and Prescalers

All the calibrated internal oscillators, the external clock sources (XOSC), and the PLL output can be used as the system clock source. The system clock source is selectable from software, and can be changed during normal operation. Built-in hardware protection prevents unsafe clock switching. It is not possible to select a non-stable or disabled oscillator as the clock source, or to disable the oscillator currently used as the system clock source. Each oscillator option has a status flag that can be read from software to check that the oscillator is ready.

The system clock is fed into a prescaler block that can divide the clock signal by a factor from 1 to 2048 before it is routed to the CPU and peripherals. The prescaler settings can be changed from software during normal operation. The first stage, prescaler A, can divide by a factor of from 1 to 512. Then, prescalers B and C can be individually configured to either pass the clock through or combine divide it by a factor from 1 to 4. The prescaler guarantees that derived clocks are always in phase, and that no glitches or intermediate frequencies occur when changing the prescaler setting. The prescaler settings are updated in accordance with the rising edge of the slowest clock.

TOSC2

TOSC1

GND

Figure 7-5. System clock selection and prescalers.

Clock Selection

Internal 32.768kHz Osc.

Internal 2MHz Osc.

Internal 32MHz Osc.

Internal PLL.

External Oscillator or Clock.

Clk

SYS

Prescaler A

1, 2, 4, ... , 512

Prescaler A divides the system clock, and the resulting clock is clk clock speed further to enable peripheral modules to run at twice or four times the CPU clock frequency. If Prescalers B and C are not used, all the clocks will run at the same frequency as the output from Prescaler A.

The system clock selection and prescaler registers are protected by the configuration change protection mechanism, employing a timed write procedure for changing the system clock and prescaler settings. For details, refer to

“Configuration Change Protection” on page 14.

Clk

PER4

Prescaler B

1, 2, 4

Clk

PER2

Clk

Prescaler C

1, 2

. Prescalers B and C can be enabled to divide the

PER4

Clk

CPU

PER

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 82

7.6 PLL with 1x-31x Multiplication Factor

The built-in phase locked loop (PLL) can be used to generate a high-frequency system clock. The PLL has a userselectable multiplication factor of from 1 to 31. The output frequency, f by the multiplication factor, PLL_FAC.

, is given by the input frequency, fIN, multiplied

OUT

Four different clock sources can be chosen as input to the PLL:

 2MHz internal oscillator  32MHz internal oscillator divided by 4  0.4MHz - 16MHz crystal oscillator  External clock

To enable the PLL, the following procedure must be followed:

1. Enable reference clock source.

2. Set the multiplication factor and select the clock reference for the PLL.

3. Wait until the clock reference source is stable.

4. Enable the PLL.

Hardware ensures that the PLL configuration cannot be changed when the PLL is in use. The PLL must be disabled before a new configuration can be written.

It is not possible to use the PLL before the selected clock source is stable and the PLL has locked.

The reference clock source cannot be disabled while the PLL is running.

7.7 DFLL 2MHz and DFLL 32MHz

Two built-in digital frequency locked loops (DFLLs) can be used to improve the accuracy of the 2MHz and 32MHz internal oscillators. The DFLL compares the oscillator frequency with a more accurate reference clock to do automatic run-time calibration of the oscillator and compensate for temperature and voltage drift. The choices for the reference clock sources are:

 32.768kHz calibrated internal oscillator  32.768kHz crystal oscillator connected to the TOSC pins  External clock  USB start of frame

The DFLLs divide the oscillator reference clock by 32 to use a 1.024kHz reference. The reference clock is individually selected for each DFLL, as shown on Figure 7-6 on page 83.

OUT

fINPLL_FAC=

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 83

Figure 7-6. DFLL reference clock selection.

XOSCSEL

TOSC1

TOSC2

XTAL1

PC[7:0]

32.768 kHz Crystal Osc

External Clock

32.768 kHz Int. Osc

USB Start of Frame

DFLL32M

32 MHz Int. RCOSC

DFLL2M

2 MHz Int. RCOSC

clk

RC32MCREF

DIV32DIV32

clk

RC2MCREF

The ideal counter value representing the frequency ratio between the internal oscillator and a 1.024kHz reference clock is loaded into the DFLL oscillator compare register (COMP) during reset. For the 32MHz oscillator, this register can be written from software to make the oscillator run at a different frequency or when the ratio between the reference clock and the oscillator is different (for example when the USB start of frame is used). The 48MHz calibration values must be read from the production signature row and written to the 32MHz CAL register before the DFLL is enabled with USB SOF as reference source.

The value that should be written to the COMP register is given by the following formula:

When the DFLL is enabled, it controls the ratio between the reference clock frequency and the oscillator frequency. If the internal oscillator runs too fast or too slow, the DFLL will decrement or increment its calibration register value by one to adjust the oscillator frequency. The oscillator is considered running too fast or too slow when the error is more than a half calibration step size.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 84

Figure 7-7. Automatic run-time calibration.

clk

RCnCREF

DFLL CNT

COMP

RCnCREF

Frequency

CALA decremented

The DFLL will stop when entering a sleep mode where the oscillators are stopped. After wake up, the DFLL will continue with the calibration value found before entering sleep. The reset value of the DFLL calibration register can be read from the production signature row.

When the DFLL is disabled, the DFLL calibration register can be written from software for manual run-time calibration of the oscillator.

7.8 PLL and External Clock Source Failure Monitor

A built-in failure monitor is available for the PLL and external clock source. If the failure monitor is enabled for the PLL and/or the external clock source, and this clock source fails (the PLL looses lock or the external clock source stops) while being used as the system clock, the device will:

 Switch to run the system clock from the 2MHz internal oscillator  Reset the oscillator control register and system clock selection register to their default values  Set the failure detection interrupt flag for the failing clock source (PLL or external clock)  Issue a non-maskable interrupt (NMI)

If the PLL or external clock source fails when not being used for the system clock, it is automatically disabled, and the system clock will continue to operate normally. No NMI is issued. The failure monitor is meant for external clock sources above 32kHz. It cannot be used for slower external clocks.

When the failure monitor is enabled, it will not be disabled until the next reset.

The failure monitor is stopped in all sleep modes where the PLL or external clock source are stopped. During wake up from sleep, it is automatically restarted.

The PLL and external clock source failure monitor settings are protected by the configuration change protection mechanism, employing a timed write procedure for changing the settings. For details, refer to “Configuration Change

Protection” on page 14.

RCOSC fast,

RCOSC slow,

CALA incremented

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 85

7.9 Register Description – Clock

7.9.1 CTRL – Control register

Bit 76543210

+0x00

Read/Write R R R R R R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:3 – Reserved

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 2:0 – SCLKSEL[2:0]: System Clock Selection

These bits are used to select the source for the system clock. See Table 7-1 for the different selections. Changing the system clock source will take two clock cycles on the old clock source and two more clock cycles on the new clock source. These bits are protected by the configuration change protection mechanism. For details, refer to “Configuration

Change Protection” on page 14.

SCLKSEL cannot be changed if the new clock source is not stable. The old clock can not be disabled until the clock switching is completed.

Table 7-1. System clock selection.

SCLKSEL[2:0] Group configuration Description

– – – – – SCLKSEL[2:0]

000 RC2MHZ 2MHz internal oscillator

001 RC32MHZ 32MHz internal oscillator

010 RC32KHZ 32.768kHz internal oscillator

011 XOSC External oscillator or clock

100 PLL Phase locked loop

101 — Reserved

110 — Reserved

111 — Reserved

7.9.2 PSCTRL – Prescaler Control register

This register is protected by the configuration change protection mechanism. For details, refer to “Configuration Change

Protection” on page 14.

Bit 76543210

+0x01

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0000000

 Bit 7 – Reserved

– PSADIV[4:0] PSBCDIV

This bit is unused and reserved for future use. For compatibility with future devices, always write this bit to zero when this register is written.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 86

 Bit 6:2 – PSADIV[4:0]: Prescaler A Division Factor

These bits define the division ratio of the clock prescaler A according to Table 7-2. These bits can be written at run-time to change the frequency of the Clk

clock relative to the system clock, Clk

PER4

SYS

Table 7-2. Prescaler A division factor.

PSADIV[4:0] Group configuration Description

00000 1 No division

00001 2 Divide by 2

00011 4 Divide by 4

00101 8 Divide by 8

00111 16 Divide by 16

01001 32 Divide by 32

01011 64 Divide by 64

01101 128 Divide by 128

01111 256 Divide by 256

10001 512 Divide by 512

10101 – Reserved

10111 – Reserved

11001 – Reserved

11011 – Reserved

11101 – Reserved

11111 – Reserved

 Bit 1:0 – PSBCDIV: Prescaler B and C Division Factors

These bits define the division ratio of the clock prescalers B and C according to Table 7-3. Prescaler B will set the clock frequency for the Clk

clocks relative to the Clk

Clk

CPU

clock relative to the Clk

PER2

clock. Refer to Figure 7-5 on page 81 fore more details.

PER2

clock. Prescaler C will set the clock frequency for the Clk

PER4

PER

and

Table 7-3. Prescaler B and C division factors.

PSBCDIV[1:0] Group configuration Prescaler B division Prescaler C division

00 1_1 No division No division

01 1_2 No division Divide by 2

10 4_1 Divide by 4 No division

11 2_2 Divide by 2 Divide by 2

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 87

7.9.3 LOCK – Lock register

Bit 76543210

+0x02

Read/Write RRRRRRRR/W

Initial Value 0 0 0 00000

 Bit 7:1 – Reserved

– – – – – – – LOCK

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 0 – LOCK: Clock System Lock

When this bit is written to one, the CTRL and PSCTRL registers cannot be changed, and the system clock selection and prescaler settings are protected against all further updates until after the next reset. This bit is protected by the configuration change protection mechanism. For details, refer to “Configuration Change Protection” on page 14.

The LOCK bit can be cleared only by a reset.

7.9.4 RTCCTRL – RTC Control register

Bit 7 6 5 4 3 2 1 0

+0x03

Read/Write R R R R R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

– – – – RTCSRC[2:0] RTCEN

 Bit 7:4 – Reserved

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 3:1 – RTCSRC[2:0]: RTC and LCD Clock Source

These bits select the clock source for the Real-Time Counter (RTC) and LCD according to Table 7-4.

Table 7-4. RTC clock source selection.

RTCSRC[2:0] Group Configuration Description

000 ULP 1kHz from 32kHz internal ULP oscillator

001 TOSC 1.024kHz from 32.768kHz crystal oscillator on TOSC

010 RCOSC 1.024kHz from 32.768kHz internal oscillator

(1)

011 — Reserved

100 — Reserved

101 TOSC32 32.768kHz from 32.768kHz crystal oscillator on TOSC

110 RCOSC32 32.768kHz from 32.768kHz internal oscillator

111 EXTCLK External clock from TOSC1

Note: 1. The LCD will always use the non-prescaled 32kHz oscillator output as clock source.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 88

 Bit 0 – RTCEN: RTC and LCD Clock Source Enable

Setting the RTCEN bit enables the selected clock source for the real-time counter (RTC) and LCD.

7.9.5 USBSCTRL – USB Control register

Bit 7 6 5 4 3 2 1 0

+0x04

Read/Write R R R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:6 – Reserved

– – USBPSDIV[2:0] USBSRC[1:0] USBSEN

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 5:3 – USBPSDIV[2:0]: USB Prescaler Division Factor

These bits define the division ratio of the USB clock prescaler according to Table 7-5. These bits are locked as long as the USB clock source is enabled.

Table 7-5. USB prescaler division factor.

USBPSDIV[2:0] Group configuration Description

000 1 No division

001 2 Divide by 2

010 4 Divide by 4

011 8 Divide by 8

100 16 Divide by 16

101 32 Divide by 32

110 — Reserved

111 — Reserved

 Bit 2:1 – USBSRC[1:0]: USB Clock Source

These bits select the clock source for the USB module according to Table 7-6.

Table 7-6. USB clock source.

USBSRC[1:0] Group configuration Description

00 PLL PLL

01 RC32M 32MHz internal oscillator

Note: 1. The 32MHz internal oscillator must be calibrated to 48MHz before selecting this as source for the USB device module. Refer to “DFLL 2MHz and

DFLL 32MHz” on page 82.

 Bit 0 – USBSEN: USB Clock Source Enable

(1)

Setting this bit enables the selected clock source for the USB device module.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 89

7.10 Register Description – Oscillator

7.10.1 CTRL – Control register

Bit 76543210

+0x00

Read/Write R R R R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 1

 Bit 7:5 – Reserved

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 4 – PLLEN: PLL Enable

Setting this bit enables the PLL. Before the PLL is enabled, it must be configured with the desired multiplication factor and clock source. See ”STATUS – Status register” on page 89..

 Bit 3 – XOSCEN: External Oscillator Enable

Setting this bit enables the selected external clock source. Refer to “XOSCCTRL – XOSC Control register” on page 90 for details on how to select the external clock source. The external clock source should be allowed time to stabilize before it is selected as the source for the system clock. See ”STATUS – Status register” on page 89.

 Bit 2 – RC32KEN: 32.768kHz Internal Oscillator Enable

Setting this bit enables the 32.768kHz internal oscillator. The oscillator must be stable before it is selected as the source for the system clock. See ”STATUS – Status register” on page 89.

 Bit 1 – RC32MEN: 32MHz Internal Oscillator Enable

Setting this bit will enable the 32MHz internal oscillator. The oscillator must be stable before it is selected as the source for the system clock. See ”STATUS – Status register” on page 89.

 Bit 0 – RC2MEN: 2MHz Internal Oscillator Enable

Setting this bit enables the 2MHz internal oscillator. The oscillator must be stable before it is selected as the source for the system clock. See ”STATUS – Status register” on page 89.

By default, the 2MHz internal oscillator is enabled and this bit is set.

– – – PLLEN XOSCEN RC32KEN RC32MEN RC2MEN

7.10.2 STATUS – Status register

Bit 7 6 5 4 3 2 1 0

+0x01

Read/Write R R R R R R R R

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:5 – Reserved

– – – PLLRDY XOSCRDY RC32KRDY RC32MRDY RC2MRDY

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 4 – PLLRDY: PLL Ready

This flag is set when the PLL has locked on the selected frequency and is ready to be used as the system clock source.

 Bit 3 – XOSCRDY: External Clock Source Ready

This flag is set when the external clock source is stable and is ready to be used as the system clock source.

 Bit 2 – RC32KRDY: 32.768kHz Internal Oscillator Ready

This flag is set when the 32.768kHz internal oscillator is stable and is ready to be used as the system clock source.

 Bit 1 – RC32MRDY: 32MHz Internal Oscillator Ready

This flag is set when the 32MHz internal oscillator is stable and is ready to be used as the system clock source.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 90

 Bit 0 – RC2MRDY: 2MHz Internal Oscillator Ready

This flag is set when the 2MHz internal oscillator is stable and is ready to be used as the system clock source.

7.10.3 XOSCCTRL – XOSC Control register

Bit 7 6 5 4 3 2 1 0

+0x02 FRQRANGE[1:0] X32KLPM

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:6 – FRQRANGE[1:0]: 0.4 - 16MHz Crystal Oscillator Frequency Range Select

These bits select the frequency range for the connected crystal oscillator according to Table 7-7.

Table 7-7. 16MHz crystal oscillator frequency range selection.

XOSCPWR

XOSCSEL[4]

XOSCSEL[3:0]

FRQRANGE[1:0] Group configuration

Typical frequency

range

Recommended range for

capacitors C1 and C2 (pF)

00 04TO2 0.4MHz - 2MHz 100-300

01 2TO9 2MHz - 9MHz 10-40

10 9TO12 9MHz - 12MHz 10-40

11 12TO16 12MHz - 16MHz 10-30

 Bit 5 – X32KLPM: Crystal Oscillator 32.768kHz Low Power Mode

Setting this bit enables the low power mode for the 32.768kHz crystal oscillator. This will reduce the swing on the TOSC2 pin.

 Bit 4 – XOSCPWR: Crystal Oscillator Drive

Setting this bit will increase the current in the 0.4MHz - 16MHz crystal oscillator and increase the swing on the XTAL2 pin. This allows for driving crystals with higher load or higher frequency than specified by the FRQRANGE bits.

This function is enabled if the

 Bit 4:0 – XOSCSEL[4:0]: Crystal Oscillator Selection

0.4 - 16MHz Crystal Oscillator is selected.

These bits select the type and start-up time for the crystal or resonator that is connected to the XTAL or TOSC pins. See

Table 7-8 on page 91 for crystal selections. If an external clock or external oscillator is selected as the source for the

system clock, see “CTRL – Control register” on page 89. This configuration cannot be changed.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 91

Table 7-8. External oscillator selection and start-up time.

XOSCSEL[4:0] Group configuration Selected clock source Start-up time

00000 EXTCLK

nnn 01 EXTCLK_Cn

00010 32KHZ

(4)

0011 XTAL_256CLK

(4)

0111 XTAL_1KCLK

(4)

1011 XTAL_16KCLK 0.4MHz - 16MHz XTAL 16K CLK

Notes: 1. This option should be used only when frequency stability at startup is not important for the application. The option is not suitable for crystals.

2. This option is intended for use with ceramic resonators. It can also be used when the frequency stability at startup is not important for the application.

3. When the external oscillator is used as the reference for a DFLL, only EXTCLK and 32KHZ can be selected.

4. When the 0.4 - 16 MHz crystal oscillators selected, the MSB is then XOSCPWR.

(3)

(1)

(2)

7.10.4 XOSCFAIL – XOSC Failure Detection register

Bit 765432 1 0

+0x03

Read/Write RRRRR/WR/WR/WR/W

Initial Value 0 0 0 0 0 0 0 0

– – – – PLLFDIF PLLFDEN XOSCFDIF XOSCFDEN

External Clock from XTAL1 pin 6 CLK

External Clock from Port C pin n 6 CLK

32.768kHz TOSC 16K CLK

0.4MHz - 16MHz XTAL 256 CLK

0.4MHz - 16MHz XTAL 1K CLK

 Bit 7:4 – Reserved

These bits are reserved and will always be read as zero. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 3 – PLLFDIF: PLL Fault Detection Flag

If PLL failure detection is enabled, PLLFDIF is set when the PLL looses lock. Writing logic one to this location will clear PLLFDIF.

 Bit 2 – PLLFDEN: PLL Fault Detection Enable

Setting this bit will enable PLL failure detection. A non-maskable interrupt will be issued when PLLFDIF is set.

This bit is protected by the configuration change protection mechanism. Refer to “Configuration Change Protection” on

page 14 for details.

 Bit 1 – XOSCFDIF: Failure Detection Interrupt Flag

If the external clock source oscillator failure monitor is enabled, XOSCFDIF is set when a failure is detected. Writing logic one to this location will clear XOSCFDIF.

 Bit 0 – XOSCFDEN: Failure Detection Enable

Setting this bit will enable the failure detection monitor, and a non-maskable interrupt will be issued when XOSCFDIF is set.

This bit is protected by the configuration change protection mechanism. Refer to “Configuration Change Protection” on

page 14 for details. Once enabled, failure detection can only be disabled by a reset.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 92

7.10.5 RC32KCAL – 32kHz Oscillator Calibration register

Bit 76543210 +0x04 RC32KCAL[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value x x x x x x x x

 Bit 7:0 – RC32KCAL[7:0]: 32.768kHz Internal Oscillator Calibration byte

This register is used to calibrate the 32.768kHz internal oscillator. A factory-calibrated value is loaded from the signature row of the device and written to this register during reset, giving an oscillator frequency close to 32.768kHz. The register can also be written from software to calibrate the oscillator frequency during normal operation.

7.10.6 PLLCTRL – PLL Control register

Bit 76543210 +0x05 PLLSRC[1:0] PLLDIV PLLFAC[4:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:6 – PLLSRC[1:0]: Clock Source

The PLLSRC bits select the input source for the PLL according to Table 7-9.

Table 7-9. PLL clock source selection.

PLLSRC[1:0] Group Configuration PLL Input Source

00 RC2M 2MHz internal oscillator

01 — Reserved

10 RC32M 32MHz internal oscillator

11 XOSC External clock source

Notes: 1. The 32.768kHz TOSC cannot be selected as the source for the PLL. An external clock must be a minimum 0.4MHz to be used as the source clock.

 Bit 5 – PLLDIV: PLL Divided Output Enable

Setting this bit will divide the output from the PLL by 2.

 Bit 4:0 – PLLFAC[4:0]: Multiplication Factor

These bits select the multiplication factor for the PLL. The multiplication factor can be in the range of from 1x to 31x.

7.10.7 DFLLCTRL – DFLL Control register

Bit 765432 1 0

+0x06

Read/Write R RRRRR/WR/WR/W

Initial Value 0 0 0000 0 0

 Bit 7:3 – Reserved

– – – – – RC32MCREF[1:0] RC2MCREF

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

(1)

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 93

 Bit 2:1 – RC32MCREF[1:0]: 32MHz Oscillator Calibration Reference

These bits are used to select the calibration source for the 32MHz DFLL according to the Table 7-10. These bits will select only which calibration source to use for the DFLL. In addition, the actual clock source that is selected must enabled and configured for the calibration to function.

Table 7-10. 32MHz oscillator reference design.

RC32MCREF[1:0] Group Configuration Description

00 RC32K 32.768kHz internal oscillator

01 XOSC32 32.768kHz crystal oscillator on TOSC

10 USBSOF USB start of frame

11 — Reserved

 Bit 0 – RC2MCREF: 2MHz Oscillator Calibration Reference

This bit is used to select the calibration source for the 2MHz DFLL. By default, this bit is zero and the 32.768kHz internal oscillator is selected. If this bit is set to one, the 32.768kHz crystal oscillator on TOSC is selected as the reference. This bit will select only which calibration source to use for the DFLL. In addition, the actual clock source that is selected must enabled and configured for the calibration to function.

7.11 Register Description – DFLL32M/DFLL2M

7.11.1 CTRL – Control register

Bit 7 6 5 4 3 2 1 0

+0x00

Read/Write R R R R R R R R/W

Initial Value 0 0 0 0 0 0 0 0

 Bit 7:1 – Reserved

– – – – – – – ENABLE

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 0 – ENABLE: Enable

Setting this bit enables the DFLL and auto-calibration of the internal oscillator. The reference clock must be enabled and stable before the DFLL is enabled.

After disabling the DFLL, the reference clock can not be disabled before the ENABLE bit is read as zero.

7.11.2 CALA – Calibration register A

The CALA and CALB registers hold the 13-bit DFLL calibration value that is used for automatic run-time calibration of the internal oscillator. When the DFLL is disabled, the calibration registers can be written by software for manual run-time calibration of the oscillator. The oscillators will also be calibrated according to the calibration value in these registers when the DFLL is disabled.

Bit 7 6 5 4 3 2 1 0

+0x02

Read/Write R R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 x x x x x x x

– CALA[6:0]

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 94

 Bit 7 – Reserved

This bit is unused and reserved for future use. For compatibility with future devices, always write this bit to zero when this register is written.

 Bit 6:0 – CALA[6:0]: DFLL Calibration bits

These bits hold the part of the oscillator calibration value that is used for automatic runtime calibration. A factorycalibrated value is loaded from the signature row of the device and written to this register during reset, giving an oscillator frequency approximate to the nominal frequency for the oscillator. The bits cannot be written when the DFLL is enabled.

7.11.3 CALB – Calibration register B

Bit 7 6 5 4 3 2 1 0

+0x03

Read/Write R R R/W R/W R/W R/W R/W R/W

Initial Value 0 0 x x x x x x

 Bit 7:6 – Reserved

– – CALB[5:0]

These bits are unused and reserved for future use. For compatibility with future devices, always write these bits to zero when this register is written.

 Bit 5:0 – CALB[5:0]: DFLL Calibration bits

These bits hold the part of the oscillator calibration value that is used to select the oscillator frequency. A factorycalibrated value is loaded from the signature row of the device and written to this register during reset, giving an oscillator frequency approximate to the nominal frequency for the oscillator. These bits are not changed during automatic run-time calibration of the oscillator. The bits cannot be written when the DFLL is enabled. When calibrating to a frequency different from the default, the CALA bits should be set to a middle value to maximize the range for the DFLL.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 95

7.11.4 COMP1 – Compare register byte 1

The COMP1 and COMP2 register pair represent the frequency ratio between the oscillator and the reference clock. The initial value for these registers is the ratio between the internal oscillator frequency and a 1.024kHz reference.

Bit 76543210 +0x05 COMP[7:0]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 00000000

 Bit 7:0 – COMP1[7:0]: Compare register byte 1

These bits hold byte 1 of the 16-bit compare register.

7.11.5 COMP2 – Compare register byte 2

Bit 76543210 +0x06 COMP[15:8]

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 00000000

 Bit 7:0 – COMP2[15:8]: Compare Register Byte 2

These bits hold byte 2 of the 16-bit compare register.

Table 7-11. Nominal DFLL32M COMP values for different output frequencies.

Oscillator frequency (MHz) COMP value (Clk

30.0 0x7270

32.0 0x7A12

34.0 0x81B3

36.0 0x8954

38.0 0x90F5

40.0 0x9896

42.0 0xA037

44.0 0xA7D8

46.0 0xAF79

48.0 0xB71B

50.0 0xBEBC

52.0 0xC65D

54.0 0xCDFE

RCnCREF

= 1.024kHz)

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 96

7.12 Register Summary – Clock

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00 CTRL – – – – – SCLKSEL[2:0] 85 +0x01 PSCTRL +0x02 LOCK +0x03 RTCCTRL +0x04 USBSCTRL +0x05 Reserved – – – – – – – – +0x06 Reserved – – – – – – – – +0x07 Reserved – – – – – – – –

– PSADIV[4:0] PSBCDIV[1:0] 85 – – – – – – – LOCK 87 – – – – RTCSRC[2:0] RTCEN 87 – – USBPSDIV[2:0] USBSRC[1:0] USBSEN 87

7.13 Register Summary – Oscillator

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00 CTRL – – – PLLEN XOSCEN RC32KEN R32MEN RC2MEN 89 +0x01 STATUS +0x02 XOSCCTRL FRQRANGE[1:0] X32KLPM XOSCPW XOSCSEL[3:0] 90

+0x03 XOSCFAIL +0x04 RC32KCAL RC32KCAL[7:0] 92 +0x05 PLLCTRL PLLSRC[1:0] +0x06 DFLLCTRL +0x07 Reserved – – – – – – – –

– – – PLLRDY XOSCRDY RC32KRD R32MRDY RC2MRDY 89

XOSCSEL

– – – – PLLFDIF PLLFDEN XOSCFDIF XOSCFDEN 91

– PLLFAC[4:0] 92

– – – – – RC32MCREF[1:0] RC2MCREF 92

7.14 Register Summary – DFLL32M/DFLL2M

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

+0x00 CTRL – – – – – – – ENABLE 93 +0x01 Reserved – – – – – – – – +0x02 CALA – CALA[6:0] 93 +0x03 CALB +0x04 Reserved – – – – – – – – +0x05 COMP1 COMP[7:0] 95 +0x06 COMP2 COMP[15:8] 95 +0x07 Reserved – – – – – – – –

– – CALB[5:0] 94

7.15 Oscillator Failure Interrupt Vector Summary

Offset Source Interrupt Description

0x00 OSCF_vect PLL and external oscillator failure interrupt vector (NMI)

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 97

8. Power Management and Sleep Modes

8.1 Features

 Power management for adjusting power consumption and functions

 Five sleep modes

 Idle  Power down  Power save  Standby  Extended standby

 Power reduction register to disable clock and turn off unused peripherals in active and idle modes

8.2 Overview

Various sleep modes and clock gating are provided in order to tailor power consumption to application requirements. This enables the XMEGA microcontroller to stop unused modules to save power.

All sleep modes are available and can be entered from active mode. In active mode, the CPU is executing application code. When the device enters sleep mode, program execution is stopped and interrupts or a reset is used to wake the device again. The application code decides which sleep mode to enter and when. Interrupts from enabled peripherals and all enabled reset sources can restore the microcontroller from sleep to active mode.

In addition, power reduction registers provide a method to stop the clock to individual peripherals from software. When this is done, the current state of the peripheral is frozen, and there is no power consumption from that peripheral. This reduces the power consumption in active mode and idle sleep modes and enables much more fine-tuned power management than sleep modes alone.

8.3 Sleep Modes

Sleep modes are used to shut down modules and clock domains in the microcontroller in order to save power. XMEGA microcontrollers have five different sleep modes tuned to match the typical functional stages during application execution. A dedicated sleep instruction (SLEEP) is available to enter sleep mode. Interrupts are used to wake the device from sleep, and the available interrupt wake-up sources are dependent on the configured sleep mode. When an enabled interrupt occurs, the device will wake up and execute the interrupt service routine before continuing normal program execution from the first instruction after the SLEEP instruction. If other, higher priority interrupts are pending when the wake-up occurs, their interrupt service routines will be executed according to their priority before the interrupt service routine for the wake-up interrupt is executed. After wake-up, the CPU is halted for four cycles before execution starts.

Table 8-1 on page 98 shows the different sleep modes and the active clock domains, oscillators, and wake-up sources.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 98

Table 8-1. Active clock domains and wake-up sources in the different sleep modes.

Active Clock Domain Oscillators Wake-up Sources

Sleep Modes

Idle X X X X X X X X X

Power down X X X

Power save X X X X X X

Standby X X X X

Extended standby X X X X X X X

The wake-up time for the device is dependent on the sleep mode and the main clock source. The startup time for the system clock source must be added to the wake-up time for sleep modes where the system clock source is not kept running. For details on the startup time for the different oscillator options, refer to “System Clock and Clock Options” on

page 77.

The content of the register file, SRAM and registers are kept during sleep. If a reset occurs during sleep, the device will reset, start up, and execute from the reset vector.

8.3.1 Idle Mode

In idle mode the CPU and nonvolatile memory are stopped (note that any ongoing programming will be completed), but all peripherals, including the interrupt controller, event system and DMA controller are kept running. Any enabled interrupt will wake the device.

8.3.2 Power-down Mode

CPU Clock

Peripheral and USB Clock

RTC and LCD Clock

System Clock Source

RTC Clock Source

USB Resume

Asynchronous Port Interrupts

TWI Address Match Interrupts

RTC and LCD Clock Interrupts

All Interrupts

In power-down mode, all clocks, including the real-time counter clock source, are stopped. This allows operation only of asynchronous modules that do not require a running clock. The only interrupts that can wake up the MCU are the twowire interface address match interrupt, asynchronous port interrupts, and the USB resume interrupt.

8.3.3 Power-save Mode

Power-save mode is identical to power down, with two exceptions:

1. If the real-time counter (RTC) is enabled, it will keep running during sleep, and the device can also wake up from either an RTC overflow or compare match interrupt.

2. If the LCD is enabled, it will keep running during sleep, and the device can wake up from LCD frame completed interrupt.

8.3.4 Standby Mode

Standby mode is identical to power down, with the exception that the enabled system clock sources are kept running while the CPU, peripheral, and RTC/LCD clocks are stopped. This reduces the wake-up time.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 99

8.3.5 Extended Standby Mode

Extended standby mode is identical to power-save mode, with the exception that the enabled system clock sources are kept running while the CPU and peripheral clocks are stopped. This reduces the wake-up time.

8.4 Power Reduction Registers

The power reduction (PR) registers provide a method to stop the clock to individual peripherals. When this is done, the current state of the peripheral is frozen and the associated I/O registers cannot be read or written. Resources used by the peripheral will remain occupied; hence, the peripheral should be disabled before stopping the clock. Enabling the clock to a peripheral again puts the peripheral in the same state as before it was stopped. This can be used in idle mode and active modes to reduce the overall power consumption. In all other sleep modes, the peripheral clock is already stopped.

Not all devices have all the peripherals associated with a bit in the power reduction registers. Setting a power reduction bit for a peripheral that is not available will have no effect.

8.5 Minimizing Power Consumption

There are several possibilities to consider when trying to minimize the power consumption in an AVR MCU controlled system. In general, correct sleep modes should be selected and used to ensure that only the modules required for the application are operating.

All unneeded functions should be disabled. In particular, the following modules may need special consideration when trying to achieve the lowest possible power consumption.

8.5.1 Analog-to-Digital Converter - ADC

When entering idle mode, the ADC should be disabled if not used. In other sleep modes, the ADC is automatically disabled. When the ADC is turned off and on again, the next conversion will be an extended conversion. Refer to “ADC –

Analog-to-Digital Converter” on page 326 for details on ADC operation.

8.5.2 Analog Comparator - AC

When entering idle mode, the analog comparator should be disabled if not used. In other sleep modes, the analog comparator is automatically disabled. However, if the analog comparator is set up to use the internal voltage reference as input, the analog comparator should be disabled in all sleep modes. Otherwise, the internal voltage reference will be enabled, irrespective of sleep mode. Refer to “AC – Analog Comparator” on page 352 for details on how to configure the analog comparator.

8.5.3 Brownout Detector

If the brownout detector is not needed by the application, this module should be turned off. If the brownout detector is enabled by the BODLEVEL fuses, it will be enabled in all sleep modes, and always consume power. In the deeper sleep modes, it can be turned off and set in sampled mode to reduce current consumption. Refer to “Brownout Detection” on

page 109 for details on how to configure the brownout detector.

8.5.4 Watchdog Timer

If the watchdog timer is not needed in the application, the module should be turned off. If the watchdog timer is enabled, it will be enabled in all sleep modes and, hence, always consume power. Refer to “WDT – Watchdog Timer” on page 115 for details on how to configure the watchdog timer.

8.5.5 Port Pins

When entering a sleep mode, all port pins should be configured to use minimum power. Most important is to ensure that no pins drive resistive loads. In sleep modes where the Peripheral Clock (Clk device will be disabled. This ensures that no power is consumed by the input logic when not needed.

) is stopped, the input buffers of the

PER

XMEGA B [DATASHEET]

8291B–AVR–01/2013

Page 100

8.5.6 On-chip Debug Systems

If the On-chip debug system is enabled and the chip enters sleep mode, the main clock source is enabled and hence always consumes power. In the deeper sleep modes, this will contribute significantly to the total current consumption.

XMEGA B [DATASHEET]

8291B–AVR–01/2013

100

Datasheet XMEGA B Datasheet (Atmel)

Specifications and Main Features

Frequently Asked Questions

User Manual

1. About the Manual

1.1 Reading the Manual

1.2 Resources

1.3 Recommended Reading

2. Overview

3. Atmel AVR CPU

3.1 Features

3.2 Overview

3.3 Architectural Overview

3.4 ALU - Arithmetic Logic Unit

3.4.1 Hardware Multiplier

3.5 Program Flow

3.6 Instruction Execution Timing

3.7 Status Register

3.8 Stack and Stack Pointer

3.9 Register File

3.9.1 The X-, Y-, and Z- Registers

3.10 RAMP and Extended Indirect Registers

3.10.1 RAMPX, RAMPY and RAMPZ Registers

3.10.2 RAMPD Register

3.10.3 EIND - Extended Indirect Register

3.11 Accessing 16-bit Registers

3.11.1 Accessing 24- and 32-bit Registers

3.12 Configuration Change Protection

3.12.1 Sequence for write operation to protected I/O registers

3.12.2 Sequence for execution of protected SPM/LPM

3.13 Fuse Lock

3.14 Register Descriptions

3.14.1 CCP – Configuration Change Protection register

3.14.2 RAMPD – Extended Direct Addressing register

3.14.3 RAMPX – Extended X-Pointer register

3.14.4 RAMPY – Extended Y-Pointer register

3.14.5 RAMPZ – Extended Z-Pointer register

3.14.6 EIND – Extended Indirect register

3.14.7 SPL – Stack Pointer Register Low

3.14.8 SPH – Stack Pointer Register High

3.14.9 SREG – Status Register

3.15 Register Summary

4. Memories

4.1 Features

4.2 Overview

4.3 Flash Program Memory

4.3.1 Application Section

4.3.2 Application Table Section

4.3.3 Boot Loader Section

4.3.4 Production Signature Row

4.3.5 User Signature Row

4.4 Fuses and Lockbits

4.5 Data Memory

4.6 Internal SRAM

4.7 EEPROM

4.8 I/O Memory

4.8.1 General Purpose I/O Registers

4.9 Data Memory and Bus Arbitration

4.9.1 Bus Priority

4.10 Memory Timing

4.11 Device ID and Revision

4.12 JTAG Disable

4.13 I/O Memory Protection

4.14 Register Description – NVM Controller

4.14.1 ADDR0 – Address register 0

4.14.2 ADDR1 – Address register 1

4.14.3 ADDR2 – Address register 2

4.14.4 DATA0 – Data register 0

4.14.5 DATA1 – Data register 1

4.14.6 DATA2 – Data register 2

4.14.7 CMD – Command register

4.14.8 CTRLA – Control register A

4.14.9 CTRLB – Control register B

4.14.10 INTCTRL – Interrupt Control register

4.14.11 STATUS – Status register

4.14.12 LOCKBITS – Lock Bits register

4.15 Register Descriptions – Fuses and Lock Bits

4.15.1 FUSEBYTE0 – Fuse Byte 0

4.15.2 FUSEBYTE1 – Fuse Byte1

4.15.3 FUSEBYTE2 – Fuse Byte 2
