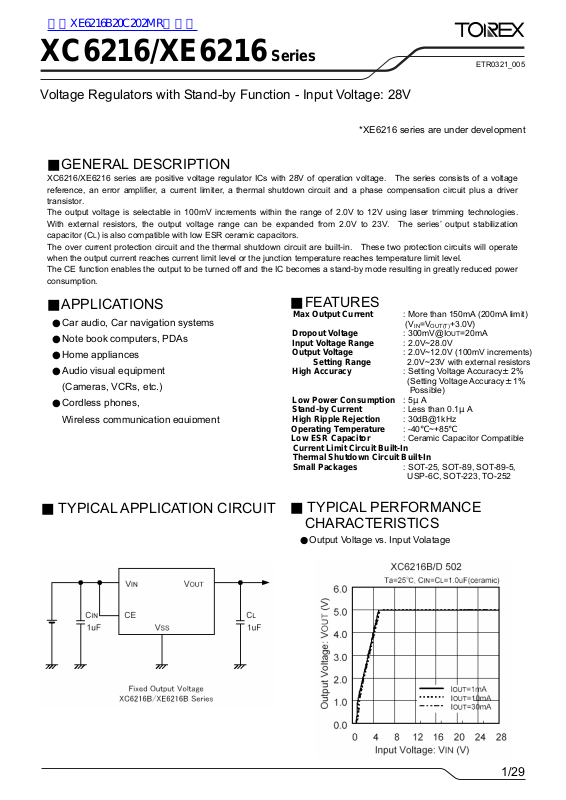

XC6216/XE6216 Series
ETR0321_005
Voltage Regulators with Stand-by Function - Input Voltage: 28V
*XE6216 series are under development
GENERAL DESCRIPTION
XC6216/XE6216 series are positive voltage regulator ICs with 28V of operation voltage. The series consists of a voltage
reference, an error amplifier, a current limiter, a thermal shutdown circuit and a phase compensation circuit plus a driver
transistor.
The output voltage is selectable in 100mV increments within the range of 2.0V to 12V using laser trimming technologies.
With external resistors, the output voltage range can be expanded from 2.0V to 23V. The series’ output stabilization
capacitor (C
The over current protection circuit and the thermal shutdown circuit are built-in. These two protection circuits will operate
when the output current reaches current limit level or the junction temperature reaches temperature limit level.
The CE function enables the output to be turned off and the IC becomes a stand-by mode resulting in greatly reduced power
consumption.
■APPLICATIONS
●Car audio, Car navigation systems
●Note book computers, PDAs
●Home appliances
●Audio visual equipment
(Cameras, VCRs, etc.)
●Cordless phones,
Wireless communication e
■TYPICAL APPLICATION CIRCUIT
L) is also compatible with low ESR ceramic capacitors.
FEATURES
Max Output Current : More than 150mA (200mA limit)
Dropout Voltage
Input Voltage Range
Output Voltage
High Accuracy : Setting Voltage Accuracy±2%
Low Power Consumption : 5μA
Stand-by Current : Less than 0.1μA
ment
High Ripple Rejection : 30dB@1kHz
Operating Temperature : -40℃~+85℃
Low ESR Capacitor : Ceramic Capacitor Compatible
Current Limit Circuit Built-In
Thermal Shutdown Circuit Built-In
Small Packages : SOT-25, SOT-89, SOT-89-5,
USP-6C, SOT-223, TO-252
CHARACTERISTICS
●Output Voltage vs. Input Volatage
Setting Range
(V
IN=VOUT(T)
: 300mV@I
: 2.0V~28.0V
: 2.0V~12.0V (100mV increments)
2.0V~23V with external resistors
(Setting Voltage Accuracy±1%
Possible)
+3.0V)
OUT=20mA
TYPICAL PERFORMANCE
1/29
Page 2
●
XC6216/XE6216 Series
■PIN CONFIGURATION
SOT-25
(TOP VIEW)
SOT-223
(TOP VIEW)
■PIN ASSIGNMENT
●XC6216B/XE6216B Series
PIN NUMBER
SOT-25 SOT-89-5 USP-6C
1 5 6 VIN Power Input
2 2 5 VSS Ground
3 4 4 NC No connection
4 3 3 CE ON/OFF Control
5 1 1 VOUT Output
- - 2 NC No connection
●XC6216C/XE6216C Series
PIN NUMBER
SOT-25 SOT-89-5 USP-6C
1 5 6 VIN Power Input
2 2 5 VSS Ground
3 4 4 VOFB Output Voltage Adjustment
4 3 3 CE ON/OFF Control
5 1 1 VOUT Output
- - 2 NC No connection
XC6216D/XE6216D Series
PIN NUMBER
SOT-89 SOT-223 TO-252
3 3 1 VIN Power Input
2 2 2 VSS Ground
1 1 3 VOUT Output
SOT-89
(TOP VIEW)
(TOP VIEW)
SOT-89-5
(TOP VIEW)
TO-252
PIN NAME FUNCTIONS
PIN NAME FUNCTIONS
PIN NAME FUNCTIONS
USP-6C
(BOTTOM VIEW)
* The dissipation pad for the USP-6C
package should be solder-plated in
recommended mount pattern and
metal masking so as to enhance
mounting strength and heat release.
If the pad needs to be connected to
other pins, it should be connected to
the V
SS (No. 5) pin.
2/29
Page 3
■PRODUCT CLASSIFICATION
●Ordering Information
XC6216①②③④⑤⑥
DESIGNATOR DESCRIPTION SYMBOL DESCRIPTION
①
②③
④
⑤
⑥
XE6216①②③④⑤⑥
DESIGNATOR DESCRIPTION SYMBOL DESCRIPTION
①
②③
④
⑤
⑥
*1: The XE products are under development.
Type and Options of
Regulators
Output Voltage
Output Voltage
Accuracy
Packages
Device Orientation
Type and Options of
Regulators
Output Voltage
Output Voltage
Accuracy
Package
Device Orientation
B : Fixed output voltage, High Active
C : Output voltage externally set, High Active
D
20 ~ 99
A, B, C
20
2
1
M : SOT-25 ( for B and C types only)
P : SOT-89 (for D type only)
P : SOT-89-5 (for B and C types only)
E : USP-6C (for B and C types only)
F : SOT-223 (for D type only)
J : TO-252 (for D type only)
R : Embossed tape, standard feed
L : Embossed tape, reverse feed
B : Fixed output voltage, High Active
C : Output voltage externally set, High Active
20 ~ 99
A, B, C
20
2
1
M : SOT-25 ( for B and C types only)
P : SOT-89 (for D type only)
P : SOT-89-5 (for B and C types only)
E : USP-6C (for B and C types only)
R : Embossed tape, standard feed
L : Embossed tape, reverse feed
: Fixed output voltage, No CE function
: For the voltage within 2.0V ~9.9V;
e.g. 2.5V ⇒ 25
5.0V ⇒ 50
: For the voltage above 10.0V;
e.g. 10.6V ⇒ A6
11.2V ⇒ B2
12.0V ⇒ C0
: For C type (output voltage externally set), V
: Output voltage 100mV increments, within ±2% accuracy
e.g. 2.5V ⇒ ②=2, ③=5, ④=2
: Output voltage 100mV increments, within ±1% accuracy
e.g. 5.0V ⇒ ②=5, ③=0, ④=1
: For the voltage within 2.0V ~9.9V;
e.g. 2.5V ⇒ 25
5.0V ⇒ 50
: For the voltage above 10.0V;
e.g. 10.6V ⇒ A6
11.2V ⇒ B2
12.0V ⇒ C0
: For C type (output voltage externally set), V
: Output voltage 100mV increments, Within ±2% accuracy
e.g. 2.5V ⇒ ②=2, ③=5, ④=2
: Output voltage 100mV increments, Within ±1% accuracy
e.g. 5.0V ⇒ ②=5, ③=0, ④=1
XC6216/XE6216
Series
OFB=2.0V only
OFB=2.0V only
3/29
Page 4
XC6216/XE6216 Series

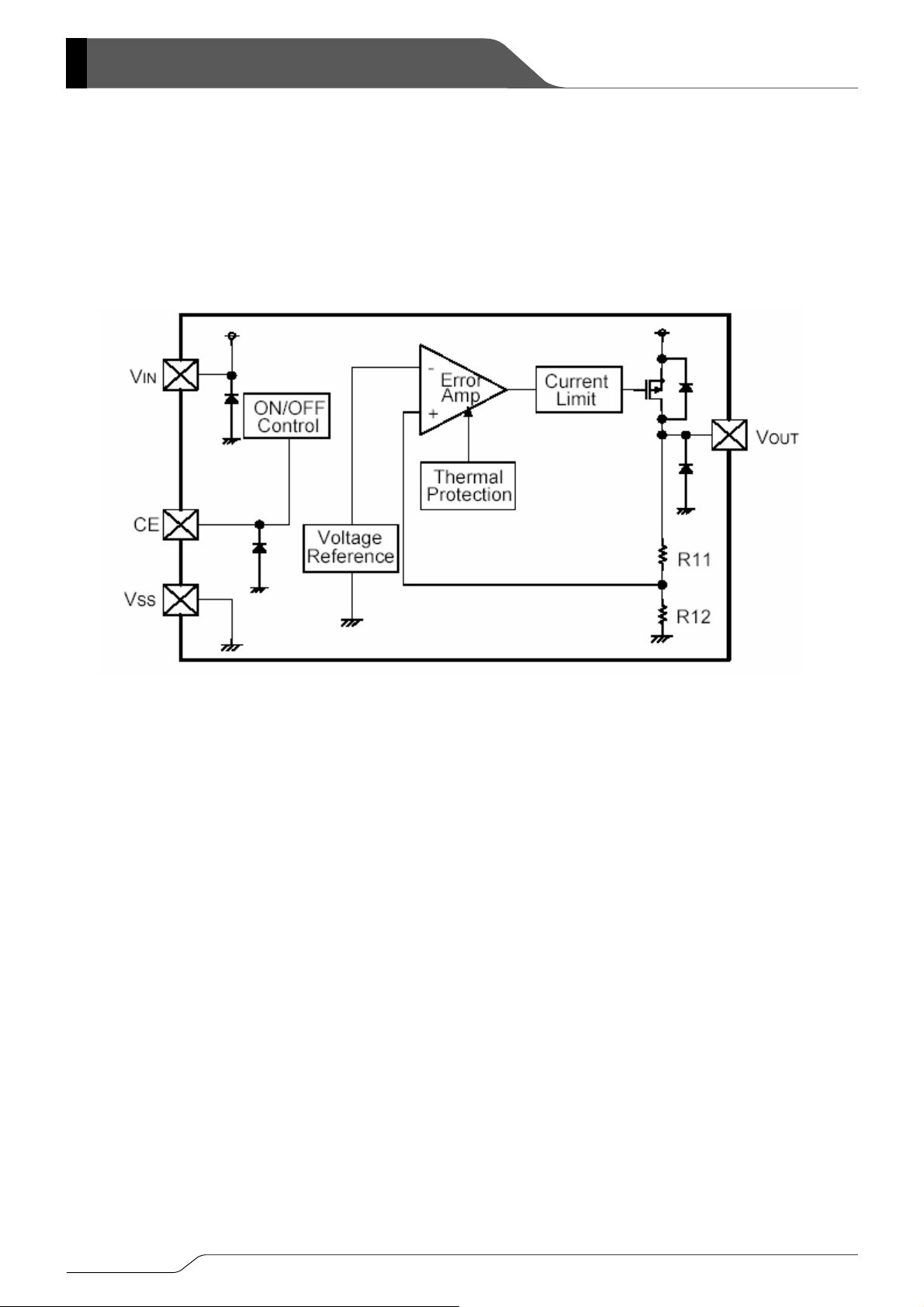

■BLOCK DIAGRAMS
●XC6216B/XE6216B Series
(SOT-25, SOT-89-5, USP-6C)
●XC6216C/XE6216C Series
(SOT-25, SOT-89-5, USP-6C)
●XC6216D/XE6216D Series
(SOT-89, SOT-223, TO-252)
4/29
Page 5
■ABSOLUTE MAXIMUM RATINGS
●XC6216B Series
PAR AMETER SYMBOL RATINGS UNIT
Input Voltage VIN VSS-0.3~30 V
Output Current IOUT 300
Output Voltage VOUT VSS-0.3~VIN+0.3 V
CE Input Voltage VCE VSS-0.3~30 V
SOT-25 250
Power Dissipation
SOT-89-5 500
Pd
USP-6C
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -55~+125
*1: IOUT≦Pd / (VIN-VOUT)
●XC6216C Series
PAR AMETER SYMBOL RATINGS UNIT
Input Voltage VIN VSS-0.3~30 V
Output Current IOUT 300
Output Voltage VOUT VSS-0.3~VIN+0.3 V
CE Input Voltage VCE VSS-0.3 ~ 30 V
FB Voltage VOFB VSS-0.3 ~ 30 V
SOT-25 250
Power Dissipation
SOT-89-5 500
Pd
USP-6C
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -55~+125
*1: I
OUT≦Pd / (VIN-VOUT)
●XC6216D Series
PAR AMETER SYMBOL RATINGS UNIT
Input Voltage VIN VSS-0.3~30 V
Output Current IOUT 300
Output Voltage VOUT VSS-0.3~VIN+0.3 V
SOT-89 500
Power Dissipation
SOT-223 300
Pd
TO-252
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -55~+125
OUT≦Pd / (VIN-VOUT)
*1: I
*2: Only SOT-89 package is available for the XE series.
(*1)
mA
mW
J=25℃)
100
(T
℃
℃
(*1)
mA
mW
J=25℃)
100
(T
℃
℃
(*1)
mA
mW
J=25℃)
500
(T
℃
℃
XC6216/XE6216
Series
5/29
Page 6
XC6216/XE6216 Series
■ELECTRICAL CHARACTERISTICS
●XC6216B Series
PAR AMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNIT CIRCUIT
Ta = 2 5℃
Output Voltage VOUT(E) IOUT=20mA, VCE=VIN E-0 V
Maximum Output Current IOUTMAX
VIN=VOUT(T)+3.0V, VCE=VIN
(VOUT(T)≧3.0V)
VIN=VOUT(T)+3.0V, VCE=VIN
(VOUT(T)＜3.0V)
150 - -
100 - -
VIN=VOUT(T)+2.0V,
OUT≦50mA, VCE=VIN,
Load Regulation
△VOUT
1mA≦I
(2.0V≦VOUT(T)≦7.0V)
IN=VOUT(T)+2.0V,
V
1mA≦IOUT≦50mA, VCE=VIN,
- 50 90
- 110 140
(7.1V≦VOUT(T)≦12.0V)
Dropout Voltage 1 Vdif1 IOUT=20mA, VCE=VIN
IOUT=100mA,
V
IN = VOUT(T)+3.0V, VCE=VIN
(VOUT(T)<3.0V) Dropout Voltage 2 Vdif2
OUT=100mA, VCE=VIN
I
(VOUT(T)<3.0V)
Supply Current ISS VCE=VIN
Stand-by Current Istby VCE=VSS
Line Regulation 1
Line Regulation 2
△V
△V
IN・VOUT(T)
△V
△V
IN・VOUT(T)
OUT /
OUT /
OUT(T)+2.0V≦VIN≦28.0V
V
OUT=5mA, VCE=VIN
I
OUT(T)+2.0V≦VIN≦28.0V
V
OUT=13mA, VCE=VIN
I
Input Voltage VIN
Output Voltage
Temperature Characteristics
△Topr・VOUT(T)
Ripple Rejection Rate PSRR
△V
OUT /
IOUT=20mA, VCE=VIN
-40℃≦Topr≦85℃
VIN=[VOUT(T)+2.0]V+0.5Vp-pAC
IOUT=20mA, f=1kHz, VCE=VIN
Short Current Ishort VIN=VOUT(T)+2.0V, VCE=VIN
CE ”H” Level Voltage VCEH VIN=28.0V
CE ”L” Level Voltage VCEL VIN=28.0V
CE ”H” Level Current ICEH VIN=VCE=28.0V
CE ”L” Level Current ICEL VIN=28.0V, VCE=VSS
Thermal Shutdown
Detect Temperature
Thermal Shutdown
Release Temperature
TTSD Junction Temperature - 150 -
TTSR Junction Temperature - 125 -
1 5 9
- 0.01 0.10
0.01 0.05 0.10
0.03 0.15 0.30
2.0 - 28.0
- ±100 -
- 30 -
- 30 -
1.1 - 28.0
0 - 0.35
-0.1 - 0.1
-0.1 - 0.1
Hysteresis Range TTSD-TTSR - 25 -
NOTE:
*1: V
OUT(T): Specified output voltage
*2: V
OUT(E): Effective output voltage
(i.e. the output voltage when “V
*3: Vdif={V
*4: V
OUT1: A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT{VOUT(T)+2.0V} is input.
*5: V
IN1: The input voltage when VOUT1 appears as input voltage is gradually decreased.
*6: Unless otherwise stated, V
IN1
{Note 5}
- VOUT1
{Note 4}
}
IN=VOUT(T)+2.0V.
OUT(T)+2.0V” is provided at the VIN pin while maintaining a certain IOUT value.)
6/29
E-1
E-2
①
mA
mA
mV
mV
mV
mV
①
①
①
①
①
①
μA ②
μA ②
%/V ①
%/V ①
V -
ppm/℃ ①
dB
mA
V
V
③
①
①
①
μA ①
μA ①
℃ ①
℃ ①
℃
-
Page 7
XC6216/XE6216
■ELECTRICAL CHARACTERISTICS (Continued)
●XC6216C Series
PAR AMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNIT CIRCUIT
OUT=20mA, VCE=VIN,
Output Voltage VOUT(E)
Divided Resistor RFB
Maximum Output Current IOUTMAX
Load Regulation
△V
OUT
Dropout Voltage1 Vdif1
Dropout Voltage2 Vdif2
Supply Current ISS VCE=VIN, VOFB=VOUT
Stand-by Current Istby VCE=VSS, VOFB=VOUT
△V
Line Regulation1
Line Regulation2
OUT /
△V
IN・VOUT(T)
△V
OUT /
△VIN・VOUT(T)
Input Voltage VIN
Output Voltage
Temperature Characteristics
△V
OUT /
△Topr・V
OUT(T)
Ripple Rejection Rate PSRR
Short Current Ishort
CE ”H” Level Voltage VCEH VIN=28.0V, VOFB=VOUT
CE ”L” Level Voltage VCEL VIN=28.0V, VOFB=VOUT
CE ”H” Level Current ICEH VIN=VCE=28.0V, VOFB=VOUT
CE ”L” Level Current ICEL
Thermal Shutdown
Detect Temperature
Thermal Shutdown
Release Temperature
Hysteresis Range TTSD-TTSR - 25 - ℃ -
NOTE:
*1: V
OUT(T): Specified output voltage
*2: V
OUT(E): Effective output voltage
(i.e. the output voltage when “V
*3: Vdif={V
*4: V
OUT1: A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT{VOUT(T)+2.0V} is input.
*5: V
IN1: The input voltage when VOUT1 appears as input voltage is gradually decreased.
*6: Unless otherwise stated, V
IN1
{Note 5}
- VOUT1
{Note 4}
TTSD Junction Temperature - 150 -
TTSR Junction Temperature - 125 -
OUT(T)+2.0V” is provided at the VIN pin while maintaining a certain IOUT value.)
}
IN=VOUT(T)+2.0V.
I
V
OFB=VOUT
VIN=VOUT=5.0V, VCE=VSS
V
OFB=VOUT
VIN=5.0V, VCE=VIN ,
V
OFB=VOUT
VIN=4.0V
1mA≦I
V
OUT≦50mA,
CE=VIN, VOFB=VOUT
IOUT=20mA, VCE=VIN,
V
OFB=VOUT
IOUT=100mA, VIN=5.0V,
V
CE=VIN, VOFB=VOUT
4.0V≦V
OUT=5mA, VCE=VIN,
I
IN≦28.0V,
V
OFB=VOUT
4.0V≦VIN≦28.0V,
I
OUT=13mA, VCE=VIN,
V
OFB=VOUT
IOUT=20mA, VCE=VIN,
-40℃≦Topr≦85℃
IN=4.0V+0.5Vp-pAC,
V
I
OUT=20mA, f=1kHz, VCE=VIN
VOFB=VOUT
IN=4.0V, VCE=VIN,
V
VOFB=VOUT
VIN=28.0V, VCE=VSS
VOFB=VOUT
1.96 2.00 2.04 V
1.30 2.09 4.40
100 - -
- 50 90
- 450 600
- 1900 2600-
1 5 9
- 0.01 0.10
- 0.05 0.10
- 0.15 0.30
2.0 - 28.0
- ±100 -
ppm/℃ ①
- 30 -
- 30 -
1.1 - 28.0
0 - 0.5
-0.1 - 0.1
-0.1 - 0.1
Series
Ta = 2 5℃
①
MΩ ④
mA
mV
mV
mV
①
①
①
①
μA ②
μA ②
%/V ①
%/V ①
V -
dB
mA
V
V
③
①
①
①
μA ①
μA ①
℃
℃
①
①
7/29
Page 8
XC6216/XE6216 Series
■ELECTRICAL CHARACTERISTICS (Continued)
●XC6216D Series
PAR AMETER SYMBOL CONDITIONS MIN. TYP. MAX. UNIT CIRCUIT
Ta = 2 5℃
Output Voltage VOUT(E) IOUT=20mA E-0 V
VIN=VOUT(T)+3.0V,
(VOUT(T)≧3.0V)
Maximum Output Current IOUTMAX
IN=VOUT(T)+3.0V,
V
(VOUT(T)＜3.0V)
V
Load Regulation
△V
OUT
IN=VOUT(T)+2.0V
1mA≦I
Dropout Voltage1 Vdif1 IOUT=20mA
OUT≦100mA
150 - -
100 - -
- 50 90
E-1
mA
mA
mV
mV
IOUT=100mA, VIN=VOUT(T)+3.0V
Dropout Voltage2 Vdif2
Supply Current ISS
OUT /
Line Regulation1
Line Regulation2
△V
△V
IN・VOUT(T)
△V
△V
IN・VOUT(T)
OUT /
Input Voltage VIN
Output Voltage
Temperature Characteristics
△V
OUT /
△Topr・V
OUT(T)
Ripple Rejection Rate PSRR
Short Current Ishort VIN=VOUT(T)+2.0V
(VOUT(T)＜3.0V)
OUT=100mA,
I
OUT(T)≧3.0V)
(V
OUT(T)+2.0V≦VIN≦28.0V
V
OUT=5mA
I
OUT(T)+2.0V≦VIN≦28.0V
V
OUT=13mA
I
IOUT=20mA, VCE=VIN
-40℃≦Topr≦85℃
VIN=[VOUT(T)+2.0]V+0.5Vp-pAC
IOUT=20mA, f=1kHz
E-2
1 5 9
- 0.05 0.10
- 0.15 0.30
μA ②
%/V ①
%/V ①
2.0 - 28.0
- ±100 -
ppm/℃ ①
- 30 -
- 30 -
mV
V -
dB
mA
Thermal Shutdown
Detect Temperature
Thermal Shutdown
Release Temperature
Hysteresis Range TTSD-TTSR - 25 - ℃ -
NOTE:
*1: V
OUT(T): Specified output voltage
*2: V
OUT(E): Effective output voltage
(i.e. the output voltage when “V
*3: Vdif={V
*4: V
OUT1: A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT{VOUT(T)+2.0V} is input.
*5: V
IN1: The input voltage when VOUT1 appears as input voltage is gradually decreased.
*6: Unless otherwise stated, V
IN1
{Note 5}
- VOUT1
{Note 4}
TTSD Junction Temperature - 150 -
TSR Junction Temperature - 125 -
T
OUT(T)+2.0V” is provided at the VIN pin while maintaining a certain IOUT value.)
}
IN=VOUT(T)+2.0V.
℃
℃
①
①
①
①
①
①
③
①
-
-
8/29
Page 9
■ELECTRICAL CHARACTERISTICS (Continued)
●Voltage Chart
E-0 E-1 E-2 PAR AMETER
SETTING
VOLTAGE
OUT(T)
(V)
OUTPUT VOLTAGE
(V)
2% ACCURACY
V
V
OUT
OUTPUT VOLTAGE
(V)
1% ACCURACY
Vdif1 Vdif2 V
OUT
DROPOUT VOLTAGE 1
I
OUT
MIN. MAX. MIN. MAX. TYP. MAX. TYP. MAX.
2.0 1.960 2.040 1.980 2.020 450 600 1900 2600
2.1 2.058 2.142 2.079 2.121 450 600 1900 2600
2.2 2.156 2.244 2.178 2.222 390 520 1700 2200
2.3 2.254 2.346 2.277 2.323 390 520 1700 2200
2.4 2.352 2.448 2.376 2.424 390 520 1700 2200
2.5 2.450 2.550 2.475 2.525 310 450 1500 1900
2.6 2.548 2.652 2.574 2.626 310 450 1500 1900
2.7 2.646 2.754 2.673 2.727 310 450 1500 1900
2.8 2.744 2.856 2.772 2.828 310 450 1500 1900
2.9 2.842 2.958 2.871 2.929 310 450 1500 1900
3.0 2.940 3.060 2.970 3.030 260 360 1300 1700
3.1 3.038 3.162 3.069 3.131 260 360 1300 1700
3.2 3.136 3.264 3.168 3.232 260 360 1300 1700
3.3 3.234 3.366 3.267 3.333 260 360 1300 1700
3.4 3.332 3.468 3.366 3.434 260 360 1300 1700
3.5 3.430 3.570 3.465 3.535 260 360 1300 1700
3.6 3.528 3.672 3.564 3.636 260 360 1300 1700
3.7 3.626 3.774 3.663 3.737 260 360 1300 1700
3.8 3.724 3.876 3.762 3.838 260 360 1300 1700
3.9 3.822 3.978 3.861 3.939 260 360 1300 1700
4.0 3.920 4.080 3.960 4.040 220 320 1100 1500
4.1 4.018 4.182 4.059 4.141 220 320 1100 1500
4.2 4.116 4.284 4.158 4.242 220 320 1100 1500
4.3 4.214 4.386 4.257 4.343 220 320 1100 1500
4.4 4.312 4.488 4.356 4.444 220 320 1100 1500
4.5 4.410 4.590 4.455 4.545 220 320 1100 1500
4.6 4.508 4.692 4.554 4.646 220 320 1100 1500
4.7 4.606 4.794 4.653 4.747 220 320 1100 1500
4.8 4.704 4.896 4.752 4.848 220 320 1100 1500
4.9 4.802 4.998 4.851 4.949 220 320 1100 1500
(mV)
=20mA
XC6216/XE6216
Series
DROPOUT VOLTAGE 2
(mV)
I
=100mA
OUT
9/29
Page 10
XC6216/XE6216 Series
■ELECTRICAL CHARACTERISTICS (Continued)
●Voltage Chart (Continued)
E-0 E-1 E-2 PAR AMETER
SETTING
VOLTAGE
OUT(T)
(V)
5.0 4.900 5.100 4.950 5.050 190 280 1000 1300
5.1 4.998 5.202 5.049 5.151 190 280 1000 1300
5.2 5.096 5.304 5.148 5.252 190 280 1000 1300
5.3 5.194 5.406 5.247 5.353 190 280 1000 1300
5.4 5.292 5.508 5.346 5.454 190 280 1000 1300
5.5 5.390 5.610 5.445 5.555 190 280 1000 1300
5.6 5.488 5.712 5.544 5.656 190 280 1000 1300
5.7 5.586 5.814 5.643 5.757 190 280 1000 1300
5.8 5.684 5.916 5.742 5.916 190 280 1000 1300
5.9 5.782 6.018 5.841 5.959 190 280 1000 1300
6.0 5.880 6.120 5.940 6.060 190 280 1000 1300
6.1 5.978 6.222 6.039 6.161 190 280 1000 1300
6.2 6.076 6.324 6.138 6.262 190 280 1000 1300
6.3 6.174 6.426 6.237 6.363 190 280 1000 1300
6.4 6.272 6.528 6.336 6.464 190 280 1000 1300
6.5 6.370 6.630 6.435 6.565 170 230 800 1150
6.6 6.468 6.732 6.534 6.666 170 230 800 1150
6.7 6.566 6.834 6.633 6.767 170 230 800 1150
6.8 6.664 6.936 6.732 6.868 170 230 800 1150
6.9 6.762 7.038 6.831 6.969 170 230 800 1150
7.0 6.860 7.140 6.930 7.070 170 230 800 1150
7.1 6.958 7.242 7.029 7.171 170 230 800 1150
7.2 7.056 7.344 7.128 7.272 170 230 800 1150
7.3 7.154 7.446 7.227 7.373 170 230 800 1150
7.4 7.252 7.548 7.326 7.474 170 230 800 1150
7.5 7.350 7.650 7.425 7.575 170 230 800 1150
7.6 7.448 7.752 7.524 7.676 170 230 800 1150
7.7 7.546 7.854 7.623 7.777 170 230 800 1150
7.8 7.644 7.956 7.722 7.878 170 230 800 1150
7.9 7.742 8.058 7.821 7.979 170 230 800 1150
8.0 7.840 8.160 7.920 8.080 170 230 800 1150
OUTPUT VOLTAGE
(V)
2% ACCURACY
V
V
OUT
OUTPUT VOLTAGE
(V)
1% ACCURACY
Vdif1 Vdif2 V
OUT
DROPOUT VOLTAGE 1
I
OUT
MIN. MAX. MIN. MAX. TYP. MAX. TYP. MAX.
(mV)
=20mA
DROPOUT VOLTAGE 2
(mV)
I
=100mA
OUT
10/29
Page 11
XC6216/XE6216
■ELECTRICAL CHARACTERISTICS (Continued)
●Voltage Chart (Continued)
E-0 E-1 E-2 PAR AMETER
SETTING
VOLTAGE
OUT(T)
(V)
8.1 7.938 8.262 8.019 8.181 130 190 700 950
8.2 8.036 8.364 8.118 8.282 130 190 700 950
8.3 8.134 8.466 8.217 8.383 130 190 700 950
8.4 8.232 8.568 8.316 8.484 130 190 700 950
8.5 8.330 8.670 8.415 8.585 130 190 700 950
8.6 8.428 8.772 8.514 8.686 130 190 700 950
8.7 8.526 8.874 8.613 8.787 130 190 700 950
8.8 8.624 8.976 8.712 8.888 130 190 700 950
8.9 8.722 9.078 8.811 8.989 130 190 700 950
9.0 8.820 9.180 8.910 9.090 130 190 700 950
9.1 8.918 9.282 9.009 9.191 130 190 700 950
9.2 9.016 9.384 9.108 9.292 130 190 700 950
9.3 9.114 9.486 9.207 9.393 130 190 700 950
9.4 9.212 9.588 9.306 9.494 130 190 700 950
9.5 9.310 9.690 9.405 9.595 130 190 700 950
9.6 9.408 9.792 9.504 9.696 130 190 700 950
9.7 9.506 9.894 9.603 9.797 130 190 700 950
9.8 9.604 9.996 9.702 9.898 130 190 700 950
9.9 9.702 10.098 9.801 9.999 130 190 700 950
10.0 9.800 10.200 9.900 10.100 130 190 700 950
10.1 9.898 10.302 9.999 10.201 120 160 650 850
10.2 9.996 10.404 10.098 10.302 120 160 650 850
10.3 10.094 10.506 10.197 10.403 120 160 650 850
10.4 10.192 10.608 10.296 10.504 120 160 650 850
10.5 10.290 10.710 10.395 10.605 120 160 650 850
10.6 10.388 10.812 10.494 10.706 120 160 650 850
10.7 10.486 10.914 10.593 10.807 120 160 650 850
10.8 10.584 11.016 10.692 10.908 120 160 650 850
10.9 10.682 11.118 10.791 11.009 120 160 650 850
11.0 10.780 11.220 10.890 11.110 120 160 650 850
11.1 10.878 11.322 10.989 11.211 120 160 650 850
11.2 10.976 11.424 11.088 11.312 120 160 650 850
11.3 11.074 11.526 11.187 11.413 120 160 650 850
11.4 11.172 11.628 11.286 11.514 120 160 650 850
11.5 11.270 11.730 11.385 11.615 120 160 650 850
11.6 11.368 11.832 11.484 11.716 120 160 650 850
11.7 11.466 11.934 11.583 11.817 120 160 650 850
11.8 11.564 12.036 11.682 11.918 120 160 650 850
11.9 11.662 12.138 11.781 12.019 120 160 650 850
12.0 11.760 12.240 11.880 12.120 120 160 650 850
OUTPUT VOLTAGE
(V)
2% ACCURACY
V
V
OUT
OUTPUT VOLTAGE
(V)
1% ACCURACY
Vdif1 Vdif2 V
OUT
DROPOUT VOLTAGE 1
(mV)
I
=20mA
OUT
DROPOUT VOLTAGE 2
(mV)
I
=100mA
OUT
MIN. MAX. MIN. MAX. TYP. MAX. TYP. MAX.
Series
11/29
Page 12
XC6216/XE6216 Series
■OPERATIONAL EXPLANATION
<Output Voltage Control>
The voltage divided by resistors R11 & R12 is compared with the internal reference voltage by the error amplifier. The
P-channel MOSFET, which is connected to the V
voltage at the V
protect circuit operate in relation to the level of output current and heat dissipation. Further, the IC’s internal circuitry
can be shutdown via the CE pin’s signal.
<Short-Circuit Protection>
The XC6216/XE6216 series includes a current fold-back circuit as a short circuit protection. When the load current reaches
the current limit level, the current fold-back circuit operates and output voltage drops. The output voltage drops further and
output current decreases. When the output pin is shorted, a current of about 30mA flows.
<CE Pin>
The IC’s internal circuitry can be shutdown via the signal from the CE pin with the XC6216/XE6216 series. In shutdown
mode, output at the V
is ‘High Active/No pull down’, operations will become unstable with the CE pin open. We suggest that you use this IC with
either a V
operational logic is fixed and the IC will operate normally. However, supply current may increase as a result of through
current in the IC’s internal circuitry if a medium voltage is applied.
<Thermal Shutdown>
When the junction temperature of the built-in driver transistor reaches the temperature limit level (150℃ TYP.), the thermal
shutdown circuit operates and the driver transistor will be set to OFF. The IC resumes its operation when the thermal
shutdown function is released and the IC’s operation is automatically restored because the junction temperature drops to the
level of the thermal shutdown release voltage.
<Minimum Operating Voltage>
For the stable operation of the IC, over 2.0V of input voltage is necessary. The output voltage may not be generated
normally if the input voltage is less than 2.0V.
IN voltage or a VSS voltage input at the CE pin. If this IC is used with the correct specifications for the CE pin, the
OUT pin is controlled and stabilized by a system of negative feedback. The current limit circuit and short
OUT pin will be pulled down by R11 and R12 to the VSS level. Note that as the XC6216/XE6216 series
12/29
OUT pin, is then driven by the subsequent output signal. The output
Page 13
XC6216/XE6216
Series
■NOTES ON USE
1． Please use this IC within the stated absolute maximum ratings. The IC is liable to malfunction should the ratings be
exceeded.
2． Where wiring impedance is high, operations may become unstable due to the noise and/or phase lag depending on output
current. Please strengthen V
3. Phase compensation inside the IC is performed in the XC6216/XE6216 series. Therefore, an abnormal oscillation does not
occur even if there is no output capacitor C
VSS pin is required for input stability. Also, the output voltage fluctuation such as under shoot or over shoot, which occurs
because of the load change can be controlled by placing the output capacitor CL around 0.1uF~1.0uF between the V
pin and VSS pin. The input capacitor (CIN) and the output capacitor (CL) should be placed to the IC as close as possible
with a shorter wiring.
4. Notes on Setting Output Voltage Externally (C type) Topr=25℃
The output voltage can be set externally by the following equation:
V
=2.0V x (Rxx + Ryy) / Ryy ……………………………………………………………………… (1)
OUT
Although the output voltage can be set freely by the above equation, resistance values can be calculated by the
following equations in case considering output voltage accuracy.
Ixx = IFB + Iyy ……………………………………………………………………… (2)
Iyy = 2.0V / Ryy ……………………………………………………………………… (3)
If the equation (3) is assigned to the equation (2), the equation becomes as below:
Ixx =IFB + 2.0V / Ryy ……………………………………………………………………… (4)
For this, the following equation can be used for setting output voltage externally:
V
=2.0V + Rxx・Ixx ……………………………………………………………………… (5)
OUT
And the equation (4) will be;
V
=2.0V + Rxx・(IFB + 2.0V / Ryy) ………………………………………………………………………
OUT
=2.0V x (1 + Rxx / Ryy) + Rxx・I
The second term of the equation (6), Rxx・I
The I
can be calculated by the following equation:
FB
IFB=2.0V / RFB ……………………………………………………………………… (7)
The cause of the output accuracy error, Rxx・I
Rxx・IFB = Rxx・2.0V / Ryy
= 2.0V x Rxx・RFB ……………………………………………………………………… (8)
Accordingly, if Rxx is smaller than RFB, the output voltage error becomes minute.
●Setting Resistance-Dependant of XC6216 Series’ Output Voltage
IN and VSS wiring in particular.
L. An input capacitor CIN around 0.1uF~1.0uF between the VIN pin and the
……………………………………………………………………… (6)
FB
, is the cause of the output accuracy error.
FB
can be calculated by the equation below;
FB
OUT
13/29
Page 14
XC6216/XE6216 Series
■TEST CIRCUITS
Circuit ①
●XC6216B/XE6216B Series
●XC6216D/XE6216D Series
Circuit ②
●XC6216B/XE6216B Series
●XC6216D/XE6216D Series
Circuit ③
●XC6216B/XE6216B Series
●XC6216D/XE6216D Series
Circuit ④
●XC6216C/XE6216C Series
14/29
●XC6216C/XE6216C Series
●XC6216C/XE6216C Series
●XC6216C/XE6216C Series
Page 15
■TYPICAL PERFORMANCE CHARACTERISTICS
(1) Output Voltage vs. Output Current
XC6216B/C/D 202
2.5
VIN=VCE=5.0V, Ta=25℃, CIN=CL=1.0μF (ceramic)
2.5
2.0
(V)
OUT
1.5
2.0
(V)
OUT
1.5
1.0
Output Voltage: V
0.5
0.0
0 50 100 150 200 250 300
Output Current: I
OUT
(mA)
XC6216B/D 332
4.0
VIN=VCE=6.3V, Ta=25℃, CIN=CL=1. 0μF (ceramic)
Ta=- 40
Ta=2 5
Ta=8 5
℃
℃
℃
1.0
Output Voltage: V
0.5
0.0
0 50 100 150 200 250 300
4.0
3.5
3.0
(V)
OUT
2.5
2.0
1.5
Output Voltage: V
1.0
Output Voltage : VOUT (V)
0.5
0.0
0 50 100 150 200 250 300
Output Current: I
Output Current : IOUT (mA)
OUT
(mA)
Ta=- 40
Ta=2 5
Ta=8 5
℃
℃
℃
3.5
3.0
(V)
OUT
2.5
2.0
1.5
1.0
Output Voltage: V
Output Voltage: VOUT (V)
0.5
0.0
0 50 100 150 200 250 300
6.0
VIN=VCE=8.0V, Ta=25℃, CIN=CL=1. 0μF (ceramic)
XC6216B/D 502
6.0
5.0
(V)
4.0
OUT
5.0
(V)
4.0
OUT
3.0
3.0
2.0
Output Voltage: V
Output Voltage : VOUT (V)
1.0
0.0
0 50 100 150 200 250 300
Output Current : IOUT (mA)
Output Current: I
OUT
(mA)
Ta=- 40
Ta=2 5
Ta=8 5
2.0
℃
℃
Output Voltage: V
Output Voltage : VOUT (V)
1.0
℃
0.0
0 50 100 150 200 250 300
XC6216/XE6216
XC6216B/C/D 202
Ta=2 5℃, CIN=CL=1.0μF (ceramic)
Output Currrent: I
XC6216B/D 332
Ta=2 5℃, CIN=CL=1.0μF (ceramic)
Output Current: I
Output Current: IOUT (mA)
XC6216B/D 502
Ta=2 5℃, CIN=CL=1.0μF (ceramic)
Output Current: I
Output Current : IOUT (mA)
OUT
OUT
OUT
(mA)
(mA)
(mA)
Series
VIN=3V
VIN=4V
VIN=5V
VIN=4.3V
VIN=5.3V
VIN=6.3V
VIN=6V
VIN=7V
VIN=8V
15/29
Page 16
)
)
XC6216/XE6216 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(1) Output Voltage vs. Output Current (Continued)
VIN=VCE=15. 0V, Ta=2 5℃, CIN=CL=1.0μF (ceramic)
14
12
(V)
10
OUT
8
6
4
Output Voltage: V
Output Voltage : VOUT (V)
2
0
0 50 100 150 200 250 300
(2) Output Voltage vs. Input Voltage
2.1
2.0
(V)
1.9
OUT
1.8
1.7
Output Voltage: V
Output Voltage : VOUT (V)
1.6
1.5
1.5 2 2.5 3 3.5 4
3.4
3.3
3.2
3.1
3
Ou tpu t Volt age : VOUT (V)
2.9
2.8
2.8 3.3 3.8 4.3 4.8 5.3
16/29
XC6216B/D C02
Output Current: I
Output Current : IOUT (mA)
XC6216B/C/D 202
Ta=2 5℃, CIN=CL=1.0μF (ceram ic)
Input Voltage: VIN (V)
Input Voltage: VIN (V)
Input Voltage: VIN (V)
OUT
(mA)
IOUT= 1mA
IOUT= 10 mA
IOUT= 30 mA
XC6216B/D 332
Ta=25℃, CIN=CL=1.0uF(ceramic
IOUT=1mA
IOUT=10mA
IOUT=30mA
Input Voltage : VIN (V)
Ta=- 40
Ta=2 5
Ta=8 5
XC6216B/D C02
14
12
10
(V)
OUT
8
6
℃
℃
℃
4
Output Voltage: V
Output Voltage : VOUT (V)
2
0
0 50 100 150 200 250 300
2.1
2.0
(V)
1.9
OUT
1.8
1.7
Output Voltage: V
Output Voltage : VOUT (V)
1.6
1.5
4 8 12 16 20 24 28
Ta=2 5℃, CIN=CL=1.0μF (ceramic)
Output Current: I
Output Current : IOUT (mA)
XC6216B /C/D 202
Ta=25℃, CIN=CL=1. 0μF (c eramic )
Input Voltage: VIN (V)
Input Voltage : VIN (V)
(mA)
OUT
IOUT= 1mA
IOUT= 10 mA
IOUT= 30 mA
VIN=13V
VIN=14V
VIN=15V
3.4
XC6216B/D 332
Ta=25℃, CIN=CL=1.0uF(ceramic
3.3
3.2
3.1
3
Ou tpu t Vo ltage : VOUT (V)
2.9
2.8
4 8 12 16 20 24 28
Input Voltage : VIN (V)
IOUT=1mA
IOUT=10mA
IOUT=30mA
Page 17
XC6216/XE6216
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(2) Output Voltage vs. Input Voltage (Continued)
5.2
5.0
(V)
4.8
OUT
4.6
4.4
Output Voltage: V
Output Voltage : VOUT (V)
4.2
4.0
44.555.566.5
13.0
12.5
(V)
12.0
OUT
11.5
11.0
Output Voltage: V
Output Voltage : VOUT (V)
10.5
10.0
10 11 12 13 14
(3) Dropout Voltage vs. Output Current
3.0
XC6216B/C/D 202
2.5
(V)
2.0
DIF
Ta=- 40
Ta=2 5
Ta=8 5
1.5
1.0
Dropout Voltage : V
0.5
Input/Output Difference Voltage : VDIF (V)
0.0
0 25 50 75 100 125 150
Output Current: I
Output Current : IOUT (mA)
XC6216B/D 502
Ta=2 5℃, CIN=CL=1. 0μF (ceram ic)
Input Voltage: VIN (V)
Input Voltage : VIN (V)
XC6216B/D C02
Ta=2 5℃, CIN=CL=1.0μF (ceramic)
IOUT= 1mA
IOUT=10mA
IOUT=30mA
Input Voltage: VIN (V)
Input Voltage : VIN (V)
CIN=CL=1.0uF (c eramic )
℃
℃
℃
(V)
OUT
IOUT= 1mA
IOUT= 10 mA
IOUT= 30 mA
XC6216B/D 502
5.2
5.0
(V)
4.8
OUT
4.6
4.4
Output Voltage: V
Output Voltage : VOUT (V)
4.2
4.0
8 1216202428
Ta=25℃, CIN=CL=1.0μF (ceramic)
Input Voltage: VIN (V)
Input Voltage : VIN (V )
XC6216B/D C02
12.5
Ta=2 5℃, CIN=CL=1.0μF (ceram ic)
12.0
(V)
OUT
11.5
11.0
Output Voltage: V
Output Voltage : VOUT (V)
10.5
10.0
14 16 18 20 22 24 26 28
Input Voltage : VIN (V)
Input Voltage: VIN (V)
XC6216B/D 332
3.0
2.5
(V)
2.0
DIF
1.5
1.0
Dropout Voltage : V
0.5
Input/Output Difference Voltage : VDIF (V)
0.0
0 25 50 75 100 125 150
Ta=- 40
Ta=2 5
Ta=8 5
Output Current : IOUT (mA)
Output Current: I
CIN=CL=1.0uF (c eramic )
℃
℃
℃
OUT
(V)
IOUT= 1mA
IOUT= 10 mA
IOUT= 30 mA
IOUT= 1mA
IOUT= 10mA
IOUT= 30mA
Series
17/29
Page 18
XC6216/XE6216 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
18/29
(3) Dropout Voltage vs. Output Current
XC6216B /D 502
3.0
Ta=- 40
2.5
(V)
2.0
DIF
Ta=2 5
Ta=8 5
℃
℃
CIN=CL=1.0uF(ceramic)
℃
1.5
1.0
Dropout Voltage: V
0.5
Input/Output Difference Voltage : VDIF (V)
0.0
0 25 50 75 100 125 150
Output Current : IOUT (mA)
Output Current: I
OUT
(4) Supply Current vs. Input Voltage
XC6216B/C/D 202
10
9
8
A)
7
μ
(
6
SS
5
4
3
Supply Current: I
Supply Current : ISS (uA)
2
1
0
0 4 8 1216202428
10
9
8
A)
μ
(
7
SS
6
5
4
3
Supply Current: I
Supply Current : ISS (uA)
2
1
0
0 4 8 1216202428
Input Voltage : VIN (V)
Input Voltage: VIN (V)
XC6216B/D 332
Input Voltage: VIN (V)
Input Voltage : VIN (V)
(V)
Ta=- 40
Ta=2 5
Ta=8 5
Ta=- 40
Ta=2 5
Ta=8 5
XC6216B /D C02
CIN=CL=1.0uF (ceramic)
℃
℃
℃
(V)
DIF
3.0
2.5
2.0
Ta=- 40
Ta=2 5
Ta=8 5
1.5
1.0
Dropout Voltage : V
0.5
Input/Output Difference Voltage : VDIF (V)
0.0
0 25 50 75 100 125 150
Output Current : IOUT (mA)
Output Current: I
XC6216B/C/D 202
10
9
8
7
A)
μ
(
6
SS
5
4
℃
℃
℃
℃
℃
℃
3
Supply Current : ISS (uA)
2
Supply Current: I
1
0
-40 -20 0 20 40 60 80 100
Ambient Temprature: Ta (℃)
XC6216B/D 332
10
9
8
A)
7
μ
(
SS
6
5
4
3
Supply Current: I
Supply Current : ISS (uA)
2
1
0
-40 -20 0 20 40 60 80 100
Ambient Temprature: Ta (℃)
OUT
VIN=5.3 V
(V)
VIN=4. 0V
Page 19
XC6216/XE6216
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(4) Supply Current vs. Input Voltage (Continued)
10
9
8
A)
μ
(
7
SS
6
5
4
3
Supply Current: I
Supply Curr ent : ISS (uA)
2
1
0
0 4 8 1216202428
XC6216B/D 502
Input Voltage : VIN (V)
Input Voltage: VIN (V)
Ta=- 40
Ta=2 5
Ta=8 5
XC6216B/D C02
10
9
8
A)
7
μ
(
6
SS
5
4
3
Supply Current : ISS (uA)
Supply Current: I
2
1
0
0 4 8 1216202428
Input Voltage : VIN (V)
Input Voltage: VIN (V)
(5) Output Voltage vs. Ambient Temperature
2.20
2.15
XC621B /C/D 202
CIN=CL=1.0μF (c eramic )
2.10
(V)
2.05
OUT
2.00
1.95
1.90
Output Voltage: V
Output Voltage : VOUT (V)
1.85
1.80
-50 -25 0 25 50 75 100
Ambient Temperature: Ta (
℃
℃
℃
Ta=- 40
℃
Ta=2 5
℃
Ta=8 5
℃
IOUT= 1mA
IOUT= 10mA
IOUT= 20mA
℃）
10
9
8
A)
7
μ
(
6
SS
5
4
3
Supply Curr ent : ISS (uA)
Supply Current: I
2
1
0
-40-200 20 406080100
10
9
8
A)
7
μ
(
SS
6
5
4
3
Supply Cur rent : ISS (uA)
Supply Current: I
2
1
0
-40-20 0 20406080100
3.50
3.45
3.40
(V)
3.35
OUT
3.30
3.25
3.20
Output Voltage : VOUT (V)
Output Voltage: V
3.15
3.10
-50 - 25 0 25 50 75 100
XC6216B/D 502
VIN=7.0 V
Ambient Temperature: Ta (℃)
XC6216B/D C02
VIN=14.0V
Ambient Temprature: Ta (℃)
XC6216B/D 332
CIN=CL=1.0μF (ceramic)
IOUT= 1mA
IOUT=10mA
IOUT=20mA
Ambient Temperature: Ta (℃)
Series
19/29
Page 20
XC6216/XE6216 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
20/29
(5) Output Voltage vs. Ambient Temperature
XC6216B/D 502
5.20
CIN=CL=1.0μF (ceram ic)
5.15
5.10
(V)
5.05
OUT
5.00
4.95
4.90
Output Voltage : VOUT (V)
Output Voltage: V
4.85
IOUT= 1mA
IOUT=10mA
IOUT=20mA
4.80
-50 - 25 0 25 50 75 100
Ambient Temperature: Ta (℃)
(6) Line Transient Response
XC6216B/C/D 202
6.0
5.0
4.0
(V)
IN
3.0
Output Voltage
2.0
Input Voltage : VIN (V)
Input Voltage: V
1.0
0.0
Ti me ( 1 ms /d i v )
7.0
6.0
(V)
5.0
IN
4.0
3.0
Input Voltage : VIN (V)
Input Voltage: V
2.0
1.0
Output Voltage
Time (1 ms /di v )
I
OUT
C
=1μF (ceramic), Ta=25
L
Input Voltage
XC6216B/D 332
I
OUT
L
=1μF (ceram ic), Ta=25
C
Input Voltage
=1mA , t r=t f =5μs
℃
=1mA , t r=t f =5μs
℃
3.7
3.6
3.5
3.4
3.3
3.2
3.1
2.4
2.3
2.2
2.1
2.0
1.9
1.8
(V)
OUT
Output Voltage: V
Output Voltage : VOUT (V)
(V)
OUT
Output Voltage : VOUT (V)
Output Voltage: V
(V)
IN
Input Voltage: V
XC6216B/D C02
12.20
CIN=CL=1.0μF (ceram ic)
12.15
12.10
(V)
12.05
OUT
12.00
11.95
11.90
Output Voltage : VOUT (V)
Output Voltage: V
11.85
11.80
-50 -25 0 25 50 75 100
Ambient Temperature: Ta (
XC6216B/C/D 202
I
OUT
C
=1μF (ceram ic), Ta=25
6.0
L
5.0
(V)
IN
4.0
Input Voltage
3.0
Output Voltage
2.0
Input Voltage : VIN (V)
Input Voltage: V
1.0
0.0
Time ( 1ms /div)
XC6216B/D 332
I
OUT
=30m A, tr =tf =5μs
L
=1μF (ceram ic), Ta=25
7.0
6.0
5.0
4.0
3.0
Input Voltage : VIN (V)
2.0
1.0
C
Input Voltage
Output Voltage
Time ( 1ms /div )
IOUT =1mA
IOUT=10mA
IOUT=20mA
℃）
=30mA, tr=tf=5μs
℃
3.7
3.6
3.5
3.4
3.3
3.2
3.1
℃
2.4
2.3
(V)
2.2
OUT
2.1
2.0
Output Voltage: V
Output Voltage : VOUT (V)
1.9
1.8
(V)
OUT
Output Voltage : VOUT (V)
Output Voltage: V
Page 21
XC6216/XE6216
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(6) Line Transient Response (Continued)
(V)
IN
9.0
8.0
7.0
6.0
5.0
Input Voltage : VIN (V)
Input Voltage: V
4.0
3.0
16.0
15.0
(V)
14.0
IN
13.0
12.0
Input Voltage: V
Input Voltage : VIN (V)
11.0
10.0
(7) Load Transient Response
5
4
3
2
Output Volta ge : VOUT (V )
1
0
30
1m
XC6216B/D 502
I
=1mA, tr=tf=5μs
OUT
C
=1μF (ceramic), Ta=25
L
Input Voltage
Output Voltage
Time ( 1 ms /d i v )
XC6216B/D C02
I
=1mA, tr=tf=5μs
OUT
C
=1μF (ceramic ), Ta=25
L
Input Voltage
Output Voltage
Time (1ms/div)
XC6216B/C/D 202
VIN=4.0V, tr=tf=5us
CIN=CL=1.0uF(ceramic), Ta=25℃
Output V ol ta g e
Output Current
Time (1ms/div)
XC6216B /D 502
I
OUT
C
=1μF (ceramic), Ta=25
℃
5.4
5.3
(V)
5.2
OUT
5.1
5.0
Output Voltage: V
Output Voltage : VOUT (V)
4.9
4.8
(V)
IN
Input Voltage: V
Input Voltage : VIN (V)
9.0
8.0
7.0
6.0
5.0
4.0
3.0
L
Input Voltage
Output Voltage
Time ( 1 ms /d i v )
XC6216B/D C02
℃
12.4
12.3
16.0
15.0
(V)
(V)
12.2
12.1
12.0
11.9
11.8
OUT
Output Voltage: V
Output Voltage : VOUT (V)
14.0
IN
13.0
12.0
Input Voltage : VIN (V)
Input Voltage: V
11.0
10.0
I
C
=1μF (ceramic ), Ta=25
L
Input Voltage
Output Voltage
Time (1ms/div)
XC6216B/D 332
150
120
5
4
CIN=CL=1.0uF(ceramic), Ta=25℃
Output V oltag e
90
60
Output Current : IOUT (mA)
30
0
3
2
Output Current
Output Vltage : VOUT (V)
1
30m
1m
0
Time (1ms/div)
=30mA, t r=tf =5μs
=30mA, t r=tf =5μs
OUT
VIN=5.3V, tr=tf=5us
Series
℃
5.4
5.3
5.2
5.1
5.0
4.9
4.8
℃
12.4
12.3
12.2
12.1
12.0
11.9
11.8
150
120
90
60
30
0
21/29
(V)
OUT
Output Voltage: V
Output Current : IOUT (mA)
Output Voltage : VOUT (V)
(V)
OUT
Output Voltage: V
Output Voltage : VOUT (V)
Page 22
(
)
(
)
XC6216/XE6216 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(7) Load Transient Response (Continued)
14
XC6216B/D C02
VIN=14.0V, tr=tf=5us
CIN=CL=1.0uF(ceramic), Ta=25℃
13
Output Voltage
12
11
Output Current
Output Voltage : VOUT (V)
10
9
30
1m
Time (1ms/di v)
XC6216B/C/D 202
VIN=4.0V, tr=5μs
I
=30m A, CL=1μF (c eramic ),Ta=25
6
OUT
Input V oltage
4
(V)
OUT
(V)
2
IN
0
Output Voltage
-2
Input Voltage: V
Output Voltage: V
Input Voltage : VIN (V)
-4
-6
Time
1ms/div
XC6216B/D 332
I
OUT
8
Input Voltage
6
4
2
0
-2
Input Voltage : VIN (V)
Output Voltage : VOUT (V)
-4
-6
-8
=30mA, CL=1uF (ceram ic), Ta=25
Time (1ms/div)
VIN=4.0V, t r=5μs
Output Voltage
7
6
5
4
Output Voltage : VOUT (V)
3
2
(8) Input Rise Time
6
4
(V)
2
IN
0
-2
Input Voltage : VIN (V)
Input Voltage: V
-4
-6
8
6
4
2
0
-2
Input Voltage : VIN (V)
-4
-6
-8
22/29
30m
1m
Time (1ms/di v)
XC6216B/C/D 202
I
OUT
Inp u t V olt a g e
I
Inp u t V oltage
XC6216B/D 502
VIN=7.0V, tr =tf=5us
CIN=CL=1.0uF(ceramic), Ta=25℃
Output Voltage
Output Current
VIN=4.0V, tr=5μs
=1m A, CL=1μF (ceramic),Ta=25
Output Voltage
Time
1ms/div
XC6216B/D 332
OUT
=1mA, CL=1μF (ceramic),Ta=25
Time ( 1 ms/d iv )
VIN=4.0V, tr=5μs
Output Voltage
℃
150
120
90
60
30
0
℃
Output Current : IOUT (mA)
6
5
4
3
2
Output Voltage : VOUT (V)
1
0
8
7
6
5
4
3
2
1
0
150
120
90
60
Output Current : IOUT (mA)
30
0
℃
6
5
(V)
4
OUT
3
2
Output Voltage : VOUT (V)
Output Voltage: V
1
0
℃
8
7
6
5
4
3
2
Output Voltage : VOUT (V)
1
0
Page 23
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(8) Input Rise Time (Continued)
8
6
(V)
IN
4
2
0
-2
Input Voltage: V
Input Voltage : VIN (V)
-4
-6
-8
15
XC6216B/D 502
VIN=4.0V, tr=5μs
I
=1mA, CL=1μF (ceramic ),Ta=25
OUT
Input Voltage
Output Voltage
Time (1ms/div)
XC6216B/D C02
VIN=4.0V, tr=5μs
I
=1mA , CL=1μF (c eramic ),Ta=25
OUT
XC6216B/D 502
I
=30mA, CL=1μF (ceramic ),Ta=25
℃
8
7
6
(V)
OUT
5
4
3
2
Output Voltage: V
Output Voltage : VOUT (V)
1
0
Input Voltage : VIN (V)
(V)
IN
Input Voltage: V
8
6
4
2
0
-2
-4
-6
-8
OUT
Input Voltage
Output Voltage
ime (1ms/div )
T
XC6216B/D C02
I
=30m A, CL=1μF (ceram ic),Ta=25
℃
18
15
OUT
10
(V)
5
IN
0
Input Voltage
Output Voltage
15
12
9
10
(V)
OUT
(V)
5
IN
0
Input Voltage
Output Voltage
-5
Input Voltage: V
Input Voltage : VIN (V)
-10
6
Output Voltage: V
Output Voltage : VOUT (V)
3
-5
Input Voltage: V
Input Voltage : VIN (V)
-10
-15
(9) CE Rise Time
6
4
(V)
CE
2
0
-2
CE Input Voltage: V
CE Input Voltage : VCE (V)
-4
Time (1ms/ div )
XC6216B/C/D 202
I
=1mA, CL=1μF (ceramic),Ta=25
OUT
CE Input Voltage
Output Voltage
0
VIN=4.0V, t r=5μs
-15
Time ( 1 ms/div )
XC6216B /C/D 202
℃
6
6
I
=30mA, CL=1μF (ceramic),Ta=25
OUT
CE Input Voltage
5
(V)
4
OUT
3
2
Output Voltage: V
Output Voltage : VOUT (V)
1
4
(V)
CE
2
0
-2
CE Input Voltage: V
CE Input Voltage : VCE (V)
-4
-6
Time ( 1ms/div )
0
-6
Ti me( 1 ms /d iv )
XC6216/XE6216
Series
VIN=4.0V, tr=5μs
℃
8
7
6
5
4
3
2
1
0
VIN=4.0V, tr=5μs
℃
18
15
12
9
6
3
0
VIN=4.0V, tr=5μs
℃
Output Voltage
23/29
(V)
OUT
Output Voltage: V
Output Voltage : VOUT (V)
(V)
OUT
Output Voltage: V
Output Voltage : VOUT (V)
6
5
(V)
OUT
4
3
2
Output Voltage: V
Output Voltage : VOUT (V)
1
0
Page 24
XC6216/XE6216 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(9) CE Rise Time (Continued)
24/29
8
6
4
(V)
CE
2
0
-2
-4
CE Input Voltage : VIN (V)
CE Input Voltage: V
-6
-8
8
6
4
(V)
CE
2
0
-2
-4
CE Input Voltage : VCE (V)
CE Input Voltage: V
-6
-8
15
10
(V)
CE
5
0
-5
CE Input Voltage: V
CE Input Voltage : VCE (V)
-10
-15
XC6216B/D 332
VIN=5.3V, tr=5μs
I
=1mA, CL=1μF (ceramic), Ta=25
OUT
CE Input Voltage
Output Voltage
Time ( 1ms/d iv )
XC6216B /D 502
OUT
I
=1mA , CL=1μF (ceram ic), Ta=25
CE Input Voltage
Time (1ms/div)
XC6216B/D C02
I
=1mA , CL=1μF (ceram ic), Ta=25
OUT
CE Input Voltage
Time ( 1 ms /d iv )
VIN=7.0V, tr=5μs
Output Voltage
VIN=14.0V, t r=5μs
Output Voltage
XC6216B/D 332
℃
8
7
6
(V)
OUT
5
4
3
2
Output Voltage: V
Output Voltage : VOUT (V)
1
0
8
6
4
(V)
CE
2
0
-2
-4
CE Input Voltage: V
CE Input Voltage : VCE (V)
-6
-8
I
=30m A, CL=1μF (ceram ic),Ta=25
OUT
CE Input Voltage
Time ( 1ms /d i v )
XC6216B/D 502
I
℃
8
7
6
(V)
5
OUT
4
3
2
Output Voltage : VOUT (V)
Output Voltage: V
1
0
℃
18
15
(V)
12
OUT
9
6
Output Voltage: V
Output Voltage : VOUT (V)
3
0
8
6
4
(V)
CE
2
0
-2
-4
CE Input Voltage : VCE (V)
CE Input Voltage: V
-6
-8
15
10
(V)
CE
5
0
-5
CE Input Voltage: V
CE Input Voltage : VCE (V)
-10
-15
OUT=30mA, C L=1
CE Input Voltage
Time ( 1 ms /d i v )
XC6216B/D C02
I
=30mA, CL=1μF (ceram ic), Ta=25
OUT
CE Input Voltage
Output Voltage
Time ( 1 ms /d iv )
F (ceramic),Ta=25
μ
Output Voltage
VIN=14.0V, t r=5μs
VIN=5.3V, tr=5μs
Output Voltage
VIN=7.0V, tr=5μs
℃
℃
8
7
(V)
6
OUT
5
4
3
Output Voltage: V
2
Output Voltage : VOUT (V)
1
0
℃
8
7
6
(V)
OUT
5
4
3
2
Output Voltage: V
Output Voltage : VOUT (V)
1
0
18
15
(V)
12
OUT
9
6
Output Voltage: V
Output Voltage : VOUt (V)
3
0
Page 25
A
)
A
)
)
A
)
A
)
A
XC6216/XE6216
Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(10) Ripple Rejection Rate
90
80
70
60
50
40
30
20
Ripple Rejection Rate: PSRR (dB)
Ripple Rejection Rate: PSRR (dB
10
0
0.01 0.1 1 10 100
90
80
70
60
50
40
PSRR ( dB
30
20
Ripple Rejection Rate: PSRR (dB)
10
0
0.01 0.1 1 10 100
90
80
70
60
50
40
PSRR (dB
30
20
Ripple Rejection Rate: PSRR (dB)
10
0
0.01 0.1 1 10 100
XC6216B/C/D 202
VIN=4.0Vdc+0. 5Vp-p, I
CL=1μF (ceramic ),Ta=25
OUT
=1m
℃
90
XC6216B/C/D 202
VIN=4.0Vdc+0. 5Vp-p, I
80
70
60
50
40
PSRR (dB
30
20
Ripple Rejection Rate: PSRR (dB)
10
0
0.01 0.1 1 10 100
Ripple Frequenc y: f (kHz)
Ripple Frequenc y: f (kHz)
Frequency : f (kHz)
XC6216B/D 332
VIN=5.3Vdc+0.5Vp-p, I
=1μF (ceramic),Ta=25
C
L
OUT
=1mA
℃
90
Frequency : f (kHz)
XC6216B/D 332
VIN=4.0Vdc+0.5Vp-p, I
80
70
60
50
40
PSRR ( dB
30
20
Ripple Rejection Rate: PSRR (dB)
10
0
0.01 0.1 1 10 100
Frequency : f (kHz)
Ripple Frequency: f (kHz) Ripple Frequency: f (kHz)
XC6216B/D 502
Ripple Frequency: f (kHz)
VIN=7.0Vdc+0.5Vp-p, I
CL=1μF (ceram ic),Ta=25
Frequency : f (kHz)
OUT
=1m
℃
90
80
70
60
50
40
PSRR (dB
30
20
Ripple Rejection Rate: PSRR (dB)
10
0
0.01 0.1 1 10 100
Frequency : f (kHz)
XC6216B/D 502
VIN=7.0Vdc+0.5Vp-p, I
CL=1μF (c eramic ),Ta=25
Ripple Frequency: f (kHz)
Frequency : f (kHz)
=30m
OUT
CL=1μF (ceramic ),Ta=25
=30m
OUT
OUT
=30m
℃
CL=1μF (ceram ic), Ta=25
25/29
℃
℃
Page 26
)
A
)
A
XC6216/XE6216 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(10) Ripple Rejection Time (Continued)
90
80
70
60
50
40
PSRR (dB
30
20
Ripple Rejection Rate: PSRR (dB)
10
0
0.01 0.1 1 10 100
26/29
XC6216B/D C02
VIN=VCE=14.0Vdc+0. 5Vp-p, I
CL=1μF (c eramic ),Topr=25
Ripple Frequency: f (kHz)
Frequeency : f (kHz)
OUT
=1m
XC6216B/D C02
VIN=VCE=14.0Vdc+0. 5Vp-p, I
℃
90
80
70
60
50
40
PSRR (dB
30
20
Ripple Rejection Rate: PSRR (dB)
10
0
0.01 0.1 1 10 100
Ripple Frequency: f (kHz)
Frequency : f (kHz)
CL=1μF (c eramic ),Topr=25
OUT
=30m
℃
Page 27
■PACKAGING INFORMATION
●SOT-25
2.9±0.2
+0.1
-0.05
0.4
5 4
+0.2
-0.1
1.6
2.8±0.2
13
2
(0.95)
1.9±0.2
0.15
+0.1
-0.05
0.05±0.05
MIN0 .2
●SOT-89-5
0.42±0.06
5
(0. 4)
4.5±0.1
+0.15
1.6
-0.2
0.42±0.06
2
Φ1. 0
4
0.42±0.06
XC6216/XE6216
Series
+0.03
0.4
-0.02
1.0±0.2
2.5±0.11.0±0.2
4.25±0.25
5°5°
●USP-6C
123
1.1±0.1
1.15±0.15
0.42±0.06 0.42±0.060.47±0.06
8
°
1.5±0.1 1.5± 0.1
8
°
(0. 1)
1.5±0.1
+0.03
-0.02
0.4
●USP-6C Recommended Pattern Layout
●USP-6C Recommended Metal Mask Design
27/29
Page 28
XC6216/XE6216 Series
■PACKAGING INFORMATION (Continued)
●SOT-223
●TO-252
.
6. 5 5± 0. 2
5. 3 ±0 . 2
1. 1±0.256.1 ±0. 150. 85±0. 25
.
0. 75±0. 15
0. 75±0. 15
0. 75±0. 15 0. 5 ±0. 1
（2. 28） （2. 28）
9. 9±0. 55
+0. 1
-0. 15
2. 3
0. 5 ±0. 1
●SOT-89
MIN4 .32
.
28/29
Page 29
XC6216/XE6216
Series
1. The products and product specifications contained herein are subject to change without
notice to improve performance characteristics. Consult us, or our representatives
before use, to confirm that the information in this catalog is up to date.
2. We assume no responsibility for any infringement of patents, patent rights, or other
rights arising from the use of any information and circuitry in this catalog.
3. Please ensure suitable shipping controls (including fail-safe designs and aging
protection) are in force for equipment employing products listed in this catalog.
4. The products in this catalog are not developed, designed, or approved for use with such
equipment whose failure of malfunction can be reasonably expected to directly
endanger the life of, or cause significant injury to, the user.
(e.g. Atomic energy; aerospace; transport; combustion and associated safety
equipment thereof.)
5. Please use the products listed in this catalog within the specified ranges.
Should you wish to use the products under conditions exceeding the specifications,
please consult us or our representatives.
6. We assume no responsibility for damage or loss due to abnormal use.
7. All rights reserved. No part of this catalog may be copied or reproduced without the
prior permission of Torex Semiconductor Ltd.
29/29
Loading...
