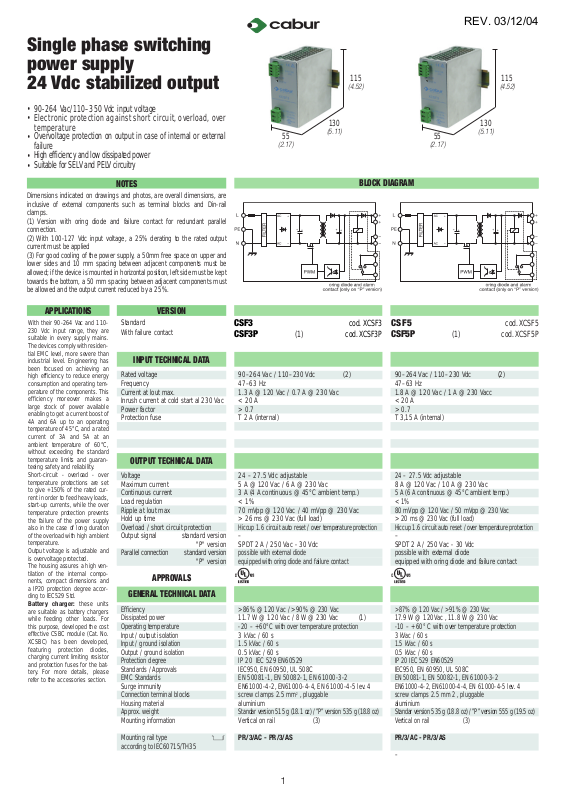

Datasheet XCSF5 Specification

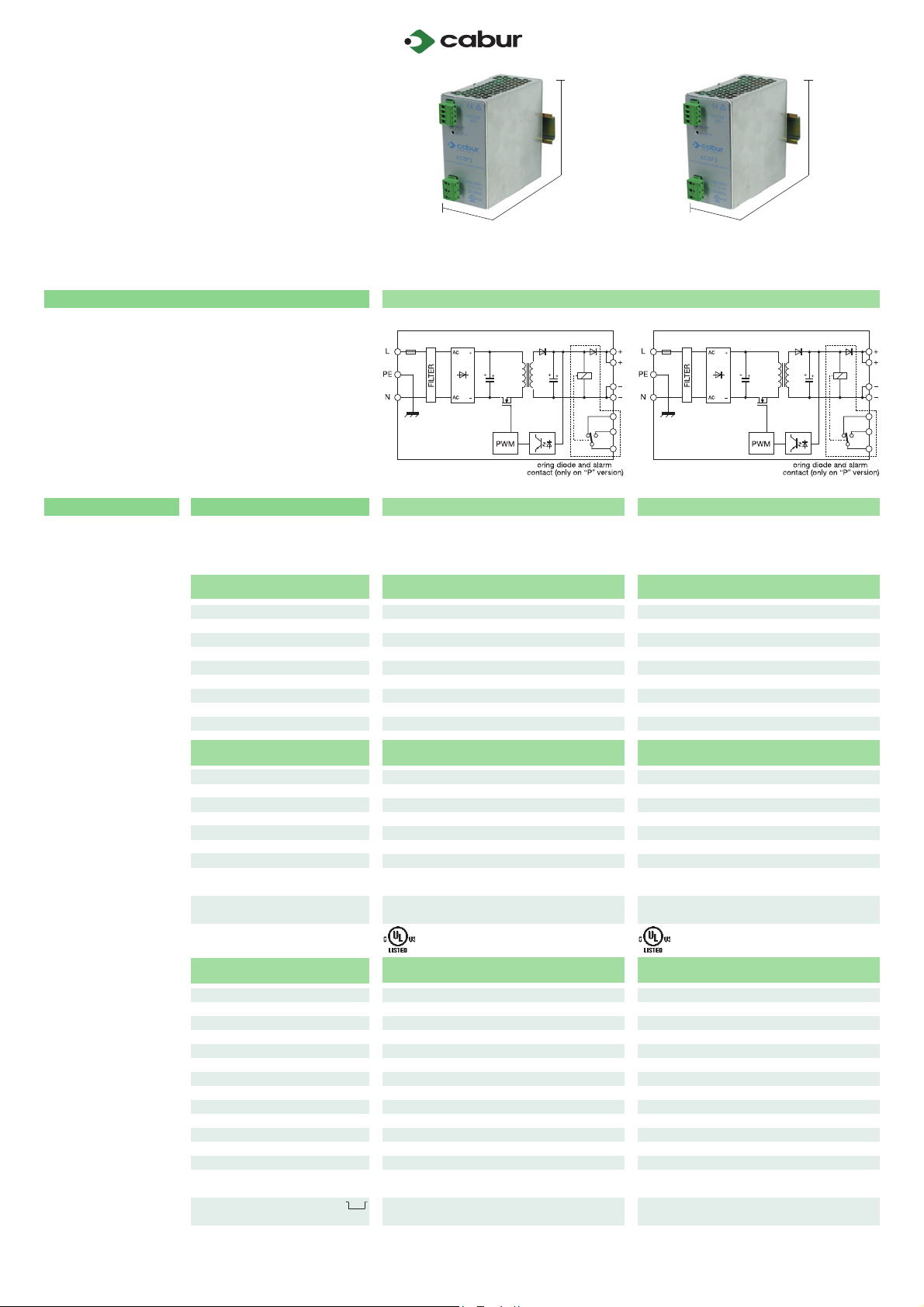

BLOCK DIAGRAM

•

90-264 Vac/110–350 Vdc input voltage

•

Electronic protection against short circuit, overload, over
temperature

•

Overvoltage protection on output in case of internal or external
failure

•

High efficiency and low dissipated power

•

Suitable for SELV and PELV circuitry

INPUT TECHNICAL DATA

Rated voltage
Frequency
Current at lout max.
Inrush current at cold start al 230 Vac
Power factor
Protection fuse

Voltage
Maximum current
Continuous current
Load regulation
Ripple at lout max
Hold up time
Overload / short circuit protection
Output signal standard version

"P" version

Parallel connection standard version

"P" version

OUTPUT TECHNICAL DATA

APPROVALS

90–264 Vac / 110–230 Vdc (2)
47–63 Hz

1.3 A @ 120 Vac / 0.7 A @ 230 Vac
< 20 A
> 0.7
T 2 A (internal)

24 – 27.5 Vdc adjustable
5 A @ 120 Vac / 6 A @ 230 Vac
3 A (4 A continuous @ 45°C ambient temp.)
< 1%
70 mVpp @ 120 Vac / 40 mVpp @ 230 Vac
> 26 ms @ 230 Vac (full load)
Hiccup 1.6 circuit auto reset / over temperature protection
–
SPDT 2 A / 250 Vac - 30 Vdc
possible with external diode
equipped with oring diode and failure contact

Standard
With failure contact

Dimensions indicated on drawings and photos, are overall dimensions, are
inclusive of external components such as terminal blocks and Din-rail
clamps.
(1) Version with oring diode and failure contact for redundant parallel
connection.
(2) With 100-127 Vdc input voltage, a 25% derating to the rated output
current must be applied
(3) For good cooling of the power supply,a 50mm free space on upper and
lower sides and 10 mm spacing between adjacent components must be
allowed; if the device is mounted in horizontal position,left side must be kept
towards the bottom, a 50 mm spacing between adjacent components must
be allowed and the output current reduced by a 25%.

CSF3 cod.XCSF3
CSF3P (1) cod.XCSF3P

90–264 Vac / 110–230 Vdc (2)
47–63 Hz

1.8 A @ 120 Vac / 1 A @ 230 Vacc
< 20 A
> 0.7
T 3,15 A (internal)

24 – 27.5 Vdc

adjustable
8 A @ 120 Vac / 10 A @ 230 Vac
5 A (6 A continuous @ 45°C ambient temp.)
< 1%
80 mVpp @ 120 Vac / 50 mVpp @ 230 Vac
> 20 ms @ 230 Vac (full load)
Hiccup 1.6 circuit auto reset / over temperature protection
–
SPDT 2 A / 250 Vac - 30 Vdc
possible with external diode
equipped with oring diode and failure contact

CSF5 cod.XCSF5
CSF5P (1) cod.XCSF5P

VERSION

NOTES

BLOCK DIAGRAM

Efficiency
Dissipated power
Operating temperature
Input / output isolation
Input / ground isolation
Output / ground isolation
Protection degree
Standards / Approvals
EMC Standards
Surge immunity
Connection terminal blocks
Housing material
Approx. weight
Mounting information

Mounting rail type
according to IEC60715/TH35

Single phase switching
power supply
24 Vdc stabilized output

APPLICATIONS

With their 90-264 Vac and 110­230 Vdc input range, they are
suitable in every supply mains.
The devices comply with residen­tial EMC level, more severe than
industrial level. Engineering has
been focused on achieving an
high efficiency to reduce energy
consumption and operating tem­perature of the components.This
efficiency moreover makes a
large stock of power available
enabling to get a current boost of
4A and 6A up to an operating
temperature of 45°C,and a rated
current of 3A and 5A at an
ambient temperature of 60°C,
without exceeding the standard
temperature limits and guaran­teeing safety and reliability.
Short-circuit - overload - over
temperature protections are set
to give +150% of the rated cur­rent in order to feed heavy loads,
start-up currents, while the over
temperature protection prevents
the failure of the power supply
also in the case of long duration
of the overload with high ambient
temperature.
Output voltage is adjustable and
is overvoltage protected.
The housing assures a high ven­tilation of the internal compo­nents, compact dimensions and
a IP20 protection degree accor­ding to IEC529 Std.
Battery charger: these units
are suitable as battery chargers
while feeding other loads. For
this purpose, developed the cost
effective CSBC module (Cat. No.
XCSBC) has been developed,
featuring protection diodes,
charging current limiting resistor
and protection fuses for the bat­tery. For more details, please
refer to the accessories section.

1

>86% @ 120 Vac / >90% @ 230 Vac

11.7 W

@ 120 Vac /

8 W

@ 230 Vac

(1)

-20 – +60°C with over temperature protection
3 kVac / 60 s

1.5 kVac / 60 s

0.5 kVac / 60 s
IP 20 IEC 529 EN60529
IEC950, EN 60950, UL 508C
EN 50081-1, EN 50082-1, EN 61000-3-2
EN61000-4-2, EN61000-4-4, EN 61000-4-5 lev.4
screw clamps 2.5 mm2, pluggable
aluminium
Standar version 515 g (18.1 oz) / ”P”version 535 g (18.8 oz)
Vertical on rail (3)

PR/3/AC - PR/3/AS

>87% @ 120 Vac / >91% @ 230 Vac

17.9 W @ 120Vac ,11.8 W @ 230 Vac

-10 – +60° C with over temperature protection
3 kVac / 60 s

1.5 kVac / 60 s

0.5 kVac / 60 s
IP 20 IEC 529 EN60529
IEC950, EN 60950, UL 508C
EN 50081-1, EN 50082-1, EN 61000-3-2
EN61000-4-2, EN61000-4-4, EN 61000-4-5 lev.4
screw

clamps

2.5 mm 2 , pluggable
aluminium
Standar version 535 g (18.8 oz) / ”P”version 555 g (19.5 oz)
Vertical on rail (3)

PR/3/AC - PR/3/AS

–

GENERAL TECHNICAL DATA

130

(5.11)

115

(4.52)

55

(2.17)

130

(5.11)

115

(4.52)

55

(2.17)

REV. 03/12/04
