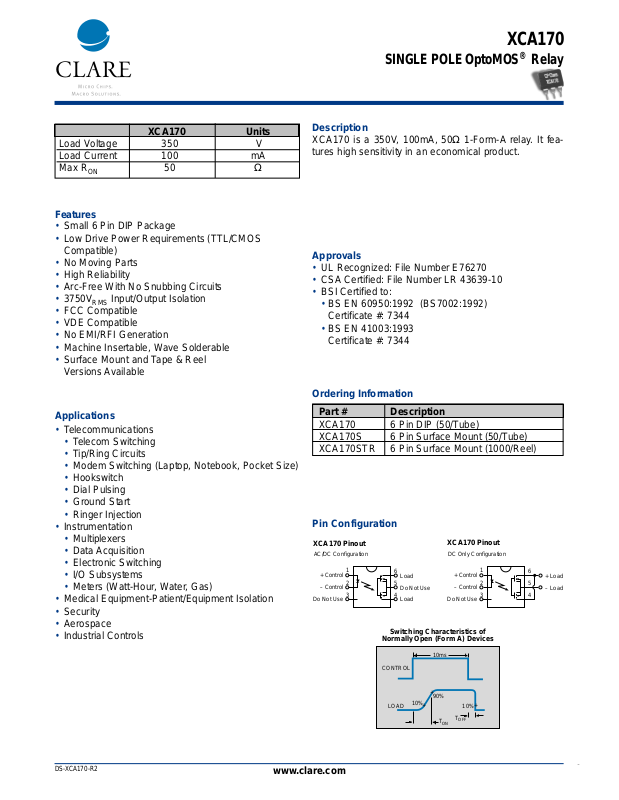

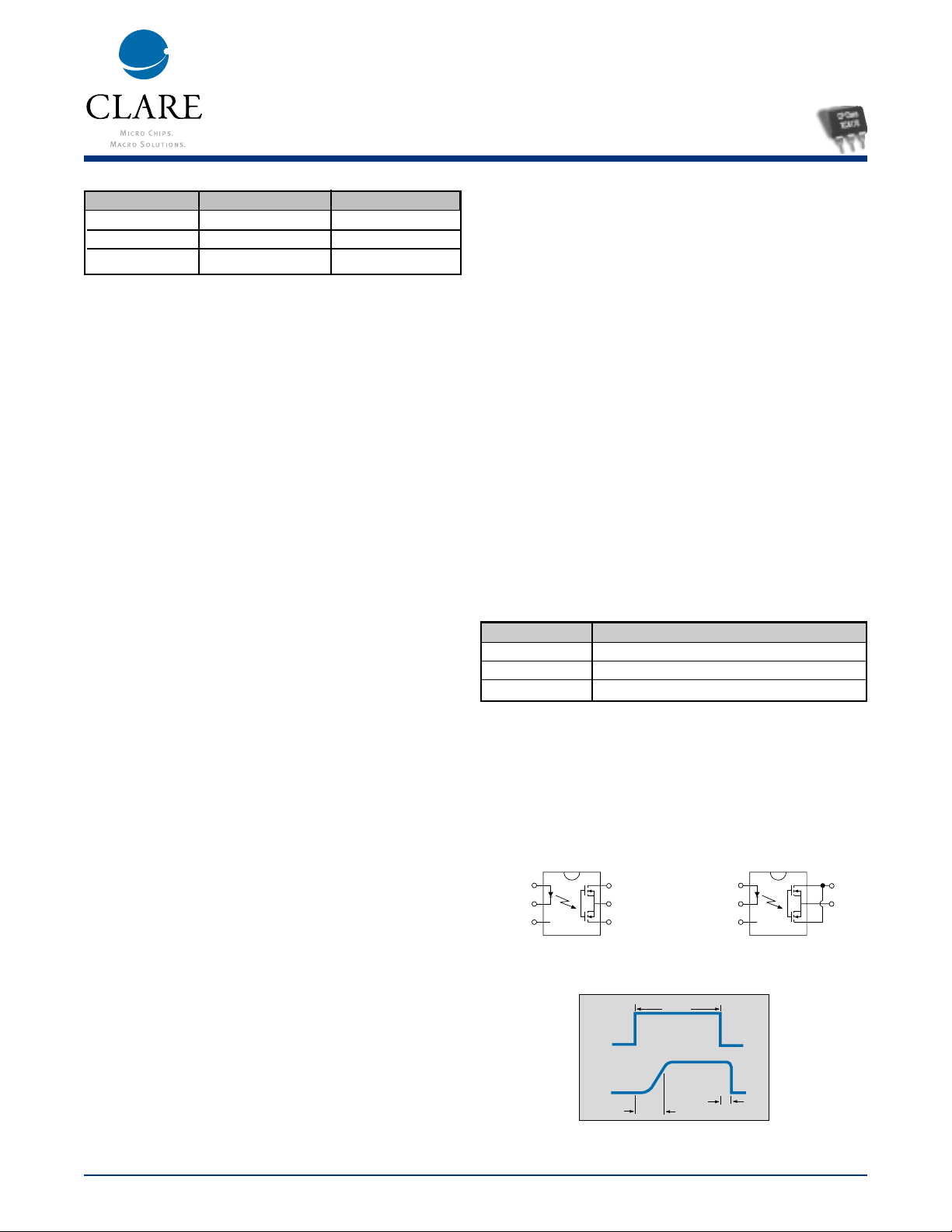

XCA170

DS-XCA170-R2

XCA170 is a 350V, 100mA, 50Ω 1-Form-A relay. It fea­tures high sensitivity in an economical product.

• Telecommunications

• Telecom Switching

• Tip/Ring Circuits

• Modem Switching (Laptop, Notebook, Pocket Size)

• Hookswitch

• Dial Pulsing

• Ground Start

• Ringer Injection

• Instrumentation

• Multiplexers

• Data Acquisition

• Electronic Switching

• I/O Subsystems

• Meters (Watt-Hour, Water, Gas)

• Medical Equipment-Patient/Equipment Isolation

• Security

• Aerospace

• Industrial Controls

• UL Recognized: File Number E76270

• CSA Certified: File Number LR 43639-10

• BSI Certified to:

• BS EN 60950:1992 (BS7002:1992)

Certificate #: 7344

• BS EN 41003:1993

Certificate #: 7344

• Small 6 Pin DIP Package

• Low Drive Power Requirements (TTL/CMOS

Compatible)

• No Moving Parts

• High Reliability

• Arc-Free With No Snubbing Circuits

• 3750V

RMS

Input/Output Isolation

• FCC Compatible

• VDE Compatible

• No EMI/RFI Generation

• Machine Insertable, Wave Solderable

• Surface Mount and Tape & Reel

Versions A vailable

Applications

Features

Description

Approvals

SINGLE POLE OptoMOS®Relay

Ordering Information

Part # Description

XCA170 6 Pin DIP (50/Tube)
XCA170S 6 Pin Surface Mount (50/Tube)
XCA170STR 6 Pin Surface Mount (1000/Reel)

XCA170 Units

Load Voltage 350 V
Load Current 100 mA
Max R

ON

50 Ω

Pin Configuration

XCA170 Pinout

AC/DC Configuration

1

+ Control

2

– Control

Do Not Use

3

6

Load

5

Do Not Use

4

Load

Switching Characteristics of

Normally Open (Form A) Devices

CONTROL

XCA170 Pinout

DC Only Configuration

+ Control
– Control

Do Not Use

10ms

1
2
3

6

+ Load

5

– Load

4

LOAD

10%

+

90%

+

T

ON

+

10%

T

OFF

www.clare.com

XCA170

Rev. 2

Absolute Maximum Ratings are stress ratings. Stresses
in excess of these ratings can cause permanent damage
to the device. Functional operation of the device at these
or any other conditions beyond those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to the absolute maximum ratings
for an extended period may degrade the device and effect
its reliability.

Absolute Maximum Ratings (@ 25˚ C)

2

Parameter Min Typ Max Units

Input Power Dissipation - - 1501mW
Input Control Current - - 50 mA

Peak (10ms) - - 1 A
Reverse Input Voltage - - 5 V
Total Power Dissipation - - 8002mW
Isolation Voltage

Input to Output 3750 - - V

RMS

Operational Temperature -40 - +85 °C
Storage Temperature -40 - +125 °C
Soldering Temperature

DIP Package - - +260 °C

Surface Mount Package - - +220 °C

(10 Seconds Max.)

1

Derate Linearly 1.33 mw/˚C

2

Derate Linearly 6.67 mw/˚C

Electrical Characteristics

Parameter Conditions Symbol Min T yp Max Units

Output Characteristics @ 25°C

Load Voltage (Peak) - V

L

- - 350 V

Load Current (Continuous)

AC/DC Configuration - I

L

- - 100 mA

DC Configuration - I

L

- - 180 mA

Peak Load Current 10ms I

LPK

- - 350 mA

On-Resistance

AC/DC Configuration I

L

=120mA R

ON

-3150Ω

DC Configuration I

L

=200mA R

ON

-1015Ω

Off-State Leakage Current V

L

=35OV I

LEAK

-- 1µA

Switching Speeds

Turn-On I

F

=5mA, VL=10V T

ON

-- 5ms

Turn-Off I

F

=5mA, VL=10V T

OFF

-- 5ms

Output Capacitance 50V; f=1MHz C

OUT

-25 - pF

Load Current Limiting I

CL

-- -mA

Capacitance

Input to Output - - - 3 - pF

Input Characteristics @ 25°C

Input Control Current I

L

=120mA I

F

5-50mA

Input Dropout Current - I

F

0.4 0.7 - mA

Input Voltage Drop I

F

=5mA V

F

0.9 1.2 1.4 V

Reverse Input Voltage - V

R

-- 5V

Reverse Input Current VR=5V I

R

- - 10 µA

Input to Output Capacitance - C

I/O

-3 -pF

Input to Output Isolation - V

I/O

3750 - - V

RMS

XCA170

Rev. 2

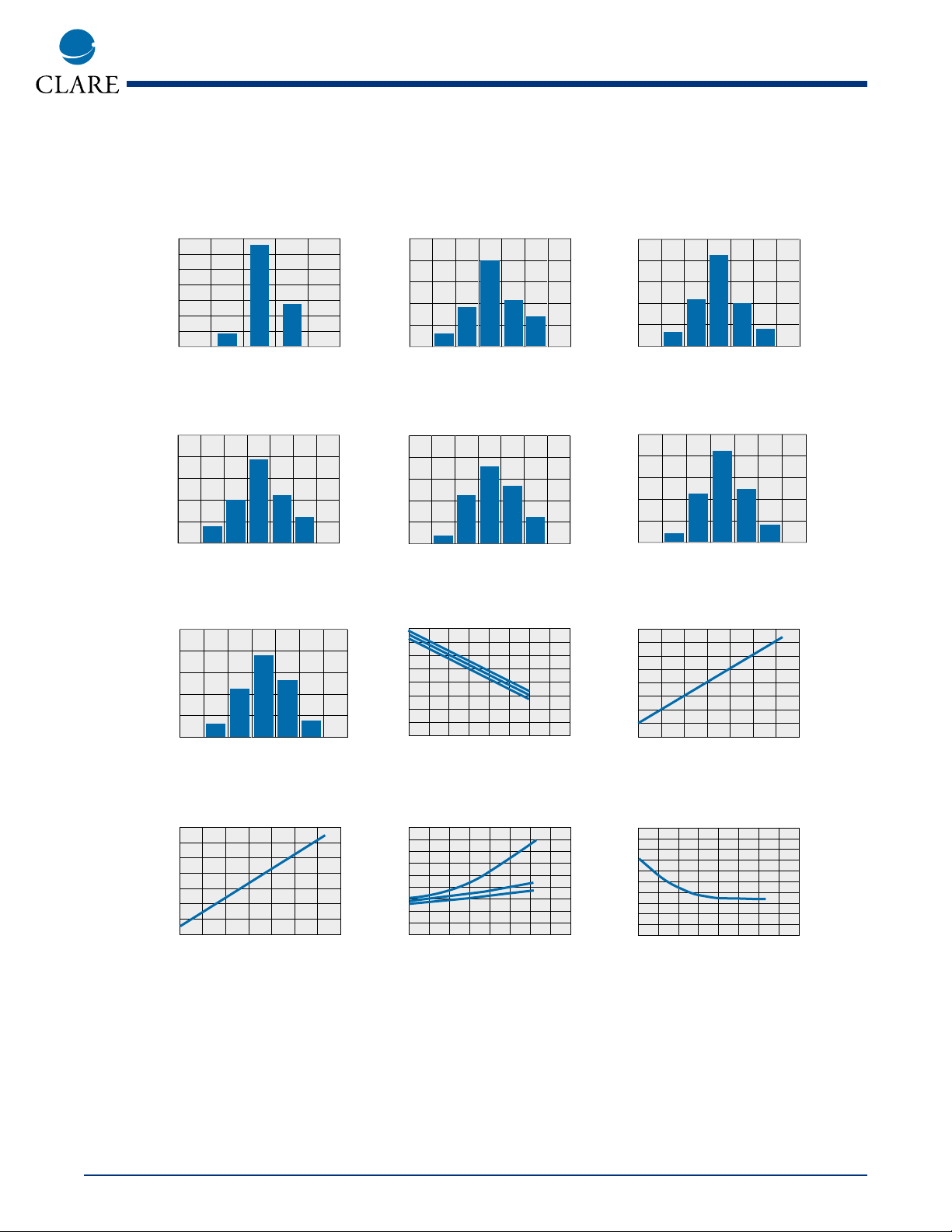

PERFORMANCE DATA*

The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.

3

XCA170

Typical LED Forward Voltage Drop

(N=50 Ambient Temperature = 25°C)

IF = 5mADC

35
30
25
20
15
10

5
0

1.17 1.19 1.21 1.23 1.25

LED Forward Voltage Drop (V)

Device Count (N)

XCA170

Typical On-Resistance Distribution

(N=50 Ambient Temperature = 25°C)

(Load Current = 100mADC)

25

20

15

10

5

0

29.09 30.63 32.16 33.7029.86 31.40 32.93

On-Resistance (Ω)

Device Count (N)

XCA170

Typical Blocking Voltage Distribution

(N=50 Ambient Temperature = 25°C)

25

20

15

10

5

0

424.0 434.5 444.9 455.4429.3 439.7 450.1

Blocking Voltage (V)

Device Count (N)

XCA170

Typical IF for Switch Operation

(N=50 Ambient Temperature = 25°C)

(Load Current = 100mADC)

0.50 0.62 0.750.44 0.56 0.69 0.81

LED Current (mA)

Device Count (N)

25

20

15

10

5

0

XCA170

Typical IF for Switch Dropout

(N=50 Ambient Temperature = 25°C)

(Load Current = 100mADC

25

20

15

10

5

0

0.50 0.62 0.750.44 0.56 0.69 0.81

LED Current (mA)

Device Count (N)

)

XCA170

Typical Turn-On Time

(N=50 Ambient Temperature = 25°C)

(Load Current = 100mADC)

0.67 0.83 0.99 1.140.75 0.91 1.06

Turn-On (ms)

Device Count (N)

25

20

15

10

5

0

XCA170

Typical Blocking Voltage

vs. Temperature

Temperature (°C)

Blocking Voltage (V

RMS

)

-40

455
450
445
440
435
430
425
420

-20 0 20 40 60 80 100

XCA170

Typical Turn-On vs. Temperature

(Load Current = 100mADC)

Temperature (°C)

5mA

10mA
20mA

Turn-On (ms)

-40

1.80

1.60

1.40

1.20

1.00

0.80

0.60

0.40

0.20
0

-20 0 20 40 60 80 100

120

XCA170

Typical Turn-Off Time

(N=50 Ambient Temperature = 25°C)

(Load Current = 100mADC)

0.11 0.17 0.22 0.280.250.190.14

Turn-Off (ms)

Device Count (N)

25

20

15

10

5

0

XCA170

Typical Load Current vs. Temperature

Temperature (°C)

Load Current (mA)

160
140
120
100

80
60
40
20

0

-40 -20 0 20 40 60 80 120100

10mA
2mA

5mA

XCA170

Typical Leakage vs. Temperature

(Measured across Pins 4 & 6)

Temperature (°C)

Leakage (µA)

-40

0.016

0.014

0.012

0.010

0.008

0.006

0.004

0.002
0

-20 0 20 40 60 80 100

XCA170

Typical Turn-Off vs. Temperature

(Load Current = 100mADC)

Temperature (°C)

Turn-Off (ms)

-40

0.50

0.45

0.40

0.35

0.30

0.25

0.20

0.15

0.10

0.05
0

-20 0 20 40 60 80 100 120

www.clare.com

4

XCA170

Rev. 2

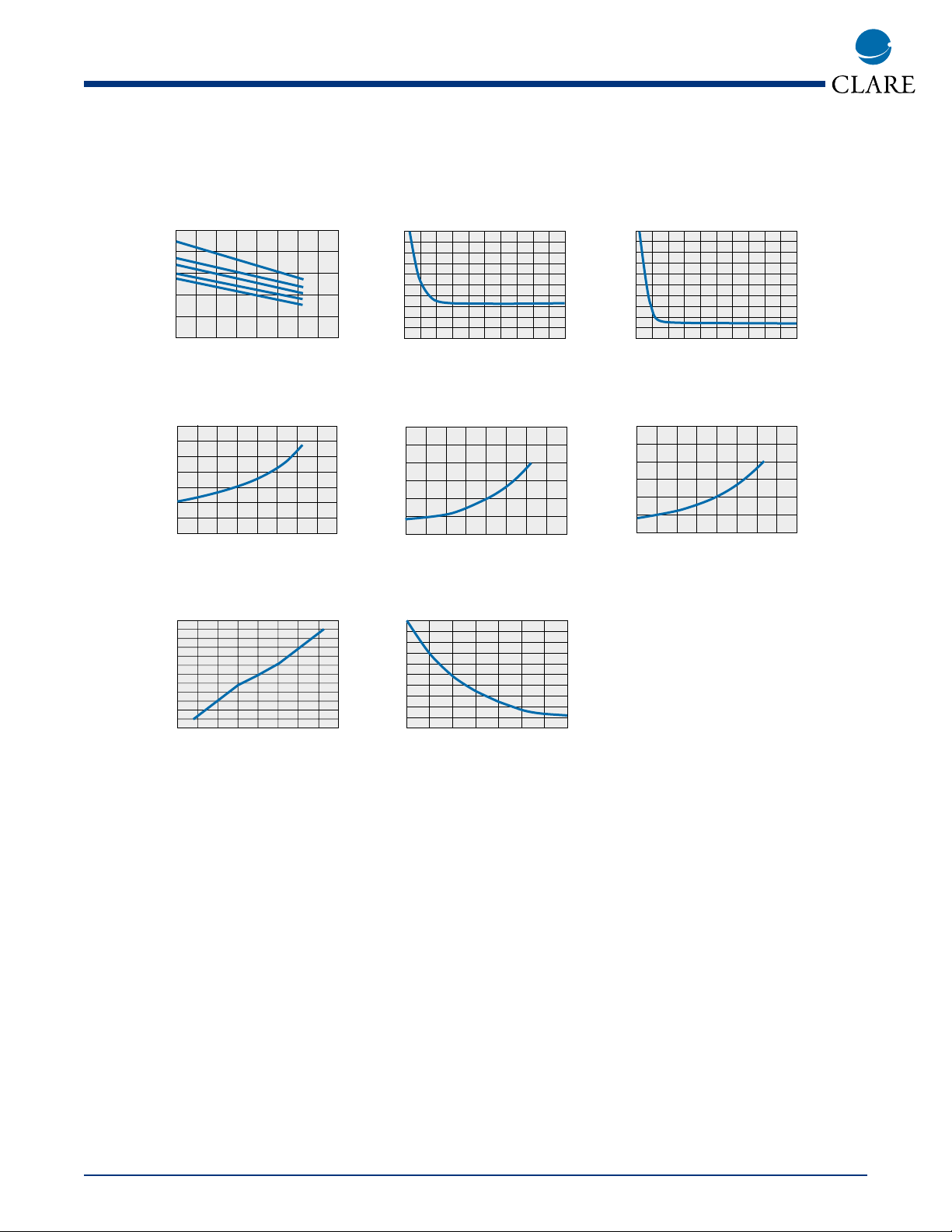

PERFORMANCE DATA*

*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.

XCA170

Typical LED Forward Voltage Drop

vs. Temperature

Temperature (°C)

LED Forward Voltage Drop (V)

1.8

1.6

1.4

1.2

1.0

0.8

-40 -20 0 20 40 60 80 120100

50mA
30mA
20mA
10mA
5mA

XCA170

Typical Turn-On vs. LED Forward Current

(Load Current = 100mADC)

LED Forward Current (mA)

Turn-On (ms)

0

5 1015202530354045

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2
0

50

XCA170

Typical Turn-Off vs. LED Forward Current

(Load Current = 100mADC)

LED Forward Current (mA)

Turn-Off (ms)

0

5 1015202530354045

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1
0

50

XCA170
Typical On-Resistance vs. Temperature
(Load Current = 100mADC; IF = 2mADC)

Temperature (°C)

On-Resistance (Ω)

-40

70
60
50
40
30
20
10

0

-20 0 20 40 60 80 100 120

XCA170

Typical IF for Switch Operation

vs. Temperature

(Load Current = 100mADC)

Temperature (°C)

LED Current (mA)

-40

6.0

5.0

4.0

3.0

2.0

1.0
0

-20 0 20 40 60 80 100 120

XCA170

Typical IF for Switch Dropout

vs. Temperature

(Load Current = 100mADC)

Temperature (°C)

LED Current (mA)

-40

6.0

5.0

4.0

3.0

2.0

1.0
0

-20 0 20 40 60 80 100 120

XCA170

Typical Load Current vs. Load Voltage

(Ambient Temperature = 25°C)

IF = 5mADC

Load Voltage (V)

Load Current (mA)

120
100

80
60
40
20

0

-20

-40

-60

-80

-100

-120

-3-4 -2 -1 0 1 2 3 4

XCA170

Energy Rating Curve

Time

Load Current (A)

10µs

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1
0

1ms100µs 100ms

1s

10ms 10s 100s

XCA170

www.clare.com

5

Rev. 2

Dimensions

mm

(inches)

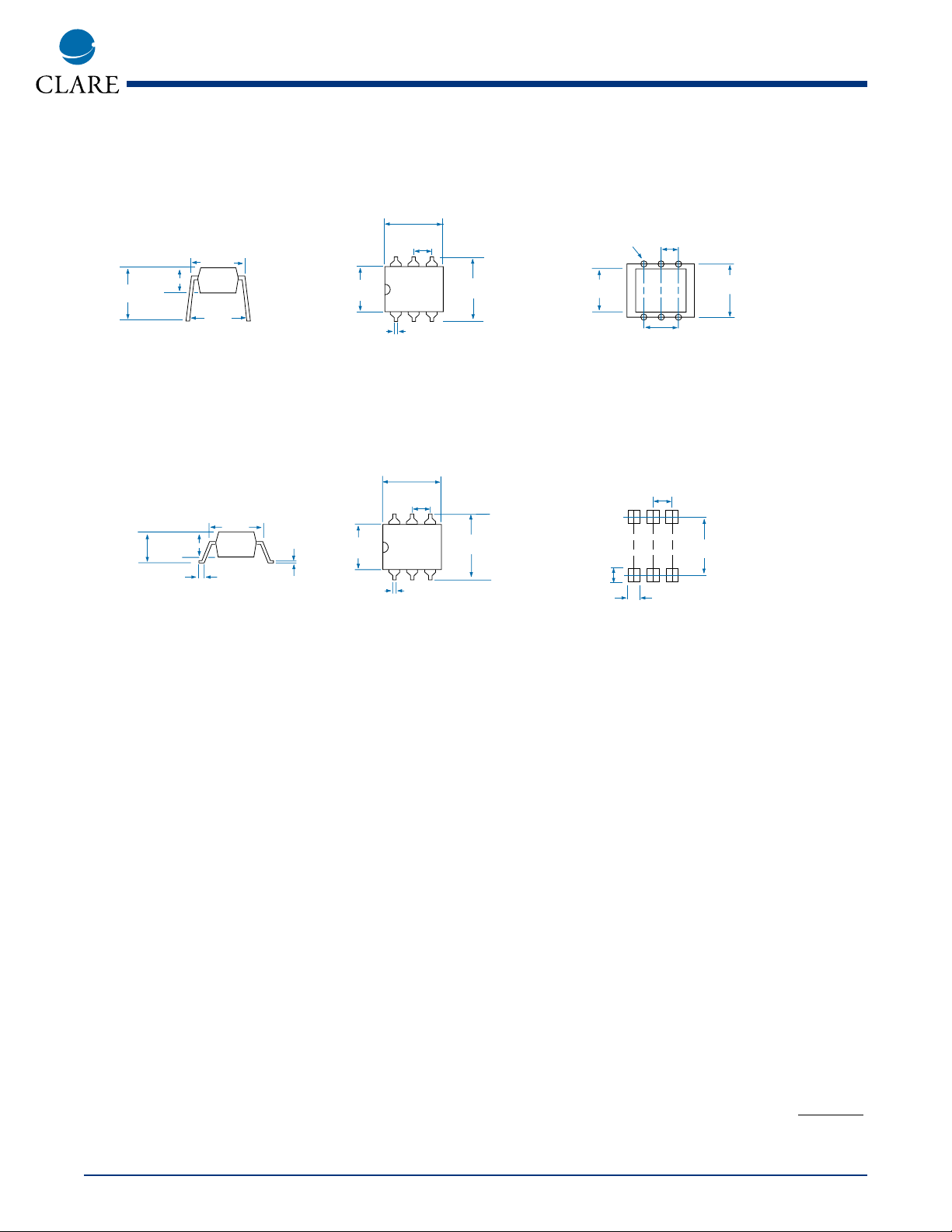

Mechanical Dimensions

PC Board Pattern
(Top View)

6.350 ± .127

(.250 ± .005)

2.540 ± .127

(.100 ± .005)

7.620 ± .127

(.300 ± .005)

5.080 ± .127

(.200 ± .005)

6-.800 DIA.

(6-.031 DIA.)

6.350 ± .127

(.250 ± .005)

8.382 ± .635

(.330 ± .025)

2.540 ± .127

(.100 ± .005)

9.144
(.360)

.457 ± .076

(.018 ± .003)

6 Pin DIP Through Hole (Standard)

7.239 TYP.
(.285)

3.302
(.130)

7.620 ± .254

(.300 ± .010)

9.144 ± .508

(.360 ± .020)

PC Board Pattern
(Top View)

2.540 ± .127

(.100 ± .005)

8.305 ± .127

(.327 ± .005)

1.905 ± .127

(.075 ± .005)

1.499 ± .127

(.059 ± .005)

4.445 ± .127

(.175 ± .005)

3.302

(.130)

7.620 ± .254

(.300 ± .010)

6.350 ± .127

(.250 ± .005)

8.382 ± .635

(.330 ± .025)

2.540 ± .127

(.100 ± .005)

9.525 ± .254

(.375 ± .010)

.457 ± .076

(.018 ± .003)

.254 TYP.

(.010)

.635 TYP.

(.025)

6 Pin DIP Surface Mount (“S” Suffix)

www.clare.com

6

XCA170

Rev. 2

Dimensions

mm

(inches)

Mechanical Dimensions

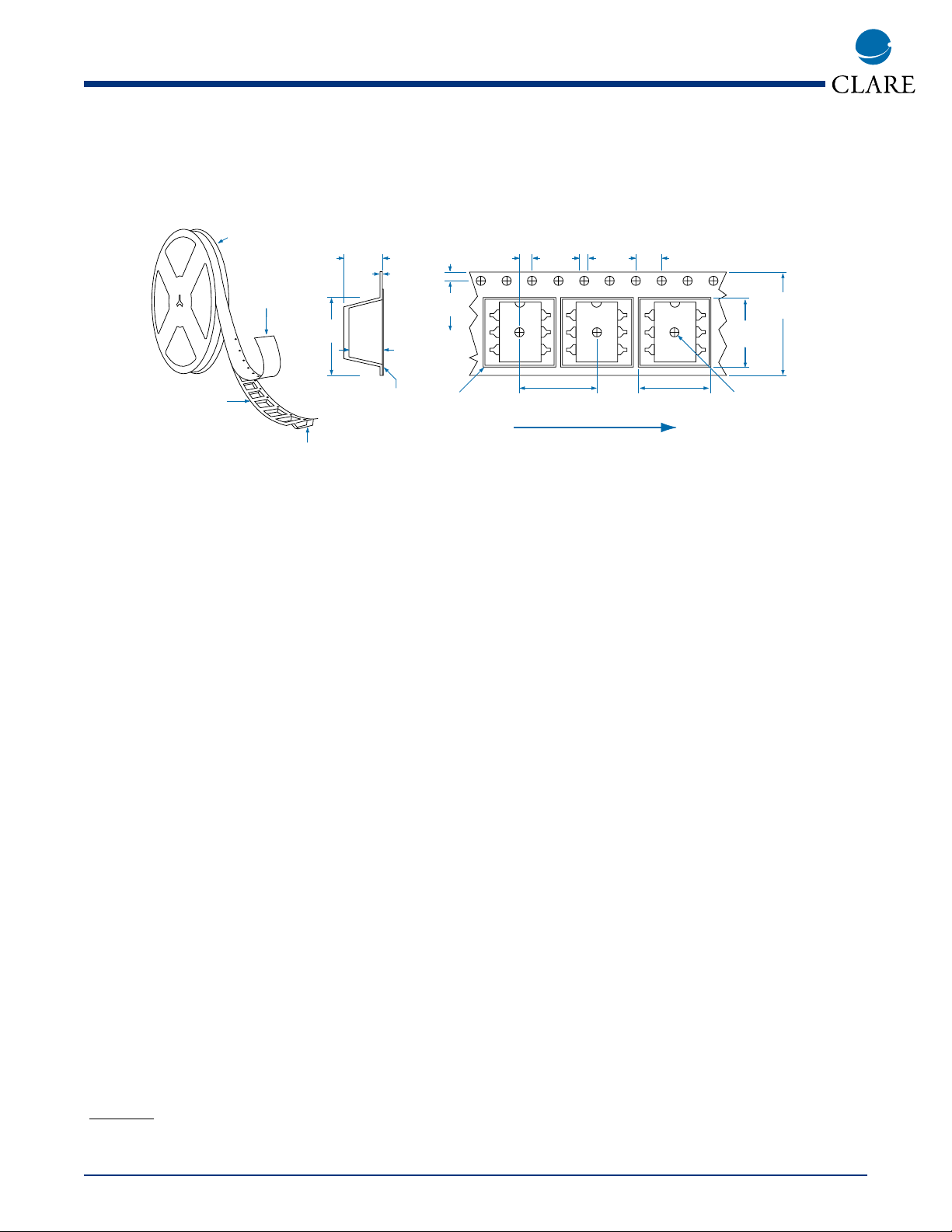

Tape and Reel Packaging for 6 Pin Surface Mount Package

7.493 ± .102
(.295 ± .004)

12.090
(.476)

330.2 DIA.
(13.00)

1.753 ± .102
(.069 ± .004)

3.987 ± .102
(.157 ± .004)

1.498 ± .102
(.059 ± .004)

6.731 MAX.
(.265)

.406 MAX.

(.016)

4.877
(.192)

Top Cover

Tape

2.007 ± .102
(.079 ± .004)

11.989 ± .102
(.472 ± .004)

User Direction of Feed

.050R TYP.

16.002 ± .305
(.630 ± .012)

10.100
(.398)

Embossment

Embossed Carrier

Top Cover
Tape Thickness
.102 MAX.
(.004)

10.100 ± .102
(.398 ± .004)

1.549 ± .102
(.061 ± .004)

16

CLARE LOCATIONS

Clare Headquarters
78 Cherry Hill Drive
Beverly, MA 01915
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-27-CLARE

Clare Micronix Division
145 Columbia
Aliso Viejo, CA 92656-1490
Tel: [phone]
Fax: [phone]

SALES OFFICES
AMERICAS

Americas Headquarters

Clare
78 Cherry Hill Drive
Beverly, MA 01915
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-27-CLARE

Eastern Region

Clare
P.O. Box 856
Mahwah, NJ 07430
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-27-CLARE

Central Region

Clare Canada Ltd.
3425 Harvester Road, Suite 202
Burlington, Ontario L7N 3N1
Tel: [phone]
Fax: [phone]

Western Region

Clare
1852 West 11th Street, #348
Tracy, CA 95376
Tel: [phone]
Fax: [phone]
Toll Free: 1-800-27-CLARE

Canada

Clare Canada Ltd.
3425 Harvester Road, Suite 202
Burlington, Ontario L7N 3N1
Tel: [phone]
Fax: [phone]

EUROPE

European Headquarters

CP Clare nv
Bampslaan 17
B-3500 Hasselt (Belgium)
Tel: [phone]
Fax: [phone]

France

Clare France Sales
Lead Rep
99 route de Versailles
91160 Champlan
France
Tel: [phone]
Fax: [phone]

Germany

Clare Germany Sales
ActiveComp Electronic GmbH
Mitterstrasse 12
85077 Manching
Germany
Tel: [phone]
Fax: [phone]

Italy

C.L.A.R.E.s.a.s.
Via C. Colombo 10/A
I-20066 Melzo (Milano)
Tel: [phone]
Fax: [phone]

Sweden

Clare Sales
Comptronic AB
Box 167
S-16329 Spånga
Tel: [phone]
Fax: [phone]

United Kingdom

Clare UK Sales
Marco Polo House
Cook Way
Bindon Road
Taunton
UK-Somerset TA2 6BG
Tel: [phone]
Fax: [phone]

ASIA/PACIFIC

Asian Headquarters

Clare
Room N1016, Chia-Hsin, Bldg II,
10F, No. 96, Sec. 2
Chung Shan North Road
Taipei, Taiwan R.O.C.
Tel: [phone]
Fax: [phone]

http://www.clare.com

Worldwide Sales Offices

Specification: DS-XCA170-R2
©Copyright 2000, Clare, Inc.
OptoMOS

®

is a registered trademark of Clare, Inc.
All rights reserved. Printed in USA.
2/15/01

Clare cannot assume responsibility for use of any circuitry other
than circuitry entirely embodied in this Clare product. No circuit
patent licenses nor indemnity are expressed or implied. Clare
reserves the right to change the specification and circuitry, with­out notice at any time. The products described in this document
are not intended for use in medical implantation or other direct life
support applications where malfunction may result in direct phys­ical harm, injury or death to a person.
