Page 1

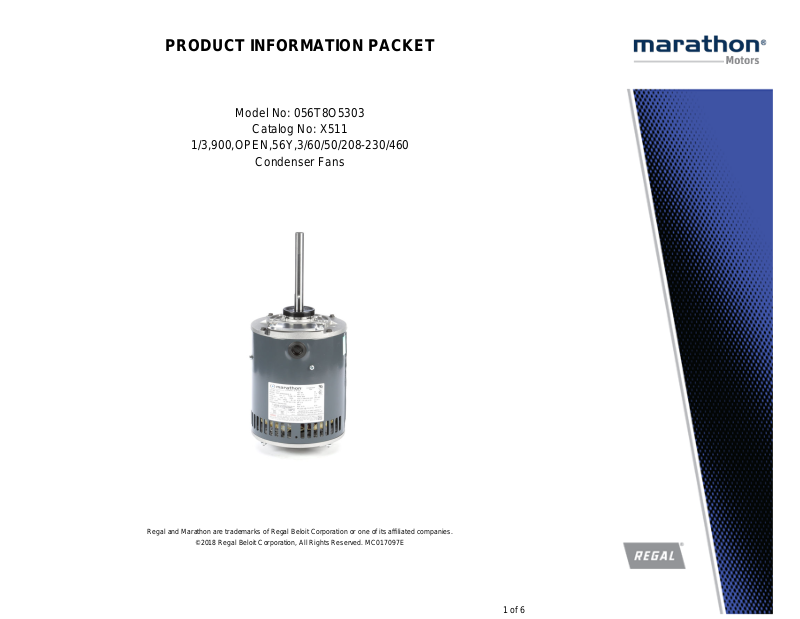

PRODUCT INFORMATION PACKET
Model No: 056T8O5303
Catalog No: X511
1/3,900,OPEN,56Y,3/60/50/208-230/460
Condenser Fans
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 056T8O5303, Catalog No:X511 1/3,900,OPEN,56Y,3/60/50/208-230/460
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 208-230/460 V
Current
Service Factor
Efficiency 61.5 % Duty Continous
Insulation Class
KVA Code L Frame 56Y
Enclosure Open Air Over Overload Protector Auto Lock Rotor Only
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.33 Hp
2.3-2.5/1.3 A
1
H
70 °C
Y
10
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.25 kW
850 rpm
3
NO DESIGN CODE
6203
N
Technical Specifications
Electrical Type
Poles 8 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type Single Special Extension
Overall Length
Shaft Diameter 0.625 in Shaft Extension 5.06 in
Assembly/Box Mounting

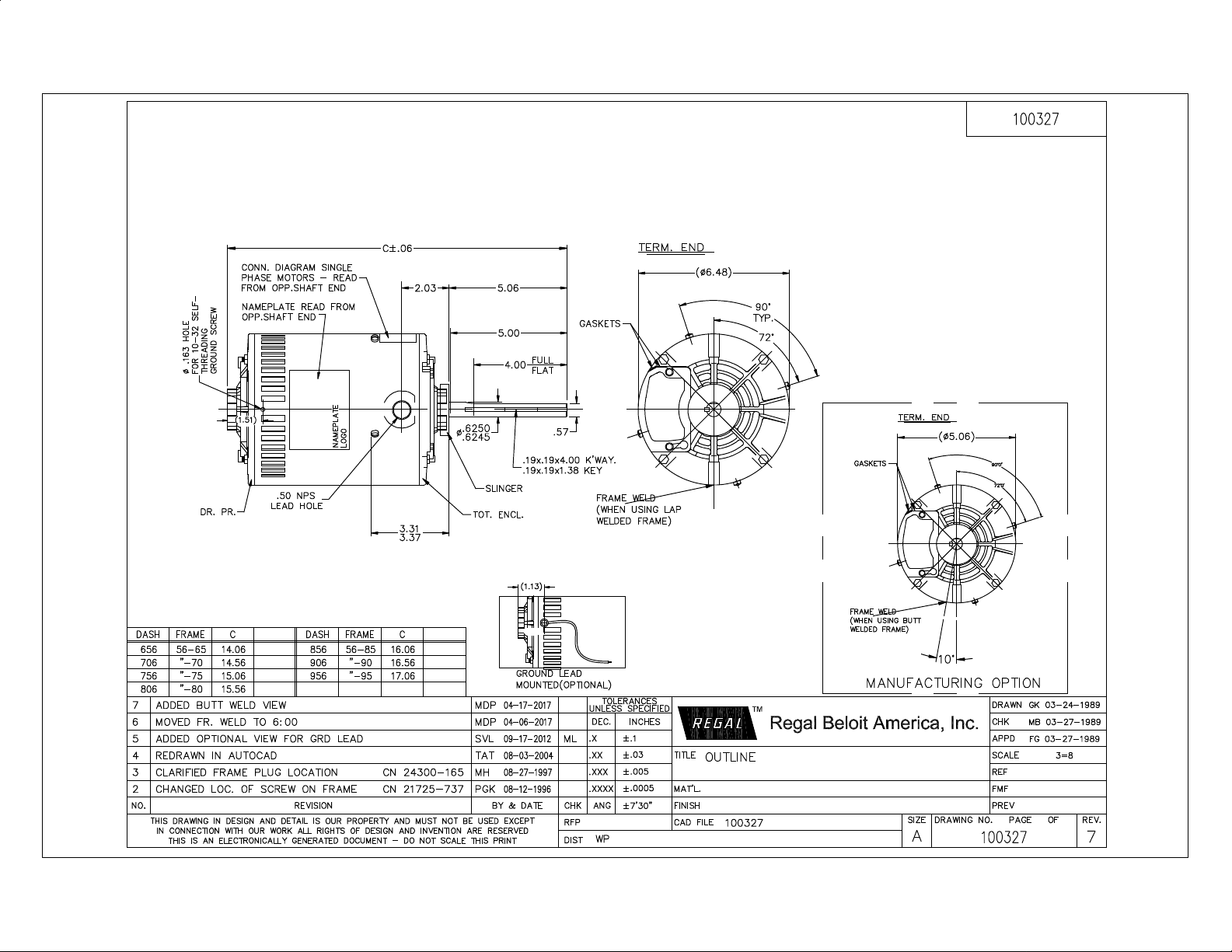

Outline Drawing
Round Belly Band
14.56 in
F1 Only
A-100327-706
Motor Orientation
Frame Length

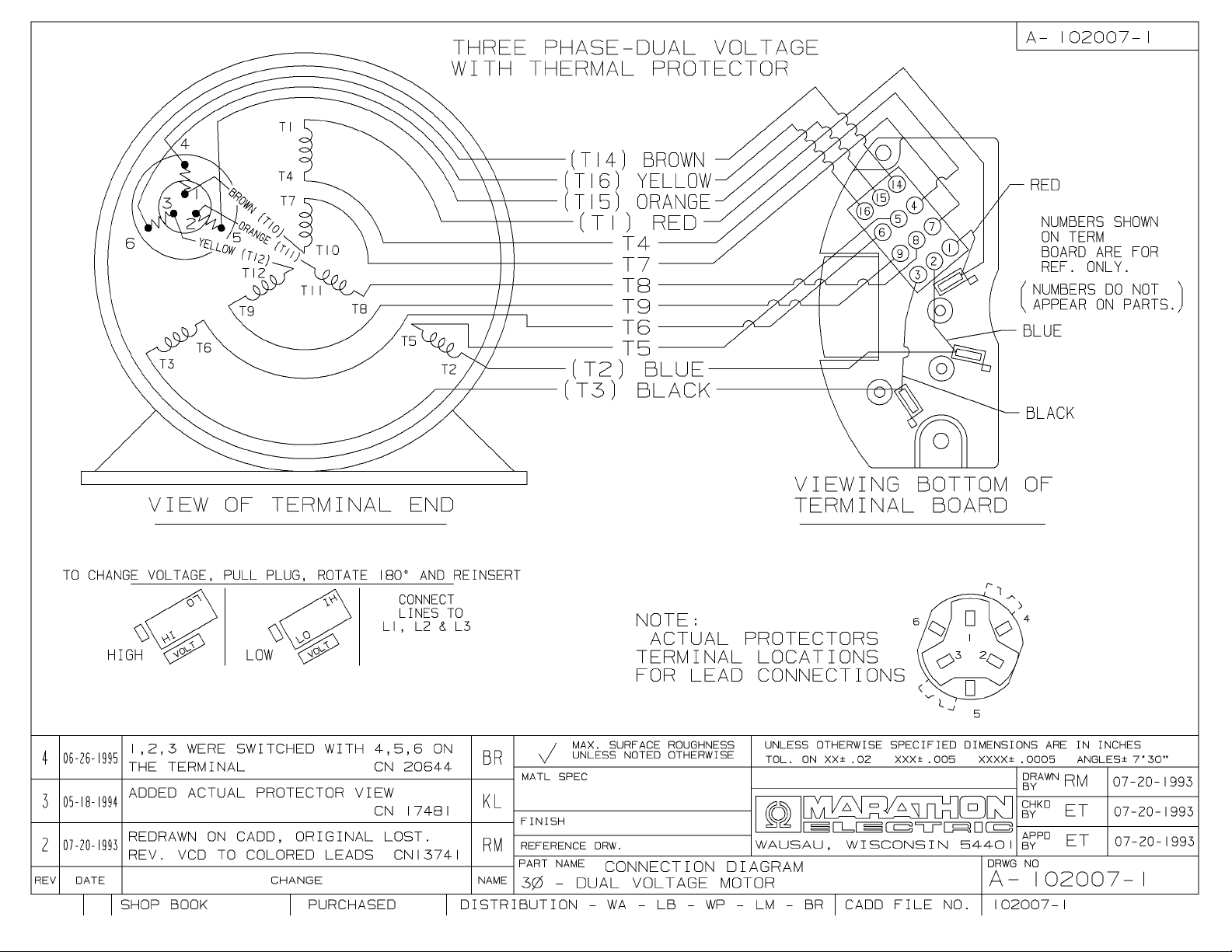

Connection Diagram
Horizontal
7.06 in
A-102007-1
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 07/02/2018
2 of 6
Page 3
Uncontrolled Copy
3 of 6
Page 4
8/24/2007 1:09:42 PM -
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 56T8O5303 D WINDING#: ZT807 DR 3
CONN. DIAGRAM: A-102007-1 ASSEMBLY: F1 ONLY
OUTLINE: A-100327-706
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1/3&1/4 0.25&0.19 900 850&715 56Y OPAO L NO DESIGN
CODE
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 208-
230/460#190/
380
2.3-
2.5/1.25&2.2/1
.1
ACROSS THE
LINE
CONTINUOUSH1 1.0/1.0 70 3300
FULL LOAD EFF:
61.5&56
3/4 LOAD EFF: 54.5 1/2 LOAD EFF: 46.5 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 51&45 3/4 LOAD PF: 38.5 1/2 LOAD PF: 31.5 57.5 SQ CAGE IND RUN 2 / 1
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
2 LB-FT 6.8 / 3.4 4.1 LB-FT 205 5.3 LB-FT 265 60
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
60 dBA 70 dBA 0.056 LB-FT^2 0 LB-FT^2 15 SEC. 0 25 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD ROUND BELLY
BAND
HORIZONTAL FALSE NONE FALSE NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL DC 44M SGL SPL EXT 0.625 x 5.00 IN
SEKF WITH 4.00
IN FULL FLAT
NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE AUT LCK RTR ONLY NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 05:23:23 AM
FORM 3531 REV.3 02/07/99
Uncontrolled Copy
5 of 6
Page 6
** Subject to change without notice.
Uncontrolled Copy
6 of 6
