Page 1
PRODUCT INFORMATION PACKET
Model No: 056A11O5314
Catalog No: X448
1,1075,OPEN,56Y,1/60/200-230/460
Condenser Fans
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: 056A11O5314, Catalog No:X448 1,1075,OPEN,56Y,1/60/200-230/460
Nameplate Specifications
Output HP 1 Hp Output KW 0.75 kW
Frequency
Current 6.0-5.2/2.6 A Speed 1075 rpm
Service Factor
Efficiency
Insulation Class B Design Code NO DESIGN CODE
KVA Code
Enclosure Open Air Over Overload Protector Automatic
Ambient Temperature 60 °C Drive End Bearing Size 6203
Opp Drive End Bearing Size
CSA Y CE N
IP Code
60 Hz
1
73 %
D
6203
10
Voltage
Phase
Duty
Frame
UL
200-230/460 V
1
Continous
56Y
Recognized ( Not Protector)
Technical Specifications
Electrical Type
Poles
Mounting Round Belly Band Motor Orientation Horizontal
Permanent Split Capacitor
6
Starting Method
Rotation
Across The Line
Selective Counterclockwise
Drive End Bearing
Frame Material Rolled Steel Shaft Type Single Special Extension
Overall Length 14.47 in Frame Length 8.06 in
Shaft Diameter
Assembly/Box Mounting F1 Only

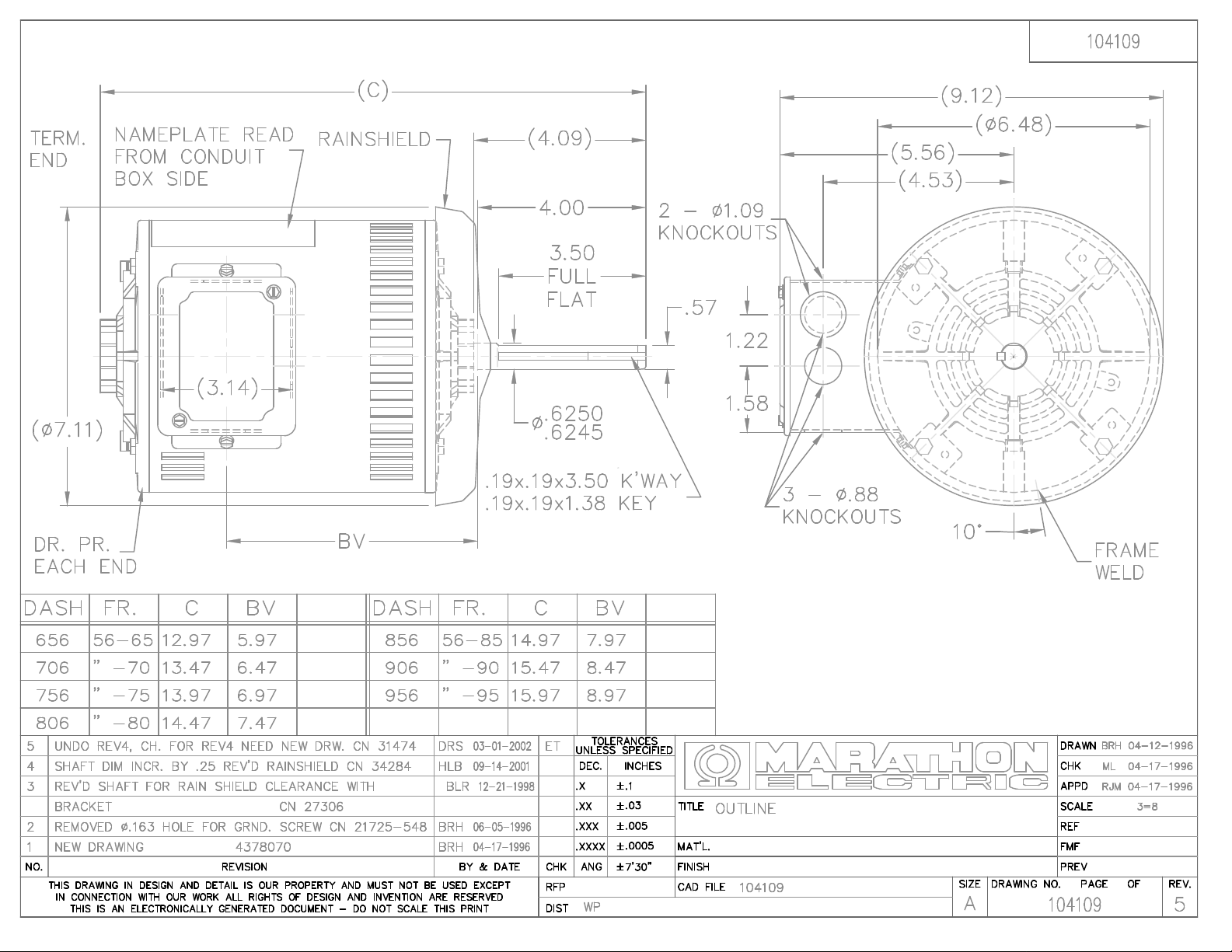

Outline Drawing
Ball
0.625 in
A-104109-806
Opp Drive End Bearing
Shaft Extension

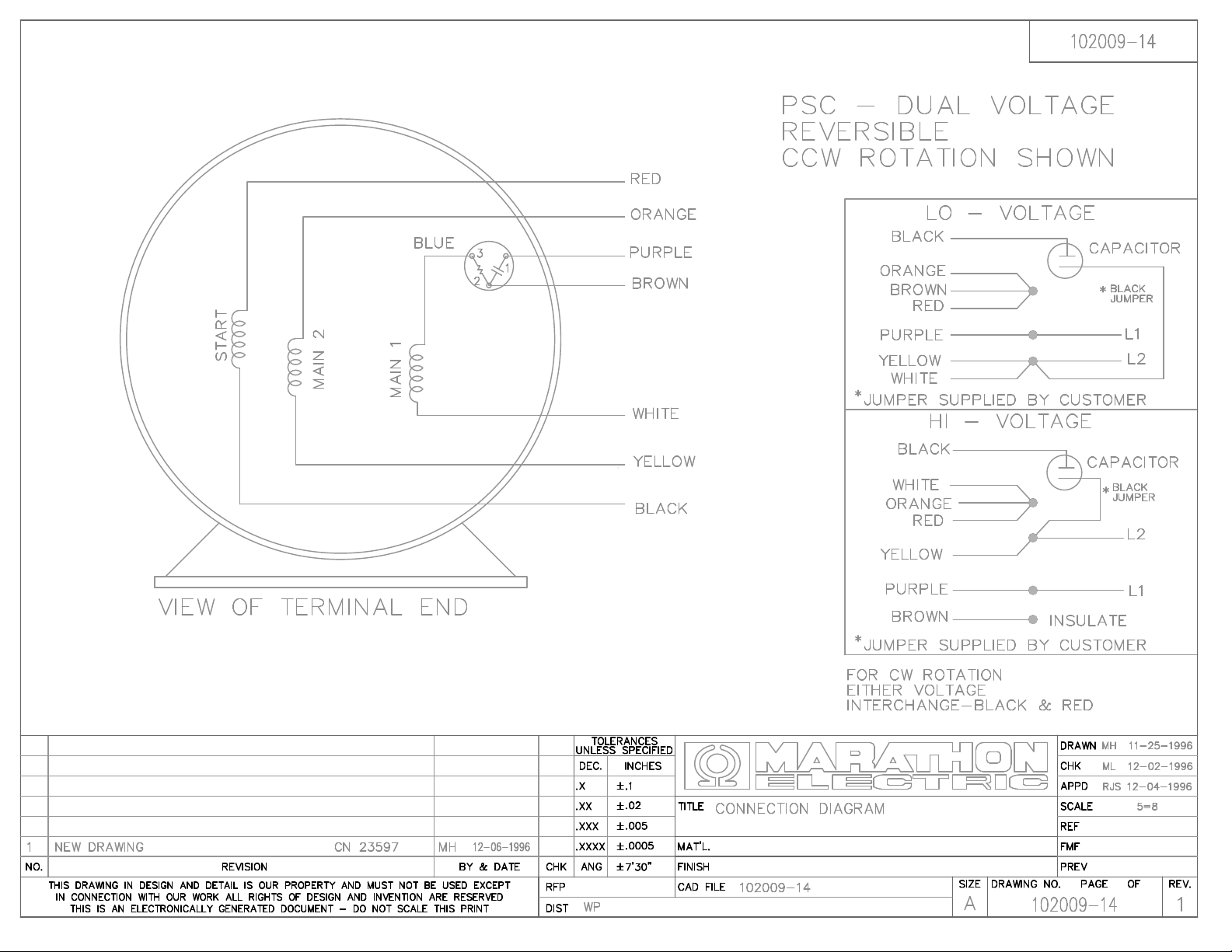

Connection Diagram
Ball
4.09 in
A-102009-14
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/08/2018
2 of 5
Page 3
9/27/2008 8:33:48 AM
3 of 5
Page 4
9/27/2008 7:21:46 AM
4 of 5
Page 5
CERTIFICATION DATA SHEET
Model#: 56A11O5314 A WINDING#: ZP682 NONE 3
CONN. DIAGRAM: A-102009-14 ASSEMBLY: F1 ONLY
OUTLINE: A-104109-806
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1 .75 1200 1075 56Y OPAO D NO DESIGN
CODE
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 200-230/460 6-5.2/2.6 ACROSS THE
LINE
CONTINUOUSB3 1.0 60 3300
FULL LOAD EFF: 73 3/4 LOAD EFF: 69 1/2 LOAD EFF: 56 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 98 3/4 LOAD PF: 97 1/2 LOAD PF: 93 - PSC 1 SPEED 2.2 / 1.1
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
73.5 LB-FT 17.2 / 8.6 42.6 LB-FT - 137 LB-FT - 0
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
- dBA - dBA - LB-FT^2 - LB-FT^2 - SEC. - - LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD ROUND BELLY
BAND
HORIZONTAL FALSE NONE FALSE NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM SGL SPL EXT 0.625 x 4.00 IN
SEKF
NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE AUTOMATIC NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 04:28:06 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
