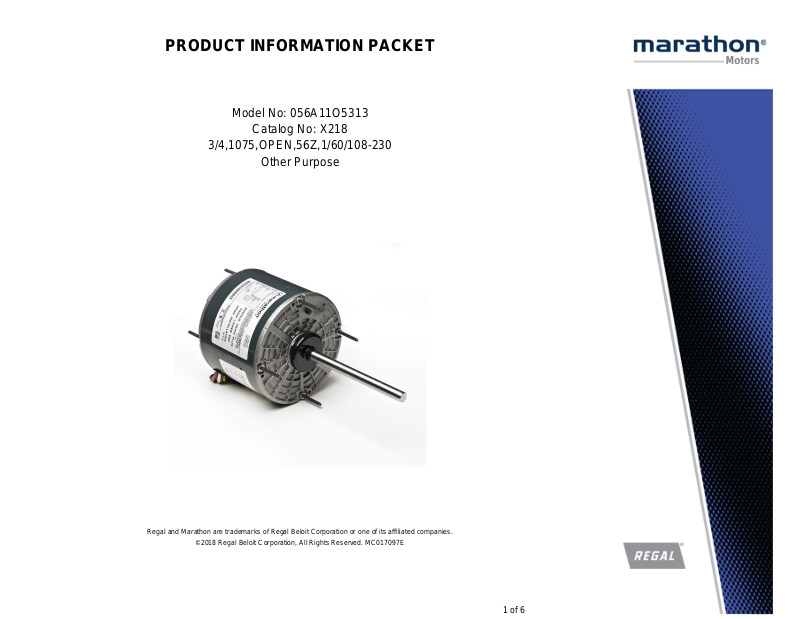

Page 1
PRODUCT INFORMATION PACKET
Model No: 056A11O5313
Catalog No: X218
3/4,1075,OPEN,56Z,1/60/108-230
Other Purpose
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 056A11O5313, Catalog No:X218 3/4,1075,OPEN,56Z,1/60/108-230
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 208-230 V
Current
Service Factor
Efficiency 75.5 % Duty Continous
Insulation Class
KVA Code C Frame 56Z
Enclosure Open Air Over Overload Protector Automatic
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized ( Not Protector)
CSA
IP Code
0.75 Hp
3.9-3.6 A
1
B
60 °C
Y
10
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.56 kW
1075 rpm
1
NO DESIGN CODE
6203
N
Technical Specifications
Electrical Type
Poles 6 Rotation Fixed Counterclockwise
Permanent Split Capacitor
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type Special Extension Both Sides
Overall Length
Shaft Extension 6.91/6.91 in Assembly/Box Mounting F1 Only

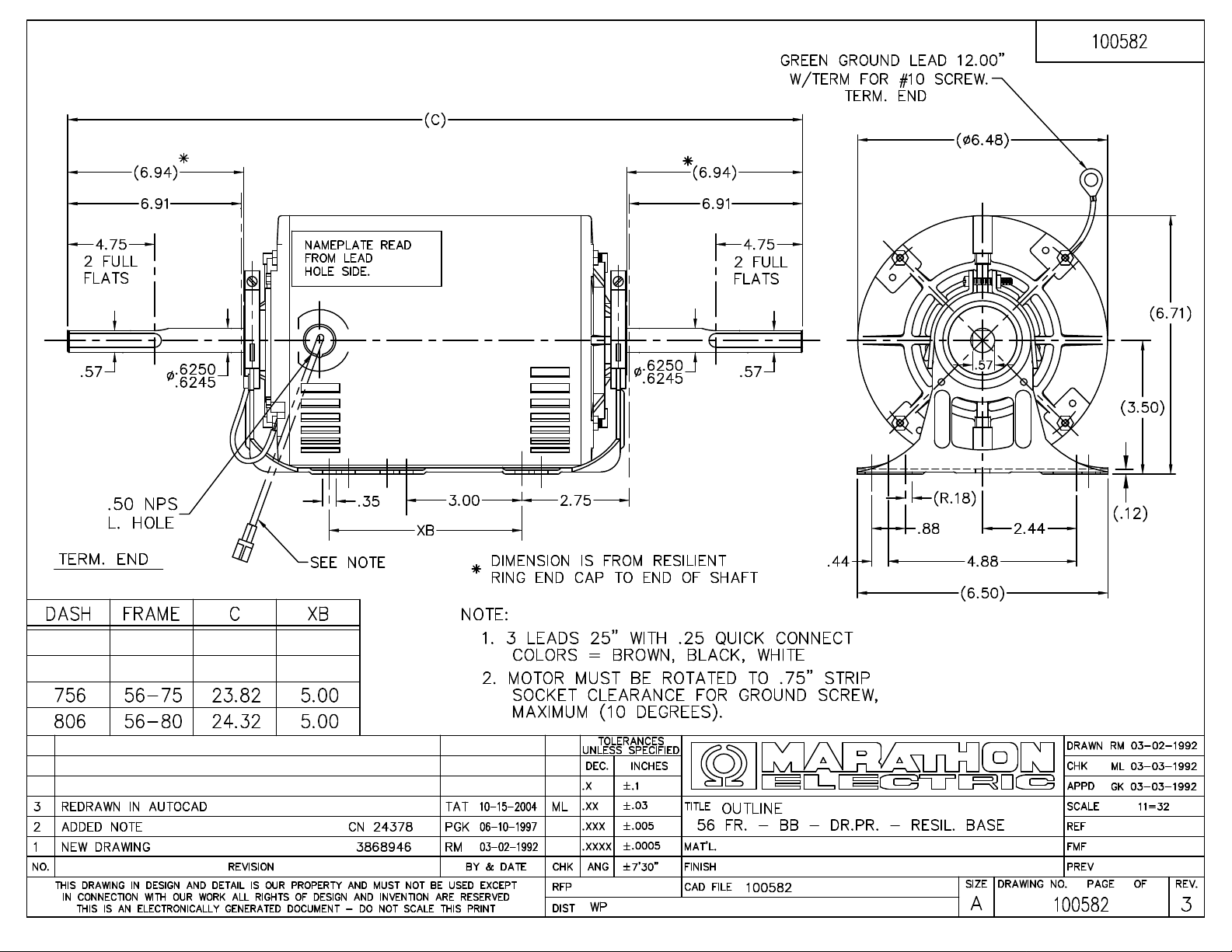

Outline Drawing
Resilient Base
23.82 in
A-100582-756
Motor Orientation
Shaft Diameter

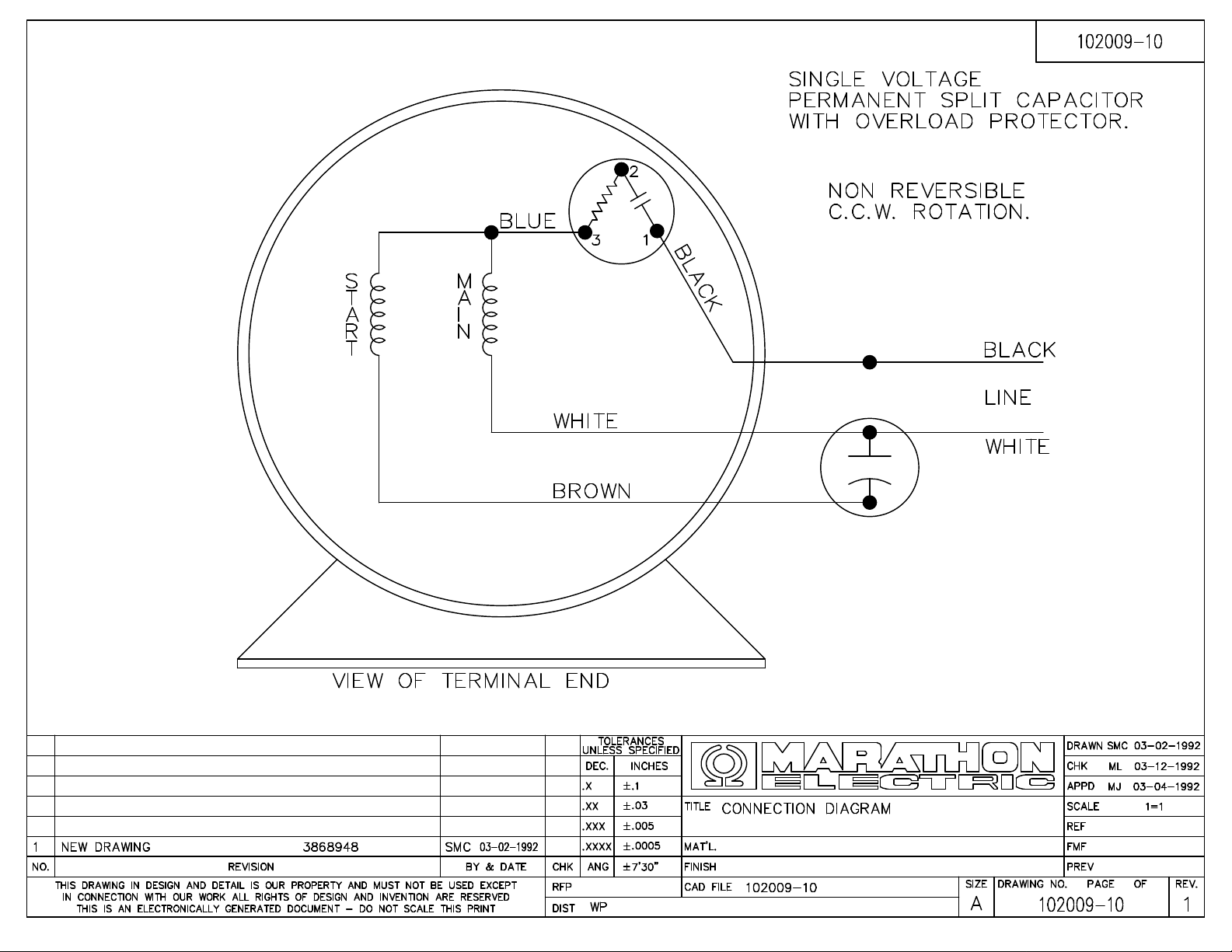

Connection Diagram
Horizontal
0.625 in
102009-10
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
Page 3
7/5/2007 10:11:54 AM -
3 of 6
Page 4
7/5/2007 11:09:06 AM -
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 56A11O5313 D WINDING#: ZP660 NONE 7
CONN. DIAGRAM: 102009-10 ASSEMBLY: F1 ONLY
OUTLINE: A-100582-756
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
3/4 .56 1200 1075 56Z OPAO C NO DESIGN
CODE
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 208-230 3.9-3.6 ACROSS THE
LINE
CONTINUOUSB3 1.0 60 3300
FULL LOAD EFF: 75.5 3/4 LOAD EFF: 71.5 1/2 LOAD EFF: 62.4 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 94.5 3/4 LOAD PF: 93.5 1/2 LOAD PF: 91 0 PSC 1 SPEED 1.6
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
54.1 LB-FT 13.7 24.6 LB-FT 0 102 LB-FT 0 0
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
- dBA - dBA 0 LB-FT^2 - LB-FT^2 - SEC. - 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RESILIENT
BASE
HORIZONTAL FALSE NONE FALSE NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM DBL SPL EXT 0.625 x 6.91 IN
SEF WITH 4.75 IN
DOUBLE FULL
FLAT
0.625 x 6.91 IN
SEF WITH 4.75 IN
DOUBLE FULL
FLAT
1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE AUTOMATIC NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 04:27:34 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Uncontrolled Copy
6 of 6
