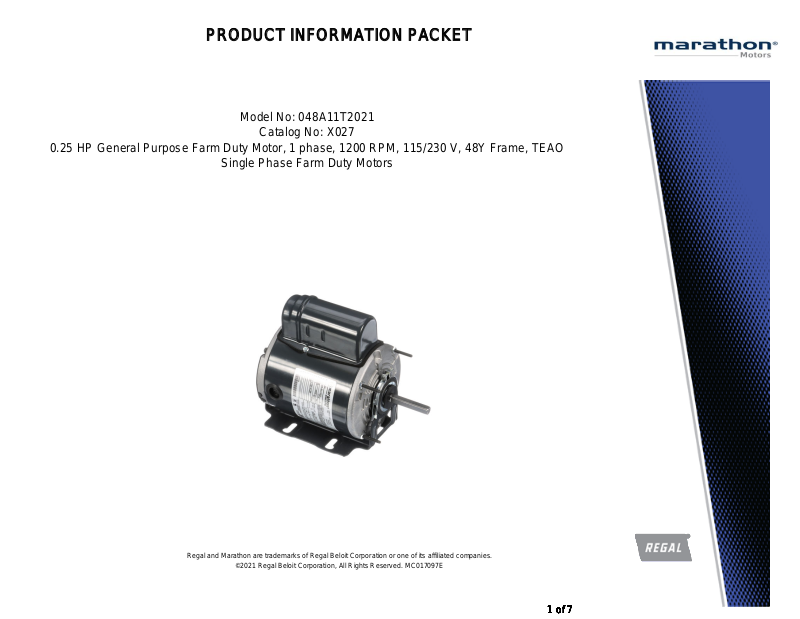

Datasheet X027 Datasheet (Marathon Electric)

PRODUCT INFORMATION PACKET

Model No: 048A11T2021

Catalog No: X027

0.25 HP General Purpose Farm Duty Motor, 1 phase, 1200 RPM, 115/230 V, 48Y Frame, TEAO Single Phase Farm Duty Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 7

Product Information Packet: Model No: 048A11T2021, Catalog No:X027 0.25 HP General Purpose Farm Duty Motor, 1 phase, 1200 RPM, 115/230 V, 48Y Frame, TEAO

Nameplate Specifications

Output HP 0.25 Hp Output KW 0.19 kW Frequency 60 Hz Voltage 115/230 V Current 3.2/1.6 A Speed 1075 rpm Service Factor 1 Phase 1 Efficiency 59.5 % Power Factor 91 Duty Continuous Insulation Class B Design Code NO DESIGN CODE KVA Code D Frame 48Y Enclosure Totally Enclosed Air Over Thermal Protection Automatic Lock Rotor Only Ambient Temperature 40 °C Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203 UL Recognized CSA Y CE N IP Code 43

Technical Specifications

Electrical Type Permanent Split Capacitor Starting Method Across The Line Poles 6 Rotation Selective Counterclockwise Resistance Main 0 Ohms Mounting Round - Extended Studs Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Rolled Steel Shaft Type Single Special Extension Overall Length 10.09 in Frame Length 5.50 in Shaft Diameter 0.500 in Shaft Extension 2.56 in Assembly/Box Mounting F1 ONLY Connection Drawing A-EE9057AH Outline Drawing A-SS404353-550

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:04/01/2021

2 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 7

Regal Beloit America, Inc.

TM

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS OTHERWISE SPECIFIED: DEC.

INCH mm ANGLE .X 0.1 [ 2.5] 7' 30" .XX 0.03 [ 0.76] .XXX 0.005 [ 0.127] .XXXX 0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] X 45 CORNER FILLETS: R.02 [.51] MACHINED SURFACES:

200 5.1

INCH mm mm SHOWN IN [BRACKETS]

12

43

A

B

2

43

1

A

B

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

SS404353

M. CHATLAPALLI

01/10/2019

S. MACHARLA

1/10/2019

B M. CHATLAPALLI 01/10/2019

ECO-0159684 S. MACHARLA 01/10/2019

OUTLINE CONVERSION PROJECT

OUTLINE

SS75967LN

NOTES:-

1) TOTALLY ENCLOSED MOTOR.

2) FULLY GASKETED.

3) NAMEPLATE LOC.@ 'A' TO BE READ F R O M TERM END.

TERM. END

C

A

B

D

DASH XB C

550 5.69[144.52] 10.09[256.28] 625 6.44[163.57] 10.84[275.33]

2.25

57.15

FULL FLATS(2)

2.50

63.50

2.58

65.49

1.63

41.40

.5000 .4995

12.6987

12.6860

.453 .447

11.494

11.341

(TYP)

5.29

134.37

.34

8.64

2.50

63.47

2.75

69.85

1.08

27.45

C

.94

1.12

23.83

28.40

XB

1.41

35.81

10-32 UN

0.50[12.70]NPS L. HOLE

(PLUGGED)

SLINGER

GROUND LEAD TOT. ENCL.

EACH END

45°

5.61

142.49

2.24

56.90

3.04

2.96

77.22

75.18

5.08

129.03

5.62

142.75

R2.56

65.09

4.25

107.95

.34

8.74

R.17

4.32

.69

17.48

.08

1.93

8.05

204.47

2.13

53.98

Regal Beloit America, Inc.

TM

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS OTHERWISE SPECIFIED: DEC.

INCH mm ANGLE .X 0.1 [ 2.5] 7' 30" .XX 0.03 [ 0.76] .XXX 0.005 [ 0.127] .XXXX 0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] X 45 CORNER FILLETS: R.02 [.51] MACHINED SURFACES:

200 5.1

INCH mm mm SHOWN IN [BRACKETS]

12

43

A

B

2

43

1

A

B

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

SS404353

M. CHATLAPALLI

01/10/2019

S. MACHARLA

1/10/2019

B M. CHATLAPALLI 01/10/2019

ECO-0159684 S. MACHARLA 01/10/2019

OUTLINE CONVERSION PROJECT

OUTLINE

SS75967LN

NOTES:-

1) TOTALLY ENCLOSED MOTOR.

2) FULLY GASKETED.

3) NAMEPLATE LOC.@ 'A' TO BE READ F R O M TERM END.

TERM. END

C

A

B

D

DASH XB C

550 5.69[144.52] 10.09[256.28] 625 6.44[163.57] 10.84[275.33]

Uncontrolled Copy

3 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 7

8/26/2007 8:37:39 PM -

4 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 7

CERTIFICATION DATA SHEET

Model#: 48A11T2021 D WINDING#: PE4861760 NONE 3 CONN. DIAGRAM: A-EE9057AH ASSEMBLY: F1 ONLY OUTLINE: A-SS75967-550

TYPICAL MOTOR PERFORMANCE DATA

HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN

1/4 0.19 1200 1075 48Y TEAO D NO DESIGN

CODE

PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION

1 60 115/230 3.2/1.6 ACROSS THE

LINE

CONTINUOUSB3 1.0 40 3300

FULL LOAD EFF: 59.5 3/4 LOAD EFF: - 1/2 LOAD EFF: - GTD. EFF ELEC. TYPE NO LOAD AMPS

FULL LOAD PF: 91 3/4 LOAD PF: - 1/2 LOAD PF: - 0 PSC 1 SPEED 1.5 / .8

F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C

18.5 LB-FT 9 / 4.5 8.2 LB-FT - 32.1 LB-FT - -

SOUND PRESSURE

@ 3 FT.

SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS

/HOUR

APPROX. MOTOR

WGT

- dBA - dBA 0 LB-FT^2 - LB-FT^2 - SEC. - 0 LBS.

*** SUPPLEMENTAL INFORMATION ***

DE BRACKET

TYPE

ODE BRACKET

TYPE

MOUNT

TYPE

ORIENTATION SEVERE

DUTY

HAZARDOUS

LOCATION

DRIP

COVER

SCREENS PAINT

STANDARD STANDARD ROUND-

EXTENDED

STUDS

HORIZONTAL FALSE NONE FALSE NONE GRAY

(POWDER)

BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT

MATERIAL

FRAME

MATERIAL

DE OPE

BALL BALL MULTEMP SRL SGL SPL EXT 0.500 x 2.50 WITH

2.25 DBL FULL FLATS

NONE 1144

STRESSPROOF

(C-223)

ROLLED STEEL

6203 6203

THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS

THERMOSTATS PROTECTORS WDG RTDs BRG RTDs

NONE AUT LCK RTR ONLY NONE NONE NONE FALSE NONE VOLTS

If Inverter equals NONE, contact factory for further

information

* N O T E S *

INVERTER TORQUE: NONE INV. HP SPEED RANGE: NONE

ENCODER: NONE NONE NONE NONE NONE PPR

BRAKE: NONE NONE NONE P/N NONE NONE NONE NONE FT-LB NONE V NONE Hz

DATE: 06/27/2017 07:06:00 AM FORM 3531 REV.3 02/07/99 ** Subject to change without notice.

Uncontrolled Copy

5 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 7

Uncontrolled Copy

6 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 7

HZ

1/9/2019

AMPS

Uncontrolled Copy

MARATHON ELECTRIC CORPORATION

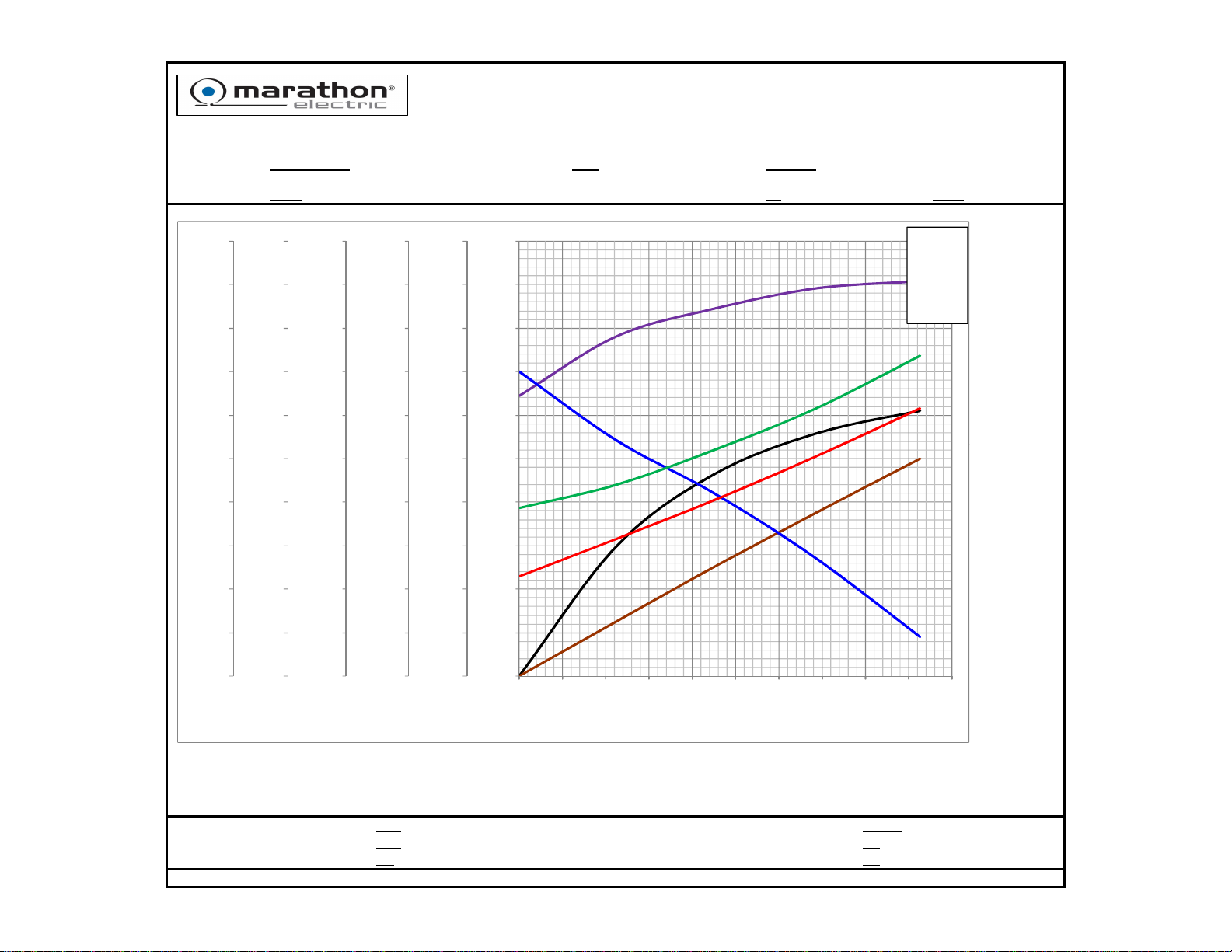

TYPICAL PERFORMANCE CURVE for AC MOTOR

Customer Curve at 230 Volts HP 0.25

60 HZ

Model No 48A11T2021

0.25 HP VOLTS 115/230

Catalog No X027

60 70 80 90 100

EFF

60 70 80 90 100

PF

0.3 0.35 0.4 0.45 0.5

HP

1190 1200 1210 1220 1230

RPM

0.3 0.35 0.4 0.45 0.5

KW

60 70 80 90 10060 70 80 90 1000.3 0.35 0.4 0.45 0.51190 1200 1210 1220 12300.3 0.35 0.4 0.45 0.51.2 1.4 1.6 1.8 2

PF

HP

KW

EFF

RPM

1

60 RPM 1075

Eff −

−

−−

PF −

−

−−

HP −

−

−−

RPM −

−

−−

KW −

−

−−

Amps −

−

−−

0 10 20 30 40 50

0 2 4 6 8 10 12 14 16 18 20

0 0.05 0.1 0.15 0.2 0.25

0 2 4 6 8 10 12 14 16 18 20

1130 1140 1150 1160 1170 1180

0 2 4 6 8 10 12 14 16 18 20

0 0.05 0.1 0.15 0.2 0.25

Torque

0 10 20 30 40 50

0 0.05 0.1 0.15 0.2 0.25

0 0.2 0.4 0.6 0.8 1

1130 1140 1150 1160 1170 1180

0 2 4 6 8 10 12 14 16 18 20

Torque

FL TORQUE 18.5 Oz.Ft FL AMPS 3.2/1.6 BD TORQUE 32.1 Oz.Ft PU TORQUE 7.0 Oz.Ft LR TORQUE 8.2 Oz.Ft LR AMPS 4.5 WINDING PE4861760-3 Date

Torque

Torque in Oz.Ft

7 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 7
