Datasheet WT6016 Datasheet (WELTREND)

Page 1

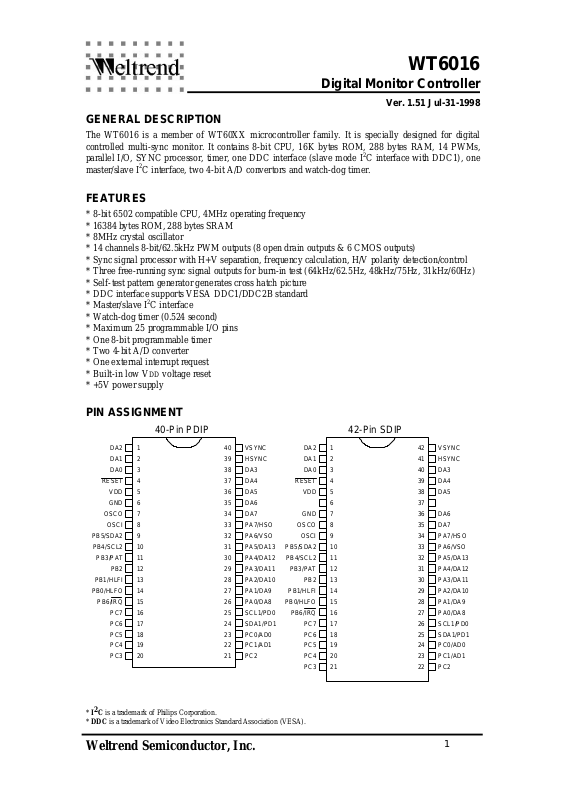

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

GENERAL DESCRIPTION

The WT6016 is a member of WT60XX microcontroller family. It is specially designed for digital controlled multi-sync monitor. It contains 8-bit CPU, 16K bytes ROM, 288 bytes RAM, 14 PWMs, parallel I/O, SYNC processor, timer, one DDC interface (slave mode I2C interface with DDC1), one master/slave I2C interface, two 4-bit A/D convertors and watch-dog timer.

FEATURES

* 8-bit 6502 compatible CPU, 4MHz operating frequency * 16384 bytes ROM, 288 bytes SRAM * 8MHz crystal oscillator * 14 channels 8-bit/62.5kHz PWM outputs (8 open drain outputs & 6 CMOS outputs) * Sync signal processor with H+V separation, frequency calculation, H/V polarity detection/control * Three free-running sync signal outputs for burn-in test (64kHz/62.5Hz, 48kHz/75Hz, 31kHz/60Hz) * Self-test pattern generator generates cross hatch picture * DDC interface supports VESA DDC1/DDC2B standard * Master/slave I2C interface * Watch-dog timer (0.524 second) * Maximum 25 programmable I/O pins * One 8-bit programmable timer * Two 4-bit A/D converter * One external interrupt request * Built-in low VDD voltage reset * +5V power supply

PIN ASSIGNMENT

DA2

DA1

DA0

RESET

OSCO

OSCI

PB5/SDA2

PB4/SCL2

PB3/PAT

PB1/HLFI

PB0/HLFO

PB6/IRQ

4 5

VDD

GND

7 8 9 10 11 12

PB2

13 14 15 16

PC7 SCL1/PD0

PC6

PC5

PC4

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 2120

VSYNC HSYNC DA3 DA4 DA5 DA6 DA7 PA7/HSO PA6/VSO PA5/DA13 PA4/DA12 PA3/DA11 PA2/DA10 PA1/DA9 PA0/DA8

SDA1/PD1 PC0/AD0 PC1/AD1 PC2PC3

42-Pin SDIP40-Pin PDIP

DA2

DA1

DA0

RESET

OSCO

OSCI

PB5/SDA2

PB4/SCL2

PB3/PAT

PB1/HLFI

PB0/HLFO

PB6/IRQ

4 5

VDD

6 7

GND

8 9 10 11 12 13

PB2

14 15 16 17

PC7 SCL1/PD0

PC6

PC5

PC4

42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 2221

VSYNC HSYNC DA3 DA4 DA5

DA6 DA7 PA7/HSO PA6/VSO PA5/DA13 PA4/DA12 PA3/DA11 PA2/DA10 PA1/DA9 PA0/DA8

SDA1/PD1 PC0/AD0 PC1/AD1 PC2PC3

* I2C is a trademark of Philips Corporation. * DDC is a trademark of Video Electronics Standard Association (VESA).

Weltrend Semiconductor, Inc.

Page 2

PIN DESCRIPTION

Pin No.

40 42

1 1 DA2 O 2 2 DA1 O 3 3 DA0 O 4 4 /RESET I 5 5 VDD 6 7 GND 7 8 OSCO O 8 9 OSCI I

9 10 PB5/SDA2 I/O 10 11 PB4/SCL2 I/O 11 12 PB3/PAT I/O

12 13 PB2 I/O

13 14 PB1/HLFI I/O 14 15 PB0/HLFO I/O 15 16 PB6/IRQ I/O

16 17 PC7 I/O

17 18 PC6 I/O 18 19 PC5 I/O 19 20 PC4 I/O 20 21 PC3 I/O 21 22 PC2 I/O 22 23 PC1/AD1 I/O 23 24 PC0/AD0 I/O 24 25 SDA1/PD1 I/O

25 26 SCL1/PD0 I/O

26 27 PA0/DA8 I/O

27 28 PA1/DA9 I/O 28 29 PA2/DA10 I/O 29 30 PA3/DA11 I/O 30 31 PA4/DA12 I/O 31 32 PA5/DA13 I/O 32 33 PA6/VSO I/O

33 34 PA7/HSO I/O

34 35 DA7 O 35 36 DA6 O 36 38 DA5 O 37 39 DA4 O 38 40 DA3 O 39 41 HSYNC I 40 42 VSYNC I

Pin Name I/O Descriptions

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

D/A converter 2. Open-drain output. External applied voltage can up to 10V. D/A converter 1. Open-drain output. External applied voltage can up to 10V. D/A converter 0. Open-drain output. External applied voltage can up to 10V. Reset. Active low. Schmitt trigger input with internal pull high. Power supply (+5V). Ground (0V). Oscillator Output. Connects a 8MHz crystal. Oscillator Input. Connects a 8MHz crystal. I/O Port B5 or I2C data pin. This pin can be an I/O port or I2C serial data pin. I/O Port B4 or I2C clock pin. This pin can be I/O port or I2C clock pin. I/O Port B3 or self-test pattern output. When as an I/O port, it is same as PB2.

When it is configured to test pattern output, a vedio signal is output. I/O Port B2. When it is an input pin, it has an internal pull-up resistor. When it is an output pin, the source/sink current is 5mA

I/O Port B1 or half frequency input. I/O Port B0 or half frequency output. I/O Port B6 or Interrupt Request . When as interrupt request input, it has an

internal pull high resistor. When as an I/O port, it is same as PB3. I/O Port C7. When it is an input pin, it has an internal pull-up resistor. When it is an output pin, the sink current is 10mA and the source current is 5mA.

I/O Port C6. Same as PC7. I/O Port C5. Same as PC7. I/O Port C4. Same as PC7. I/O Port C3. Same as PC7. I/O Port C2. Same as PC7. I/O Port C1 or A/D converter input 0. I/O Port C0 or A/D converter input 1. DDC serial data or I/O Port D1. When it is a DDC interface pin, It is an open-

drain output. When as an I/O port, it is same as Port B. DDC serial clock or I/O Port D0. When it is a DDC interface pin, It is an opendrain output. When as an I/O port, it is same as Port B. I/O Port A0 or D/A converter 8. This pin can be the output of D/A converter 8 (source/sink = 5mA) or an I/O pin (source = -100uA, sink = 5mA).

I/O Port A1 or D/A converter 9. Same as PA0/DA8. I/O Port A2 or D/A converter 10. Same as PA0/DA8. I/O Port A3 or D/A converter 11. Same as PA0/DA8. I/O Port A4 or D/A converter 12. Same as PA0/DA8. I/O Port A5 or D/A converter 13. Same as PA0/DA8. I/O Port A6 / VSYNC OUT. This pin can be the output of VSYNC or an I/O pin.

When as an I/O pin, it is same as PA0. I/O Port A7 / HSYNC OUT. This pin can be the output of HSYNC or an I/O pin. When as an I/O pin, it is same as PA0.

D/A converter 7. Open-drain output. External applied voltage can up to 10V. D/A converter 6. Open-drain output. External applied voltage can up to 10V. D/A converter 5. Open-drain output. External applied voltage can up to 10V. D/A converter 4. Open-drain output. External applied voltage can up to 10V. D/A converter 3. Open-drain output. External applied voltage can up to 10V. HSYNC input. Schmitt trigger input. VSYNC input. Schmitt trigger input.

Weltrend Semiconductor, Inc.

Page 3

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

FUNCTIONAL DESCRIPTION

CPU

The CPU core is 6502 compatible, operating frequency is 4MHz. Address bus is 16-bit and data bus is 8-bit. the non-maskable interrupt (/NMI) of 6502 is changed to maskable interrupt and is defined as the INT0. The interrupt request (/IRQ) of 6502 is defined as the INT1. Default stack pointer is 01FFH. Please refer the 6502 reference menu for more detail.

ROM

16384 bytes maskable ROM is provided for program codes. Address is located from C000H to FFFFH. The following addresses are reserved for special purpose : FFFAH (low byte) and FFFBH (high byte) : INT0 interrupt vector. FFFCH (low byte) and FFFDH (high byte) : program reset vector. FFFEH (low byte) and FFFFH (high byte) : INT1 interrupt vector.

RAM

Built-in 288 bytes SRAM, address is located from 0080H to 019FH. Because the initial stack pointer is 01FFH, so program must set proper stack pointer when program starts. A recommended value is 019FH.

0000H

0020H 0021H

007FH 0080H

019FH

01A0H

BFFFH

C000H : : :

FFFFH

REGISTERS

Reserved

RAM

Reserved

ROM

Low VDD Voltage Reset

A VDD voltage detector is built inside the chip. When VDD is below 4.0 volts, the whole chip will be reset just like power-on-reset.

Note that the 4.0 volts varies with temperature and process. Please refer the electrical characteristics.

Weltrend Semiconductor, Inc.

Page 4

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

PWM D/A Converter

The WT6018 provides 14 PWM D/A converters. DA0 to DA7 are open-drain outputs and external applied voltage on these pins can be up to 10 volts. DA8 to DA13 are 5 volts push-pull CMOS outputs and are shared with I/O Port PA0 to PA5. All D/A converters are 62.5kHz frequency with 8-bit resolution. Each D/A converter is controlled by the corresponding register (REG#00H to REG#0DH), the duty cycle can be programmed from 1/256 (data = 01H) to 255/256 (data = FFH).

Duty cycle = 1/256

62.5ns

Duty cycle = 2/256 125ns

62.5ns Duty cycle = 255/256 1/62.5kHz=16us

To program the PWM D/A converters, write the corresponding registers ( REG#00H to REG#0DH).

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0000H R/W 80H DA07DA06DA05DA04DA03DA02DA01DA0 0001H R/W 80H DA17DA16DA15DA14DA13DA12DA11DA1 0002H R/W 80H DA27DA26DA25DA24DA23DA22DA21DA2 0003H R/W 80H DA37DA36DA35DA34DA33DA32DA31DA3 0004H R/W 80H DA47DA46DA45DA44DA43DA42DA41DA4 0005H R/W 80H DA57DA56DA55DA54DA53DA52DA51DA5 0006H R/W 80H DA67DA66DA65DA64DA63DA62DA61DA6 0007H R/W 80H DA77DA76DA75DA74DA73DA72DA71DA7 0008H R/W 80H DA87DA86DA85DA84DA83DA82DA81DA8

0009H R/W 80H DA97DA96DA95DA94DA93DA92DA91DA9 000AH R/W 80H DA107DA106DA105DA104DA103DA102DA101DA10 000BH R/W 80H DA117DA116DA115DA114DA113DA112DA111DA11 000CH R/W 80H DA127DA126DA125DA124DA123DA122DA121DA12 000DH R/W 80H DA137DA136DA135DA134DA133DA132DA131DA13

Bit Name Bit value

DAx7-DAx0 01H : 1/256 duty cycle

02H : 2/256 duty cycle 03H : 3/256 duty cycle : FFH : 255/256 duty cycle

0 0 0 0 0 0 0 0 0 0

0 0 0 0

** Do not write 00H to the PWM registers. This will cause unstable output on the corresponding pin.

Weltrend Semiconductor, Inc.

Page 5

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

I/O Ports

Port_A :

Pin PA0/DA8 - general purpose I/O shared with DA8 output. Pin PA1/DA9 - general purpose I/O shared with DA9 output. Pin PA2/DA10 - general purpose I/O shared with DA10 output. Pin PA3/DA11 - general purpose I/O shared with DA11 output. Pin PA4/DA12 - general purpose I/O shared with DA12 output. Pin PA5/DA13 - general purpose I/O shared with DA13 output. Pin PA6/VSO - general purpose I/O shared with VSYNC output. Pin PA7/HSO - general purpose I/O shared with HSYNC output.

Port_A is controlled by REG#10H & REG#11H. In REG#10H, each corresponding bit enables HSYNC output, VSYNC output or D/A converter output when it is "1". If the corresponding bit is "0", the output level is decided by REG#11H. In REG#11H, if the I/O corresponding bit (PAn) is "0", the output is low level (IOL=5mA). If PAn bit is "1", the output is high level (IOH= -100uA) and can be used as an input.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0010H W 00H EHO EVO EDA13 EDA12 EDA11 EDA10 EDA9 EDA8 0011H W FFH PA7W PA6W PA5W PA4W PA3W PA2W PA1W PA0W 0011H R -- PA7R PA6R PA5R PA4R PA3R PA2R PA1R PA0R

Bit Name Bit value = “1” Bit value = “0”

EHO Enable PA7 as HSYNC output. PA7 as general purpose I/O.

EVO Enable PA6 as VSYNC output. PA6 as general purpose I/O. EDA13 Enable PA5 as DA13 output. PA5 as general purpose I/O. EDA12 Enable PA4 as DA12 output. PA4 as general purpose I/O. EDA11 Enable PA3 as DA11 output. PA3 as general purpose I/O. EDA10 Enable PA2 as DA10 output. PA2 as general purpose I/O.

EDA9 Enable PA1 as DA9 output. PA1 as general purpose I/O. EDA8 Enable PA0 as DA8 output. PA0 as general purpose I/O.

PA7W - PA0W Outputs high level (IOH= -100uA). Outputs low level (IOL= 5mA).

PA7R- PA0R Pin is high level. Pin is low level.

* If the program wants to force VSYNC output (VSO pin) in low state, write "0" to PA6 bit first, then write "0" to EVO bit. This is used to prevent high frequency output on VSO pin when the VSYNC frequency is increased to read EDID data in DDC1 mode.

EDAx

DAx

PAnW

5mA

100uA

Pin PAn

5mA

PAnR

Weltrend Semiconductor, Inc.

Page 6

WT6016

100uA

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

Port_B :

Pin PB0/HLFO - general purpose I/O pin shared with half frequency output. Pin PB1/HLFI - general purpose I/O pin shared with half frequency input. Pin PB2 - general purpose I/O pin. Pin PB3/PAT - general purpose I/O pin shared with self-test pattern output. Pin PB4/SCL2 - general purpose I/O pin shared with I2C interface clock pin. Pin PB5/SDA2 - general purpose I/O pin shared with I2C interface data pin.

Pin PB6/IRQB - general purpose I/O pin shared with interrupt request input. The source/sink current of port_B is 5mA when as an output. When it is input, an internal pull high resistor is connected.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0012H W 00H 0 PB6OE PB5OE PB4OE PB3OE PB2OE PB1OE PB0OE 0013H W FFH 1 PB6W PB5W PB4W PB3W PB2W PB1W PB0W 0013H R -- -- PB6R PB5R PB4R PB3R PB2R PB1R PB0R

Bit Name Bit value = “1” Bit value = “0”

PB6OE - PB0OE Output enable. Output disable (internal pull-up).

PB6W - PB0W Outputs high level (IOH= -5mA). Outputs low level (IOL= 5mA).

PB6R- PB0R Pin is high level. Pin is low level.

* If IEN_D bit in REG#1AH is “1” and PB6OE bit is "0", the PB6 pin becomes interrupt request input. * If ENI2C bit in REG#1EH is “1”, the PB5 and PB4 pins becomes I2C interface pins. * If ENPAT bit in REG#16H is “1”, the PB3 pin becomes self-test pattern output. * If ENHALF bit in REG#17H is “1”, the PB1 pin becomes half frequency input and PB0 pin becomes half frequency output pin.

PBnOE

PBnW

PBnR

Structure of Port B

5mA

Pin PB0 to PB6

5mA

Weltrend Semiconductor, Inc.

Page 7

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

Port_C :

Pin PC0 - general purpose I/O pin shared with 4-bit A/D converter 0 input.

Pin PC1 - general purpose I/O pin shared with 4-bit A/D converter 1 input

Pin PC2 to PC7 - general purpose I/O pins.

The REG#14H defines the I/O direction and the REG#15H controls the output level.

The structure of Port_C is same as the Port_B except the sink current is 10mA. When PC0 and PC1 are programmed as the A/D converter inputs, the pull high transistor is disconnected.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0014H W 00H PC7OE PC6OE PC5OE PC4OE PC3OE PC2OE PC1OE PC0OE 0015H W FFH PC7W PC6W PC5W PC4W PC3W PC2W PC1W PC0W 0015H R -- PC7R PC6R PC5R PC4R PC3R PC2R PC1R PC0R

Bit Name Bit value = “1” Bit value = “0”

PC7OE - PC0OE Output enable. Output disable (internal pull-up).

PC7W - PC0W Outputs high level (IOH= -5mA). Outputs low level (IOL= 10mA).

PC7R - PC0R Pin is high level. Pin is low level.

Port_D :

Pin SCL1/PD0 - general purpose I/O pin shared with DDC interface serial clock.

Pin SDA1/PD1 - general purpose I/O pin shared with DDC interface serial data.

The structure of these two pins are same as the PB4 and PB5. Default is DDC interface and can be changed to I/O port D by setting ENPD bit.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

000FH W 00H -- -- -- ENPD PD1OE PD0OE PD1W PD0W 000FH R -- -- -- -- -- -- -- PD1R PD0R

Bit Name Bit value = “1” Bit value = “0”

ENPD Enable I/O Port_D. DDC interface.(open drain)

PD1OE - PD0OE Output enable. Output disable (internal pull-up).

PD1W - PD0W Outputs high level (IOH= -5mA). Outputs low level (IOL= 5mA).

PD1R- PD0R Pin is high level. Pin is low level.

* If program wants to read current status on the I/O pins (any I/O port), do not set output enable bit to “0”. Because the registers for reading I/O are always indicating the current state on the I/O pins, set output enable bit to “0” will change the level on the I/O pin. Please reference the I/O pin structure.

Weltrend Semiconductor, Inc.

Page 8

WT6016

SELF

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

SYNC Processor

The SYNC processor can : (1) separate the composite sync signal; (2) calculate HSYNC and VSYNC frequencies; (3) detect polarities of HSYNC and VSYNC inputs; (4) control the output polarities of HSO and VSO pins. (5) generate free-running horizontal and vertical sync signals for burn-in test; (6) generate self-test pattern signal.

Mux

H+V

Mux

H/V Freq. Counter

H Polarity Control

V Polarity

detect & control

HSYNC

H Polarity detect

H/V SYNC Generator

Sync Separator

H V

VSYNC

H+V

Test Pattern Generator

PB3

Mux

PB3/PAT

Composite Sync Signal Separation

The composite sync signal comes from HSYNC pin and is separated by the sync separator. The operations of sync separator are:

- detect the polarity and convert composite sync signal to positive polarity.

- extract Vsync

Pulse width less than 8us will be filtered, but the Vsync will be widened about 8us.

- count the pulses during the separated Vsync is low and save the counter value (NH).

- bypass the composite sync pulses before the counter equals to N

- start inserting Hsync pulses after the counter equals to NH until the separated Vsync is low.

- the period of inserted Hsync is decided by the last two bypassed Hsync.

- the pulse width of the inserted Hsync is 2us.

HSO

VSO

Positive H+V

separated Hsync

bypass insert HSYNC

separated Vsync

To decide whether the HSYNC input is a composite sync signal or not, program should check the frequency of VSYNC first (reset H+V bit to “0”). If the VSYNC frequency is lower than 15.25Hz (OVF2=1), set H+V bit to “1” and check VSYNC frequency again. If VSYNC still has no frequency, that is power saving condition, program should reset H+V bit. If it has a valid frequency, the HSYNC input is composite signal.

Weltrend Semiconductor, Inc.

Page 9

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

Frequency Calculation

Horizontal frequency and vertical frequencies calculation are done by using one 10-bit up counter. After power is on, the SYNC processor calculates the vertical frequency first (H/V bit ="0"). A

31.25KHz clock counts the time interval between two VSYNC pulses, then sets the FRDY bit and generates an INT1 interrupt (if IEN_S bit is "1"). The software can either use interrupt or polling the FRDY bit to read the correct vertical frequency. After reading the REG#16H, the FRDY bit is cleared to "0", counter is reset and H/V bit is set. The SYNC processor starts to count horizontal frequency. The horizontal frequency calculation is done by counting the HSYNC pulses in 8.192 ms. Like the vertical frequency, the horizontal frequency can be read when the FRDY bit is set or INT1 occurs. After reading the REG#16H, the FRDY, INT_S and H/V bits are cleared. The SYNC processor starts to calculate the vertical frequency again, and so on.

The relationships between counter value and frequency are : Hfreq = (counter value x 122.07) Hz Vfreq = ( 31250 / counter value ) Hz

The frequency range :

Hfreq range : 122.07 Hz to 124.8 kHz ; Resolution : 122.07Hz

Vfreq range : 30.5 Hz to 31.25 kHz

If counter overflowed, the OVF1 bit will be set to "1". The counter keeps on counting until it overflowed again. The OVF2 bit and FRDY bit will be set when counter overflowed twice. This is designed for finding the vertical frequency bellows 15.25Hz. The program should check REG#17H before reading REG#16H.

Polarity Detect/Control

The polarities of HSYNC and VSYNC are automatically detected and are shown in the H_POL and V_POL bits. The polarities of HSO and VSO are controlled by the HOP and VOP bits. For example, set HOP bit to “1”, the HSO pin always outputs positive horizontal sync signal, whatever the HSYNC input’s polarity is.

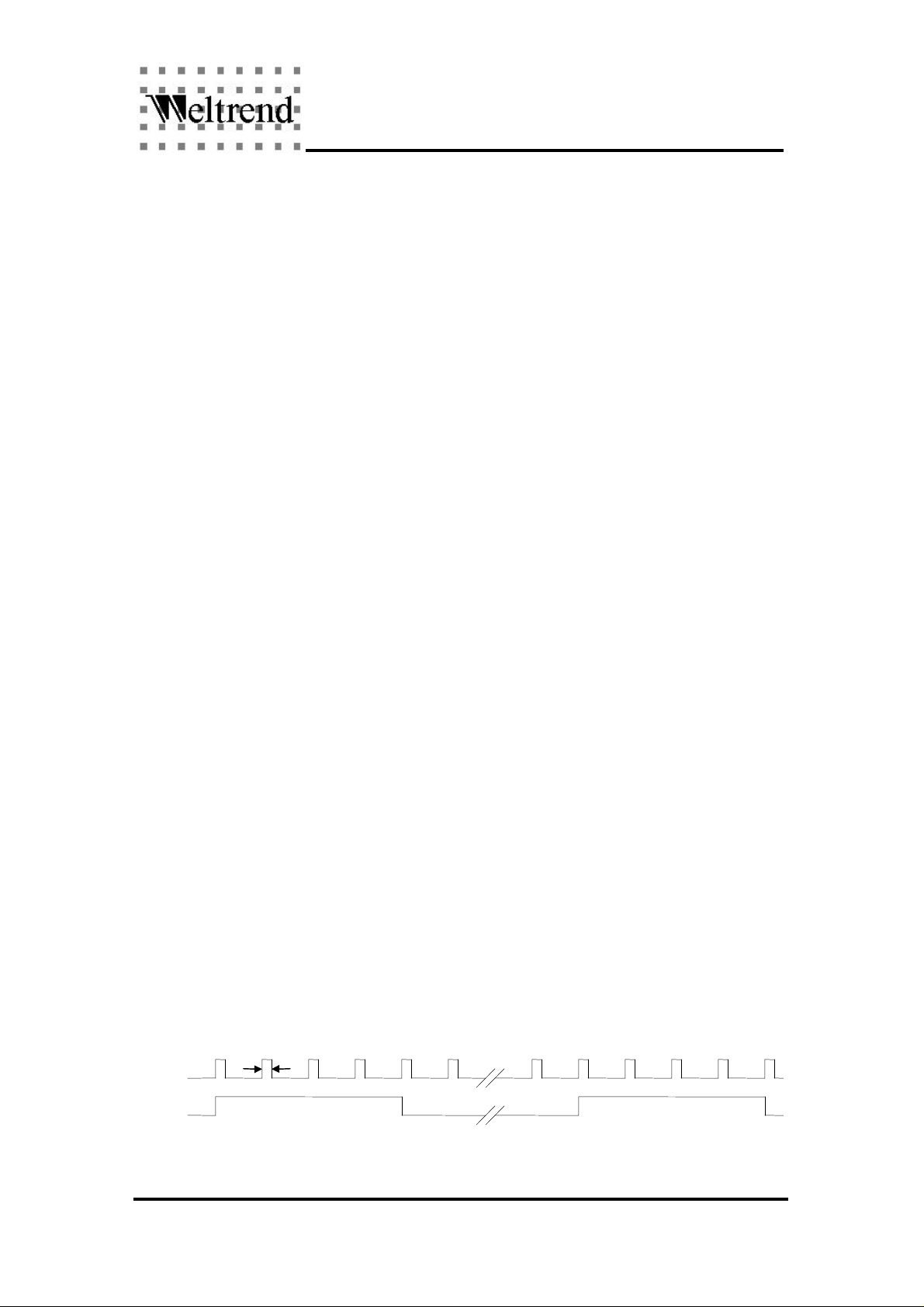

Free-running Sync Signal

The self-generated sync signals are output from HSO and VSO pins if SELF bit is “1”. Three kinds of frequencies are provided : (1) Hfreq = 8MHz/125 = 64.0kHz, Vfreq = Hfreq/1024 = 62.5Hz. (2) Hfreq = 8MHz/167 = 47.9kHz, Vfreq = Hfreq/640 = 74.9Hz. (3) Hfreq = 8MHz/257 = 31.1kHz, Vfreq = Hfreq/512 = 60.8Hz .

The output polarities are controlled by the HOP and VOP bits.

The pulse width of HSO is 2us and VSO is four HSO cycles. The timing relationship is shown in the following :

2us HSO

VSO

Weltrend Semiconductor, Inc.

Page 10

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

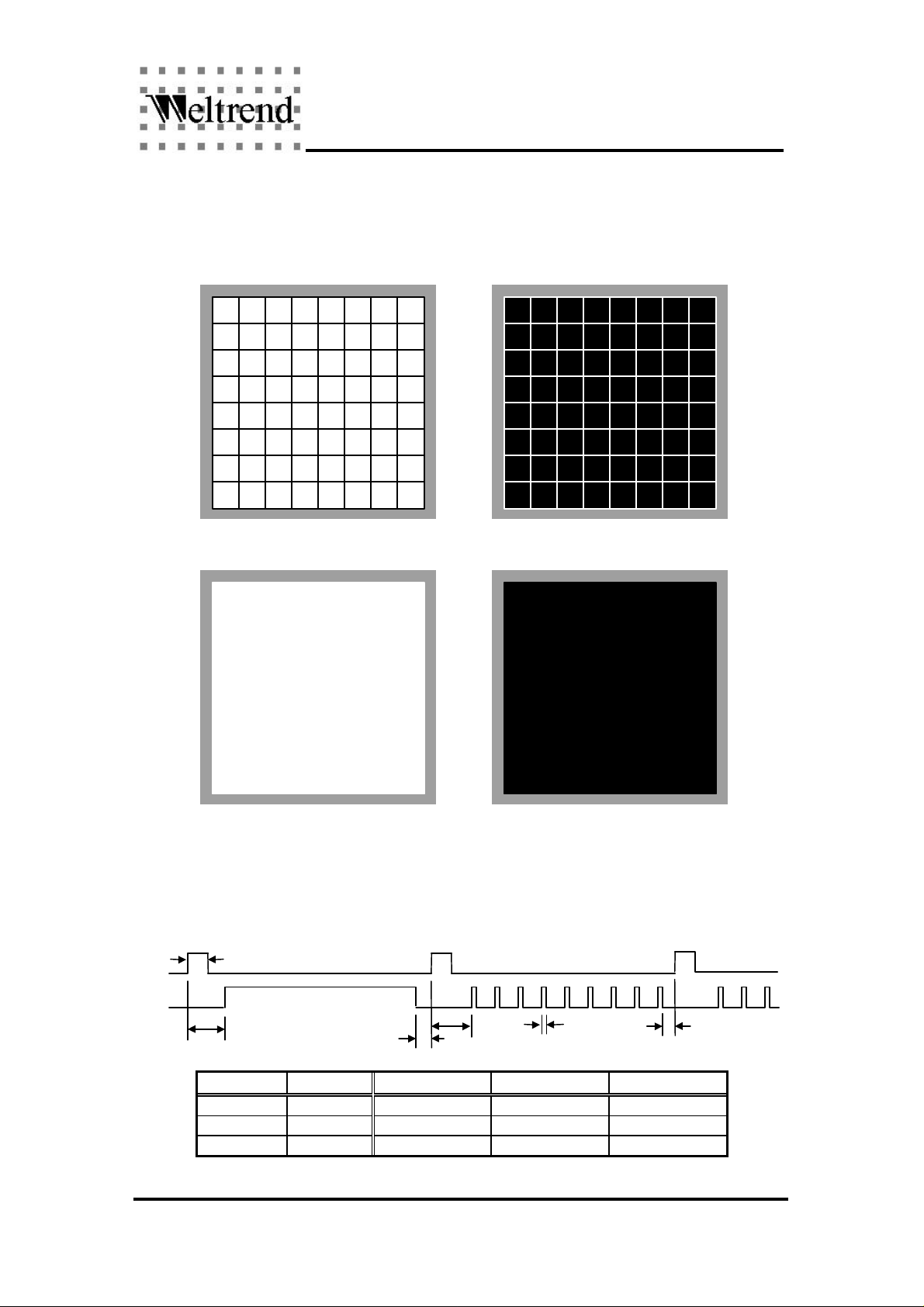

Test Pattern Generation

A self-test pattern signal comes out from pin PB3/PAT. It can generate a cross hatch picture, a inverted cross hatch picture, a white picture or a black picture.

8 X 8 cross hatch Inverted 8 X 8 cross hatch

White Picture

Black Picture

The test pattern signal is generated when SELF and ENPAT are both set to “1”. This vedio signal will synchronize to the free-running Hsync and Vsync, no matter which frequency is chosen. The following diagram shows the timing relationship of cross hatch picture.

HSO

PAT

HSO VSO T

31.1kHz 60.8Hz 6us 1us 62.5ns

47.9kHz 74.9Hz 5.125us 0.625us 62.5ns 64kHz 62.5Hz 3.625us 0.875us 62.5ns

Weltrend Semiconductor, Inc.

Page 11

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

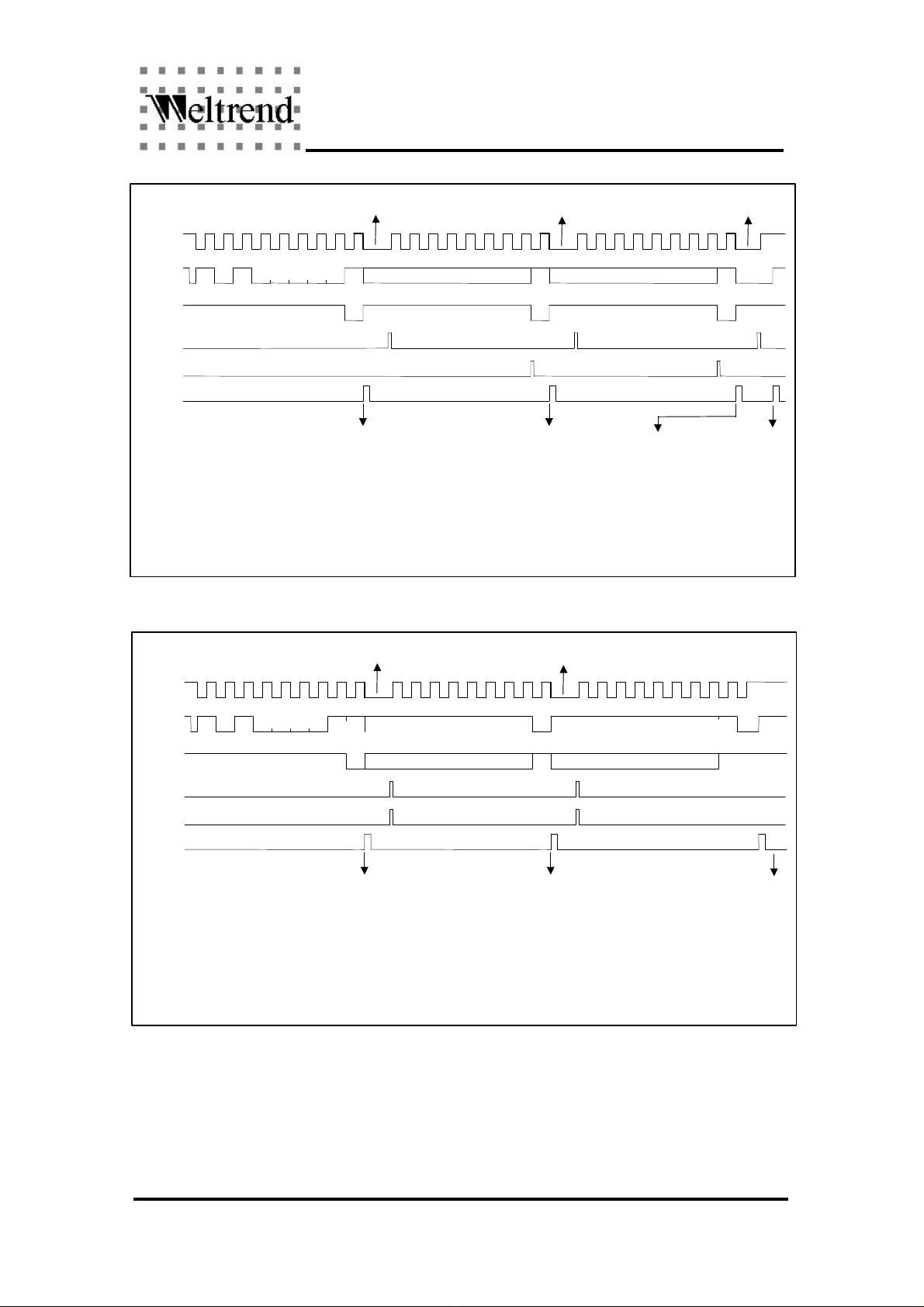

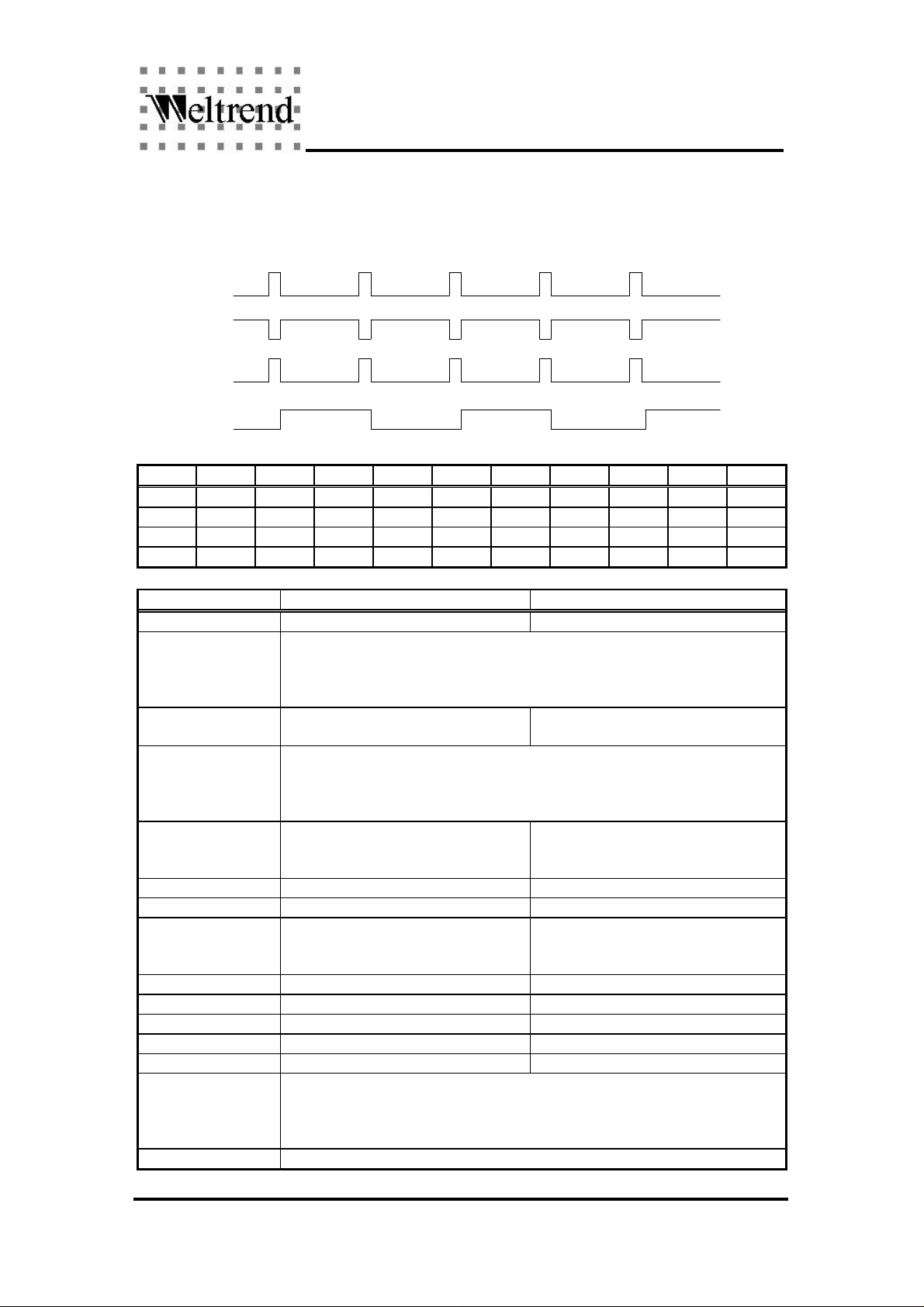

Half Frequency

HLFO pin outputs same or half frequency from HLFI pin. The divide-by-2 operation is done on the falling edge of HLFI pin when HALF bit is set. Polarity of HLFO is specified by HLFPO bit.

HLFI

HLFO (HALF=0) (HLFPO=0)

HLFO (HALF=0) (HLFPO=1)

HLFO

(HALF=1)

R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0016H W -- 0 0 ENPAT PAT1 PAT0 SELF H64K H48K 0016H R -- F9 F8 F7 F6 F5 F4 F3 F2 0017H W -- -- -- ENHLF HALF HLFPO H+V HOP VOP 0017H R 00H H/V -- H_POL V_POL OVF2 OVF1 F1 F0

Bit Name Bit value = “1” Bit value = “0”

ENPAT Pin PB3/PAT outputs test pattern. Pin PB3/PAT is I/O port.

PAT1,PAT0 If PAT1=0, PAT0=0, cross hatch picture.

If PAT1=0, PAT0=1, white picture. If PAT1=1, PAT0=0, inverted cross hatch picture. If PAT1=1, PAT0=1, black picture.

SELF HSO and VSO output free-running

HSO and VSO output sync signals.

frequency.

H64K, H48K H64K=“1”,H48K=“1” : Burn-in frequency=47.9kHz/74.9Hz

H64K=“0”,H48K=“1” : Burn-in frequency=47.9kHz/74.9Hz H64K=“1”,H48K=“0” : Burn-in frequency=64kHz/62.5Hz H64K=“0”,H48K=“0” : Burn-in frequency=31.1kHz/60.8Hz

ENHLF Pin PB1/HLFI is frequency input.

Pin PB0/HLFO is half frequency

Pin PB1/HLFI and PB0/HLFO is I/O port.

output.

HALF HLFO outputs half frequency of HLFI. HLFO outputs same frequency of HLFI

HLFPO HLFO is positive polarity. HLFO is negative polarity.

H+V Enable H+V separation function.

Disable H+V separation. This will select the sync signals come from the sync separator.

HOP HSO pin is always positive polarity. HSO pin is always negative polarity. VOP VSO pin is always positive polarity. VSO pin is always negative polarity.

H/V Counter stores horizontal frequency. Counter stores vertical frequency. H_POL HSYNC input is positive polarity. HSYNC input is negative polarity. V_POL VSYNC input is positive polarity. VSYNC input is negative polarity.

OVF2, OVF1 OVF2=“1”,OVF1=“0” : Counter overflowed twice.

OVF2=“0”,OVF1=“1” : Counter overflowed once. OVF2=“0”,OVF1=“0” : No overflow. OVF2=“1”,OVF1=“1” : No such condition.

F9-F0 Frequency counter value. (F9 is MSB)

Weltrend Semiconductor, Inc.

Page 12

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

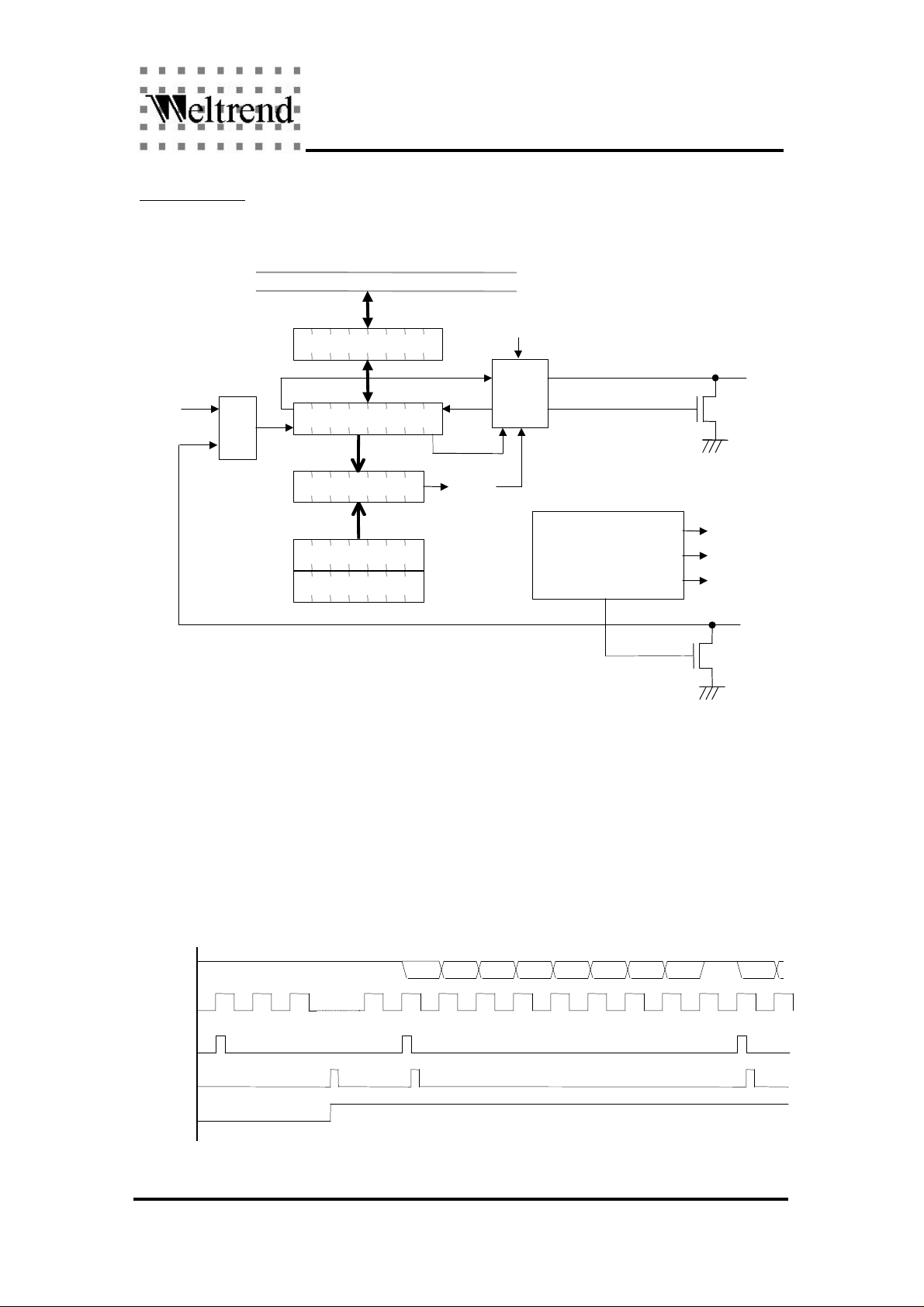

DDC Interface

The DDC interface is a slave mode I2C interface with DDC1 function. It is fully compatible with VEAS DDC1/2B standard. The functional block diagram is shown in the below.

Internal Data Bus

R/W

ADDR

ENACK

I/O

START/STOP Detect Handshake Control

START STOP

DDC2B

SCL

VSYNC

MUX

Data Buffer

Shift Register

Address Compare

MSB

1 10 0 0 0 0

Address Register

After power on or reset the DDC interface, it is in DDC1 state. The shift register shifts out data to SDA pin on the rising edge of VSYNC clock. Data format is an 8-bit byte followed by a null bit. Most significant bit (MSB) is transmitted first. Every time when the ninth bit has been transmitted, the shift register will load a data byte from data buffer (REG#18H). After loading data to the shift register, the data buffer becomes empty and generates an INT0 interrupt. So the program must write one data byte into REG#18 every nine VSYNC clocks.

Since the default values of data buffer(REG#22) and shift register are FFH, the SDA pin outputs high level if no data had been written into data buffer after power on reset. When program finished initialization and set the IEN_D bit to "1", the INT0 will occur because the data buffer is empty. The INT0 service routine should check the DDC2B bit is "0" and then writes the first EDID data byte into data buffer. When the second INT0 occurs, the INT0 service routine writes the second EDID data byte into data buffer and so on.

SDA

VSYNC

Load data to

shift register

INT0

IEN_D

1 2183

9 10 19

Weltrend Semiconductor, Inc.

Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Bit7

Page 13

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

If a low level occurs on the SCL pin in DDC1 state, the DDC interface will switch to DDC2B state immediately and set the DDC2B bit to "1". No interrupt will be generated. But, if there is no valid device address and it receives 128 VSYNC pulses while the SCL is high level, it will go back to DDC1 state automatically. If it receives a valid device address, it will lock into DDC2B state and disregard VSYNC.

In some case, program wants to go back DDC1 state, set RDDC bit in REG#1AH and reset it again. This operation resets the DDC interface to the initial condition.

When it is in DDC2B state, the VSYNC clock is disregarded and the communication protocol follows the DDC standard. The data format on SDA pin is:

S Address R/W A D7,D6,...., D0 A D7,D6,...., D0 A P

S : Start condition. A falling edge occurs when SCL is high level. P : Stop condition. A rising edge occurs when SCL is high level. A : Acknowledge bit. “0” means acknowledge and “1” means non-acknowledge. Address : 7-bit device address.

R/W : Read/Write control bit, "1" is read and "0" is write.

D7,D6,...., D0 : data byte.

The hardware operations in DDC2B state are :

(1) START/STOP detection

When the START condition is detected, the DDC interface is enabled and set START bit to "1". When the STOP condition is detected, the DDC interface is disabled, set STOP bit to "1" and

generate INT0 interrupt. The START bit is cleared when the following data byte received. The STOP bit is cleared after writing REG#19H.

(2) Address Recognition

It contains two device addresses in WT6018. One fixed address (‘1010000’ ) is for EDID reading and one programmable address (REG#19H) is for external control, such as auto alignment. If the address is equal to "1010000", set ADDR bit to "0". If the address is equal to the bit A6 to bit A0 (REG#19H), set ADDR bit to "1". If the address is not equal to anyone above, the DDC interface will not response acknowledge. The ADDR bit is updated when a new device address is received.

(3) Store R/W bit and decide the direction of SDA pin The R/W bit on the SDA pin will be stored in the RW bit.

(4) Acknowledge bit control/detection Acknowledge bit control in receive direction : If ENACK=1 and address compare is true, response acknowledge (Acknowledge bit ="0"). If ENACK=0 or address compare is false, response non-acknowledge (Acknowledge bit ="1").

Acknowledge bit detect in transmit direction : If the acknowledge bit is "1" , the DDC interface will be disabled and release the SDA pin. If the acknowledge bit is "0" , the DDC interface keeps on communicating.

Weltrend Semiconductor, Inc.

Page 14

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

(5) Data bytes transmit/receive If the RW bit is "1", the shift register will load data from the data buffer (REG#18H) before the data byte is transmitted and shift out data to the SDA pin before the rising edge of the SCL clock. If the RW bit is "0", the shift register will shift in data on the rising edge of the SCL clock and the whole data byte is latched to the data buffer(REG#18H).

(6) Handshaking procedure

The handshaking is done on the byte level. The DDC interface will hold the SCL pin low after the acknowledge bit automatically. The bus master will be forced to wait until the WT6018 is ready for the next byte transfer. To release the SCL pin, write REG#19H will release clear the wait state.

(7) Interrupt INT0 The DDC interface interrupt is enabled by setting the IEN_D bit in the REG#1AH. Interrupt INT0 occurs when:

- Transmit buffer empty in DDC1 state. The INT0 occurs when the shift register load data from data buffer. Write REG#18H will clear the transmit buffer empty condition.

- Acknowledge is detected in DDC2B state. The INT0 occurs on the falling edge of the SCL clock after the acknowledge had been detected. The SCL pin will be pulled low to force the bus master to wait until the service routine write REG#19H.

- STOP condition occurs in DDC2B mode

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0018H R/W FFH D7 D6 D5 D4 D3 D2 D1 D0 0019H R 40H DDC2B ADDR RW START STOP -- -- -0019H W A0H A6 A5 A4 A3 A2 A1 A0 ENACK

Bit Name Bit value = “1” Bit value = “0”

DDC2B DDC2B state. DDC1 state.

ADDR received address equals to the address

in REG#19H(W).

RW received R/W bit is ‘1’ . received R/W bit is ‘0’ .

START START condition is detected. No START condition is detected.

STOP STOP condition is detected. No STOP condition is detected.

ENACK Enable acknowledge. Disable acknowledge.

A6,A5, …., A0 7-bit slave address D7,D6, …., D0 Data to be transmitted or received data.

received address equals to ‘1010000’ .

Weltrend Semiconductor, Inc.

Page 15

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

SCL SDA

SDA

Out

Write REG#19H to release SCL

Shift register to data buffer

INT0

1 010

0 0 0

Pull low SCL

A A A

DDC2B=1 ADDR=0 R/W=0 START=1

STOP=0

Data Byte Data Byte

Pull low SCL

DDC2B=1 ADDR=0 R/W=0 START=0 STOP=0

DDC2B=1 ADDR=0

R/W=0 START=0 STOP=0

DDC2B state write timing

Pull low SCL

DDC2B=1 ADDR=0 R/W=0 START=0

STOP=1

SCL SDA

SDA

Out

Write REG#19H to release SCL

Data buffer to shift reg

INT0

1 110 0 0 0 0

DDC2B=1 ADDR=0 R/W=1

START=1 STOP=0

Data Byte Data Byte

DDC2B state read timing

DDC2B=1 ADDR=0 R/W=1 START=0

STOP=0

DDC2B=1 ADDR=0 R/W=1

START=0 STOP=1

Weltrend Semiconductor, Inc.

Page 16

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

I2C Interface

This is a master/slave mode I2C interface. In slave mode, the structure is same as the DDC2B mode of DDC interface.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

001DH R/W FFH ID7 ID6 ID5 ID4 ID3 ID2 ID1 D0 001EH W 00H IA6 IA5 IA4 IA3 IA2 IA1 IA0 ENADR

001FH R -- MS ACK BB AL RW START -- -001FH W 00H MSS MACK CLK ENI2C 0 0 0 0

Bit Name Bit value = “1” Bit value = “0”

MS I2C interface is in master mode. I2C interface is in slave mode.

ACK Received Acknowledge bit is “1”. Received Acknowledge bit is “0”.

BB Bus busy. Bus idle. AL Arbitration loss. Arbitration success.

RW Received R/W bit is “1”. Received R/W bit is “0”.

START START condition is detected. No START condition is detected.

ENADR Enable address compare. No address compare.

MSS Set master mode. If this bit is from

0à1, it will send START.

MACK Master send acknowledge. Master send non-acknowledge.

CLK SCL2 pin clock frequency is 996Hz. SCL2 pin clock frequency is 62.5kHz.

ENI2C Enable I2C interface. Disable I2C interface. These two pins

IA6,IA5, ….,IA0 7-bit device address of I2C interface. ID7,ID6, ….,ID0 Data to be transmitted(W) or received data(R).

Set slave mode. If this bit is from 1à0, it will send a STOP.

become I/O pins and reset I2C interface.

Write data to register $001EH will send out clock for receive or transmit one data byte.

Weltrend Semiconductor, Inc.

Page 17

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

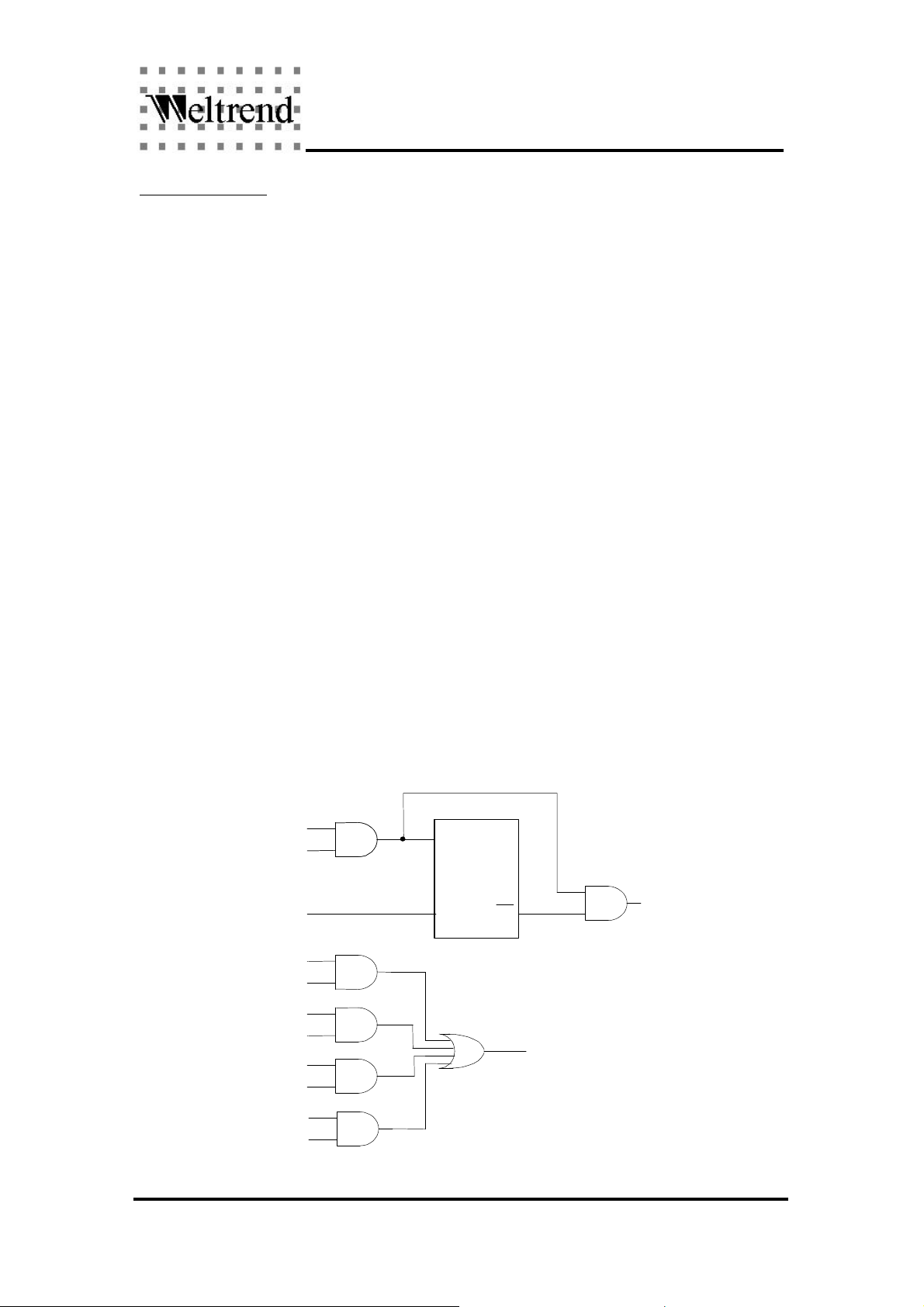

Interrupt Control

There are two interrupt sources : INT0 and INT1. INT0 has the higher priority.

Interrupt vector :

INT0 : FFFAH (low byte) and FFFBH (high byte).

INT1 : FFFEH (low byte) and FFFFH (high byte).

INT0 occurs when :

(1) data buffer empty in the DDC1 mode (DDC="1" and DDC2B="0").

(2) acknowledge or STOP condition is detected in the DDC2B mode (DDC="1" and DDC2B="0").

INT1 occurs when :

(1) a falling edge or a low level occurs on the /IRQ pin (EXT="1"). (2) the timer is time out (TIM="1").

(3) SYNC processor has a valid frequency (SYNC="1"). If H/V ="0" , it is vertical frequency ready. If H/V ="1" , it is horizontal frequency ready. (4) I2C interface interrupt.

INT0 is cleared when :

(1) writing the REG#18H in DDC1 state. (2) writing the REG#19H in DDC2B state.

INT1 is cleared when :

(1) reading the REG#1AH if EXT="1".

(2) reading the REG#1BH if TIM="1".

(3) reading the REG#16H if SYNC="1". (4) writing the REG#1EH if I2C=”1”.

IEN_D

DDC

IEN_X

IRQ

Q4MHz

INT0

IEN_T

TOUT

IEN_S

FRDY

IEN_I2C

I2C

Weltrend Semiconductor, Inc.

INT1

Page 18

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

001AH W 00H IEN_X IEN_T IEN_S IEN_D EDGE RDDC 0 IEN_I2C 001AH R 00H EXT TIM SYNC DDC IRQ TOUT FRDY I2C

Bit Name Bit value = “1” Bit value = “0”

IEN_X Enable /IRQ pin interrupt. Disable /IRQ pin interrupt.

IEN_T Enable timer interrupt. Disable timer interrupt. IEN_S Enable SYNC processor interrupt. Disable SYNC processor interrupt.

IEN_D Enable DDC interface interrupt. Disable DDC interface interrupt.

EDGE /IRQ pin interrupt is edge trigger. /IRQ pin interrupt is level trigger. RDDC Reset DDC interface.

It will always reset DDC interface if this bit keeps “1”.

IEN_I2C Enable I2C interface interrupt. Disable I2C interface interrupt.

EXT /IRQ pin interrupt occurs. No /IRQ pin interrupt.

TIM Timer interrupt occurs. No timer interrupt.

SYNC SYNC processor interrupt occurs. No SYNC processor interrupt.

DDC DDC interface interrupt occurs. No DDC interface interrupt.

IRQ /IRQ pin is low level /IRQ pin is high level TOUT Timer is time-out. Timer is not time-out. FRDY H/V frequency counter is ready.

The counter value is valid.

I2C I2C interface interrupt occurs. No I2C interface interrupt.

Clear the reset of DDC interface.

H/V frequency counter is not ready. The counter value is invalid.

Weltrend Semiconductor, Inc.

Page 19

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

Timer

It is a 8-bit down counter and clock frequency is 976.5625Hz (period=1.024ms). The timer is started by writing a value into REG#1BH. When the timer counts down to zero, the timer stops, sets the TOUT bit and generates an INT1 interrupt (if the IEN_T bit is "1"). The TOUT bit will be cleared after REG#1BH is read.

Watch-Dog Timer

The watch-dog timer is always enable after power is on. Software must clear the watch-dog timer within every 524ms. If the watch-dog timer expired, It will cause the whole chip reset just like external reset.

To clear the watch-dog timer, write any data to REG#1CH.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

001BH R/W -- TM7 TM6 TM5 TM4 TM3 TM2 TM1 TM0 001CH W -- WDT WDT WDT WDT WDT WDT WDT WDT

Bit Name Bit value

TM7 to TM0 Timer value (0 - 255)

WDT Write any value to this register will reset the watchdog timer.

Weltrend Semiconductor, Inc.

Page 20

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

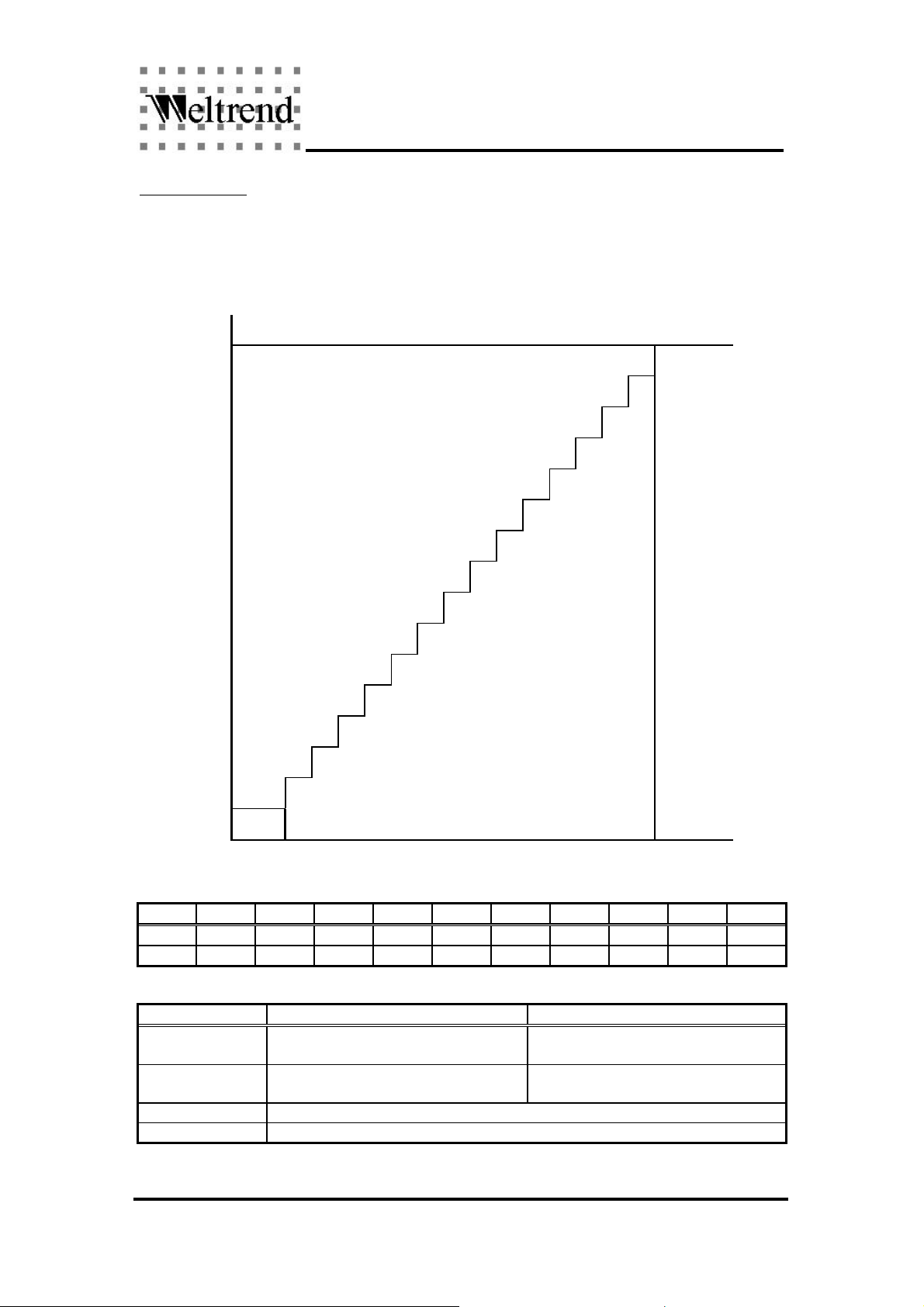

A/D Converter

Two 4-bit A/D converter inputs are shared with I/O port_C PC0 and PC1. Use ENAD1 bit and ENAD0 bit to enable the corresponding A/D converter. The sampling rate is 488.3Hz and converted value is store in REG#20H.

4-bit data

1111

1110

1101

1100

1011

1010

1001

1000

0111

0110

0101

0100

0011

0010

0001

0000

Volt

0 0.75 4.02

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0020H R -- AD13 AD12 AD11 AD10 AD03 AD02 AD01 AD00 0020H W 00H 0 0 0 0 0 0 ENAD1 ENAD0

Bit Name Bit value = “1” Bit value = “0”

ENAD1 Enable A/D converter 1.

Pin PC1 is the input of A/D converter 1.

ENAD0 Enable A/D converter 0.

Pin PC0 is the input of A/D converter 0.

Disable A/D converter 1. Pin PC1 is I/O. Disable A/D converter 0.

Pin PC0 is I/O. AD13,…,AD10 4-bit data of A/D converter 1. AD03,…,AD00 4-bit data of A/D converter 0.

Weltrend Semiconductor, Inc.

Page 21

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

Initial

R/W

Address

0000H R/W 80H DA07DA0 0001H R/W 80H DA17DA1 0002H R/W 80H DA27DA2 0003H R/W 80H DA37DA3 0004H R/W 80H DA47DA4 0005H R/W 80H DA57DA5 0006H R/W 80H DA67DA6 0007H R/W 80H DA77DA7 0008H R/W 80H DA87DA8

0009H R/W 80H DA97DA9 000AH R/W 80H DA107DA106DA105DA104DA103DA102DA101DA10 000BH R/W 80H DA117DA116DA115DA114DA113DA112DA111DA11 000CH R/W 80H DA127DA126DA125DA124DA123DA122DA121DA12 000DH R/W 80H DA137DA136DA135DA134DA133DA132DA131DA13 000EH Reserved

0010H W 00H EHO EVO EDA13 EDA12 EDA11 EDA10 EDA9 EDA8

0012H W 00H 0 PB6OE PB5OE PB4OE PB3OE PB2OE PB1OE PB0OE

0014H W 00H PC7OE PC6OE PC5OE PC4OE PC3OE PC2OE PC1OE PC0OE

0018H R/W FFH D7 D6 D5 D4 D3 D2 D1 D0

001BH R/W X TM7 TM6 TM5 TM4 TM3 TM2 TM1 TM0 001CH W X CWDT CWDT CWDT CWDT CWDT CWDT CWDT CWDT 001DH R/W FFH ID7 ID6 ID5 ID4 ID3 ID2 ID1 D0 001EH W 00H IA6 IA5 IA4 IA3 IA2 IA1 IA0 ENI2C

001FH R -- MS ACK BB AL RW START -- --

001FH W 00H MSS MACK CLK ENI2C 0 0 0 0

value Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

DA05DA04DA03DA02DA01DA0 DA15DA14DA13DA12DA11DA1 DA25DA24DA23DA22DA21DA2 DA35DA34DA33DA32DA31DA3 DA45DA44DA43DA42DA41DA4 DA55DA54DA53DA52DA51DA5 DA65DA64DA63DA62DA61DA6 DA75DA74DA73DA72DA71DA7 DA85DA84DA83DA82DA81DA8 DA95DA94DA93DA92DA91DA9

R X -- -- -- -- -- -- PD1R PD0R000FH

W 00H 0 0 0 ENPD PD1OE PD0OE PD1W PD0W

R X PA7R PA6R PA5R PA4R PA3R PA2R PA1R PA0R0011H

W FFH PA7W PA6W PA5W PA4W PA3W PA2W PA1W PA0W

R X -- PB6R PB5R PB4R PB3R PB2R PB1R PB0R0013H

W FFH 1 PB6W PB5W PB4W PB3W PB2W PB1W PB0W

R FFH PC7R PC6R PC5R PC4R PC3R PC2R PC1R PC0R0015H

W X PC7W PC6W PC5W PC4W PC3W PC2W PC1W PC0W

R X F9 F8 F7 F6 F5 F4 F3 F20016H

W 00H 0 0 ENPAT PAT1 PAT0 SELF H62K H48K

R 00H H/V -- H_POL V_POL OVF2 OVF1 F1 F00017H

W X 0 0 ENHLF HALF HLFPO H+V HOP VOP

R 40H DDC2B ADDR RW START STOP -- -- --0019H

W A0H A6 A5 A4 A3 A2 A1 A0 ENACK

R 00H EXT TIM SYNC DDC IRQ TOUT FRDY I2C001AH

W 00H IEN_X IEN_T IEN_S IEN_D EDGE RDDC 0 IEN_I2C

R X AD13 AD12 AD11 AD10 AD03 AD02 AD01 AD000020H

W 00H 0 0 0 0 0 0 ENAD1 ENAD0

X : No default value.

-- : No function. 0 : Must write 0..

Weltrend Semiconductor, Inc.

Page 22

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

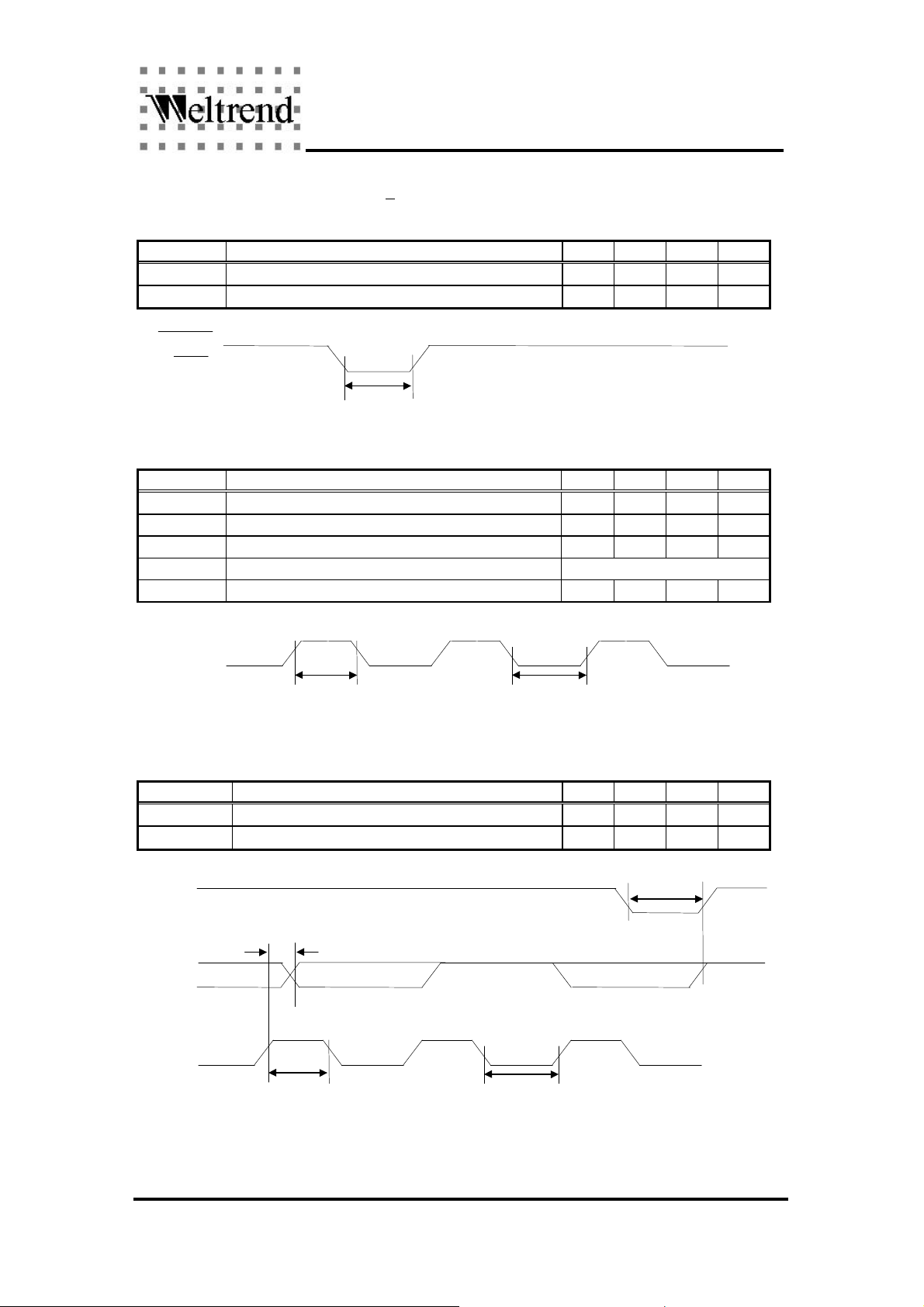

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

Parameter Min. Max Units DC Supply Voltage (VDD) -0.3 7.0 V Input and output voltage with respect to Ground

All pins except DA0 to DA7 DA0 to DA7

Storage temperature -65 150 Ambient temperature with power applied -10 70

* Note : Stresses above those listed may cause permanent damage to the device.

D.C. Characteristics ( VDD=5.0V + 5% , Ta=0 - 70 OC)

Symbol Parameter Condition Min. Typ. Max. Units

RESET

SIH

SIL

Supply Voltage 4.0 5 5.5 V

Input High Voltage All input pins (except HSYNC and VSYNC) 3.0 - VDD+

Input Low Voltage All input pins (except HSYNC and VSYNC) -0.3 - 1.5 V Sync Input High

Voltage Sync Input Low Voltage Output High Voltage

Output Low Voltage

Input Leakage Current SDA, SCL, HSYNC and VSYNC pins ( V

Pull High Resistance VIN=0.8V

Operating Current No load - 3 20 mA Reset Voltage /RESET pin 3.8 4.0 4.2 V

HSYNC and VSYNC pin 2.0 - VDD+

HSYNC and VSYNC pin -0.3 - 0.8 V

IOH= -100uA PA0-PA7 pins IOH= -6mA PB0-PB6, PC0-PC7, PD0, PD1, DA8-DA13,

HSO, VSO and HSO pins DA0-DA7 pins (external voltage) - - 10.5 V SCL and SDA pins (open drain) - - 5.5 V IOL= 5mA PA0-PA7, PB0-PB6, PD0-1, DA0-DA13, SCL, SDA, VSO and HSO pins IOL= 10mA PC0-PC7 pins

= 0 to 5V)

PA0-PA7, PB0-PB6, PC0-PC7, /RESET and /IRQ pins

-0.3

VDD+0.3

11.5V

3.5 - - V

- - 0.4 VV

- - 0.4 V

-10 - 10 uA

16 22 28 Kohm

0.3

V V

Weltrend Semiconductor, Inc.

Page 23

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

A.C. Characteristics ( VDD=5.0V + 5%, fosc=8MHz, Ta=0 - 70OC)

RESET and IRQ Timing

Symbol Parameter Min. Typ. Max. Units

LOW,RES

LOW,IRQ

RESET

IRQ

SYNC Processor Timing

Symbol Parameter Min. Typ. Max. Units

HIGH,SYNC

LOW,SYNC

FPW,HSO

FPW,VSO

IPW,HSO

/RESET pin low pulse 250 - - ns /IRQ low pulse (level trigger) 250 - - ns

LOW,RES

HIGH,IRQ

HSYNC and VSYNC high time 250 - - ns HSYNC and VSYNC low time 250 - - ns Self generated free-running HSO pulse width - 2 - us Self generated free-running VSO pulse width 4 x HSO period Inserted Hsync pulse width (composite sync input) - 2 - us

HSYNC VSYNC

HIGH,SYNC

LOW,SYNC

DDC1 Timing

Symbol Parameter Min. Typ. Max. Units

VAA,DDC1

SCL

SDA

SDA output valid from VSYNC rising edge 125 - 500 ns Mode transition time (DDC1 to DDC2B) - - 500 ns

VAA,DDC1

Bit 0 (LSB)

Bit 7 (MSB)Null Bit

VSYNC

HIGH,SYNC

LOW,SYNC

Weltrend Semiconductor, Inc.

Page 24

WT6016

Digital Monitor Controller

Ver. 1.51 Jul-31-1998

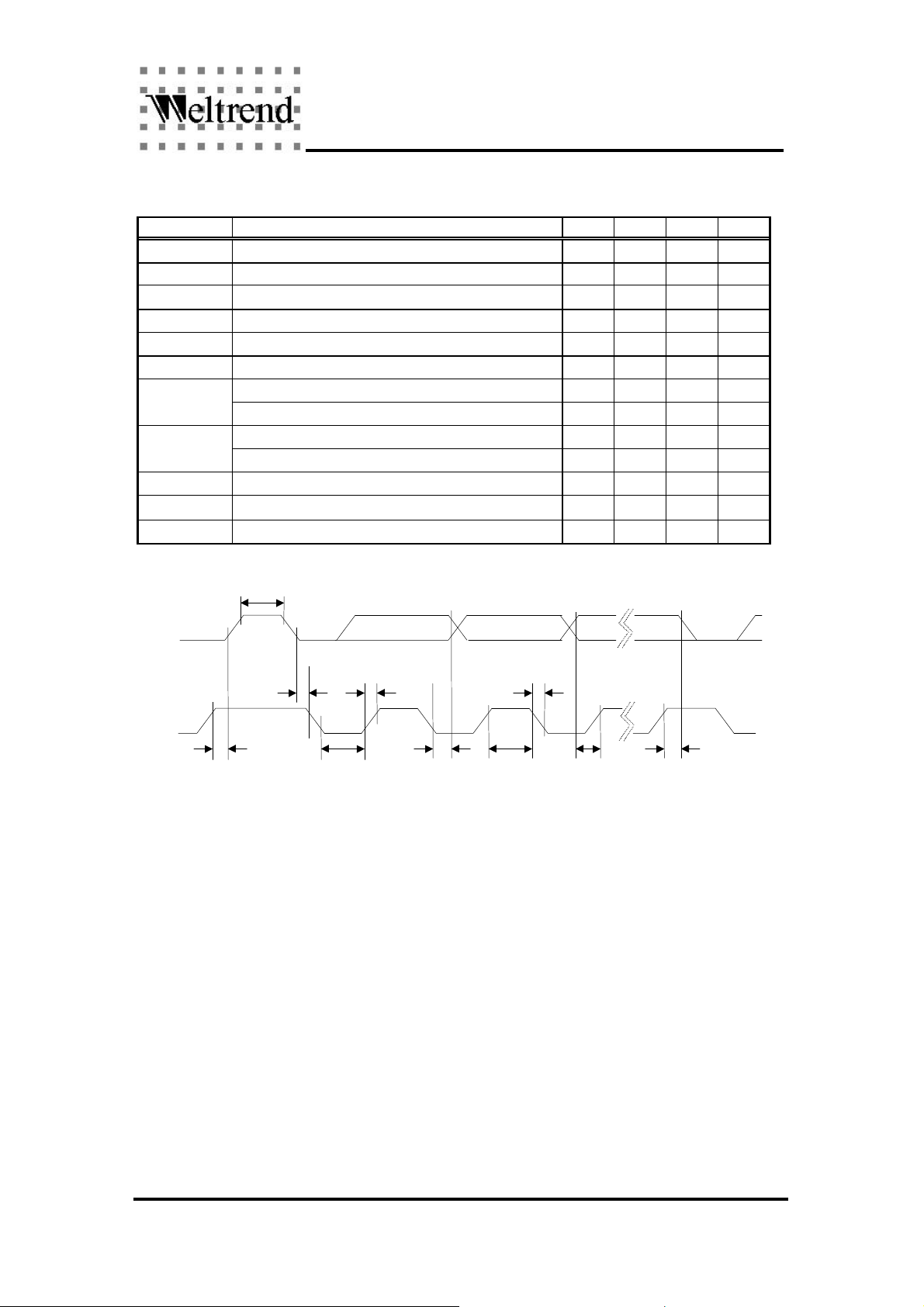

DDC2B Timing

Symbol Parameter Min. Typ. Max. Units

SCL

HD,START

SU,START

HIGH,SCL

LOW,SCL

HD,DATA

SU,DATA

RISE

FALL

SU,STOP

SCL input clock frequency 0 - 100 kHz Bus free time 2 - - us Hold time for START condition 1 - - us Set-up time for START condition 1 - - us SCL clock high time 1 - - us SCL clock low time 1 - - us Hold time for DATA input 0 - - nst Hold time for DATA output 250 - - ns Set-up time for DATA input 250 - - nst Set-up time for DATA output 500 - - ns SCL and SDA rise time - - 1 us SCL and SDA fall time - - 300 ns

Set-up time for STOP condition 4 - - us

SDA

SCL

SU,STOP

HD,START

LOW,SCL

RISE

HD,DATA

HIGH,SCL

FALL

SU,DATA

SU,START

Weltrend Semiconductor, Inc.
