Datasheet WT6014 Datasheet (WELTREND)

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

GENERAL DESCRIPTION

The WT6014 is a member of WT60XX microcontroller family. It is specially designed for digital
controlled multi-sync monitor. It contains 8-bit CPU, 4K bytes ROM, 128 bytes RAM, 14 PWMs,
parallel I/O, SYNC processor, timer, DDC interface (slave mode I2C interface with DDC1), and
watch-dog timer.

FEATURES

* 8-bit 6502 compatible CPU, 4MHz operating frequency
* 4096 bytes ROM, 128 bytes SRAM
* 8MHz crystal oscillator
* 14 channels 8-bit/62.5kHz PWM outputs (8 open drain outputs & 6 CMOS outputs)
* Sync signal processor with sync separation, frequency calculation, H/V polarity detection control
* DDC interface supports VESA DDC1/DDC2B standard
* Watch-dog timer (0.524 second)
* Maximum 22 programmable I/O pins
* One 8-bit programmable timer
* One external interrupt request
* Built-in low VDD voltage reset
* Single +5V power supply

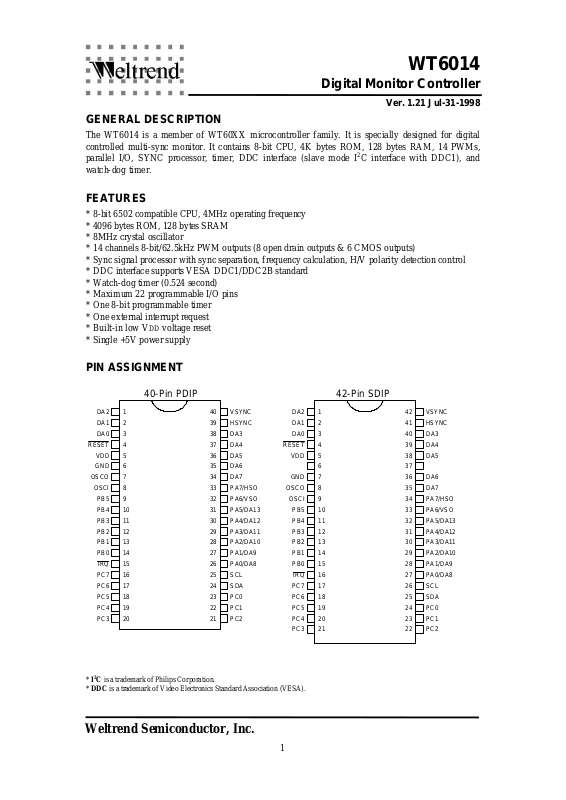

PIN ASSIGNMENT

1

DA2

2

DA1

3

DA0

RESET

OSCO

OSCI

4
5

VDD

6

GND

7
8
9

PB5

10

PB4

11

PB3

12

PB2

13

PB1

14

PB0

15

IRQ

16

PC7 SCL

17

PC6

18

PC5

19

PC4

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
2120

VSYNC
HSYNC
DA3
DA4
DA5
DA6
DA7
PA7/HSO
PA6/VSO
PA5/DA13
PA4/DA12
PA3/DA11
PA2/DA10
PA1/DA9
PA0/DA8

SDA
PC0
PC1
PC2PC3

42-Pin SDIP40-Pin PDIP

1

DA2

2

DA1

3

DA0

RESET

OSCO

OSCI

4
5

VDD

6
7

GND

8
9
10

PB5

11

PB4

12

PB3

13

PB2

14

PB1

15

PB0

16

IRQ

17

PC7 SCL

18

PC6

19

PC5

20

PC4

42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
2221

VSYNC
HSYNC
DA3
DA4
DA5

DA6
DA7
PA7/HSO
PA6/VSO
PA5/DA13
PA4/DA12
PA3/DA11
PA2/DA10
PA1/DA9
PA0/DA8

SDA
PC0
PC1
PC2PC3

* I2C is a trademark of Philips Corporation.
* DDC is a trademark of Video Electronics Standard Association (VESA).

Weltrend Semiconductor, Inc.

1

Digital Monitor Controller

PIN DESCRIPTION

Pin No. Pin Name I/O Descriptions

40 42

1 1 DA2 O
2 2 DA1 O
3 3 DA0 O
4 4 /RESET I
5 5 VDD
6 7 GND
7 8 OSCO O
8 9 OSCI I
9 10 PB5 I/O

10 11 PB4 I/O
11 12 PB3 I/O
12 13 PB2 I/O
13 14 PB1 I/O
14 15 PB0 I/O
15 16 /IRQ I/O
16 17 PC7 I/O

17 18 PC6 I/O
18 19 PC5 I/O
19 20 PC4 I/O
20 21 PC3 I/O
21 22 PC2 I/O
22 23 PC1 I/O
23 24 PC0 I/O
24 25 SDA I/O
25 26 SCL I/O
26 27 PA0/DA8 I/O

27 28 PA1/DA9 I/O
28 29 PA2/DA10 I/O
29 30 PA3/DA11 I/O
30 31 PA4/DA12 I/O
31 32 PA5/DA13 I/O
32 33 PA6/VSO I/O

33 34 PA7/HSO I/O

34 35 DA7 O
35 36 DA6 O
36 38 DA5 O
37 39 DA4 O
38 40 DA3 O
39 41 HSYNC I
40 42 VSYNC I

D/A converter 2. Open-drain output. External applied voltage can up to 10V.
D/A converter 1. Open-drain output. External applied voltage can up to 10V.
D/A converter 0. Open-drain output. External applied voltage can up to 10V.
Reset. Active low. Schmitt trigger input, Internal pull high.
Power supply (+5V).
Ground (0V).
Oscillator Output. Connects a 8MHz crystal.
Oscillator Input. Connects a 8MHz crystal.
I/O Port B5. When it is an input pin, it has an internal pull-up resistor. When it is

an output pin, the sink current is 5mA and the source current is 5mA.

I/O Port B4. Same as PB5.
I/O Port B3. Same as PB5.
I/O Port B2. Same as PB5.
I/O Port B1. Same as PB5.
I/O Port B0. Same as PB5.
Interrupt Request . It has an internal pull high resistor.
I/O Port C7. When it is an input pin, it has an internal pull-up resistor. When it is

an output pin, the sink current is 10mA and the source current is 5mA.

I/O Port C6. Same as PC7.
I/O Port C5. Same as PC7.
I/O Port C4. Same as PC7.
I/O Port C3. Same as PC7.
I/O Port C2. Same as PC7.
I/O Port C1. Same as PC7.
I/O Port C0. Same as PC7.
DDC serial data.
DDC serial clock.
I/O Port A0 or D/A converter 8. This pin can be the output of D/A converter 8

(source/sink = 5mA) or an I/O pin (source = -100uA, sink = 5mA).

I/O Port A1 or D/A converter 9. Same as PA0/DA8.
I/O Port A2 or D/A converter 10. Same as PA0/DA8.
I/O Port A3 or D/A converter 11. Same as PA0/DA8.
I/O Port A4 or D/A converter 12. Same as PA0/DA8.
I/O Port A5 or D/A converter 13. Same as PA0/DA8.
I/O Port A6 / VSYNC OUT. This pin can be the output of VSYNC or an I/O pin.

When as an I/O pin, it is same as PA0.
I/O Port A7 / HSYNC OUT. This pin can be the output of HSYNC or an I/O pin.
When as an I/O pin, it is same as PA0.

D/A converter 7. Open-drain output. External applied voltage can up to 10V.
D/A converter 6. Open-drain output. External applied voltage can up to 10V.
D/A converter 5. Open-drain output. External applied voltage can up to 10V.
D/A converter 4. Open-drain output. External applied voltage can up to 10V.
D/A converter 3. Open-drain output. External applied voltage can up to 10V.
HSYNC input. Schmitt trigger input.
VSYNC input. Schmitt trigger input.

WT6014

Ver. 1.21 Jul-31-1998

Weltrend Semiconductor, Inc.

2

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

FUNCTIONAL DESCRIPTION

CPU

The CPU core is 6502 compatible, operating frequency is 4MHz. Address bus is 16-bit and data bus is
8-bit. the non-maskable interrupt (/NMI) of 6502 is changed to maskable interrupt and is defined as
the INT0. The interrupt request (/IRQ) of 6502 is defined as the INT1.
The initial stack pointer is 00FFH, because page 1 and page 0 are mapped to same area.
Please refer the 6502 reference menu for more detail.

ROM

4096 bytes maskable ROM is provided for program codes.
Address is located from F000H to FFFFH.
The following addresses are reserved for special purpose :
FFFAH (low byte) and FFFBH (high byte) : INT0 interrupt vector.
FFFCH (low byte) and FFFDH (high byte) : program reset vector.
FFFEH (low byte) and FFFFH (high byte) : INT1 interrupt vector.

RAM

Built-in 128 bytes SRAM, address is located from 0080H to 00FFH

:

:

:

:

:

:
:
:

Low VDD Voltage Reset

0000H

REGISTERS

001CH
001DH

Reserved

007FH
0080H

RAM

00FFH

0100H

Page 1 mapped to Page 0

01FFH

0200H

Reserved

EFFFH

F000H

ROM

FFFFH

A VDD voltage detector is built inside the chip. When VDD is below 4.0 volts, the whole chip will be
reset just like power-on-reset.

Note that the 4.0 volts varies with temperature and process. Please refer the electrical characteristics.

Weltrend Semiconductor, Inc.

3

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

PWM D/A Converter

The WT6014 provides 14 PWM D/A converters. DA0 to DA7 are open-drain outputs and external
applied voltage on these pins can be up to 10 volts. DA8 to DA13 are 5 volts push-pull CMOS outputs
and are shared with I/O Port PA0 to PA5. All D/A converters are 62.5kHz frequency with 8-bit
resolution. Each D/A converter is controlled by the corresponding register (REG#00H to REG#0DH),
the duty cycle can be programmed from 1/256 (data = 01H) to 255/256 (data = FFH).

Duty cycle = 1/256

62.5ns

Duty cycle = 2/256
125ns

62.5ns
Duty cycle = 255/256
1/62.5kHz=16us

To program the PWM D/A converters, write the corresponding registers ( REG#00H to REG#0DH).

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0000H R/W 80H DA07DA06DA05DA04DA03DA02DA01DA0
0001H R/W 80H DA17DA16DA15DA14DA13DA12DA11DA1
0002H R/W 80H DA27DA26DA25DA24DA23DA22DA21DA2
0003H R/W 80H DA37DA36DA35DA34DA33DA32DA31DA3
0004H R/W 80H DA47DA46DA45DA44DA43DA42DA41DA4
0005H R/W 80H DA57DA56DA55DA54DA53DA52DA51DA5
0006H R/W 80H DA67DA66DA65DA64DA63DA62DA61DA6
0007H R/W 80H DA77DA76DA75DA74DA73DA72DA71DA7
0008H R/W 80H DA87DA86DA85DA84DA83DA82DA81DA8
0009H R/W 80H DA97DA96DA95DA94DA93DA92DA91DA9

000AH R/W 80H DA107DA106DA105DA104DA103DA102DA101DA10

000BH R/W 80H DA117DA116DA115DA114DA113DA112DA111DA11
000CH R/W 80H DA127DA126DA125DA124DA123DA122DA121DA12
000DH R/W 80H DA137DA136DA135DA134DA133DA132DA131DA13

Bit Name Bit value

DAx7-DAx0 01H : 1/256 duty cycle

02H : 2/256 duty cycle
03H : 3/256 duty cycle
:
FFH : 255/256 duty cycle

0
0
0
0
0
0
0
0
0
0

0
0
0
0

** Do not write 00H to the PWM registers. This will cause unstable
output on the corresponding pin.

Weltrend Semiconductor, Inc.

4

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

I/O Ports

Port_A :

Pin PA0/DA8 - general purpose I/O shared with DA8 output.
Pin PA1/DA9 - general purpose I/O shared with DA9 output.
Pin PA2/DA10 - general purpose I/O shared with DA10 output.
Pin PA3/DA11 - general purpose I/O shared with DA11 output.
Pin PA4/DA12 - general purpose I/O shared with DA12 output.
Pin PA5/DA13 - general purpose I/O shared with DA13 output.
Pin PA6/VSO - general purpose I/O shared with VSYNC output.
Pin PA7/HSO - general purpose I/O shared with HSYNC output.

Port_A is controlled by REG#10H & REG#11H. In REG#10H, each corresponding bit enables
HSYNC output, VSYNC output or D/A converter output when it is "1". If the corresponding bit is "0",
the output level is decided by REG#11H. In REG#11H, if the I/O corresponding bit (PAn) is "0", the
output is low level (IOL=5mA). If PAn bit is "1", the output is high level (IOH= -100uA) and can be
used as an input.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0010H W 00H EHO EVO EDA13 EDA12 EDA11 EDA10 EDA9 EDA8
0011H W FFH PA7W PA6W PA5W PA4W PA3W PA2W PA1W PA0W
0011H R -- PA7R PA6R PA5R PA4R PA3R PA2R PA1R PA0R

Bit Name Bit value = “1” Bit value = “0”

EHO Enable PA7 as HSYNC output. PA7 as general purpose I/O.

EVO Enable PA6 as VSYNC output. PA6 as general purpose I/O.
EDA13 Enable PA5 as DA13 output. PA5 as general purpose I/O.
EDA12 Enable PA4 as DA12 output. PA4 as general purpose I/O.
EDA11 Enable PA3 as DA11 output. PA3 as general purpose I/O.
EDA10 Enable PA2 as DA10 output. PA2 as general purpose I/O.

EDA9 Enable PA1 as DA9 output. PA1 as general purpose I/O.
EDA8 Enable PA0 as DA8 output. PA0 as general purpose I/O.

PA7W - PA0W Outputs high level (IOH= -100uA). Outputs low level (IOL= 5mA).

PA7R- PA0R Pin is high level. Pin is low level.

* If the program wants to force VSYNC output (VSO pin) in low state, write "0" to PA6 bit first, then
write "0" to EVO bit. This is used to prevent high frequency output on VSO pin when the VSYNC
frequency is increased to read EDID data in DDC1 mode.

EDAx

DAx

PAnW

5mA

100uA

Pin PAn

5mA

PAnR

Weltrend Semiconductor, Inc.

5

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

Port_B :

Pin PB0 to PB5 - general purpose I/O pins.

The source/sink current of port_B is 5mA when as an output. When it is input, an internal pull

high resistor is connected.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0012H W 00H 0 0 PB5OE PB4OE PB3OE PB2OE PB1OE PB0OE
0013H W FFH 1 1 PB5W PB4W PB3W PB2W PB1W PB0W
0013H R -- -- -- PB5R PB4R PB3R PB2R PB1R PB0R

Bit Name Bit value = “1” Bit value = “0”

PB5OE - PB0OE Output enable. Output disable (internal pull-up).

PB5W - PB0W Outputs high level (IOH= -5mA). Outputs low level (IOL= 5mA).

PB5R- PB0R Pin is high level. Pin is low level.

PBnOE

PBnW

PBnR

5mA

Pin PB0 to PB5

5mA

100uA

Structure of I/O Port B

Weltrend Semiconductor, Inc.

6

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

Port_C :

Pin PC0 to PC7 - general purpose I/O pins.
The REG#14H defines the I/O direction and the REG#15H controls the output level.

The structure of Port_C is same as the Port_B except the sink current is 10mA.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0014H W 00H PC7OE PC6OE PC5OE PC4OE PC3OE PC2OE PC1OE PC0OE
0015H W FFH PC7W PC6W PC5W PC4W PC3W PC2W PC1W PC0W
0015H R -- PC7R PC6R PC5R PC4R PC3R PC2R PC1R PC0R

Bit Name Bit value = “1” Bit value = “0”

PC7OE - PC0OE Output enable. Output disable (internal pull-up).

PC7W - PC0W Outputs high level (IOH= -5mA). Outputs low level (IOL= 10mA).

PC7R - PC0R Pin is high level. Pin is low level.

* If program wants to read current status on the I/O pins (any I/O port), do not set output enable bit to
“0”. Because the registers for reading I/O are always indicating the current state on the I/O pins, set
output enable bit to “0” will change the level on the I/O pin. Please reference the I/O pin structure.

PCnOE

PCnW

PCnR

5mA

Pin PC0 to PC7

10mA

100uA

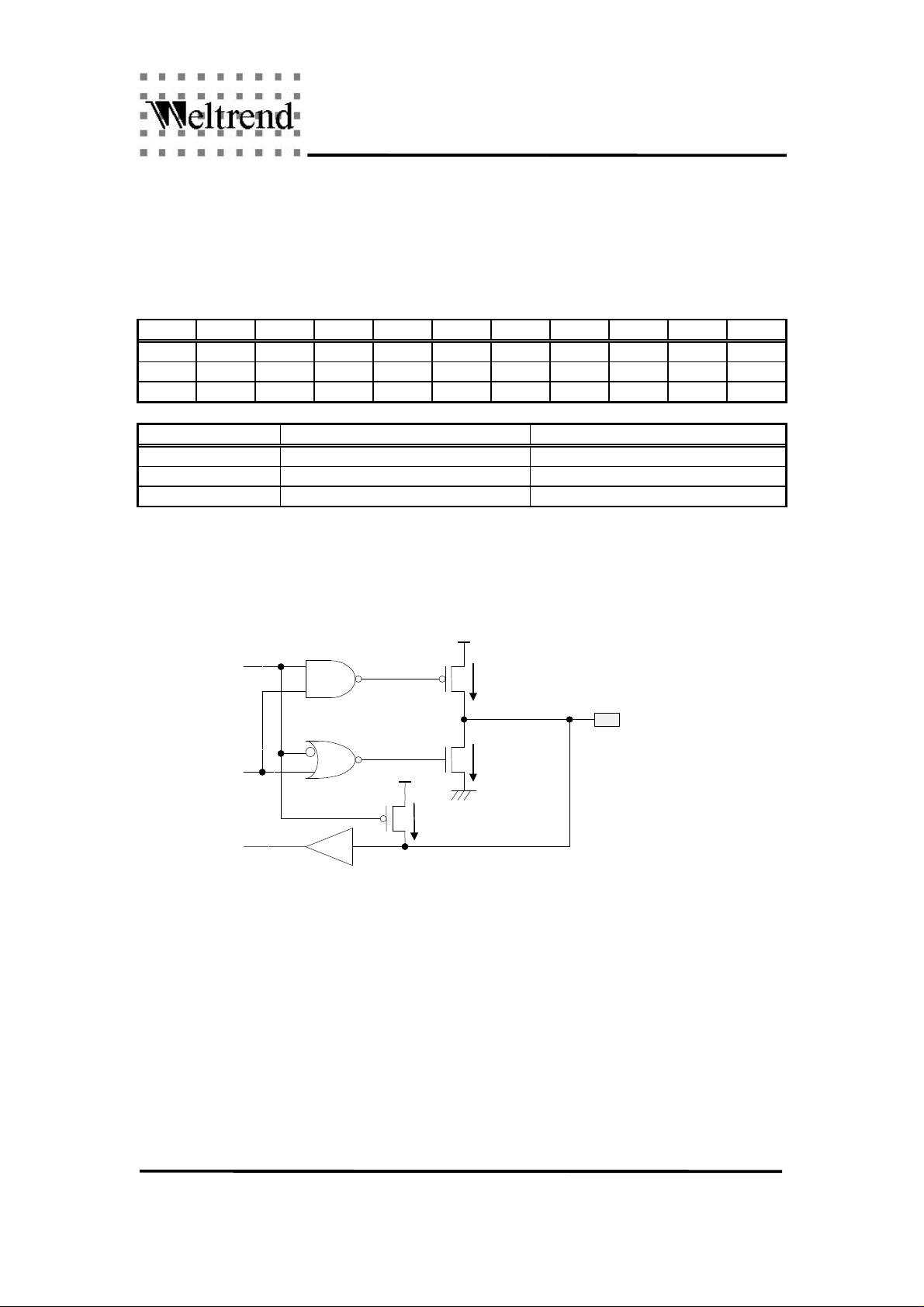

Structure of I/O Port C

Weltrend Semiconductor, Inc.

7

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

SYNC Processor

The SYNC processor can : (1) calculate HSYNC and VSYNC frequencies; (2) detect polarities of
HSYNC and VSYNC inputs; (3) control the output polarities of HSO and VSO pins.

Frequency Calculation

Horizontal frequency and vertical frequencies calculation are done by using one 10-bit up counter.
After power is on, the SYNC processor calculates the vertical frequency first (H/V bit ="0"). A

31.25KHz clock counts the time interval between two VSYNC pulses, then sets the FRDY bit and
generates an INT1 interrupt (if IEN_S bit is "1"). The software can either use interrupt or polling the
FRDY bit to read the correct vertical frequency. After reading the REG#16H, the FRDY bit is cleared
to "0", counter is reset and H/V bit is set. The SYNC processor starts to count horizontal frequency.
The horizontal frequency calculation is done by counting the HSYNC pulses in 8.192 ms. Like the
vertical frequency, the horizontal frequency can be read when the FRDY bit is set or INT1 occurs.
After reading the REG#16H, the FRDY, INT_S and H/V bits are cleared. The SYNC processor starts
to calculate the vertical frequency again, and so on.
The relationships between counter value and frequency are :
Hfreq = (counter value x 122.07) Hz
Vfreq = ( 31250 / counter value ) Hz
The frequency range :

Hfreq range : 122.07 Hz to 124.8 kHz ; Resolution : 122.07Hz

Vfreq range : 30.5 Hz to 31.25 kHz
If counter overflowed, the OVF1 bit will be set to "1". The counter keeps on counting until it
overflowed again. The OVF2 bit and FRDY bit will be set when counter overflowed twice. This is
designed for finding the vertical frequency bellows 15.25Hz. The program should check REG#17H
before reading REG#16H.

Polarity Detect/Control

The polarities of HSYNC and VSYNC are automatically detected and are shown in the H_POL
and V_POL bits. The polarities of HSO and VSO are controlled by the HOP and VOP bits. For
example, set HOP bit to “1”, the HSO pin always outputs positive horizontal sync signal, whatever the
HSYNC input’s polarity is.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0016H R -- F9 F8 F7 F6 F5 F4 F3 F2
0017H W -- 0 0 0 0 0 0 HOP VOP
0017H R 00H H/V -- H_POL V_POL OVF2 OVF1 F1 F0

Bit Name Bit value = “1” Bit value = “0”

HOP HSO pin is always positive polarity. HSO pin is always negative polarity.
VOP VSO pin is always positive polarity. VSO pin is always negative polarity.

H/V Counter stores horizontal frequency. Counter stores vertical frequency.
H_POL HSYNC input is positive polarity. HSYNC input is negative polarity.
V_POL VSYNC input is positive polarity. VSYNC input is negative polarity.

OVF2, OVF1 OVF2=“1”,OVF1=“0” : Counter overflowed twice.

OVF2=“0”,OVF1=“1” : Counter overflowed once.
OVF2=“0”,OVF1=“0” : No overflow.
OVF2=“1”,OVF1=“1” : No such condition.

F9-F0 Frequency counter value. (F9 is MSB)

Weltrend Semiconductor, Inc.

8

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

DDC Interface

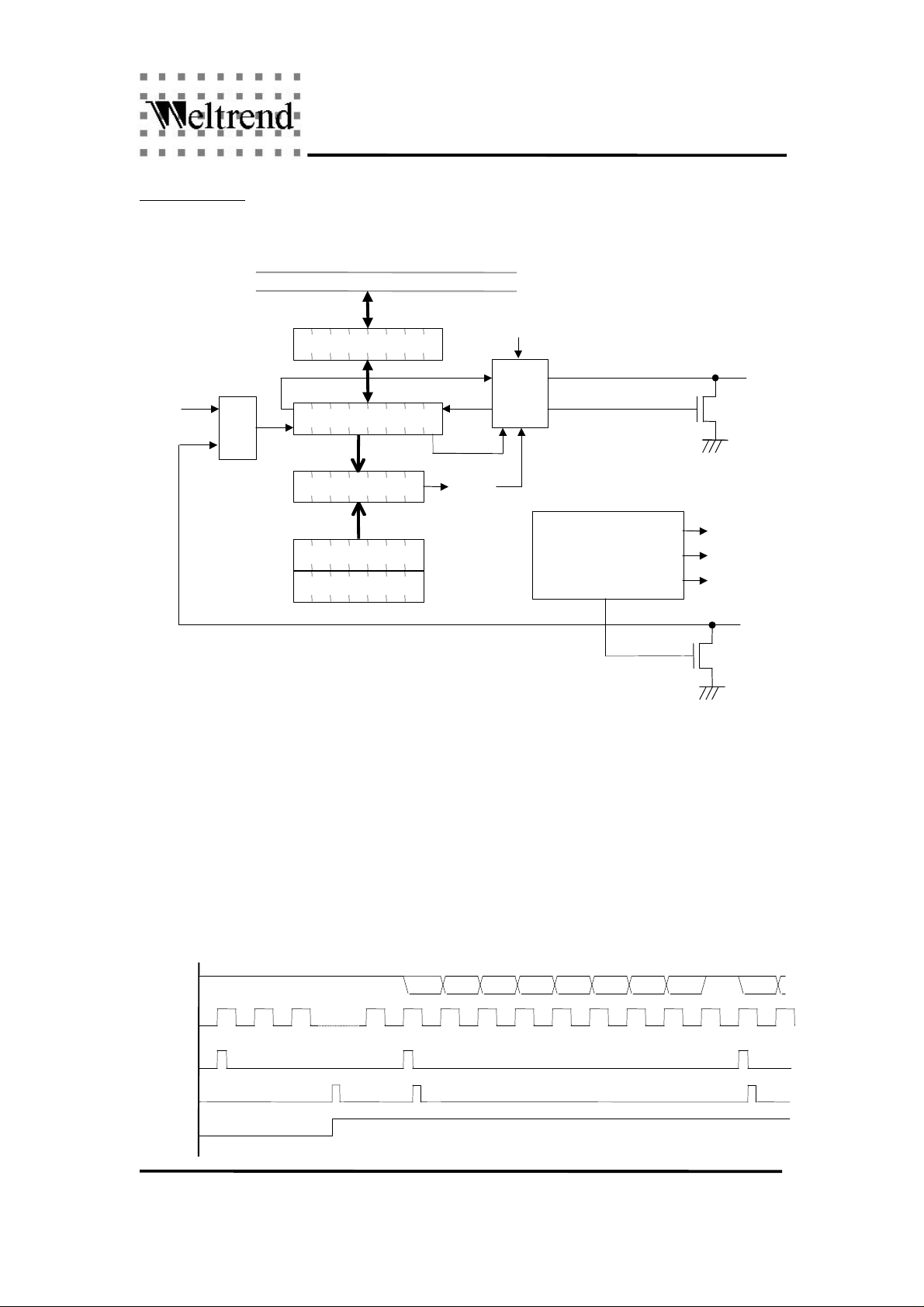

The DDC interface is a slave mode I2C interface with DDC1 function. It is fully compatible with
VEAS DDC1/2B standard. The functional block diagram is shown in the below.

Internal Data

R/W

ADDR

ENACK

I/O

START/STOP Detect
Handshake Control

START
STOP

DDC2B

SCL

VSYNC

MUX

Data Buffer

Shift Register

Address Compare

MSB

1 10 0 0 0 0

Address Register

After power on or reset the DDC interface, it is in DDC1 state. The shift register shifts out data to
SDA pin on the rising edge of VSYNC clock. Data format is an 8-bit byte followed by a null bit. Most
significant bit (MSB) is transmitted first. Every time when the ninth bit has been transmitted, the shift
register will load a data byte from data buffer (REG#18H). After loading data to the shift register, the
data buffer becomes empty and generates an INT0 interrupt. So the program must write one data byte
into REG#18 every nine VSYNC clocks.

Since the default values of data buffer(REG#22) and shift register are FFH, the SDA pin outputs
high level if no data had been written into data buffer after power on reset. When program finished
initialization and set the IEN_D bit to "1", the INT0 will occur because the data buffer is empty. The
INT0 service routine should check the DDC2B bit is "0" and then writes the first EDID data byte into
data buffer. When the second INT0 occurs, the INT0 service routine writes the second EDID data byte
into data buffer and so on.

SDA

SDA

VSYNC

Load data to

shift register

INT0

IEN_D

1 2183

9 10 19

Weltrend Semiconductor, Inc.

Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Bit7

9

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

If a low level occurs on the SCL pin in DDC1 state, the DDC interface will switch to DDC2B state
immediately and set the DDC2B bit to "1". No interrupt will be generated. But, if there is no valid
device address and it receives 128 VSYNC pulses while the SCL is high level, it will go back to
DDC1 state automatically. If it receives a valid device address, it will lock into DDC2B state and
disregard VSYNC.

In some case, program wants to go back DDC1 state, set RDDC bit in REG#1AH and reset it again.
This operation resets the DDC interface to the initial condition.

When it is in DDC2B state, the VSYNC clock is disregarded and the communication protocol
follows the DDC standard. The data format on SDA pin is:

S Address R/W A D7,D6,...., D0 A D7,D6,...., D0 A P

S : Start condition. A falling edge occurs when SCL is high level.
P : Stop condition. A rising edge occurs when SCL is high level.
A : Acknowledge bit. “0” means acknowledge and “1” means non-acknowledge.
Address : 7-bit device address.

R/W : Read/Write control bit, "1" is read and "0" is write.

D7,D6,...., D0 : data byte.

The hardware operations in DDC2B state are :

(1) START/STOP detection

When the START condition is detected, the DDC interface is enabled and set START bit to "1".
When the STOP condition is detected, the DDC interface is disabled, set STOP bit to "1" and

generate INT0 interrupt.
The START bit is cleared when the following data byte received.
The STOP bit is cleared after writing REG#19H.

(2) Address Recognition

It contains two device addresses in WT6014. One fixed address (‘1010000’ ) is for EDID reading
and one programmable address (REG#19H) is for external control, such as auto alignment.
If the address is equal to "1010000", set ADDR bit to "0".
If the address is equal to the bit A6 to bit A0 (REG#19H), set ADDR bit to "1".
If the address is not equal to anyone above, the DDC interface will not response acknowledge.
The ADDR bit is updated when a new device address is received.

(3) Store R/W bit and decide the direction of SDA pin
The R/W bit on the SDA pin will be stored in the RW bit.

(4) Acknowledge bit control/detection
Acknowledge bit control in receive direction :
If ENACK=1 and address compare is true, response acknowledge (Acknowledge bit ="0").
If ENACK=0 or address compare is false, response non-acknowledge (Acknowledge bit ="1").

Acknowledge bit detect in transmit direction :
If the acknowledge bit is "1" , the DDC interface will be disabled and release the SDA pin.
If the acknowledge bit is "0" , the DDC interface keeps on communicating.

Weltrend Semiconductor, Inc.

10

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

(5) Data bytes transmit/receive
If the RW bit is "1", the shift register will load data from the data buffer (REG#18H) before the
data

byte is transmitted and shift out data to the SDA pin before the rising edge of the SCL clock.
If the RW bit is "0", the shift register will shift in data on the rising edge of the SCL clock and the
whole data byte is latched to the data buffer(REG#18H).

(6) Handshaking procedure

The handshaking is done on the byte level. The DDC interface will hold the SCL pin low after the
acknowledge bit automatically. The bus master will be forced to wait until the WT6014 is ready for
the next byte transfer. To release the SCL pin, write REG#19H will release clear the wait state.

(7) Interrupt INT0
The DDC interface interrupt is enabled by setting the IEN_D bit in the REG#1AH.

Interrupt INT0 occurs when:

- Transmit buffer empty in DDC1 state.
The INT0 occurs when the shift register load data from data buffer.
Write REG#18H will clear the transmit buffer empty condition.

- Acknowledge is detected in DDC2B state.
The INT0 occurs on the falling edge of the SCL clock after the acknowledge had been
detected.
The SCL pin will be pulled low to force the bus master to wait until the REG#19H is written.

- STOP condition occurs in DDC2B state

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

0018H R/W FFH D7 D6 D5 D4 D3 D2 D1 D0
0019H R 40H DDC2B ADDR RW START STOP -- -- -­0019H W A0H A6 A5 A4 A3 A2 A1 A0 ENACK

Bit Name Bit value = “1” Bit value = “0”

DDC2B DDC2B state. DDC1 state.

ADDR received address equals to the address

in REG#19H(W).

RW received R/W bit is ‘1’ . received R/W bit is ‘0’ .

START START condition is detected. No START condition is detected.

STOP STOP condition is detected. No STOP condition is detected.

ENACK Enable acknowledge. Disable acknowledge.
A6,A5, …., A0 7-bit slave address
D7,D6, …., D0 Data to be transmitted or received data.

received address equals to ‘1010000’ .

Weltrend Semiconductor, Inc.

11

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

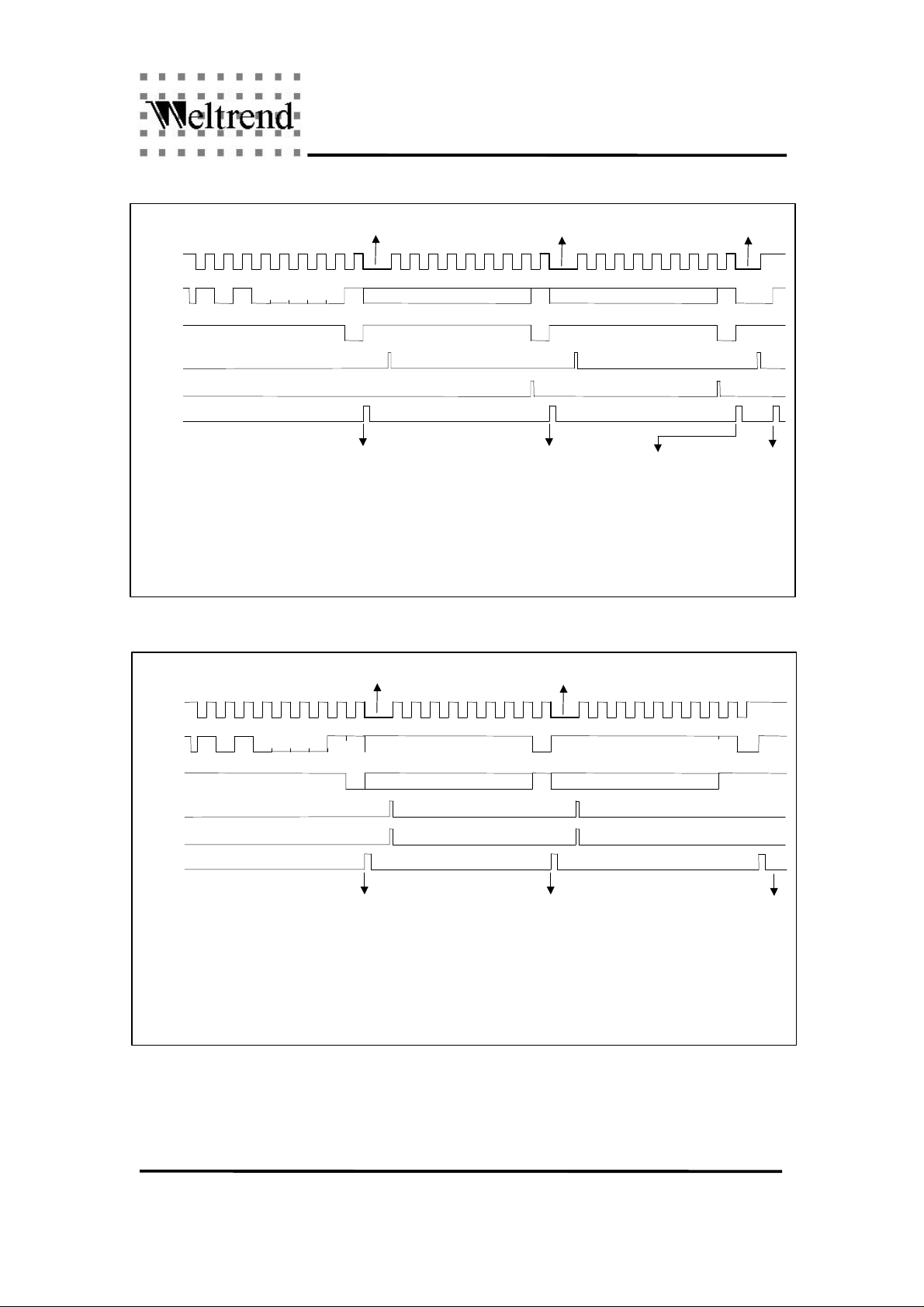

SCL
SDA

In

SDA

Out

Write REG#19H to release SCL

Shift register to data buffer

INT0

1 010

0 0 0

Pull low SCL

0

A A A

DDC2B=1
ADDR=0
R/W=0
START=1

STOP=0

Data Byte Data Byte

Pull low SCL

DDC2B=1
ADDR=0
R/W=0
START=0
STOP=0

DDC2B=1
ADDR=0

R/W=0
START=0
STOP=0

DDC2B state write timing

Pull low SCL

Pull low SCL

Pull low SCL

DDC2B=1
ADDR=0
R/W=0
START=0

STOP=1

SCL
SDA

In

SDA

Out

Write REG#19H to release SCL

Data buffer to shift reg

INT0

1110 0 0 0 0

A

DDC2B=1
ADDR=0
R/W=1
START=1
STOP=0

Data Byte Data Byte

DDC2B state read timing

A

DDC2B=1
ADDR=0
R/W=1
START=0
STOP=0

N

DDC2B=1
ADDR=0
R/W=1
START=0
STOP=1

Weltrend Semiconductor, Inc.

12

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

Interrupt Control

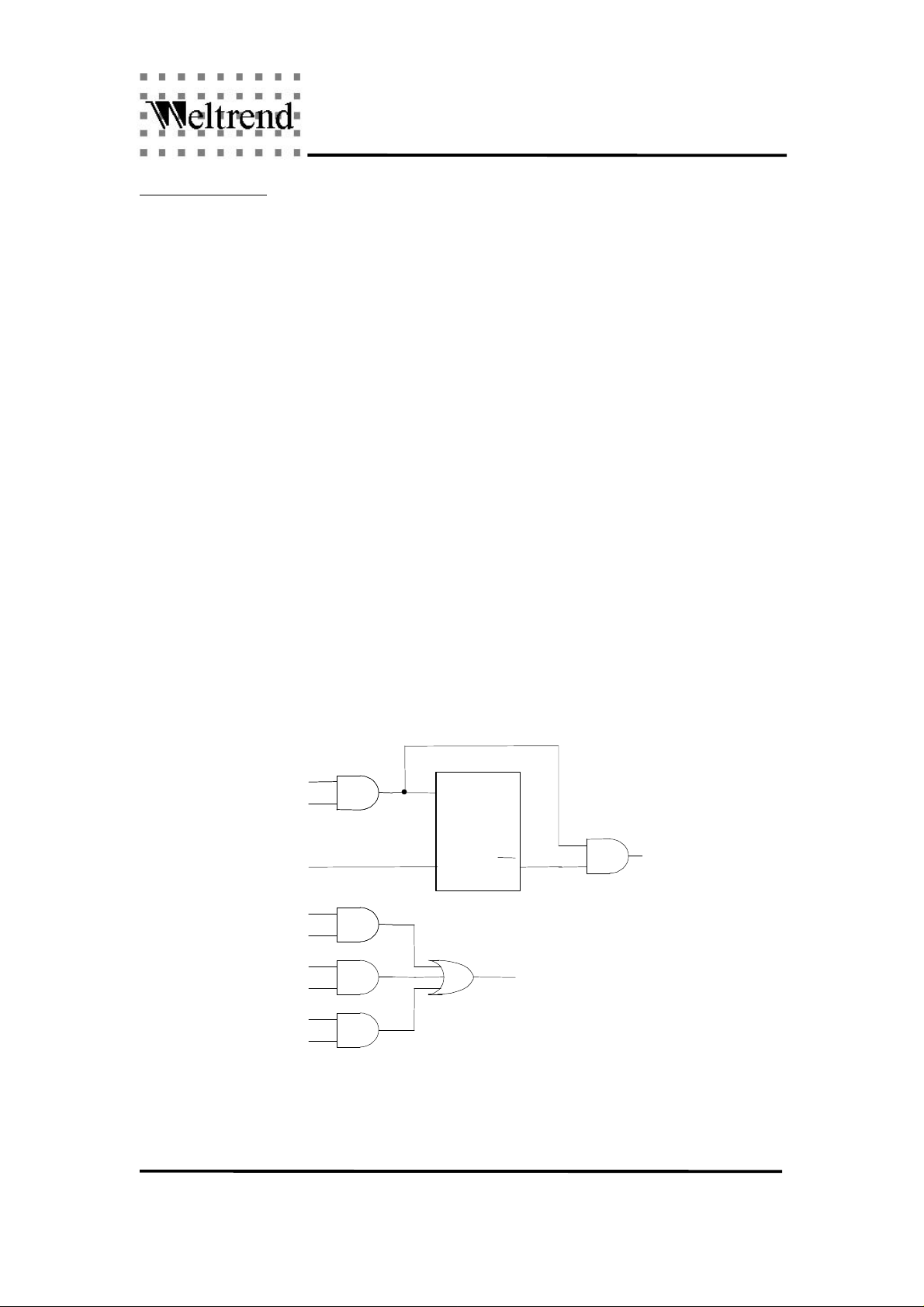

There are two interrupt sources : INT0 and INT1. INT0 has the higher priority.

Interrupt vector :

INT0 : FFFAH (low byte) and FFFBH (high byte).
INT1 : FFFEH (low byte) and FFFFH (high byte).

INT0 occurs when :

(1) data buffer empty in the DDC1 mode (DDC="1" and DDC2B="0").
(2) acknowledge or STOP condition is detected in the DDC2B mode (DDC="1" and DDC2B="0").

INT1 occurs when :

(1) a falling edge or a low level occurs on the /IRQ pin (EXT="1").

(2) the timer is time out (TIM="1").

(3) SYNC processor has a valid frequency (SYNC="1").
If H/V ="0" , it is vertical frequency ready.
If H/V ="1" , it is horizontal frequency ready.

INT0 is cleared when :

(1) writing the REG#18H in DDC1 state.
(2) writing the REG#19H in DDC2B state.

INT1 is cleared when :

(1) reading the REG#1AH if EXT="1".

(2) reading the REG#1BH if TIM="1".

(3) reading the REG#16H if SYNC="1".

IEN_D

DDC

IEN_X

IRQ

IEN_T

TOUT

IEN_S

FRDY

D

CK

Q

Q4MHz

INT0

INT1

Weltrend Semiconductor, Inc.

13

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

001AH W 00H IEN_X IEN_T IEN_S IEN_D EDGE RDDC 0 0
001AH R 00H EXT TIM SYNC DDC IRQ TOUT FRDY --

Bit Name Bit value = “1” Bit value = “0”

IEN_X Enable /IRQ pin interrupt. Disable /IRQ pin interrupt.
IEN_T Enable timer interrupt. Disable timer interrupt.
IEN_S Enable SYNC processor interrupt. Disable SYNC processor interrupt.
IEN_D Enable DDC interface interrupt. Disable DDC interface interrupt.
EDGE /IRQ pin interrupt is edge trigger. /IRQ pin interrupt is level trigger.
RDDC Reset DDC interface.

DDC interface will always under reset
condition if this bit keeps “1”.

EXT /IRQ pin interrupt occurs. No /IRQ pin interrupt.

TIM Timer interrupt occurs. No timer interrupt.

SYNC SYNC processor interrupt occurs. No SYNC processor interrupt.

DDC DDC interface interrupt occurs. No DDC interface interrupt.

IRQ /IRQ pin is low level /IRQ pin is high level
TOUT Timer is time-out. Timer is not time-out.
FRDY H/V frequency counter is ready.

The counter value is valid.

Clear the reset of DDC interface.

H/V frequency counter is not ready.
The counter value is invalid.

Weltrend Semiconductor, Inc.

14

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

Timer

It is a 8-bit down counter and clock frequency is 976.5625Hz (period=1.024ms). The timer is
started by writing a value into REG#1BH. When the timer counts down to zero, the timer stops, sets
the TOUT bit and generates an INT1 interrupt (if the IEN_T bit is "1"). The TOUT bit will be cleared
after REG#1BH is read.

Watch-Dog Timer

The watch-dog timer is always enable after power is on. Software must clear the watch-dog timer
within every 524ms. If the watch-dog timer expired, It will cause the whole chip reset just like
external reset.

To clear the watch-dog timer, write any data to REG#1CH.

Address R/W Initial Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

001BH R/W -- TM7 TM6 TM5 TM4 TM3 TM2 TM1 TM0

001CH W -- WDT WDT WDT WDT WDT WDT WDT WDT

Bit Name Bit value

TM7 to TM0 Timer value (0 - 255)

WDT Write any value to this register will reset the watchdog timer.

Weltrend Semiconductor, Inc.

15

WT6014

6

5

0

6

5

0

6

5

0

6

5

0

6

5

0

6

5

0

6

5

0

6

5

0

6

5

0

6

5

0

0

0

0

0

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

REGISTER MAP

Initial

Address R/W

0000H R/W 80H DA07DA0
0001H R/W 80H DA17DA1
0002H R/W 80H DA27DA2
0003H R/W 80H DA37DA3
0004H R/W 80H DA47DA4
0005H R/W 80H DA57DA5
0006H R/W 80H DA67DA6
0007H R/W 80H DA77DA7
0008H R/W 80H DA87DA8
0009H R/W 80H DA97DA9

value

Bit7 Bit6 Bit5

DA0
DA1
DA2
DA3
DA4
DA5
DA6
DA7
DA8

DA9
000AH R/W 80H DA107DA106DA105DA104DA103DA102DA101DA10
000BH R/W 80H DA117DA116DA115DA114DA113DA112DA111DA11
000CH R/W 80H DA127DA126DA125DA124DA123DA122DA121DA12
000DH R/W 80H DA137DA136DA135DA134DA133DA132DA131DA13
000EH Reserved
000FH Reserved
0010H W 00H EHO EVO EDA13 EDA12 EDA11 EDA10 EDA9 EDA8

R X PA7R PA6R PA5R PA4R PA3R PA2R PA1R PA0R0011H

W FFH PA7W PA6W PA5W PA4W PA3W PA2W PA1W PA0W

0012H W 00H 0 0 PB5OE PB4OE PB3OE PB2OE PB1OE PB0OE

R X -- -- PB5R PB4R PB3R PB2R PB1R PB0R0013H

W FFH 1 1 PB5W PB4W PB3W PB2W PB1W PB0W

0014H W 00H PC7OE PC6OE PC5OE PC4OE PC3OE PC2OE PC1OE PC0OE

R FFH PC7R PC6R PC5R PC4R PC3R PC2R PC1R PC0R0015H

W X PC7W PC6W PC5W PC4W PC3W PC2W PC1W PC0W

0016H R X F9 F8 F7 F6 F5 F4 F3 F2

R 00H H/V -- H_POL V_POL OVF2 OVF1 F1 F00017H

W X 0 0 0 0 0 0 HOP VOP

0018H R/W FFH D7 D6 D5 D4 D3 D2 D1 D0

R 40H DDC2B ADDR RW START STOP -- -- --0019H

W A0H A6 A5 A4 A3 A2 A1 A0 ENACK

R 00H EXT TIM SYNC DDC IRQ TOUT FRDY --001AH

W 00H IEN_X IEN_T IEN_S IEN_D EDGE RDDC 0 0
001BH R/W X TM7 TM6 TM5 TM4 TM3 TM2 TM1 TM0
001CH W X CWDT CWDT CWDT CWDT CWDT CWDT CWDT CWDT

Bit4

Bit3

Bit2 Bit1

Bit0
DA04DA03DA02DA01DA0
DA14DA13DA12DA11DA1
DA24DA23DA22DA21DA2
DA34DA33DA32DA31DA3
DA44DA43DA42DA41DA4
DA54DA53DA52DA51DA5
DA64DA63DA62DA61DA6
DA74DA73DA72DA71DA7
DA84DA83DA82DA81DA8
DA94DA93DA92DA91DA9

X : No default value.

-- : No function.
0 : Must write 0..

Weltrend Semiconductor, Inc.

16

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

Parameter Min. Max Units
DC Supply Voltage (VDD) -0.3 7.0 V
Input and output voltage with respect to Ground

All pins except DA0 to DA7
DA0 to DA7

Storage temperature -65 150
Ambient temperature with power applied -10 70

* Note : Stresses above those listed may cause permanent damage to the device.

D.C. Characteristics ( VDD=5.0V + 5% , Ta=0 - 70 OC)

Symbol Parameter Condition Min. Typ. Max. Units

V

V

V

V

V

V

R

I

V

RESET

SIH

SIL

I

DD

DD

IH

IL

OH

OL

IL

PH

Supply Voltage 4.0 5 5.5 V

Input High Voltage All input pins (except HSYNC and VSYNC) 3.0 - VDD+

Input Low Voltage All input pins (except HSYNC and VSYNC) -0.3 - 1.5 V
Sync Input High

Voltage
Sync Input Low Voltage HSYNC and VSYNC pin -0.3 - 0.8 V

Output High Voltage

Output Low Voltage

Input Leakage Current SDA, SCL, HSYNC and VSYNC pins ( VIN =

Pull High Resistance VIN=0.8V

Operating Current No load - 3 10 mA
Reset Voltage /RESET pin 3.8 4.0 4.2 V

HSYNC and VSYNC pin 2.0 - VDD+

IOH= -100uA
PA0-PA7 pins
IOH= -6mA
PB0-PB5, PC0-PC7, DA8-DA13, HSO, VSO

and HSO pins
DA0-DA7 pins (external voltage) - - 10.5 V
SCL and SDA pins (open drain) - - 5.5 V
IOL= 5mA
PA0-PA7, PB0-PB5, DA0-DA13, SCL, SDA,
VSO and HSO pins
IOL= 10mA
PC0-PC7 pins

0 to 5V)

PA0-PA7, PB0-PB5, PC0-PC7, /RESET and
/IRQ pins

-0.3

-0.3

VDD+0.3

11.5V

3.5 - - V

3.5 - - V

- - 0.4 VV

- - 0.4 V

-10 - 10 uA

16 22 28 Kohm

0.3

0.3

V
V

o

C

o

C

V

V

Weltrend Semiconductor, Inc.

17

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

A.C. Characteristics ( VDD=5.0V + 5%, fosc=8MHz, Ta=0 - 70OC)

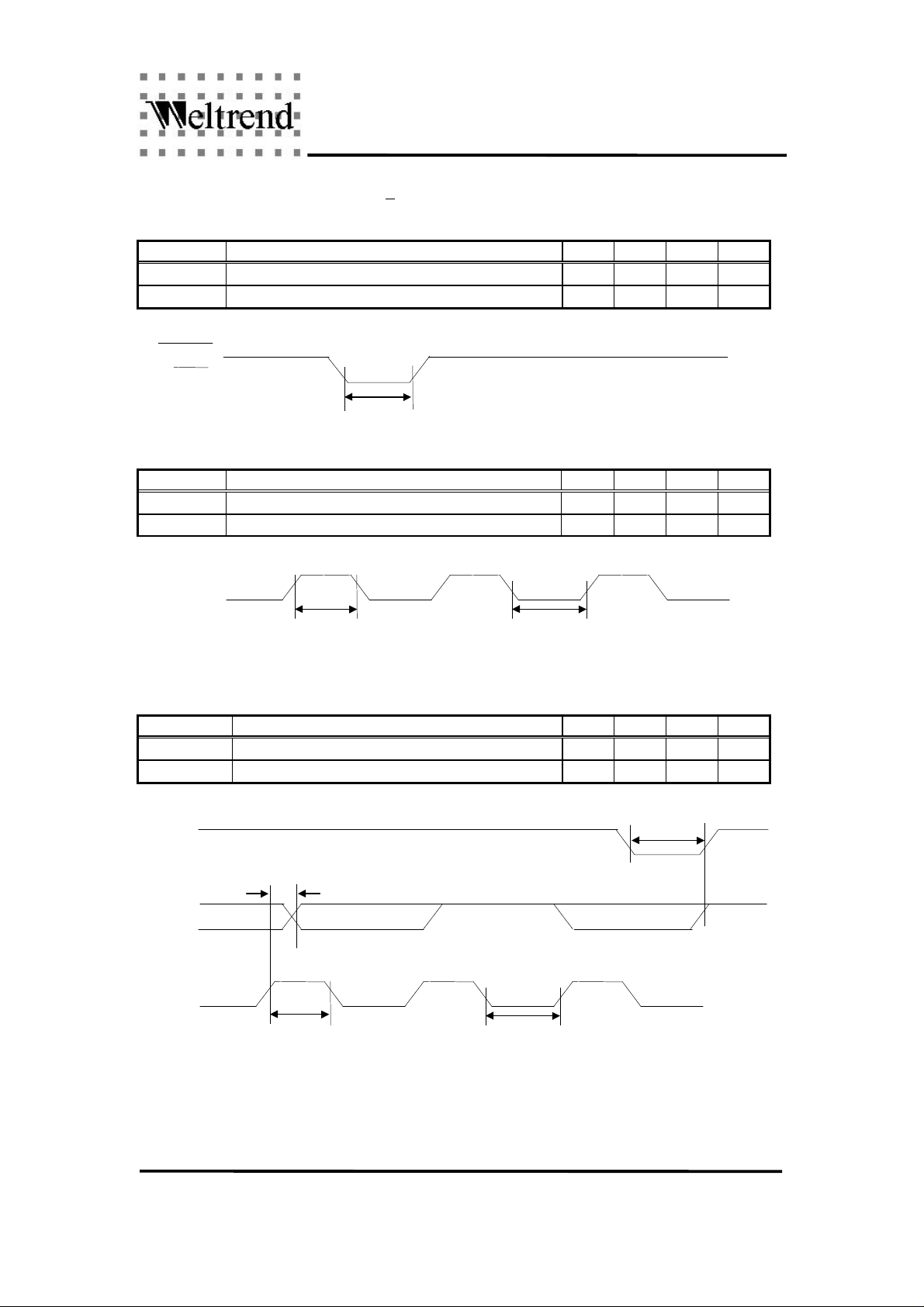

RESET and IRQ Timing

Symbol Parameter Min. Typ. Max. Units

t

LOW,RES

t

LOW,IRQ

RESET

IRQ

SYNC Processor Timing

Symbol Parameter Min. Typ. Max. Units

t

HIGH,SYNC

t

LOW,SYNC

/RESET pin low pulse 250 - - ns
/IRQ low pulse (level trigger) 250 - - ns

t

LOW,RES

t

HIGH,IRQ

HSYNC and VSYNC high time 250 - - ns
HSYNC and VSYNC low time 250 - - ns

HSYNC
VSYNC

t

HIGH,SYNC

t

LOW,SYNC

DDC1 Timing

Symbol Parameter Min. Typ. Max. Units

t

VAA,DDC1

t

SCL

SDA

MT

SDA output valid from VSYNC rising edge 125 - 500 ns
Mode transition time (DDC1 to DDC2B) - - 500 ns

t

MT

t

VAA,DDC1

Bit 0 (LSB) Bit 7 (MSB)Null Bit

VSYNC

t

HIGH,SYNC

t

LOW,SYNC

Weltrend Semiconductor, Inc.

18

WT6014

Digital Monitor Controller

Ver. 1.21 Jul-31-1998

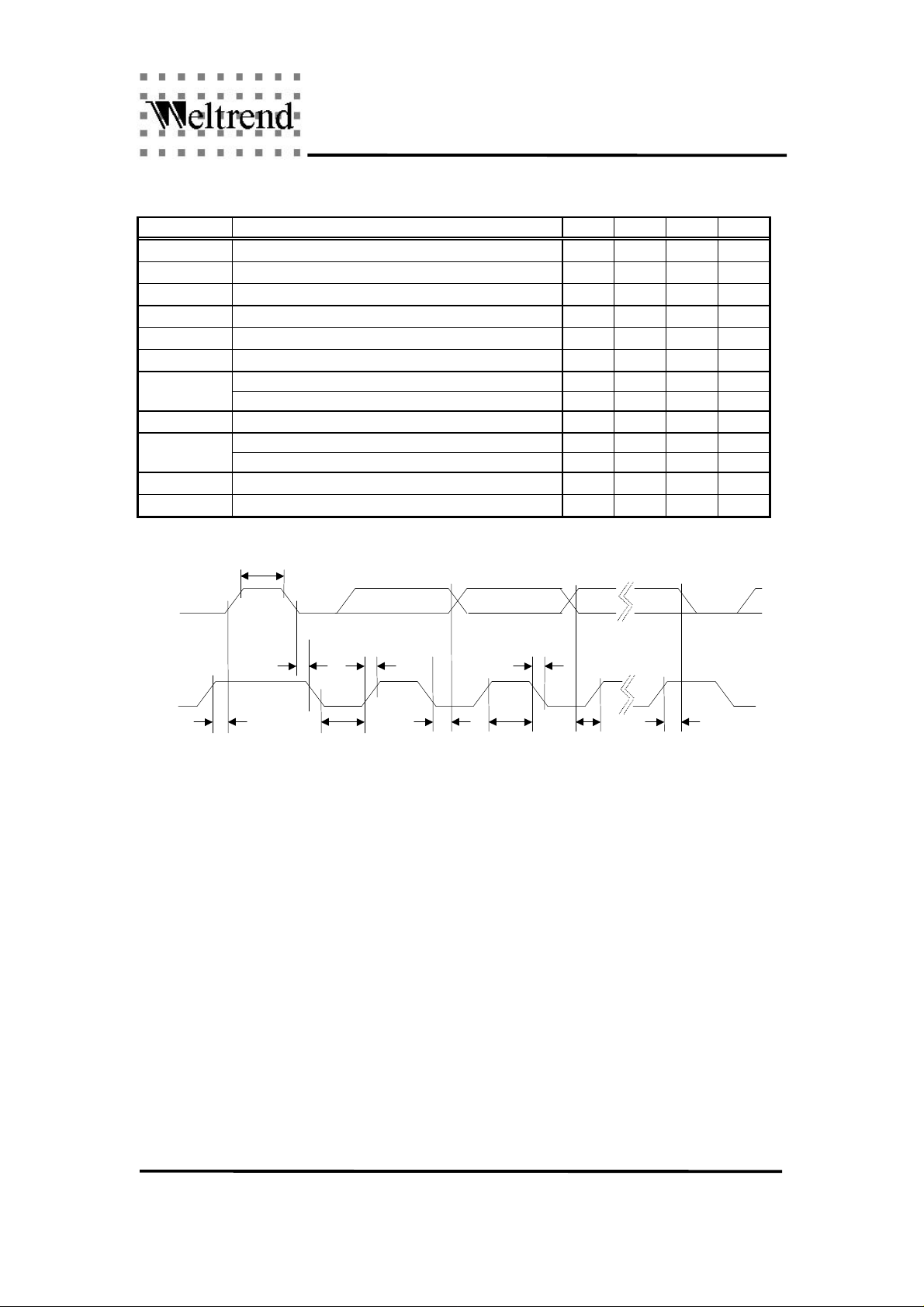

DDC2B Timing

Symbol Parameter Min. Typ. Max. Units

f

SCL

t

BF

t

HD,START

t

SU,START

t

HIGH,SCL

t

LOW,SCL
HD,DATA

t

SU,DATA

RISE

t

FALL

t

SU,STOP

SCL input clock frequency 0 - 100 kHz
Bus free time 2 - - us
Hold time for START condition 1 - - us
Set-up time for START condition 1 - - us
SCL clock high time 1 - - us
SCL clock low time 1 - - us
Hold time for DATA input 0 - - nst

Hold time for DATA output 250 - - ns
Set-up time for DATA input 250 - - ns

Set-up time for DATA output 500 - - nst
SCL and SDA rise time - - 1 us
SCL and SDA fall time - - 300 ns

Set-up time for STOP condition 4 - - us

SDA

SCL

t

SU,STOP

t

BF

t

HD,START

t

LOW,SCL

t

RISE

t

HD,DATA

t

HIGH,SCL

t

FALL

t

SU,DATA

t

SU,START

Weltrend Semiconductor, Inc.

19
