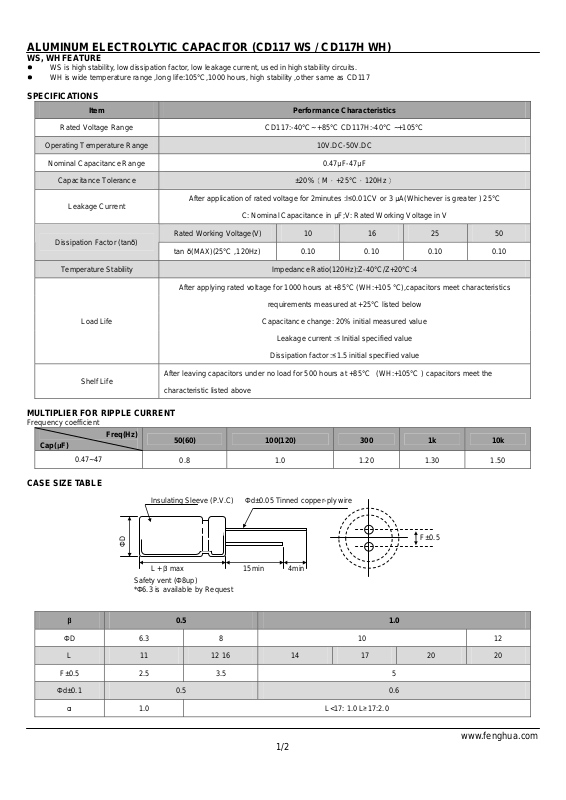

ALUMINUM ELECTROLYTIC CAPACITOR (CD117 WS / CD117H WH)
Safety vent (Ф8up)
WS, WH F E ATURE
WS is high stability, low dissipation factor, low leakage current, used in high stability circuits.
WH is wide temperature range ,long life:105°C,1000 hours, high stability ,other same as CD117
SPECIFICATIONS
Item Perf ormance Characteristics
Rated Vol t ag e R ang e CD117:- 40 °C ~ +8 5°C CD 1 17H:-40°C ~+105°C
Operating Temperature Range
Nominal Capa citance Range 0.47μF-47μF
Capacitance Tolerance
Leakage Current
Dissip ation Fact or (t anδ)
Temperature Stability Impedance Ratio(120Hz):Z-40°C/Z+20°C:4
Load Lif e
Shelf Life
After app lication of r at ed voltage f or 2mi nutes :I
C: Nominal Capacitance in
Rated Working Voltage(V) 10 16 25 50
tan
δ
(MAX)(25°C ,120Hz) 0.10 0.10 0.10 0.10
After app l yin g rated volt ag e f or 10 00 hours at +8 5°C (WH :+105 °C),capac it or s meet ch aracteris t ic s
requirem ents meas ured at +25°C lis ted below
Capacit ance chang e: 20 % in itial meas ured valu e
Leakage current :
Dissipation factor :
After leaving capacitors under no lo ad for 500 hour s at +85°C (WH:+105°C ) capacitors meet the
characteristic listed above
10V.DC-50V.DC
±20%（M，+25°C，120Hz）
MULTIPLIER FOR RIPPLE CURRENT
Frequency coeffi cient
Freq(Hz)
Cap(μF)
0.47~47
50(60) 100(120) 300 1k 10k
0.8 1.0 1.20 1.30 1.50
CASE SIZE TABLE
β
0.5 1.0
Insulating Sleeve (P.V.C)
D
Ф
*Ф6.3 is avai l abl e b y R equ es t
Ф
d±0.05 Tinned copper-ply wire
15min L + β max
4min
≤
0.01CV or 3 μA(Whichever is greater ) 25°C
μ
F;V: Rated Working Voltage in V
≤
Initial specified value
≤
1.5 initial specified value
F±0.5
Ф
D 6.3 8 10 12
L 11 12 16 14 17 20 20
F±0.5 2.5 3.5 5
Ф
d±0.1 0.5 0.6
α
1.0 L<17: 1.0 L≥17:2.0
www.fenghua.com
1/2
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR (CD117 WS / CD117H WH)
DIMENSIONS, RATED VOLTAGE RANGE AND CAPACITANCE
10 16 25 50 V
uF
0.47 6.3x11 14
1 6.3x11 20 6.3x11 20
2.2 6.3x11 26 6.3x11 26 6.3x11 26
3.3 6.3x11 32 6.3x11 32 6.3x11 32
4.7 6.3x11 43 6.3x11 40 6.3x11 40 8x12 43
10 8x12 75 8x12 65 8x16 (10x14) 70 10x17 75
22 8x18 ( 10x14) 131 8x16 ( 10x14) 100 10x17 110 10x20 131
33 10x17 120 10x17 120 10x20 150 12x20 176
47 10x20 150 10x20 150 12x20 172
(1) Case Size D×L(mm)
(2) Max allowable ripple current (mArns 120Hz)
(1) (2) (1) (2) (1) (2) (1) (2)
