Datasheet Wmec [snap-in] SK Series Datasheet

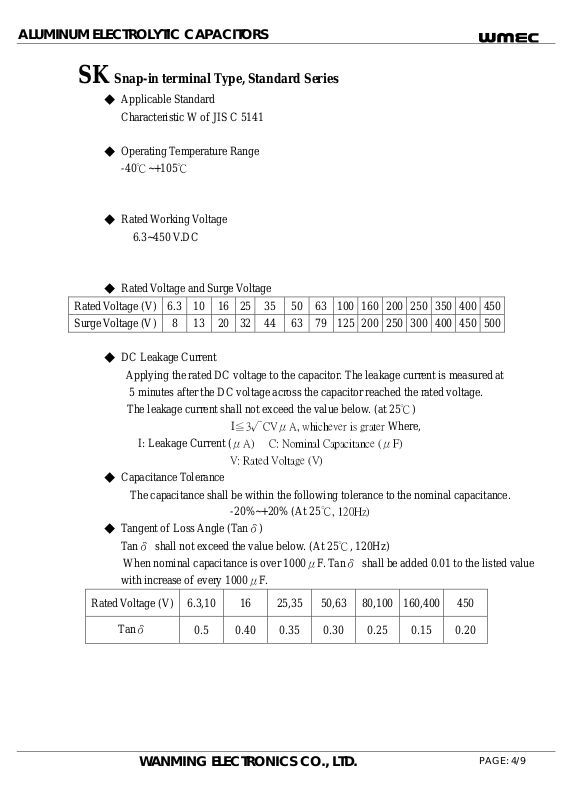

ALUMINUM ELECTROLYTIC CAPACITORS

SK Snap-in terminal Type, Standard Series

◆ Applicable Standard
Characteristic W of JIS C 5141

◆ Operating Temperature Range

-40℃~+105℃

◆ Rated Working Voltage

6.3~450 V.DC

◆ Rated Voltage and Surge Voltage

Rated Voltage (V) 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
Surge Voltage (V) 8 13 20 32 44 63 79 125 200 250 300 400 450 500

◆ DC Leakage Current

Applying the rated DC voltage to the capacitor. The leakage current is measured at

5 minutes after the DC voltage across the capacitor reached the rated voltage.

The leakage current shall not exceed the value below. (at 25℃)

I≦3√CVμA, whichever is grater Where,

I: Leakage Current (μA) C: Nominal Capacitance (μF)

V: Rated Voltage (V)

◆ Capacitance Tolerance

The capacitance shall be within the following tolerance to the nominal capacitance.

-20%~+20% (At 25℃, 120Hz)

◆ Tangent of Loss Angle (Tanδ)
Tanδ shall not exceed the value below. (At 25℃, 120Hz)

When nominal capacitance is over 1000μF. Tanδ shall be added 0.01 to the listed value

with increase of every 1000μF.

Rated Voltage (V) 6.3,10 16 25,35 50,63 80,100 160,400 450

Tanδ

WANMING ELECTRONICS CO., LTD.

0.5 0.40 0.35 0.30 0.25 0.15 0.20

PAGE: 4/9

ALUMINUM ELECTROLYTIC CAPACITORS

◆ Load Life

The following specifications shall be satisfied when the capacitors are restored to 25℃

after the rated voltage is applied for 2000 hours at 105℃.

Capacitance Change ±20% of the initial measured value.

Tanδ ≦200% of the initial specified value.

Leakage Current

◆ Shelf Life
The following specifications shall be satisfied when the capacitors are restored to

25℃ after exposing them for 500 hours at 105℃ without voltage applied.

The capacitors shall be subjected to voltage treatment specified in item 4.4 of JIS C 5102,

before the measurements.

Capacitance Change ±20% of the initial measured value.

Tanδ ≦200% of the initial specified value.

Leakage Current

◆ Solder ability

The lead wires shall be dipped into Methanol (JIS K 1501) or Isopropyl Alcohol (JIS K

1522 or JIS K 8839) solution of 10 ±20% Rosin (JIS K 5902) for 2 ±0.5 seconds, and

then dipped into solder H63A (JIS Z 3282) at 235 ±5℃ for 2 ±0.5 seconds.

The depth of immersion shall be 2 to 2.5 mm of the capacitor body.

≦The initial specified value.

≦The initial specified value.

After immersion, the solder shall cover at least 3/4 of the lead wire surface immersed.

◆ Lead Strength

Pull Strength

The lead wire shall not get loose or cut off, while a parallel force is gradually applied to the

lead wire up to 10N and retained for 10 second.
Bending Strength

Apply the 0.5Kg weight to the end of the lead wire, and lean the capacitors body

90°and return to the original position within approximately 5 seconds.
Then, repeat this cycle in the posited direction at the same speed.
After that, the lead wire shall not loose or cut off.

WANMING ELECTRONICS CO., LTD.

PAGE: 5/9

ALUMINUM ELECTROLYTIC CAPACITORS

◆ Marking
Color Style: white marking on black sleeve.
The following items shall be marked on each capacitor.

Example:

WMEC

xxμFxxV

WMEC

xxμFxxV

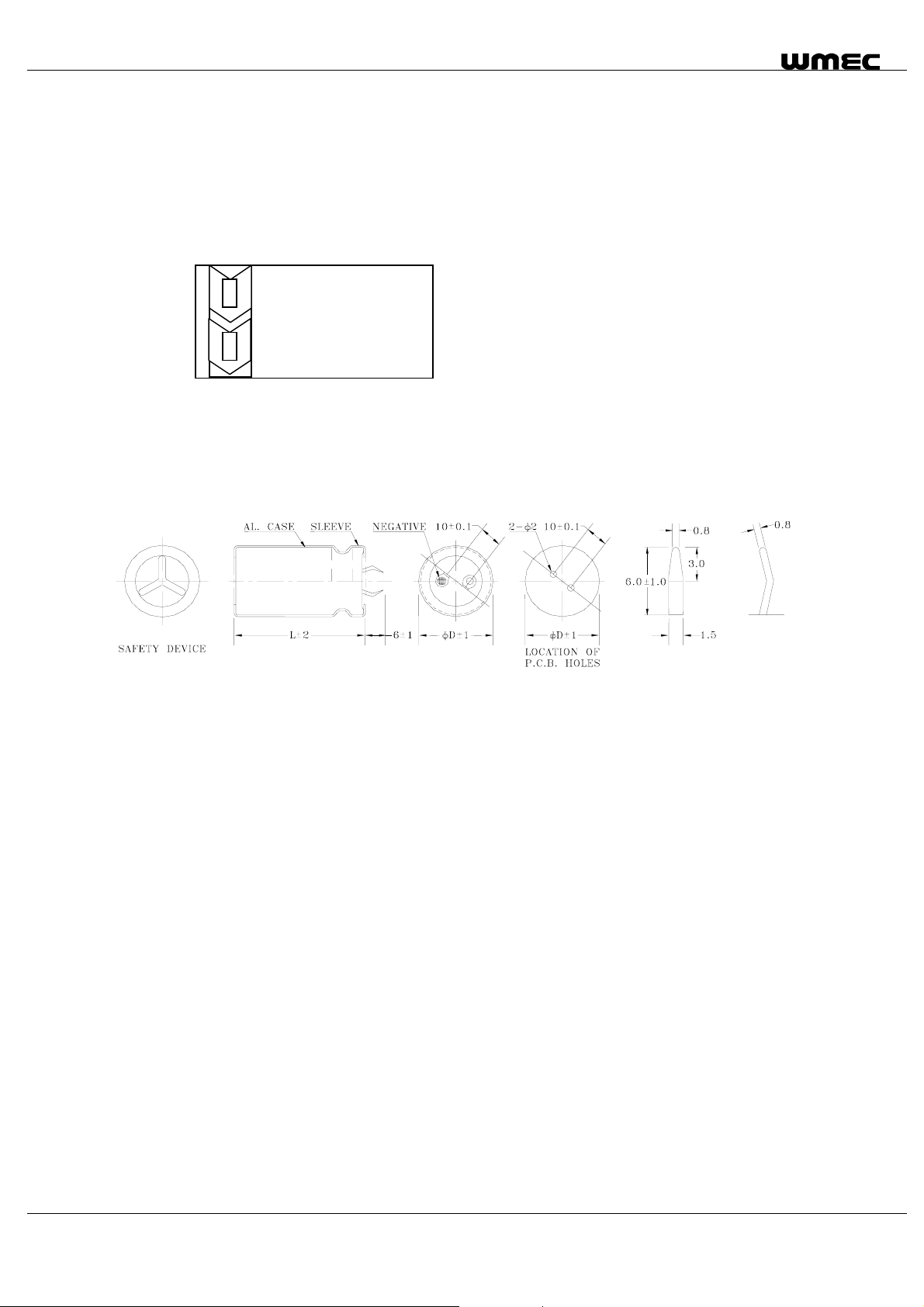

◆ Dimensions (mm)

SK

105℃(M)

VENT

SK

105℃(M)

VENT

(1) Series Name
(2) Maximum Operating Temperature

(3) Capacitance Tolerance

(4) Polarity

(5) Wanming Electronics Co., Ltd. Marking

(6) Nominal Capacitance
(7) Rated Voltage

WANMING ELECTRONICS CO., LTD.

PAGE: 6/9

ALUMINUM ELECTROLYTIC CAPACITORS

◆ Case Size & Permissible Max. Ripple Current Case Size

wv
ΦD

μF

Max. Ripple Current : mA (rms) ( 105℃,120Hz)

6.3 10

22 25 30 35 22 25 30 35

SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C

6800 22x25 2.66
10000 22x25 2.92 22x30 3.31 25x25 3.41
15000 22x35 3.83 25x30 3.97 30x25 4.07 22x40 4.56 25x30 4.42 30x25 4.29
22000 25x40 4.99 30x30 4.89 35x25 4.99 25x40 5.23 30x35 5.40 35x30 5.53
33000 25x50 6.10 30x40 6.05 35x30 5.91 30x45 6.57 35x35 6.46
47000 30x50 7.14 35x40 7.06

wv
ΦD

μF

22 25 30 35 22 25 30 35

SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C

16 25

3300 22x25 2.10
4700 22x25 2.47 22x30 2.63 25x25 2.71
6800 22x30 3.06 25x25 3.15 22x35 3.24 25x30 3.36 30x25 3.44
10000 22x35 3.76 25x30 3.89 30x25 3.99 22x45 4.44 25x40 4.32 30x30 4.23 35x25 4.32
15000 22x45 4.74 25x40 4.94 30x30 4.83 35x25 4.94 25x40 5.39 30x40 5.34 35x30 5.22
22000 25x45 5.76 30x40 5.96 35x30 5.82 30x50 6.48 35x40 6.41
33000 30x50 7.13 35x45 7.35

wv
ΦD

μF

22 25 30 35 22 25 30 35

SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C

35 50

1500 22x25 2.01
2200 22x25 1.94 22x30 2.50 25x25 2.58
3300 22x30 2.48 25x25 2.55 22x35 3.14 25x30 3.26
4700 22x35 3.06 25x30 3.17 30x25 3.25 22x45 4.02 25x35 3.98 30x25 3.34
6800 22x45 3.91 25x40 3.87 30x30 3.99 35x25 4.07 25x52 5.20 30x30 4.10 35x25 4.19
10000 25x50 5.10 30x40 5.06 35x30 4.94 35x50 5.16 35x30 5.04
15000 30x50 6.22 35x40 6.15 30x50 6.32 35x40 6.25

wv
ΦD

μF

22 25 30 35 22 25 30 35

SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C

63 80

1000 22x35 2.17
1500 22x35 2.01 22x35 2.83 25x30 2.93 30x25 3.00
2200 22x35 2.65 25x30 2.75 30x25 2.81 22x40 3.42 25x35 3.55 30x30 3.66 35x25 3.74
3300 22x45 3.47 25x40 3.62 30x30 3.54 35x25 3.62 25x45 4.56 30x35 4.50 35x30 4.61
4700 25x45 4.38 30x35 4.32 35x30 4.43 30x45 5.63 35x40 5.80
6800 30x45 5.38 35x40 5.54
10000 30x60 6.78

WANMING ELECTRONICS CO., LTD.

PAGE: 7/9

ALUMINUM ELECTROLYTIC CAPACITORS

◆ Case Size & Permissible Max. Ripple Current Case Size

wv
ΦD

μF

Max. Ripple Current : mA (rms) (105℃,120Hz)

100 160

22 25 30 35 22 25 30 35

SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C

220 22x25 1.09
330 22x30 1.42 25x25 1.46
470 22x40 1.89 25x35 1.96 30x25 1.90
680 22x25 1.79 22x50 2.49 25x45 2.60 30x35 2.56 35x30 2.62
1000 22x35 2.45 25x30 2.53 30x25 2.60 30x45 3.40 35x40 3.50
1500 22x45 3.12 25x35 3.09 30x30 3.18 35x25 3.25 35x50 4.35
2200 25x45 3.91 30x35 3.85 35x30 3.95
3300 30x45 4.93 35x35 4.85

wv
ΦD

μF

22 25 30 35 22 25 30 35

SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C

200 250

220 25x20 0.83 22x30 0.95 25x25 0.95 30x20 0.88
330 22x30 1.20 25x25 1.21 30x20 1.08 22x40 1.26 25x30 1.20 30x25 1.26 35x20 1.18
390 22x35 1.31 22x45 1.49 25x35 1.49
470 22x40 1.40 25x30 1.41 30x25 1.50 35x20 1.41 22x50 1.57 25x40 1.57 30x30 1.57 35x25 1.57
560 22x45 1.56 25x35 1.53 25x45 1.79 30x35 1.79 35x30 1.79
680 22x45 1.74 25x40 1.74 30x30 1.74 35x25 1.72 25x50 1.84 30x40 2.00
820 25x45 1.85
1000 30x45 2.30 35x35 2.30 35x40 2.30

wv
ΦD

μF

22 25 30 35 22 25 30 35

SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C

400 450

47 22x23 0.35
68 22x25 0.51
100 22x25 0.73 22x30 0.78
120 22x30 0.78
150 22x35 1.01 25x30 1.05 30x25 1.08 22x40 1.07 25x30 1.05 30x25 1.08
220 22x45 1.35 25x35 1.34 30x30 1.38 35x25 1.41 22x50 1.41 25x45 1.48 30x35 1.46 35x25 1.41
470 30x51 2.33 35x35 2.29 30x60 2.61 35x45 2.50

wv
ΦD

μF

22 25 30 35 22 25 30 35

SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C SIZE R.C

400 450

47 22x25 0.50 22x30 0.41
68 22x30 0.64 25x25 0.66 22x35 0.52 25x30 0.54 30x25 0.55
82 25x25 0.71
100 22x40 0.87 25x30 0.86 30x25 0.88 22x45 0.70 25x40 0.73 30x30 0.71 35x25
150 25x45 1.22 30x35 1.20 35x30 1.23 25x50 0.97 30x40 0.96 35x30 0.73
220 30x40 1.53 35x35 1.57 30x50 1.27 35x40 0.94
330 35x45 2.10 1.25

WANMING ELECTRONICS CO., LTD.

PAGE: 8/9

ALUMINUM ELECTROLYTIC CAPACITORS

◆ Frequency Multipliers

Freq.(Hz)

Wv

6.3~100 0.88 1 1.06 1.15 1.20
160~250 0.85 1 1.20 1.25 1.45
315~450 0.88 1 1.15 1.20 1.40

◆ Temperature Multipliers

Freq.(Hz)

WV

6.3 ~ 450 2.4 2.35 2.17 1.67 1

◆ Packaging Specification

Case size

ψD

Carton Box Capacity

22

60(50) 120 500 1K

(pcs)

600 470 310 310

40 60

≧ 10K

70 85 105

Carton Box Size

L(mm) H(mm) W(mm)

25
30
35

The following s items hall be marked on the box.

500 470 310 310
450 470 310 310
400 470 310 310

Customer

®

Wanming P/N PO. No.

Lot No. Customer P/N
Final Date Description
Inspection Quantity PCS.

◆ Other
For other specifications, Characteristic W of JIS C 5141 shall be satisfied.

Aluminum Electrolytic Capacitors may be damaged by corrosion, which is caused

by and halogen Ted hydrocarbon solvents.

Please let us know in advance the solvent name and conditions for your P.C.B. cleaning.

We guarantee our products without any prohibited substance about environment.

WANMING ELECTRONICS CO., LTD.
