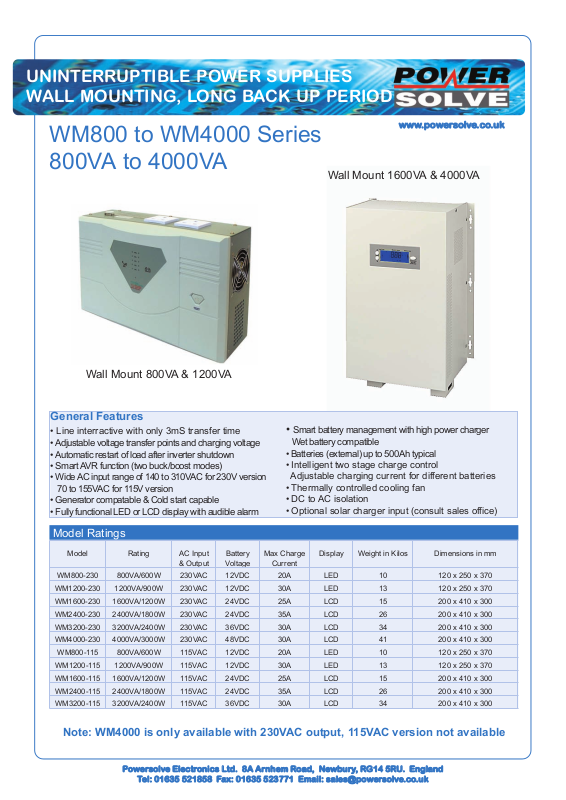

Page 1
UNINTERRUPTIBLE POWER SUPPLIES
WALL MOUNTING, LONG BACK UP PERIOD
WM800 to WM4000 Series
800VA to 4000VA
Wall Mount 1600VA & 4000VA
www.powersolve.co.uk
Wall Mount 800VA & 1200VA
General Features
• Line interractive with only 3mS transfer time
• Adjustable voltage transfer points and charging voltage
• Automatic restart of load after inverter shutdown
• Smart AVR function (two buck/boost modes)
• Wide AC input range of 140 to 310VAC for 230V version
70 to 155VAC for 115V version
• Generator compatable & Cold start capable
• Fully functional LED or LCD display with audible alarm
• Smart battery management with high power charger
Wet battery compatible
• Batteries (external) up to 500Ah typical
• Intelligent two stage charge control
Adjustable charging current for different batteries
• Thermally controlled cooling fan
• DC to AC isolation
• Optional solar charger input (consult sales office)
Model Ratings
Model Rating AC Input
& Output
WM800-230 800VA/600W 230VAC 12VDC 20A LED 10 120 x 250 x 370
WM1200-230 1200VA/900W 230VAC 12VDC 30A LED 13 120 x 250 x 370
WM1600-230 1600VA/1200W 230VAC 24VDC 25A LCD 15 200 x 410 x 300
WM2400-230 2400VA/1800W 230VAC 24VDC 35A LCD 26 200 x 410 x 300
WM3200-230 3200VA/2400W 230VAC 36VDC 30A LCD 34 200 x 410 x 300
WM4000-230 4000VA/3000W 230VAC 48VDC 30A LCD 41 200 x 410 x 300
WM800-115 800VA/600W 115VAC 12VDC 20A LED 10 120 x 250 x 370
WM1200-115 1200VA/900W 115VAC 12VDC 30A LED 13 120 x 250 x 370
WM1600-115 1600VA/1200W 115VAC 24VDC 25A LCD 15 200 x 410 x 300
WM2400-115 2400VA/1800W 115VAC 24VDC 35A LCD 26 200 x 410 x 300
WM3200-115 3200VA/2400W 115VAC 36VDC 30A LCD 34 200 x 410 x 300
Battery
Voltage
Max Charge
Current
Display Weight in Kilos Dimensions in mm
Note: WM4000 is only available with 230VAC output, 115VAC version not available
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
UNINTERRUPTIBLE POWER SUPPLIES
WALL MOUNTING, LONG BACK UP PERIOD
Electrical Specification
Input
Nominal AC Input: 230VAC or 115VAC (115VAC not available on 4000VA unit)
200V/220V/230V/240V or 100V/110V/115V/120V Selectable
Input Frequency: 47 to 65 Hz, 50/60 auto sensing
Efficiency:: 97% normal mode, 85% under battery power
Noise Filtering: Full time EMI/RFI filtering
Overcurrent Protection: 230V models 800VA/1200VA fuse protected, all others resettable trip
Voltage Range: 230V models 140V-310V, 115V models 70-155V
AVR Range (2 Bucks, 2 Boosts): Enhanced Buck: +28% of selected V, Buck Mode: +10% of selected V
Boost Mode: -10% of selected V, Enhanced Boost: -25% of selected V
Surge Protection: 230V models 800VA/1200VA: 220 Joules, 1600VA-4000VA: 440 Joules
115V models 800VA/1200VA: 216 Joules, 1600VA-3200VA: 324 Joules
Output
Output Power: See model rating table
Output Voltage: 200V/220V/230V/240V or 100V/110V/115V/120V Selectable
Output Waveform: Pure Sine Wave
Crest Factor: 3:1
Output Frequency: Auto Select for 50/60Hz, syncronised to incoming AC mains supply
Regulation (nominal): ±10% typical of nominal voltage
Regulation (under battery): ±3% of selected output voltage (adjustable with remote set-up software)
Transfer Time: Blackout: 3mS typical, Brownout: 1mS typical, Battery to Normal: 1mS typical
Over Current Protection: Overload Alarm: 100-120%, Overload shutdown: 120-190% (adjustable)
Battery
Battery Type: Lead Acid 50Ah to 500Ah (recommended)
Typical back up time: No limit, depends on batteries used (externally)
Charging Method: Smart pulse charging with two charging modes. Quick charging when
battery is not fully charged, trickle charge when battery is 90% fully charged
Maximum Charging Current: See table
Average Charging Voltage: Fast charging: 14V, 28V, 42V or 56V depending on battery voltage
Float charging: 13.5V, 27V, 40.5V or 54V (adjustable with set up software)
www.powersolve.co.uk
Protection: Over current protection & Over charging protection (SCR control)
Monitoring: Smart monitoring & warning for failed battery or open-circuit battery.
Communications & Management
Standard Interface Port: UPSilon2000 compatible, optional RS232 and or USB
Optional Interface Port: RJ45 (surge protection), DB9, SNMP (external type)
Control Panel: LED 800VA/1200VA, LCD others
Audible Alarm: Low Battery & Battery Overvoltage, Over load, Short Circuit, Over Temp
Green Mode Function:
(auto shut off in black out)
Cooling: Temperature controlled fan
Environment
Operating Temperature: 0° to 40°C
Storage Temperature: -15° to +55°C
Relative Humidity: 5 to 95% non condensing
Operating Altitude 0 to 3000 metres
Dimensions & Weight See table
Thermal protection (CPU control), when temperature inside the unit is higher than 45°C,
charger will stop for 2 minutes, followed by 2 minutes charging. The cycle will be repeated
until temperature drops.
Auto detection each time when power on or over 6 days
1% to 14% of full load (adjustable by using remote set up software)
The default setting is off
