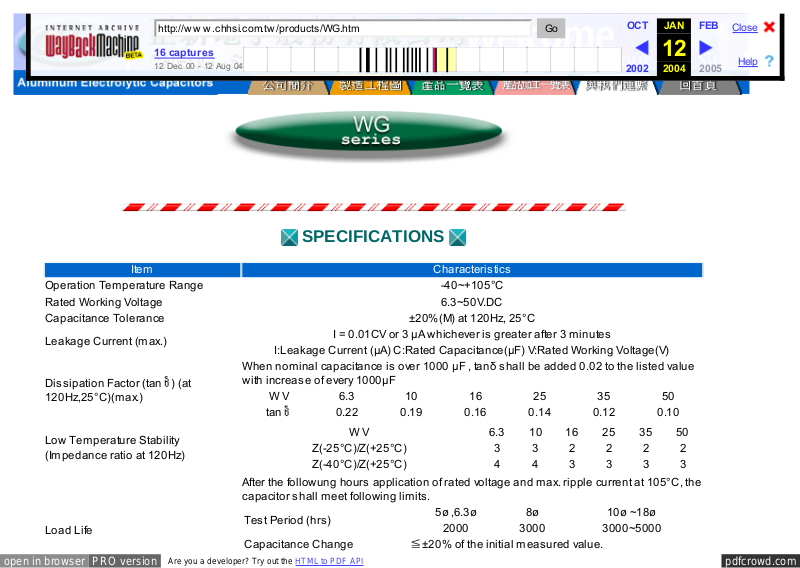

SPECIFICATIONS
Item Characteris tics
Operation Temperature Range 40~+105°C
Rated Working Voltage 6.3~50V.DC
Capacitance Tolerance ±20%(M) at 120Hz, 25°C
Leakage Current (max.)
I = 0.01CV or 3 µA whichever is greater after 3 minutes
I:Leakage Current (µA) C:Rated Capacitance(µF) V:Rated Working Voltage(V)
Dis sipation Factor (tan ) (at
120Hz,25°C)(max.)
When nominal capacitance is over 1000 µF , tanδ shall be added 0.02 to the listed value
with increas e of every 1000µF
W V 6.3 10 16 25 35 50
tan 0.22 0.19 0.16 0.14 0.12 0.10
Low Temperature Stability
(Impedance ratio at 120Hz)
W V 6.3 10 16 25 35 50
Z(25°C)/Z(+25°C) 3 3 2 2 2 2
Z(40°C)/Z(+25°C) 4 4 3 3 3 3
Load Life
After the followung hours application of rated voltage and max. ripple current at 105°C, the
capacitor shall meet following limits.
Test Period (hrs )
5ø ,6.3ø 8ø 10ø ~18ø
2000 3000 3000~5000
Capacitance Change ≦±20% of the initial measured value.
http://w w w .chhsi.com.tw /products/WG.htm
Go
OCT JAN FEB
12
2002 2004 2005
16 captures
12 Dec 00 12 Aug 04
Close
Help
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 2
Dis sipation Factor ≦200% of initial specified value.
Leakage Current ≦the initial specified value.
Shelfe
At 105°C no voltage applied after 1000 hours , the capacitor shall meet following lim its.
Capacitance Change ≦±20% of the initial measured value.
Dis sipation Factor ≦200% of initial specified value.
Leakage Current ≦the initial specified value.
Reference Standard JIS C5141

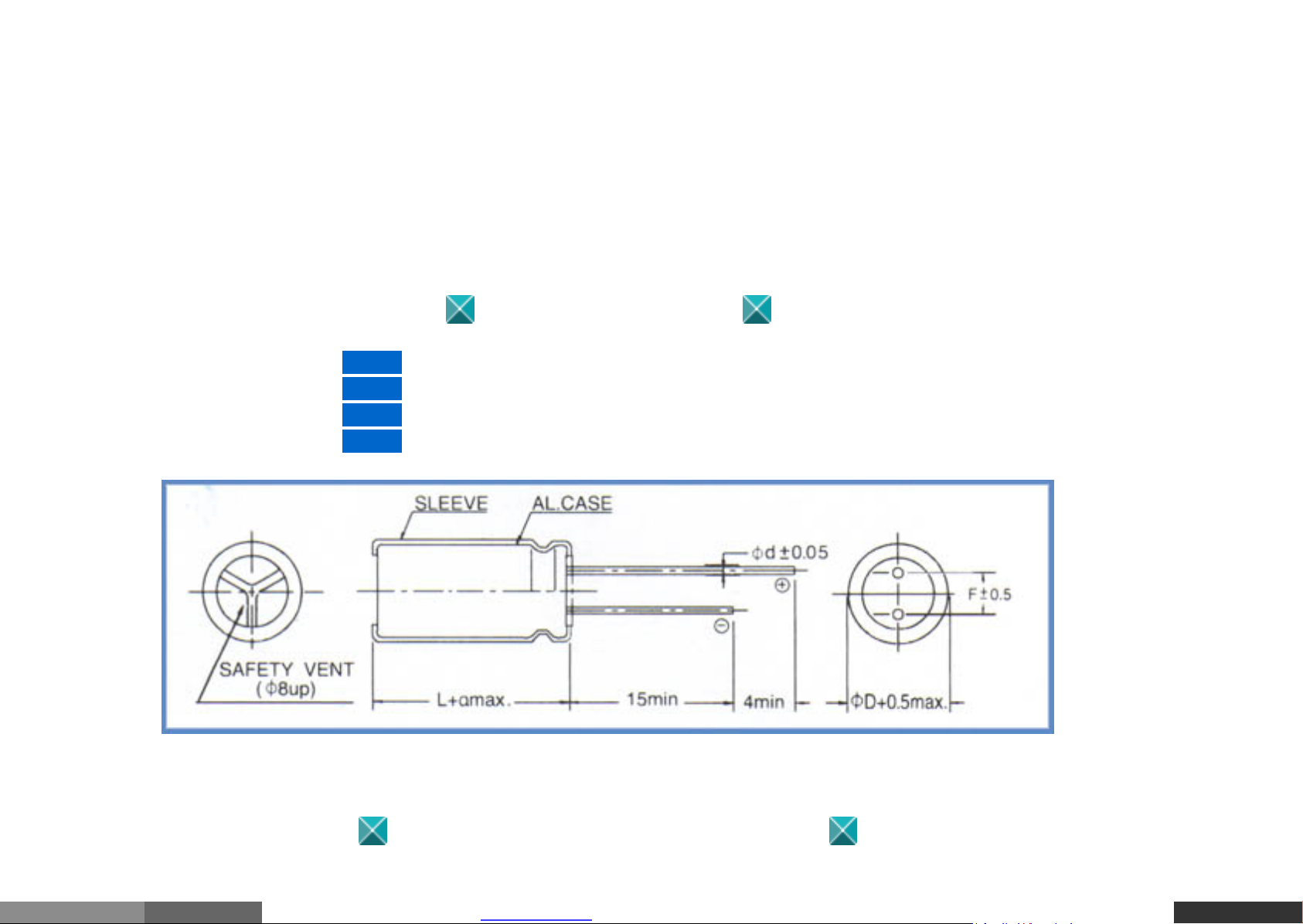

DRAWING:(UNIT=mm)
øD 5 6.3 8 10 13 16 18
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
ød 0.5 0.5 0.6 0.6 0.6 0.8 0.8
α 1.0 1.5
MULTIPLIER FOR RIPPLE CURRENT
Frequency Multipliers Temperature Multipliers
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 3
50Hz 120Hz 1kHz 10KHz 100KHz≦
4.7~33 0.45 0.55 0.75 0.90 1.00
39~330 0.60 0.70 0.85 0.95 1.00
390~1000 0.65 0.75 0.90 0.98 1.00
1200~12000 0.75 0.80 0.95 1.00 1.00
Temp.(°C) 40 60 70 85 105
Coefficient 2.4 2.1 1.78 1.65 1.00
DIMENSIONS IMPEDANCE & MAXIMUM PERMISSIBLE RIPPLE CURRENT
6.3 10
Capacitance ImpedanceΩ(MAX.) Ripple current(mArms) Capacitance ImpedanceΩ(MAX.) Ripple current(mArm s )
(µF) (250°C/100KHz) (105°C/100KHz) (µF) (250°C/100KHz) (105°C/100KHz)
5X11 150 0.30 250 100 0.30 250
6.3X11 330 0.13 405 220 0.13 405
8X12 560 0.072 760 470 0.072 760
8X16 820 0.056 995 680 0.056 995
8X20 1200 0.041 1250 1000 0.041 1250
10X13 1000 0.053 1030 680 0.053 1030
10X16 1200 0.038 1430 1000 0.038 1430
10X20 1500 0.023 1820 1200 0.023 1820
10X23 2200 0.022 2150 1500 0.022 2150
13X20 3300 0.021 2360 2200 0.021 2360
13X25 3900 0.018 2770 3300 0.018 2770
13X30 4700 0.016 3150 3900 0.016 3150
13X35 5600 0.015 3290 4700 0.015 3290
16X20 5600 0.018 3000 3900 0.018 3000
16X25 6800 0.016 3290 5600 0.016 3290
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 4
16 25
Capacitance ImpedanceΩ(MAX.) Ripple current(mArms) Capacitance ImpedanceΩ(MAX.) Ripple current(mArm s )
(µF) (25°C/100KHz) (105°C/100KHz) (µF) (25°C/100KHz) (105°C/100KHz)
5X11 56 0.30 250 47 0.30 250
6.3X11 120 0.13 405 100 0.13 405
8X12 330 0.072 760 220 0.072 760
8X16 470 0.056 995 330 0.056 995
8X20 680 0.041 1250 470 0.041 1250
10X13 470 0.053 1030 330 0.053 1030
10X16 680 0.038 1430 470 0.038 1430
10X20 1000 0.023 1820 680 0.023 1820
10X23 1200 0.022 2150 820 0.022 2150
13X20 1500 0.021 2360 1000 0.021 2360
13X25 2200 0.018 2770 1500 0.018 2770
13X30 2700 0.016 3150 1800 0.016 3150
13X35 3300 0.015 3290 2200 0.015 3290
16X20 2700 0.018 3000 1800 0.018 3000
16X25 3900 0.016 3290 2700 0.016 3290
35 50
Capacitance ImpedanceΩ(MAX.) Ripple current(mArms) Capacitance ImpedanceΩ(MAX.) Ripple current(mArm s )
(µF) (25°C/100KHz) (105°C/100KHz) (µF) (25°C/100KHz) (105°C/100KHz)
5X11 33 0.30 250 22 0.34 238
6.3X11 56 0.13 405 56 0.14 385
8X12 150 0.072 760 100 0.074 724
8X16 220 0.056 995 120 0.061 950
8X20 270 0.041 1250 180 0.046 1190
10X13 220 0.053 1030 150 0.061 979
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 5
10X16 330 0.038 1430 220 0.042 1370
10X20 470 0.023 1820 270 0.030 1580
10X23 560 0.022 2150 330 0.028 1870
13X20 680 0.021 2360 470 0.027 2050
13X25 1000 0.018 2770 560 0.023 2410
13X30 1200 0.016 3150 680 0.021 2860
13X35 1500 0.015 3290 820 0.019 2960
16X20 1200 0.018 3000 820 0.023 2730
16X25 1800 0.016 3290 1000 0.021 3010
